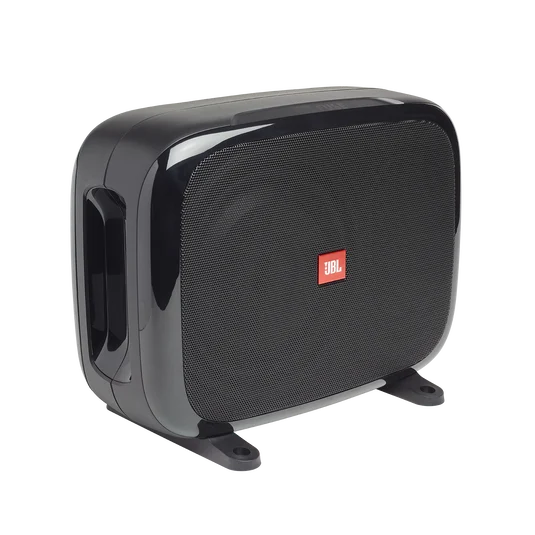

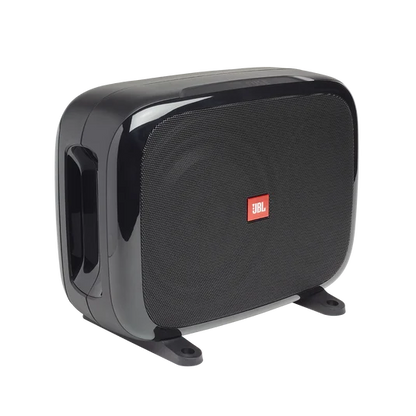

JBL Fuse is a dual-compact passive subwoofer solution that offers multiple installation options to a broad variety of vehicles. The flexible design allows Fuse to be installed as a traditional trunk sub box, to even more non-conventional installs such as stealth & split, below a false floor. The Injection-molded enclosure finished in heavy matte black textured finish along with shallow driver and passive radiator combo minimizes size and maximizes durability in even the most esoteric install requirements – all while delivering that signature JBL bumping bass.
The
JBL Fuse is
a highly versatile, dockable passive dual 8-inch car subwoofer system engineered to maximize lower-octave output in space-constrained vehicles. Unlike conventional, static subwoofer boxes, the JBL Fuse features a unique
convertible, split-apart modular chassis. It can be deployed either as a single, vertically docked twin-subwoofer enclosure in the cargo area, or unbolted and split into two separate shallow-profile enclosures to slip directly under factory front seats.
The JBL Fuse is engineered for audiophiles seeking bass reinforcement without sacrificing trunk utility or dealing with the thick dimensions of traditional enclosures:
-
Convertible Docking Architecture: Out of the box, the system arrives pre-assembled as a unified vertical enclosure held together by a mechanical anchoring system and mounting feet. If space is tight, removing the mounting hardware allows the system to split into two independent mirror-image slim enclosures.
-

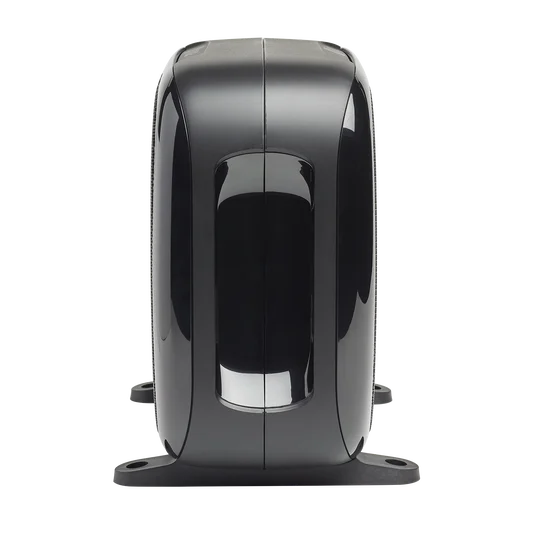

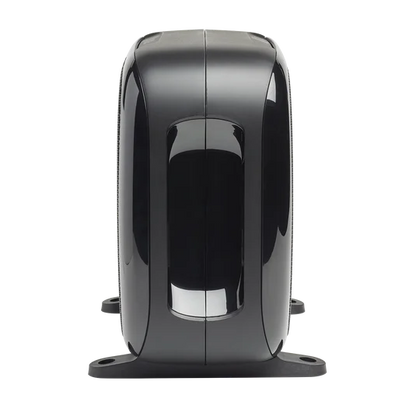

Passive Radiator Performance Expansion: Because the enclosures are exceptionally shallow, standard tuning ports are unfeasible. To counteract this, each of the two enclosures houses an 8-inch active woofer paired with an 8-inch oval passive radiator. The passive radiators utilize internal air pressure changes to reinforce low-frequency extensions, allowing the system to play lower frequencies with less amplifier strain.
-

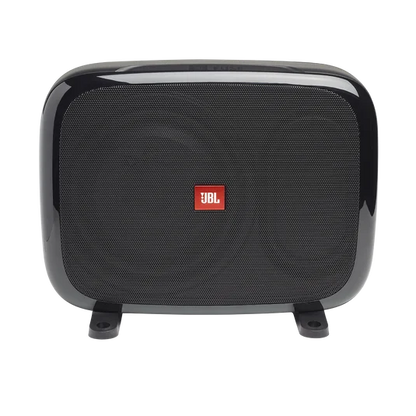

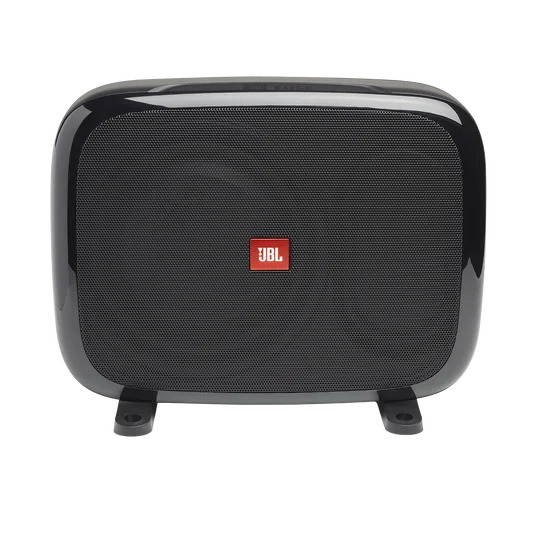

Rugged Enclosure Design: Built from heavy-duty, injection-molded glass-filled ABS plastic, the outer shells are finished in a scuff-resistant matte black textured coating. Symmetrical metal grilles cover the active driver faces, protecting them from shifting luggage in a hatchback or moving seat rails and foot traffic on the floorboard.
-
Passive System Configuration: As a passive enclosure, the JBL Fuse does not contain an internal amplifier. It requires a separate external mono or 2-channel power amplifier, along with speaker wire routed to its heavy-duty flush-mount spring terminals.
Technical Description & Specifications
According to technical configurations documented by
JBL and
Crutchfield, the mechanical parameters and electrical capabilities include:
Power Handling & Sensitivity
-
Continuous Power Handling: 200 Watts RMS (Total System)
-
Peak Power Capacity: 600 Watts
-
Sensitivity (2.83V @ 1 meter): 90 dB
-
Frequency Response Range: 30 Hz to 200 Hz
Wiring & Impedance Dynamics
The system's final load impedance shifts drastically depending on how the enclosures are physically positioned and wired to your amplifier:
-
Vertical Docked Configuration: When kept together and wired in a parallel circuit connection, the total system impedance drops to 2 ohms.
-
Separated / Split Configuration: When unbolted and split apart into two individual chambers, each discrete enclosure operates at an individual nominal impedance of 4 ohms.
Component Layout (Per Separate Chamber)
-
Active Drivers: 1 x 8-inch (200mm) shallow-mount long-throw woofer cone
-
Passive Elements: 1 x 8-inch racetrack/oval passive radiator cone
-
Cone Composites: High-rigidity polypropylene driver cones bounded by heavy-duty rubber surrounds
-

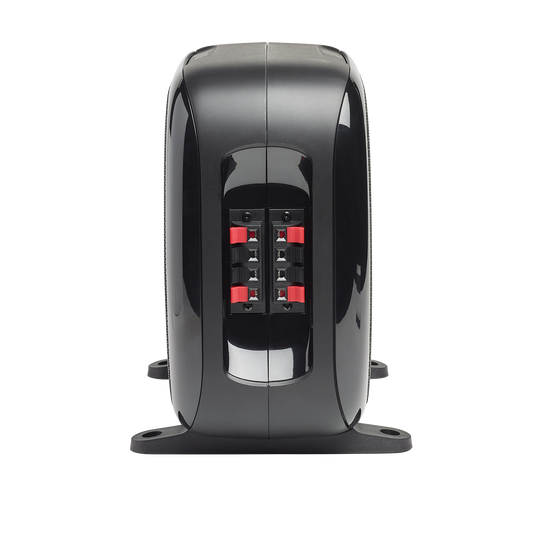

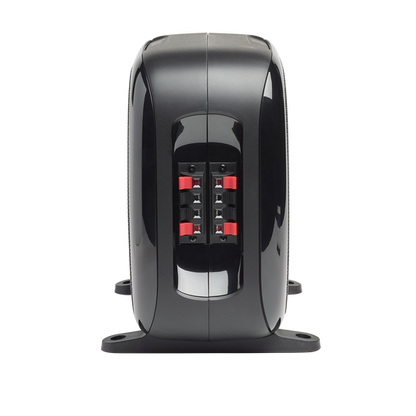

Terminal Type: Low-profile, flush-mount spring-loaded input blocks
Physical Dimensions
-
Assembled Dimensions (Combined Docked State): 13-3/4" Width x 10-1/2" Height x 5-5/8" Depth (Depth including mounting feet)
- Individual Capsule Depth (Separated State): Approximately 2-3/4" Height/Depth—shallow enough to clear low-clearance seat brackets.
