The

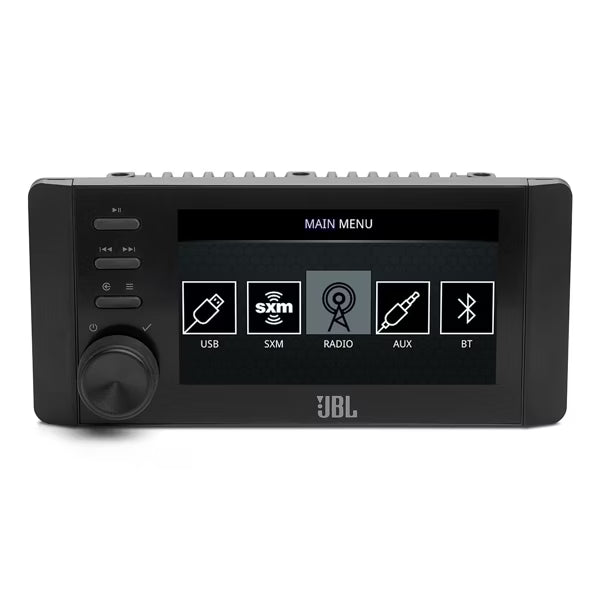

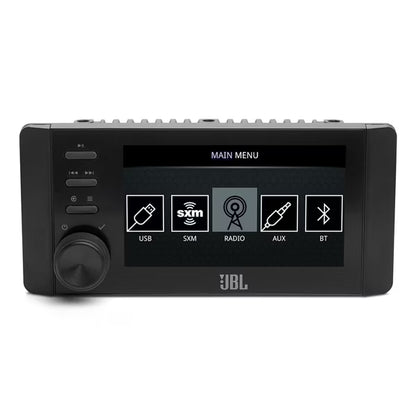

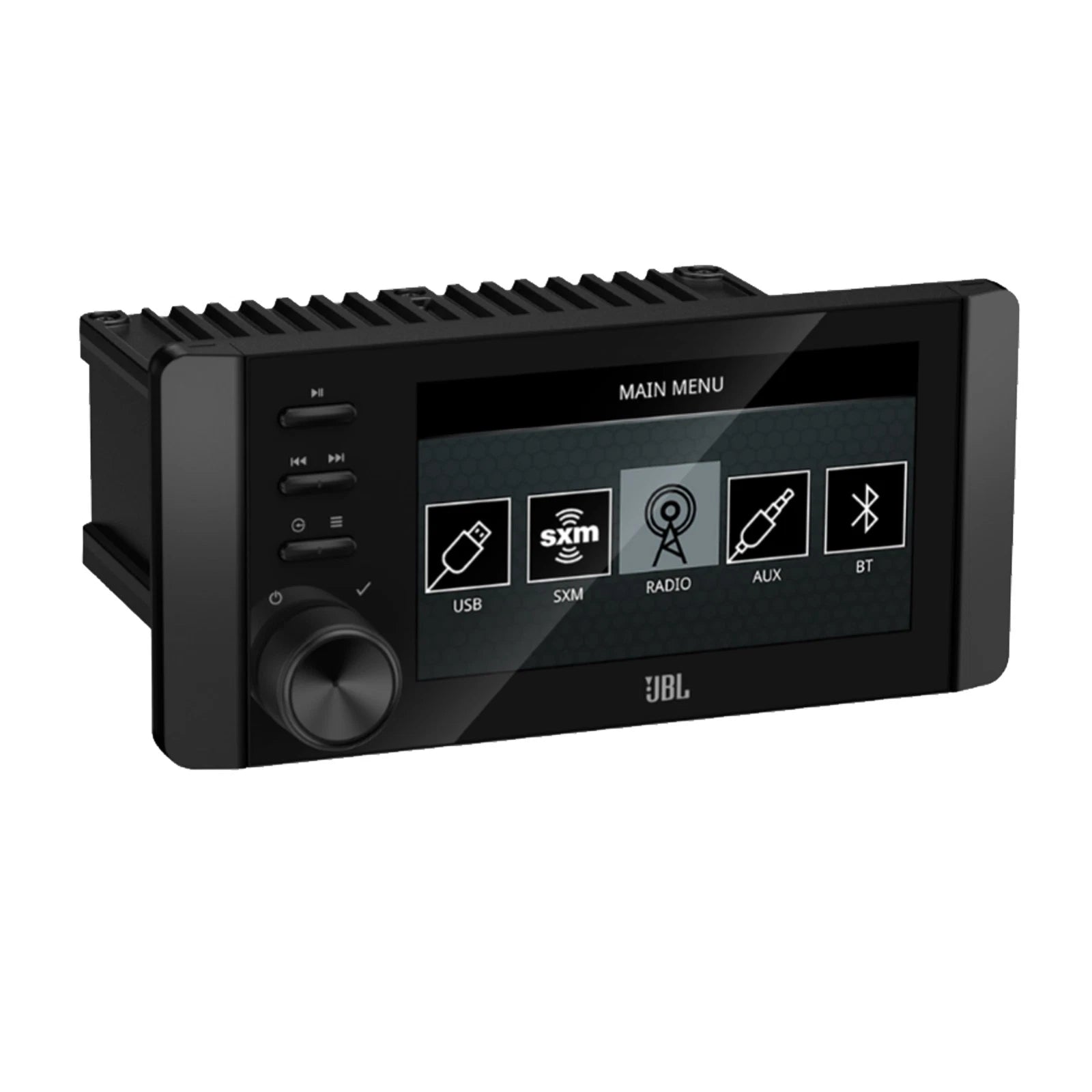

JBL JAM6500N is a flagship
4.3-inch color LCD digital media marine head unit representing the pinnacle of the
JBL Advanced Marine (JAM) audio ecosystem.
Engineered for large boats, yachts, and luxury center-consoles, this gauge-style multimedia receiver is designed from the ground up to conquer open-air acoustics. It features an IPX7-rated water-resistant glass face paired with an optically bonded display to remain perfectly crisp under bright, direct sunlight. Control is handled via five rugged, rubberized tactile buttons and a heavy-duty rotary encoder knob. It serves as a master system component that is NMEA 2000 certified, letting you manage audio playback directly from a boat’s central multi-function display (MFD) or sync with multiple JAMR6500 wired remotes across the deck.
⚙️ Technical Description
The internal design centers around a high-efficiency Class-D digital amplifier framework and a comprehensive, user-accessible Digital Signal Processing (DSP) suite.
1. Internal Power & DSP Architecture
-
High-Efficiency Class-D Amplification: Operates coolly under high-stress conditions. It outputs a stout 26 Watts RMS x 4 Channels at a standard 4-Ohm load, escalating to 43 Watts RMS x 4 Channels at 2 Ohms (10% THD). This 2-ohm stability lets you parallel-drive up to 8 total speakers seamlessly without external modules.
-
Advanced PC/DIY Tuning Suite: Integrates with the JBL Advanced Tuning Tool V1 via a Windows PC. This feature allows for granular system setup, including pre-determined or variable crossover points, output gain limiters, phase control adjustments, time delay alignment, and an output clipping indicator.
2. Advanced Multi-Zone Logic & Preamps
-
4-Zone Independent Matrices: Isolates 4 separate audio environments across a vessel. Each physical zone contains independent tone configurations, variable sub-level controls, and its own 10-band parametric/graphic equalizer.
-

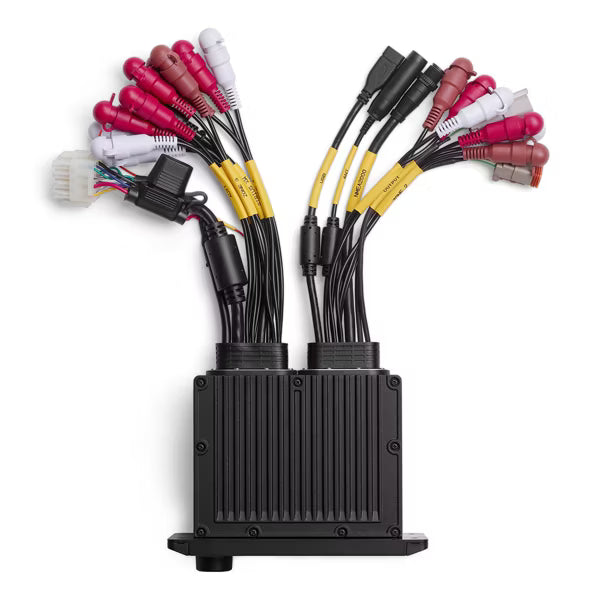

Massive Preamp Matrix: Equipped with an ultra-clean 12-channel / 4V RCA preamp output array, allowing massive custom amplifier and subwoofer layouts to be routed directly out of the back chassis.
3. Operating Metrics & Interface Specs
| Engineering Parameter
|
Technical Specification Data
|
|
Environmental Protection
|
IPX7 Waterproof Face / IPX5 Splashproof Rear Chassis
|
|
Display Matrix
|
4.3-inch glass bonded full-color LCD display
|
|
Wireless Protocols
|
High-performance Bluetooth with up to a 30-yard transmission range
|
|
Network Interface
|
Standard Micro-C NMEA 2000 connector
|
|
Media Inputs
|
Rear-panel USB-C, Aux-in, and MFi Apple iPhone/iPad/iPod ready
|
|
Radio Capabilities
|
High-performance AM/FM tuner, SiriusXM-Ready, and DAB+ ready
|
|

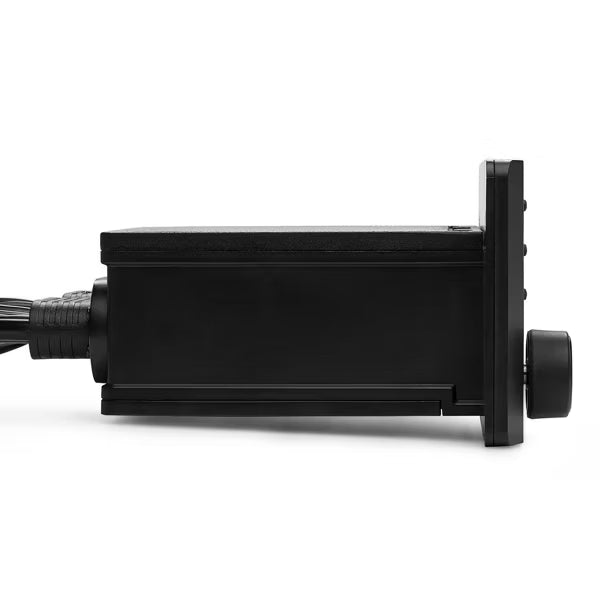

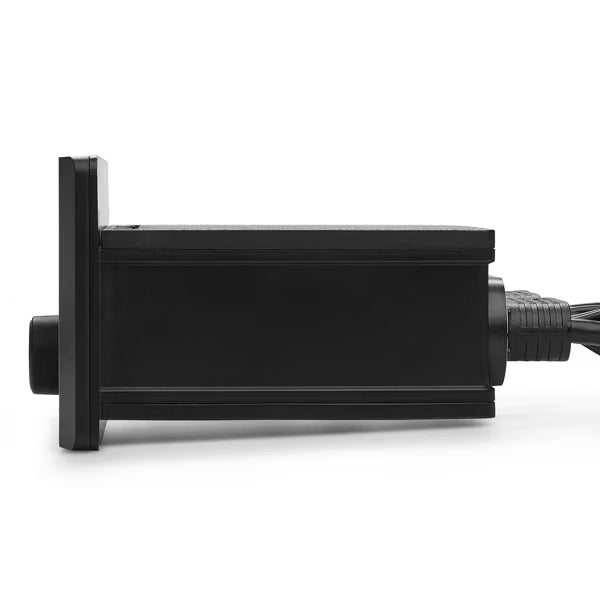

Mounting Form Factor
|
Supports both traditional surface and sleek flush-mount configurations |
