The
JBL Legend 700 is

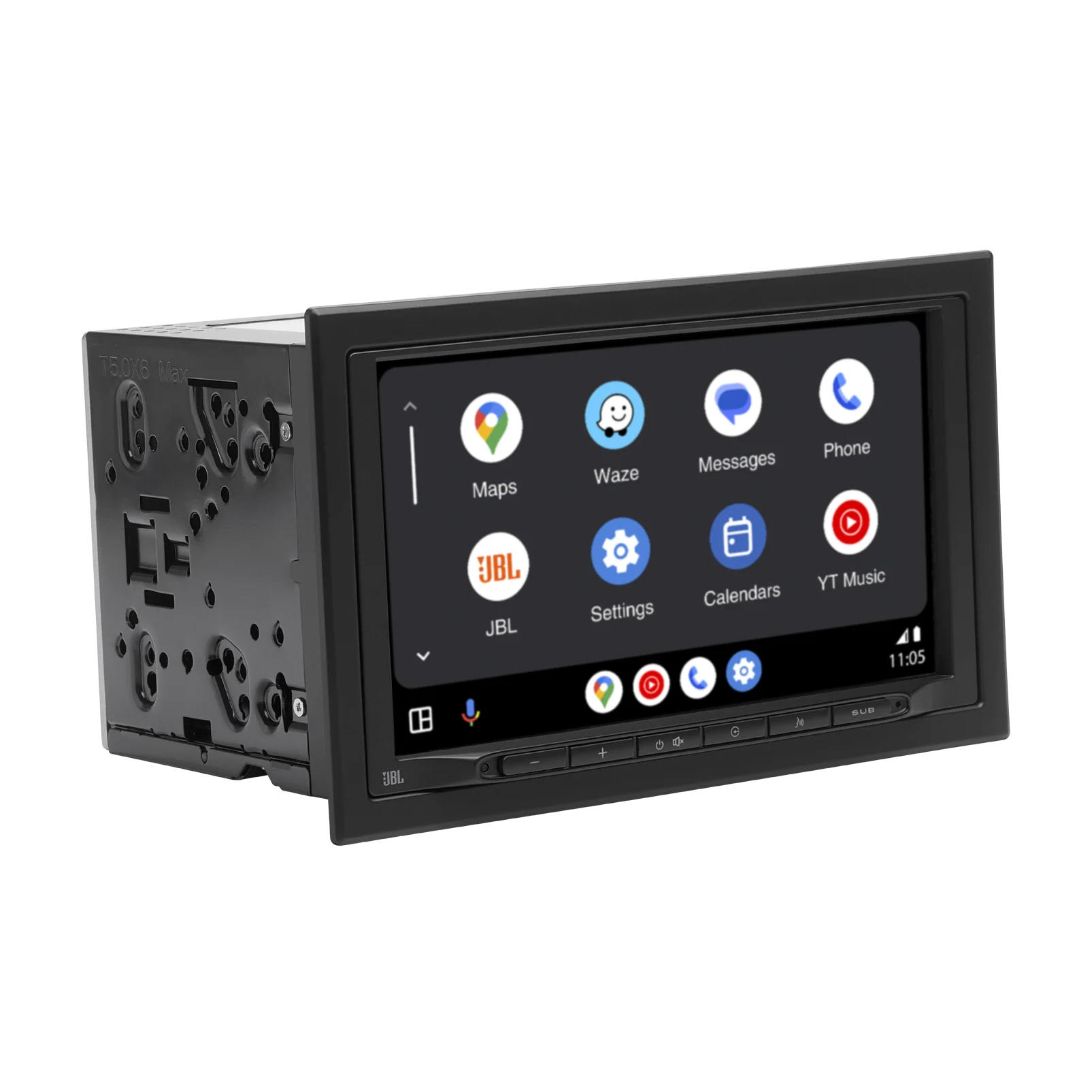

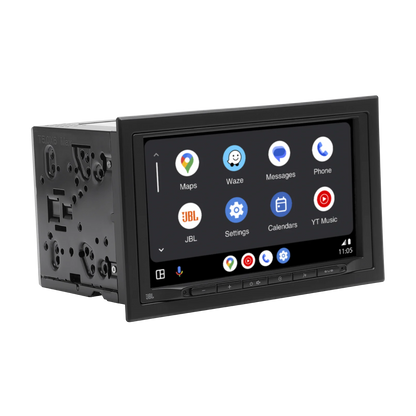

a feature-rich, double-DIN digital multimedia car stereo receiver equipped with a high-resolution 7-inch capacitive touchscreen display. Designed as a mechless unit (it does not play physical CDs or DVDs), it functions as a modern hub for smartphone integration and premium audio processing.
Design & Connectivity
-
Wireless Smartphone Integration: Features built-in, wireless Apple CarPlay and wireless Android Auto, giving you hands-free control over navigation, messaging, and apps without a USB cable.
-
Bluetooth 5.0: Supports wireless audio streaming, hands-free phone calls, phonebook sharing, and ID3 text tags (displaying song title and artist information).
-
Physical Inputs: Features a rear-facing USB interface and a standard auxiliary input for direct media playback from flash drives or external devices.
-
Camera Input: Features a dedicated backup camera input with automatic screen-switching triggers when shifting the vehicle into reverse.
Electro-Acoustic Specs & Audio Control
-
Power Output: Built-in amplifier delivering 4 x 50 Watts maximum power peak output.
-
Preamp Layout: High-voltage 4V/6-channel preamp outputs (dedicated front, rear, and independent subwoofer controls) to clean up signals running to external amplifiers.
-
Sound Tuning: Built-in 16-band graphic equalizer coupled with sophisticated digital time alignment to correct acoustic delays based on your vehicle's seating positions.
-
Radio Tuner: Traditional AM/FM tuner with 30 station presets (18 FM / 12 AM) alongside digital DAB tuning capabilities.
Display & Interface Architecture
-

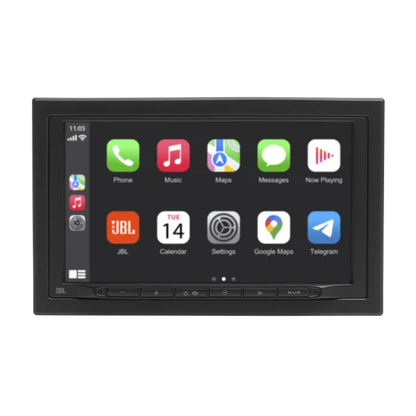

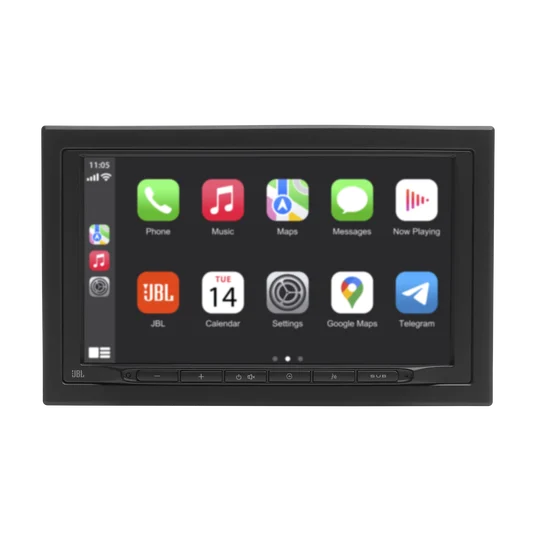

Panel Assembly: 7.0-inch diagonal, high-contrast Capacitive Touch Display with multi-touch capability. Unlike resistive screens, it utilizes electrostatic field distortion to detect inputs, ensuring immediate response and higher optical clarity.
-

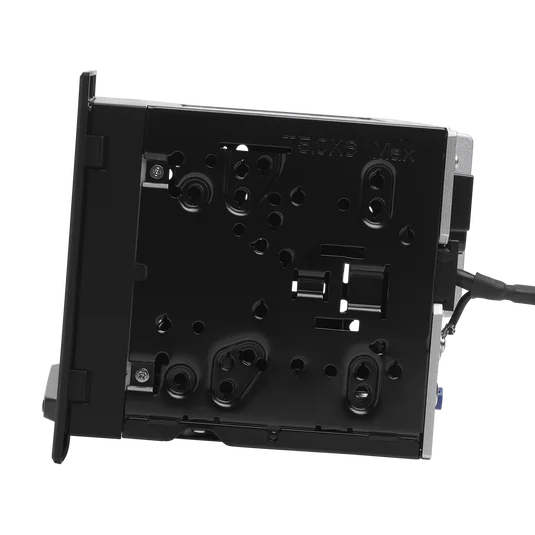

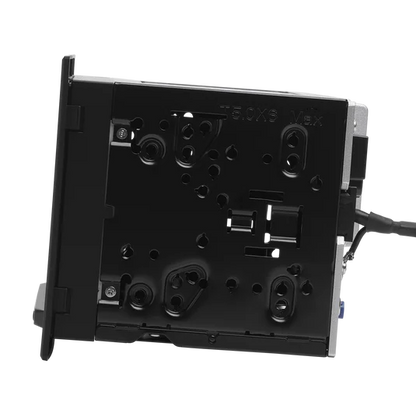

Chassis Design: Standard 2-DIN form factor featuring a shallow mechless chassis (no CD/DVD deck mechanism), which optimizes heat dissipation and provides ample clearance for complex behind-dash wiring.
-
Illumination Control: Backlit physical or soft-touch buttons on the left perimeter interface directly with the vehicle's illumination wire, allowing automatic dimming matching the headlight switch status.
Hardware & Digital Connectivity
-
Wireless Network Modules: Equipped with integrated 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 baseband controllers. It utilizes a dual-antenna matrix to manage high-bandwidth wireless mirroring for Apple CarPlay and Android Auto protocols simultaneously.
-

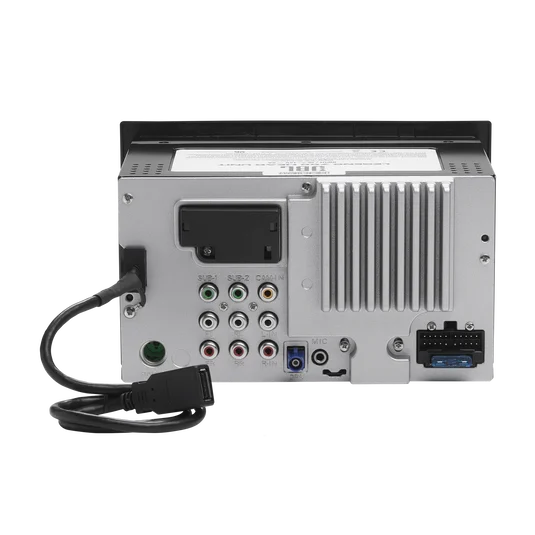

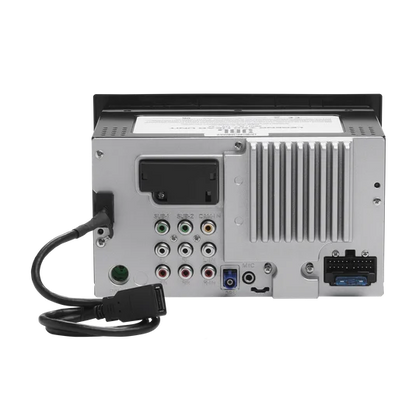

Hardware Ingress Points:
-
Rear USB Port: High-speed USB 2.0 interface supporting mass storage class devices (FAT32/exFAT formatting) and providing stable DC 5V/1.5A power delivery for device charging.
-
AV Inputs: Rear-mounted composite video/audio inputs alongside a dedicated RCA backup camera input featuring reverse-gear gear-sensing trigger wire functionality.
Audio Processing & Signal Pathway
-
Internal Amplifier Stage: Class-AB integrated circuit power amplifier delivering 20 Watts RMS x 4 channels (into a 4-Ohm load at <1% THD+N) with a maximum peak output of 50 Watts x 4.
-
Pre-Amplifier Architecture: High-voltage 4.0V RMS line-level outputs across 6 discrete RCA channels (Front Left/Right, Rear Left/Right, Subwoofer Left/Right). The high-voltage floor minimizes induced electromagnetic noise when feeding external multi-channel amplifiers.
-
DSP Engine (Digital Signal Processing):
-
Equalization: 16-Band Graphic EQ with adjustable center frequencies to flatten in-cabin acoustic peaks.
-
Time Alignment: Digital time delay adjustment down to the millisecond, compensating for off-axis speaker distances relative to the primary listening position.
-
Crossover Networks: Integrated High-Pass Filters (HPF) for cabin speakers and Low-Pass Filters (LPF) for the subwoofer channel with selectable slopes (6dB, 12dB, or 24dB per octave).
Codec & Tuner Specifications
-
Digital Media Decode Engine: Native hardware decoding of lossless audio formats including FLAC and WAV, alongside lossy compression standards like MP3, WMA, and AAC. Supports MPEG1/2/4 and H.264 video decoding containers.
-
RF Tuner Subsystem: High-sensitivity AM/FM receiver module with Phase-Locked Loop (PLL) synthesizer tuning and RDS (Radio Data System) data extraction. Includes digital DAB/DAB+ band compatibility for regions utilizing digital terrestrial radio broadcast standards.
