The
JBL REM1 (frequently distributed as the cross-branded
Infinity INFREM1 under parent company Harman) is a compact, weather-resistant
wired marine and powersports remote control.
Designed to extend user accessibility on boats, yachts, and off-road vehicles, this remote allows users to manage audio playback from alternative physical locations such as the swim platform, transom, or wake tower without stepping into the main cabin
. Built specifically for open-air installations, the REM1 features a completely sealed face designed to handle continuous sun glare, heavy rain, salt spray, and rough surface splashes.
⚙️ Technical Description
The device functions as an analog extensions controller utilizing sealed micro-tack physical hardware to pass direct multi-function logic back to the host head unit.
1. Hardware Interface & Control Layout
-

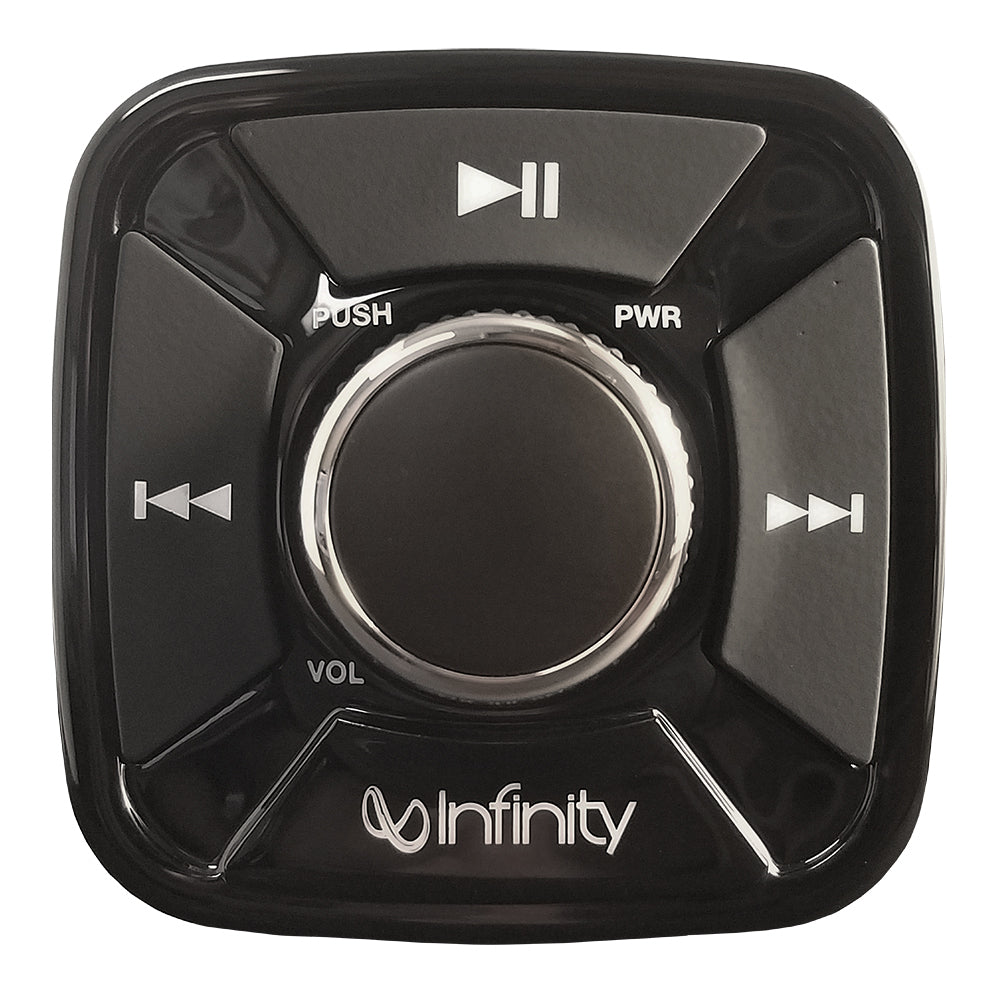

3-Way Multi-Function Rotary Knob: Features a robust central rotary encoder designed for error-free mechanical adjustments while the boat is in motion. Toggles between Power On/Off, Volume Up/Down, and localized Zone Volume Control.
-
Tactile Menu Keypad: Features a series of backlit silicone rubber membrane buttons built over sealed tack switches. Physical tracking keys include: Play/Pause, Mute, Radio Tuning, Previous/Next Track, and Fast Forward/Rewind.
2. Wiring & System Topology
-
Standard Extension Support: Ships with an attached short connection pigtail harness. On larger vessels, it interfaces with standard Milennia-style 6-pin DIN multi-conductor extension lines (such as the 20-foot REX20-6 or 30-foot REX30-6 cords).
-
Multi-Node Capability: Can be parallel-split using a standard Y-cable adapter (KSREM-Y) to install multiple REM1 stations across the same deck.
3. Operating Metrics & Cutout Dimensions
| Mechanical Metric
|
Technical Specification
|
|
Environmental Protection
|
Weather-Resistant (Resists heavy rain/sprays; not submersible)
|
|
Controller Face Dimensions
|
2.0" Width x 2.0" Height
|
|
Required Cutout Diameter
|
1.375" to 1.4375" Round Diameter
|
|

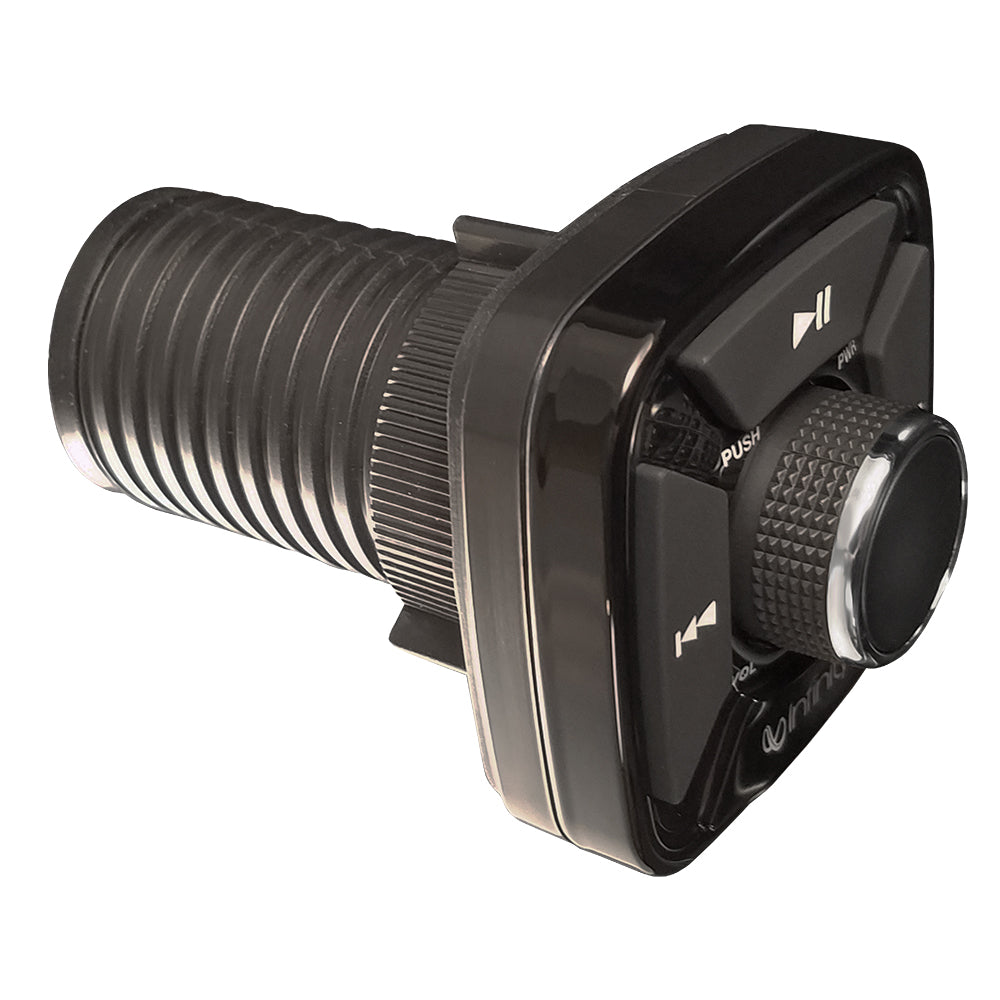

Mounting Configurations
|
Supports flush-mount or surface-mount (surface requires a 1/2" wire pass-through hole)
|
|
Host Receiver Compatibility
|
Works with select remote-ready JBL and Infinity source decks (e.g., JBLPRV275, INFPRV315.2, REFPRV415, KAPPRV515, INFPMBB500) |
