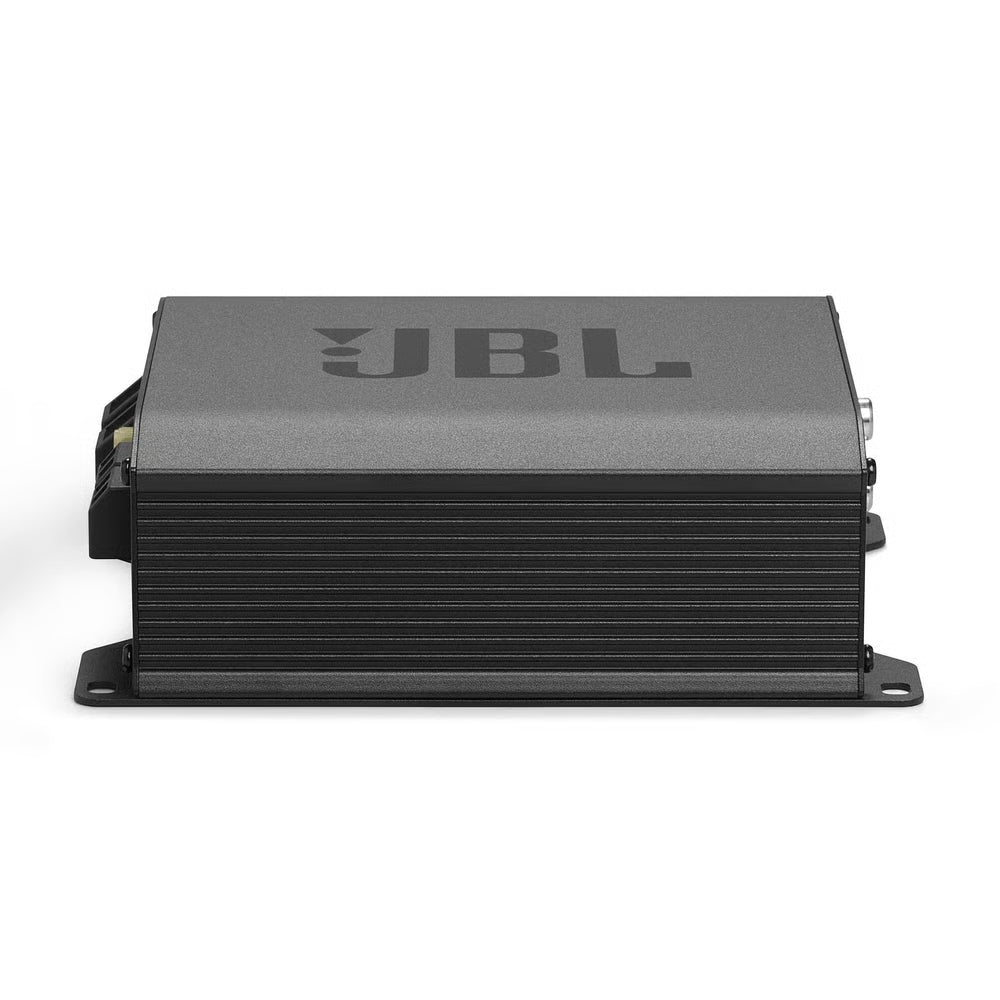

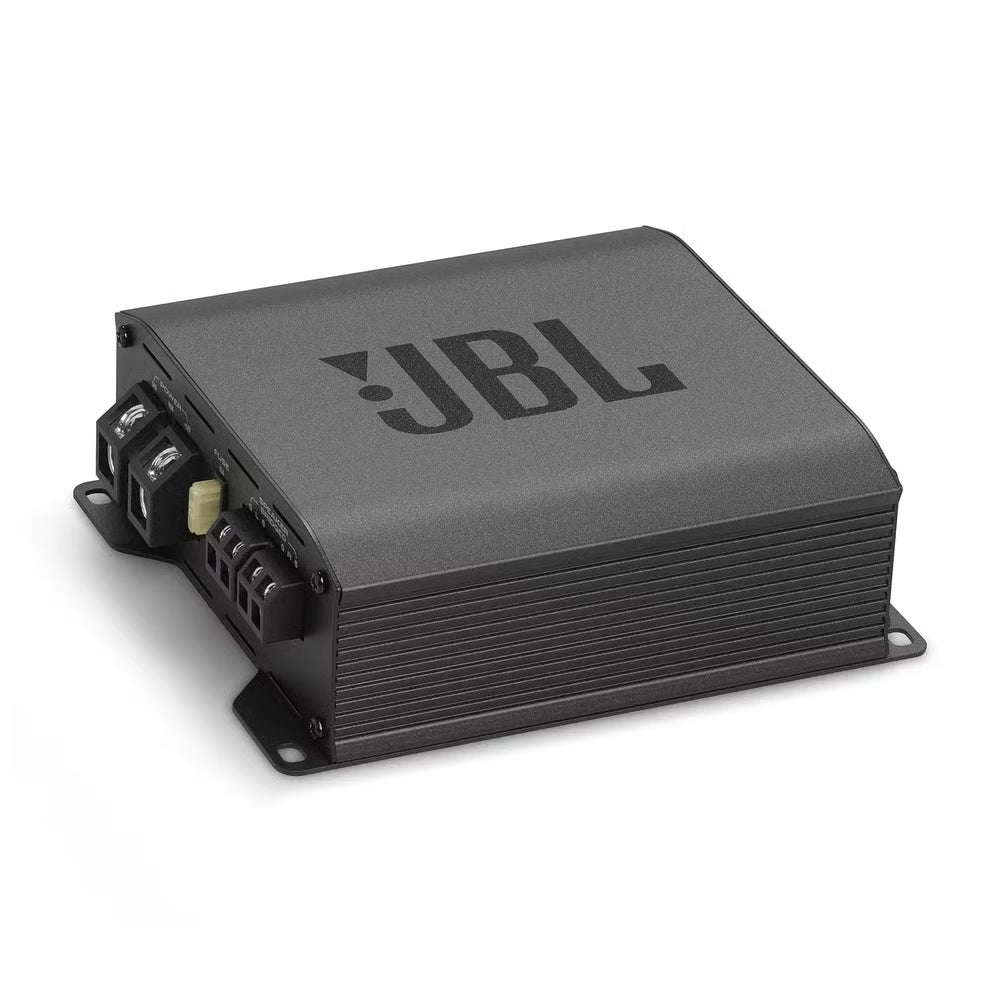

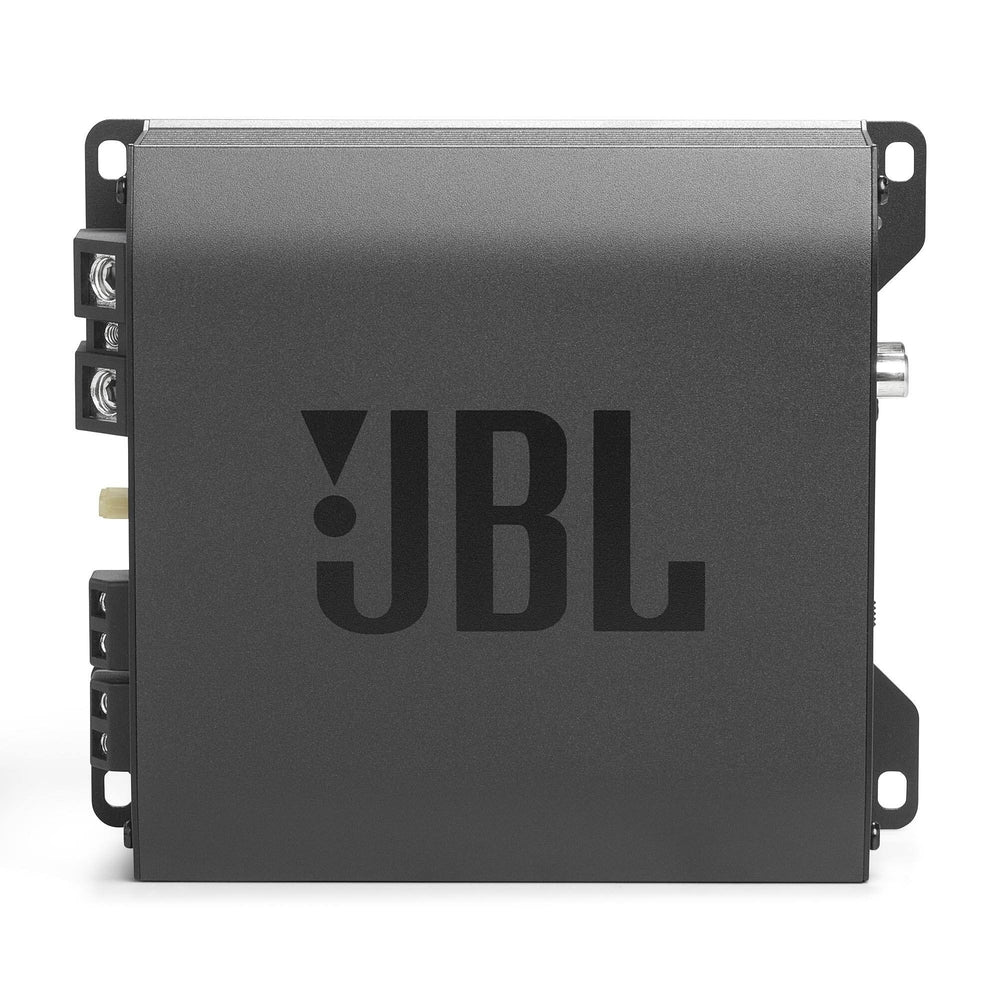

The JBL Stage GT 80021 is a compact, high-efficiency 2-channel Class-D amplifier engineered to deliver maximum power with a minimal footprint. Built for easy integration into modern vehicles, its slim design allows it to fit under seats or inside tight panels without sacrificing audio performance.
By utilizing advanced Class-D circuitry, the amplifier converts electrical energy into raw power with very little heat dissipation. This means it draws less current from your vehicle's charging system while providing a clean, continuous output. It is highly versatile, allowing you to drive a pair of full-range door speakers or bridge the channels together to run a single car subwoofer. It also features built-in smart integration technology to connect seamlessly with both factory car radios and aftermarket stereos.
Technical Specifications
-
Peak Power Output: 800 Watts Maximum
-
RMS Power Output (4 Ohms): 80 Watts x 2 channels
-
RMS Power Output (2 Ohms): 130 Watts x 2 channels
-
Bridged Power Output (4 Ohms): 260 Watts x 1 channel
-
Minimum Speaker Impedance: 2 Ohms unbridged, 4 Ohms bridged
-
Total Harmonic Distortion (THD+N): 1% at rated power
-
Frequency Response: 20Hz to 20kHz (±1dB)
-

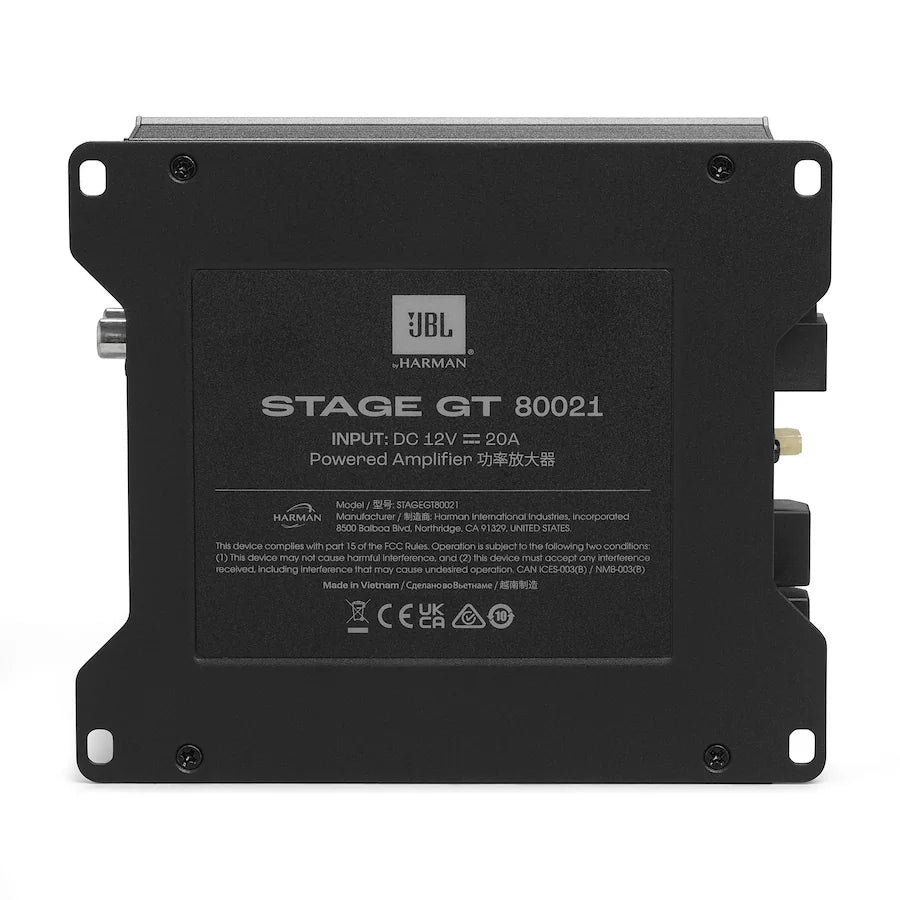

Operating Voltage: 9 Volts to 16 Volts DC
-

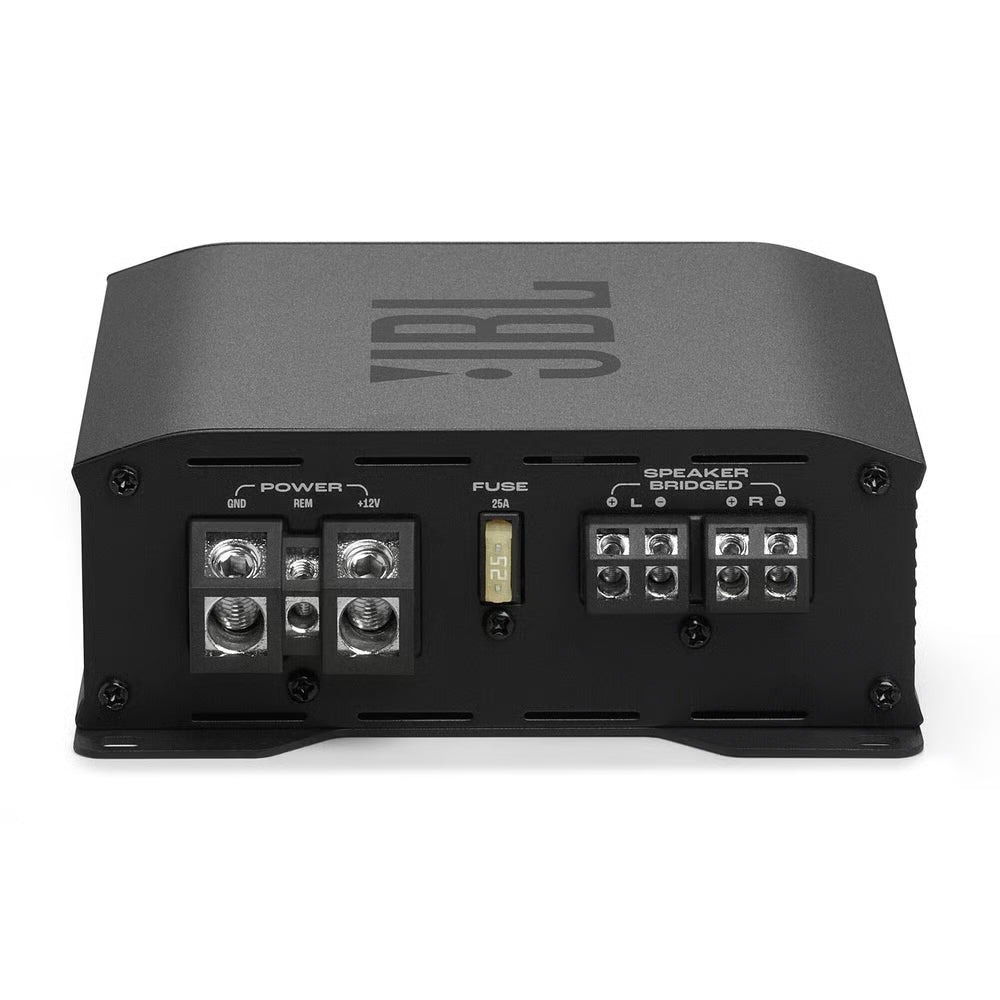

Onboard Fusing: 1 x 25-Amp ATC/ATO fuse
-
Maximum Power/Ground Wire Input Size: 10 AWG terminals
-
Physical Dimensions: 156.9mm x 49.5mm x 132.5mm (approx. 6.18" x 1.95" x 5.22")

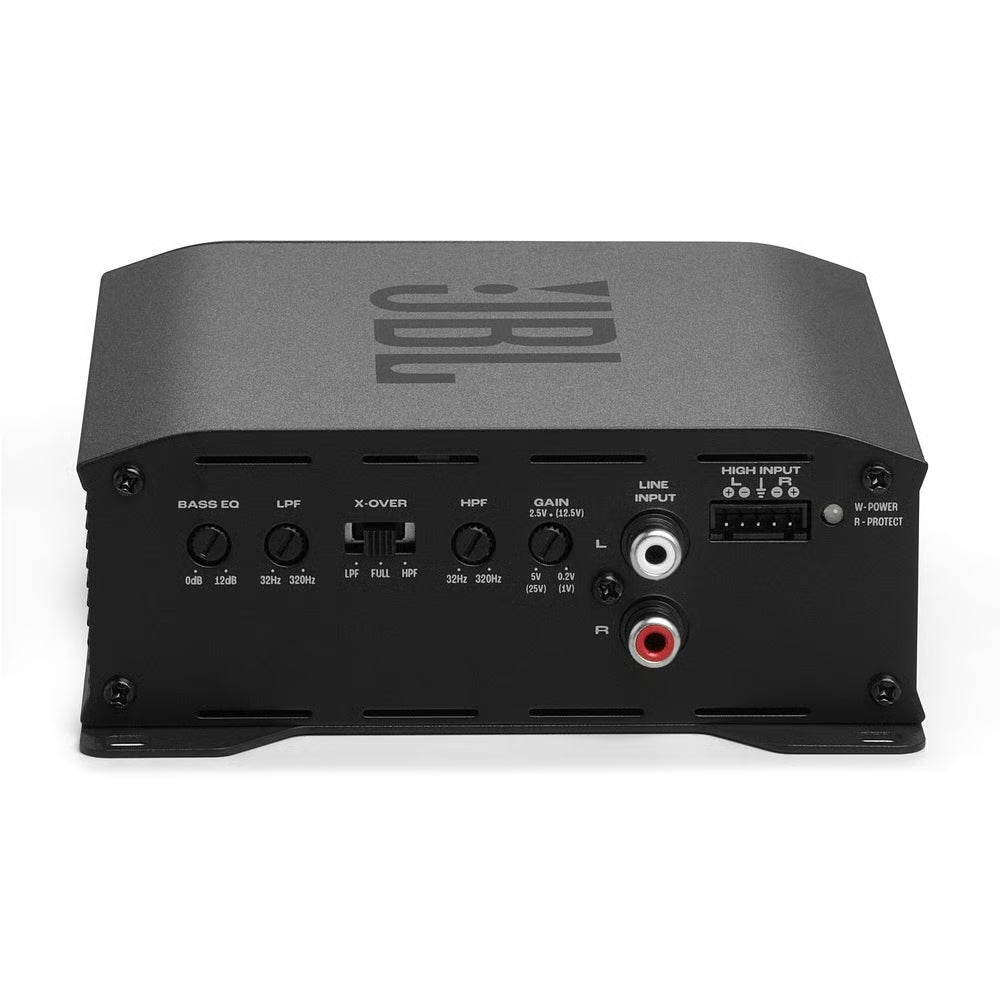

Audio Controls & Signal Tuning
-
Input Sensitivity Range (Low-Level / RCA): 0.2 Volts to 5 Volts
-
Input Sensitivity Range (High-Level / Speaker Wire): 1 Volt to 25 Volts
-
Crossover Selector Switch: Three positions — Low-Pass Filter (LPF), High-Pass Filter (HPF), and Full Range (AP)
-
Variable Crossover Frequency: Adjustable dial from 32Hz to 320Hz
-
Adjustable Bass Boost EQ: 0 to +12dB variable boost centered at 45Hz
Advanced Integration & Safety Features
-
OEM Load Detect Compatibility: Built-in smart circuitry mimics a physical factory speaker load. This prevents factory car radios from muting or throwing an audio error code when you tap into the speaker wires for an upgrade.
-
Start/Stop Engine Compatibility: Designed to tolerate sudden drops in electrical current. The amplifier stays powered on and playing without clicking or cutting out when your vehicle cuts the engine at a red light.
-
Five-Way Multi-Protection Circuitry:
-
DCP: Deep Circuit Protection against internal short-circuits.
-
OVP: Over-Voltage Protection to guard against electrical spikes.
-
UVP: Under-Voltage Protection to prevent performance failure during low battery conditions.
-
OCP: Over-Current Protection against speaker voice-coil issues.
-
OTP: Over-Temperature Thermal Protection to safely shut down the amp if it overheats.
Original Factory Box Contents
If you have a brand-new retail package, it should contain:
-
(1) JBL Stage GT 80021 Amplifier
-
(1) High-level speaker input wire harness with Molex plug
-
(2) Spare 25-Amp fuses
-
(4) Metal mounting screws with washers
-
(2) Allen adjustment keys
-
(2) JBL brand stickers
-
(1) Instruction manual and safety documentation sheet
