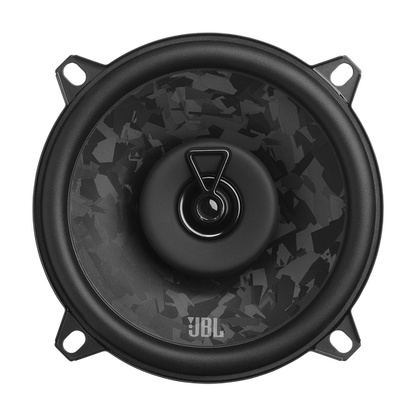

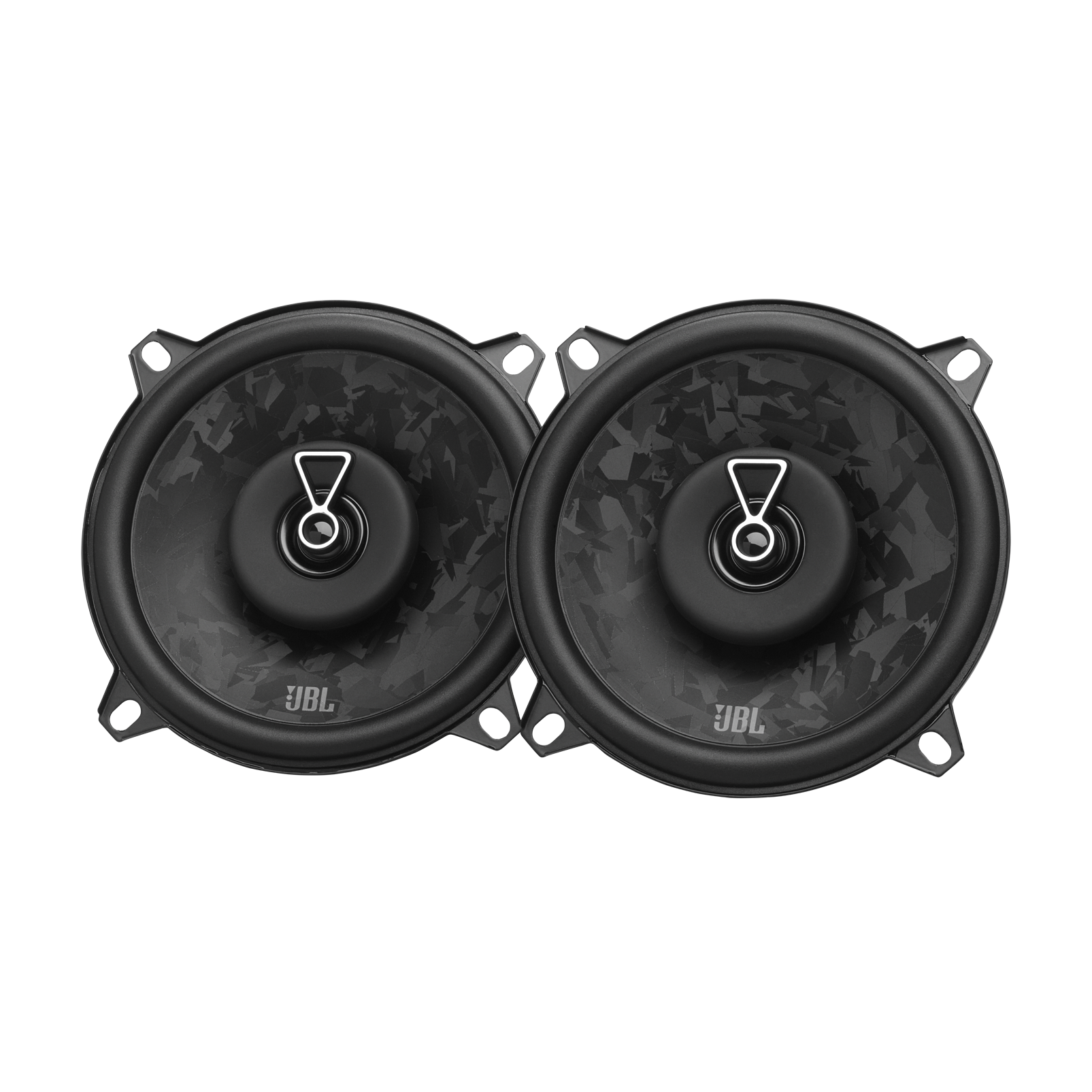

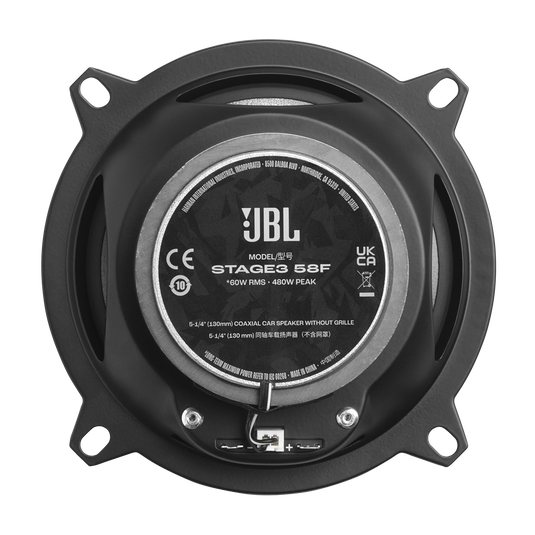

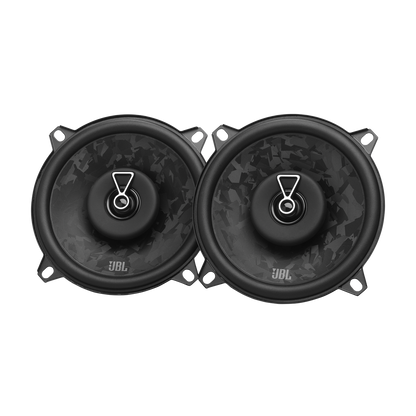

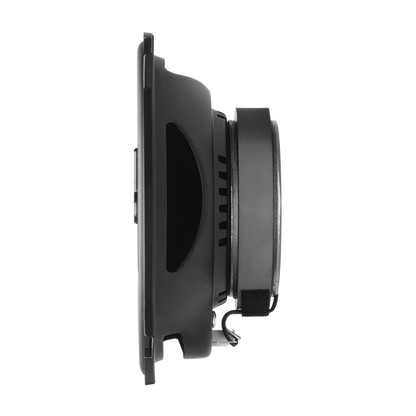

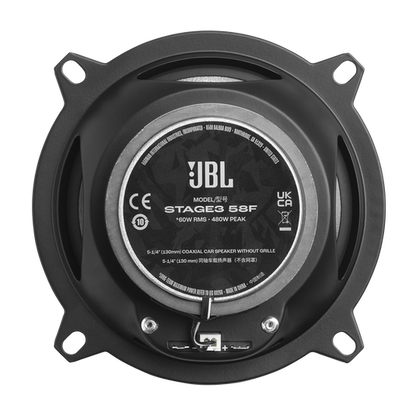

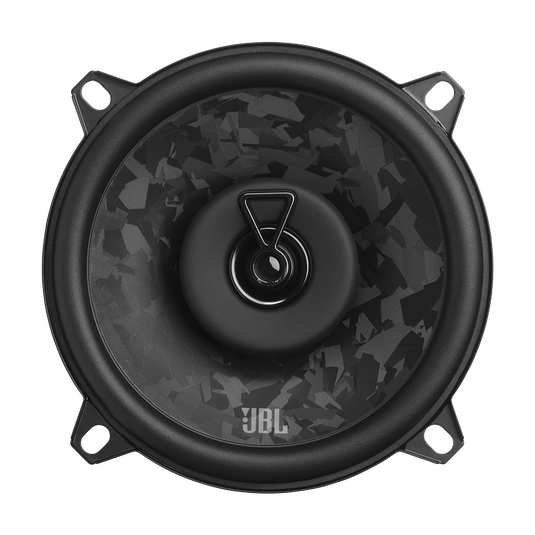

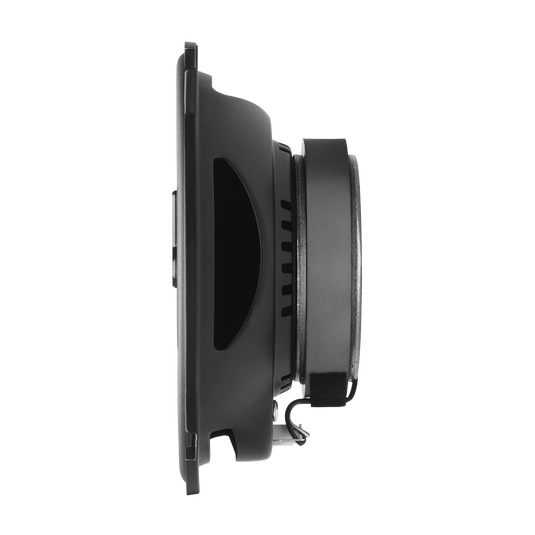

The

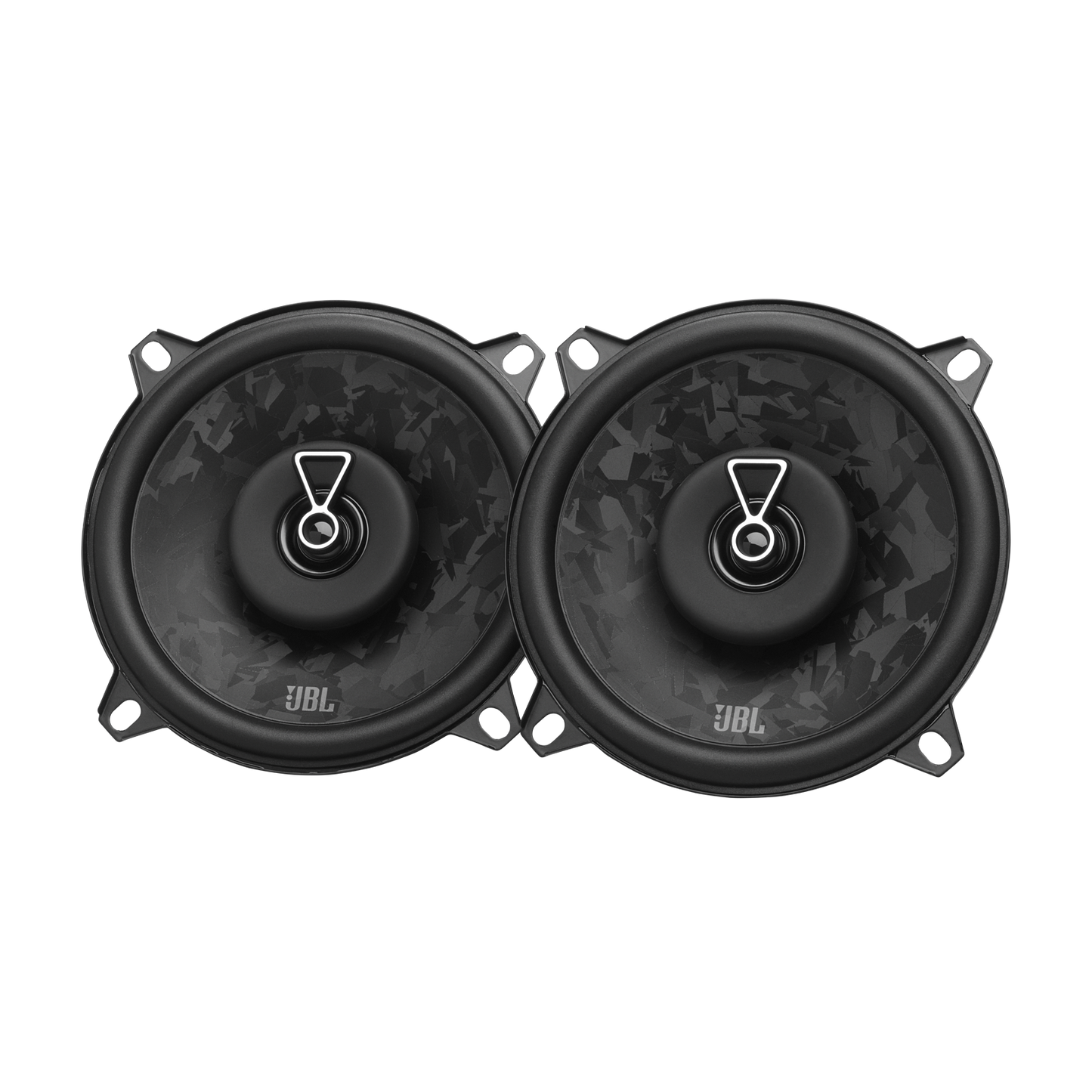

JBL Stage3 58F is a high-performance
5-1/4 inch (130mm) 2-way coaxial car speaker kit. Just like the smaller 48F model, it belongs to the second generation of Stage3 speakers and is sold as a pair
without grilles. It is engineered for quick, streamlined installation directly underneath factory door trim panels, dashboards, or side panels where physical space is narrow.
Technical Specifications Breakdown
The 58F drops deeper into the lower frequencies and handles slightly more power than its smaller sibling, utilizing its larger frame to push more air:
| Metric
|
Technical Value
|
Acoustic Impact
|
|
Speaker Size
|
5.25 inches (130mm)
|
A universal mid-size footprint common in modern and classic vehicle doors.
|
|
Power Handling (RMS)
|
60 Watts per speaker (120W per pair)
|
Built to comfortably handle aftermarket amplification while still efficient on stock head units.
|
|
Power Handling (Peak)
|
480 Watts per speaker (960W per pair)
|
Safely buffers extreme musical spikes without overloading.
|
|
Sensitivity (@ 2.83V/1m)
|
89 dB
|
Extracts higher volume from low-wattage stock speaker wires.
|
|
Frequency Response
|
55Hz – 20kHz
|
Extends lower into the frequency spectrum for punchier, more satisfying bass.
|
|
Nominal Impedance
|
4 Ohms (True 4-Ohm Technology)
|
Pulls maximum clean wattage by compensating for restrictive factory wiring.
|
Component-Level Engineering Breakdown
-
Expanded Plus One™ Woofer Architecture: Utilizing HARMAN's patented design, the speaker pushes its rubber surround closer to the edge of the basket. This yields up to a 35% increase in effective cone surface area over standard 5.25" aftermarket speakers, resulting in stronger low-frequency presence and mid-bass punch.
-
Laser-Etched Glass-Fiber Cone: The speaker’s main diaphragm consists of a polypropylene core blended with 10% glass fiber. The laser-etched treatment optimizes the structural rigidity of the driver, preventing cone distortion when you crank up the music.
-
PEI Balanced Dome Tweeters: Crisp and detailed high-frequencies are handled by polyetherimide (PEI) dome tweeters. PEI provides top-tier heat dispersion, stabilizing your high notes so vocals and cymbals remain perfectly smooth and spatial across the vehicle cabin.
- Eco-Conscious Infrastructure: Reflecting modern manufacturing standards, the physical basket elements integrate recycled plastics, use entirely PVC-free speaker wiring, and ship in sustainable boxes printed with soy-based inks.
