The
JBL Stage3 68C is

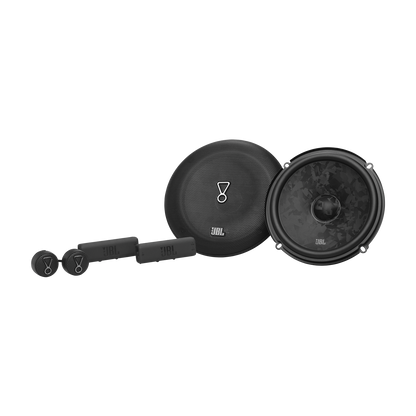

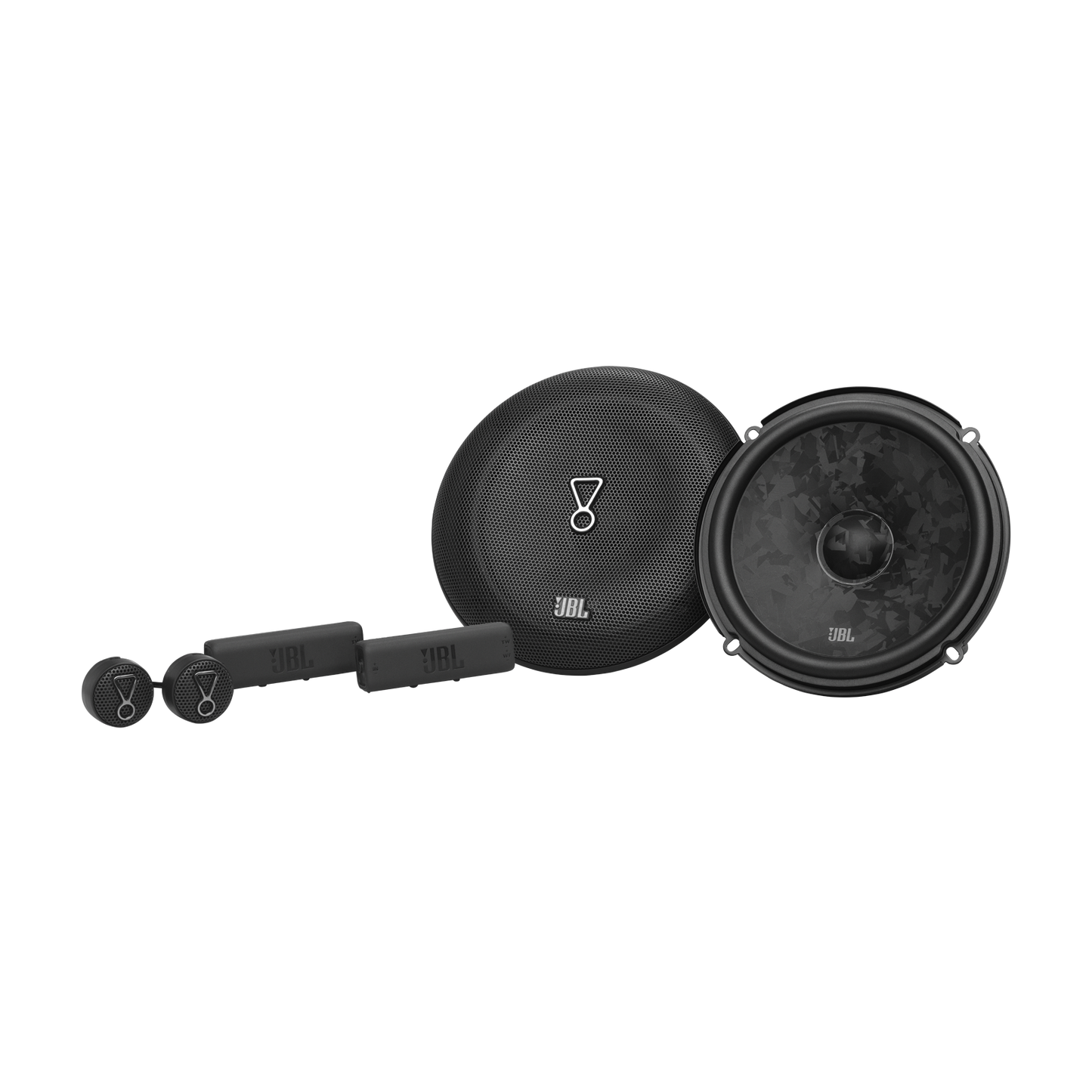

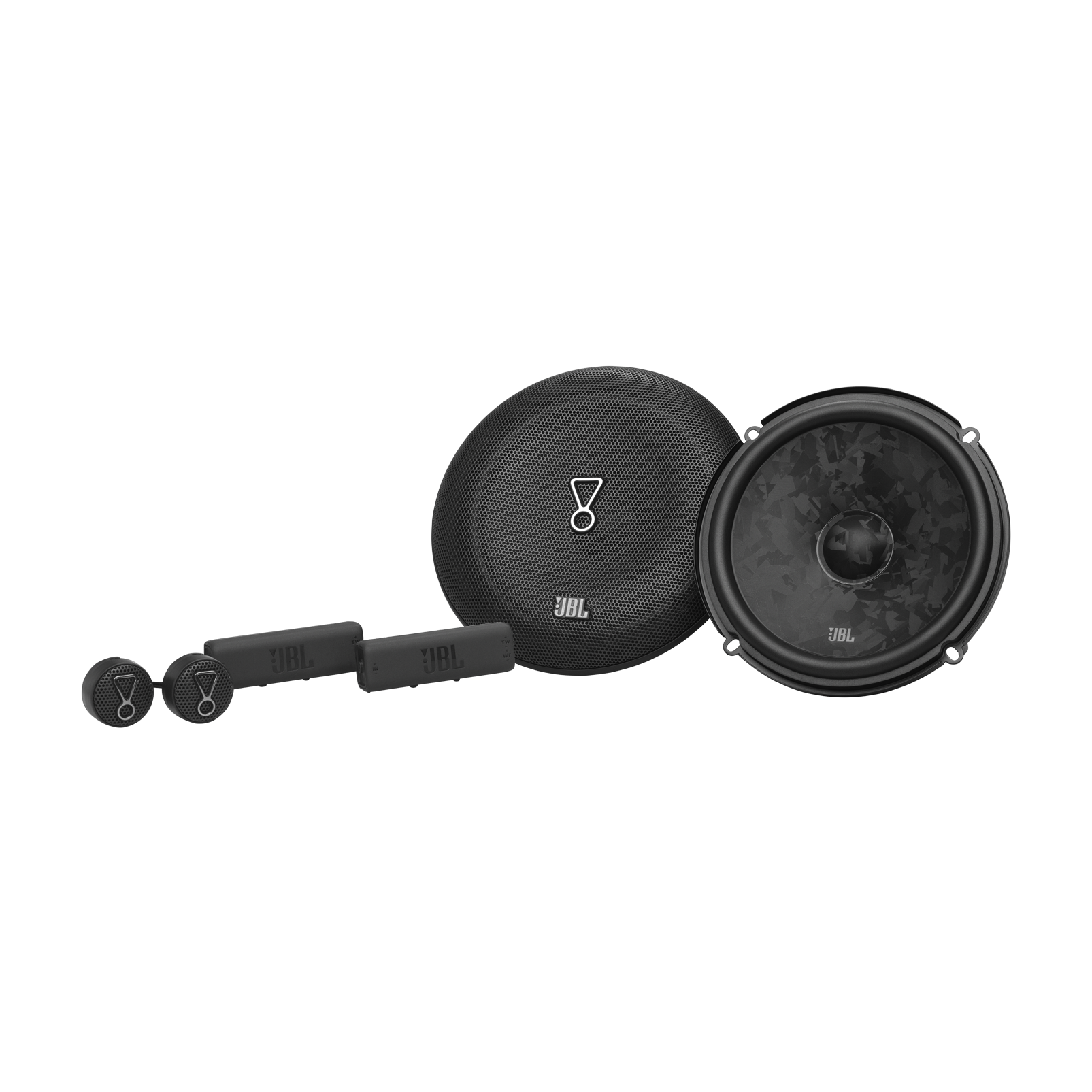

a high-performance 6.5-inch (165mm) 2-way component car speaker system. Unlike the standard coaxial models in the Stage3 line, the 68C is a component kit that separates the woofer from the tweeter. This design allows you to position the drivers independently inside your vehicle to build a much wider, more realistic front soundstage. This package is

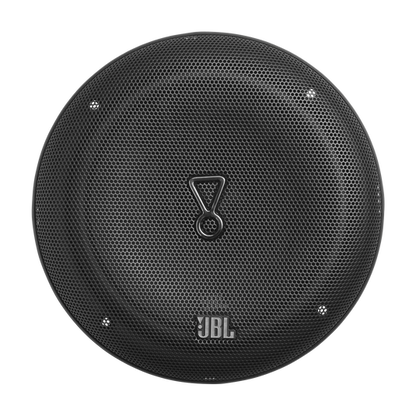

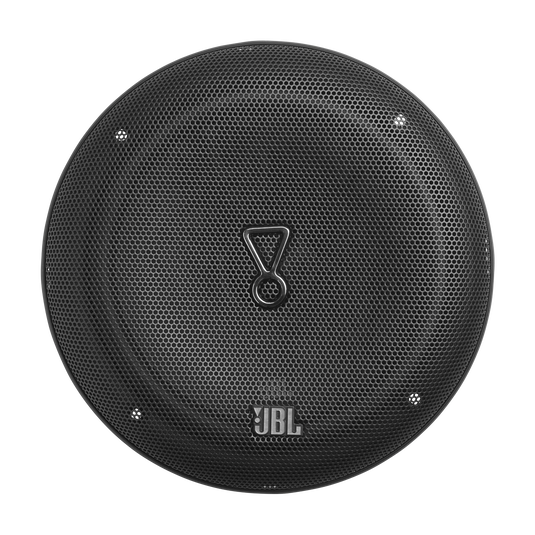

sold with grilles included.
Technical Specifications Breakdown
The 68C steps up considerably in power handling and continuous output capabilities compared to smaller models in the lineup:
| Metric
|
Technical Value
|
Acoustic Impact
|
|
Speaker Size
|
6.5 inches (165mm)
|
The standard front-door footprint for modern vehicles, maximizing cabin air displacement.
|
|
Power Handling (RMS)
|
95 Watts per speaker (190W per pair)
|
Built to thrive on high-power aftermarket amplifiers while remaining highly efficient.
|
|
Power Handling (Peak)
|
760 Watts per speaker (1520W per pair)
|
Extreme burst threshold protecting the drivers from clipping or high-volume power spikes.
|
|
Sensitivity (@ 2.83V/1m)
|
91 dB
|
Higher sensitivity means it gets loud easily, extractable by stock head units or external amps.
|
|
Frequency Response
|
55Hz – 20kHz
|
Flat, full-range reproduction delivering deep bass tones all the way to crystal-clear high notes.
|
|
Nominal Impedance
|
4 Ohms (True 4-Ohm Technology)
|
Low-impedance voice coils draw maximum clean power by countering thin vehicle wiring.
|
Component-Level Engineering Breakdown
-
Edge-Driven Silk Dome Tweeters: While standard coaxial Stage3 models use PEI balance domes, the premium component 68C upgrade features separate edge-driven silk dome tweeters. Silk naturally reduces structural harmonic distortion, providing a significantly smoother, wider, and completely fatigue-free high-frequency response.
-

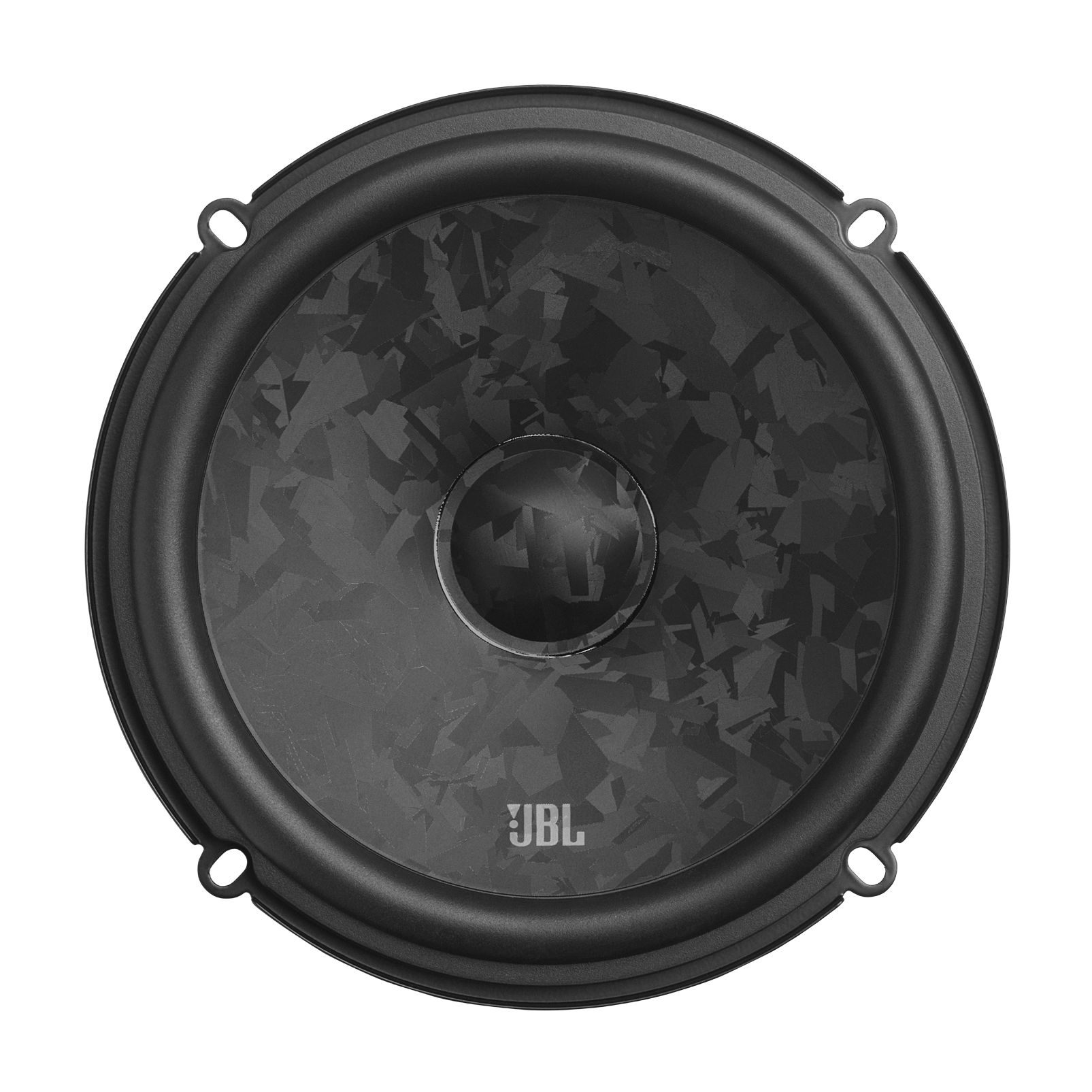

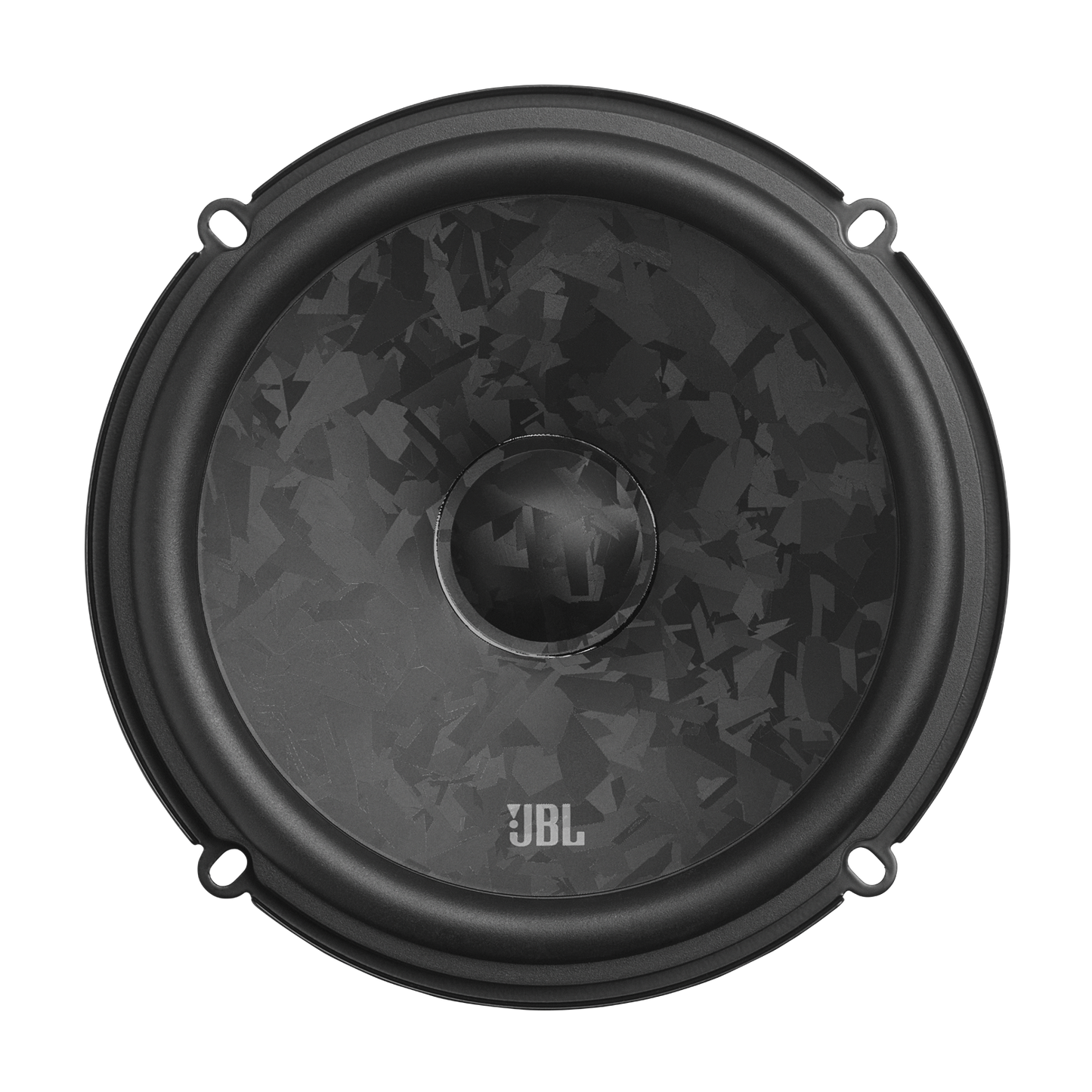

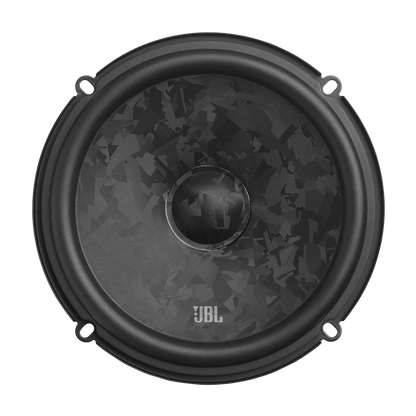

Laser-Etched Glass-Fiber Plus One™ Woofer: The mid-bass driver relies on HARMAN's patented Plus One™ cone shape to claim up to a 35% increase in total cone surface area within the same 6.5" frame. Made from a polypropylene blend reinforced with 10% glass fiber, the laser-etched treatment gives the cone rigidity to stay perfectly flat under heavy bass loads.
-

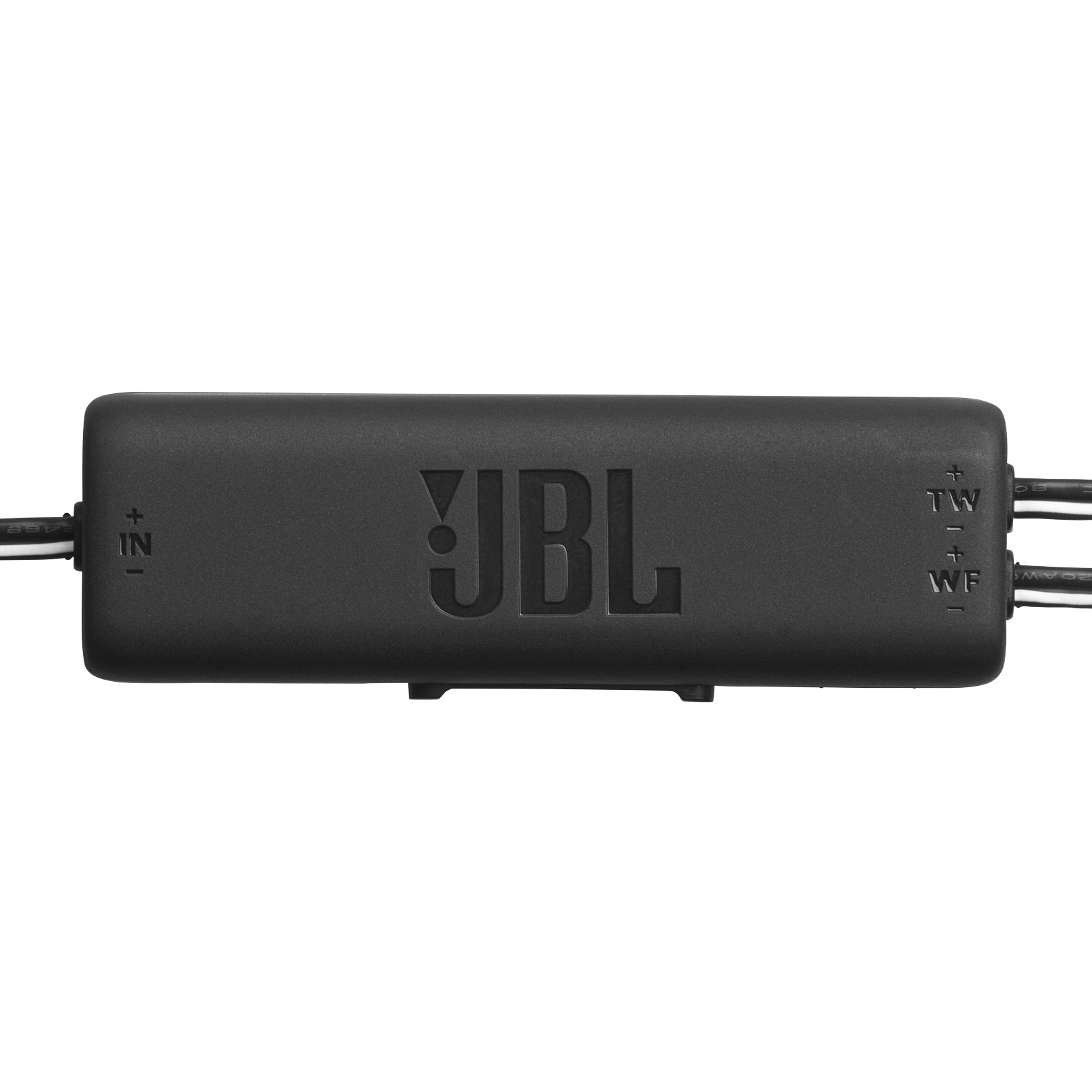

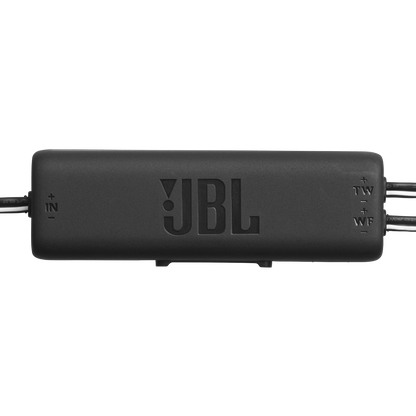

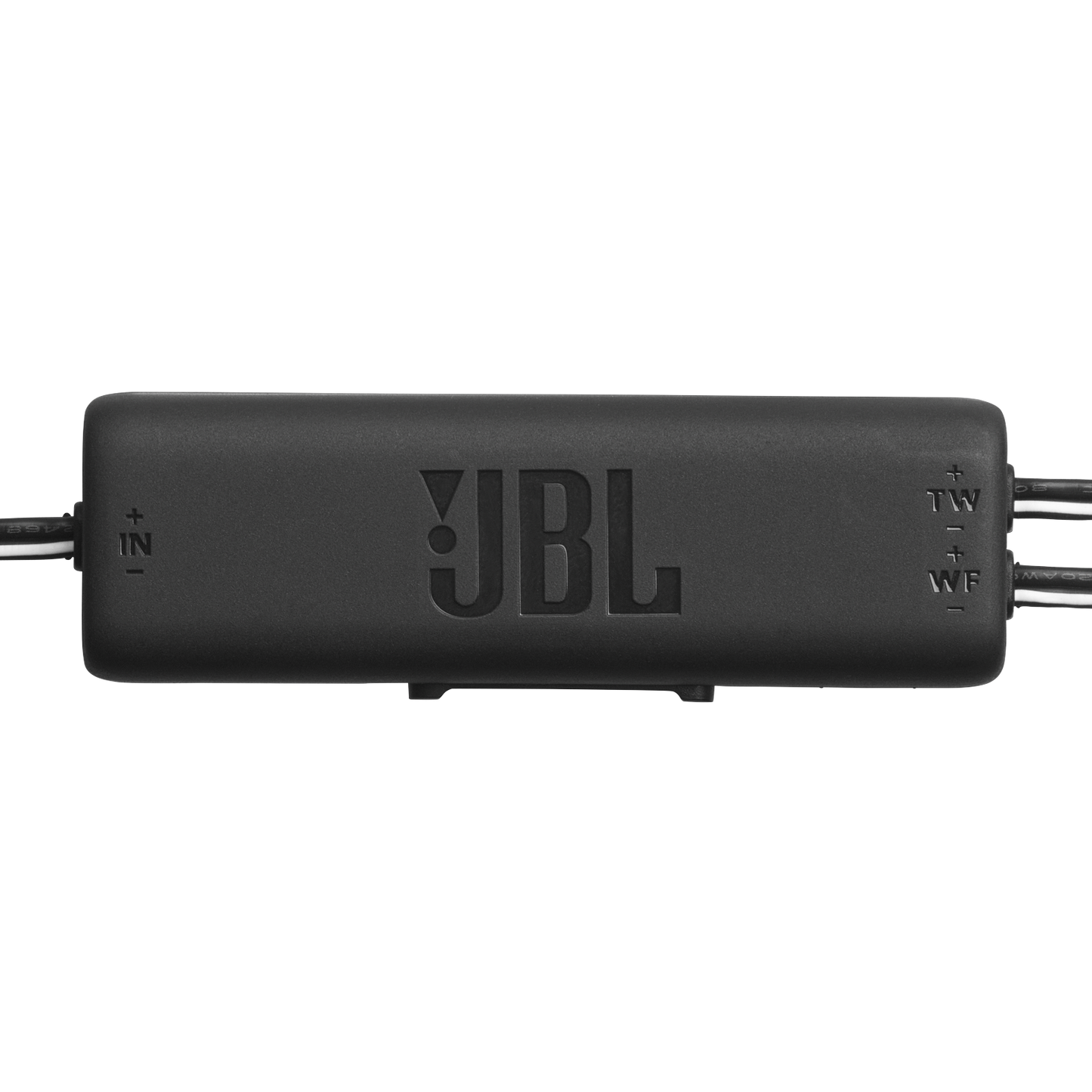

External Inline Passive Crossovers: The system ships with dedicated crossover boxes. They automatically filter unwanted low frequencies away from your silk tweeters and block high frequencies from your mid-bass woofers, protecting your gear and ensuring smooth transitions.
- Eco-Minded Engineering: The speaker frames utilize post-consumer recycled plastic elements, integrate fully PVC-free layout wiring, and pack inside shipping boxes utilizing soy-based inks.
