The

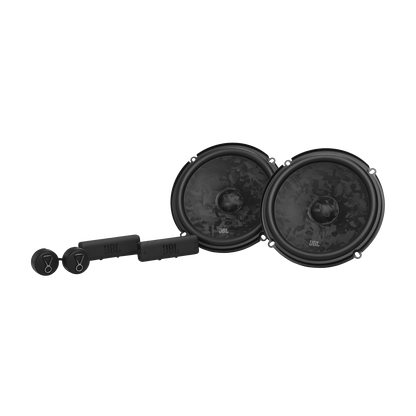

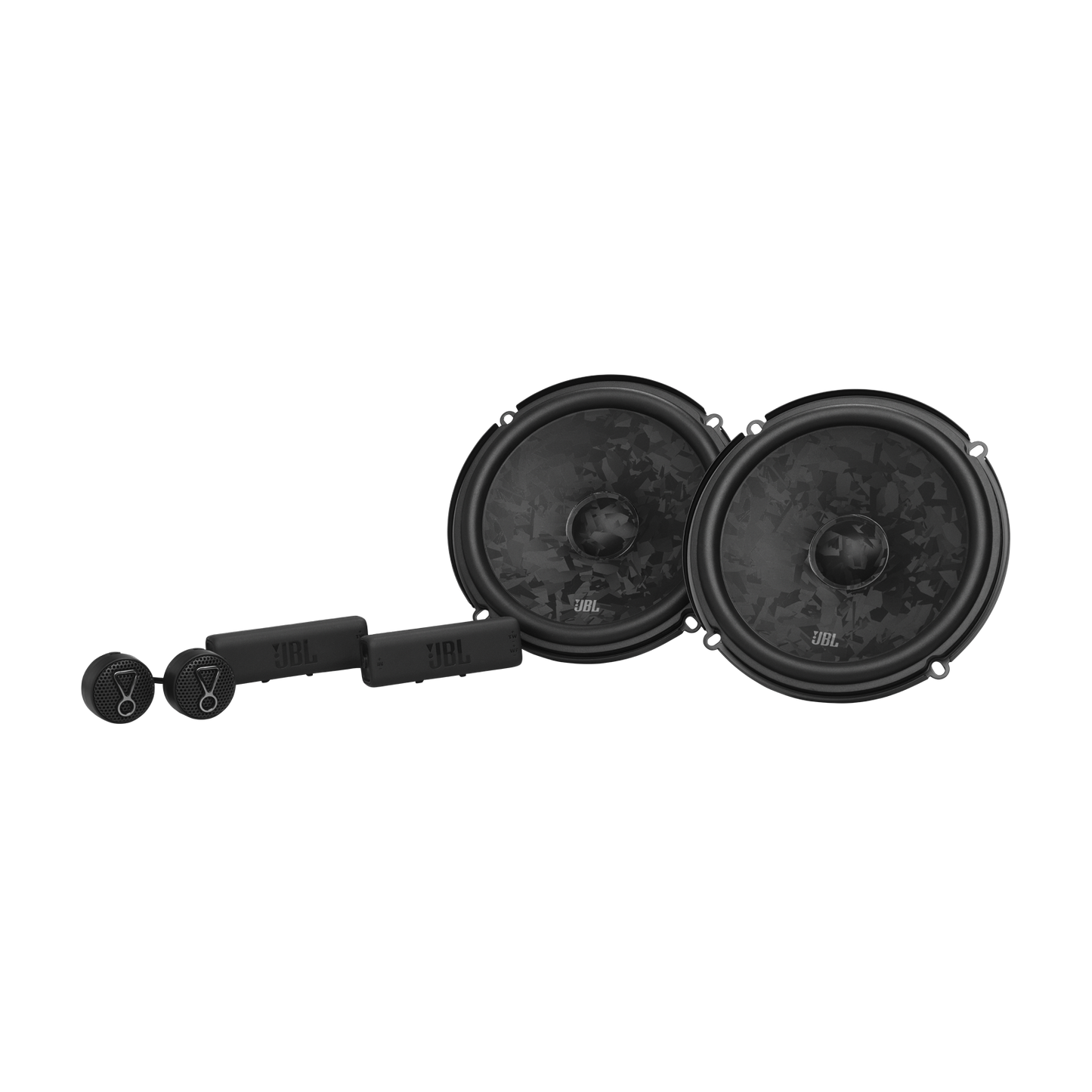

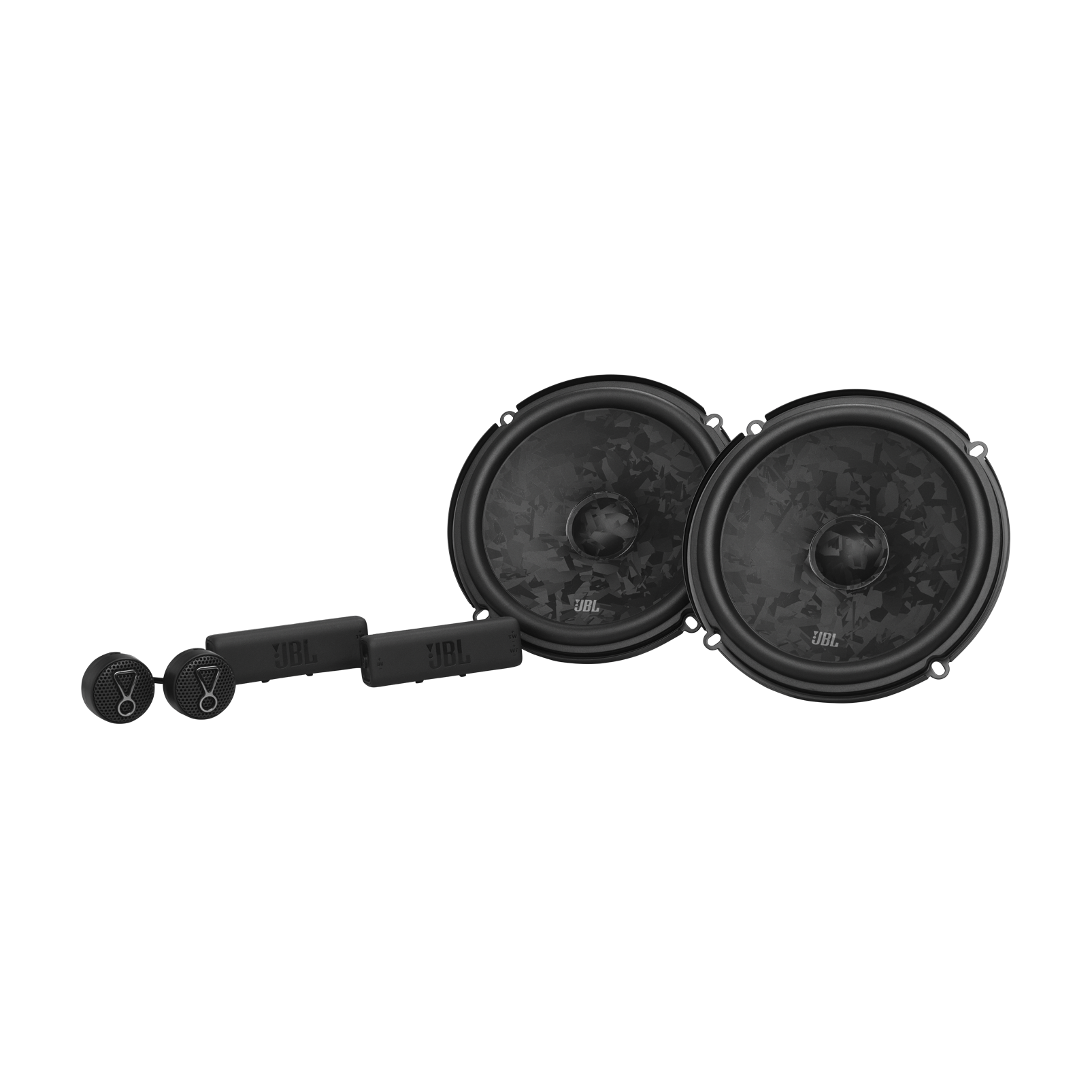

JBL Stage3 68CF is a
high-performance 6.5-inch (165mm) 2-way component car speaker system belonging to the second generation of Stage3 speakers.
The primary difference between this model and the standard Stage3 68C is that the 68CF is designed as a grille-free (Custom Fit) kit. It is optimized for hidden installations underneath your vehicle's factory door panels or dash layouts, ensuring a cleaner look without paying extra for unneeded grilles.
Technical Specifications Breakdown
The 68CF balances robust power delivery with clean high-frequency performance:
| Metric
|
Technical Value
|
Acoustic Impact
|
|
Speaker Size
|
6.5 inches (165mm)
|
Fits standard mid-bass mounting locations in modern car doors.
|
|
Power Handling (RMS)
|
95 Watts per speaker (190W/pair)
|
Built to handle aftermarket amplification cleanly while remaining efficient.
|
|
Power Handling (Peak)
|
760 Watts per speaker (1520W/pair)
|
Protects the drivers from extreme musical signal clipping.
|
|
Sensitivity (@ 2.83V/1m)
|
91 dB
|
Converts power into volume exceptionally well; easily driven by factory or aftermarket radios.
|
|
Frequency Response
|
55Hz – 20kHz
|
Delivers flat, full-range reproduction from resonant mid-bass up to crystal-clear high notes.
|
|
Nominal Impedance
|
4 Ohms (True 4-Ohm Technology)
|
Safeguards electronics while maximizing clean wattage by compensating for thin factory wires.
|
Component-Level Engineering Breakdown
-

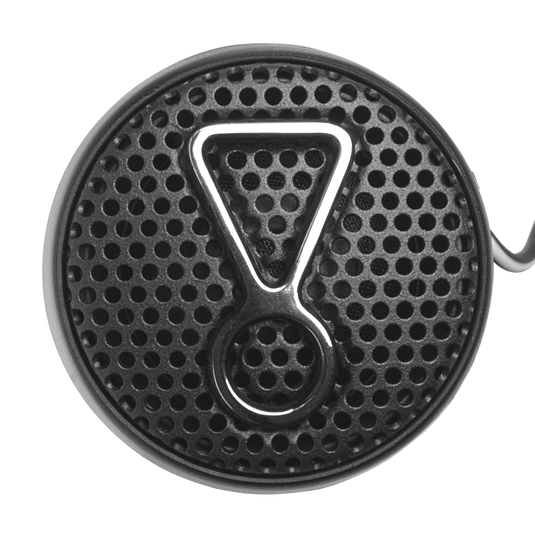

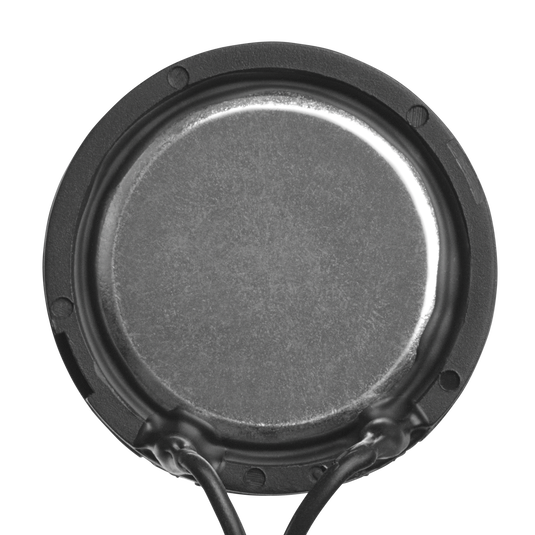

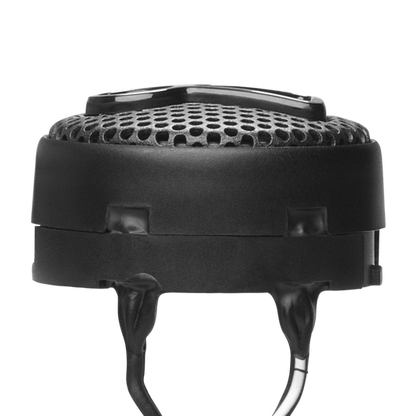

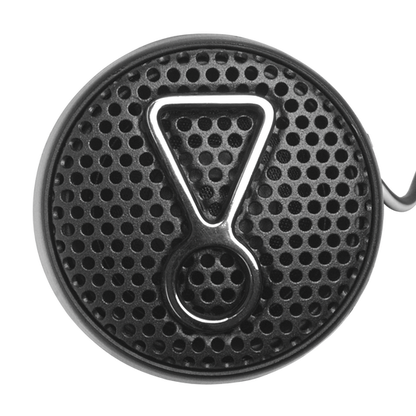

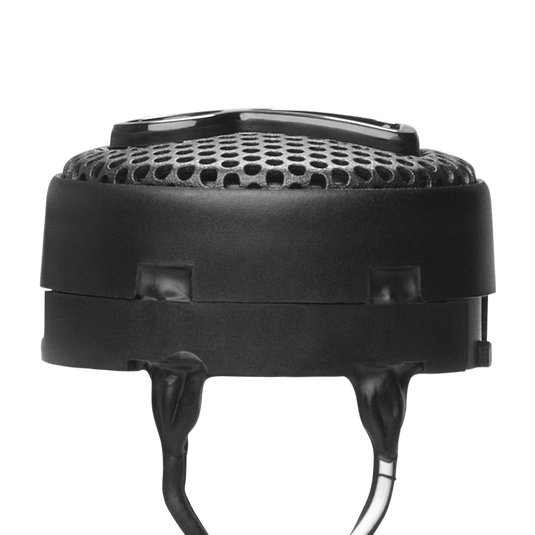

Edge-Driven Silk Dome Tweeters: While most coaxial entry-level models feature rigid PEI plastics, the component 68CF upgrade uses 3/4-inch edge-driven silk dome tweeters. This design minimizes harmonic distortion, projecting a wider and significantly smoother high-frequency soundstage that won't fatigue your ears.
-

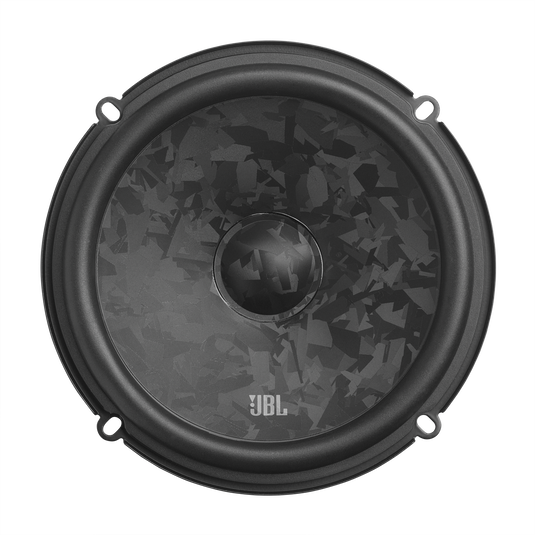

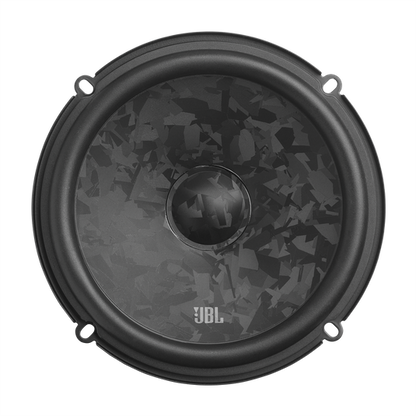

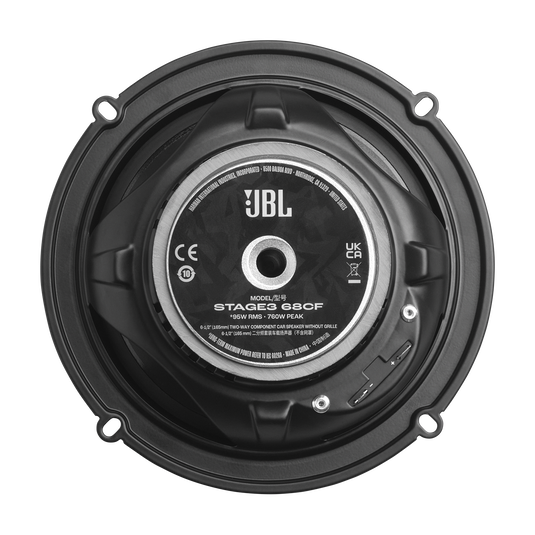

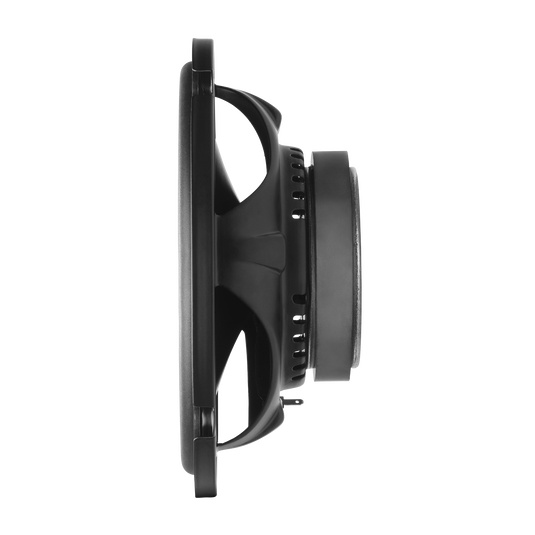

Laser-Etched Glass-Fiber Plus One™ Woofer: The mid-bass driver relies on HARMAN’s patented Plus One™ cone geometry to claim up to a 35% increase in total cone surface area within the same footprint. Made from a polypropylene core reinforced with 10% glass fiber, the laser-etched treatment optimizes structural stiffness to handle deep bass loads without flexing or distorting.
-

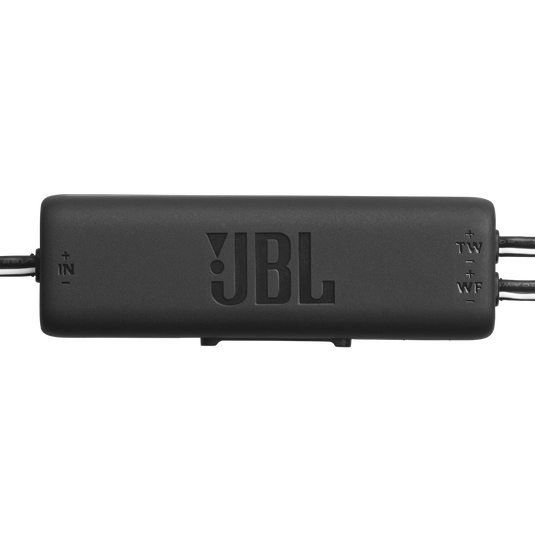

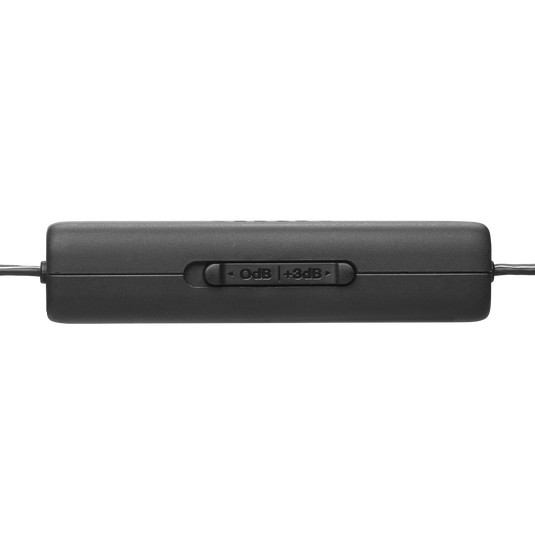

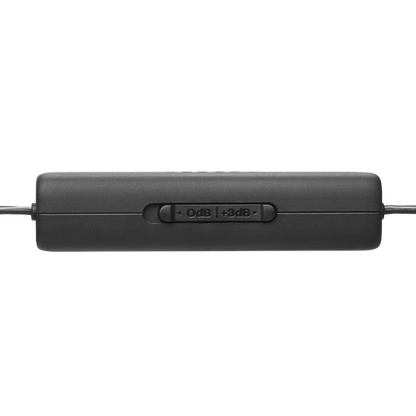

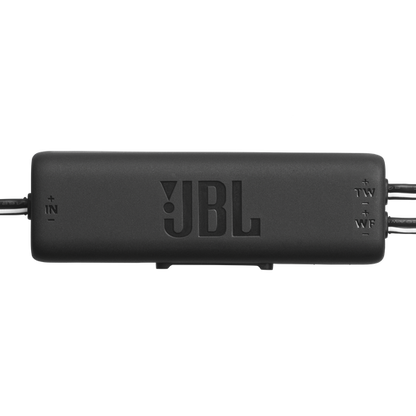

External Passive Crossovers: The system separates physical frequencies using dedicated inline crossover networks. This ensures only low and mid frequencies reach the woofers, while crisp highs flow safely into your silk tweeters.
- Eco-Minded Construction: True to the rest of the Stage3 Gen 2 series, the infrastructure incorporates post-consumer recycled plastic components, strictly PVC-free layout wiring, and ships in soy-ink printed boxes.
