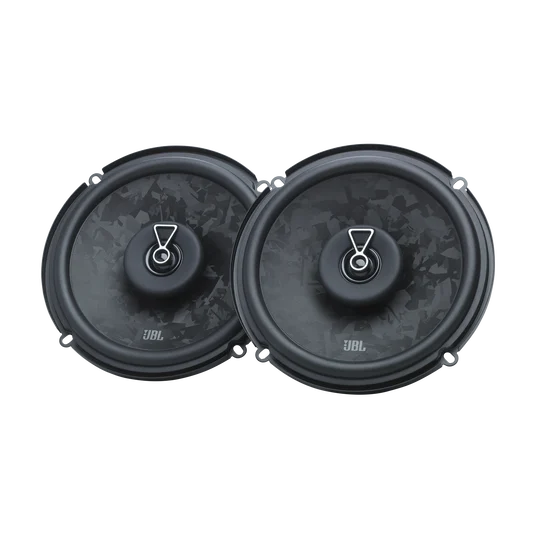

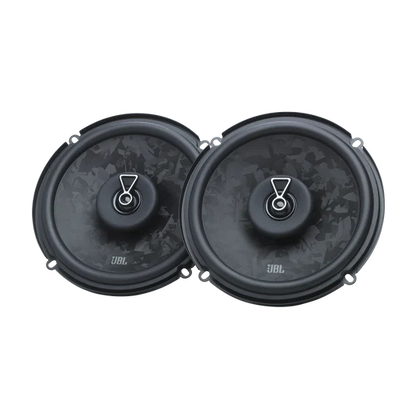

The JBL Stage3 68F 6-1/2" (165mm) coaxial speaker embodies JBL’s legendary sound, delivering powerful audio in the car. The woofer cone is manufactured using a laser-etched tool, features the patented Plus One™ design for increased surface area, and is reinforced with 10% glass fiber to play deeper, more resonant bass. Additionally, the PEI balanced dome tweeter ensures improved sound distribution, resulting in crystal-clear highs and creating an immersive listening experience that elevates your car audio setup. The speaker’s true 4-ohm load design maximizes power output from your head unit or amplifier, compensating for system resistance to ensure optimal performance. Additionally, the speakers incorporate post-consumer recycled plastic components, PVC-free wiring, and packaging printed with soy-based inks, thereby minimizing environmental impact. Finally, precise fitment is critical to the success of this speaker family—ensuring seamless integration and consistent acoustic performance across vehicle platforms.
The primary difference between the 68F and the standard Stage3 68 is that the 68F is a grille-free (Factory/Custom Fit) kit. It is structurally optimized as a direct drop-in replacement to slide cleanly underneath your vehicle's existing original equipment door trim panels or factory dashboard cavities without any physical modifications.
Technical Specifications Breakdown
The 68F balances notable power handling with high acoustic efficiency to extract maximum volume out of everyday stock setups:
| Metric
|
Technical Value
|
Acoustic Impact
|
|
Speaker Size
|
6.5 inches (165mm)
|
The most common universal layout size for front and rear vehicle doors.
|
|
Power Handling (RMS)
|
70 Watts per speaker (140W per pair)
|
Handles external power amplification with ease while remaining safe on standard factory radios.
|
|
Power Handling (Peak)
|
560 Watts per speaker (1120W per pair)
|
Robust protection limits against heavy volume spikes or signal clipping.
|
|
Sensitivity (@ 2.83V/1m)
|
91 dB
|
Very high efficiency; produces significant volume even with low-wattage stock head units.
|
|
Frequency Response
|
55Hz – 20kHz
|
Delivers full-range performance from resonant, punchy mid-bass up to crystal-clear high frequencies.
|
|
Nominal Impedance
|
4 Ohms (True 4-Ohm Technology)
|
Pulls maximum clean wattage from your source by overcoming restrictive, thin factory wiring.
|
Component-Level Engineering Breakdown
-
Patented Plus One™ Woofer Architecture: By extending the rubber surround closer to the outer edge of the speaker basket, HARMAN's patented design achieves up to a 35% increase in total effective cone surface area compared to standard 6.5" competitors. This moves more air, creating deeper bass extension and better mid-bass response.
-
Laser-Etched Glass-Fiber Cone: The primary woofer core consists of a polypropylene base bound with 10% glass fiber reinforcement. Laser-etching the driver gives the cone structural rigidity without adding weight, which eliminates unwanted flex and distortion when pushing the volume up. The etching also gives the face an upscale, forged carbon fiber aesthetic.
-
PEI Balanced Dome Tweeters: High frequencies are managed by polyetherimide (PEI) dome tweeters. PEI disperses heat rapidly, stabilizing the high notes so vocals, string instruments, and cymbals remain perfectly clear and spacious across the cabin without causing ear fatigue.
- Eco-Minded Construction: True to the rest of the second-generation Stage3 line, the frames incorporate post-consumer recycled plastic properties, utilize entirely PVC-free layout wiring, and pack inside sustainable boxes printed with soy-based inks.
