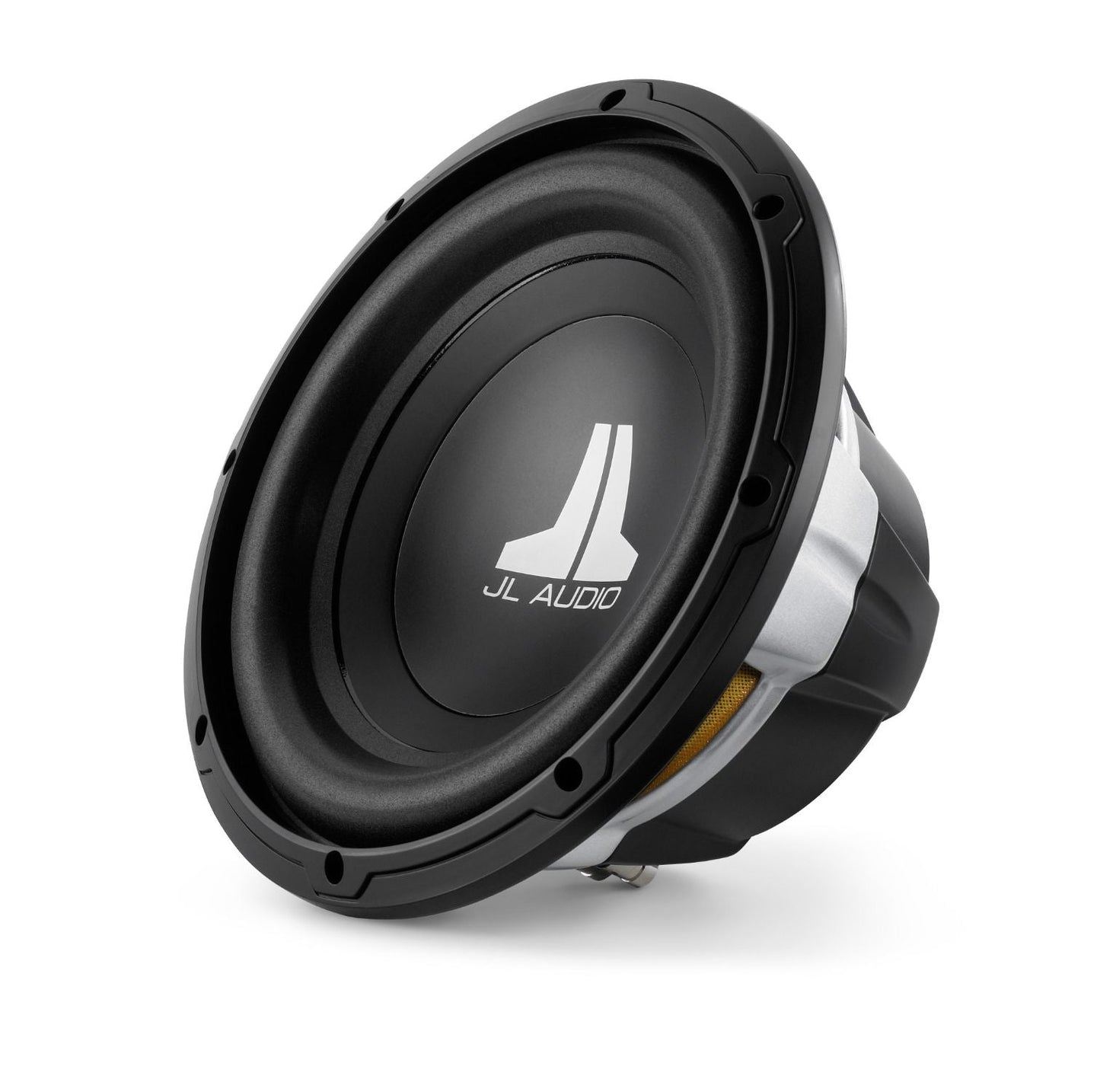

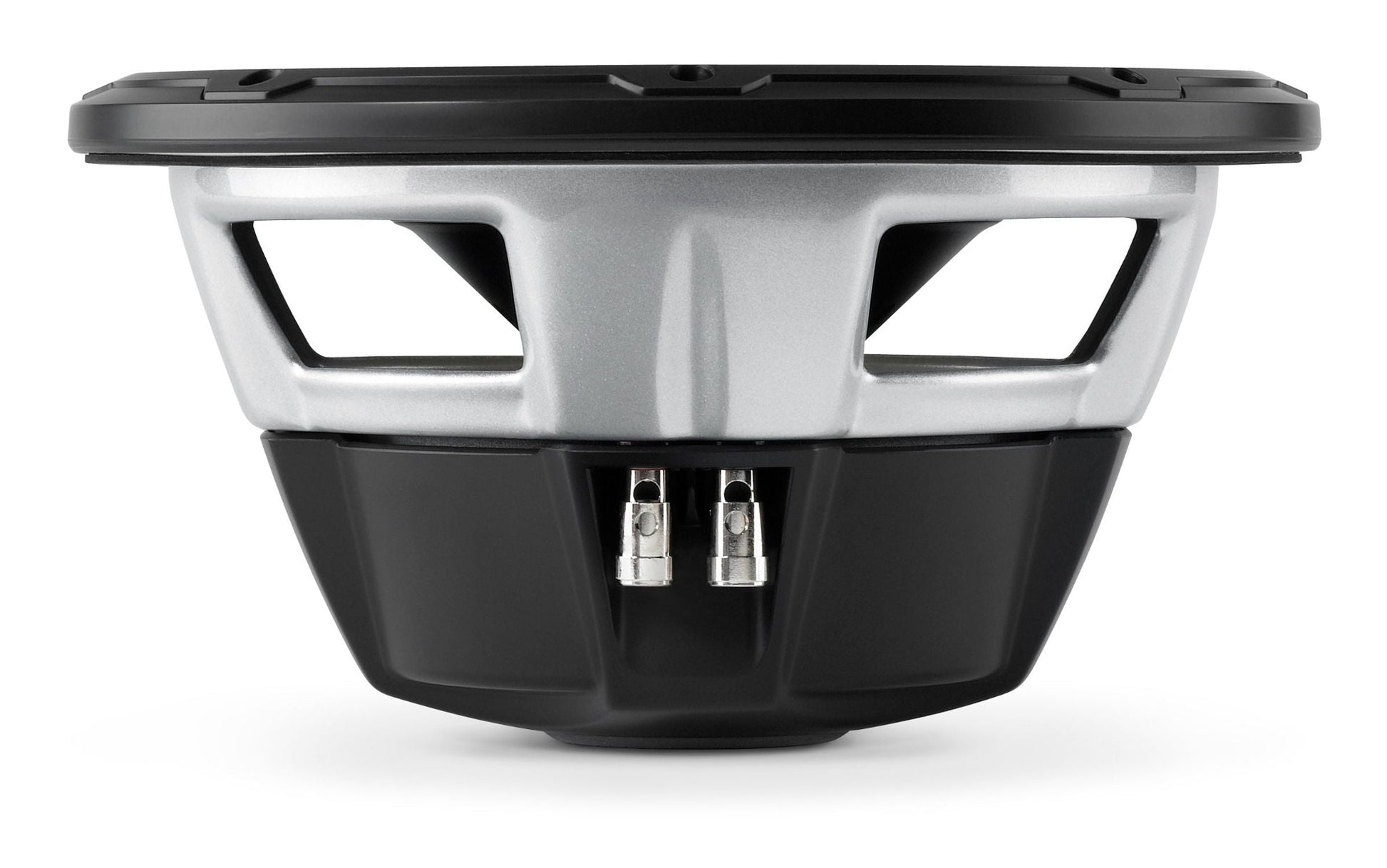

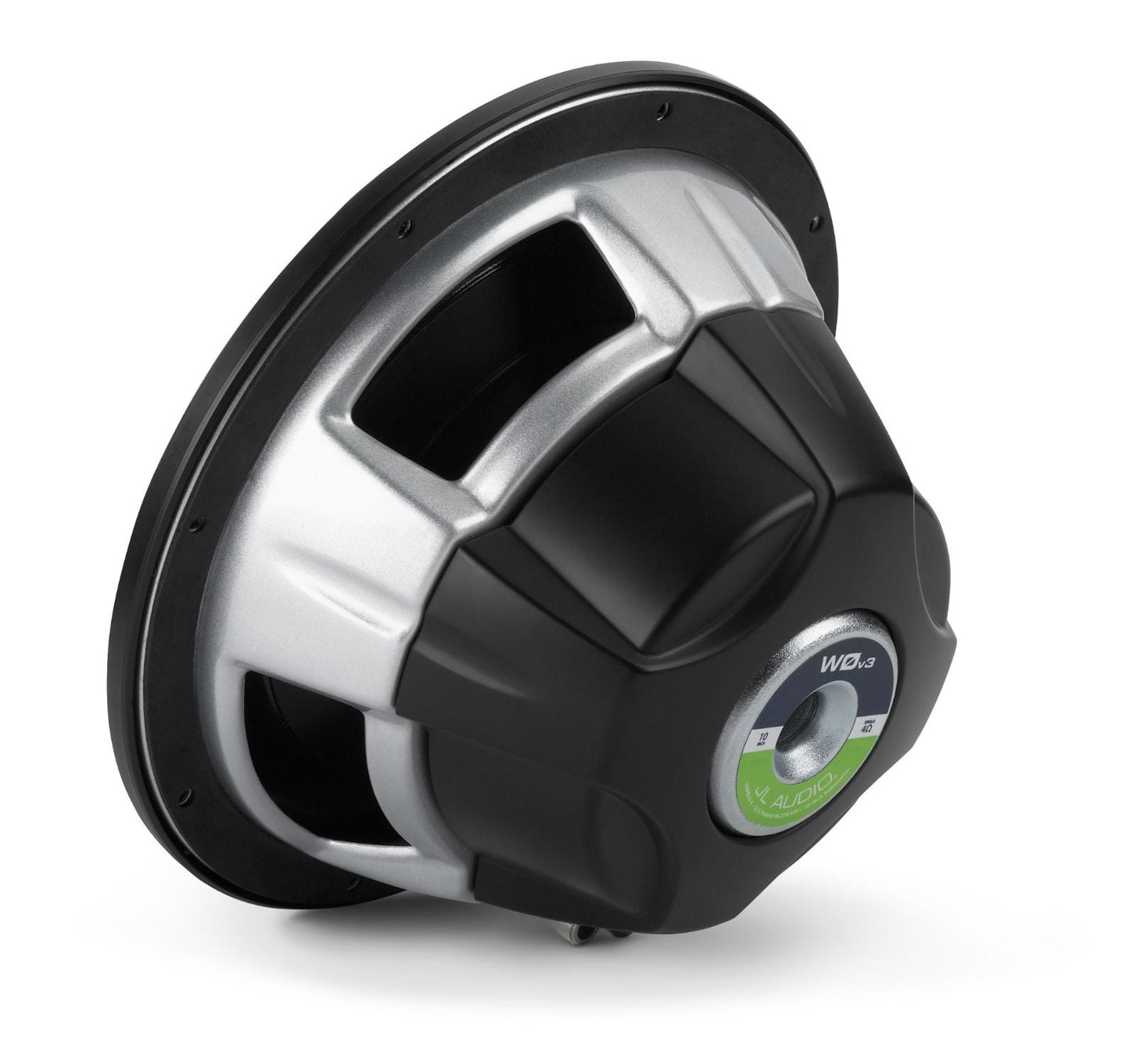

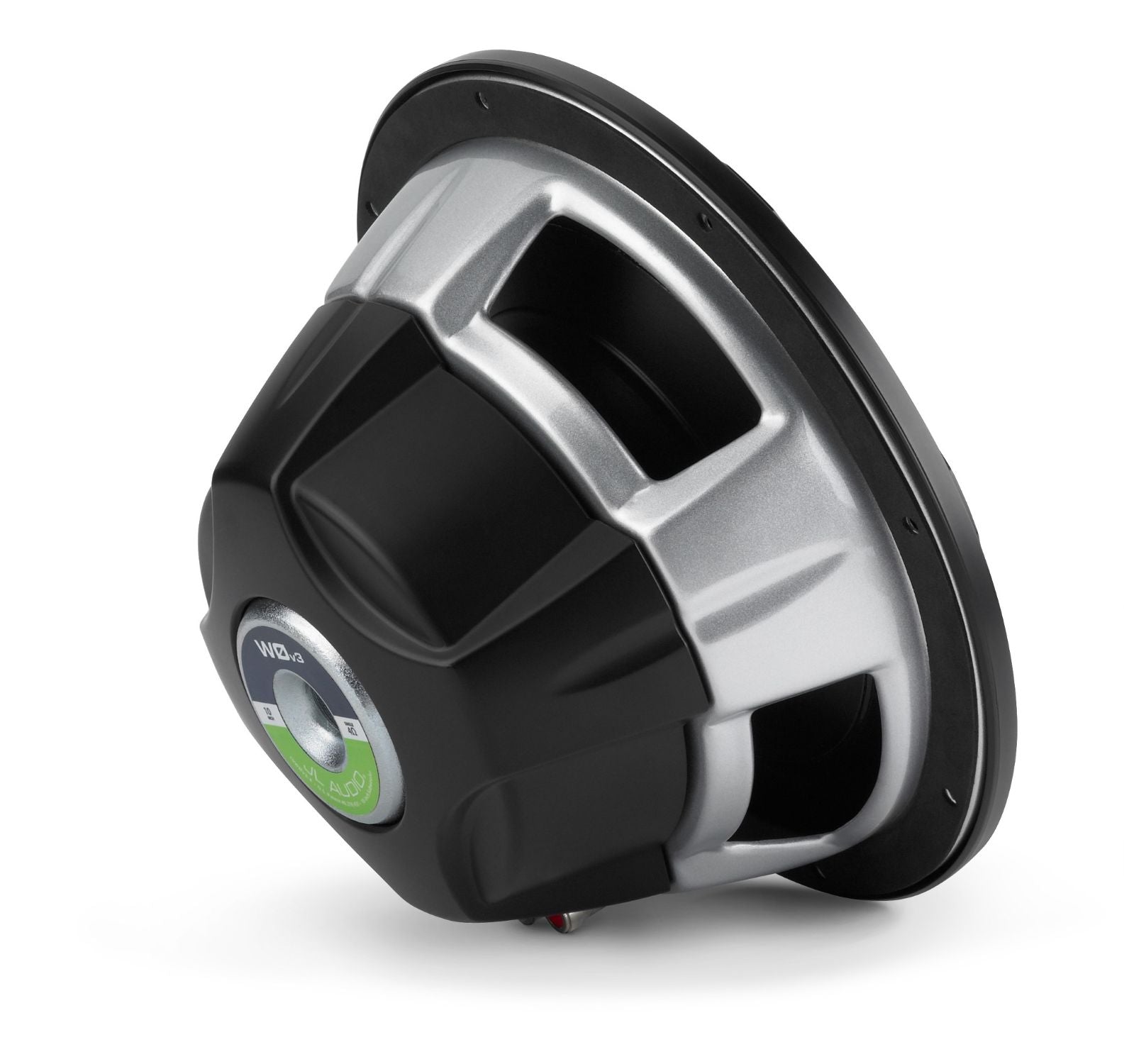

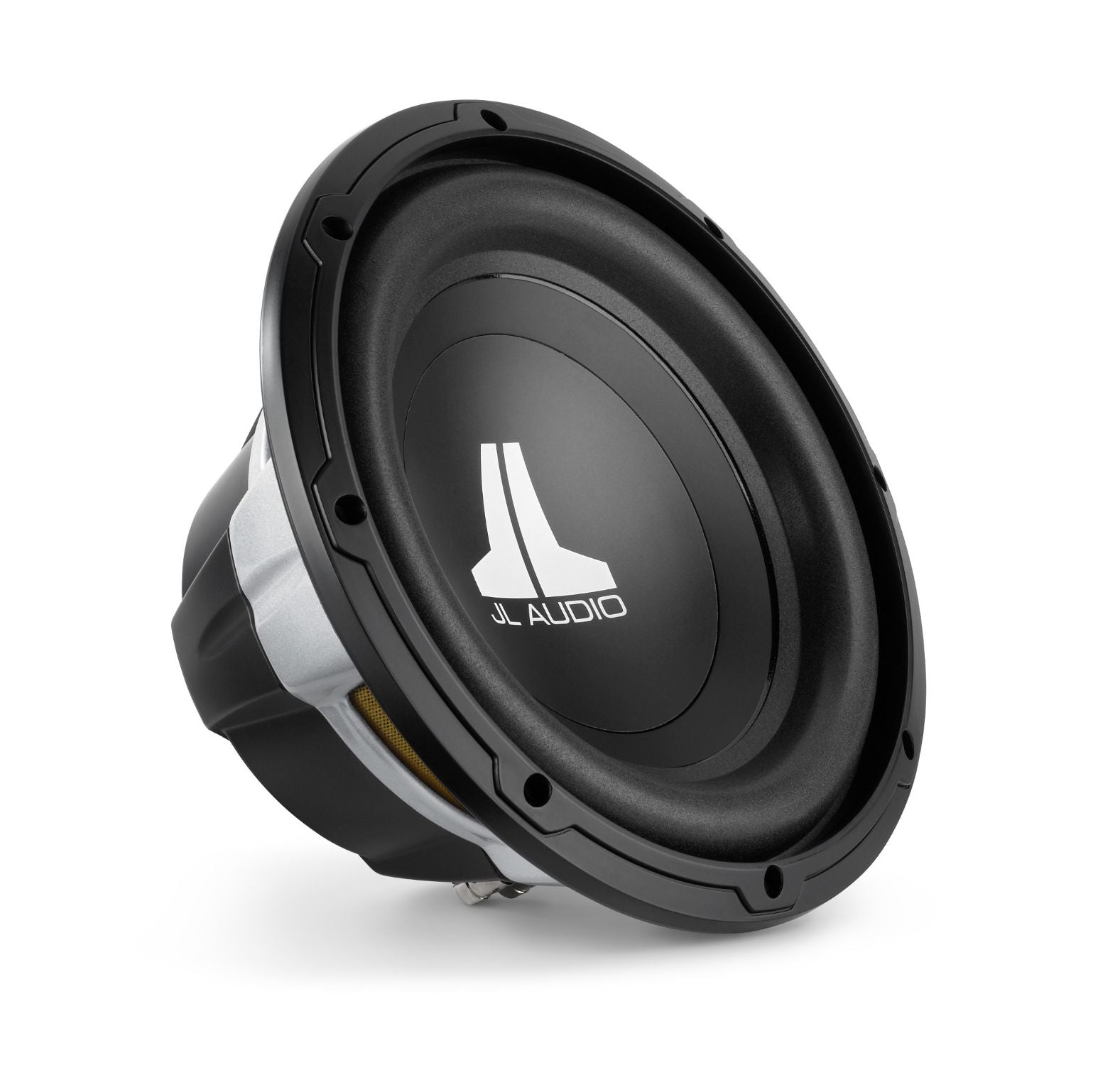

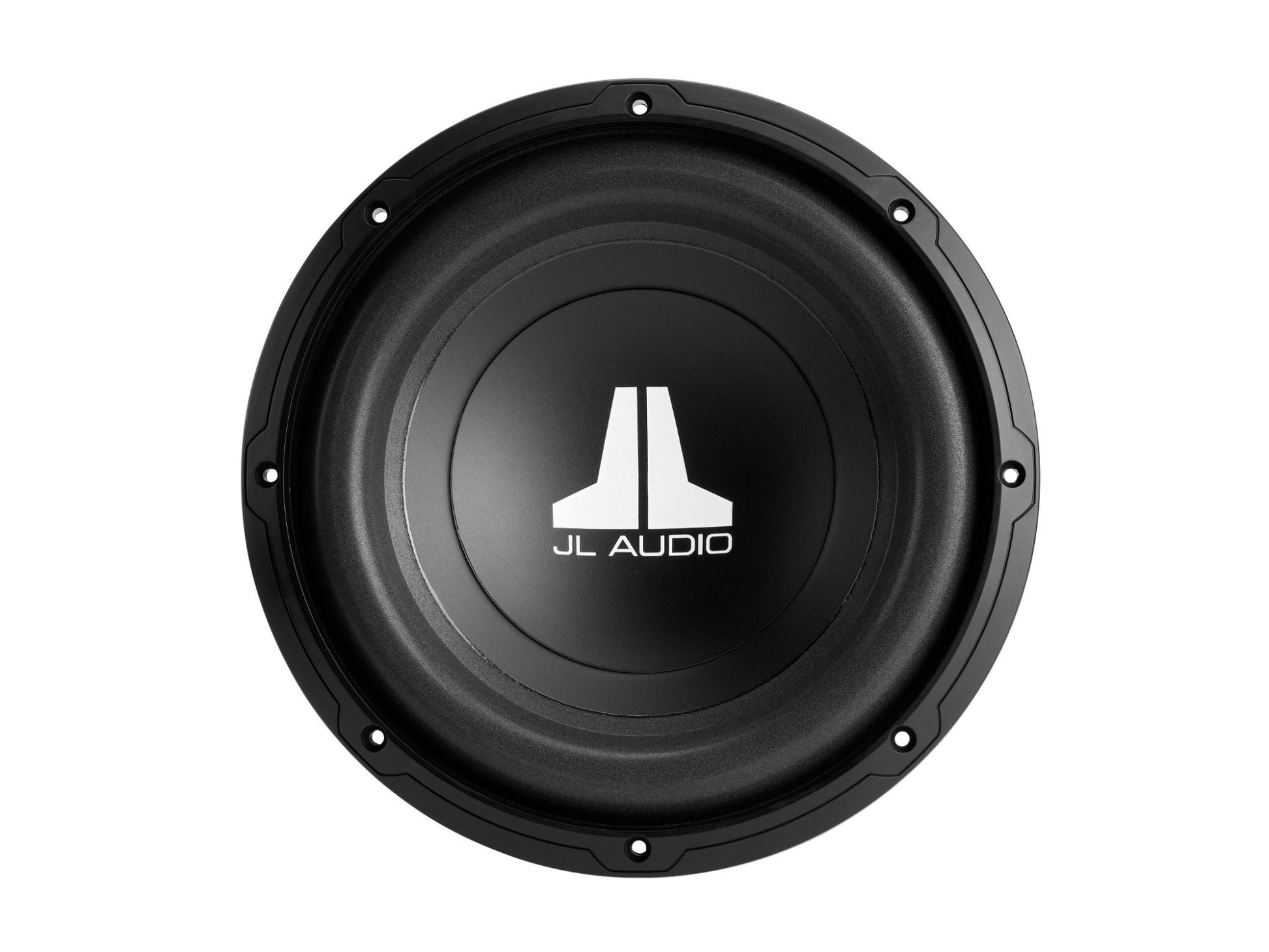

W0v3 10-inch Subwoofer (300 W, 4 ohms)
The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.
The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 - 300 W |
| Nominal Impedance (Znom) | 4 ohms |
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.52 in / 267 mm |
| Mounting Hole Diameter (B) | 9.0625 in / 230 mm |
| Bolt Hole Circle Diameter (C) | 9.7 in / 246.5 mm |
| Motor Outer Diameter (D) | 5.05 in / 128 mm |
| Mounting Depth (E) | 4.90 in / 124 mm |
| Driver Displacement | 0.034 cu ft / 0.96 L |
| Net Weight | 7.50 lb / 3.40 kg |
| Free Air Resonance (Fs) | 32.09 Hz |
| Electrical “Q” (Qes) | 0.64 |
| Mechanical “Q” (Qms) | 10.752 |
| Total Speaker “Q” (Qts) | 0.604 |
| Equivalent Compliance (Vas) | 1.095 cu ft / 31.01 L |
| One-Way Linear Excursion (Xmax)* | 0.45 in / 11.4 mm |
| Reference Efficiency (no) | 0.15% |
| Efficiency (1 W / 1 m)** | 84.07 dB SPL |
| Effective Piston Area (Sd) | 48.909 sq in / 0.0316 sq m |
| DC Resistance (Re) | 4.280 ohms |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.65 cu ft / 18.41 L |
| External Width (W) | 18 in / 457 mm |
| External Height (H) | 11 in / 279 mm |
| External Depth (D) | 9 in / 229 mm |
| F3 | 42.4 Hz |
| Fc | 53.23 Hz |
| Qtc | 1.002 |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 1.125 cu ft / 31.86 L |
| External Width (W) | 23 in / 584 mm |
| External Height (H) | 12 in / 305 mm |
| External Depth (D) | 13.625 in / 346 mm |
| Internal Slot Port Width (SW) | 1.25 in / 32 mm |
| Internal Slot Port Height (SH) | 10.5 in / 267 mm |
| Internal Slot Port Length (SL) | 32 in / 813 mm |
| Port Extension Length (EL) | 18.25 in / 464 mm |
| Tuning Frequency (Fb) | 30 Hz |
| F3 | 29.6 Hz |
