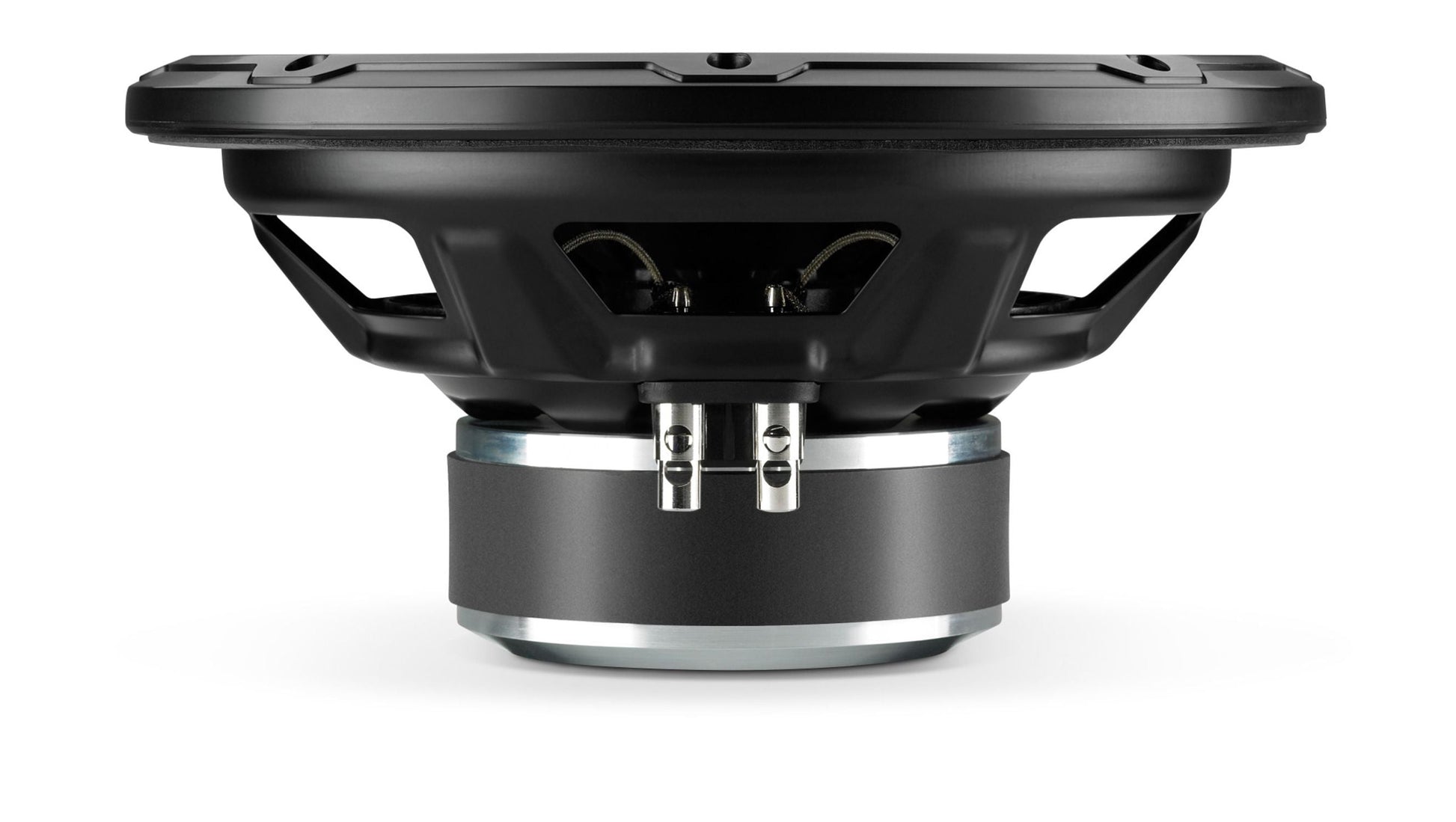

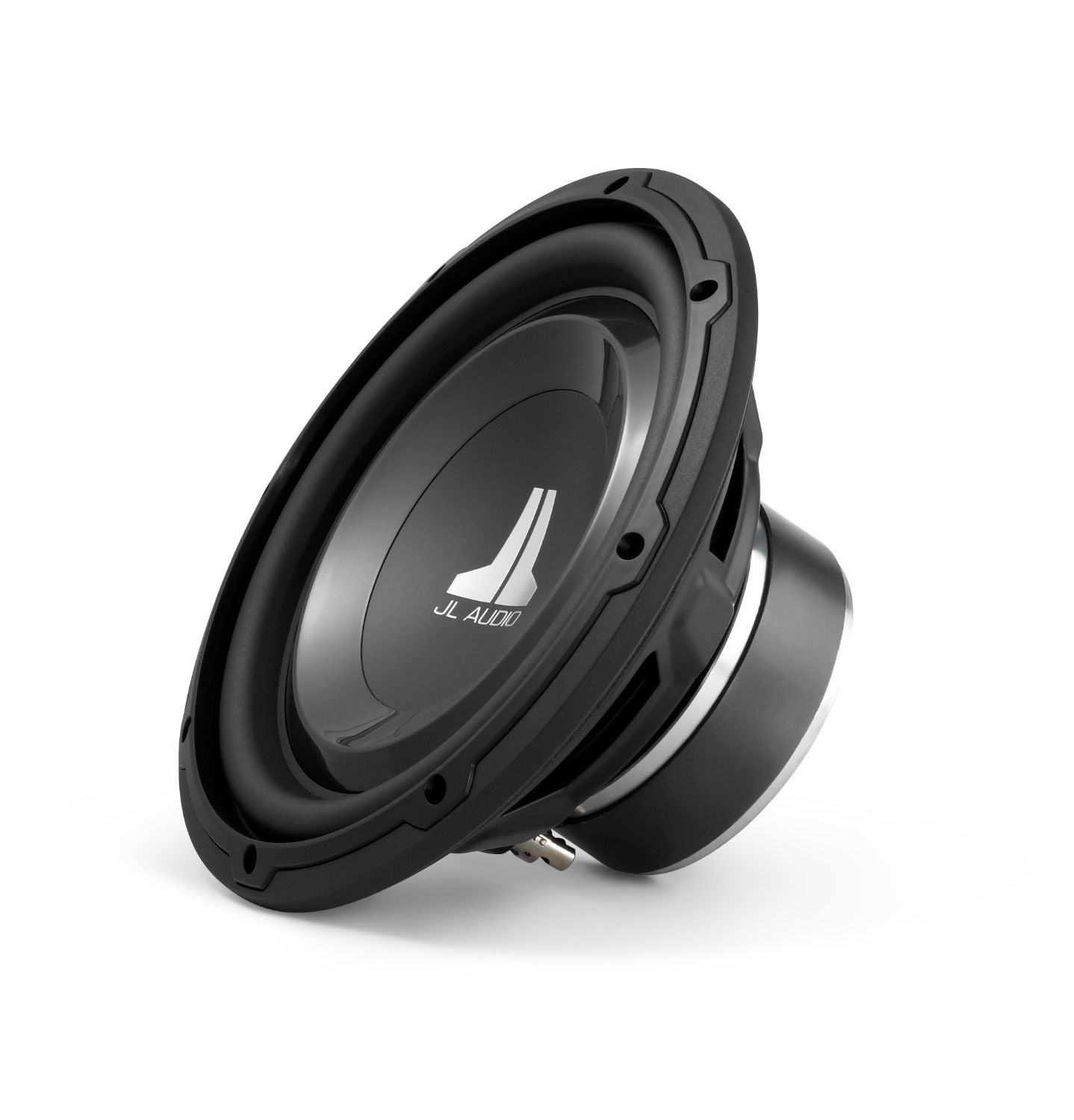

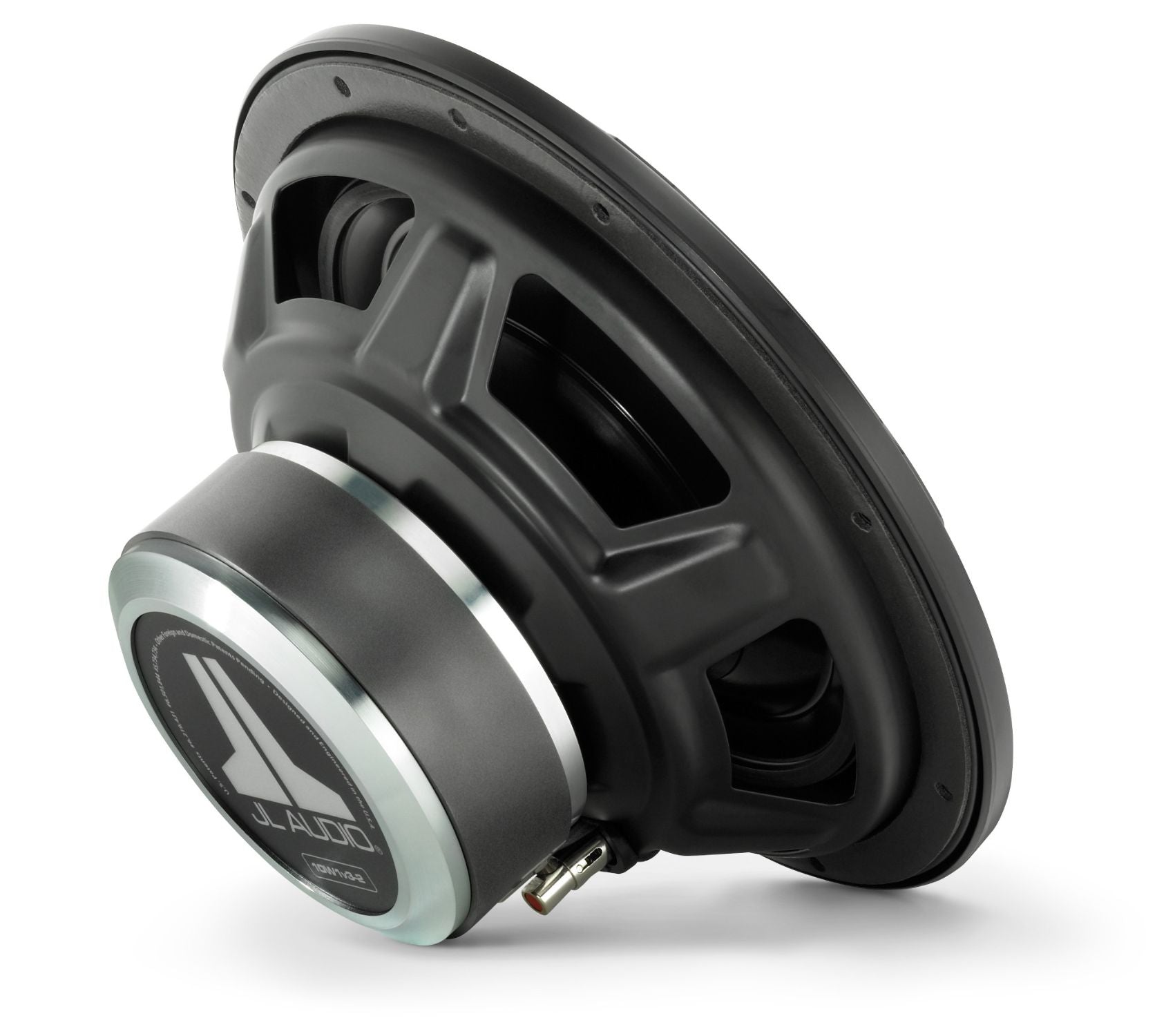

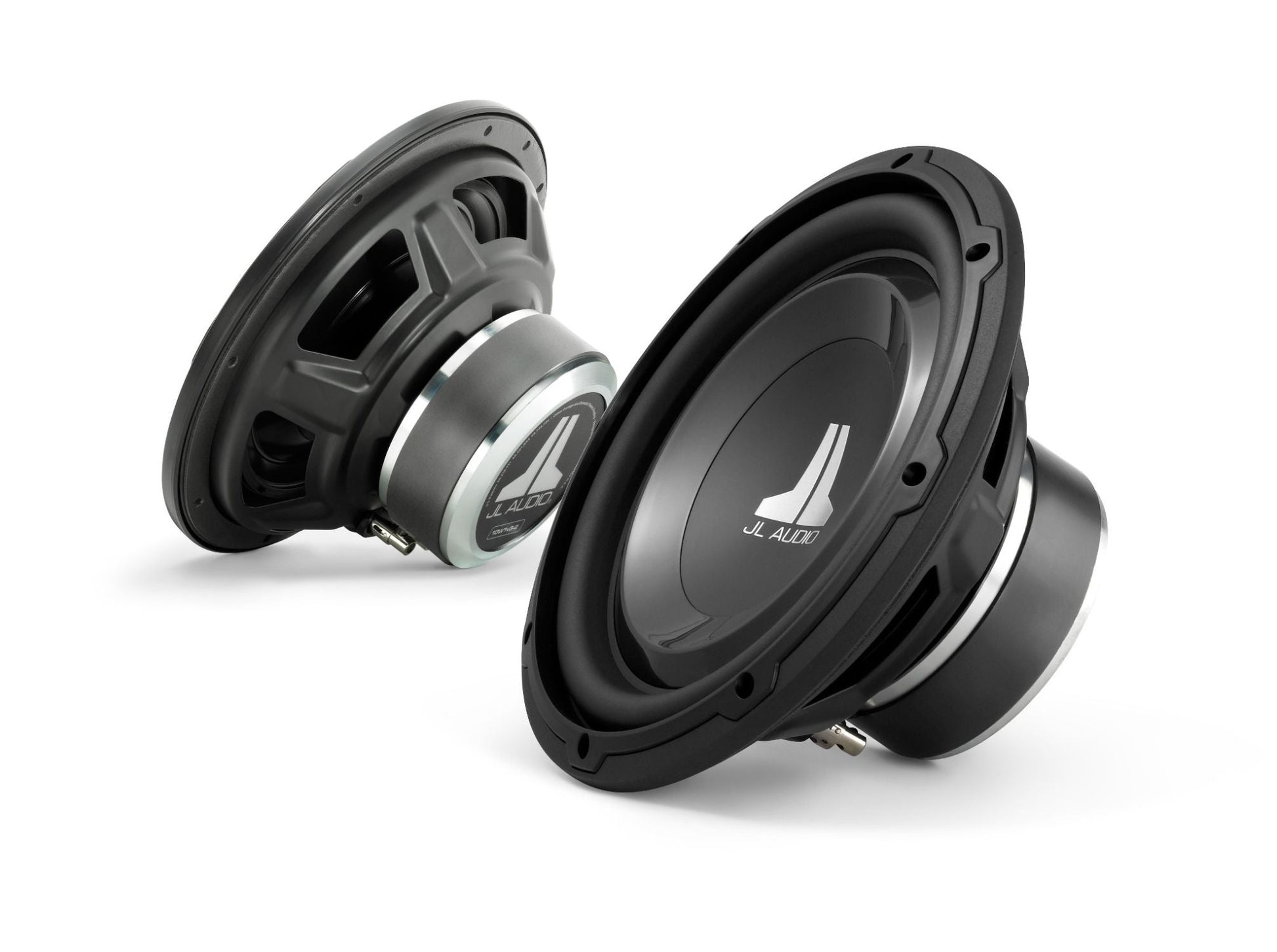

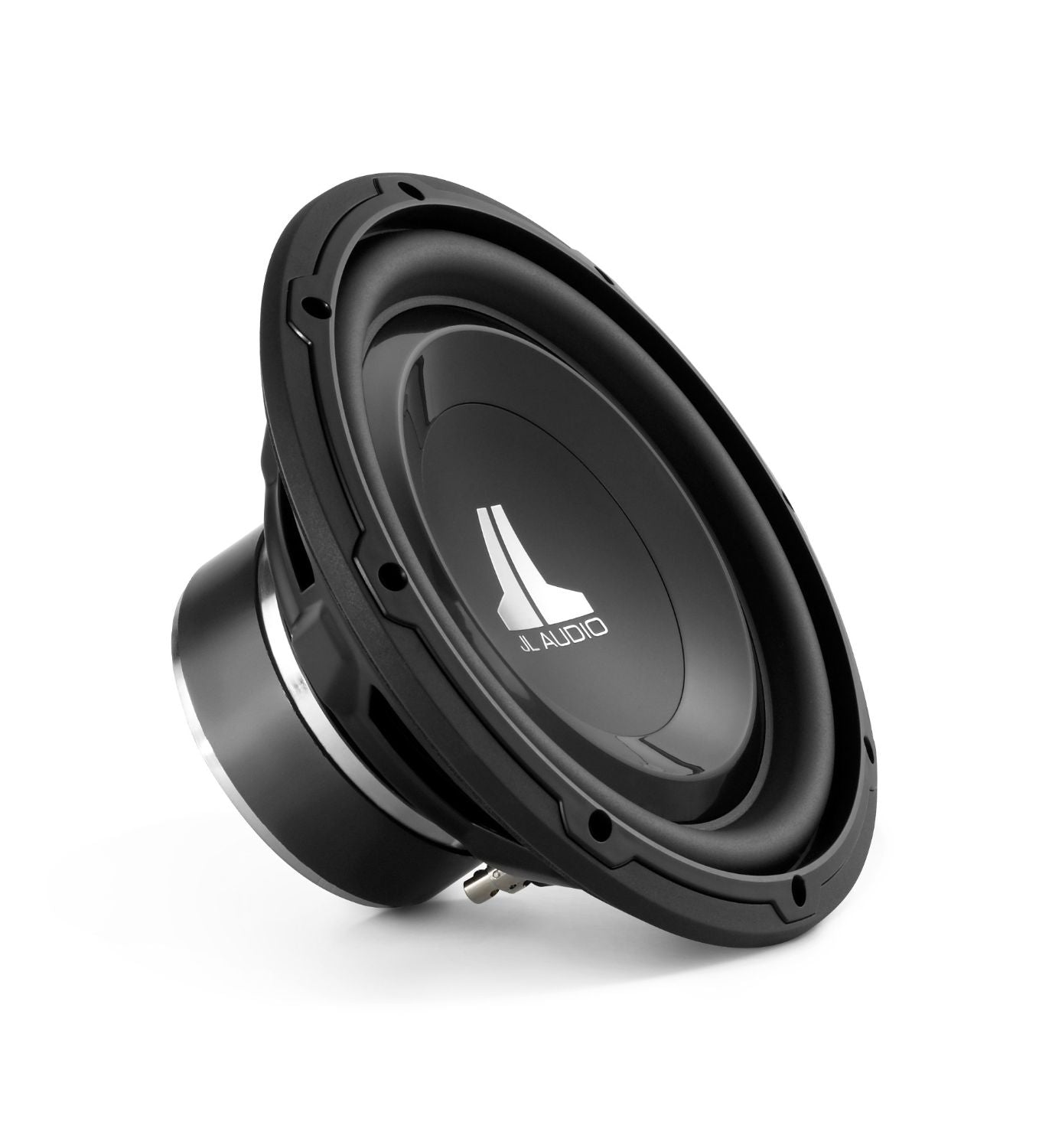

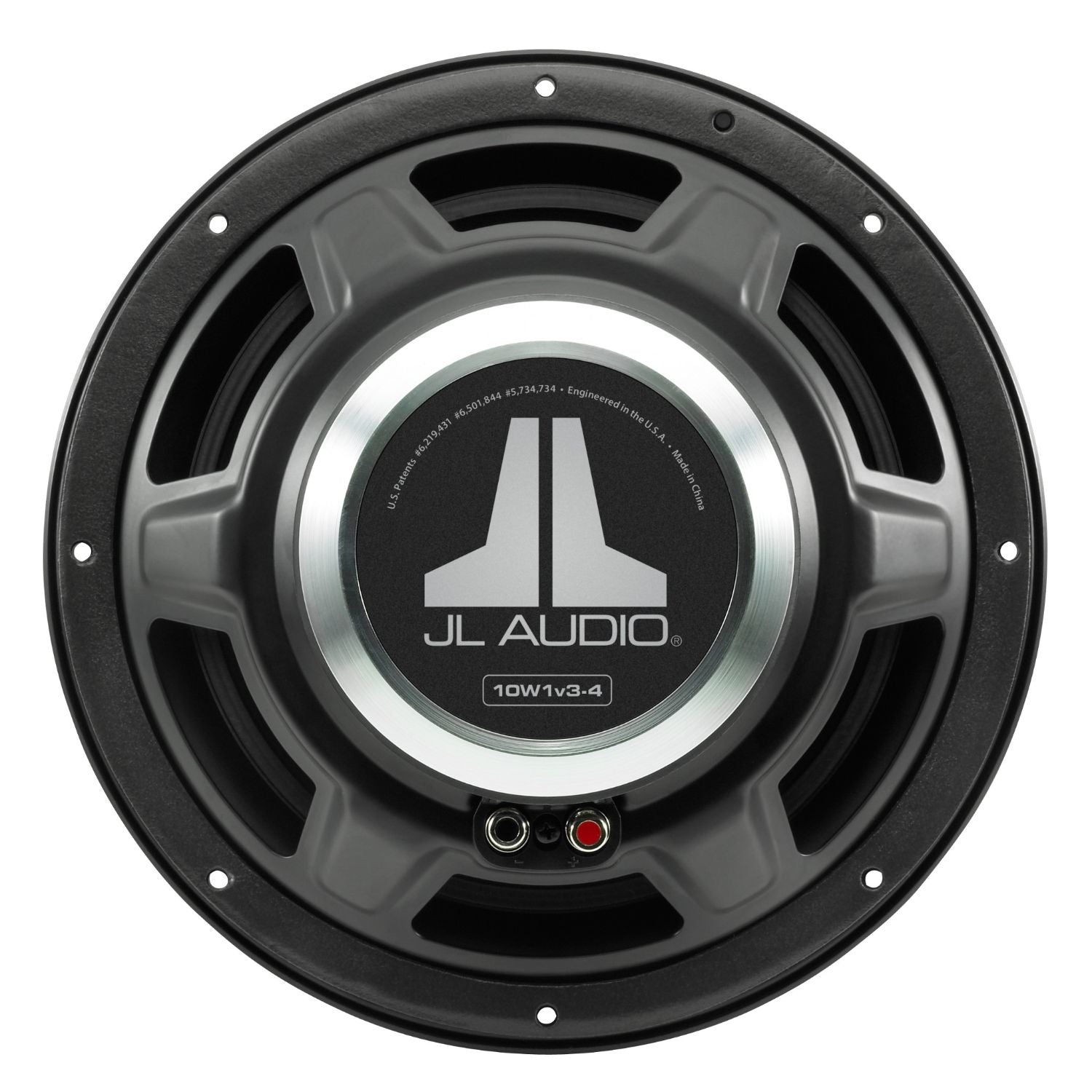

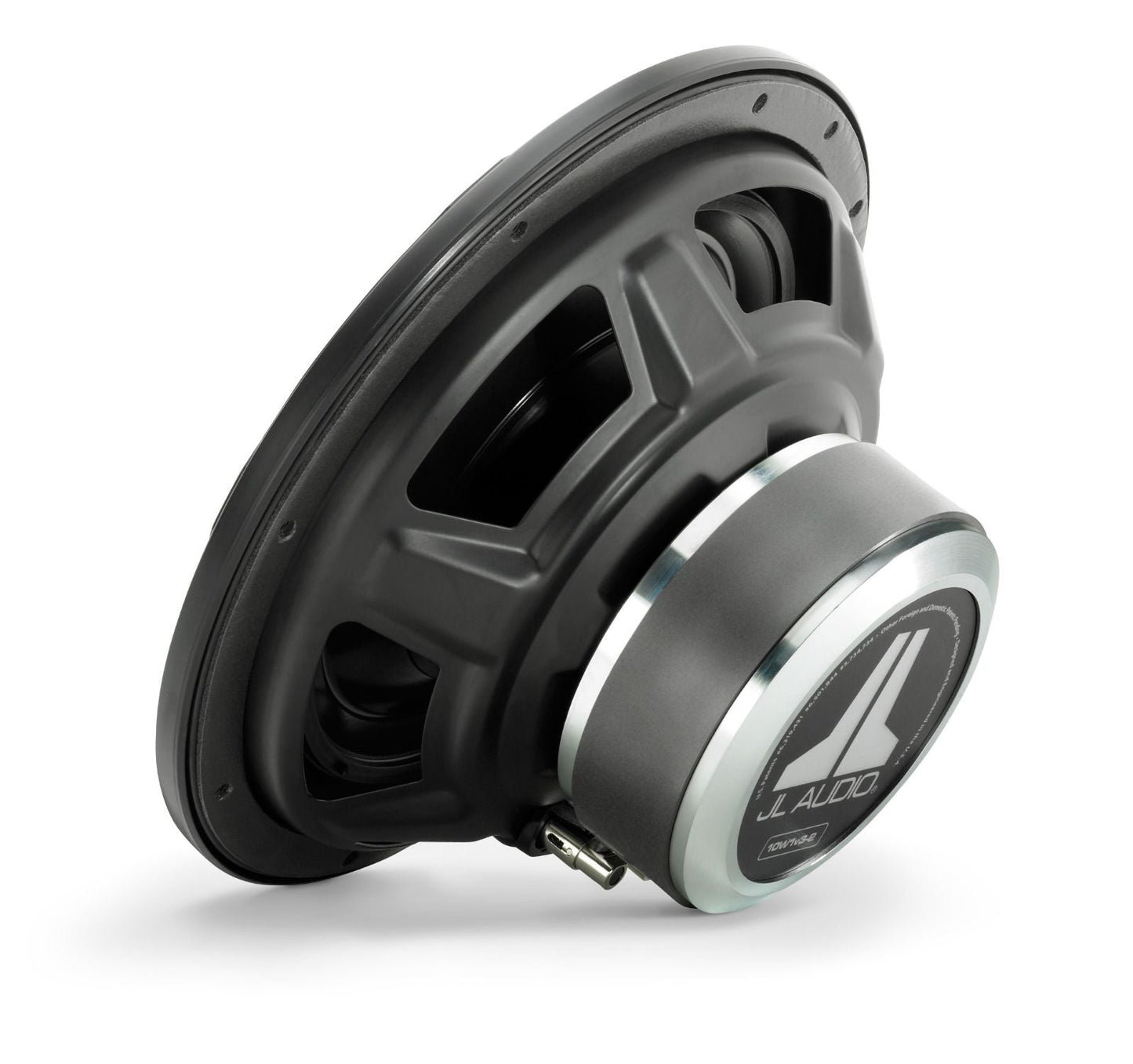

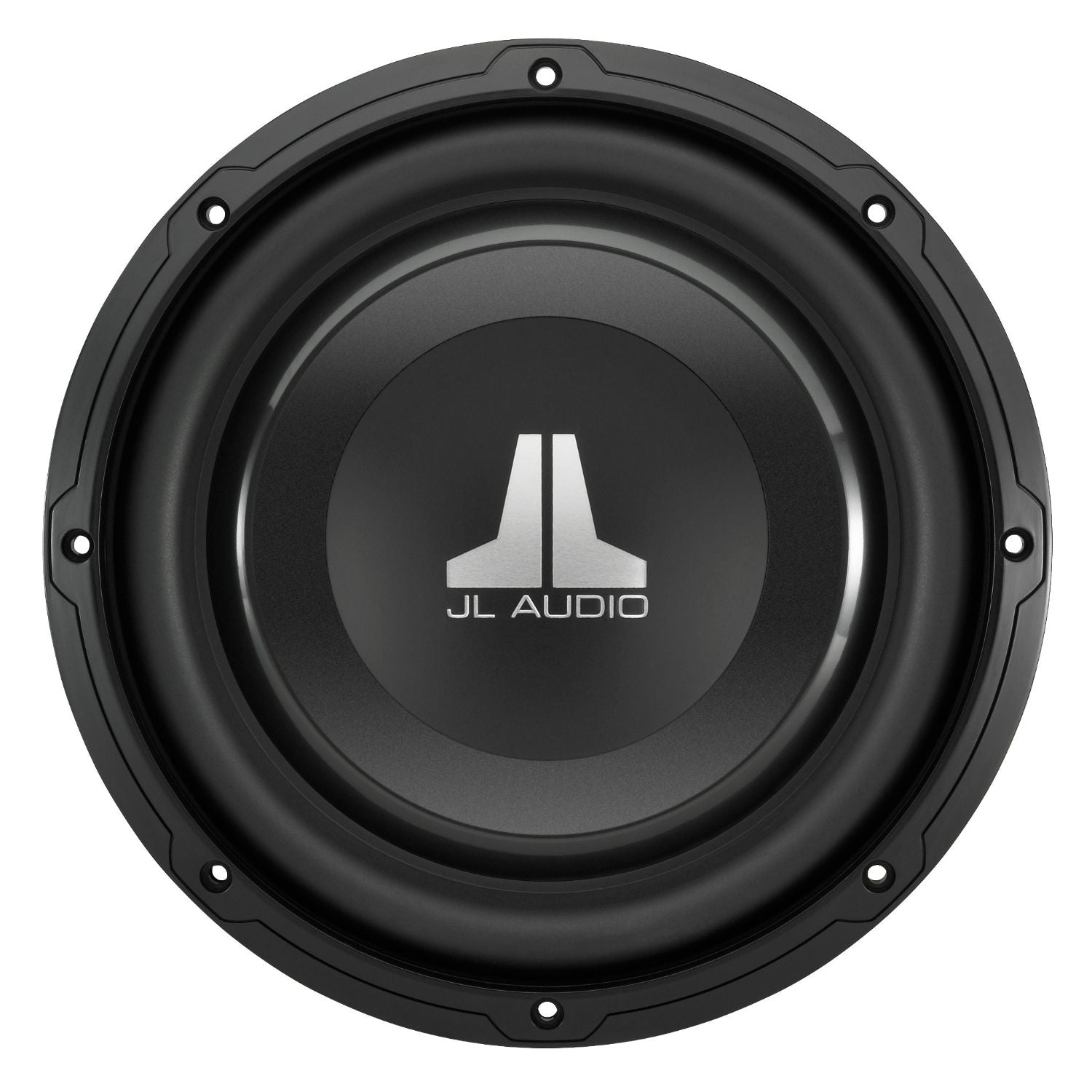

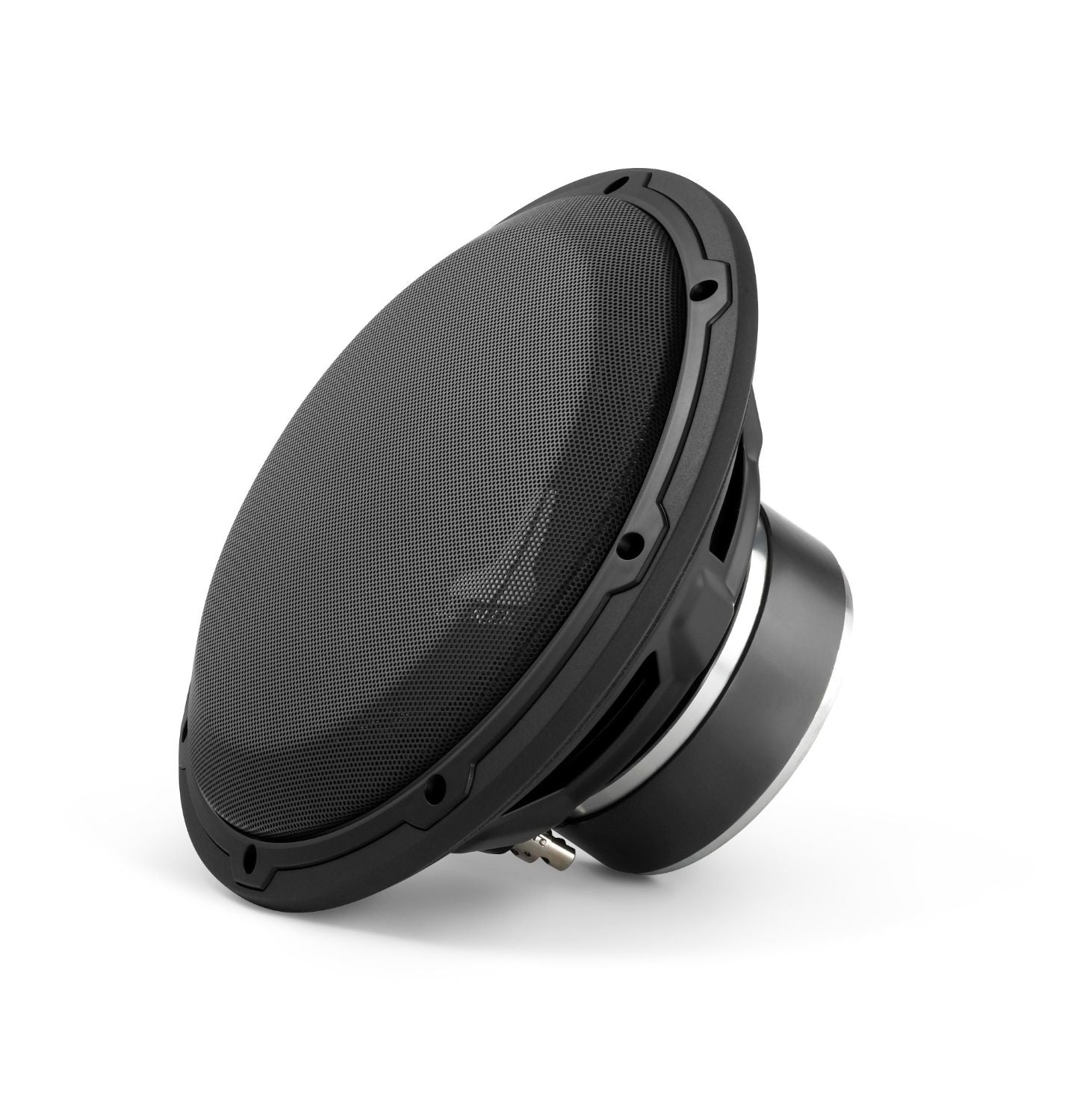

W1v3 10-inch Subwoofer (300 W, 4 ohms)

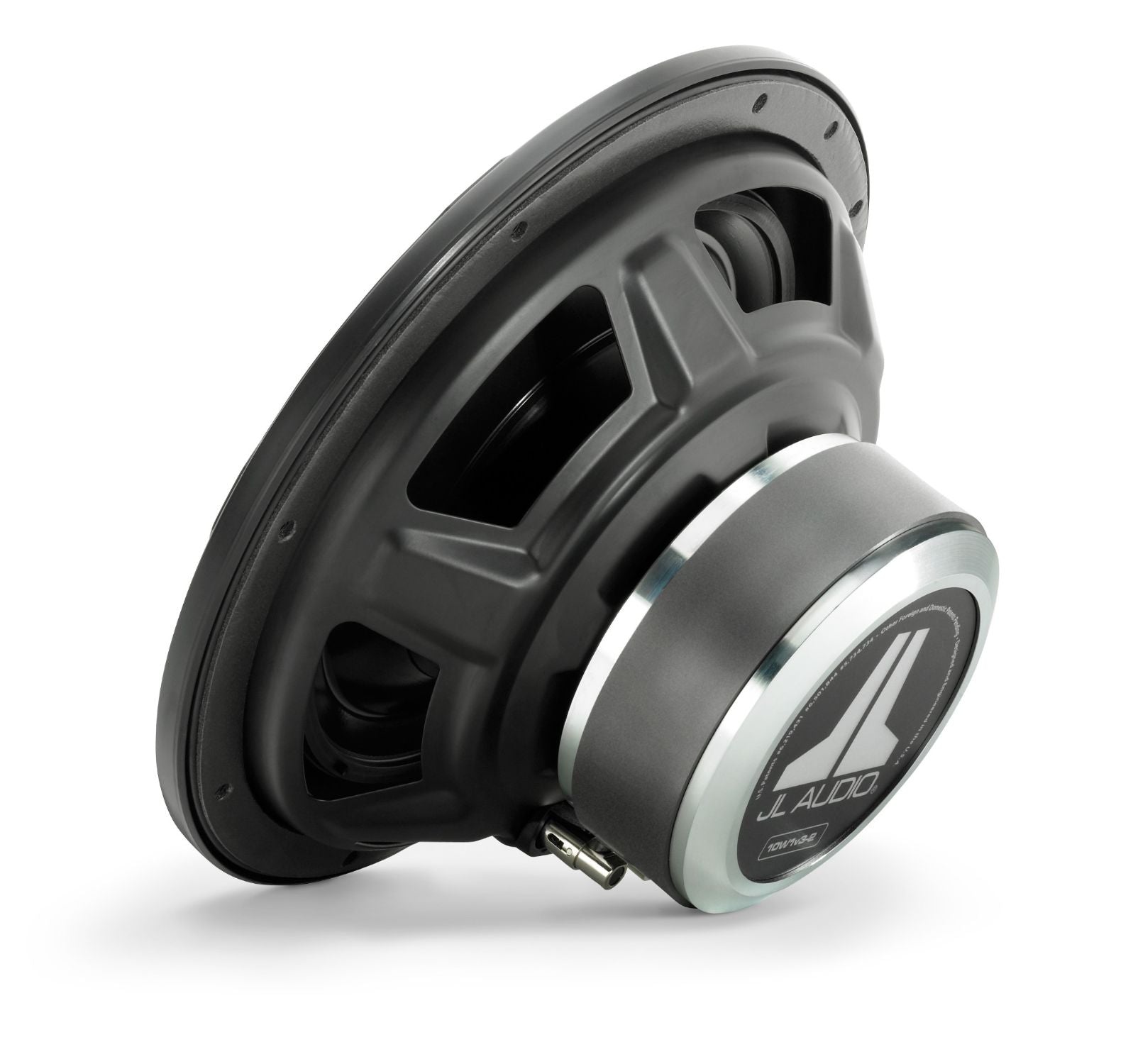

The 10W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (4.6 in. / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 10W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 - 300 W |
| Nominal Impedance (Znom) | 4 ohms |
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.0625 in / 230 mm |
| Bolt Hole Circle Diameter (C) | 9.7 in / 246 mm |
| Motor Outer Diameter (D) | 4.92 in / 125 mm |
| Mounting Depth (E) | 4.6 in / 117 mm |
| Driver Displacement | 0.037 cu ft / 1.05 L |
| Net Weight | 9.9 lb / 4.5 kg |
| Free Air Resonance (Fs) | 26.15 Hz |
| Electrical “Q” (Qes) | 0.475 |
| Mechanical “Q” (Qms) | 7.243 |
| Total Speaker “Q” (Qts) | 0.446 |
| Equivalent Compliance (Vas) | 1.533 cu ft / 43.41 L |
| One-Way Linear Excursion (Xmax)* | 0.45 in / 11 mm |
| Reference Efficiency (no) | 0.16% |
| Efficiency (1 W / 1 m)** | 84.2 dB SPL |
| Effective Piston Area (Sd) | 53.584 sq in / 0.0346 sq m |
| DC Resistance (Re) | 3.902 ohms |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.55 cu ft / 15.57 L |
| External Width (W) | 16.5 in / 419 mm |
| External Height (H) | 13.5 in / 343 mm |
| External Depth (D) | 7 in / 178 mm |
| F3 | 43.1 Hz |
| Fc | 50.9 Hz |
| Qtc | 0.868 |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.9 cu ft / 25.5 L |
| External Width (W) | 17.0 in / 432 mm |
| External Height (H) | 11.5 in / 292 mm |
| External Depth (D) | 15.25 in / 387 mm |
| Internal Slot Port Width (SW) | 1.125 in / 28.6 mm |
| Internal Slot Port Height (SH) | 10.0 in / 254 mm |
| Internal Slot Port Length (SL) | 30.1875 in / 767 mm |
| Port Extension Length (EL) | 12.50 in / 318 mm |
| Tuning Frequency (Fb) | 32.17 Hz |
| F3 | 31.92 Hz |
