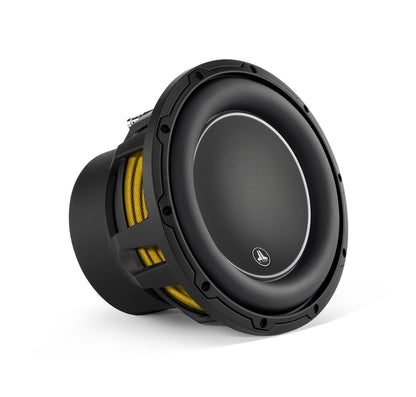

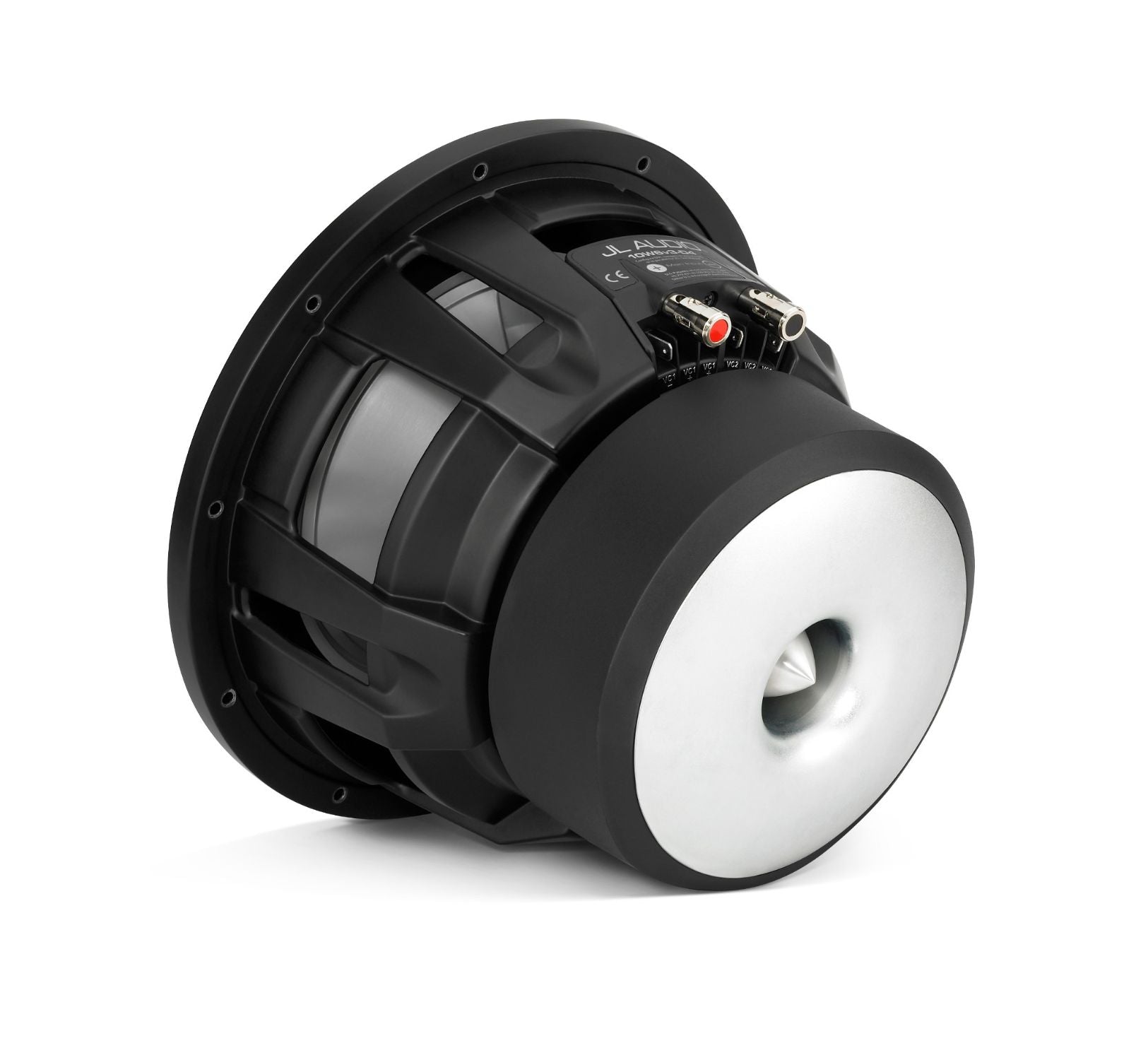

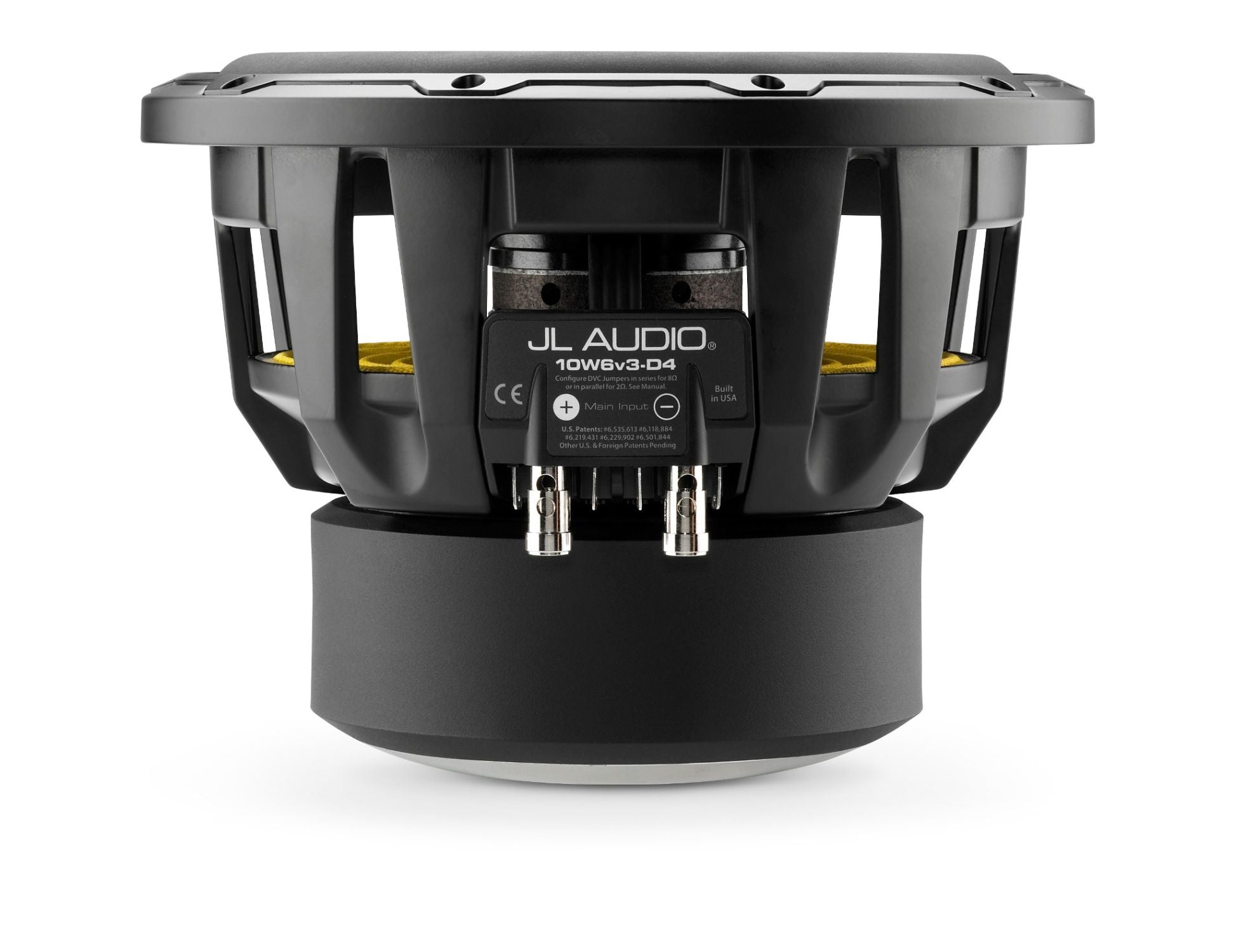

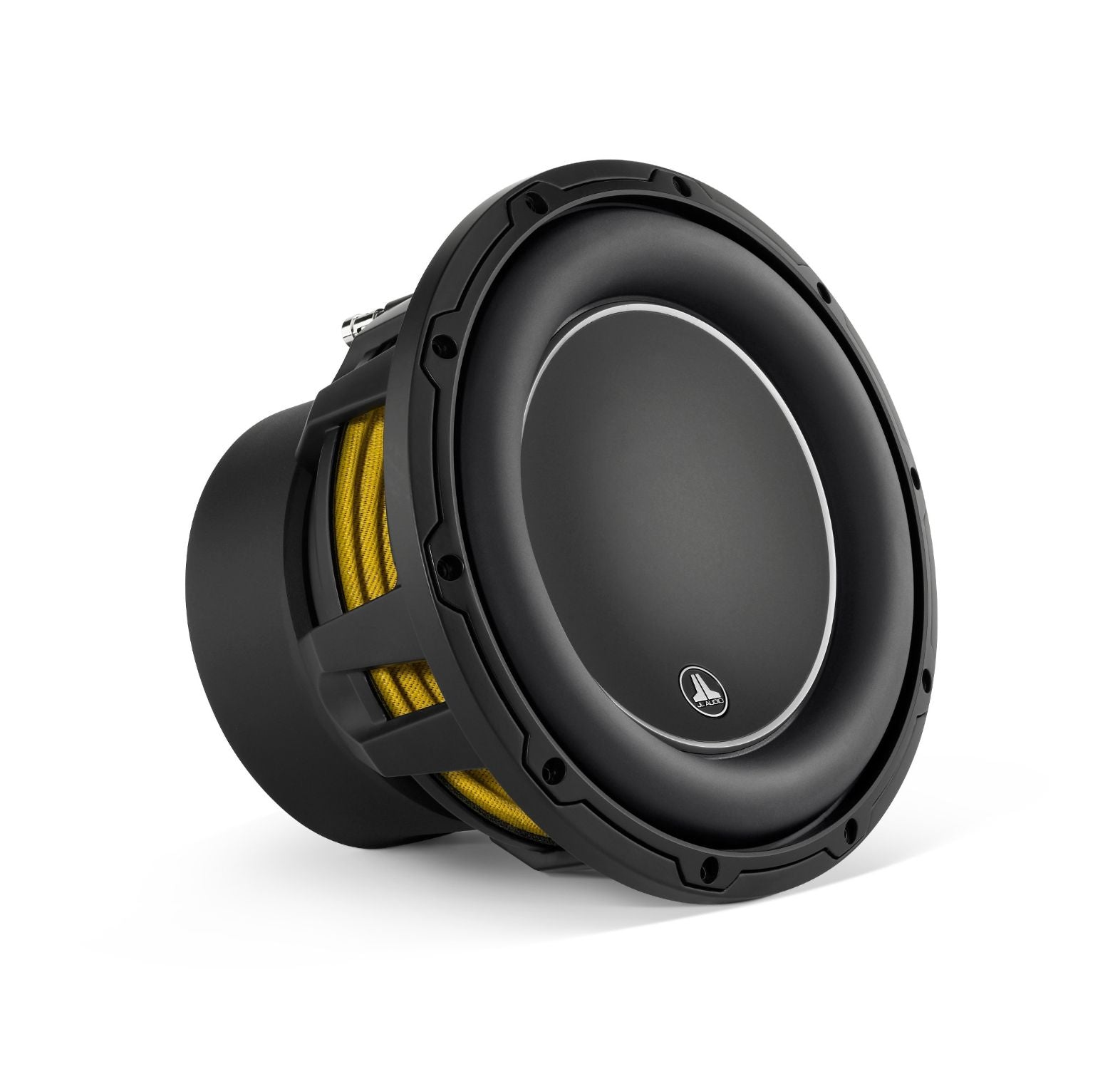

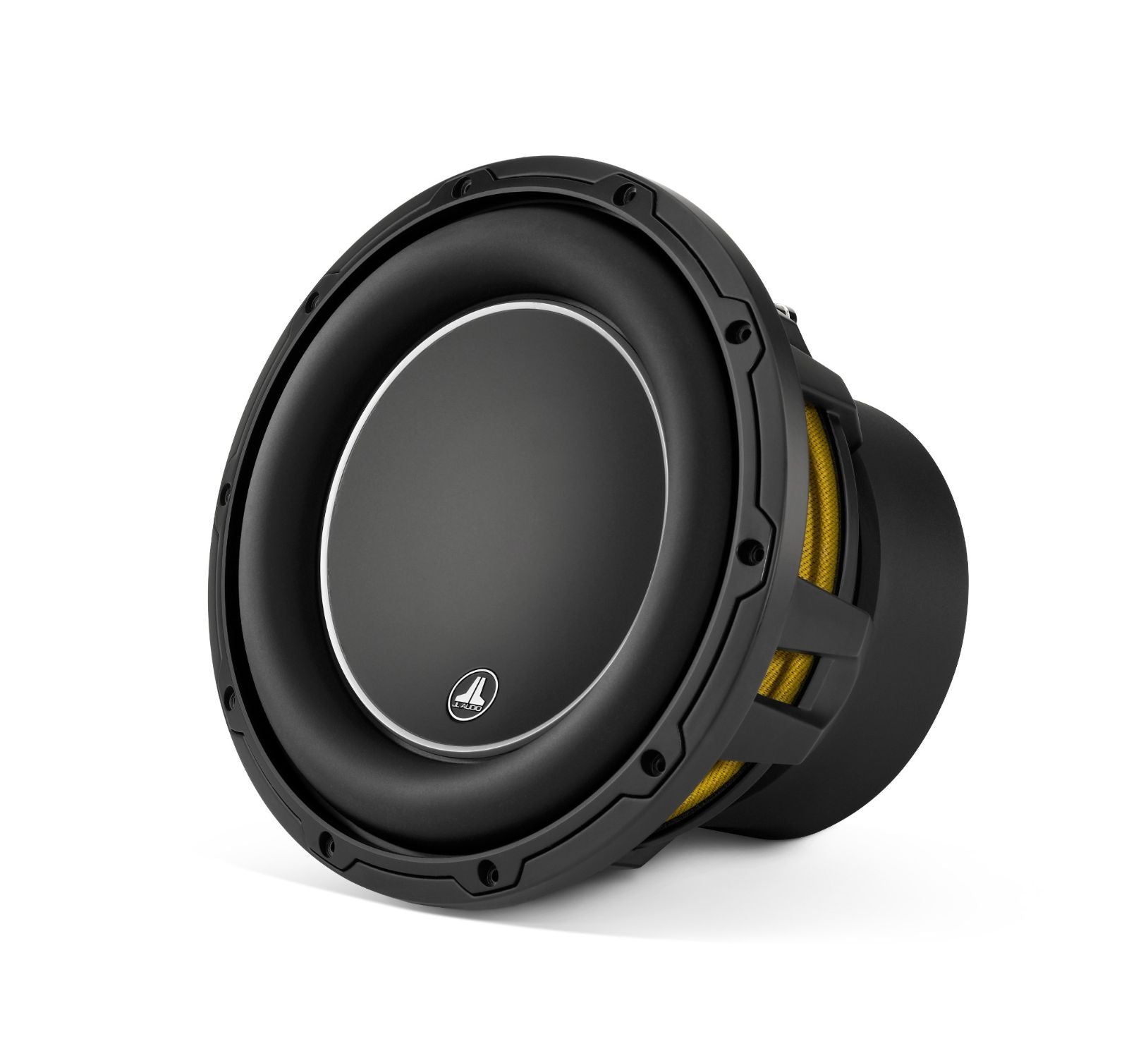

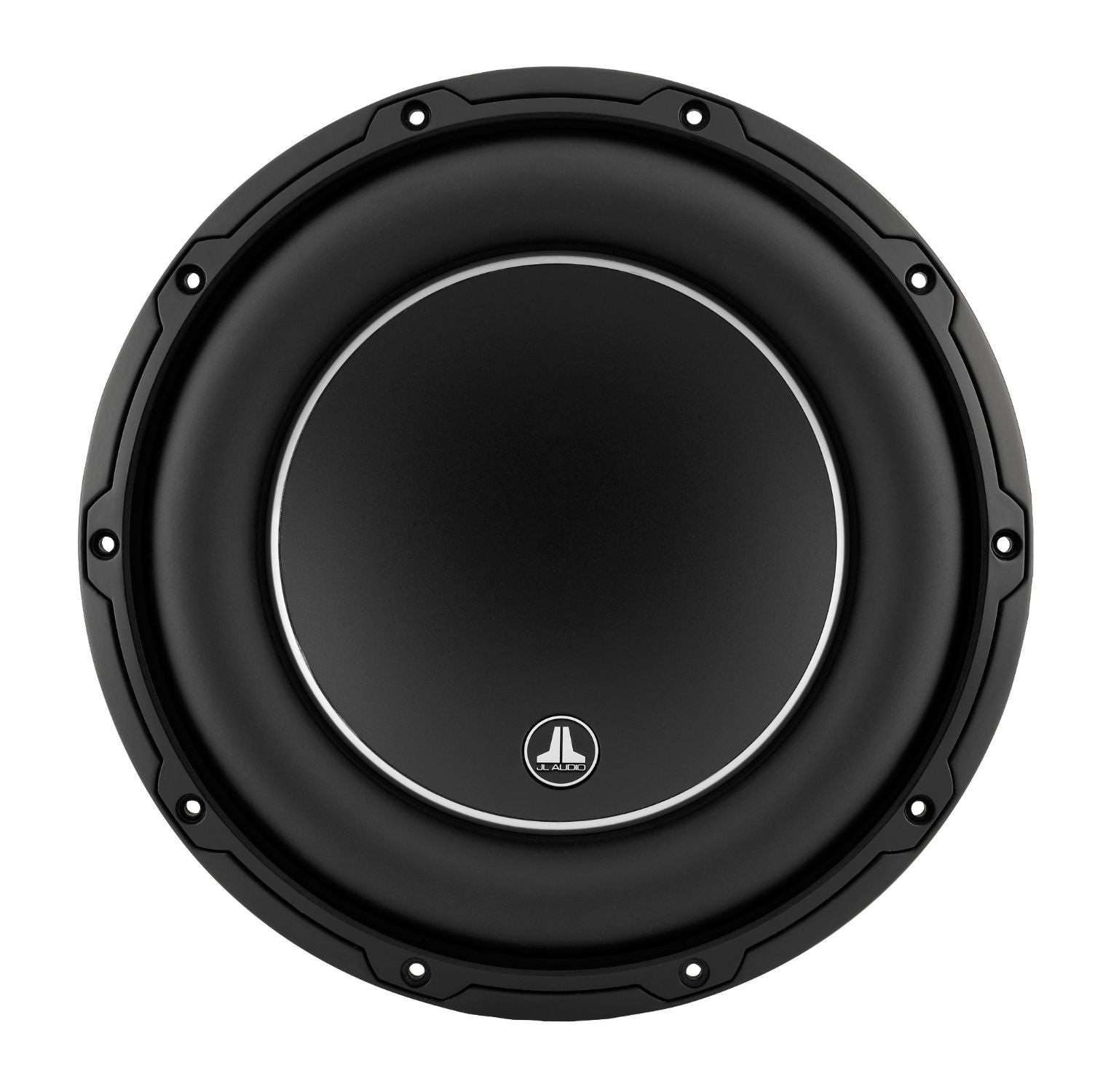

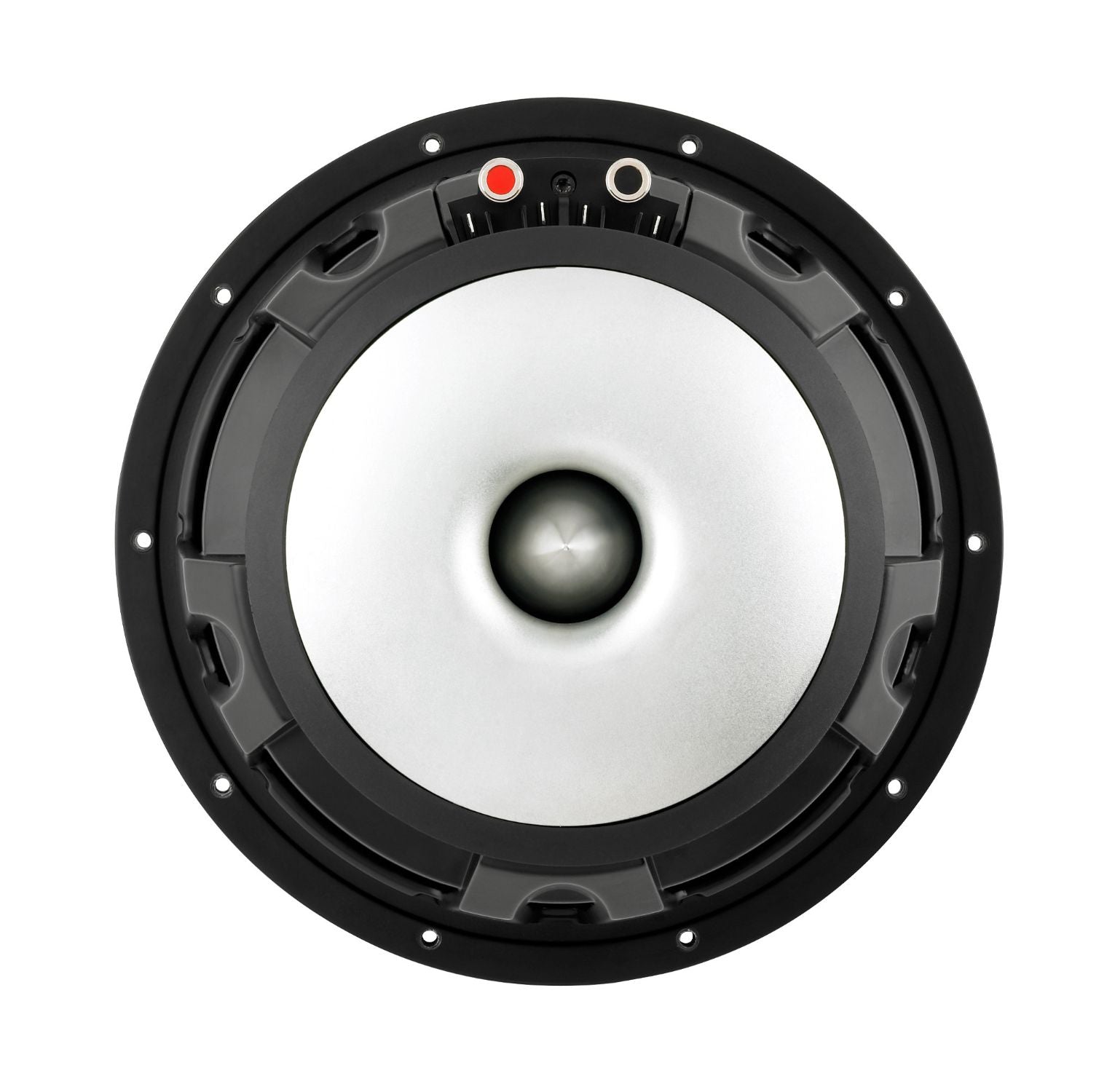

W6v3 10-inch Subwoofer (600 W, dual 4 ohms voice coils)
If you are seeking to reproduce the highest quality sub-bass in a very compact enclosure application, the 10W6v3 is the ultimate choice. This advanced Subwoofer offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behavior. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
The 10W6v3 is best used with amplifier power in the 200W - 600W range and is optimized to operate in a sealed enclosure with only 0.55 cu. ft. (15.6 l) of air space, or a 0.75 cu. ft. (21.2 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
Greater excursion capability and higher power handling distinguish it from our 10W3v3 10-inch Subwoofer, allowing for higher output. Dual 4 ohms voice coils permit deploying the W6v3 as a 2 ohms or 8 ohms driver.
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 200 - 600 W |
| Nominal Impedance (Znom) | Dual 4 ohms |
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.02 in / 229 mm |
| Bolt Hole Circle Diameter (C) | 9.86 in / 250 mm |
| Motor Outer Diameter (D) | 6.76 in / 172 mm |
| Mounting Depth (E) | 6.89 in / 175 mm |
| Required Pole Vent Clearance | 0.50 in / 13 mm |
| Driver Displacement | 0.078 cu ft / 2.1 L |
| Net Weight | 20 lb / 9.1 kg |
| Free Air Resonance (Fs) | 30.12 Hz |
| Electrical “Q” (Qes) | 0.543 |
| Mechanical “Q” (Qms) | 9.228 |
| Total Speaker “Q” (Qts) | 0.513 |
| Equivalent Compliance (Vas) | 0.821 cu ft / 23.25 L |
| One-Way Linear Excursion (Xmax)* | 0.75 in / 19 mm |
| Reference Efficiency (no) | 0.11% |
| Efficiency (1 W / 1 m)** | 82.7 dB SPL |
| Effective Piston Area (Sd) | 49.303 sq in / 0.0318 sq m |
| DC Resistance (Re)*** | 6.452 Ω |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.55 cu ft / 15.57 L |
| External Width (W) | 12.5 in / 318 mm |
| External Height (H) | 12.5 in / 318 mm |
| External Depth (D) | 10.5 in / 267 mm |
| F3 | 42.27 Hz |
| Fc | 47.55 Hz |
| Qtc | 0.8099 |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.75 cu ft / 21.2 L |
| External Width (W) | 21.5 in / 546 mm |
| External Height (H) | 12.375 in / 314 mm |
| External Depth (D) | 11.125 in / 282 mm |
| Internal Slot Port Width (SW) | 1.375 in / 35 mm |
| Internal Slot Port Height (SH) | 10.875 in / 275 mm |
| Internal Slot Port Length (SL) | 30.40 in / 772 mm |
| Port Extension Length (EL) | 16.5 in / 419 mm |
| Tuning Frequency (Fb) | 39 Hz |
| F3 | 33 Hz |
