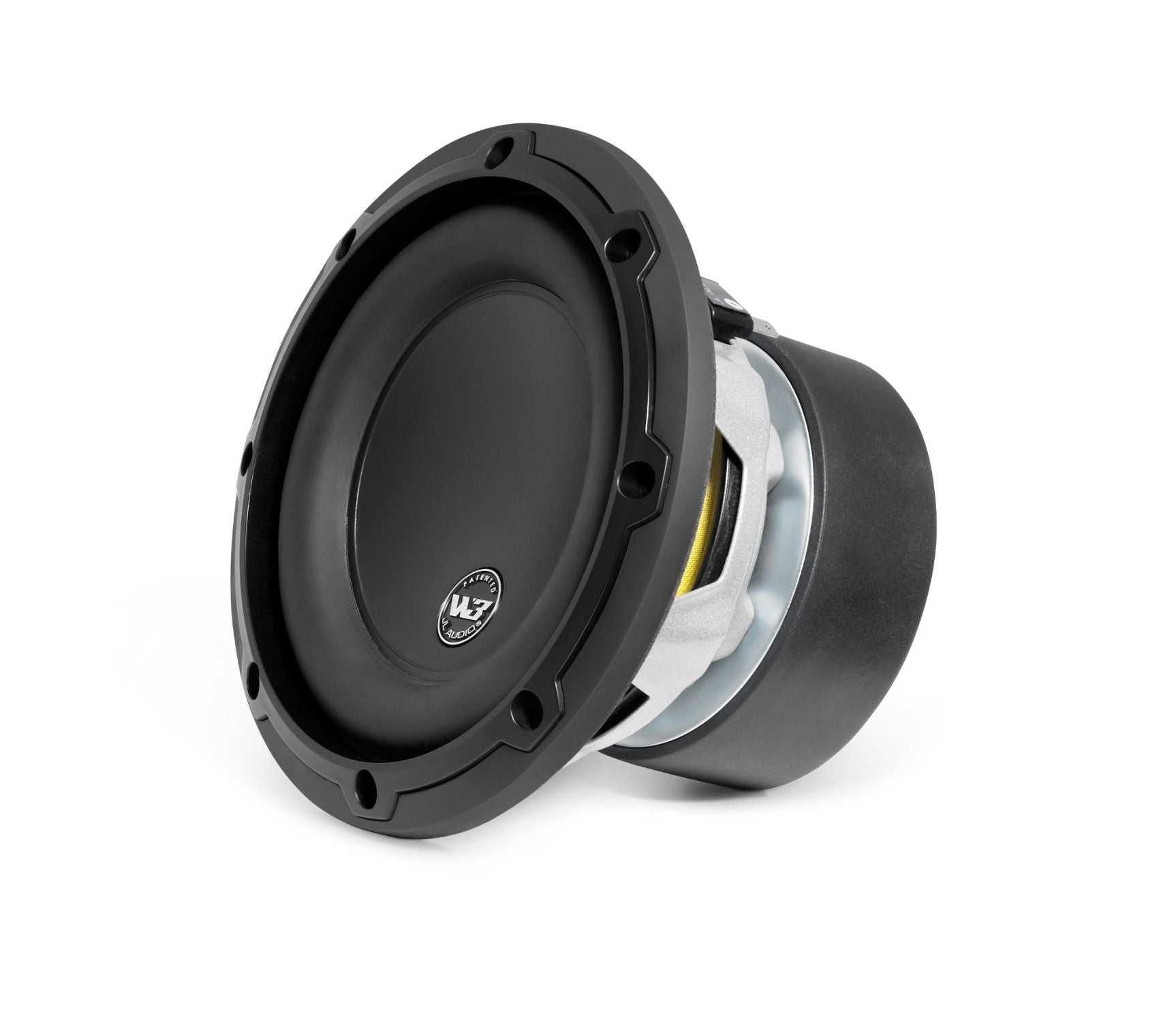

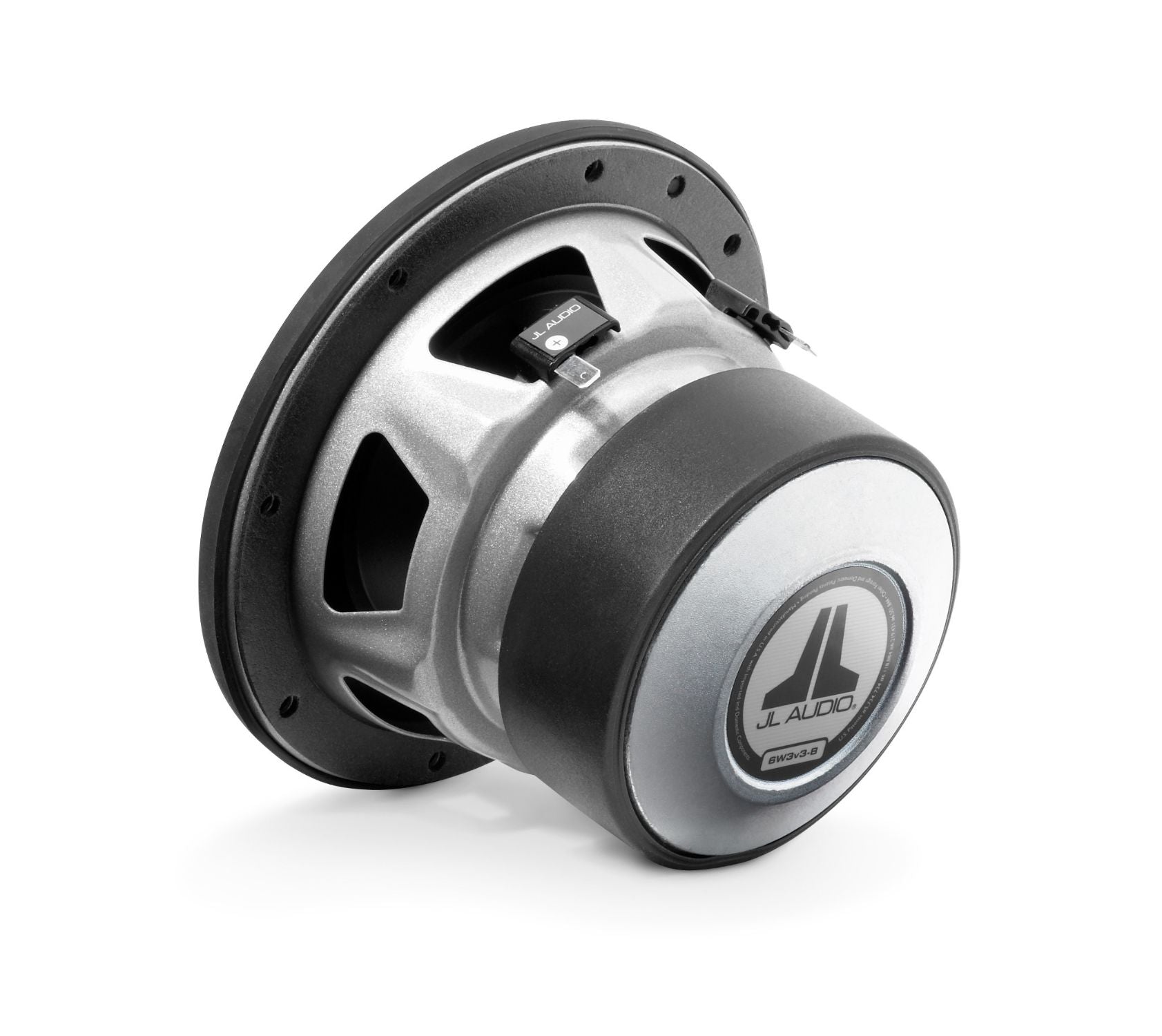

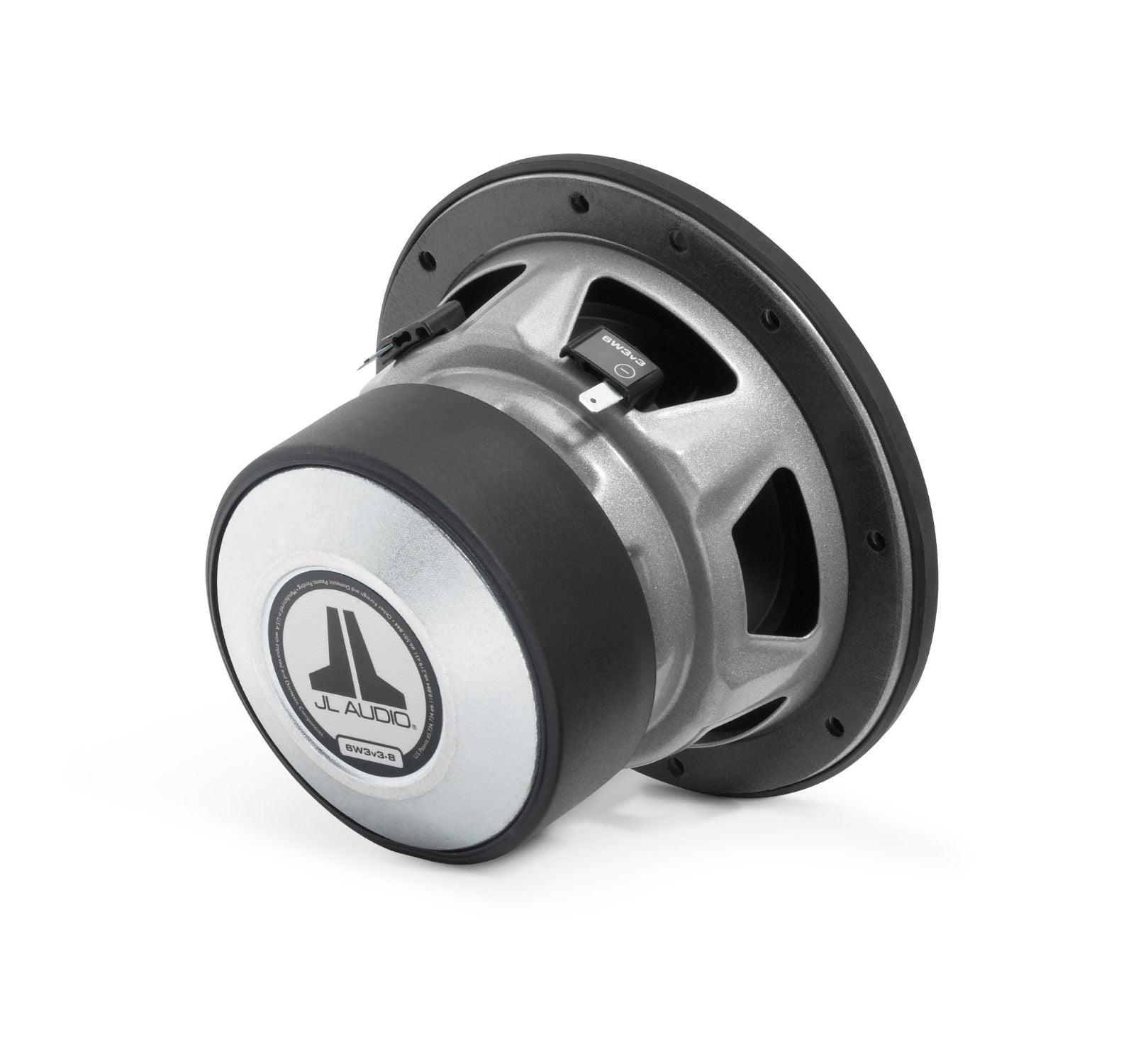

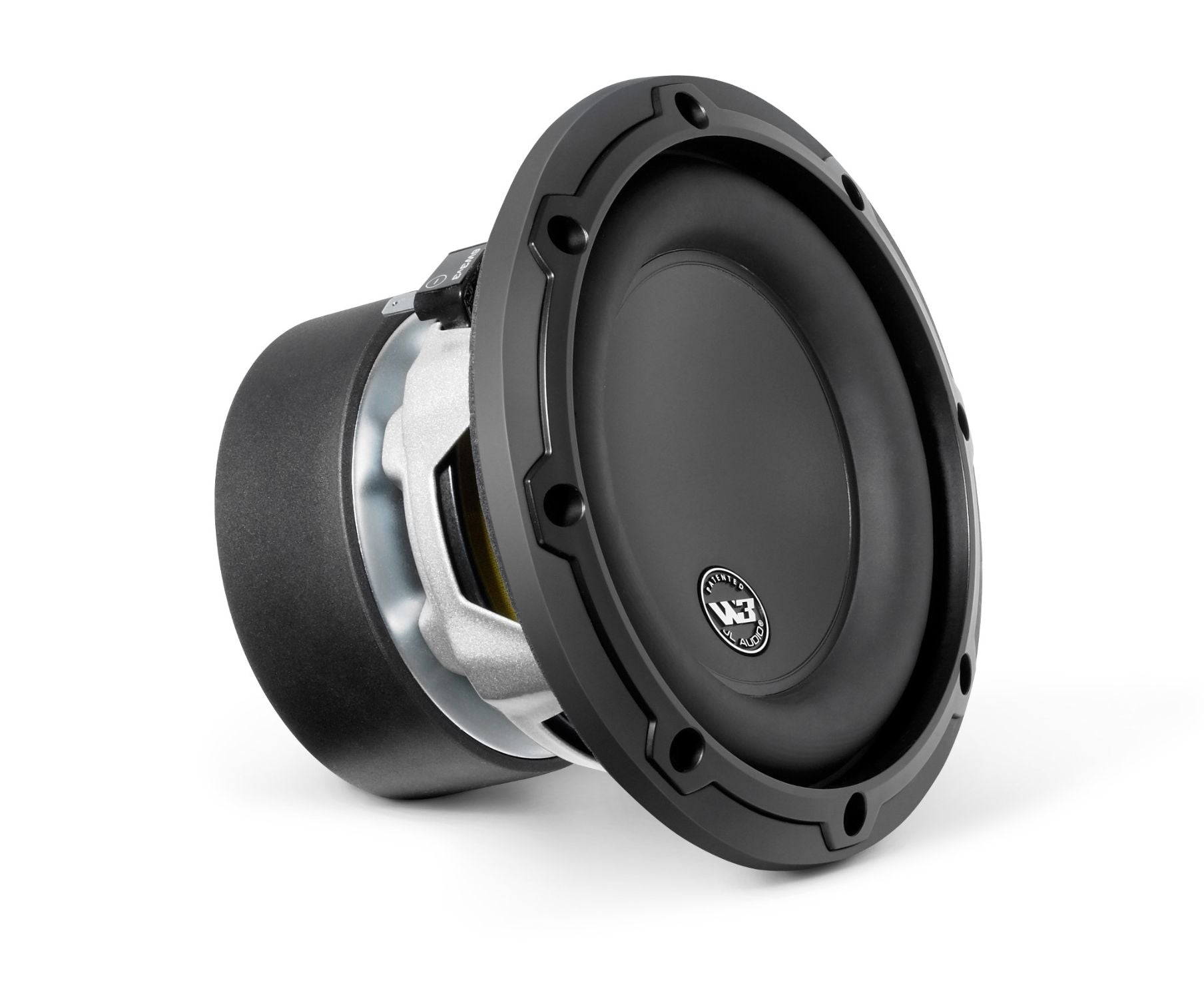

W3v3 6.5-inch Subwoofer (150 W, 4 ohms)
If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
| Continuous Power Handling (RMS) | 150 W |
| Recommended Amplifier Power (RMS) | 50 - 150 W |
| Nominal Impedance (Znom) | 4 ohms |
| Nominal Diameter | 6.5 in / 165 mm |
| Overall Diameter (A) | 6.85 in / 174 mm |
| Mounting Hole Diameter (B) | 5.5 in / 140 mm |
| Bolt Hole Circle Diameter (C) | 6.125 in / 156 mm |
| Motor Outer Diameter (D) | 4.25 in / 108 mm |
| Mounting Depth (E) | 4.25 in / 108 mm |
| Driver Displacement | 0.02 cu ft / 0.57 L |
| Net Weight | 6.1 lb / 2.8 kg |
| Free Air Resonance (Fs) | 41.80 Hz |
| Electrical “Q” (Qes) | 0.533 |
| Mechanical “Q” (Qms) | 11.027 |
| Total Speaker “Q” (Qts) | 0.508 |
| Equivalent Compliance (Vas) | 0.181 cu ft / 5.13 L |
| One-Way Linear Excursion (Xmax)* | 0.35 in / 8.89 mm |
| Reference Efficiency (no) | 0.07% |
| Efficiency (1 W / 1 m)** | 80.49 dB SPL |
| Effective Piston Area (Sd) | 17.36 sq in / 0.0112 sq m |
| DC Resistance (Re) | 3.476 ohms |
| Wall Thickness | 0.5 in / 13 mm |
| Front Baffle Thickness | 0.5 in / 13 mm |
| Volume (net int.) | 0.15 cu ft / 4.2 L |
| External Width (W) | 8.5 in / 216 mm |
| External Height (H) | 8.5 in / 216 mm |
| External Depth (D) | 6.25 in / 159 mm |
| F3 | 58.43 Hz |
| Fc | 62.11 Hz |
| Qtc | 0.7548 |
| Wall Thickness | 0.5 in / 13 mm |
| Front Baffle Thickness | 0.5 in / 13 mm |
| Volume (net int.) | 0.25 cu ft / 7.1 L |
| External Width (W) | 14.50 in / 368 mm |
| External Height (H) | 10.125 in / 257 mm |
| External Depth (D) | 5.25 in / 133 mm |
| Internal Slot Port Width (SW) | 4.25 in / 108 mm |
| Internal Slot Port Height (SH) | 0.5 in / 13 mm |
| Internal Slot Port Length (SL) | 14.75 in / 374 mm |
| Port Extension Length (EL) | 13 in / 330 mm |
| Tuning Frequency (Fb) | 38 Hz |
| F3 | 34.92 Hz |
