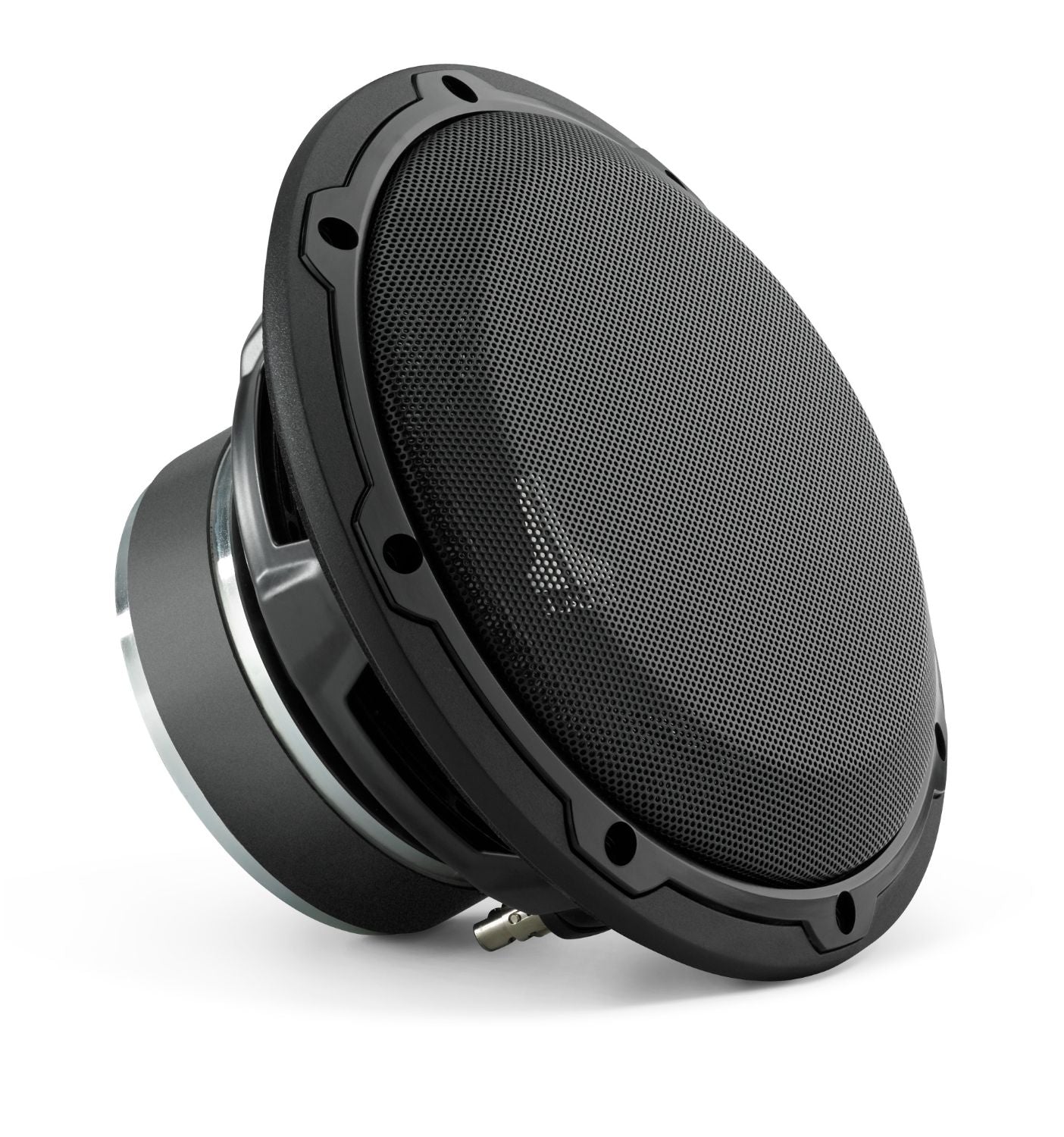

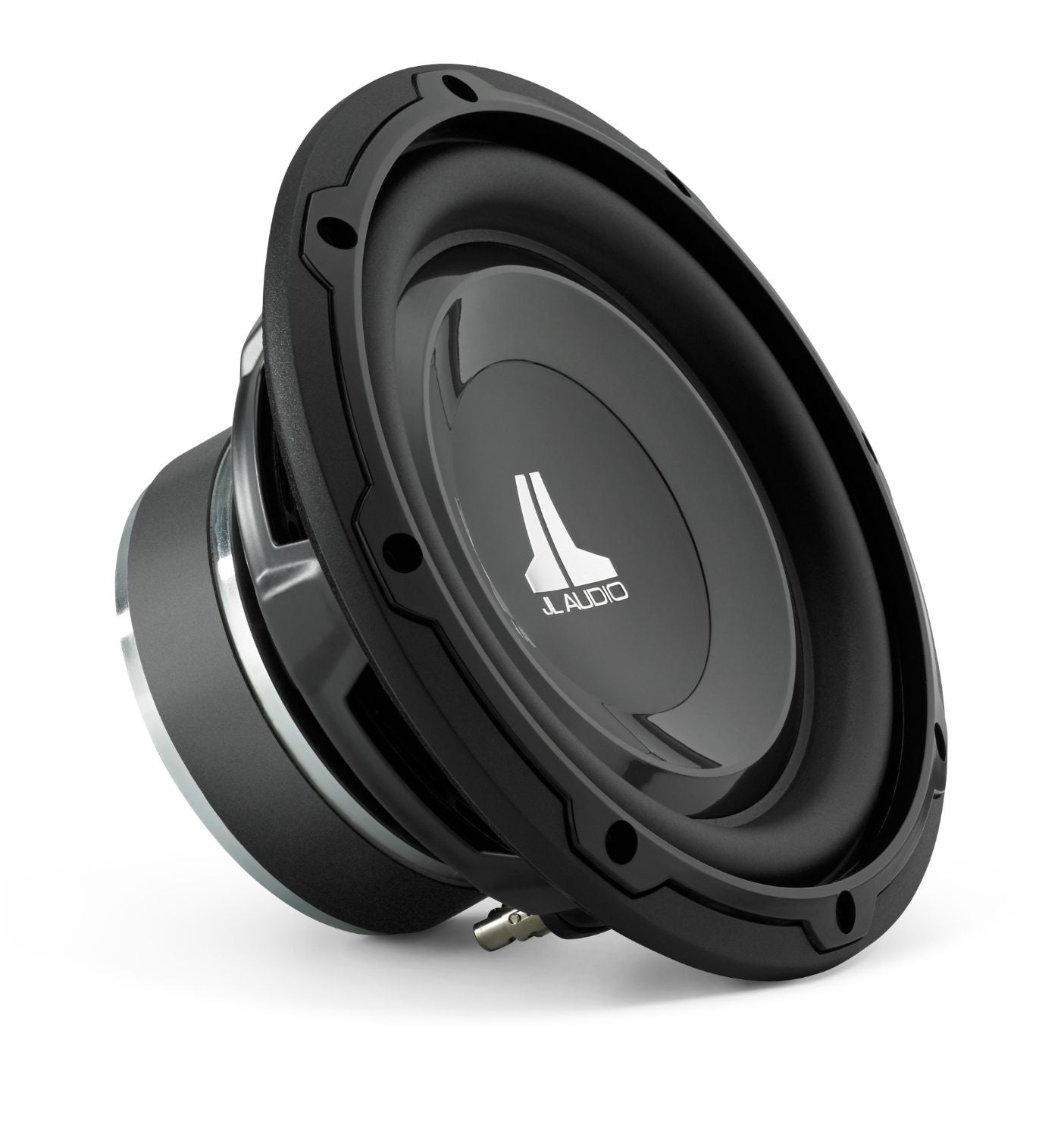

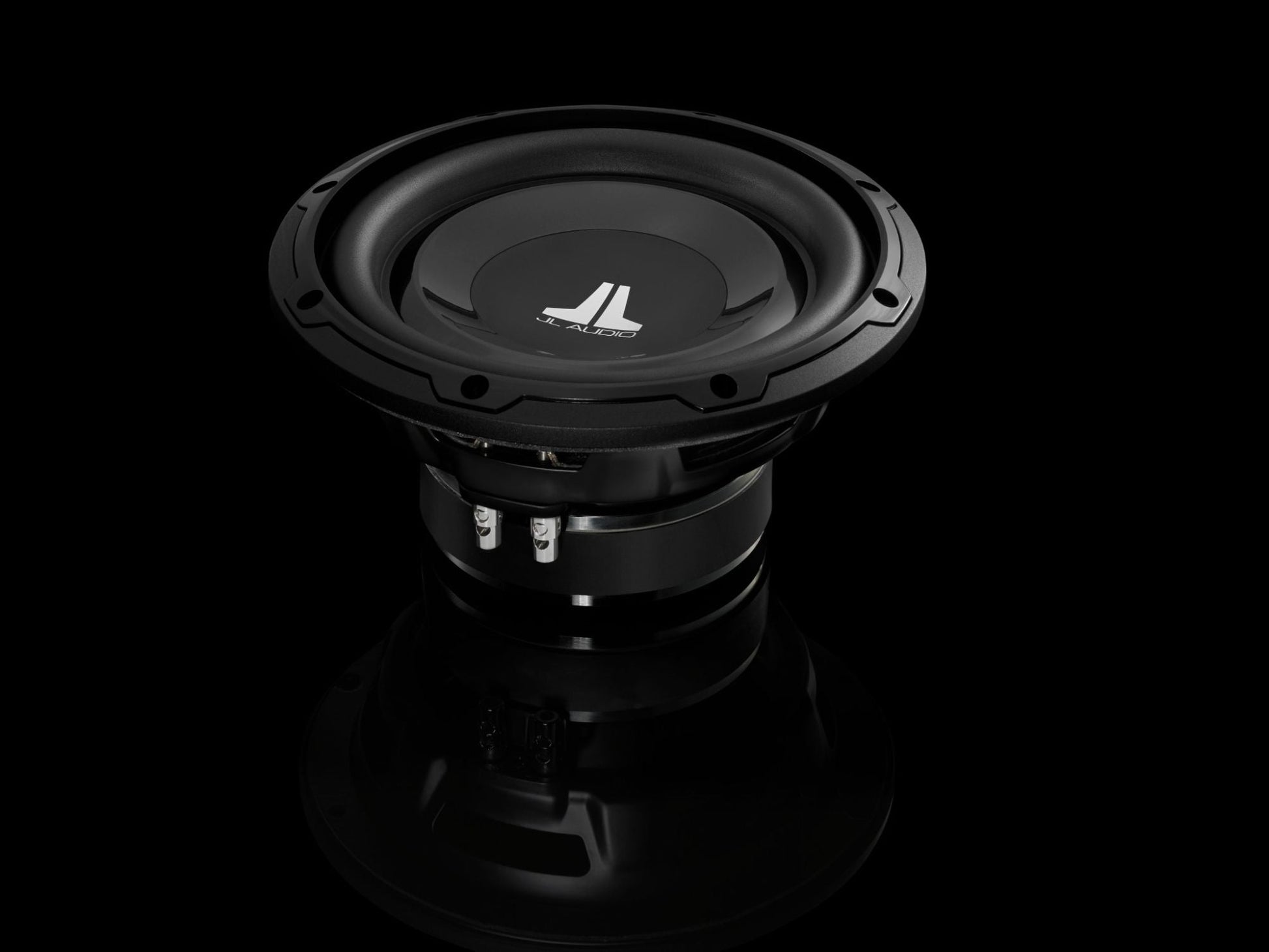

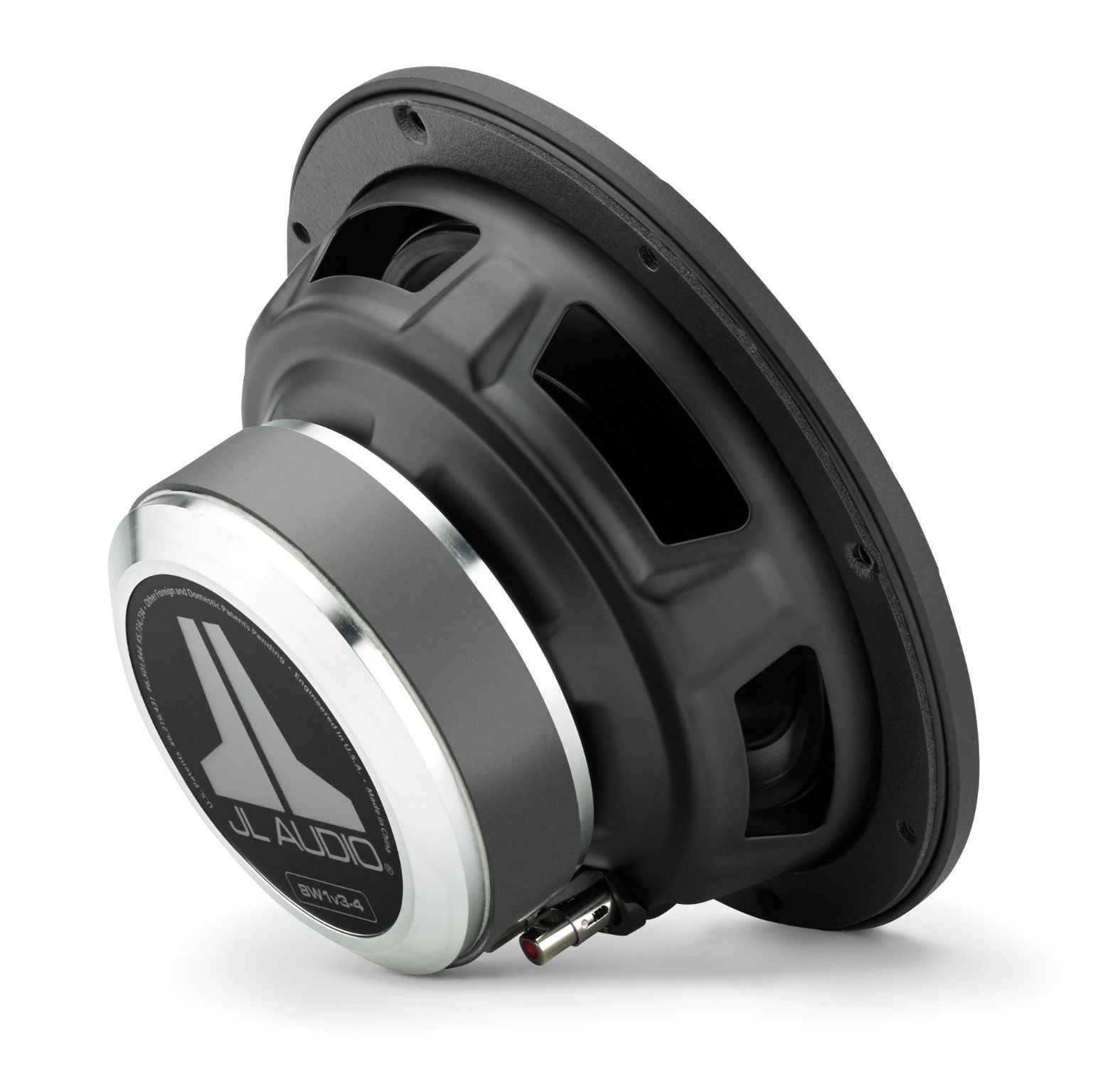

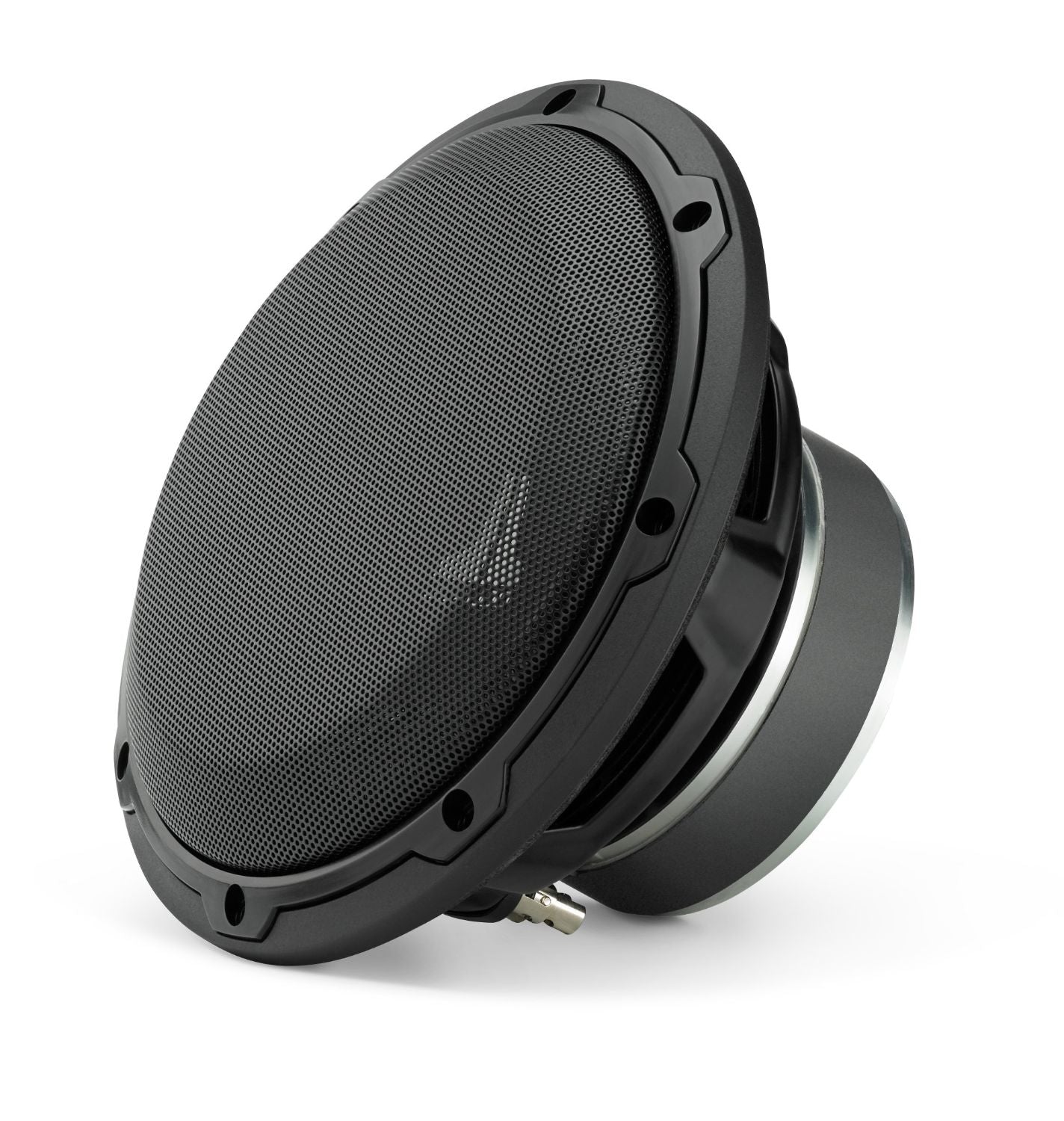

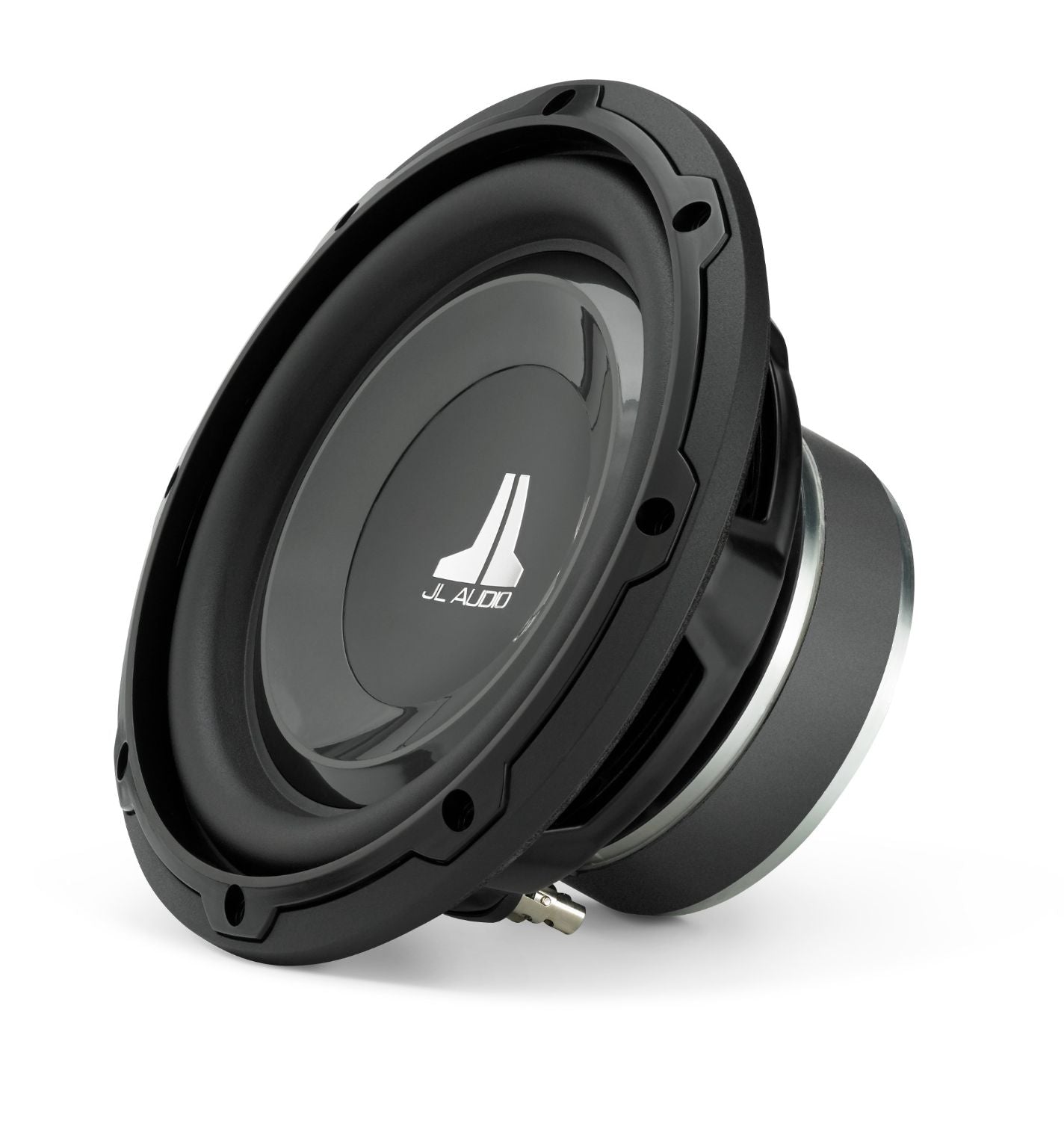

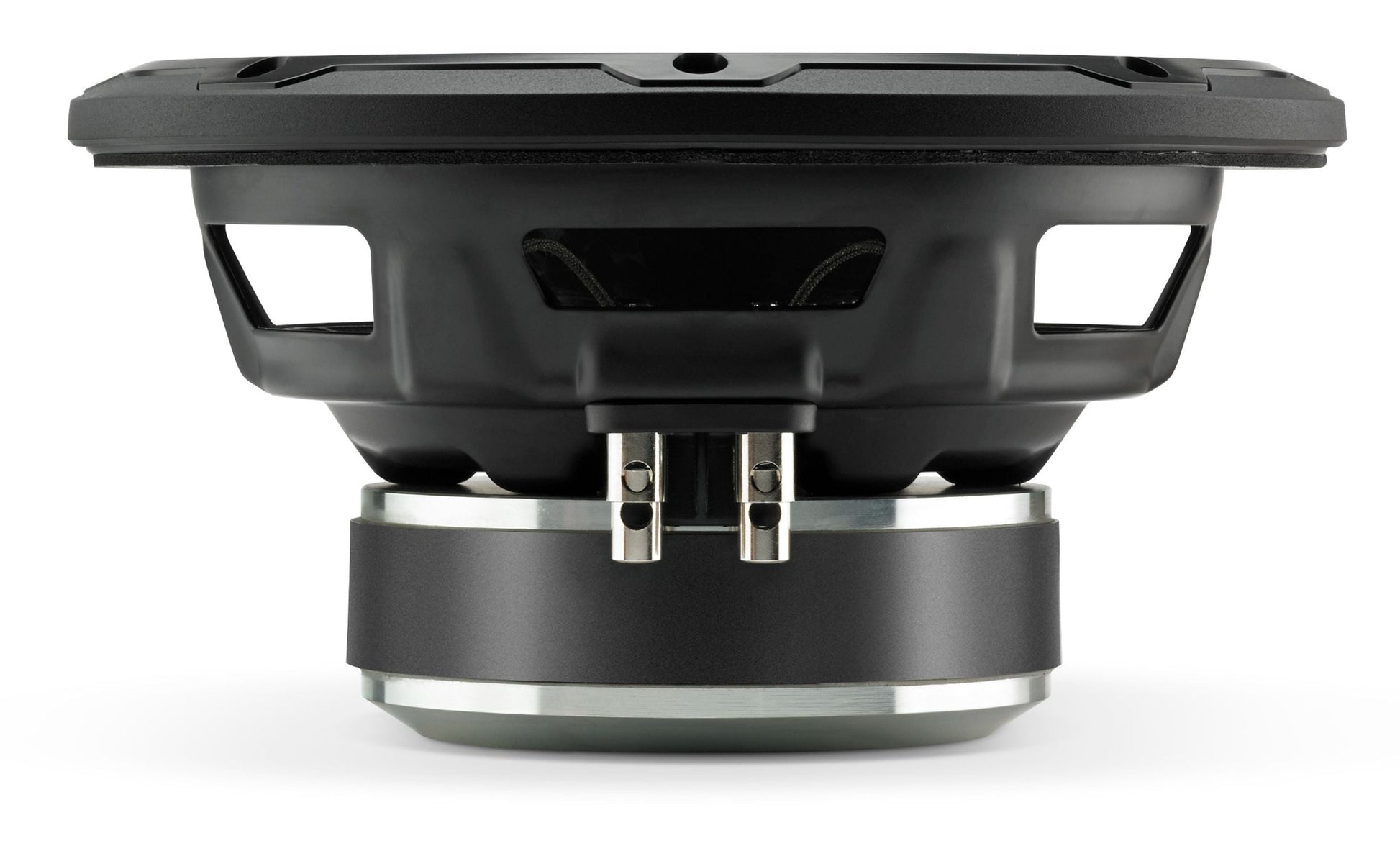

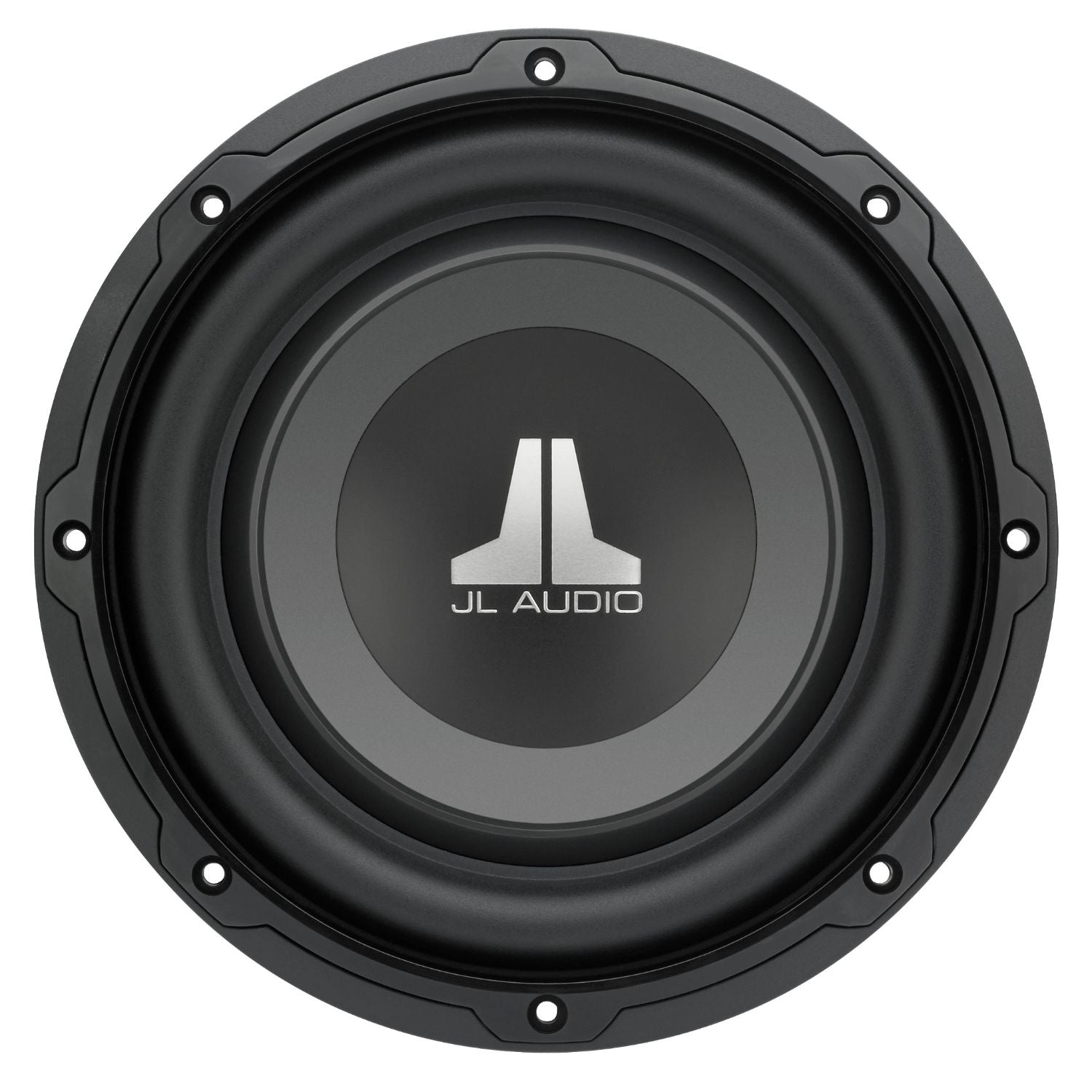

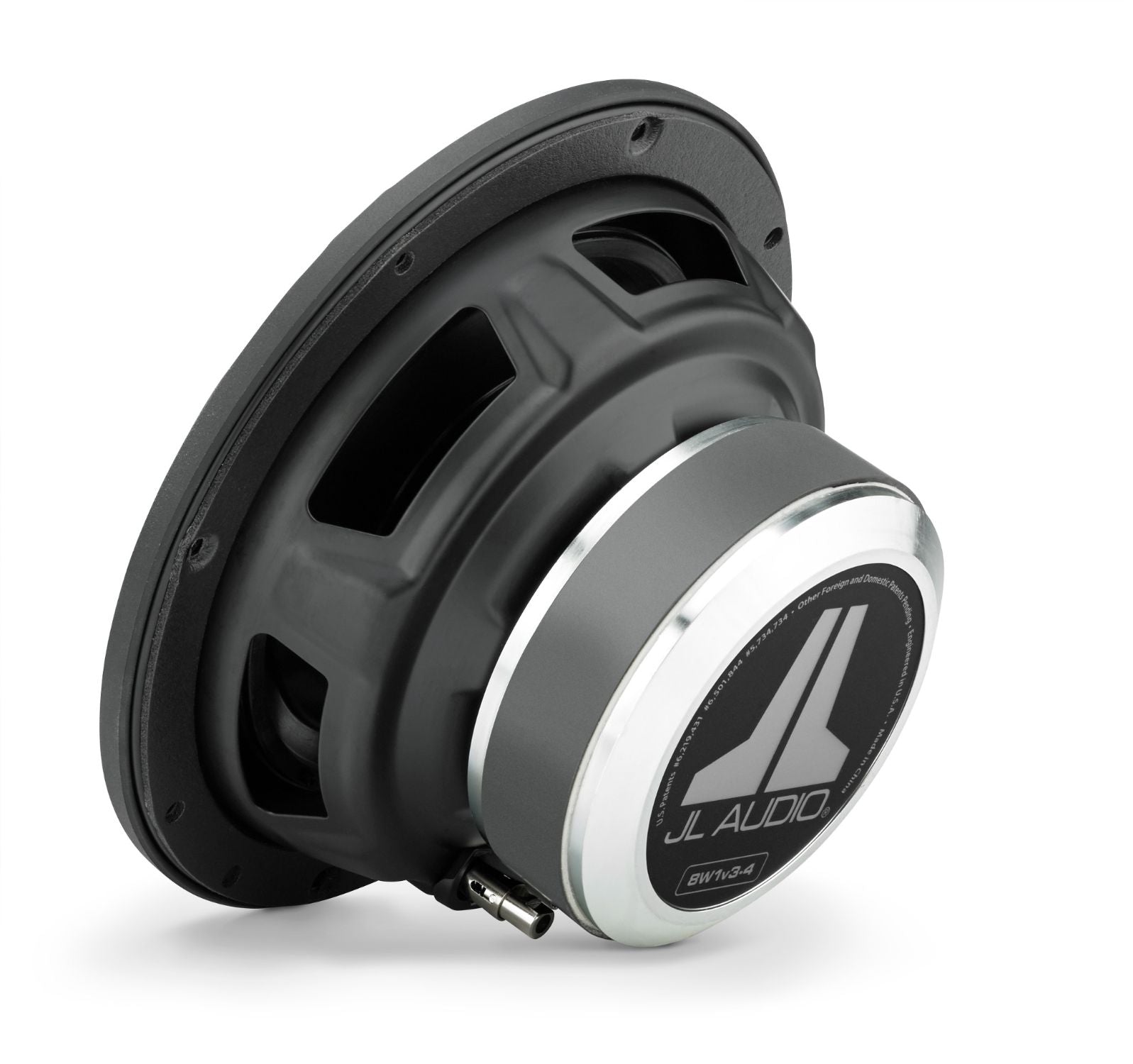

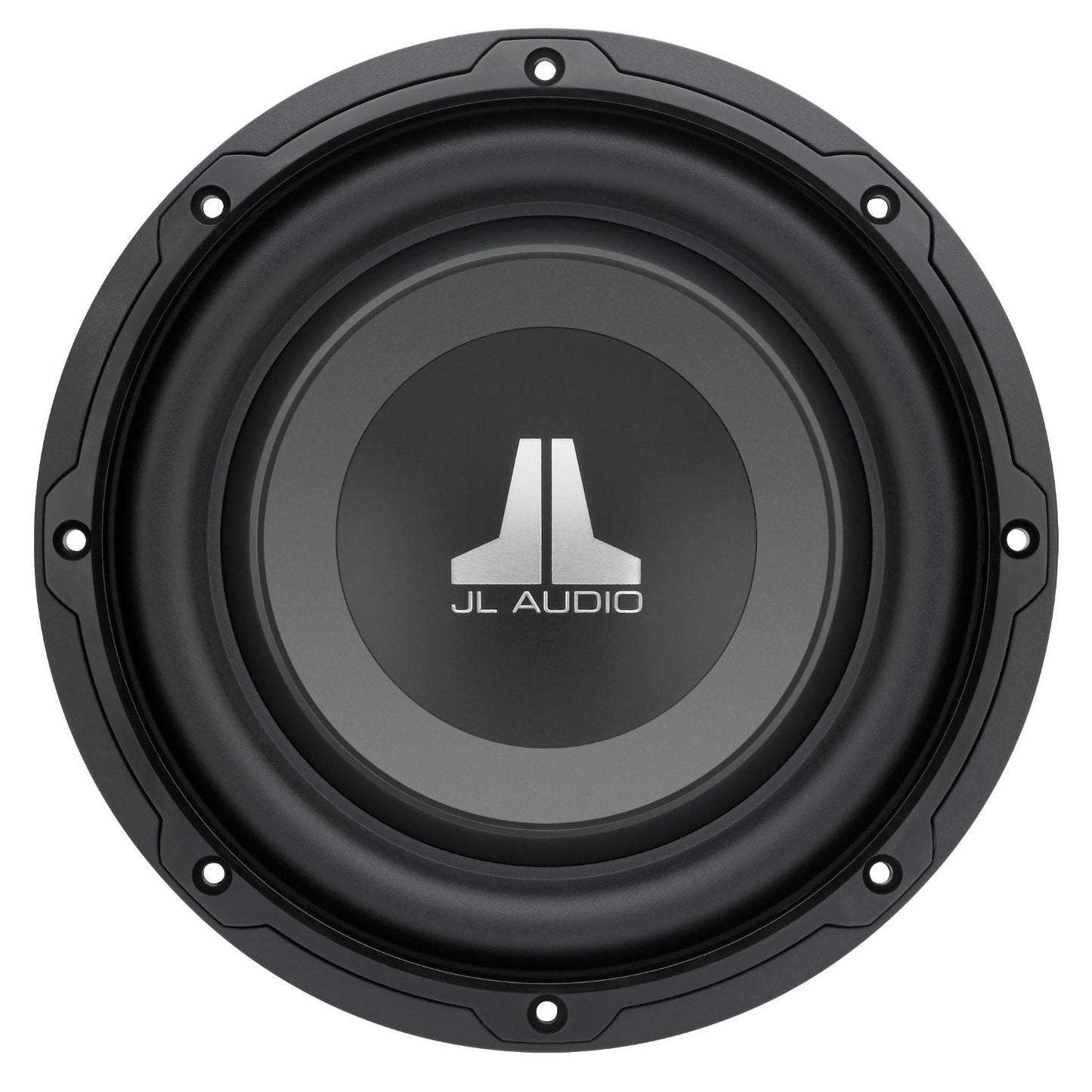

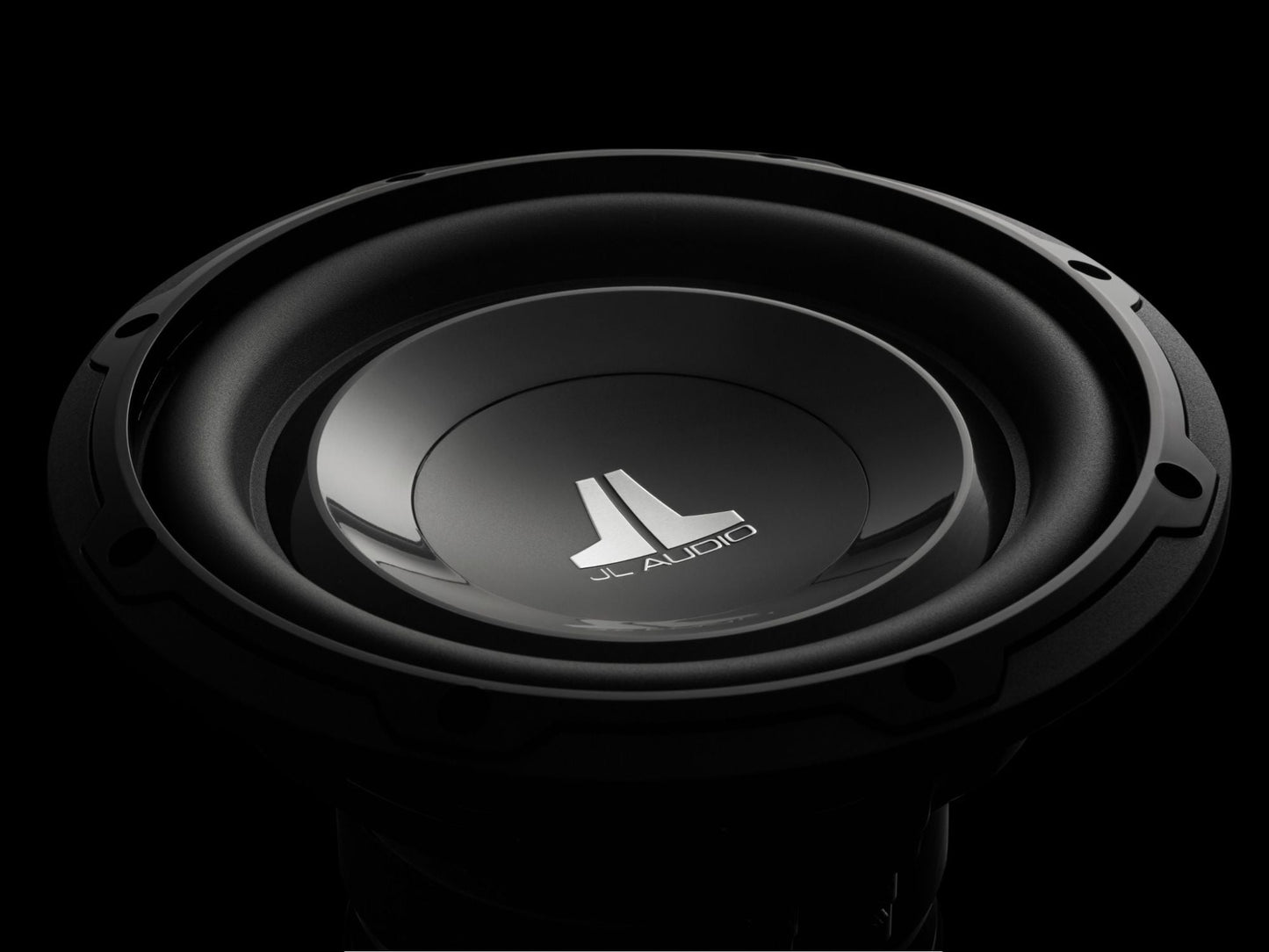

W1v3 8-inch Subwoofer (150 W, 4 ohms)

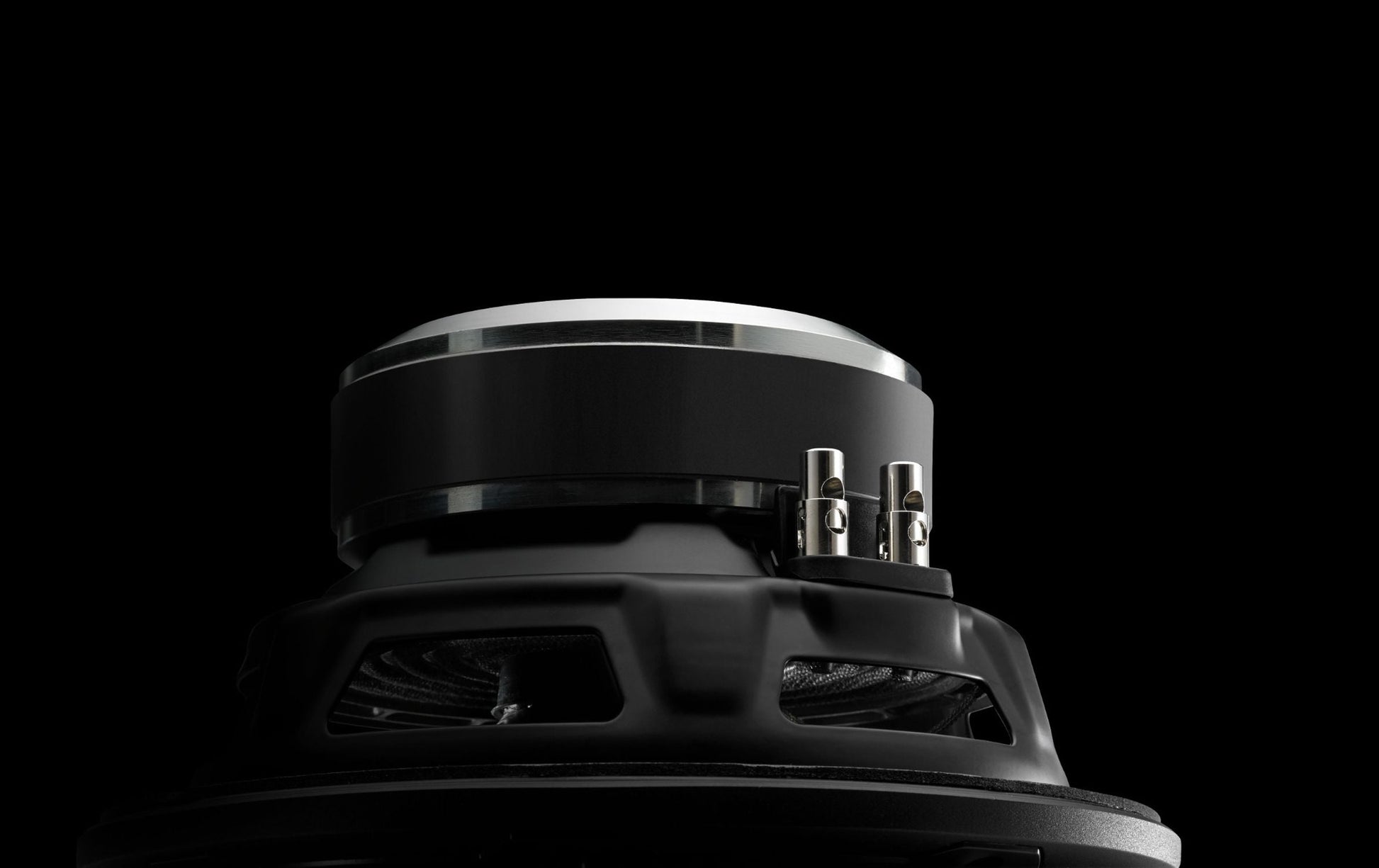

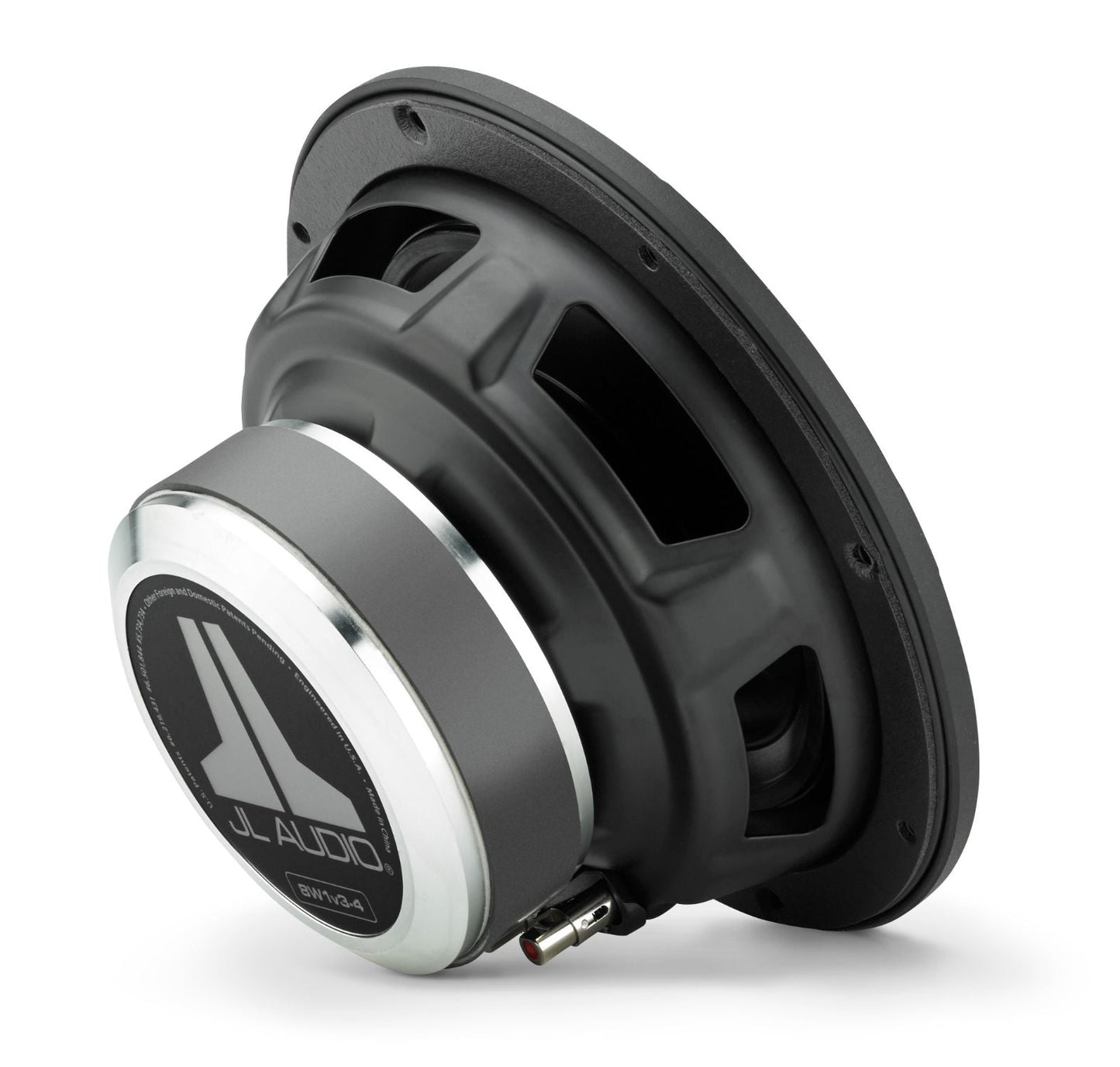

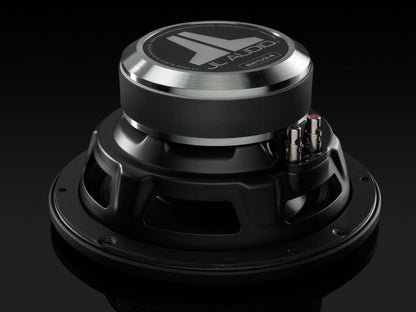

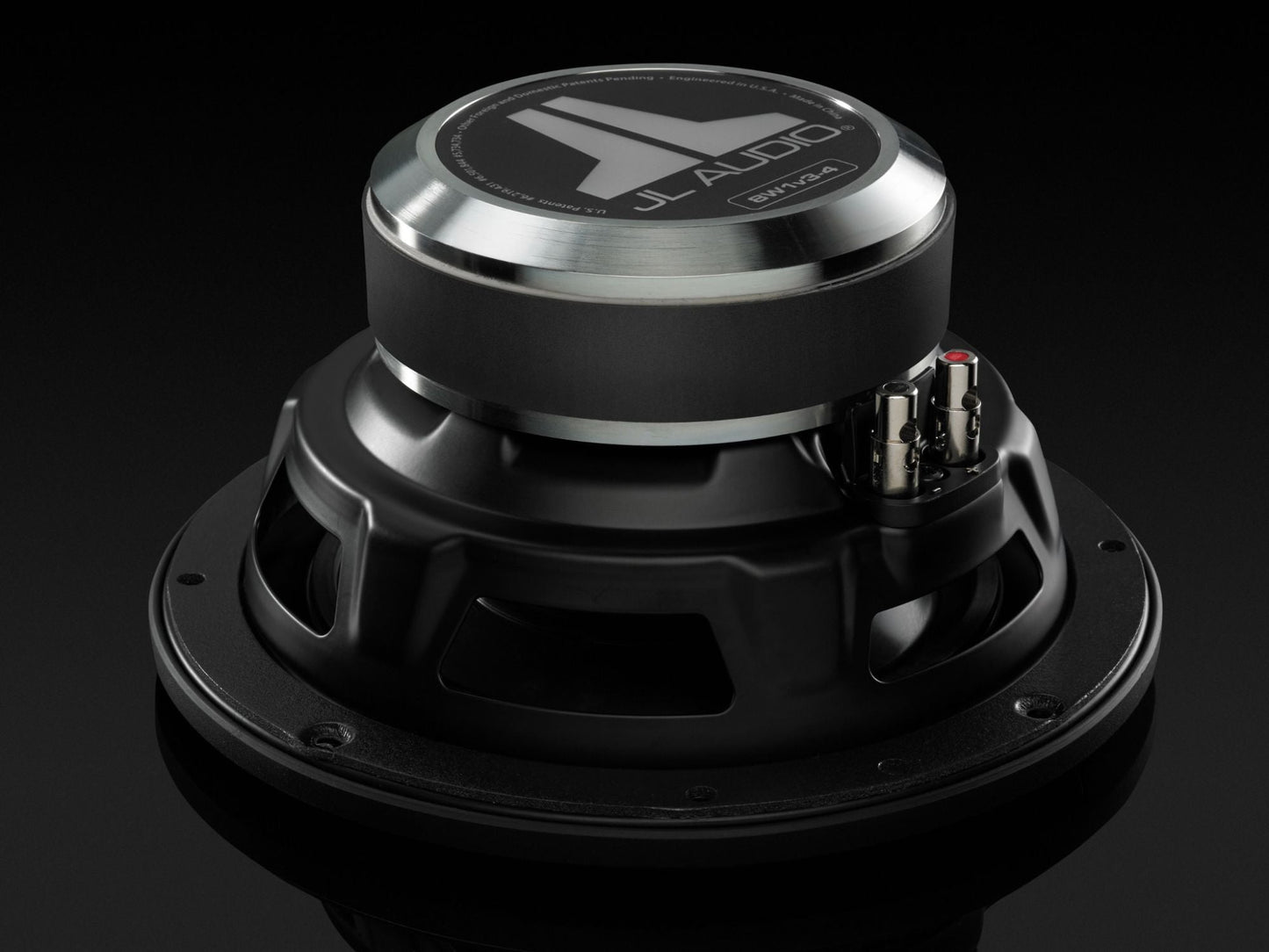

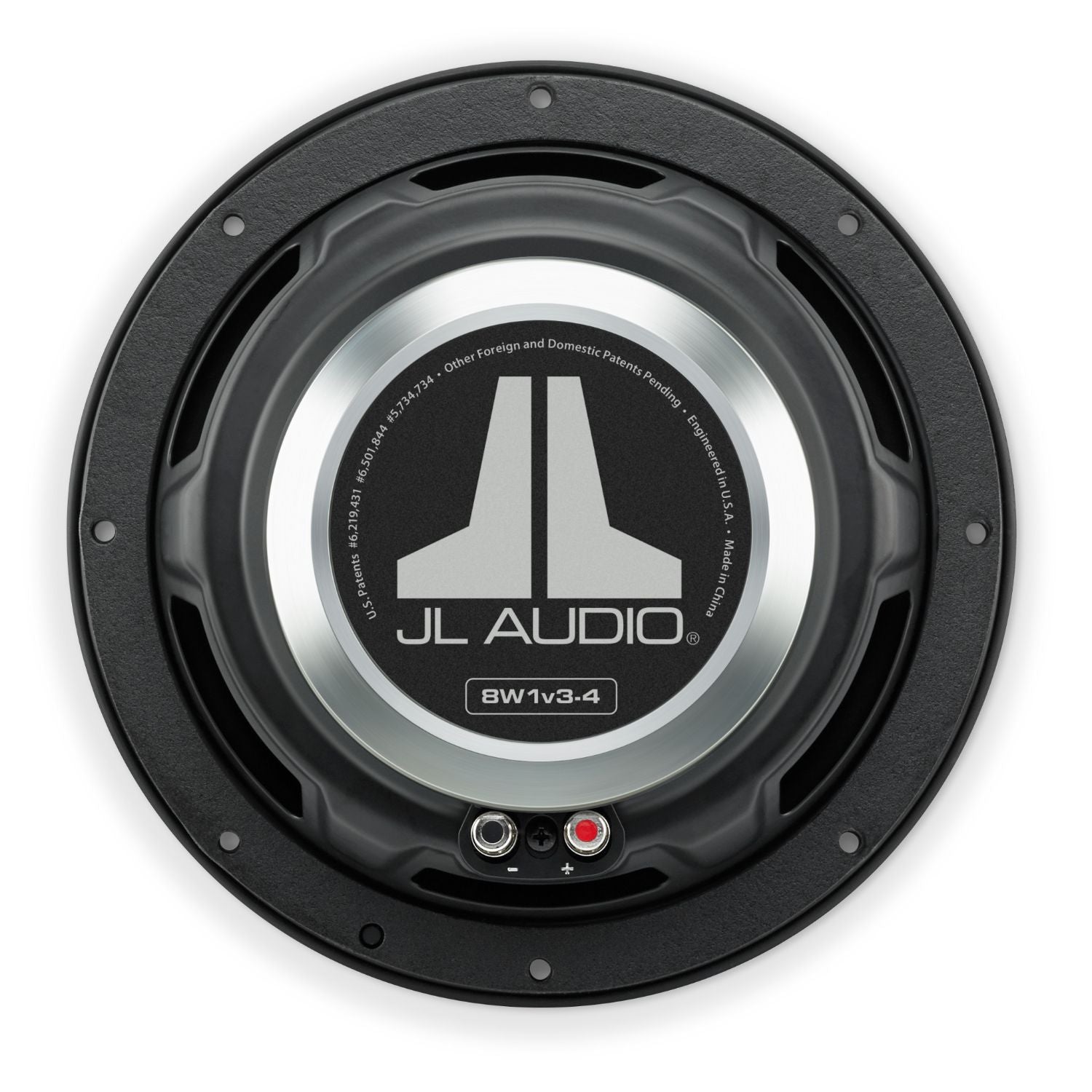

The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
| Continuous Power Handling (RMS) | 150 W |
| Recommended Amplifier Power (RMS) | 50 - 150 W |
| Nominal Impedance (Znom) | 4 ohms |
| Nominal Diameter | 8.0 in / 200 mm |
| Overall Diameter (A) | 8.5 in / 216 mm |
| Mounting Hole Diameter (B) | 7.09 in / 180 mm |
| Bolt Hole Circle Diameter (C) | 7.85 in / 199 mm |
| Motor Outer Diameter (D) | 4.72 in / 120 mm |
| Mounting Depth (E) | 3.86 in / 98 mm |
| Driver Displacement | 0.018 cu ft / 0.51 L |
| Net Weight | 7.4 lb / 3.4 kg |
| Free Air Resonance (Fs) | 35.40 Hz |
| Electrical “Q” (Qes) | 0.451 |
| Mechanical “Q” (Qms) | 5.791 |
| Total Speaker “Q” (Qts) | 0.418 |
| Equivalent Compliance (Vas) | 0.68 cu ft / 19.26 L |
| One-Way Linear Excursion (Xmax)* | 0.3 in / 8 mm |
| Reference Efficiency (no) | 0.18% |
| Efficiency (1 W / 1 m)** | 84.8 dB SPL |
| Effective Piston Area (Sd) | 32.67 sq in / 0.0211 sq m |
| DC Resistance (Re) | 4.06 ohms |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.350 cu ft / 9.90 L |
| External Width (W) | 12 in / 305 mm |
| External Height (H) | 10 in / 254 mm |
| External Depth (D) | 8.625 in / 219 mm |
| F3 | 59.9 Hz |
| Fc | 60.7 Hz |
| Qtc | 0.717 |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.50 cu ft / 14.2 L |
| External Width (W) | 13.0 in / 330 mm |
| External Height (H) | 10 in / 254 mm |
| External Depth (D) | 11.125 in / 283 mm |
| Internal Port Diameter (ID) | 2 in / 51 mm |
| Port Length (L) | 10 in / 254 mm |
| Tuning Frequency (Fb) | 38 Hz |
| F3 | 39.10 Hz |
