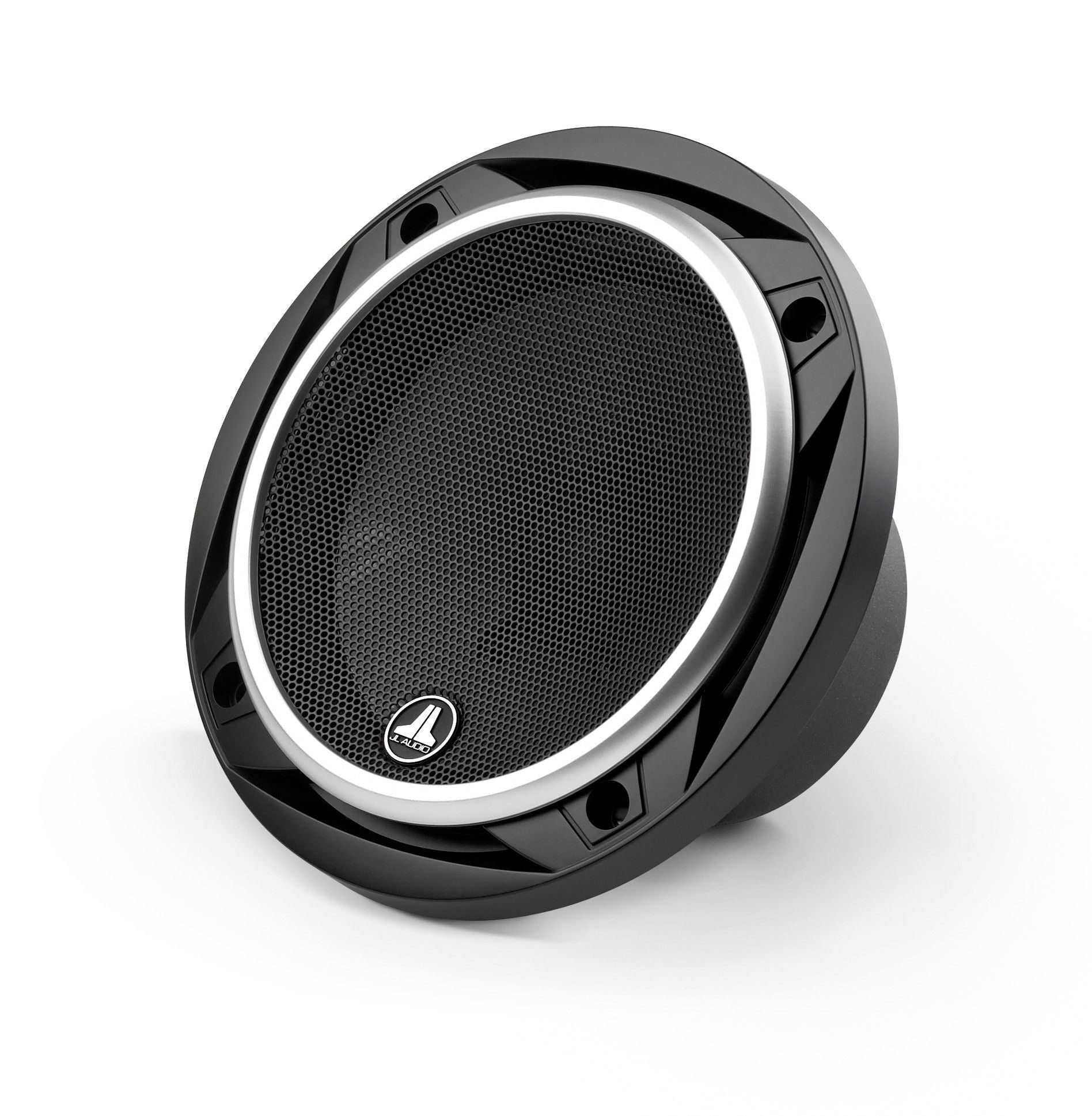

5.25-inch (130 mm) 2-Way Component Woofer (Single)
The C2-525cw is a 5.25-inch (130 mm) component woofer with mineral-filled polypropylene cone, long excursion capabilities and stamped steel frame. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold individually.
| Continuous Power Handling (RMS) | 60 W |
| Recommended Amplifier Power (RMS) | 15 - 100 W / Ch. |
| System Efficiency | 89.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 63 Hz - 22 KHz ± 3 dB |
| Frame Outer Diameter* (A) | 5.20 in / 132 mm |
| Grille Tray Outer Diameter (B) | 6.01 in / 153 mm |
| Motor Outer Diameter (C) | 2.76 in / 70 mm |
| Frontal Coaxial Tweeter Protrusion (D) | N/A |
| Frontal Grille Protrusion** (E) | 0.72 in / 18 mm |
| Mounting Hole Diameter (F) | 4.56 in / 116 mm |
| Mounting Depth (G) | 2.50 in / 64 mm |
|
*Does not take into account mounting tabs |
|
