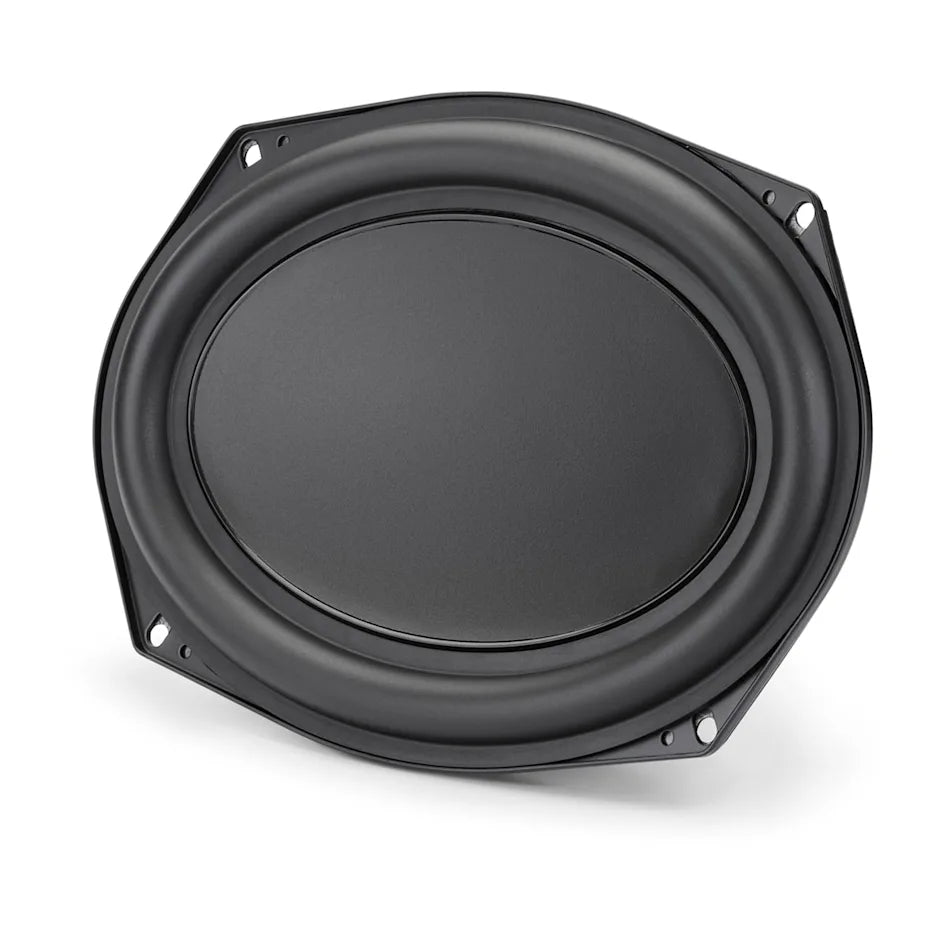

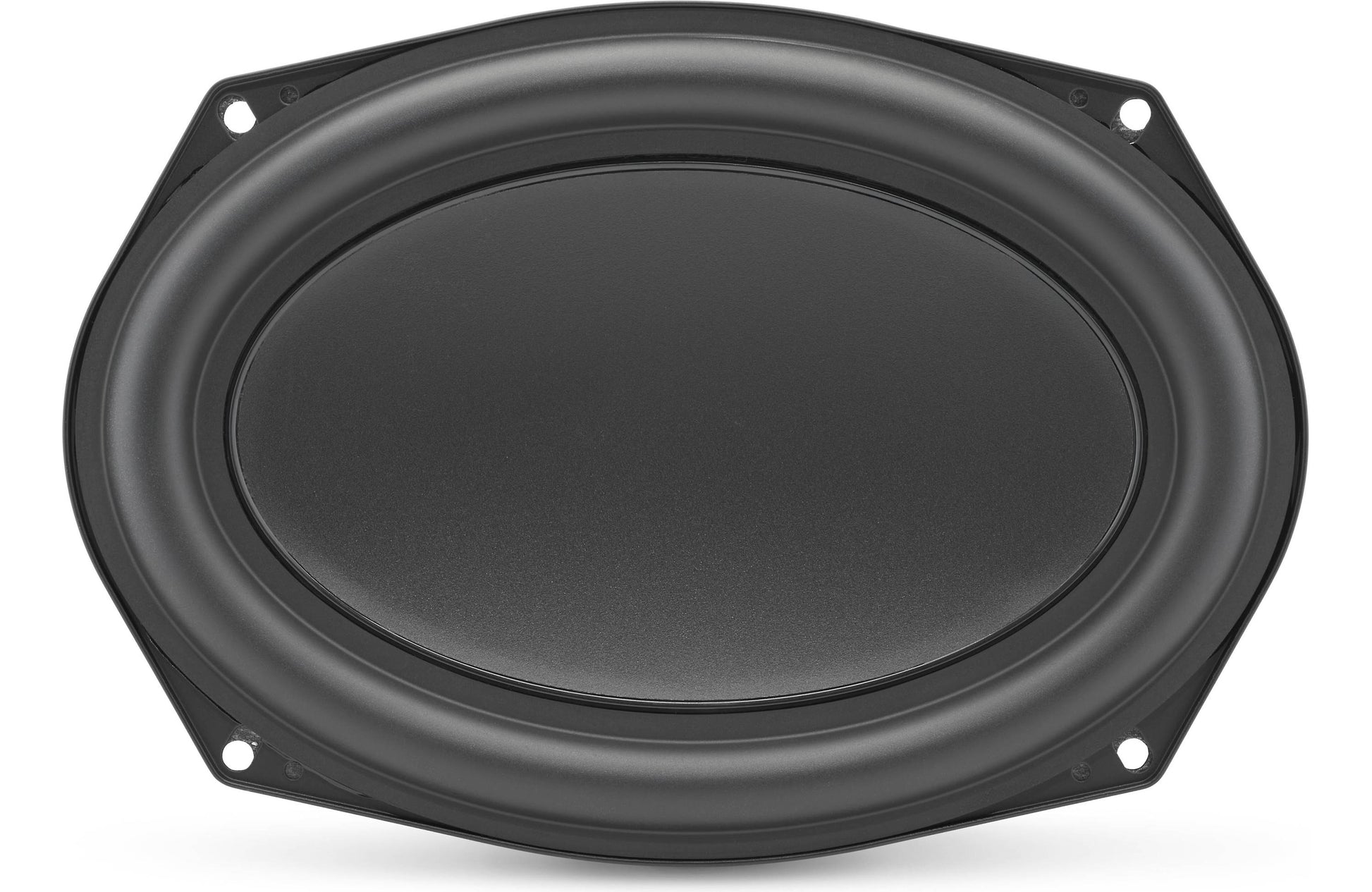

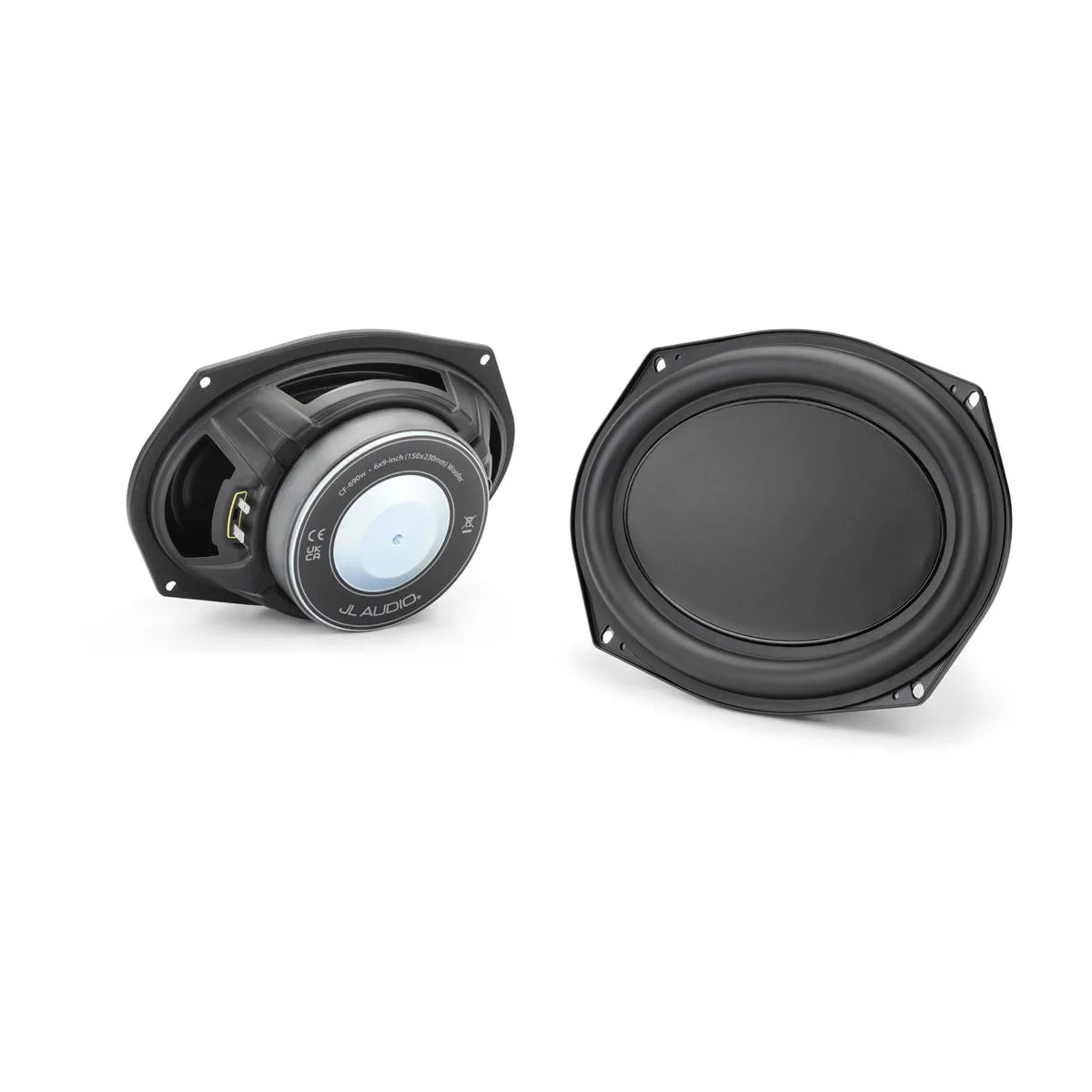

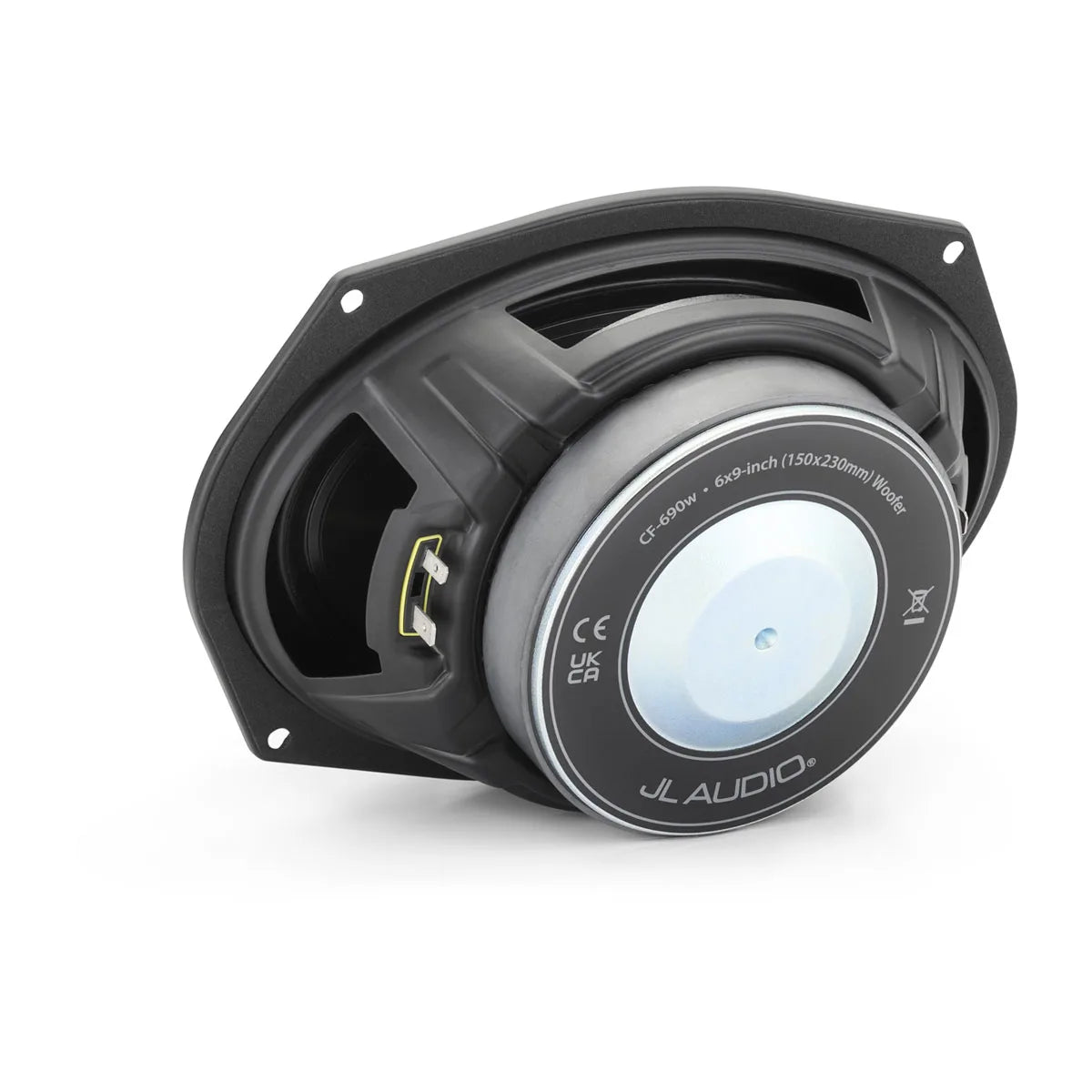

Jl Audio CF-690w 6"x9" Component Woofer for Ram/Toyota/GM

GREAT SOUND AND A PERFECT FIT
Custom-fit (CF) speaker systems from JL Audio are engineered to deliver incredible audio output with easy installation in some of the most popular vehicles, including RAM, Toyota, Chevrolet and GMC. The unique frame designs offer seamless, drop-in installation in existing factory speaker locations.

Features:
Direct Fit In Popular Vehicles
Two-way Component System
Unique Frames And Adapter Plates Offer An Easy Fit
Two-way Crossover With Inline High-pass And Built-in Low-pass Filters
2-year Warranty

ENGINEERED FOR PERFORMANCE
To deliver the best efficiency and extended high-frequency response, each driver in the CF series features a unique cone and surround material combination.

DMA-OPTIMIZED SPEAKERS
Proprietary motor, suspension and cone modeling systems are used to achieve outstanding linearity, low distortion and stellar sound quality. A flat, linear profile spider promotes linear compliance, while a robust motor structure delivers superior power handling and better overall fidelity at high levels.

ADVANCED FRAME DESIGN
Benefiting from years of design experience, all CF midtweeters feature glass-filled, high-temperature polymer frames outfitted with insert-molded terminals and unique frame designs for easy, drop-in installation.

TRUE TWO-WAY CROSSOVER
Get simple integration into factory audio system wiring with onboard woofer low-pass filters and in-line midtweeter high-pass filters. Both can be bypassed for active systems.

MADE TO FIT
JL Audio CF component systems include a 6-by-9-inch woofer and a 2.75-inch midtweeter to provide easy, direct installation in a variety of Ram, Toyota and GM vehicles.

READY FOR REAL POWER
CF speaker systems deliver superb sound when powered by an amplifier in the 50–150 watts-per-channel range.

Specifications:
General
Sizes: 6 x 9"
Continuous power handling (RMS): 150 W
Sensitivity (SPL @ 1 W/1 m): 86 dB
Frequency response (+/- 3 dB): 36 Hz-19 kHz
Nominal impedance: 4 Ω
Recommended amplifier power (RMS): 50-150 W/Channel
Cone material: Mineral-filled polypropylene
Grille(s) included: No
Warranty: 1 year

Connections
Speaker connections: Spade connectors

Mounting Dimensions
Frame outer diameter: 6 x 9": 6.38 x 9.13" (162 x 232 mm)
Mounting depth clearance: 6 x 9": 2.85" (72 mm)
Motor outer diameter: 6 x 9": 4.72" (120 mm)

Crossover Specifications
Width: 2.53" (64 mm)
Height: 1.93" (49 mm)
Depth: 1.09" (28 mm)

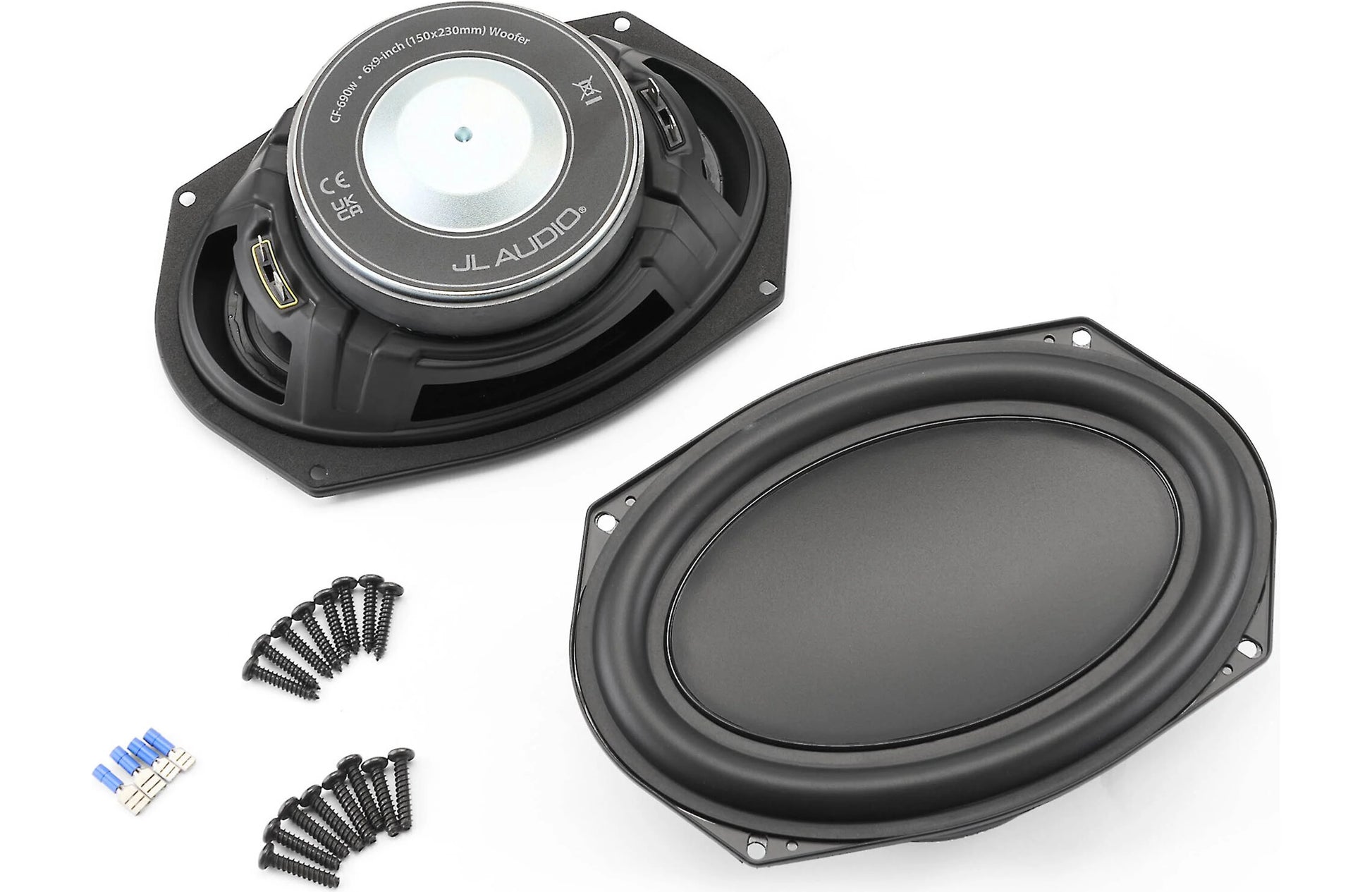

In the Box:
Two woofers

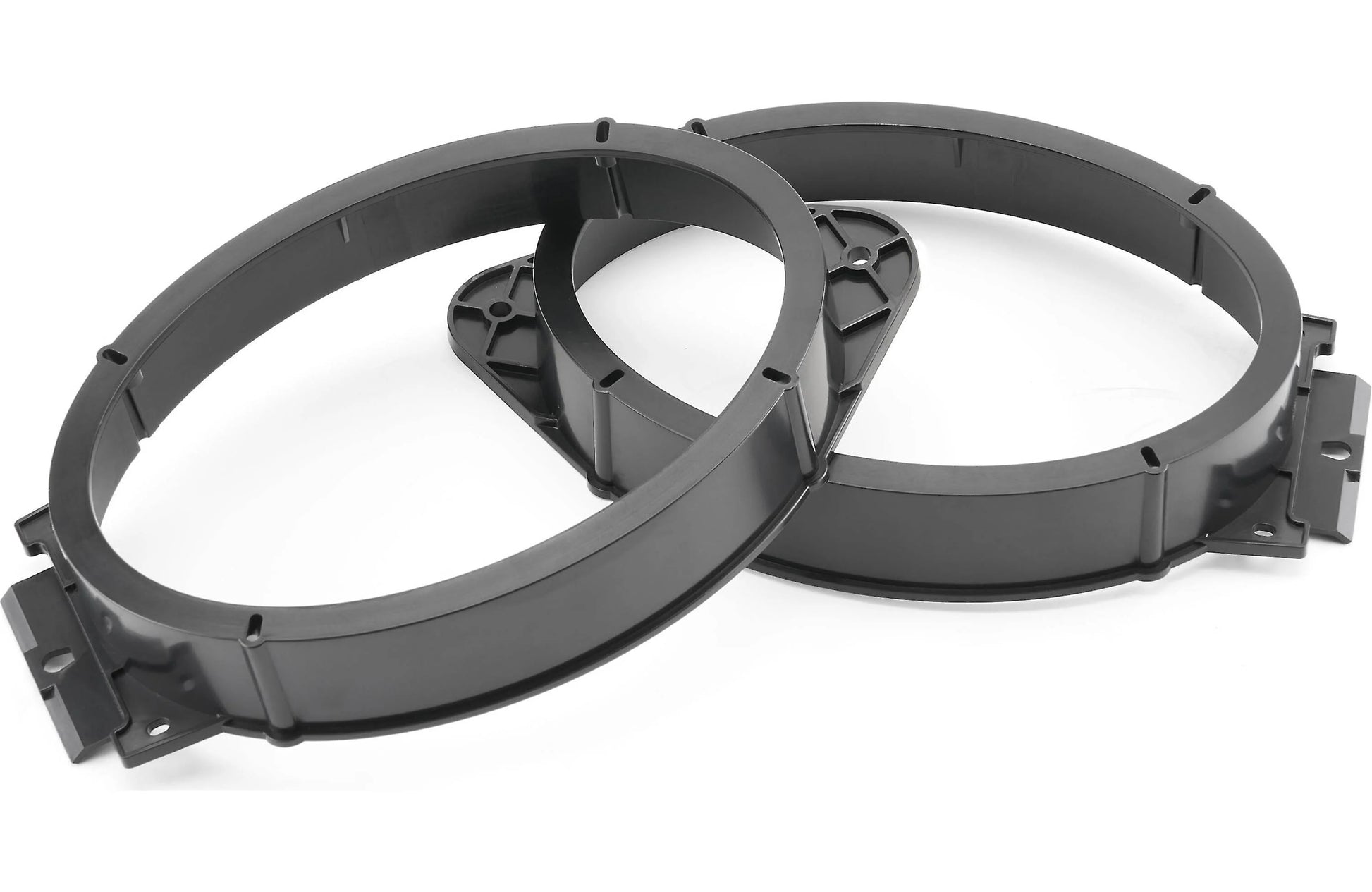

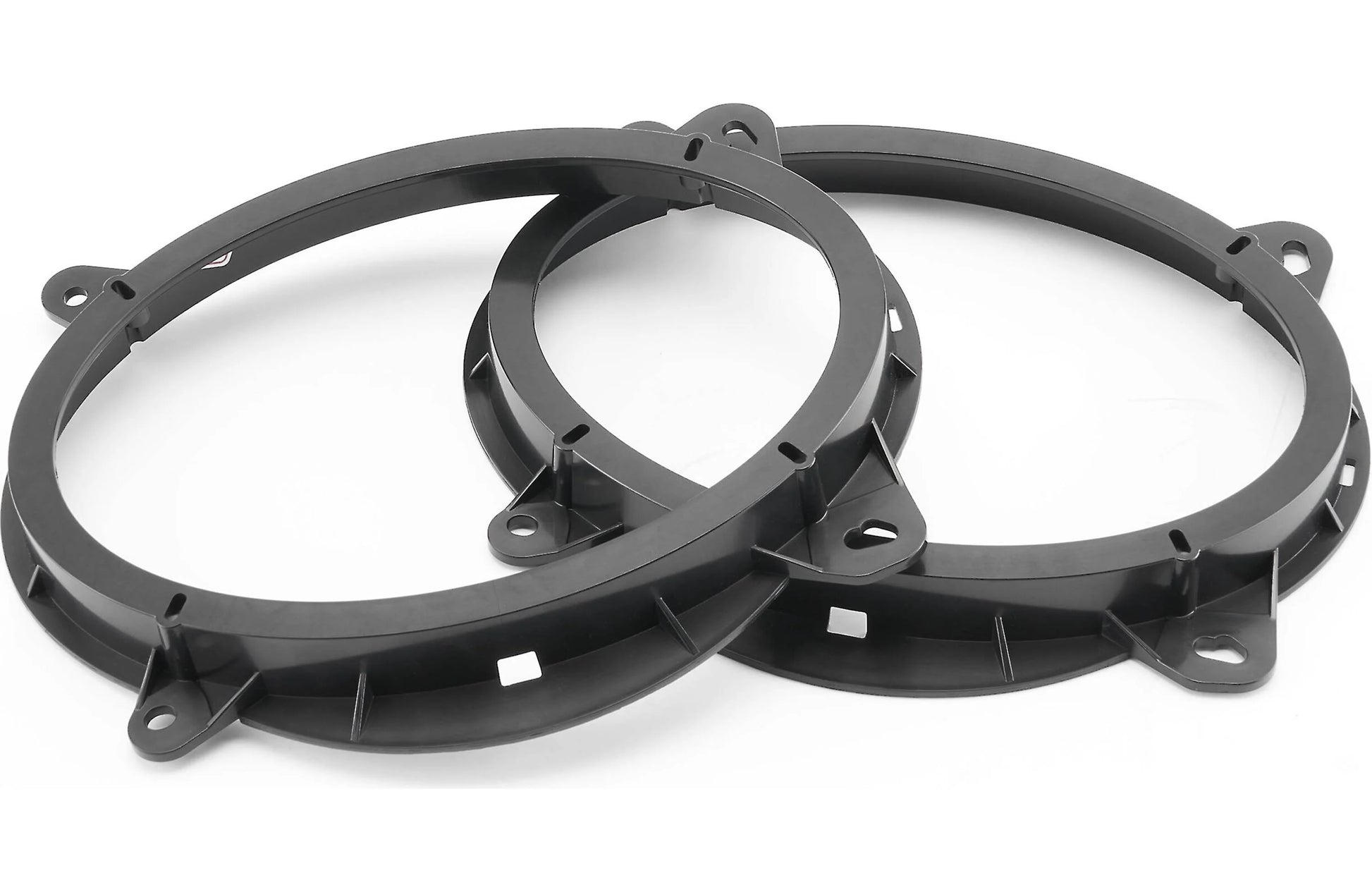

Four OEM woofer adapter rings
Twenty 1" mounting screws
Four 5/8” mounting screws
Two 0.250” female crimpable connectors
Four 0.187” female crimpable connectors
Two 0.110" female crimpable connectors
Two woofer foam gaskets
Four splice connectors
