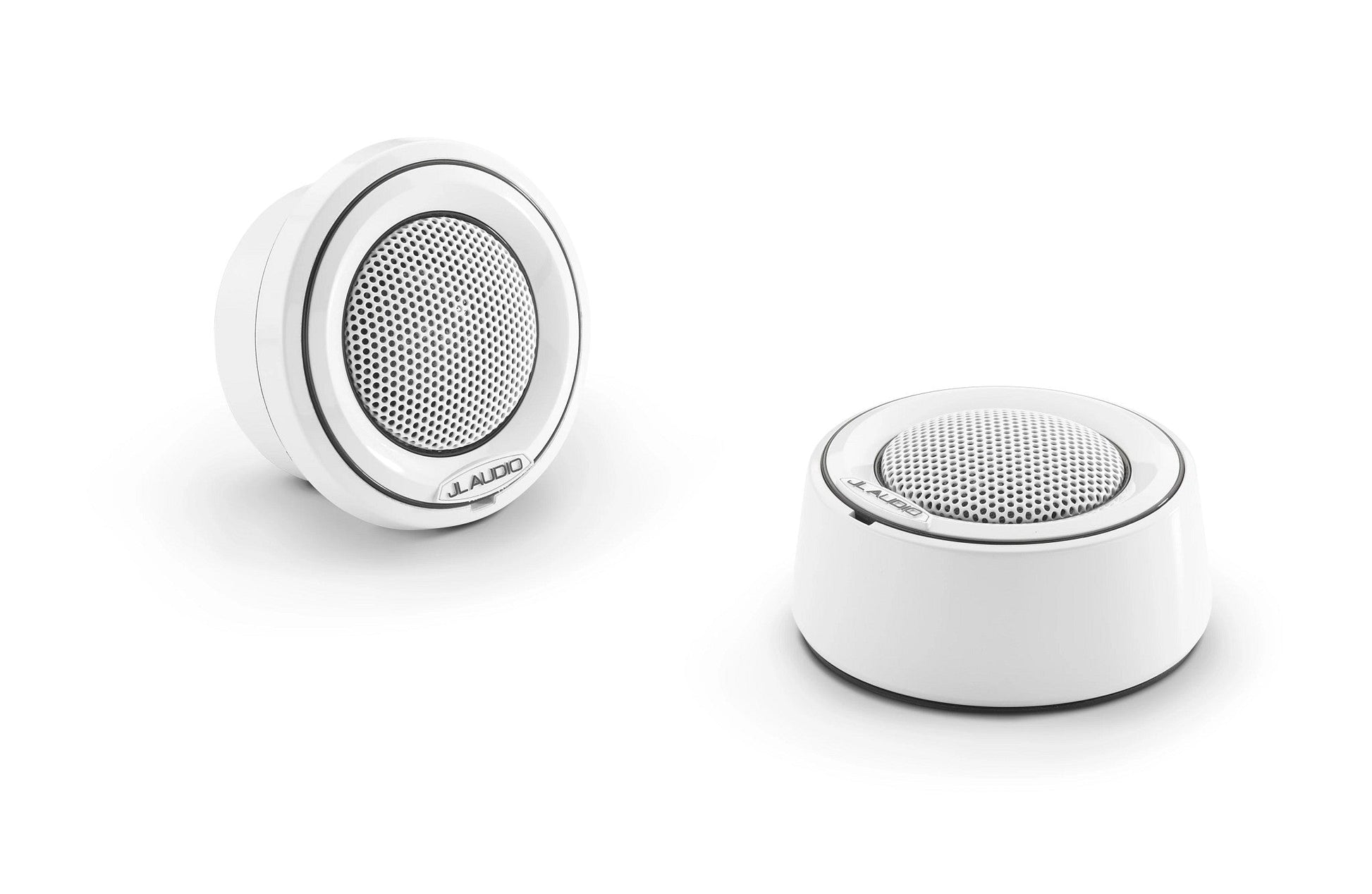

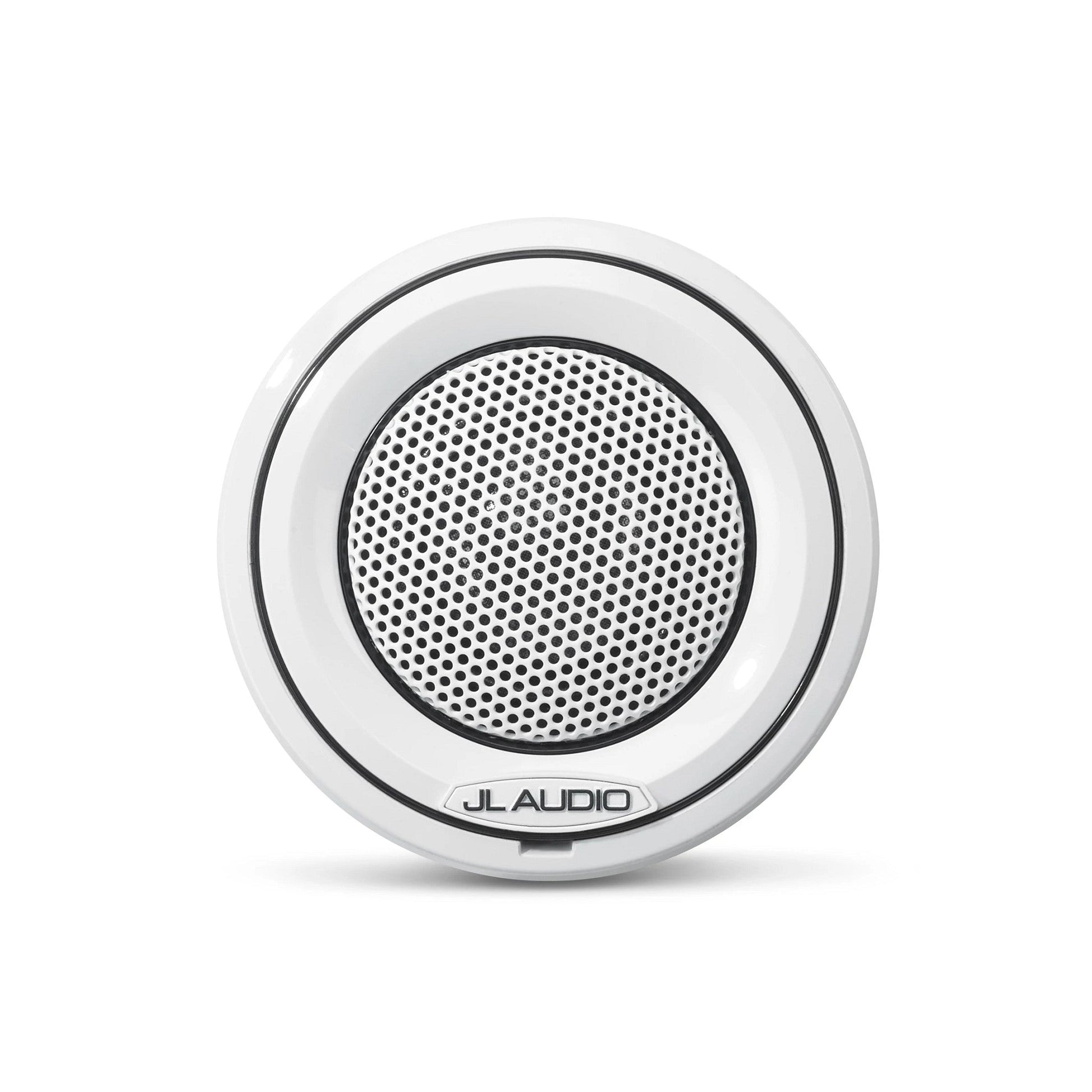

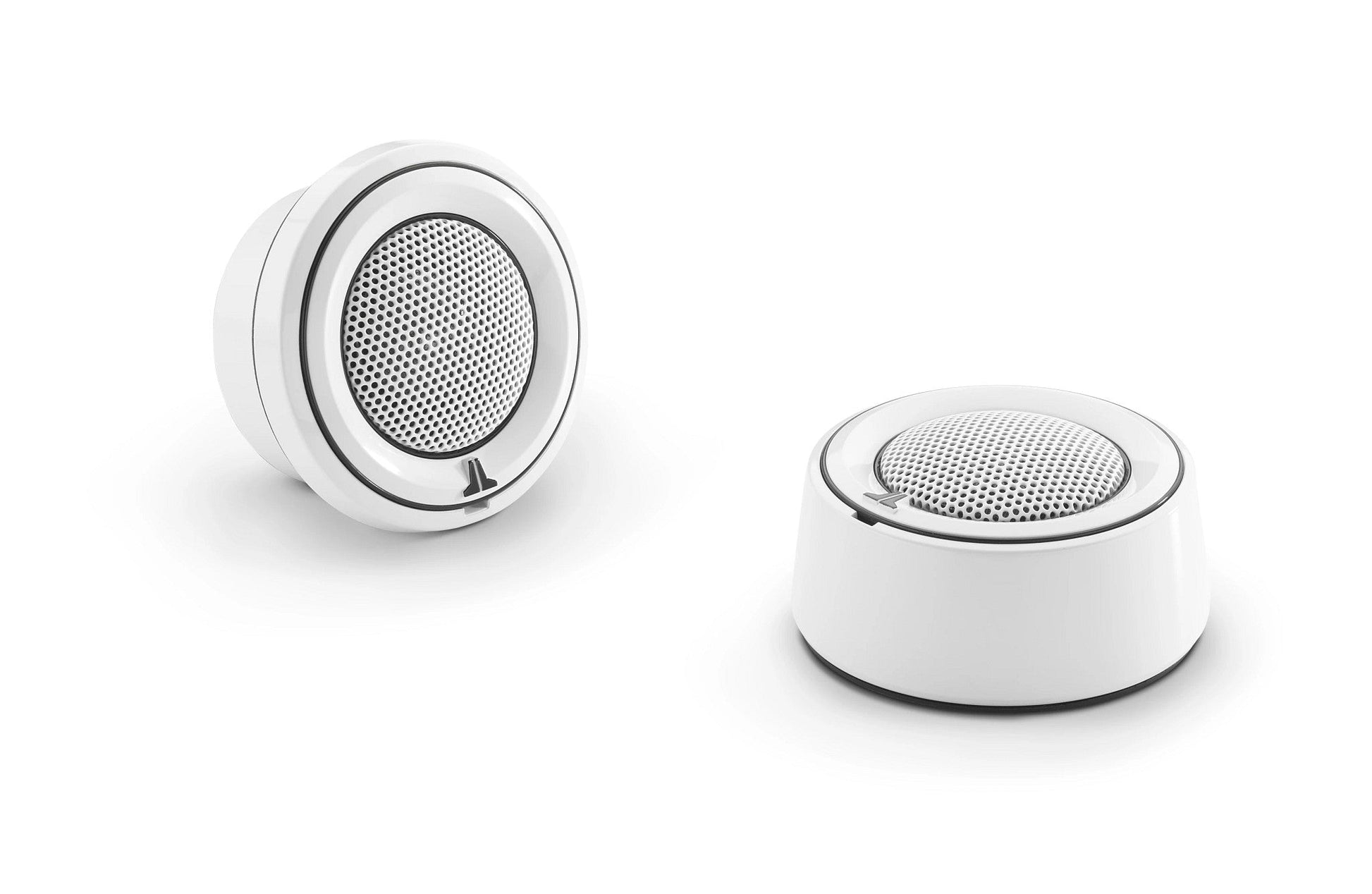

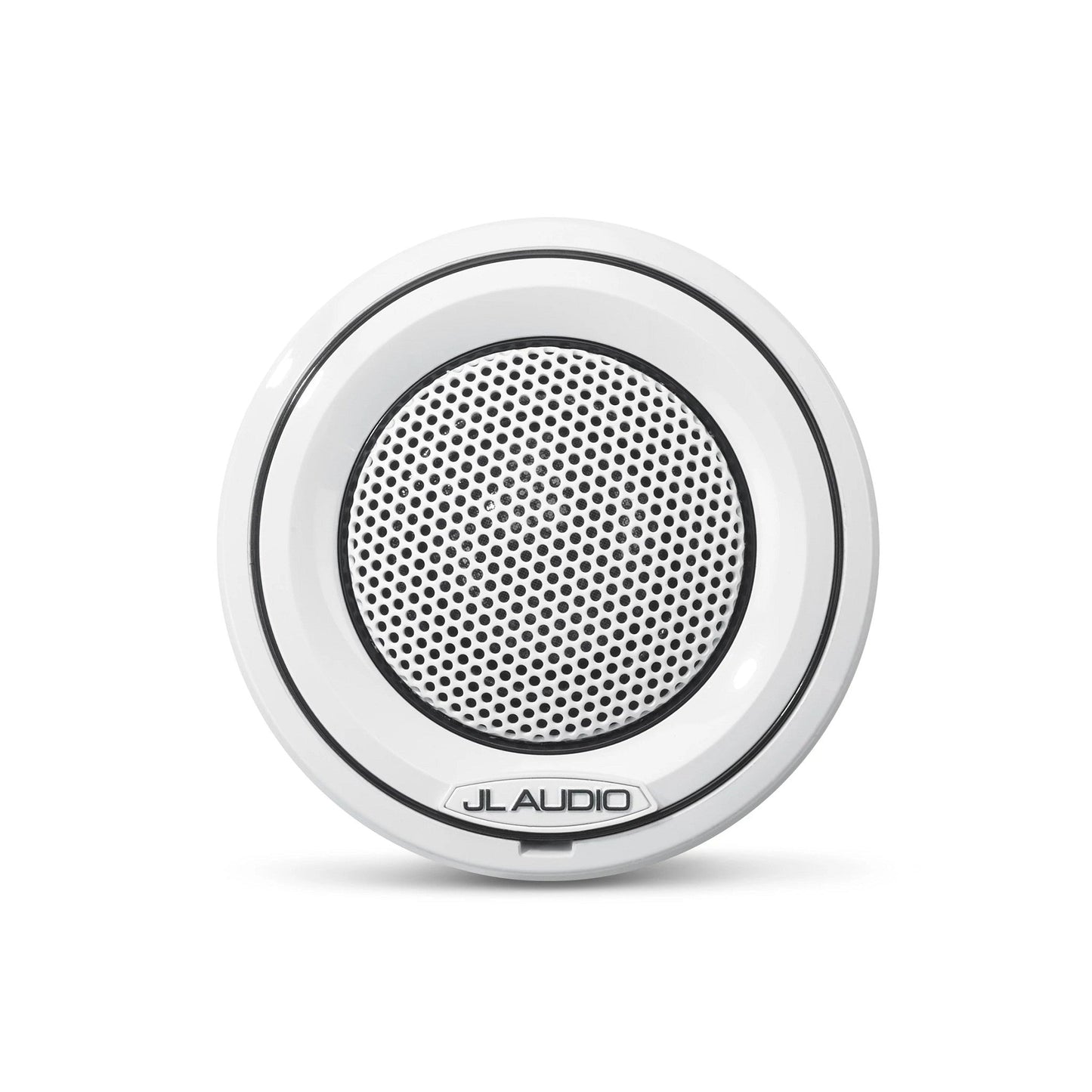

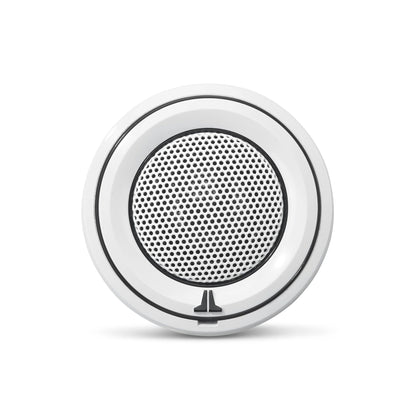

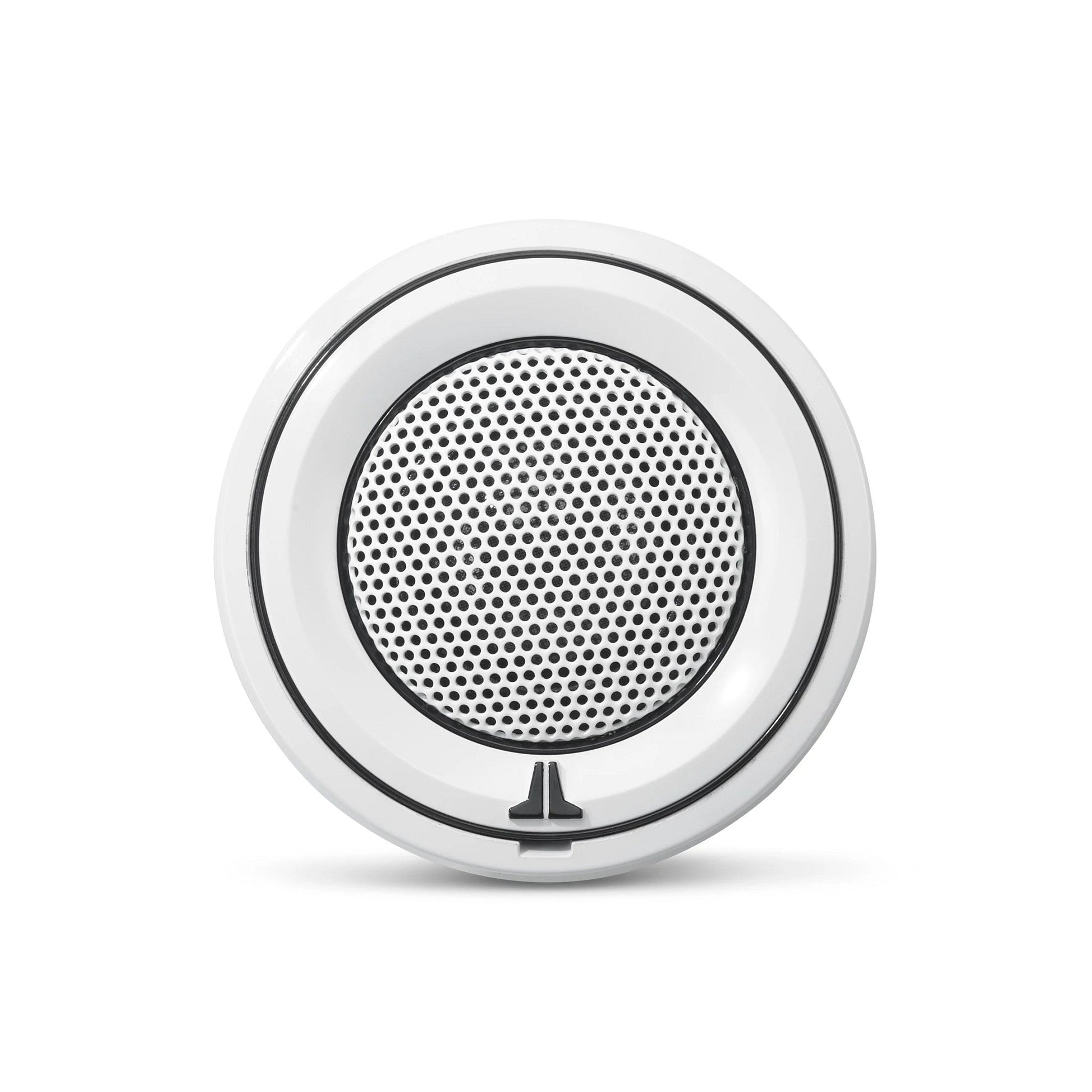

JL Audio M6-100CT-C/S-3Gw

1-inch (25 mm) M6 Marine Component Tweeters, Gloss White Mounting Cups, Gloss White Trim Ring, White Tweeter Mesh, Pair

The standalone, M6 component tweeters are built with a 1-inch (25 mm) silk dome diaphragm to deliver high output, wide dispersion and sparkling high-frequency detail. The tweeters can be flush-mounted or surface-mounted with the supplied fixtures. You can also choose between the included “Classic” and “Sport” badge trim rings to complete your look.

The component tweeters come with outboard, 3rd order, high-pass filters optimized for superior output and high-frequency detail. An automatic, solid-state circuit is also onboard to monitor current and minimize the possibility of tweeter failure. Like all M6 models, the component tweeters are built to withstand real-world saltwater conditions with an unsurpassed level of fidelity.

Sonic character: Powerful and Smooth

Sold as a pair.

Specifications:

General Specifications

Continuous Power Handling (RMS)	75 W
Recommended Amplifier Power (RMS)	10 - 75 W / Ch.
System Efficiency	91.0 dB @ 1 W / 1 m
System Nominal Impedance	4 ohms
System Frequency Response	4.8 Hz - 25 KHz ± 3 dB
*With supplied crossover

Tweeter Physical Specifications

Flush Mount Fixture Diameter (A1)	2.61 in / 66 mm
Surface Mount Fixture Diameter (A2)	2.67 in / 68 mm
Flush Mount Mounting Hole Diameter (B)	2.125 in / 54 mm
Flush Mount Mounting Depth (C)	1.70 in / 43 mm
Flush Mount Tweeter Frontal Protrusion (D1)	0.54 in / 14 mm
Surface Mount Tweeter Frontal Protrusion (D2)	1.27 in / 32 mm

Support:

• Download  M6-100CT Product Manual

• USA Limited Warranty:  Two (2) years from the original date of purchase Warranty Details
