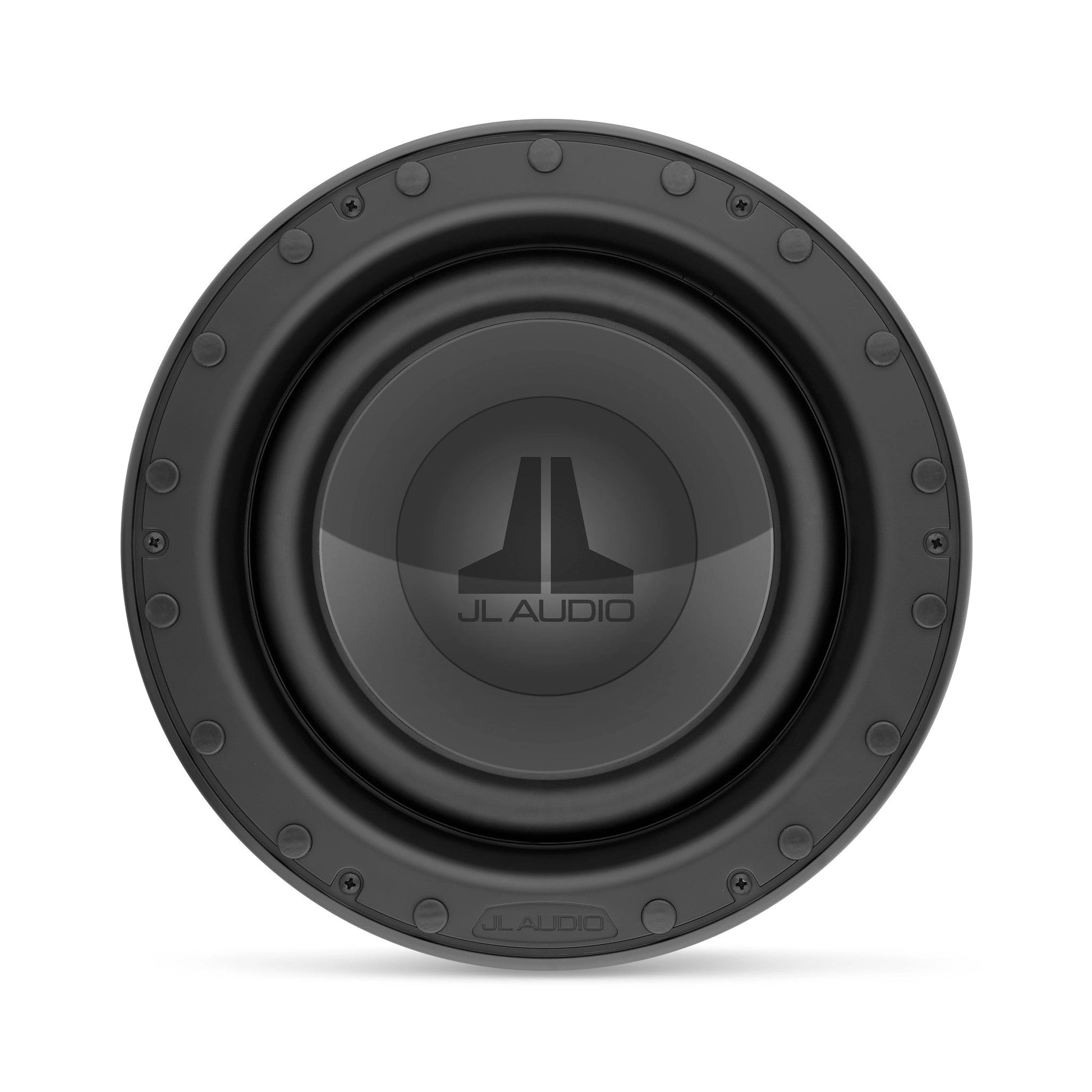

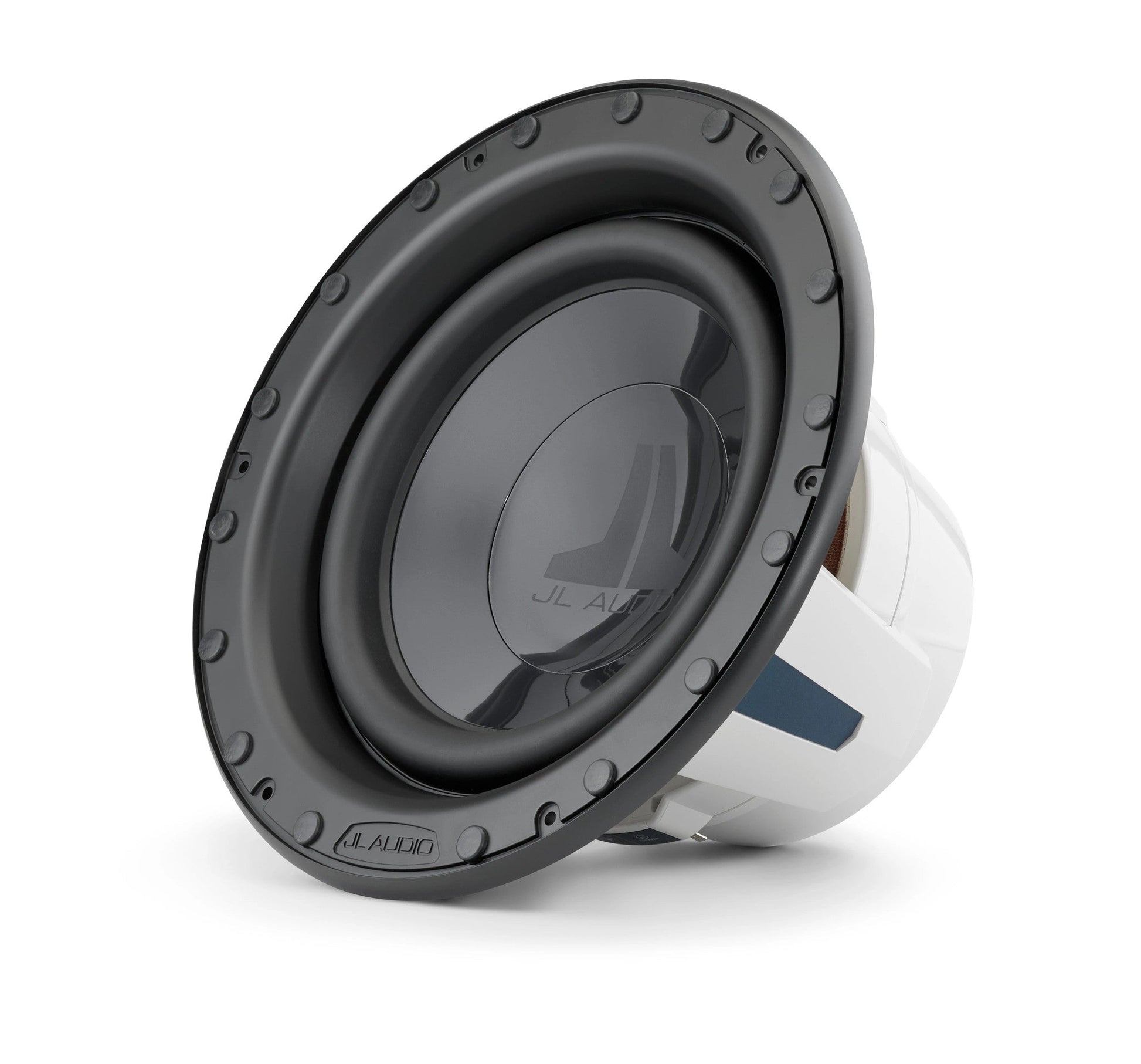

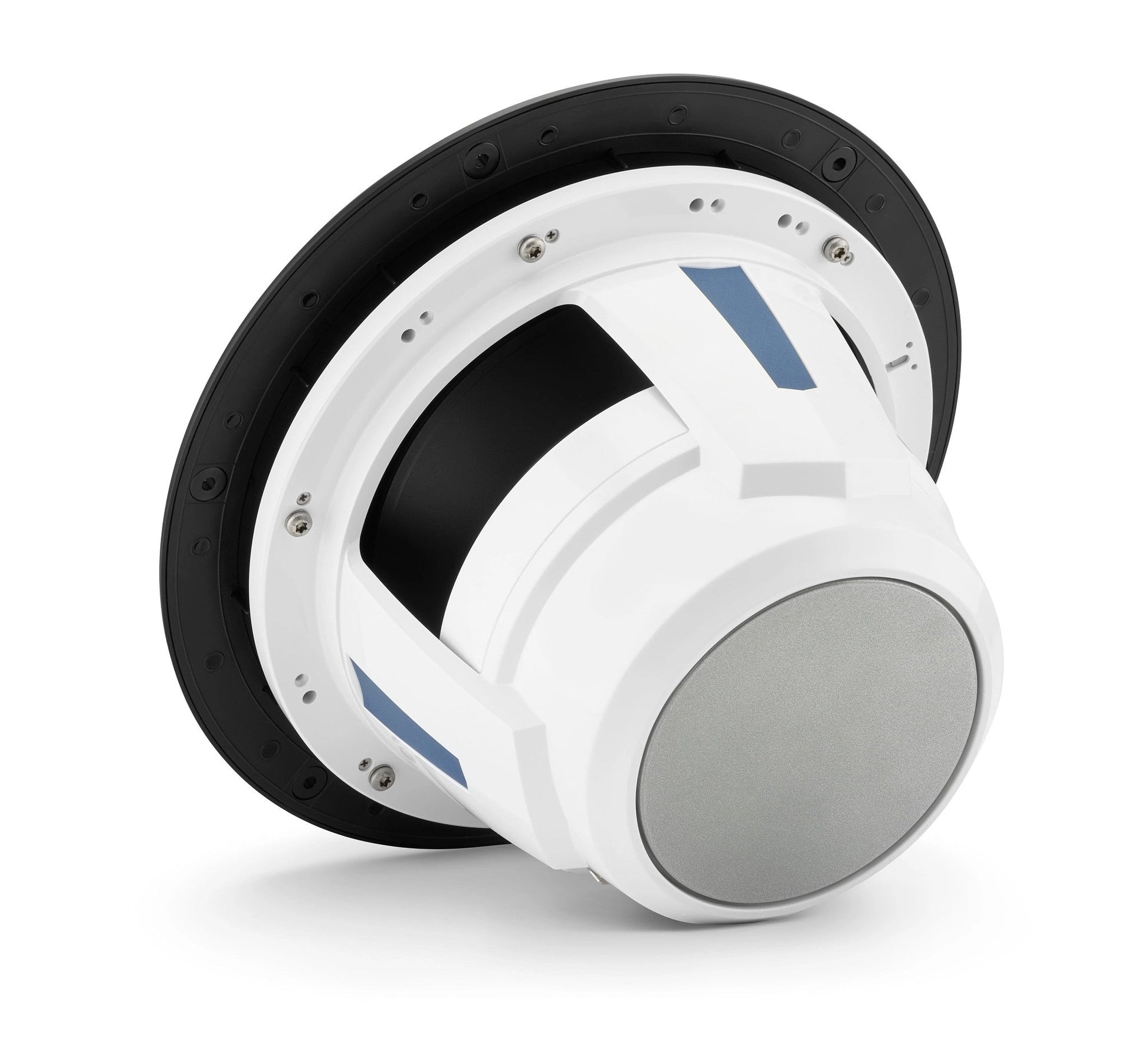

M6 10-inch Marine Subwoofer for Infinite-Baffle Use (250 W, 4 ohms) - Black Trim Ring, Black Luxe Grille
With appropriate system setup, the addition of a subwoofer frees your smaller main speakers from the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

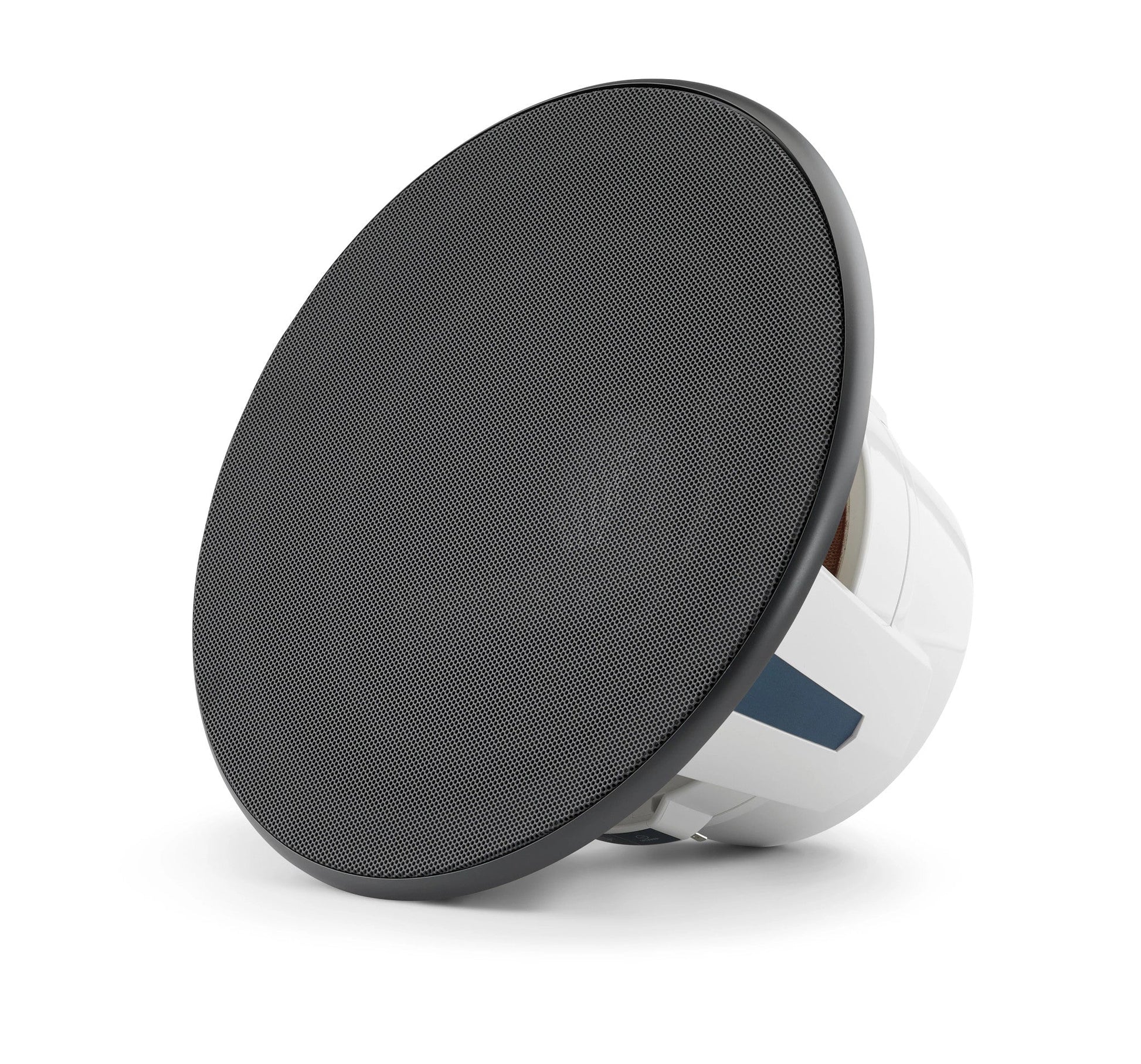

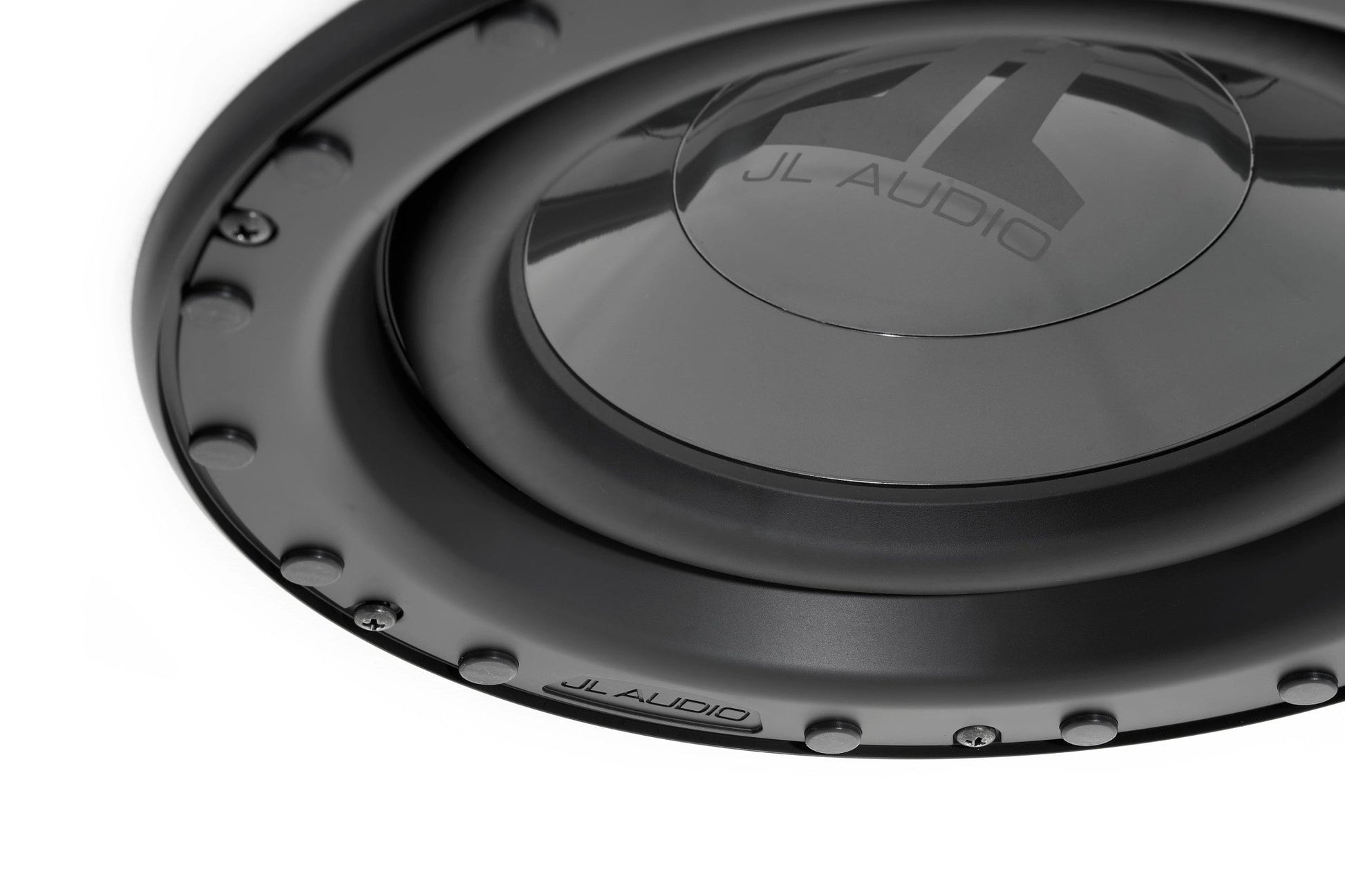

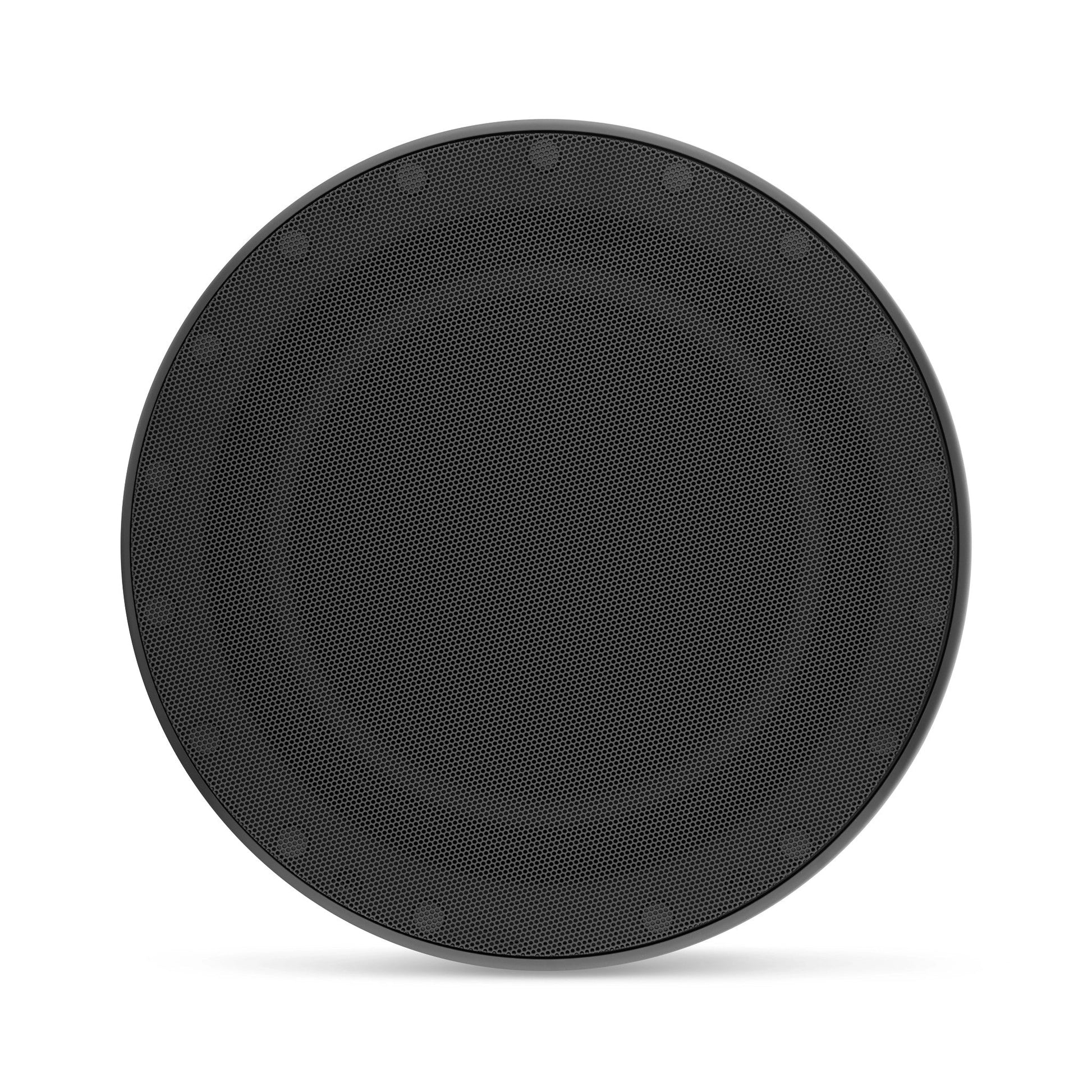

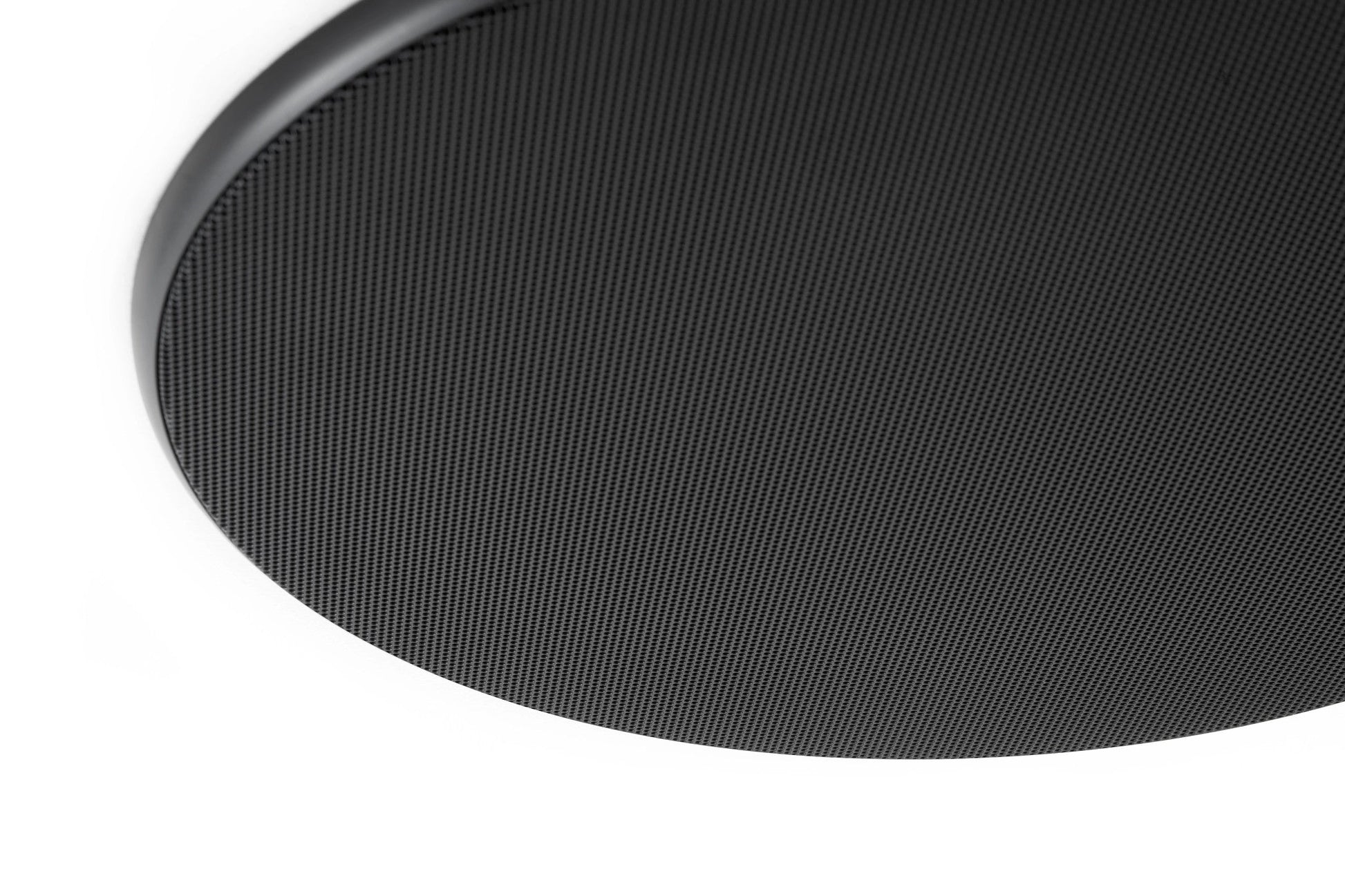

M6 Luxe subwoofers are outfitted with a low-profile mounting bezel and a fine mesh grille for minimal protrusion into cabin space. The result is a clean, visual appearance complementary of the finest marine vessel surroundings.
Engineered to operate without a dedicated enclosure, M6 infinite-baffle woofers feature a DMA-optimized, long excursion design and rugged suspension systems to generate smooth, powerful bass that will transform your boat’s audio system.
The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

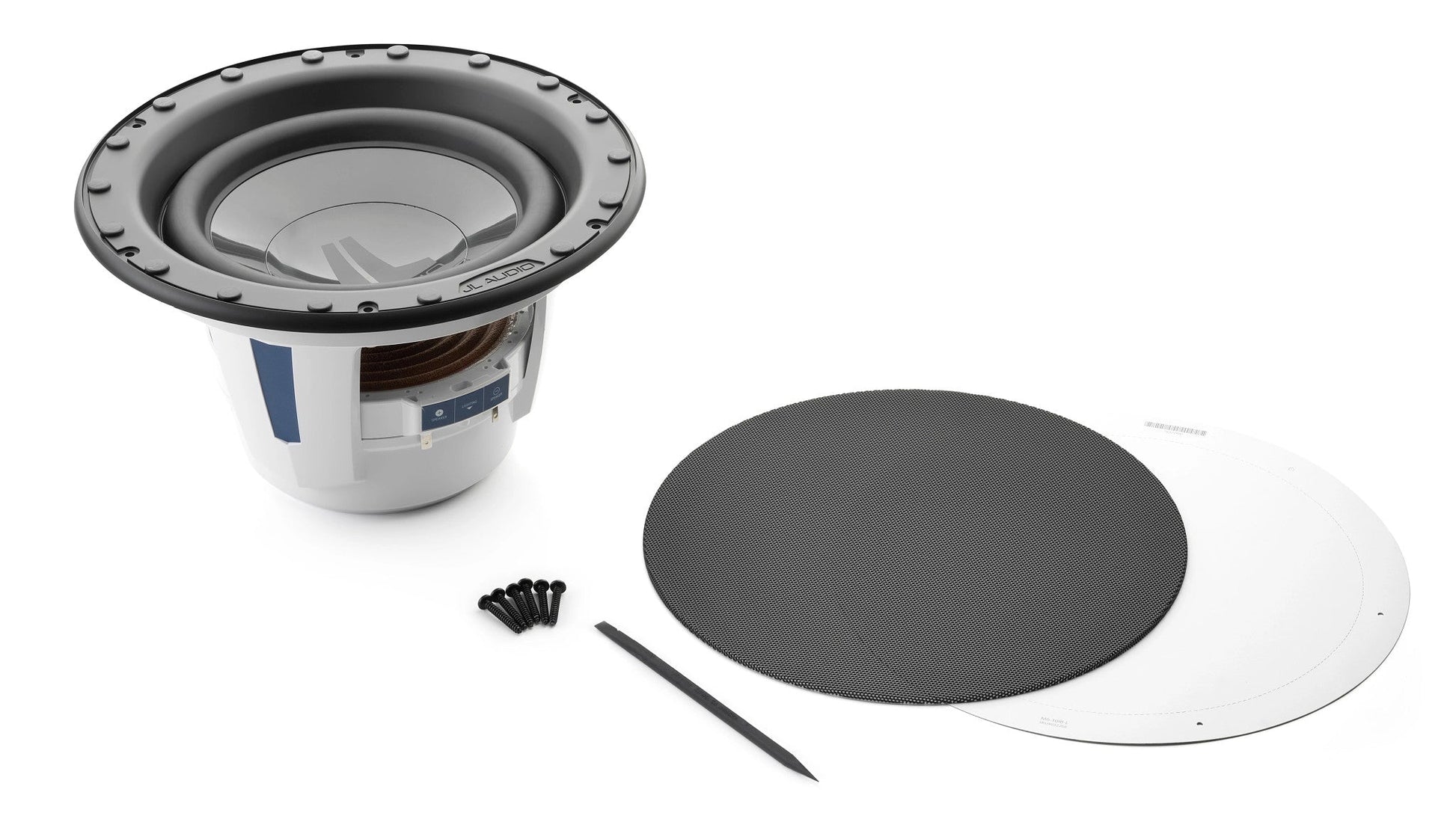

Sold individually.
| Continuous Power Handling (RMS) | 250 W |
| Nominal Impedance (Znom) | 4 ohms |
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 12.54 in / 319 mm |
| Bolt Hole Circle Diameter (B) | 11.46 in / 291 mm |
| Frontal Grilles Protrusion* (C) | 0.55 in / 14 mm |
| Mounting Hole Diameter (D) | 10.5625 in / 268 mm |

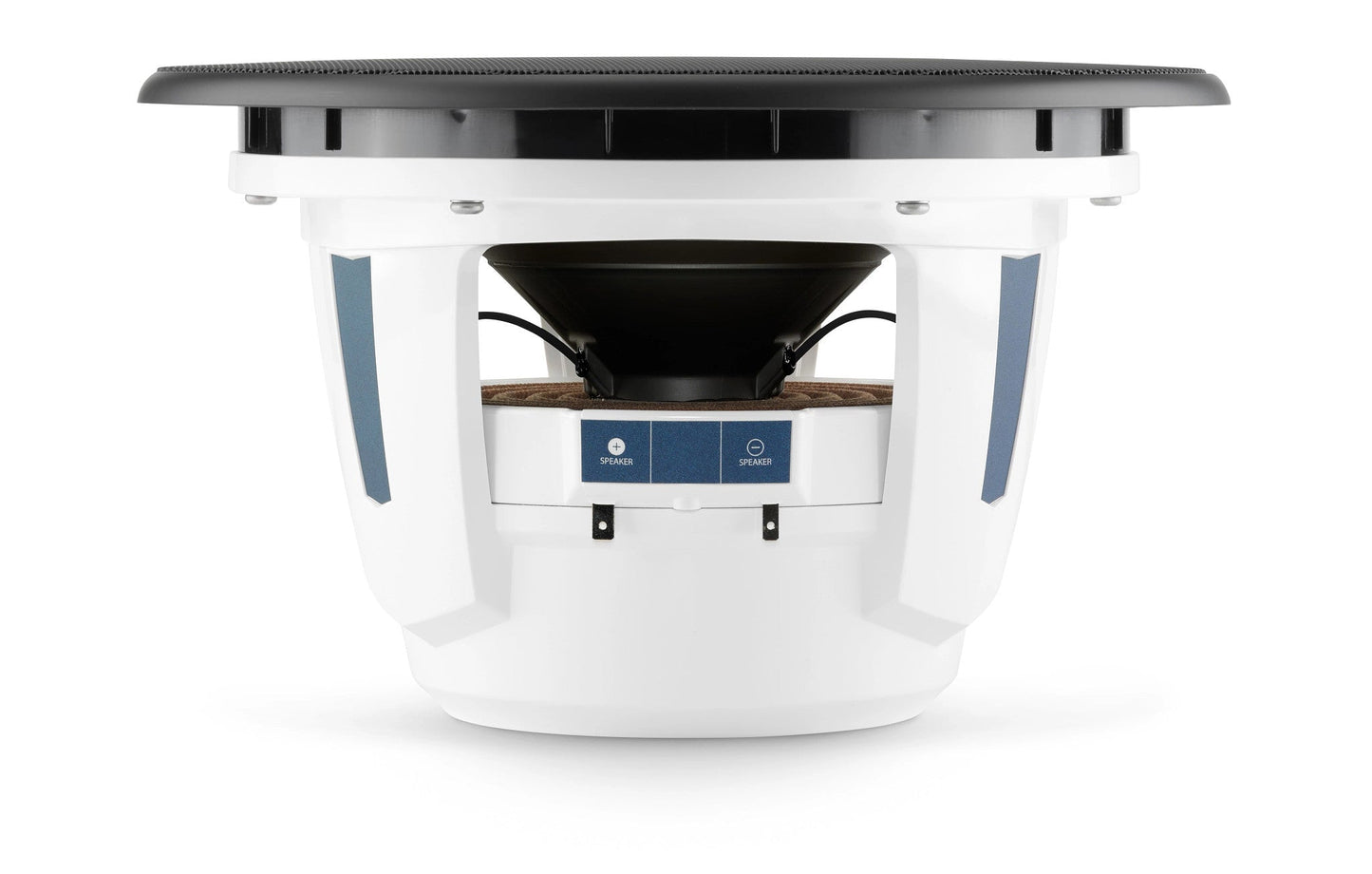

| Mounting Depth (E) | 6.98 in / 177 mm |
| Driver Displacement | 0.099 cu ft / 2.80 L |
| Net Weight | 13.20 lb / 6.00 kg |
| *Frontal grille protrusion measured from mounting surface | |
| Free Air Resonance (Fs) | 43.76 Hz |
| Electrical “Q” (Qes) | 0.907 |
| Mechanical “Q” (Qms) | 11.315 |
| Total Speaker “Q” (Qts) | 0.84 |
| Equivalent Compliance (Vas) | 0.98 cu ft / 27.75 L |
| One-Way Linear Excursion (Xmax)* | 0.52 in / 13.2 mm |
| Reference Efficiency (no) | 0.28% |
| Efficiency (1 W / 1 m)** | 86.1 dB SPL |
| Effective Piston Area (Sd) | 50.11 sq in / 0.0323 sq m |
| DC Resistance (Re) | 4.543 ohms |
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. | |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 2.00 cu ft / 56.6 L |
| External Width (W) | 17 in / 432 mm |
| External Height (H) | 17 in / 432 mm |
| External Depth (D) | 16.25 in / 413 mm |
| F3 | 41.54 Hz |
| Fc | 53.41 Hz |
| Qtc | 1.0253 |
|
Enclosure Notes Safety Notice When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van. | |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 2.50 cu ft / 70.8 L |
| External Width (W) | 17 in / 432 mm |
| External Height (H) | 17 in / 432 mm |
| External Depth (D) | 20.50 in / 676 mm |
| Internal Port Diameter (ID) | 4 in / 102 mm |
| Port Length (L) | 13.50 in / 343 mm |
| Tuning Frequency (Fb) | 30 Hz |
| F3 | 25.09 Hz |
|
Enclosure Notes Safety Notice When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van. | |
