JL Audio M6-10IB-S-GmTi-i-4

Name: JL Audio M6-10IB-S-GmTi-i-4
Brand: JL Audio
Price: 529.99 USD
Availability: InStock

JL Audio M6-10IB-S-GmTi-i-4

In stock

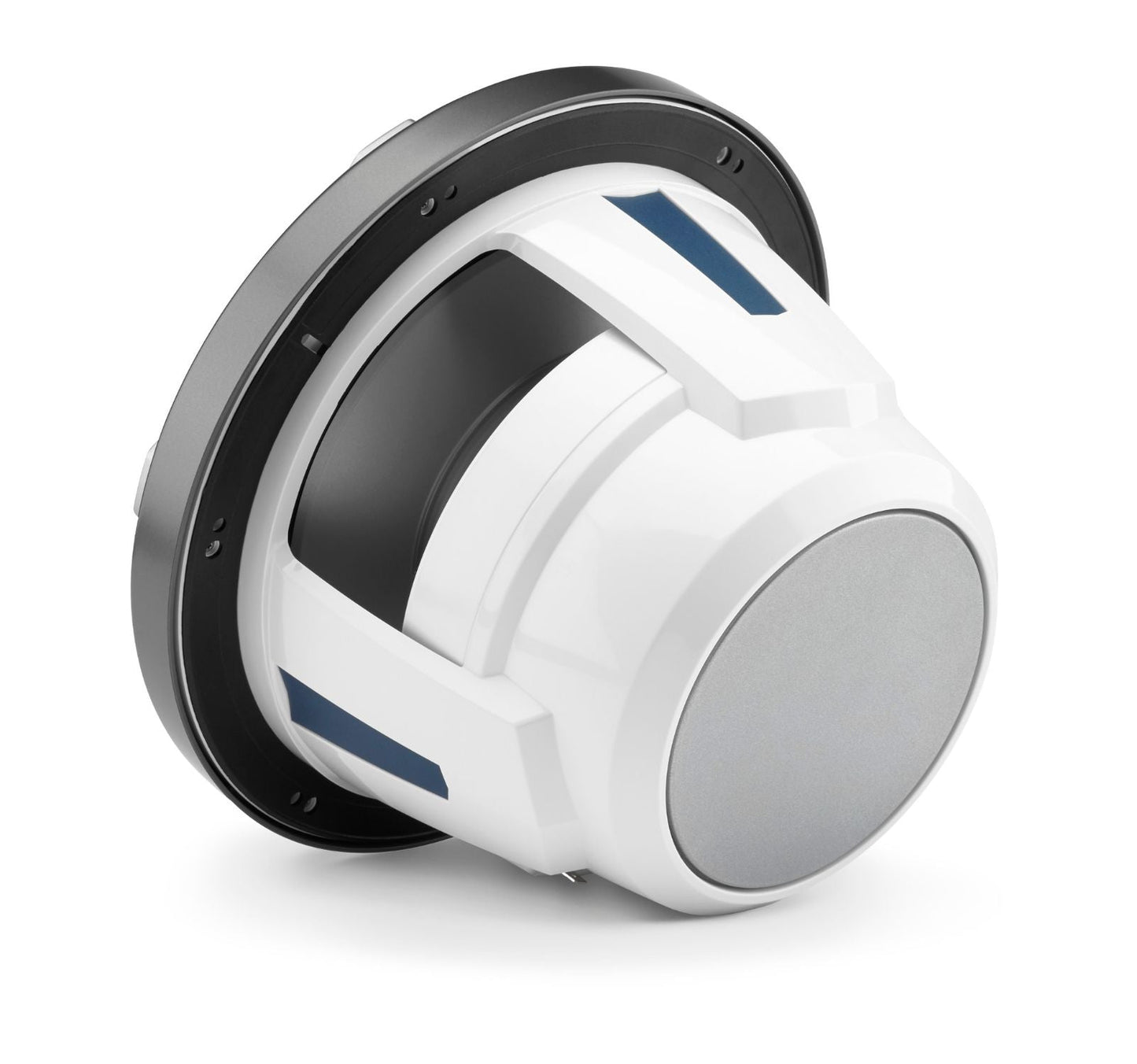

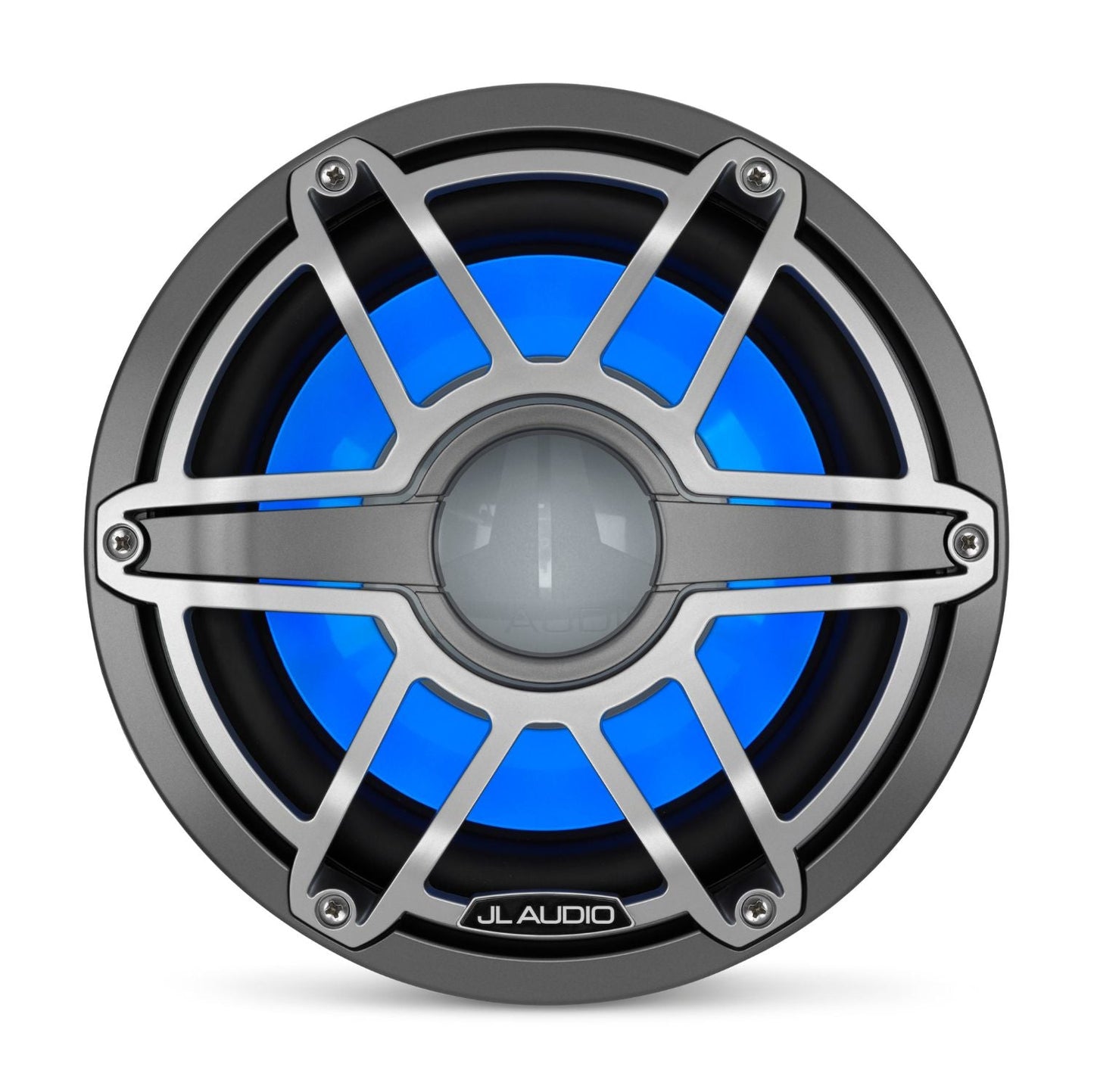

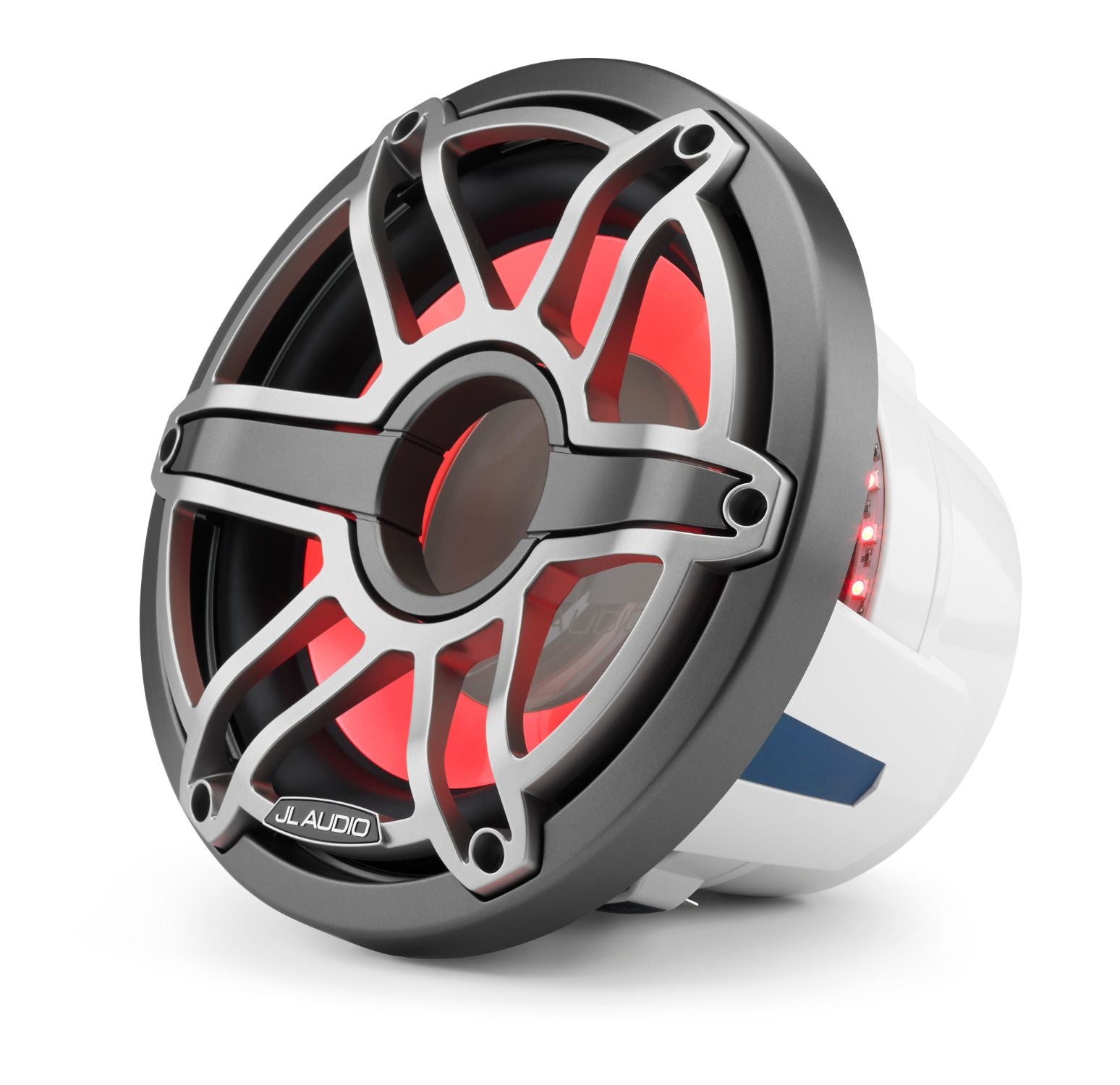

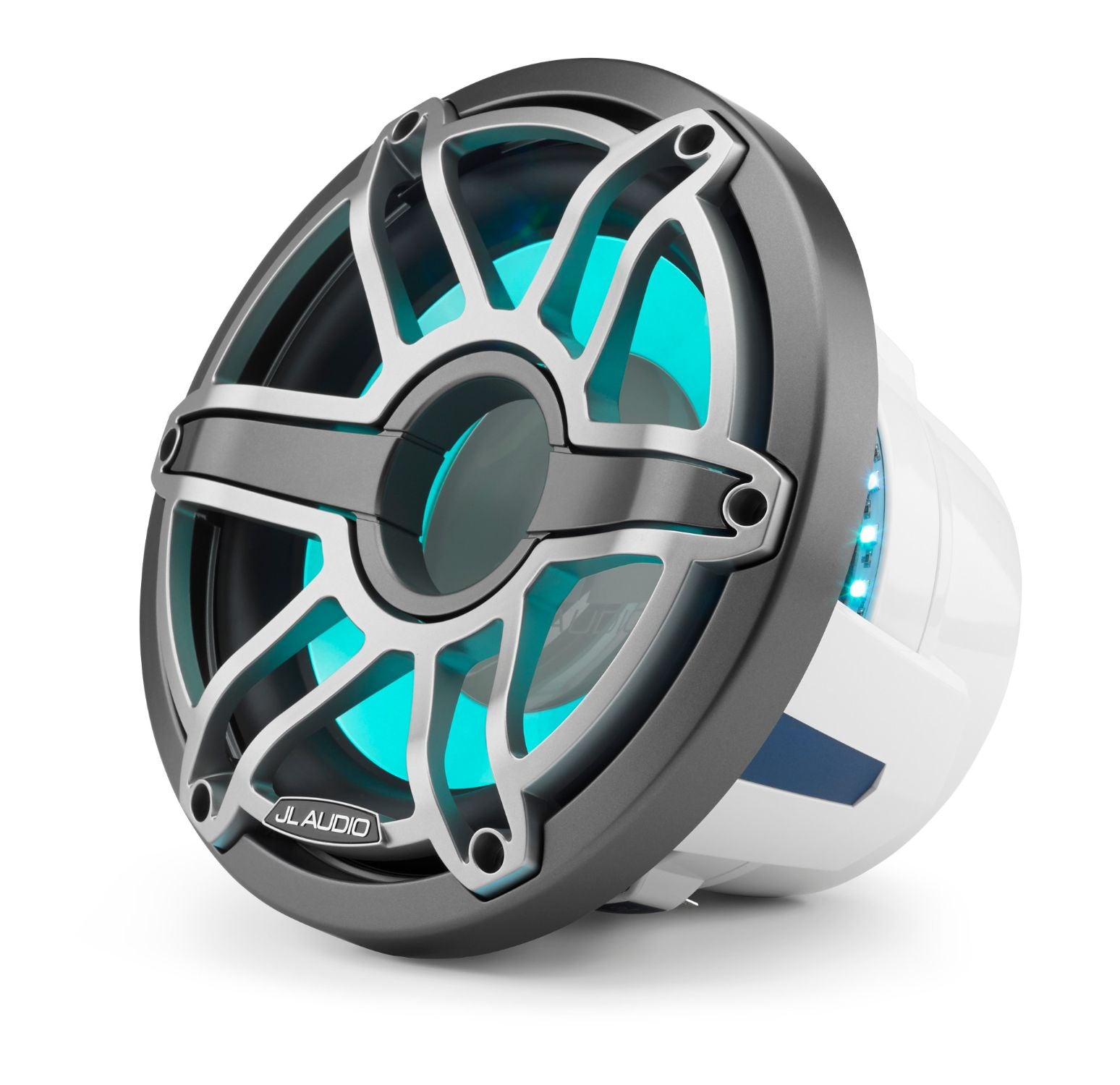

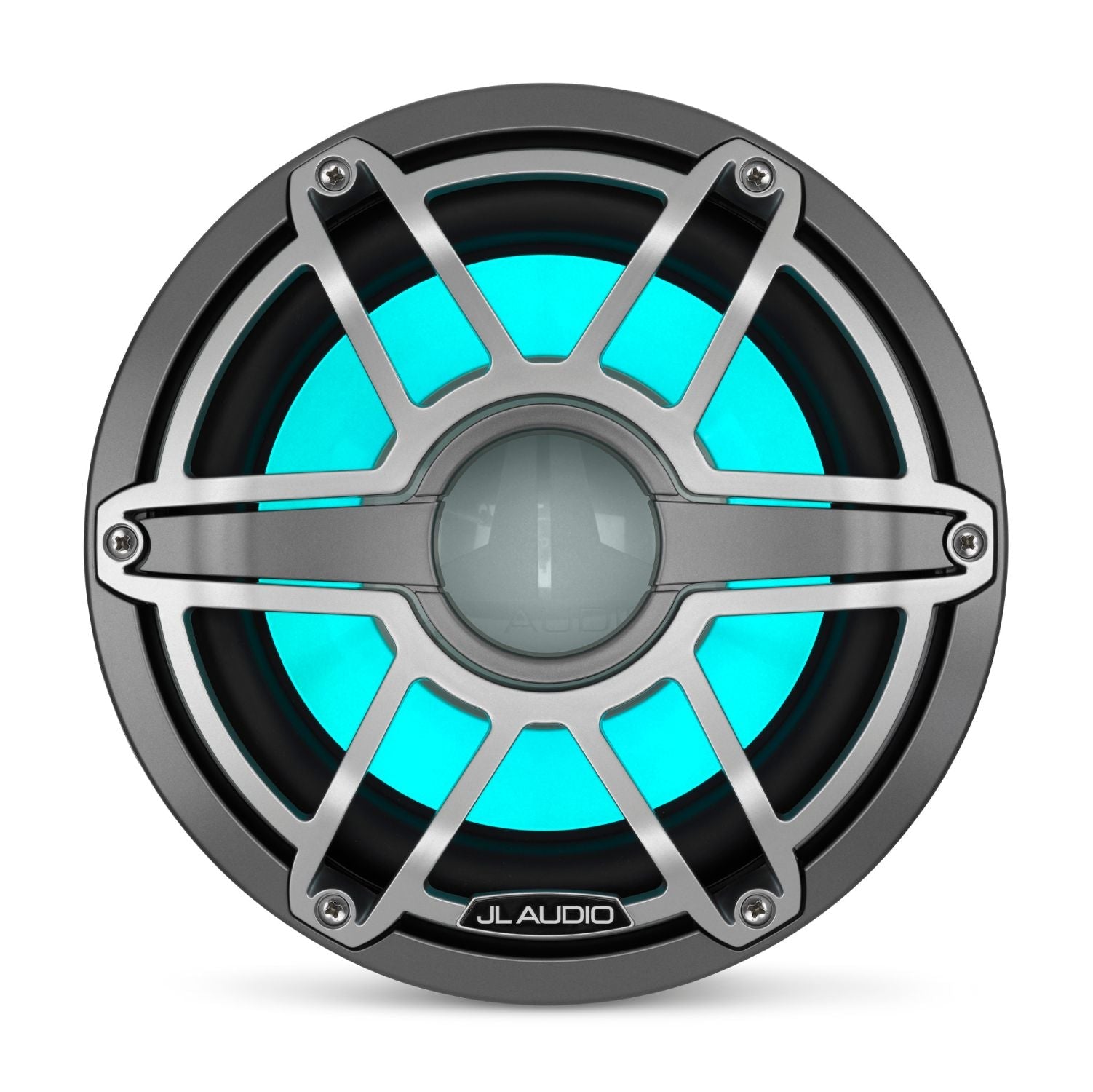

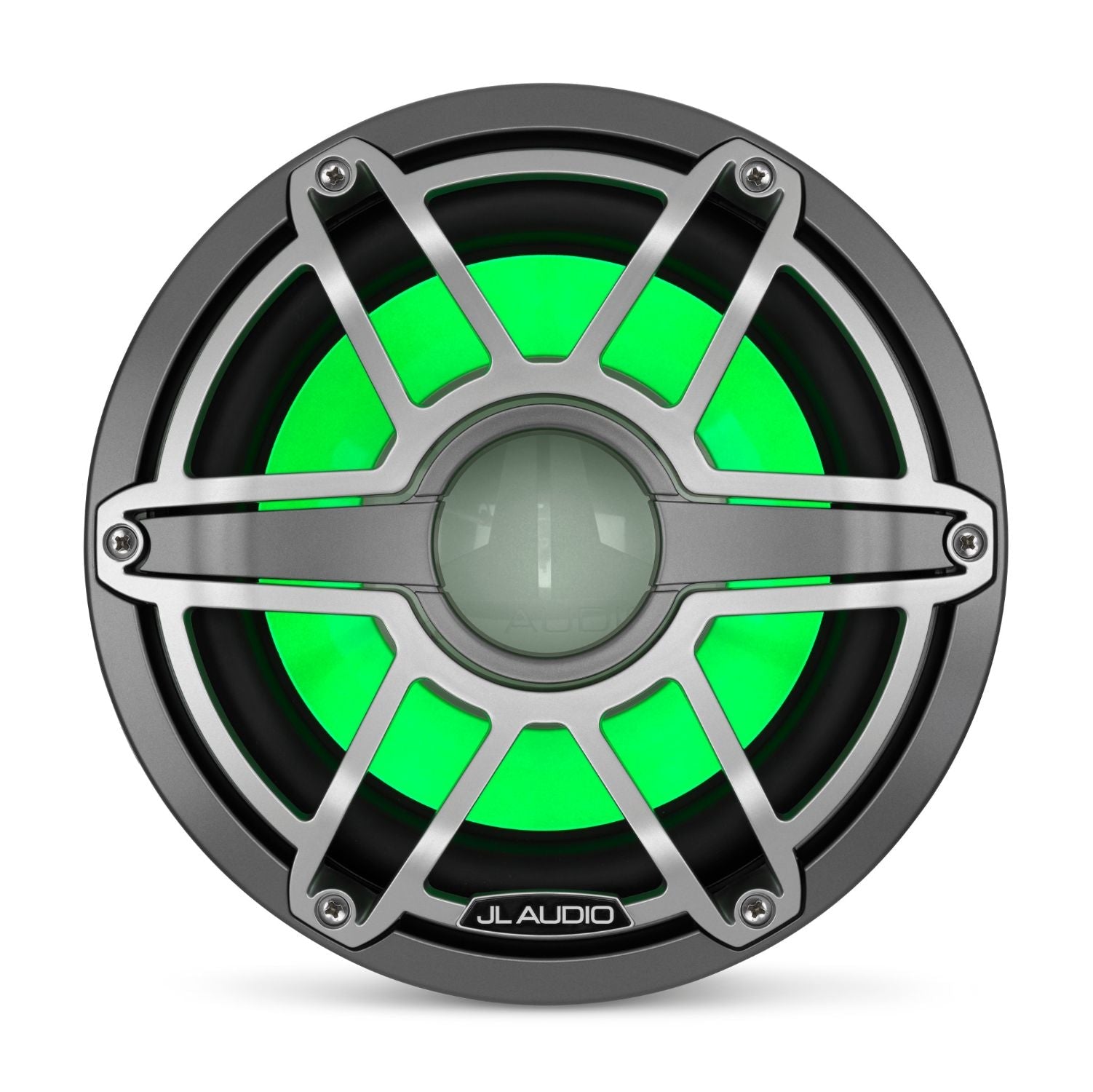

10-inch (250 mm) Marine Subwoofer Driver with Transflective™ LED Lighting, Gray Metallic Trim Ring, Titanium Sport Grille, 4 ?

New Launch

$529.99

Save: $-529.99 (% Off)*

Sale Sold out

Shipping calculated at checkout.

Free shipping Over $99

38 Sold in last 7 hours

Quantity

More payment options

Couldn't load pickup availability

Fast, FREE Delivery
Free, Fast, Doorstep Delight!
Delivery & Returns
Effortless Delivery, Easy Returns

View full details

Overview
Details
Accessories

M6 10-inch Marine Subwoofer with Transflective™ LED Lighting for Infinite-Baffle Use (250 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

Specifications:

General Specifications

Continuous Power Handling (RMS)	250 W
Nominal Impedance (Znom)	4 ohms

Physical Specifications

Nominal Diameter	10.0 in / 250 mm
Overall Diameter (A)	10.75 in / 273 mm
Bolt Hole Circle Diameter (B)	9.70 in / 247 mm
Frontal Grilles Protrusion* (C)	1.66 in / 42 mm
Mounting Hole Diameter (D)	8.875 in / 225 mm
Mounting Depth (E)	5.90 in / 150 mm
Driver Displacement	0.052 cu ft / 1.47 L
Net Weight	12.60 lb / 5.70 kg
*Frontal grille protrusion measured from mounting surface

Parameters

Free Air Resonance (Fs)	43.76 Hz
Electrical “Q” (Qes)	0.907
Mechanical “Q” (Qms)	11.315
Total Speaker “Q” (Qts)	0.84
Equivalent Compliance (Vas)	0.54 cu ft / 15.29 L
One-Way Linear Excursion (Xmax)*	0.52 in / 13.2 mm
Reference Efficiency (no)	0.28%
Efficiency (1 W / 1 m)**	86.1 dB SPL
Effective Piston Area (Sd)	50.11 sq in / 0.0323 sq m
DC Resistance (Re)	4.543 ohms
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure Specifications

Wall Thickness	0.75 in / 19 mm
Front Baffle Thickness	0.75 in / 19 mm
Volume (net int.)	2.00 cu ft / 56.6 L
External Width (W)	17 in / 432 mm
External Height (H)	17 in / 432 mm
External Depth (D)	16.25 in / 413 mm
F3	41.54 Hz
Fc	53.41 Hz
Qtc	1.0253
Enclosure Notes * The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. * All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. * When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance. * All specifications are subject to change without notice. Safety Notice Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity. When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Ported Enclosure Specifications

Wall Thickness	0.75 in / 19 mm
Front Baffle Thickness	0.75 in / 19 mm
Volume (net int.)	2.50 cu ft / 70.8 L
External Width (W)	17 in / 432 mm
External Height (H)	17 in / 432 mm
External Depth (D)	20.50 in / 676 mm
Internal Port Diameter (ID)	4 in / 102 mm
Port Length (L)	12 in / 305 mm
Tuning Frequency (Fb)	37 Hz
F3	25.09 Hz
Enclosure Notes * The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. * All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. * When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance. * All specifications are subject to change without notice. Safety Notice Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity. When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
