6-Channel Class D Marine Full-Range Amplifier, 100 W x 6 @ 2 ohms / 75 W x 6 @ 4 ohms - 14.4V

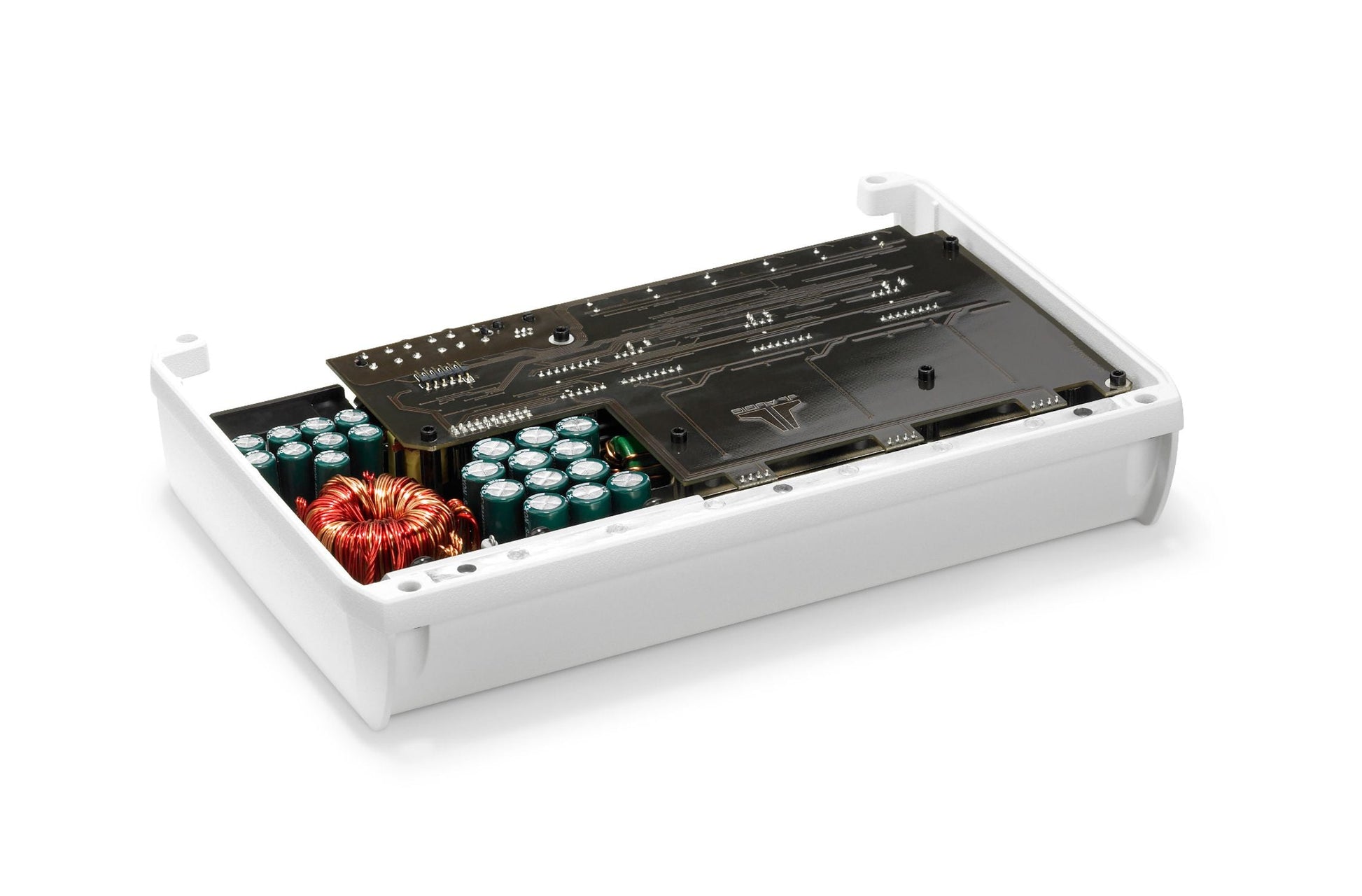

This incredibly flexible amplifier packs a serious full-range punch, and delivers a staggering 100 watts to each of its six channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

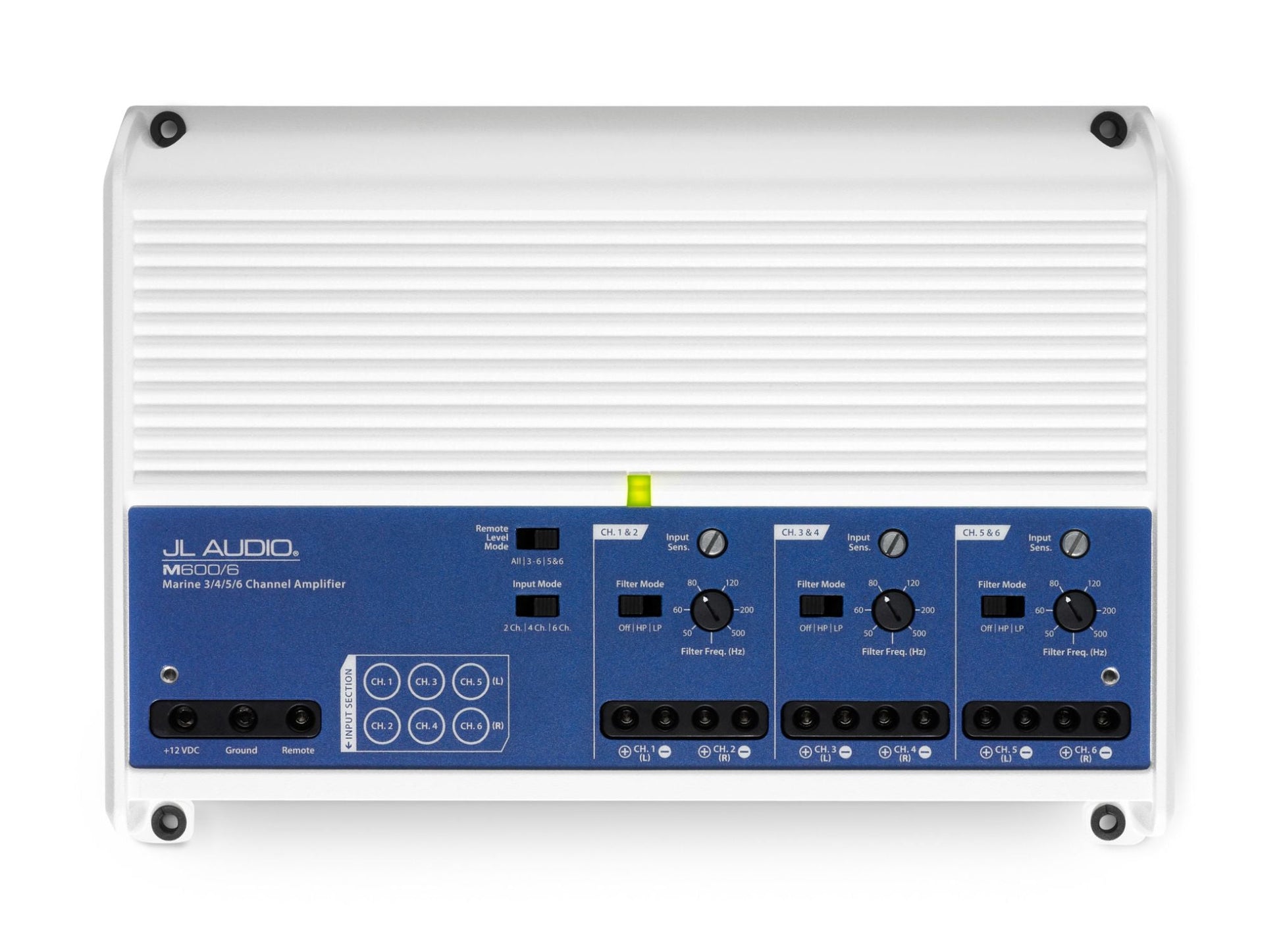

With the M600/6, you have lots of great options. Use it as a six-channel satellite amplifier with 75 W x 6 @ 4 ohms, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4 ohms to one pair of satellites and 75 W x 2 @ 4 ohms to a secondary pair of satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2. The M600/6 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four or all six of the amplifier's channel levels from a remote location.

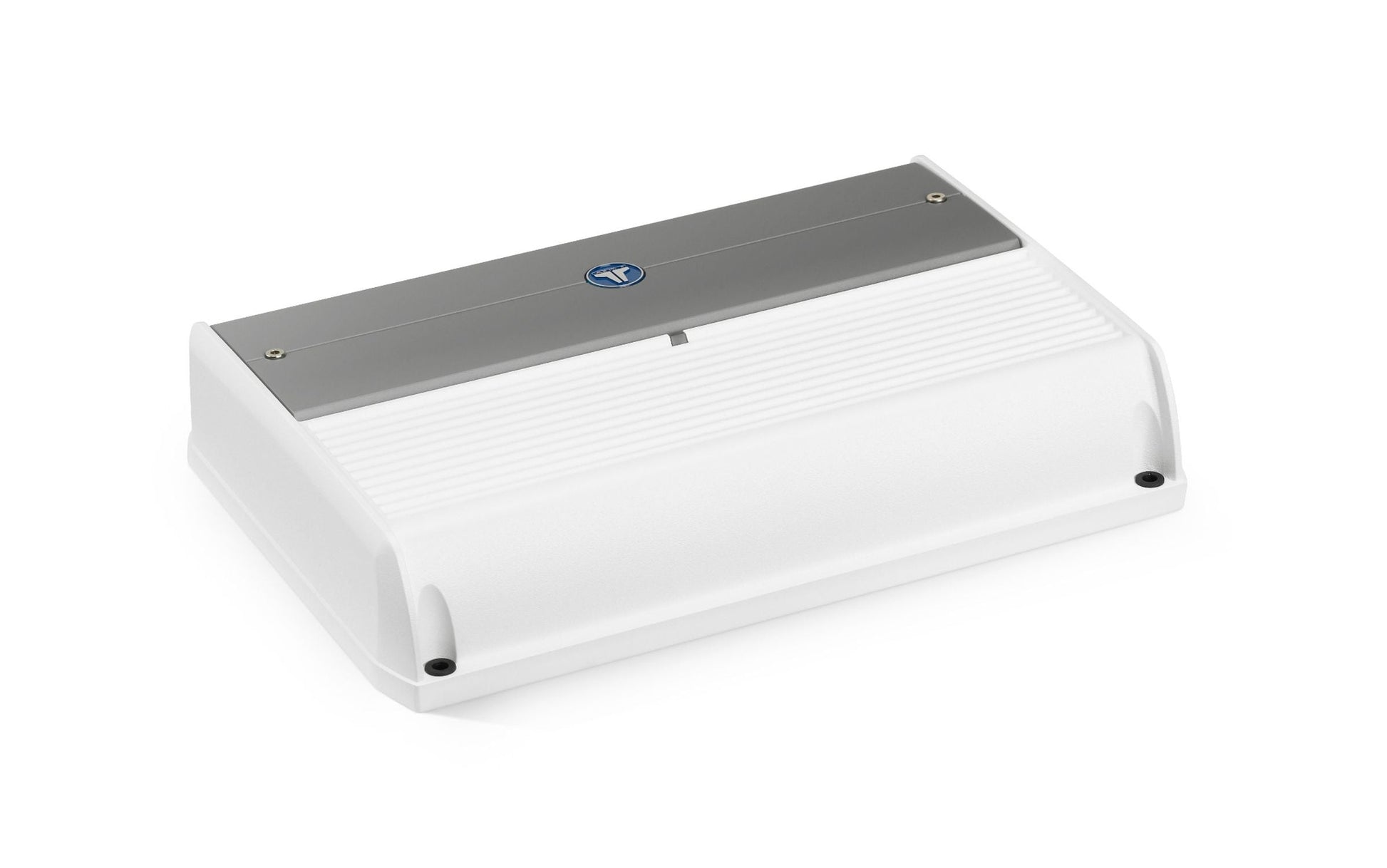

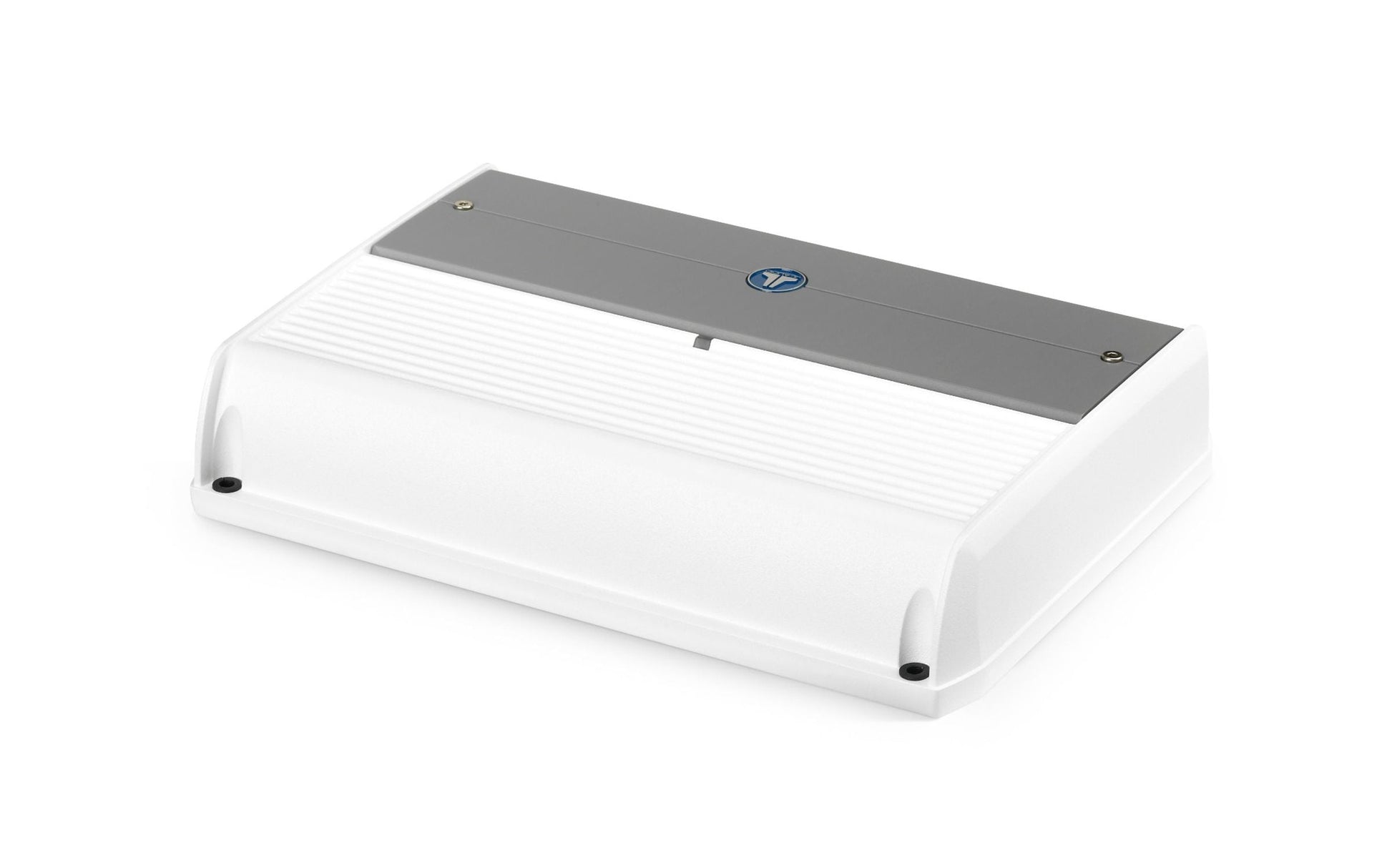

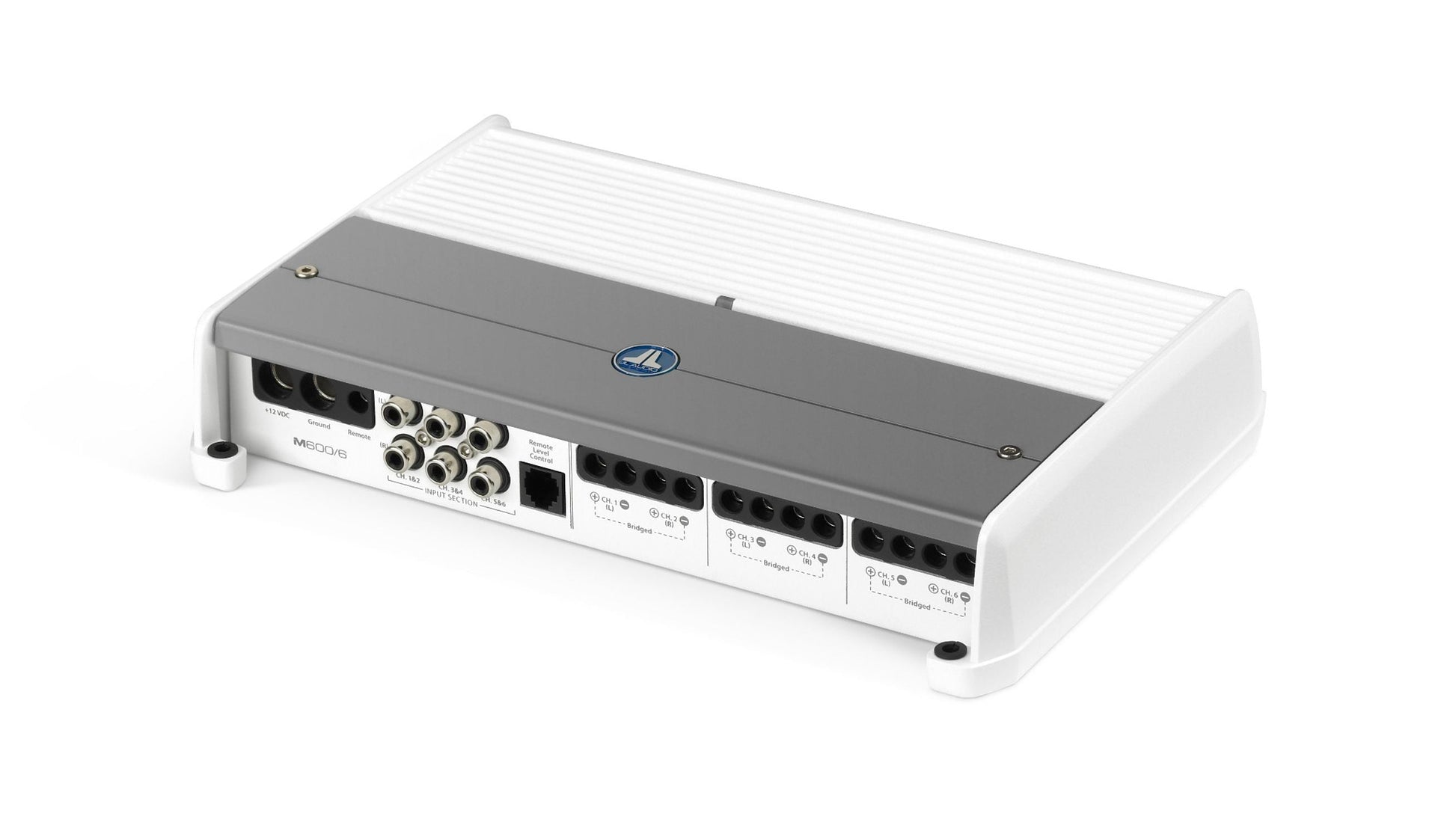

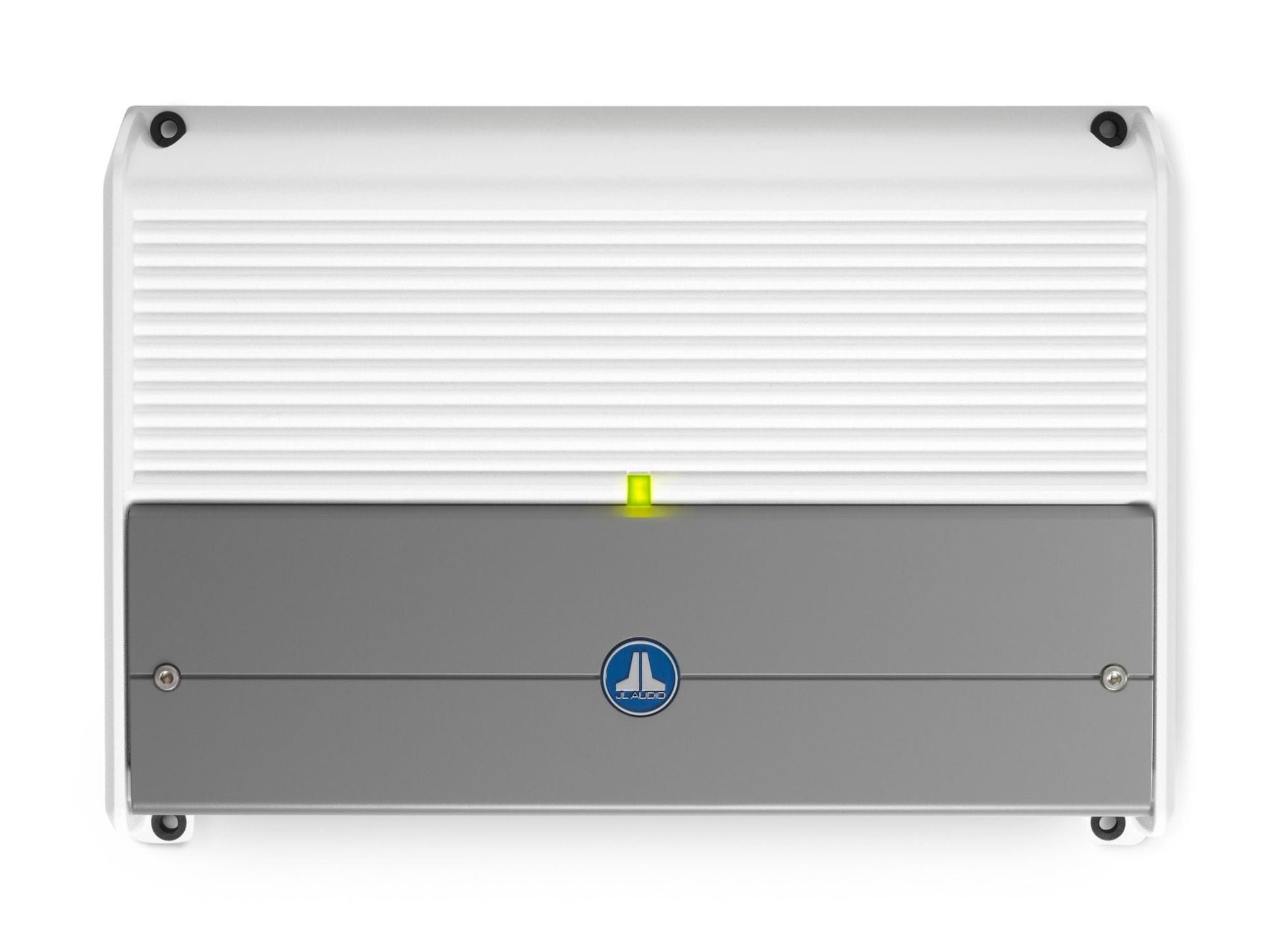

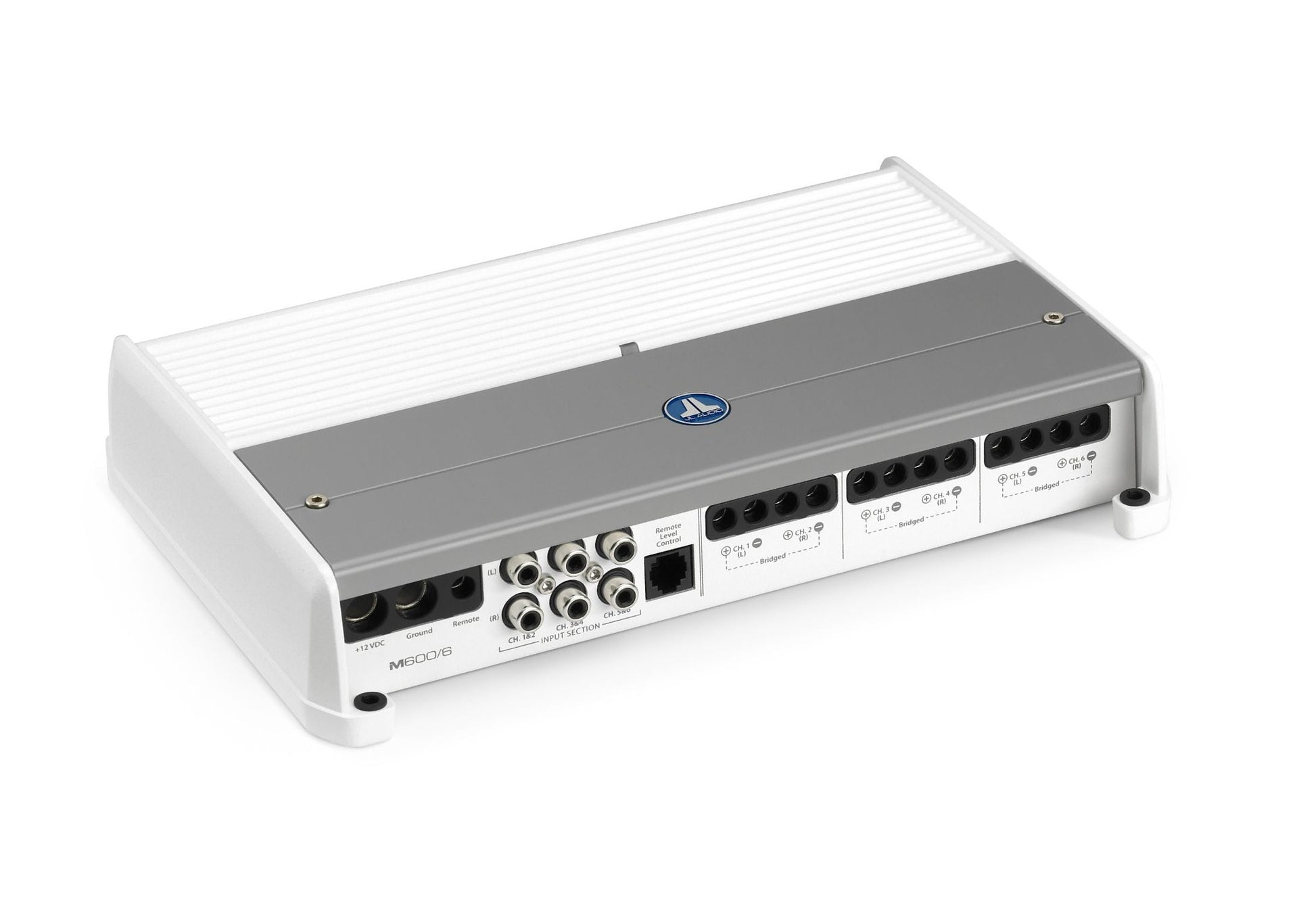

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
| @ 4 ohms | 75 W RMS x 6 |
| @ 2 ohms | 100 W RMS x 6 |
| Bridged @ 4ohms | 200 W RMS x 3 |
| @ 4 ohms | 60 W RMS x 6 |
| @ 2 ohms | 90 W RMS x 6 |
| Bridged @ 4ohms | 180 W RMS x 3 |
| Frequency Response | 12 Hz - 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ohms | >150 / 50 Hz |
| Damping Factor @ 2 ohms | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 ohms per Ch. |
| Input Voltage Range @ RCA Inputs | 100 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional (HD-RLC) |
| Remote Level Modes | 2 or 4 or All Channels |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 10.23 in / 260 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 5.8 lb / 2.63 kg |
