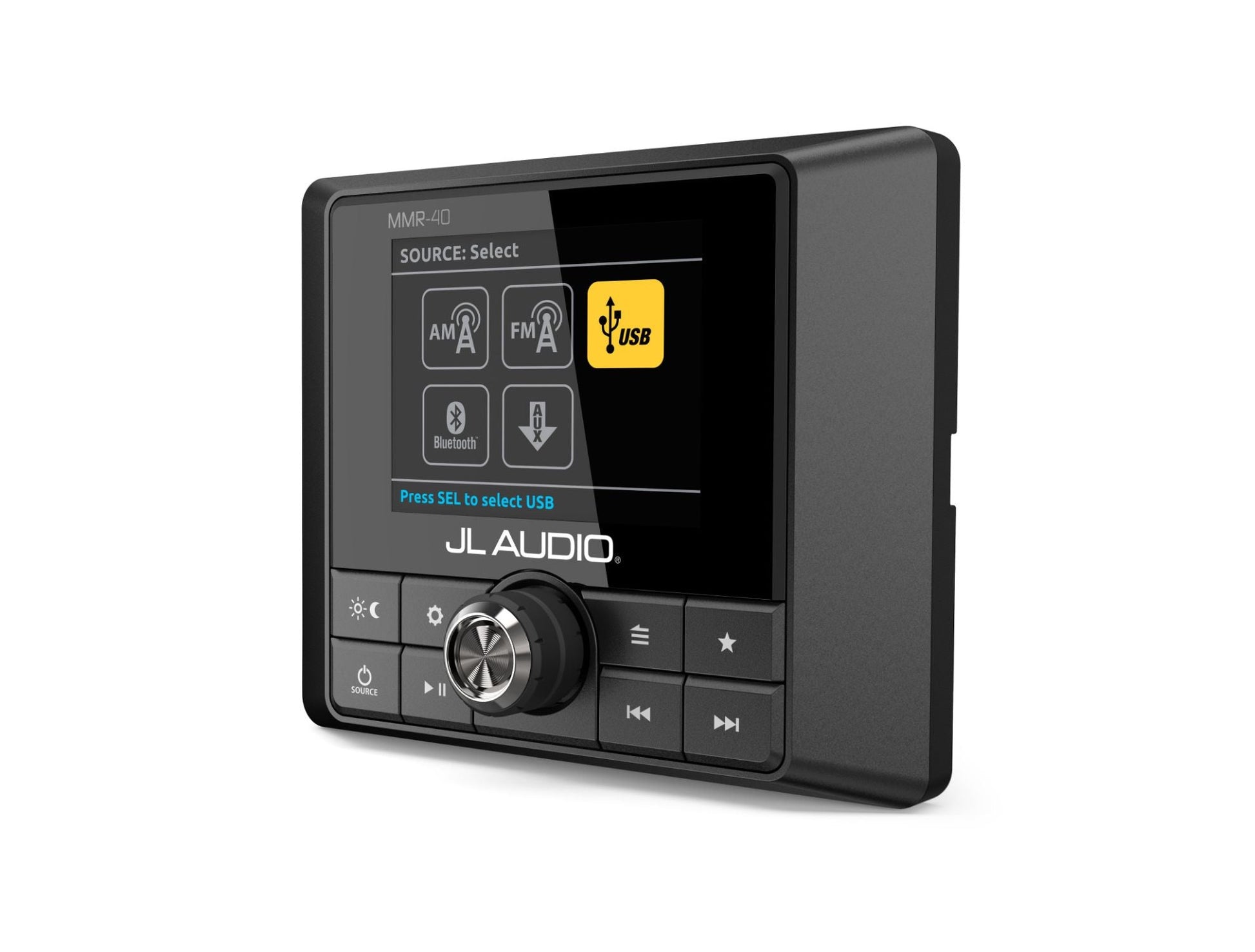

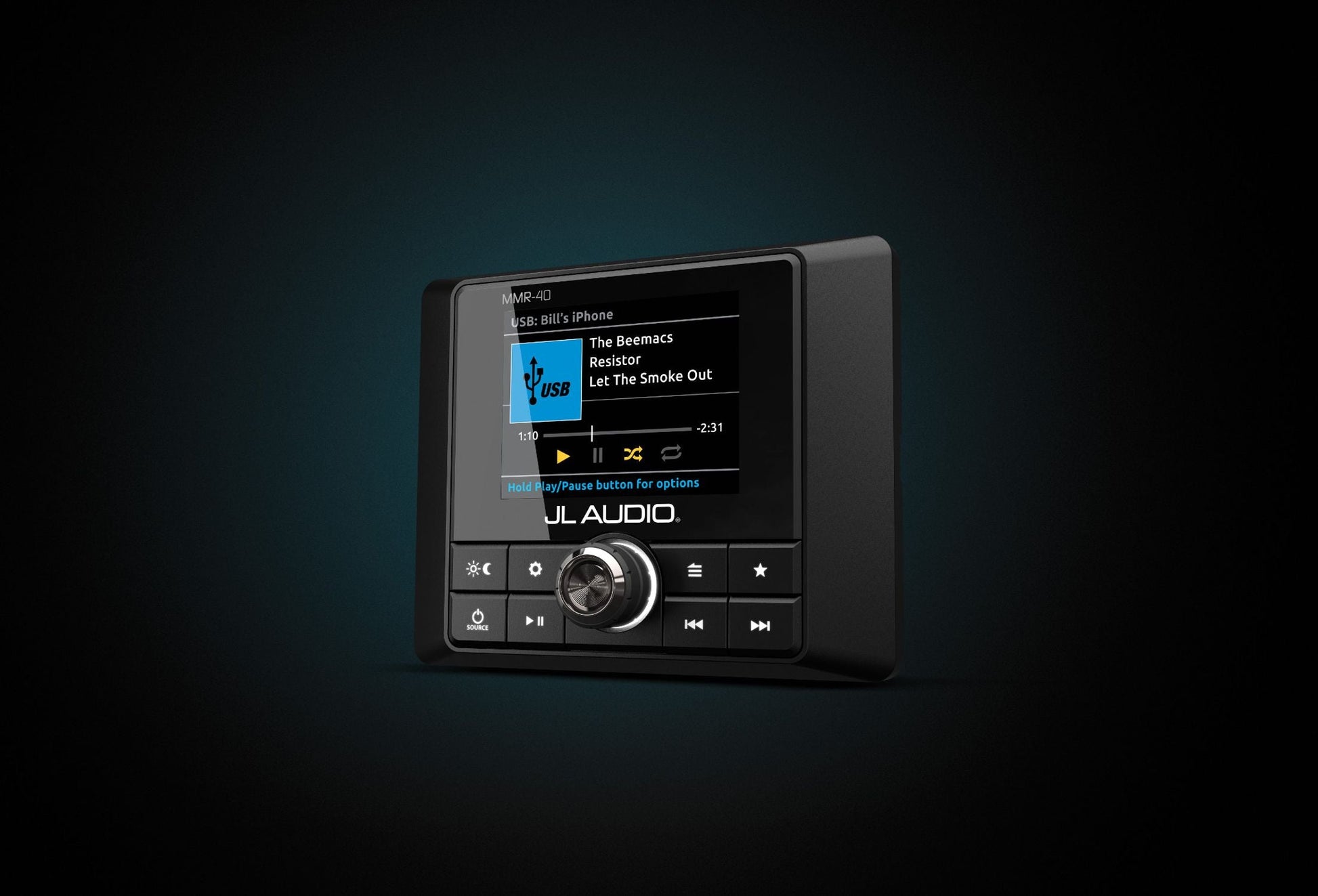

JL Audio MMR-40

Full-function, NMEA 2000® network wired remote controller with full color LCD display

The MMR-40 is a NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units.

Outfitted with a NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways:

• Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)
• Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network

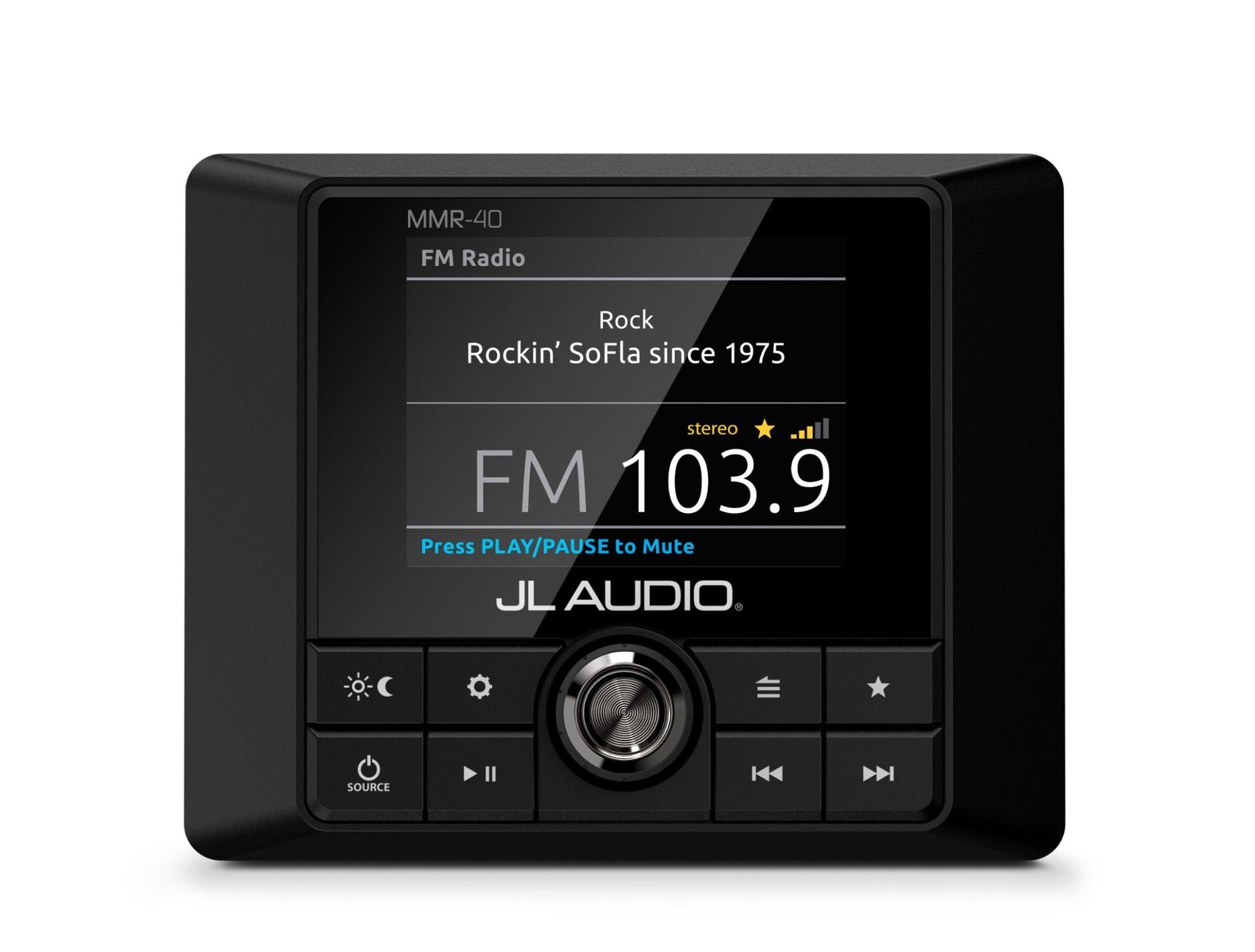

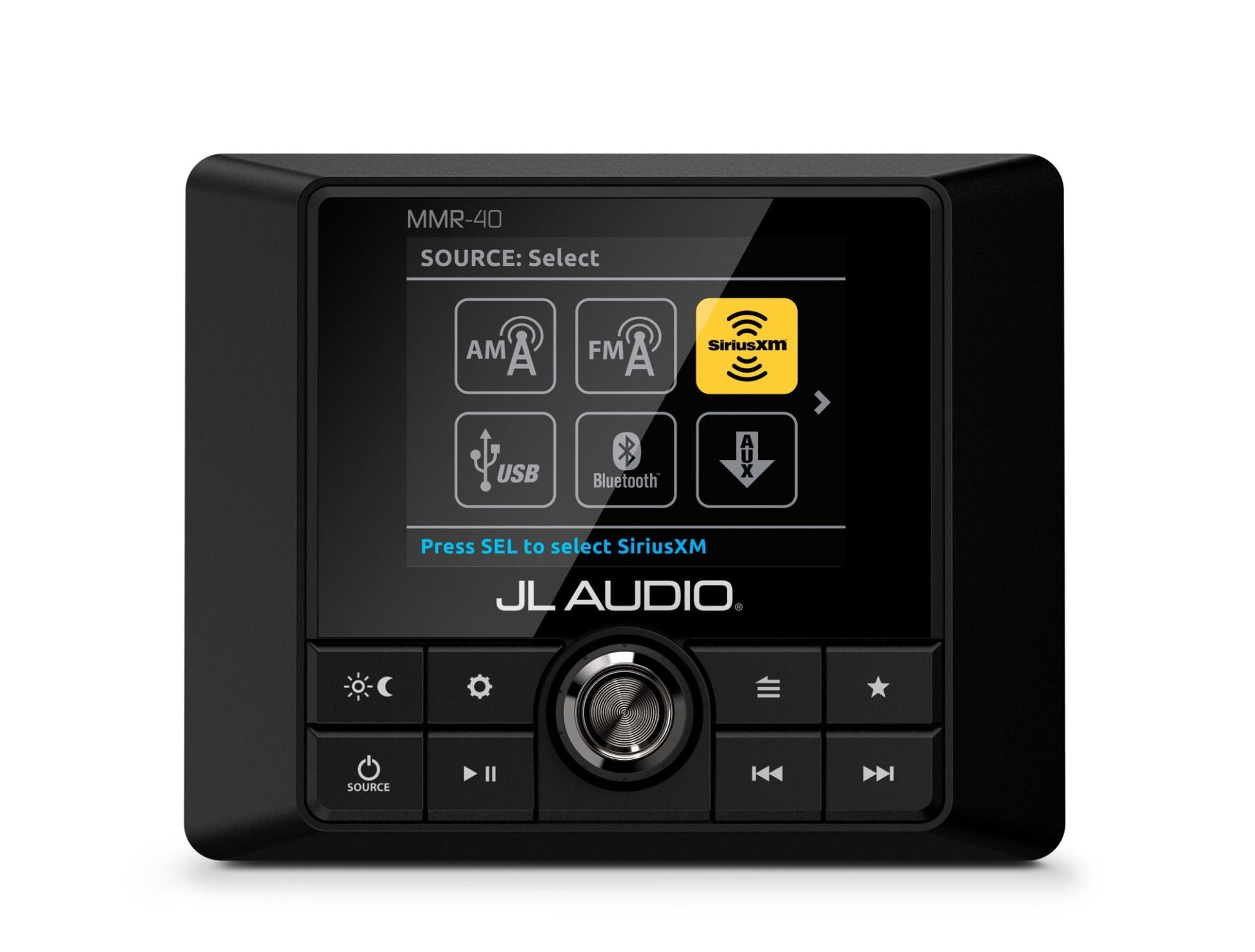

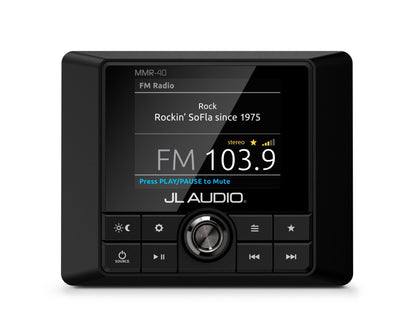

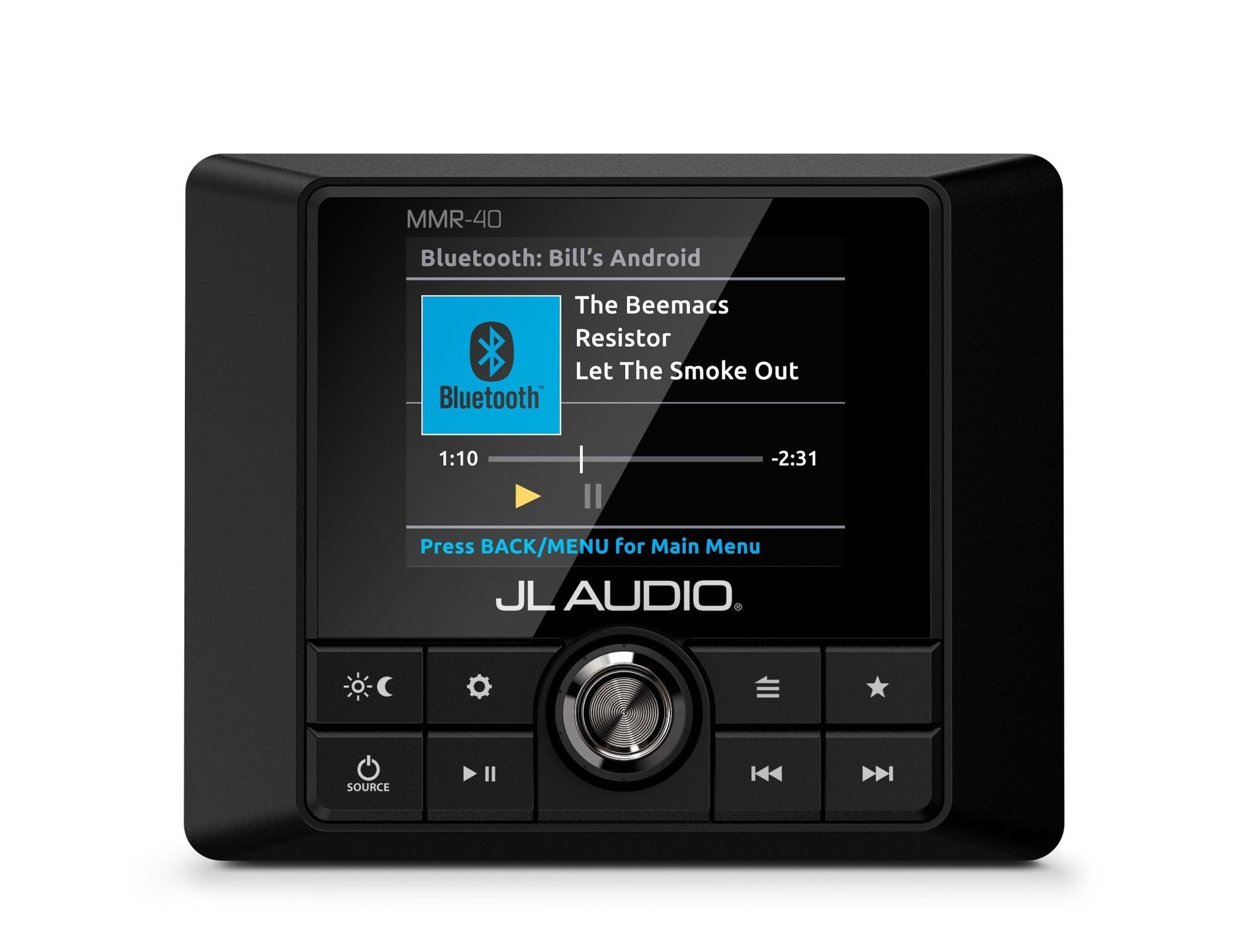

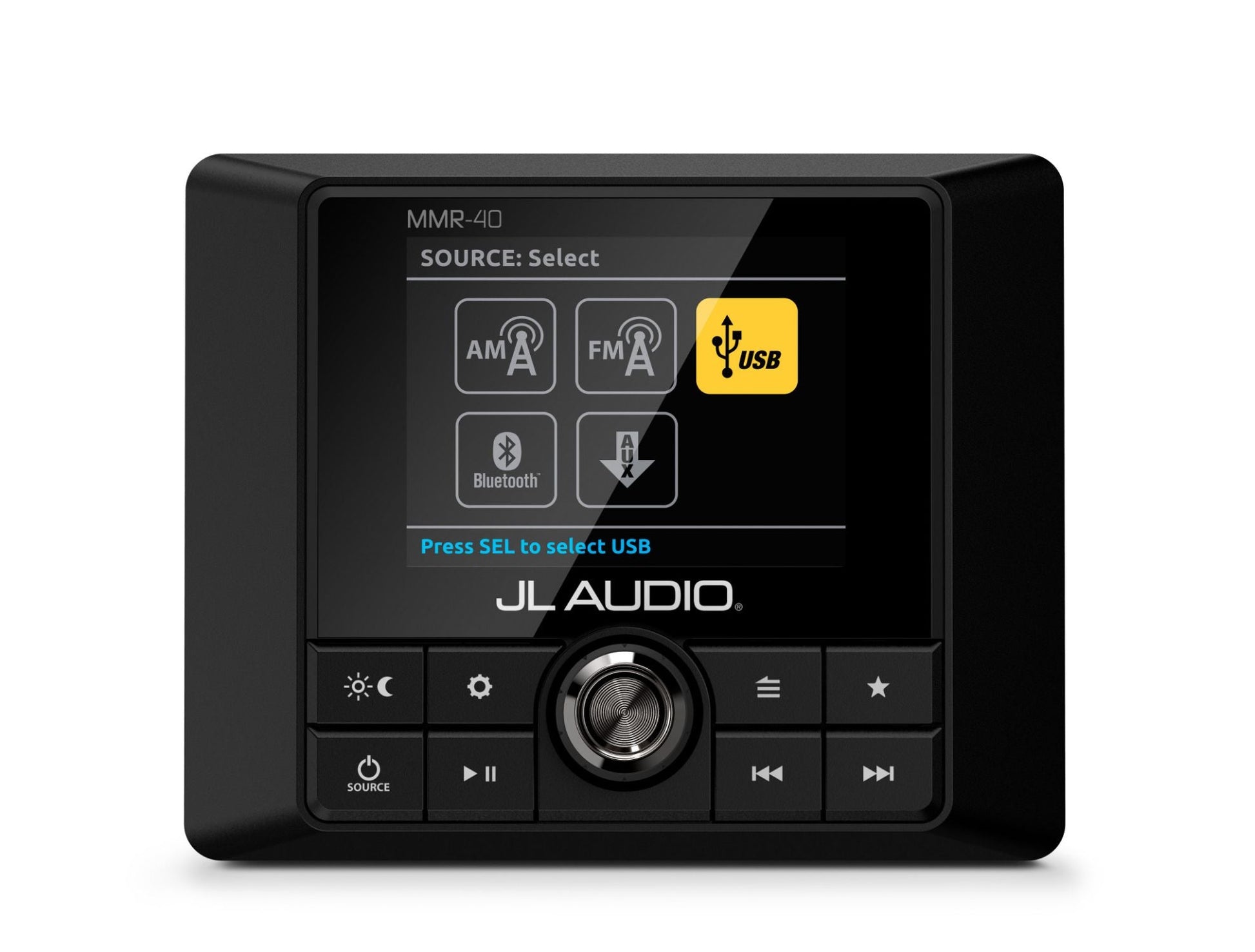

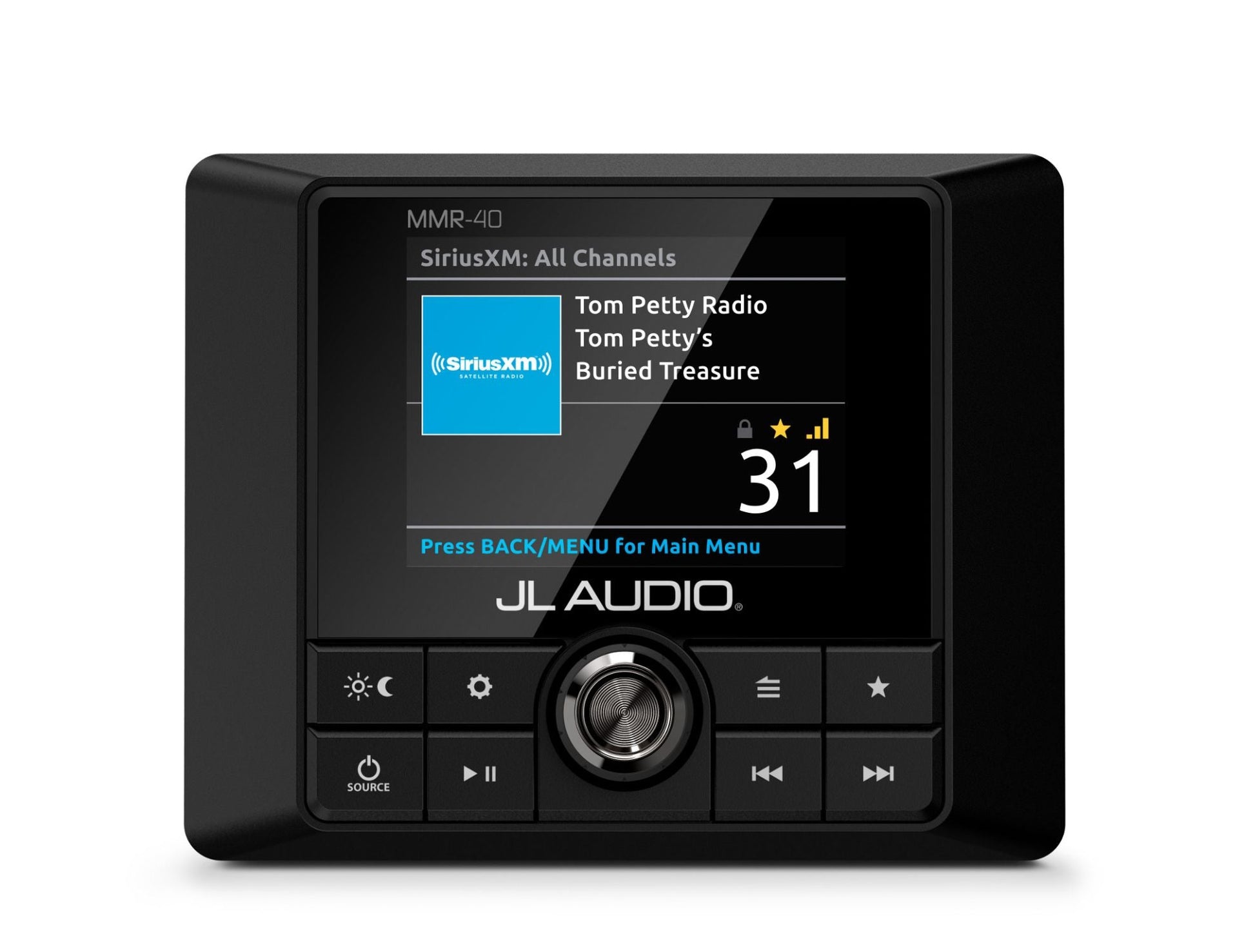

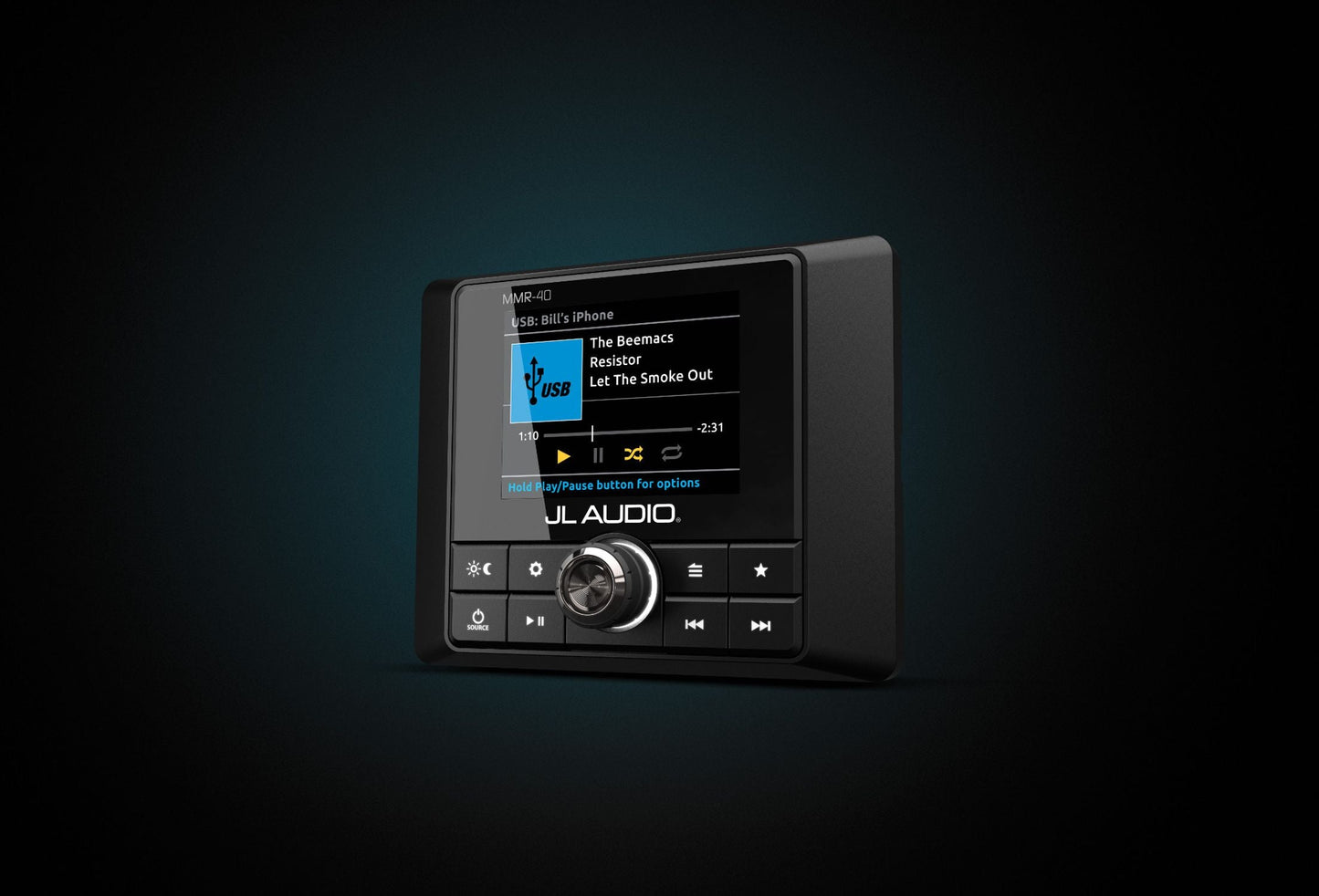

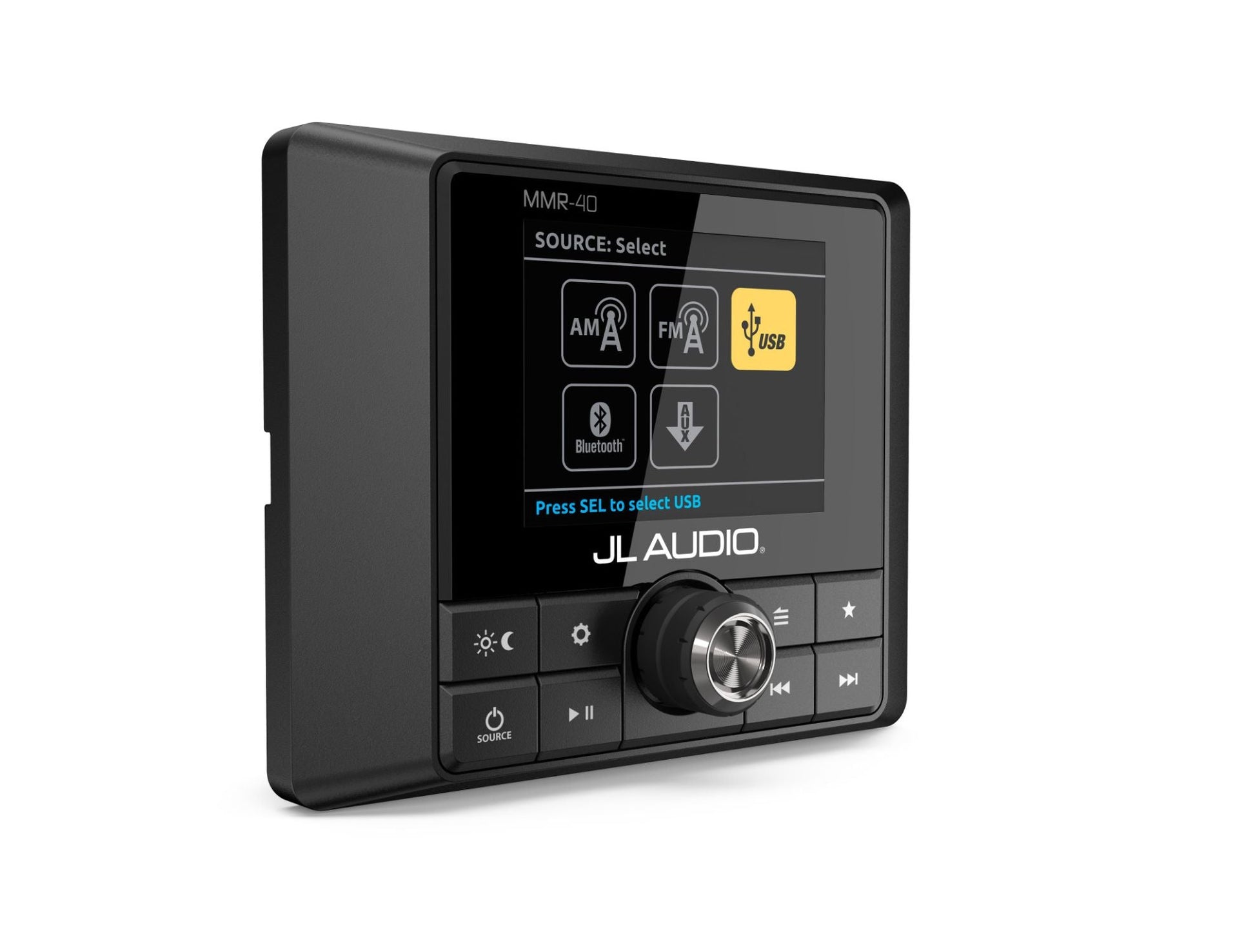

Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD display, resulting in a complete MediaMaster® user experience.

The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.

The MMR-40 includes the following features:

• NMEA 2000® Certified (LEN 4)
• Easy-to-read, high-brightness, 2.8-inch full-color LCD display with large backlit controls
• Independent day/night display themes and lighting controls
• IP66 rated for real marine duty

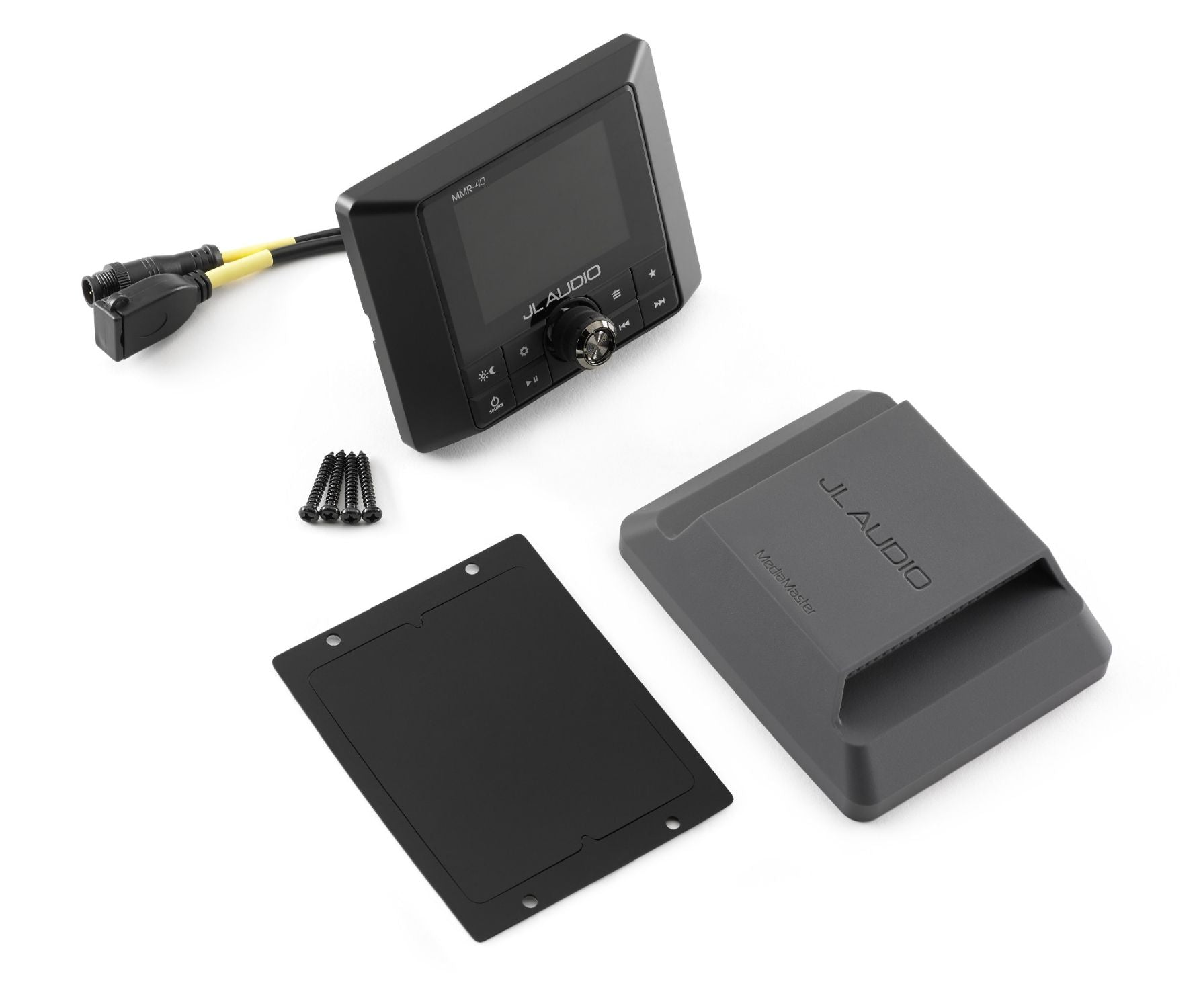

• Protective Sun Cover included

Note: The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster® source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000® network or use of MMC-PN2K powered network cables (sold separately).

Specifications:

General Specifications



Operating Temperature Range	-4 F to +158 F (-20 C to +70 C)
Display Size / Type	2.8-inch / TFT LCD backlighted
Display Resolution	320 x 240

Physical Specifications

Height (H)	3.74 in / 95 mm
Width (W)	4.65 in / 118 mm
Depth (D1)	0.55 in / 14 mm
Depth (D2)	1.96 in / 50 mm
Mounting Hole Height (A)	3.12 in / 80 mm
Mounting Hole Width (B)	3.74 in / 95 mm
Net Weight

Support:

• Download  MMR-40 Product Manual
• Download Mounting Instructions/Template: MMR-40
• USA Limited Warranty:  Two (2) years from the original date of purchase Warranty Details
