5-Channel Class D System Amplifier with Integrated DSP, 75 W x 4 @ 4 ohms + 300 W x 1 @ 2 ohms - 14.4V


Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2™ amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

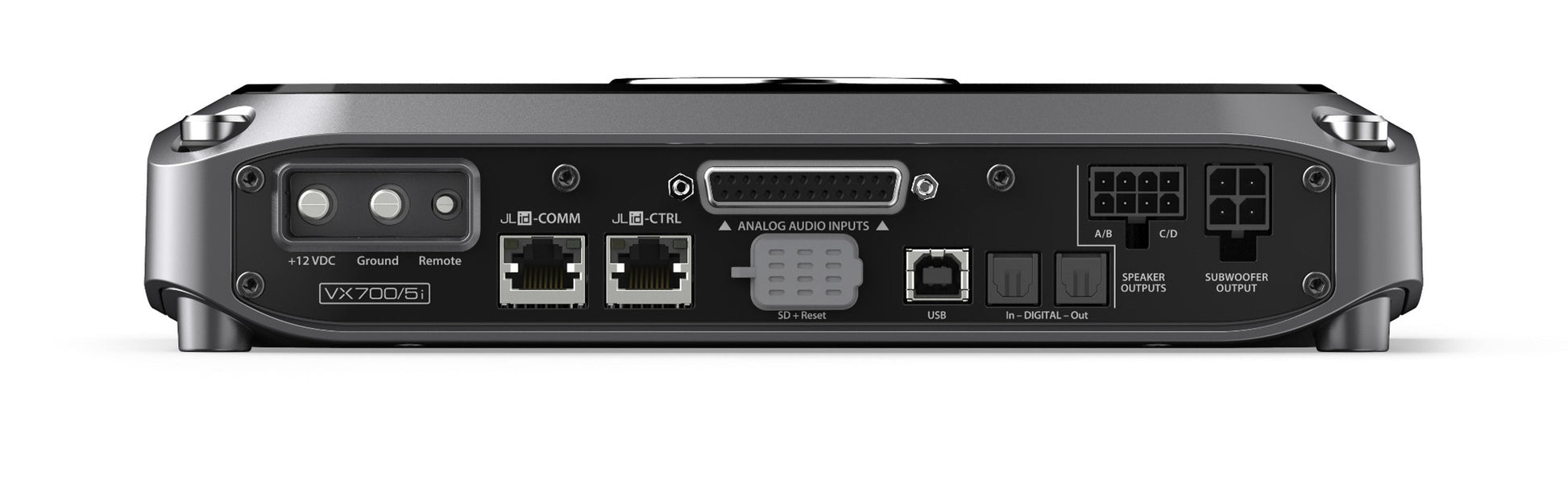

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Harness, 6 ft A/B USB Cable

Features:

Unprecedented, Onboard DSP Tuning Power!

  • Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.
  • TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.

2nd-Gen NexD2™ Switching Amplifier Technology

  • Advanced, high-speed switching technology delivers reference-grade power and efficiency.
  • DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.

Ultra-Versatile Analog and Digital Inputs/Outputs?

  • Differential-Balanced Analog Inputs accept speaker level signals up to 16V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
  • Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
  • Analog and Digital Pre-Outs (pass-through or fully configurable): RCA Pre-Outs (4V RMS Max) and Optical (Toslink) Output at 24 bit/96 kHz
  • Automatic turn-on options via signal-sensing or DC-offset sensing

    JLid™ System Command and Control with Networking Capabilities

    • Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:
    DRC-100 / DRC-205 (Digital Remote Controllers): Offers convenient DSP preset selection and level adjustments from the driver’s seat.
    VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device.?
    VXi-HUB Optical Network Hub: Provides network connectivity for up to six VXi amplifiers, allowing full-system DRC control and preset selection. Up to two VXi-HUBs can be daisy-chained to control up to ten VXi amplifiers.



    Specification:



    Main Channels @ 4 ohms 75 W RMS x 4
    Main Channels @ 2 ohms 100 W RMS x 4
    Main Channels - Bridged @ 4ohms 200 W RMS x 2
    Subwoofer Channel @ 4 ohms 180 W RMS x 1
    Subwoofer Channel @ 3 ohms 240 W RMS x 1
    Subwoofer Channel @ 2 ohms 300 W RMS x 1
    Subwoofer Channel @ 1.5 ohms N/A
    Main Channels @ 4 ohms 60 W RMS x 4
    Main Channels @ 2 ohms 90 W RMS x 4
    Main Channels - Bridged @ 4ohms 180 W RMS x 2
    Subwoofer Channel @ 4 ohms 180 W RMS x 1
    Subwoofer Channel @ 3 ohms 240 W RMS x 1
    Subwoofer Channel @ 2 ohms 300 W RMS x 1
    Subwoofer Channel @ 1.5 ohms N/A
    Frequency Response (Main Channels) 12 Hz - 21 kHz (+0, -1dB)
    Frequency Response (Subwoofer Channel) 12 Hz - 1 kHz (+0, -1dB)
    S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) 102 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) 82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    Damping Factor @ 4 ohms >150 / 50 Hz
    Damping Factor @ 2 ohms >50 / 50 Hz
    THD+N @ Rated Power (Main Channels) <1% @ 2 ohms per Ch.
    THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 ohms per Ch.
    Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS
    Min.Copper Power / Ground Wire Gauge 4 AWG wire
    Fuse Rating 60 A (AFS, AGU or MaxiFuse™)
    Height (H) 2.12 in / 54 mm
    Width (W) 9.81 in / 250 mm
    Depth (D) 6.62 in / 168 mm
    Net Weight 5.6 lb / 2.54 kg

    Support:

    • USA Limited Warranty:  Two (2) years from the original date of purchase Warranty Details
