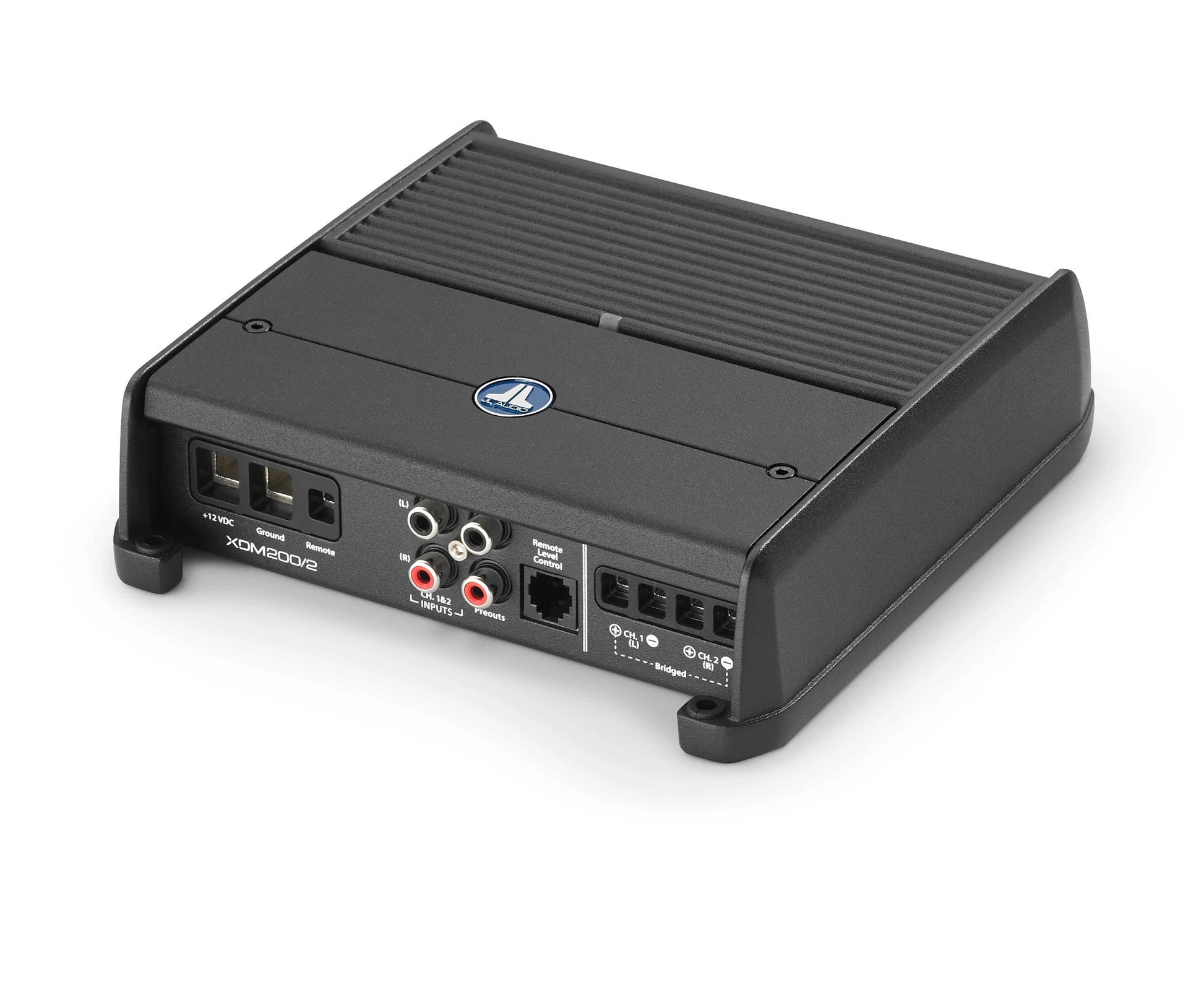

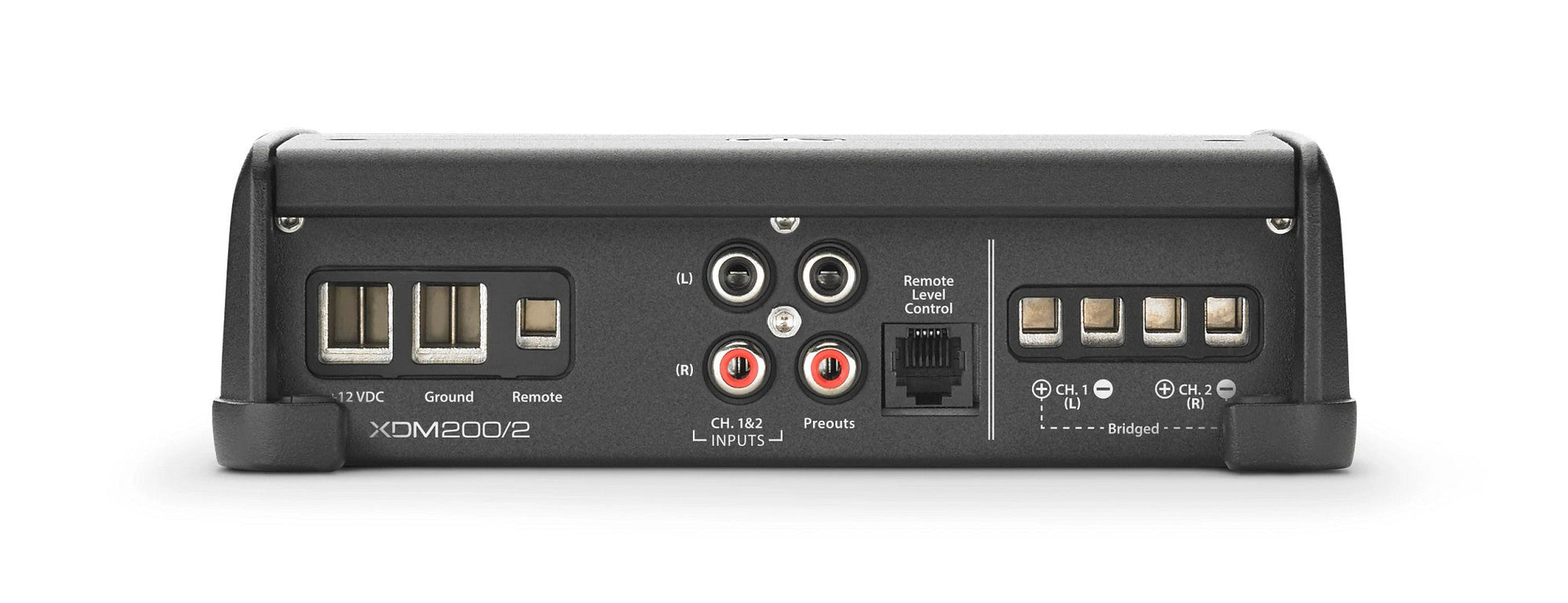

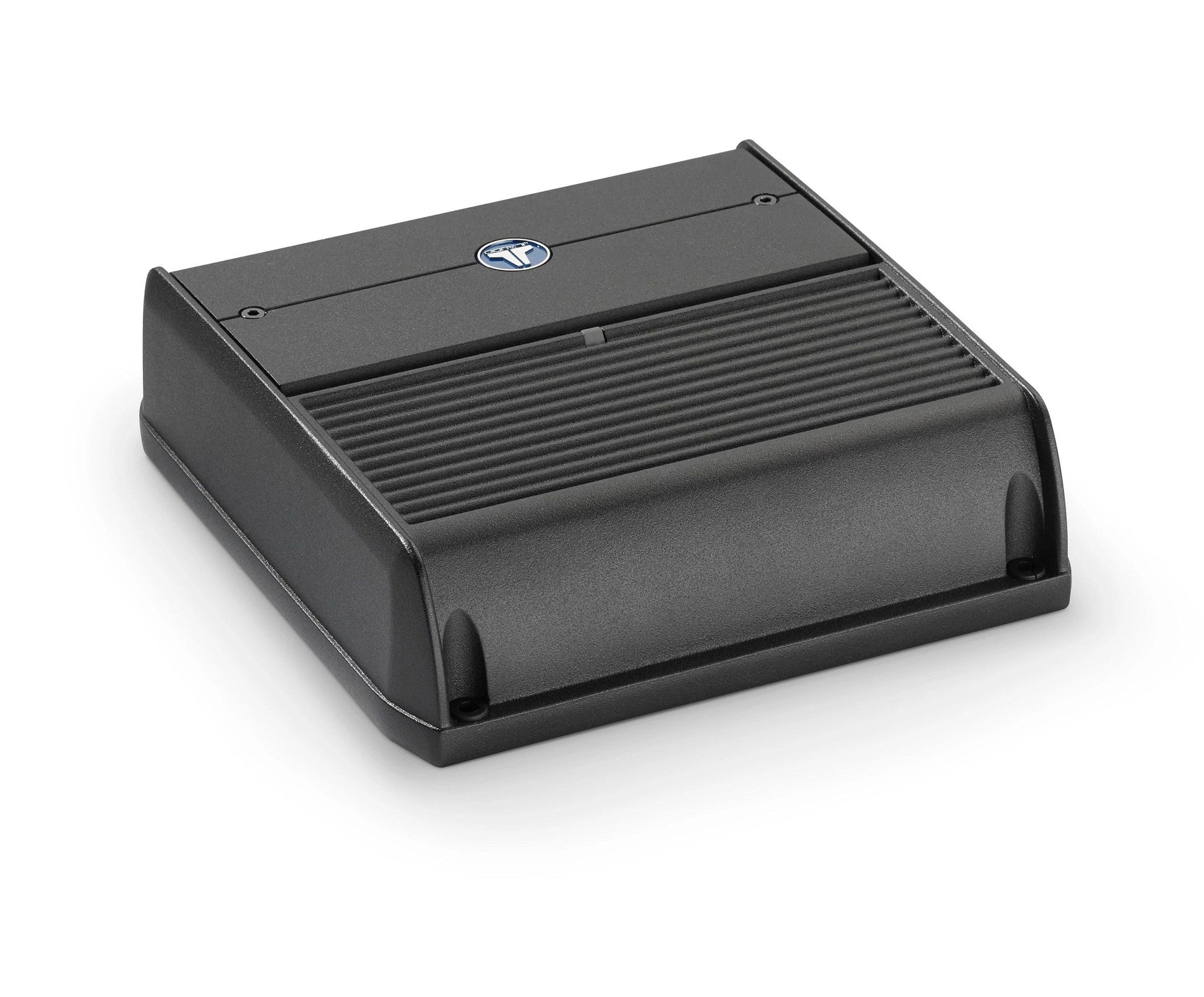

JL Audio XDM200/2

2-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 2 @ 2 ohms / 75 W x 2 @ 4 ohms - 14.4V

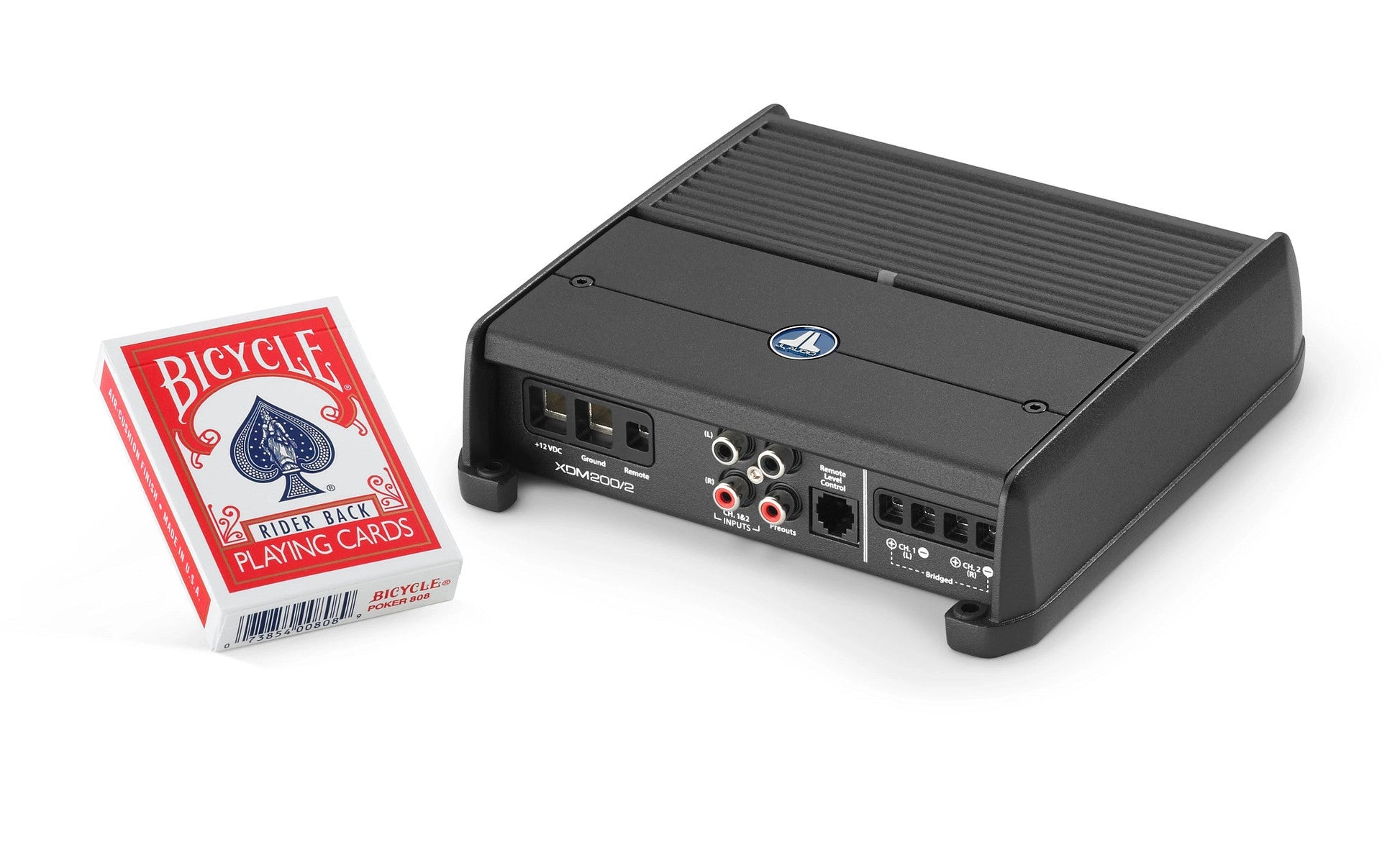

The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.

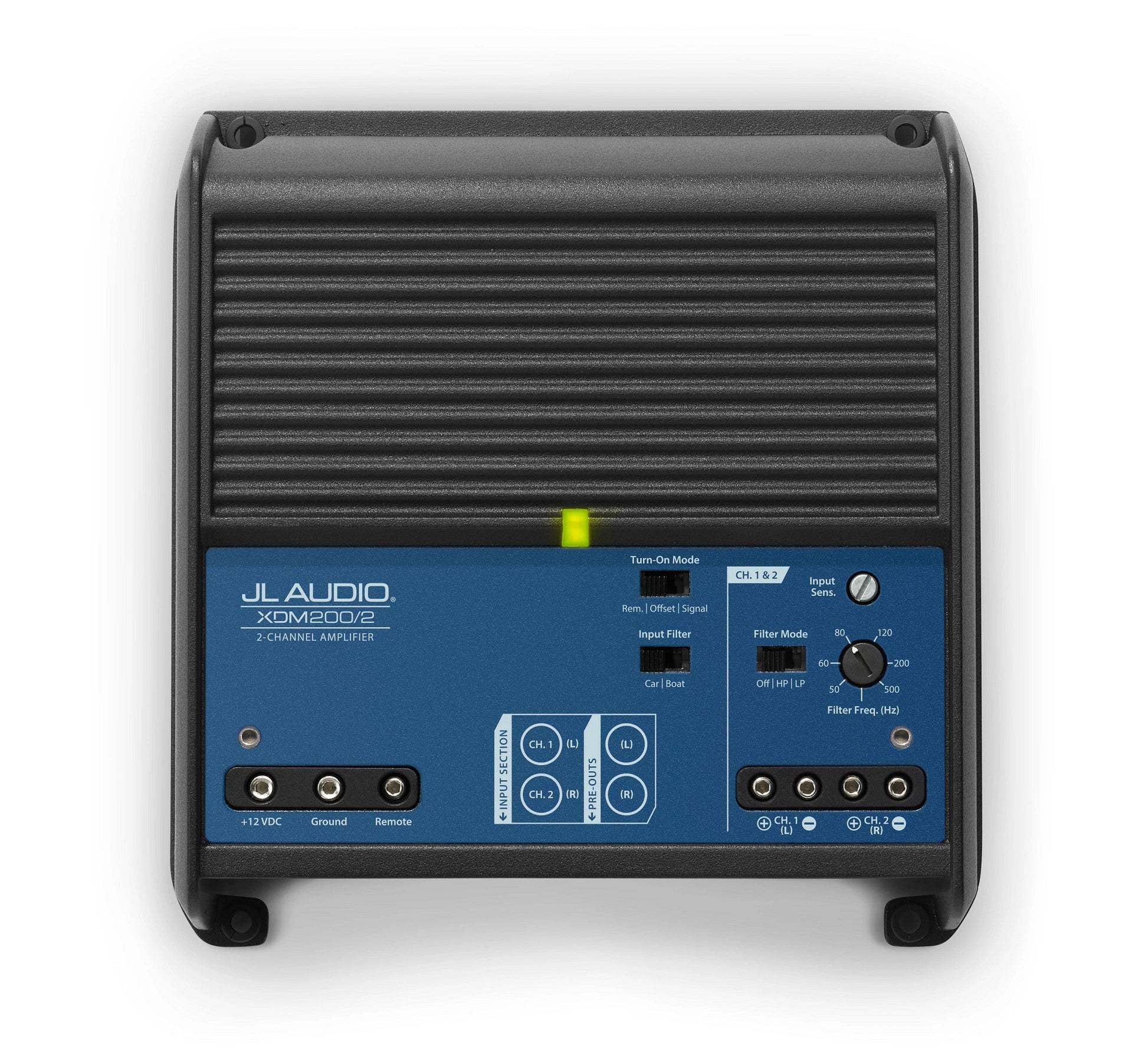

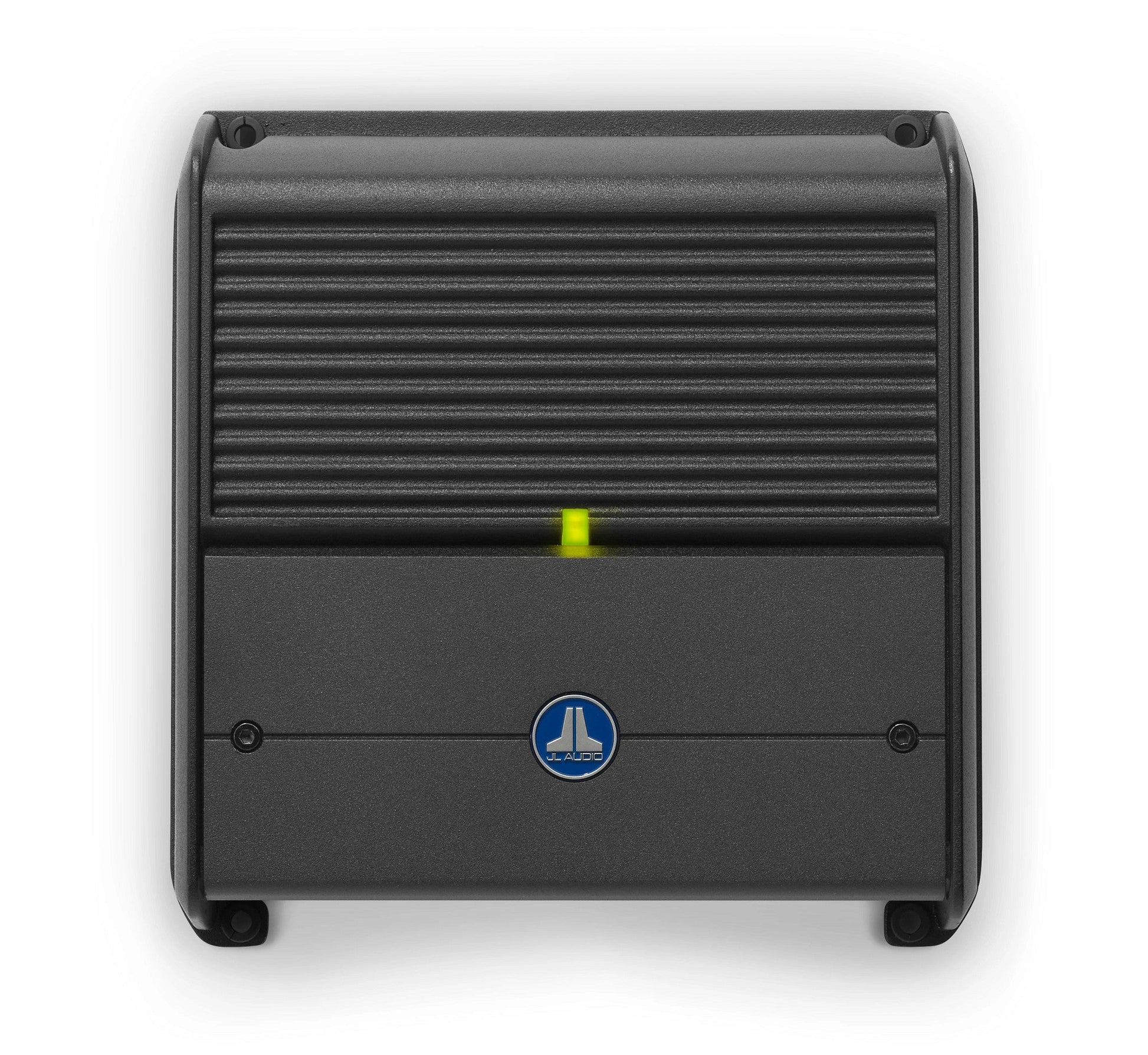

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications:

Rated Continuous (RMS) Power @ 14.4 V

@ 4 ohms	75 W RMS x 2
@ 2 ohms	100 W RMS x 2
Bridged @ 4ohms	200 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

@ 4 ohms	60 W RMS x 2
@ 2 ohms	90 W RMS x 2
Bridged @ 4ohms	180 W RMS x 1

General Specifications

Frequency Response	12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power	>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W	>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ohms	>150 / 50 Hz
Damping Factor @ 2 ohms	>75 / 50 Hz
THD+N @ Rated Power	<1% @ 2 ohms per Ch.
Input Voltage Range @ RCA Inputs	200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge	8 AWG wire
Fuse Rating	20 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s)	Low-Pass or High-Pass
Filter Slope(s)	12 dB/octave
Filter Frequency Range	50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer	Yes
Filter Defeat Function	Yes
Remote Level Control	Optional HD-RLC or MHD-RLC (water-resistant)
Security Cover for Controls	Yes
Pass-Through Preamp Output	Buffered

Physical Specifications

Height (H)	2.05 in / 52 mm
Width (W)	6.85 in / 174 mm
Depth (D)	7.09 in / 180 mm
Net Weight	3.75 lb / 1.70 kg

Support:

• Download  XDM200/2 Product Manual


• USA Limited Warranty:  Two (2) years from the original date of purchase Warranty Details
