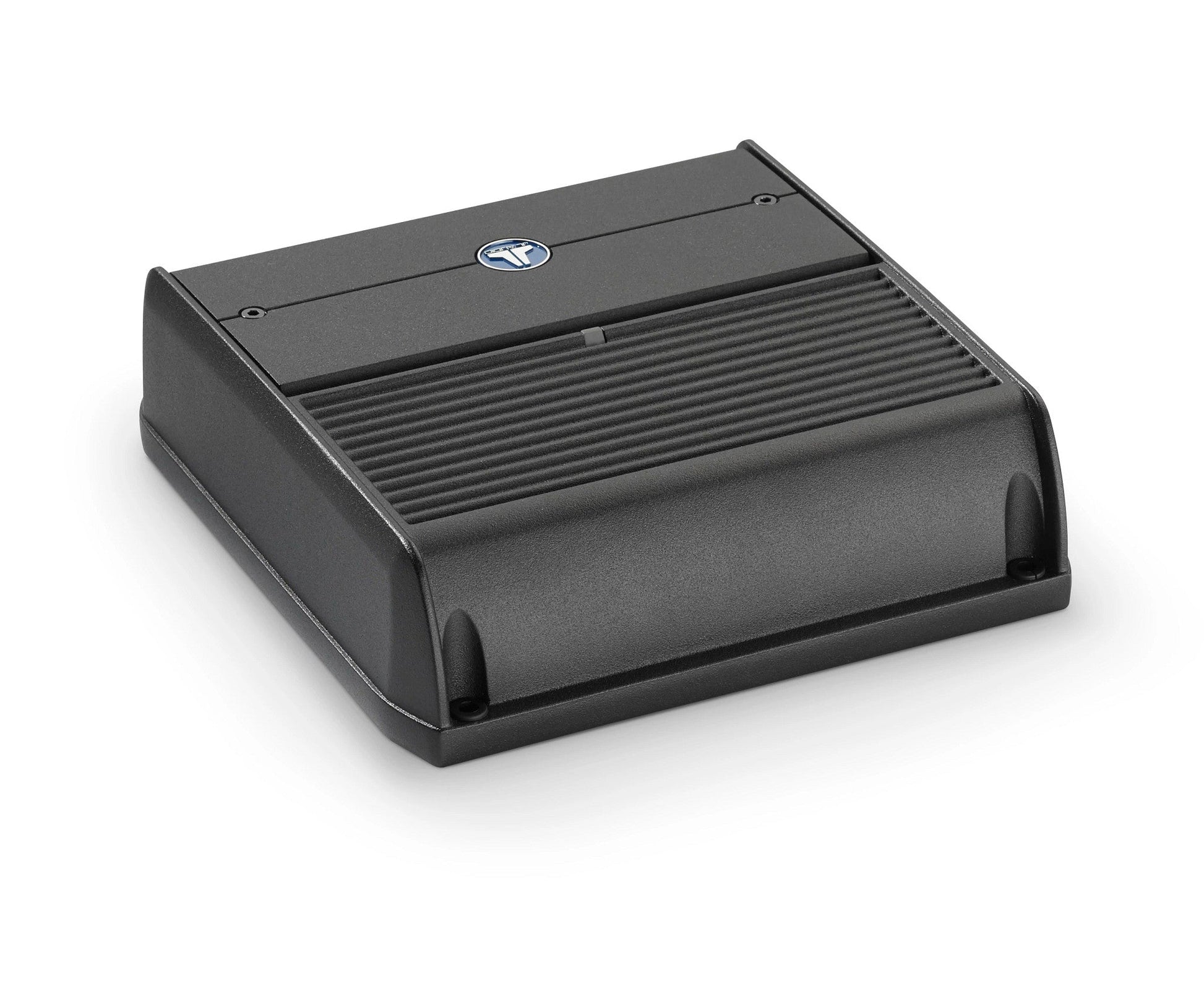

JL Audio XDM300/1

Monoblock Class D Car/Marine Subwoofer Amplifier, 300 W x 1 @ 2 ohms / 200 W x 1 @ 4 ohms - 14.4V

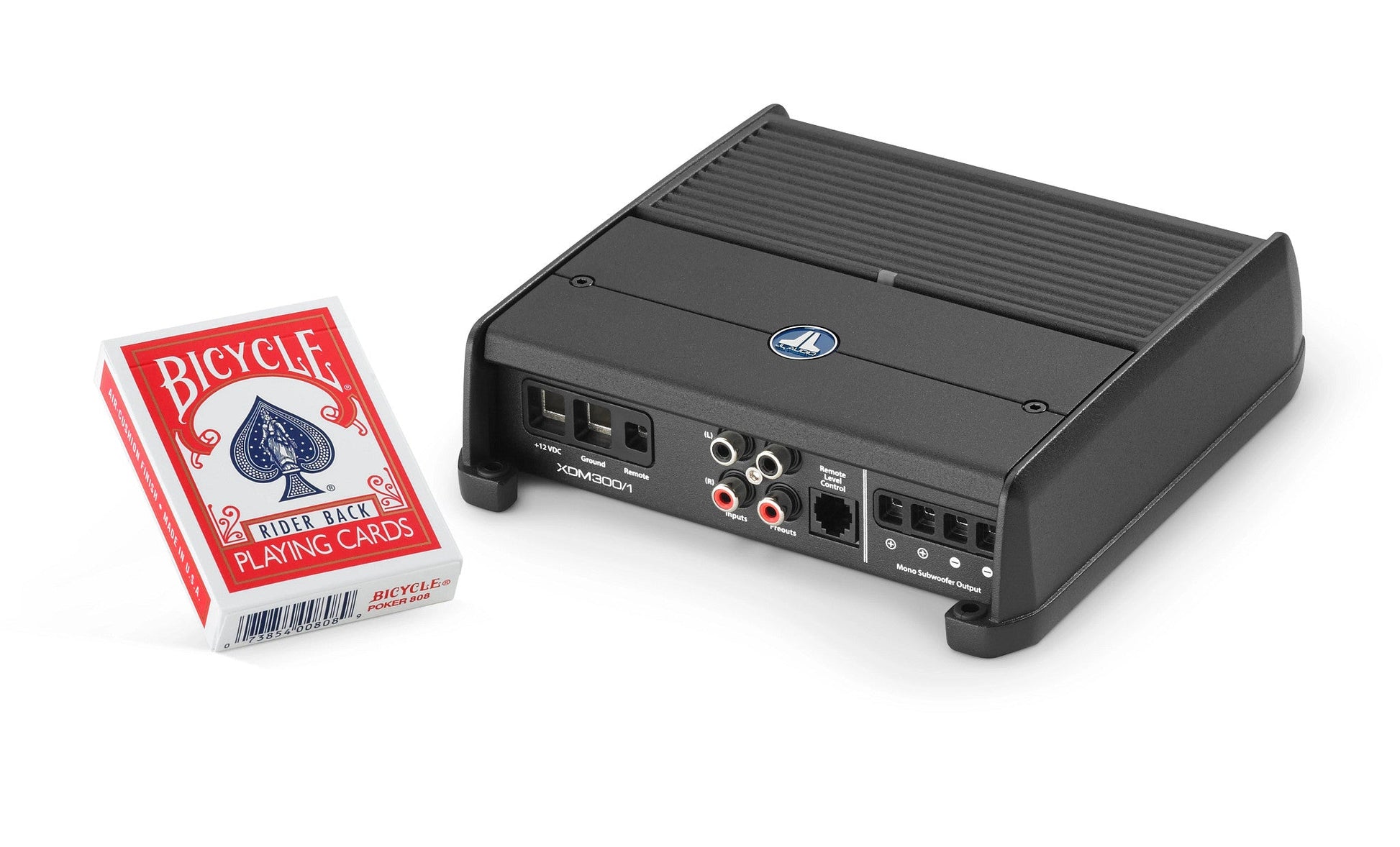

This little monoblock powerhouse employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output for its size. It is small enough to fit in most tight space applications, including small boats, pickups, motorcycles and UTV’s (in a weather-tight compartment).

Designed for car or boat installations, the XDM300/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Targeted specifically for subwoofer applications, the XDM300/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

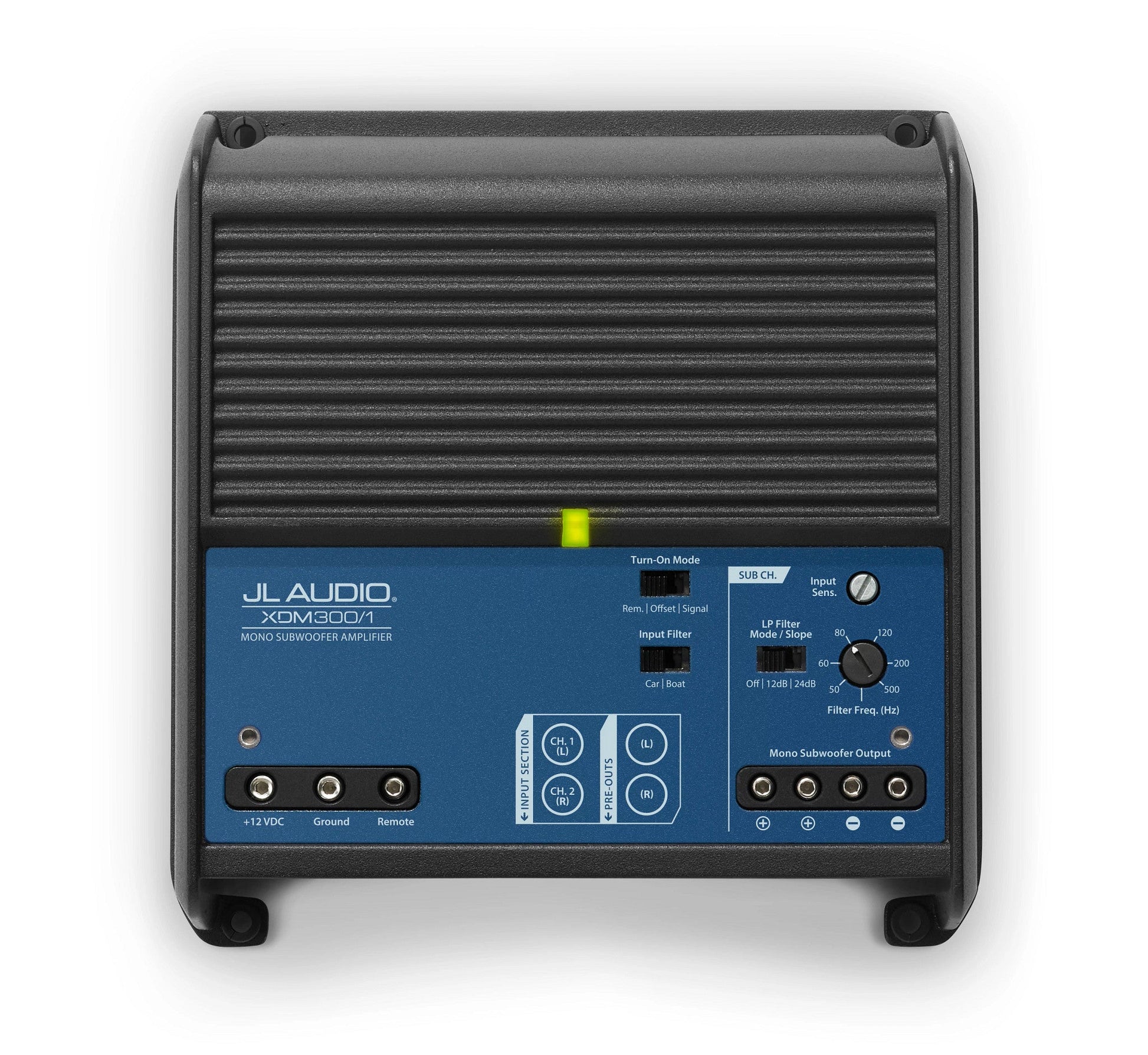

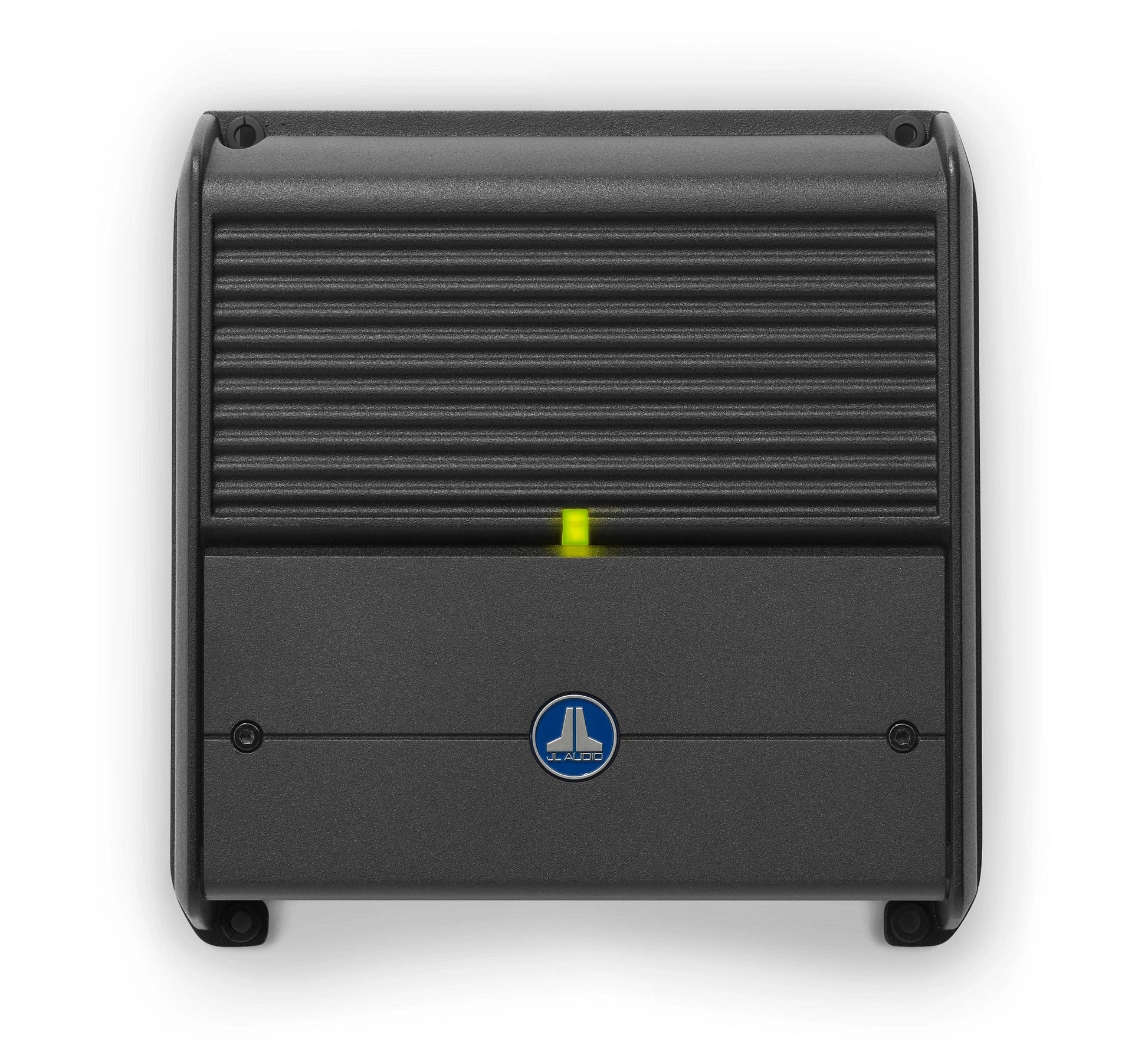

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications:

Rated Continuous (RMS) Power @ 14.4 V

@ 4 ohms	200 W RMS x 1
@ 3 ohms	250 W RMS x 1
@ 2 ohms	300 W RMS x 1
@ 1.5 ohms	N/A

Rated Continuous (RMS) Power @ 12.5 V

@ 4 ohms	160 W RMS x 1
@ 3 ohms	210 W RMS x 1
@ 2 ohms	270 W RMS x 1
@ 1.5 ohms	N/A

General Specifications

Frequency Response	10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power	>100 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W	>80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ohms	>120 / 50 Hz
Damping Factor @ 2 ohms	>60 / 50 Hz
THD+N @ Rated Power	<1% @ 2 ohms per Ch.
Input Voltage Range @ RCA Inputs	200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge	8 AWG wire
Fuse Rating	30 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s)	Low-Pass only
Filter Slope(s)	12/24 dB/octave
Filter Frequency Range	50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer	Yes
Filter Defeat Function	Yes
Infrasonic Filter	none
Bass Boost EQ	No
Output Polarity Switch	No
Remote Subwoofer Level Control	Optional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost Control	No
Pass-Through Preamp Output	Buffered

Physical Specifications

Height (H)	2.05 in / 52 mm
Width (W)	6.85 in / 174 mm
Depth (D)	7.09 in / 180 mm
Net Weight	3.8 lb / 1.72 kg

Support:

• Download  XDM300/1 Product Manual


• USA Limited Warranty:  Two (2) years from the original date of purchase Warranty Details
