Kenwood DAX8000S 1-DIN Direct Replacement 8" Touchscreen Digital Multimedia Receiver

Introducing Direct Replacement

With many newer vehicles it is impossible or expensive to install a new stereo, due to the shape of the dash, wiring, placement of climate controls, and other factors. Kenwood worked directly with ADS (makers of the iDatalink Maestro RR and RR2 interfaces) to create Direct Replacement, an innovative modular design that fits the receiver around the vehicle, instead of trying to alter a vehicle to accommodate a fixed receiver size.

Kenwood partnered with ADS to provide an innovative aftermarket receiver solution that doesn't affect your dash's factory look and controls. Once you "flash" the iDatalink Maestro module, you'll be able to use your factory radio's controls with this Kenwood receiver.

Ground-breaking modular design maintains your factory look

Kenwood employs a modular design that works hand in glove with ADS' iDatalink Maestro's APX (pronounced "apex") mounting kits. The display mounts directly in place of the factory display, while the receiver's chassis is mounted behind the dash or kick panel depending on the vehicle — making it especially handy for shallow dash cavities. These packages fit in more vehicles, many of which had no previous stereo replacement options, as well as provide an alternative to stereo installation systems that used expensive dash kits to alter the dash layout and controls in your vehicle.

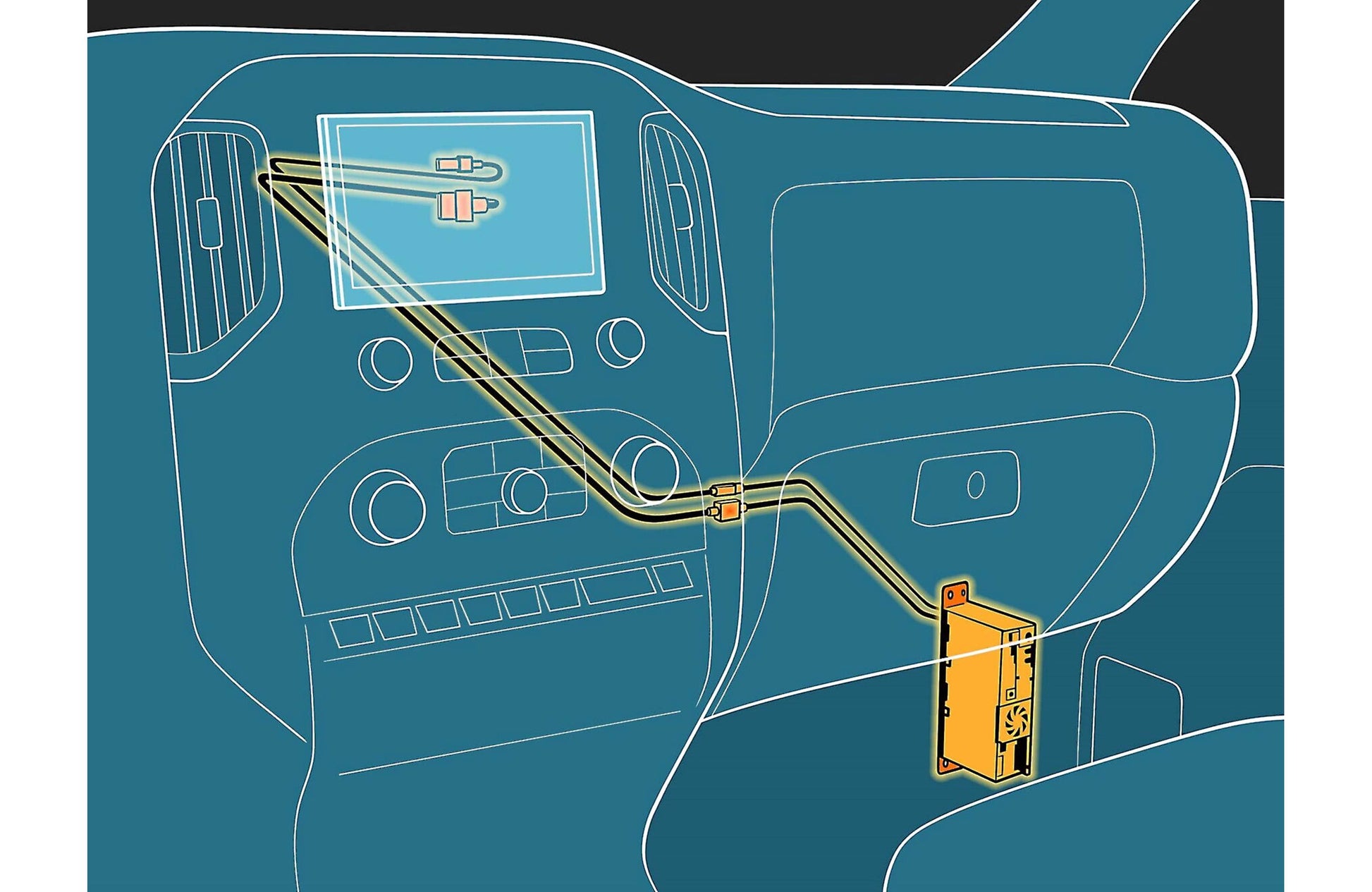

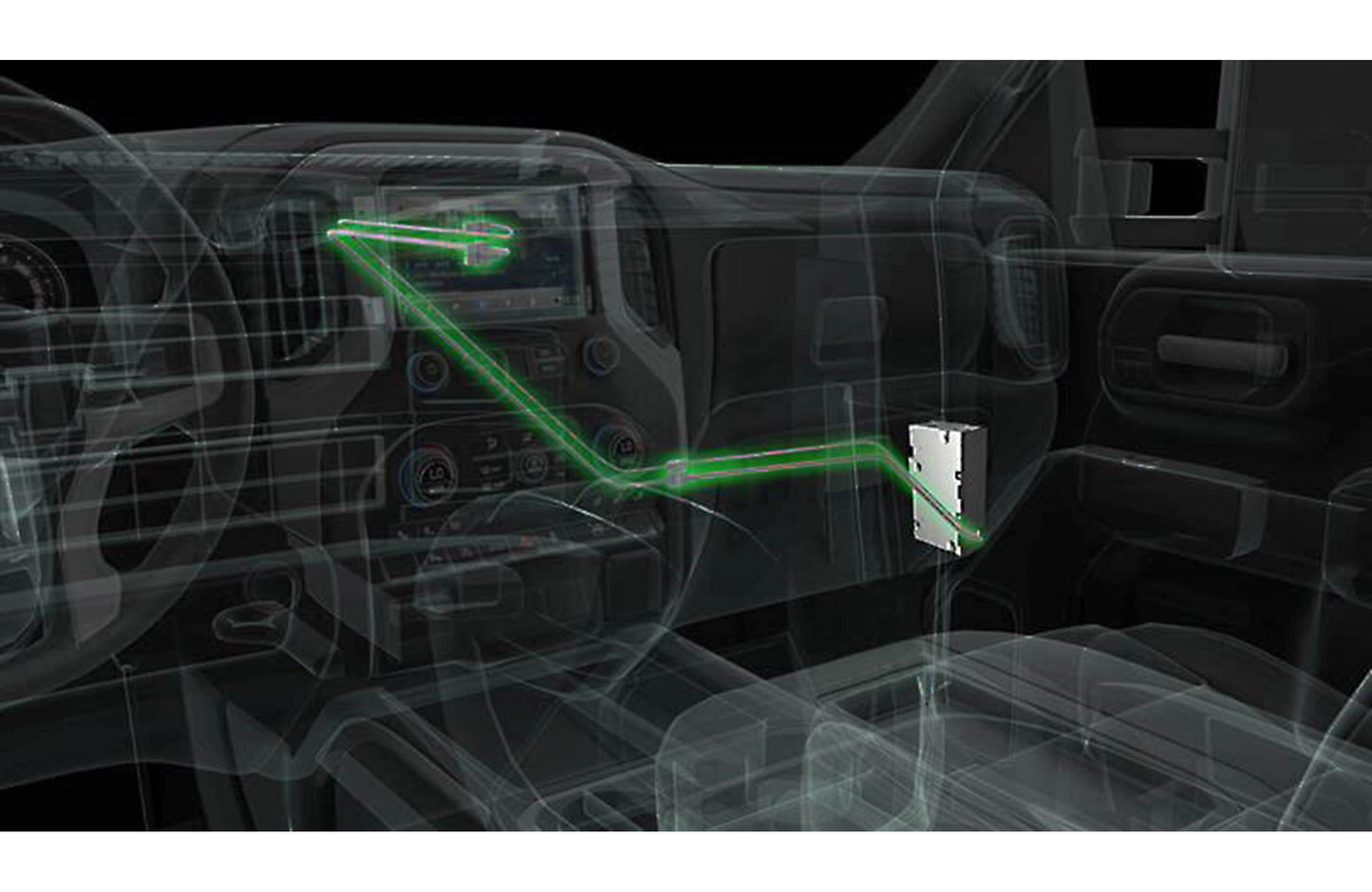

This digital rendering shows a potential mounting application for the Kenwood chassis in the kick panel of a compatible vehicle.

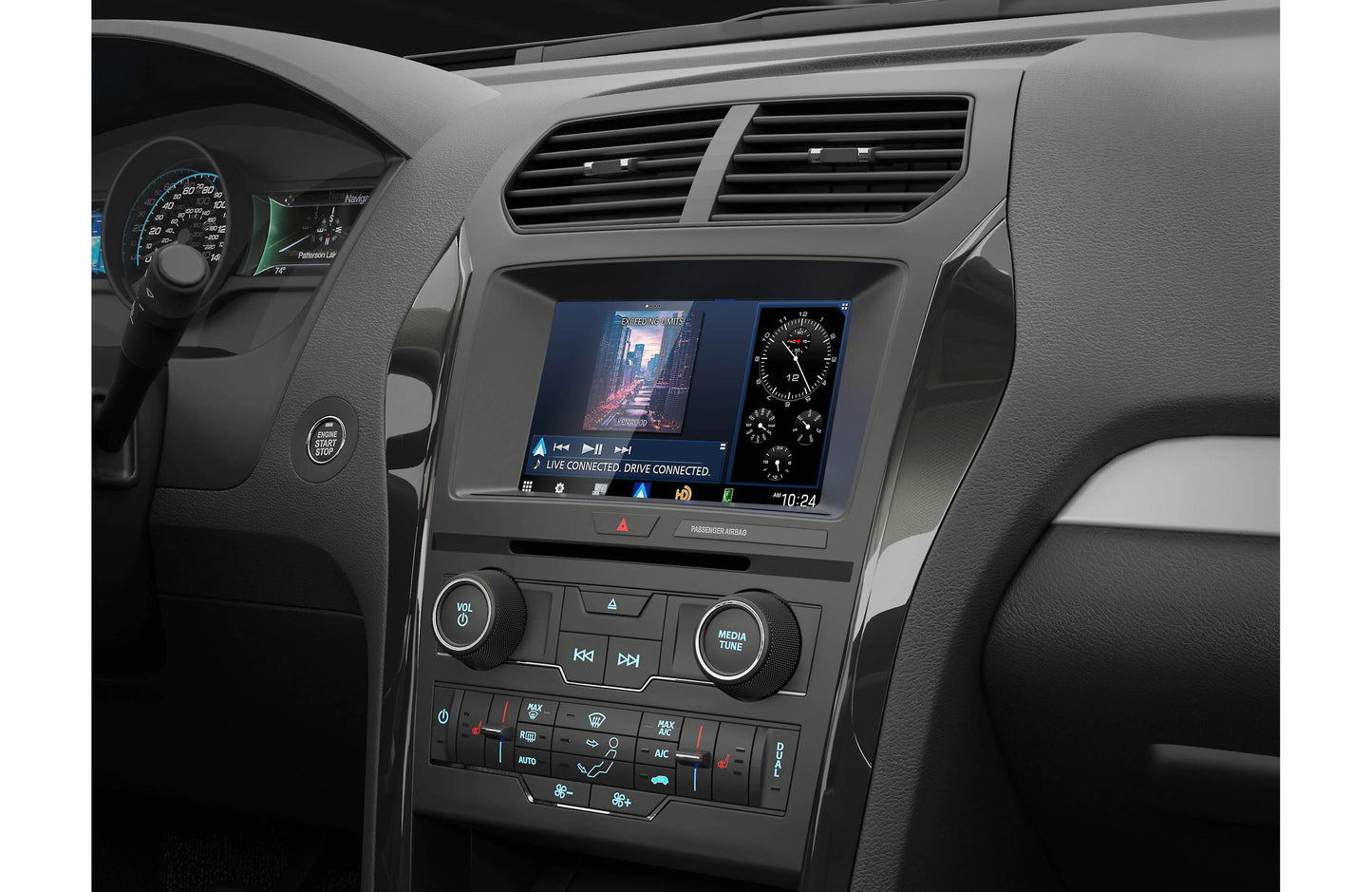

Direct Replacement allows you to keep the look and feel of your factory setup, while enjoying the benefits of an updated stereo. If we have a Direct Replacement package for your vehicle, you'll need several things to complete the package:

About the receiver

Kenwood's DAX8000S digital multimedia receiver offers a high-definition touchscreen display for dazzling clarity compared to the factory radio's dull display — great for navigation apps and backup cameras. And with built-in wired and wireless Apple CarPlay® and Android Auto™, you'll have all your most-used phone features on the display. Looking for some alternative music sources? Take advantage of HD Radio™ and high-res audio playback, and you can add satellite radio with an optional tuner. Plus, Bluetooth makes hands-free calling and wireless music streaming easy.

Serious phone integration

Apple CarPlay and Android Auto put your phone's content at your fingertips. This stereo's controls behave like your phone's interface, so there's no learning curve. Plug in or wirelessly link your Android™ or iPhone®, and you'll get voice control access to your navigation, phone calls, weather, text messages, and of course all your music. Get more info at www.apple.com/ios/carplay and www.android.com/auto. And for more versatility, this receiver's split-screen mode lets you work within the phone interface and also retain control over other sources like radio stations. Android owners, you can also mirror your phone's screen wirelessly using the receiver's built-in Wi-Fi.

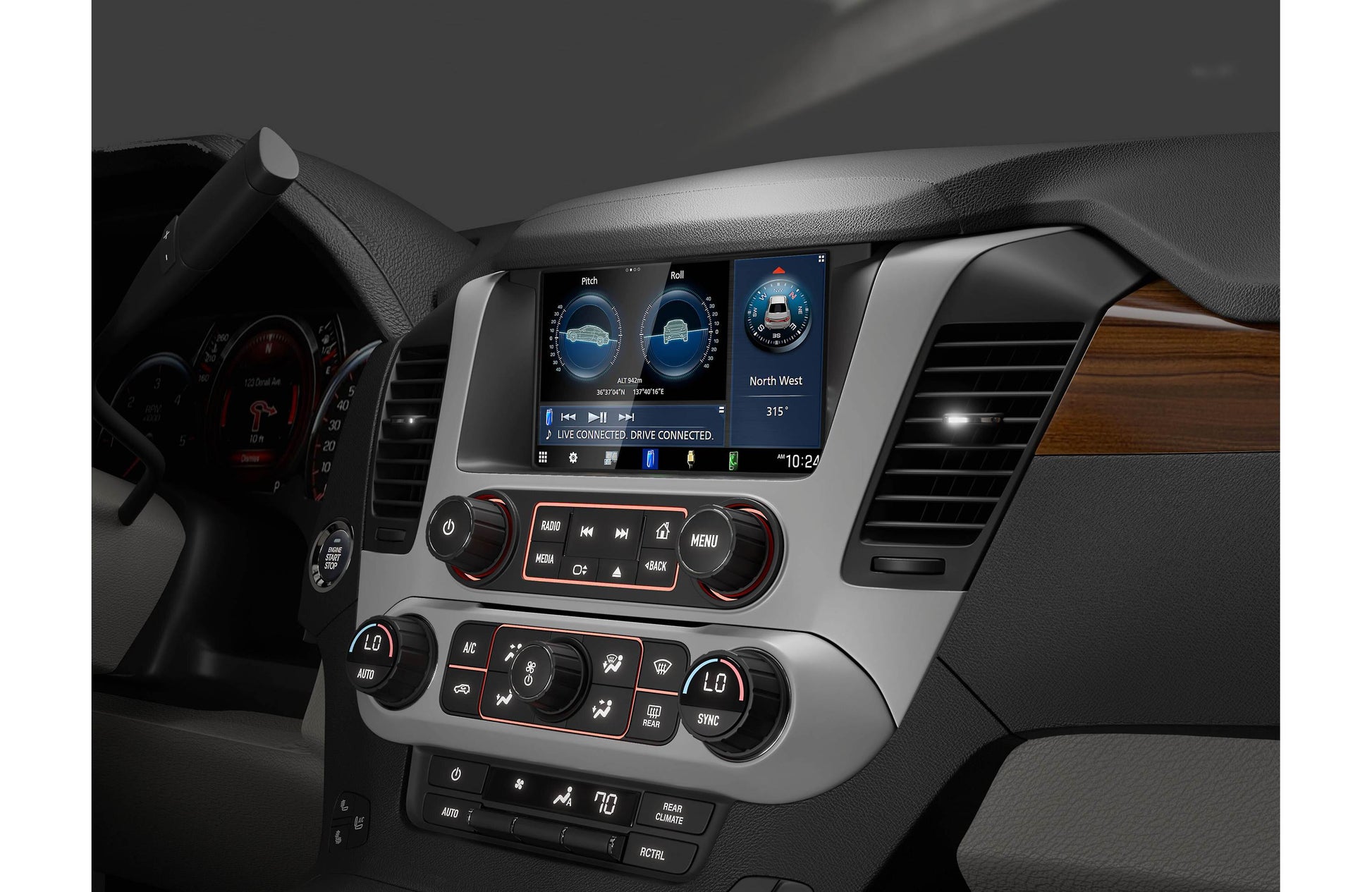

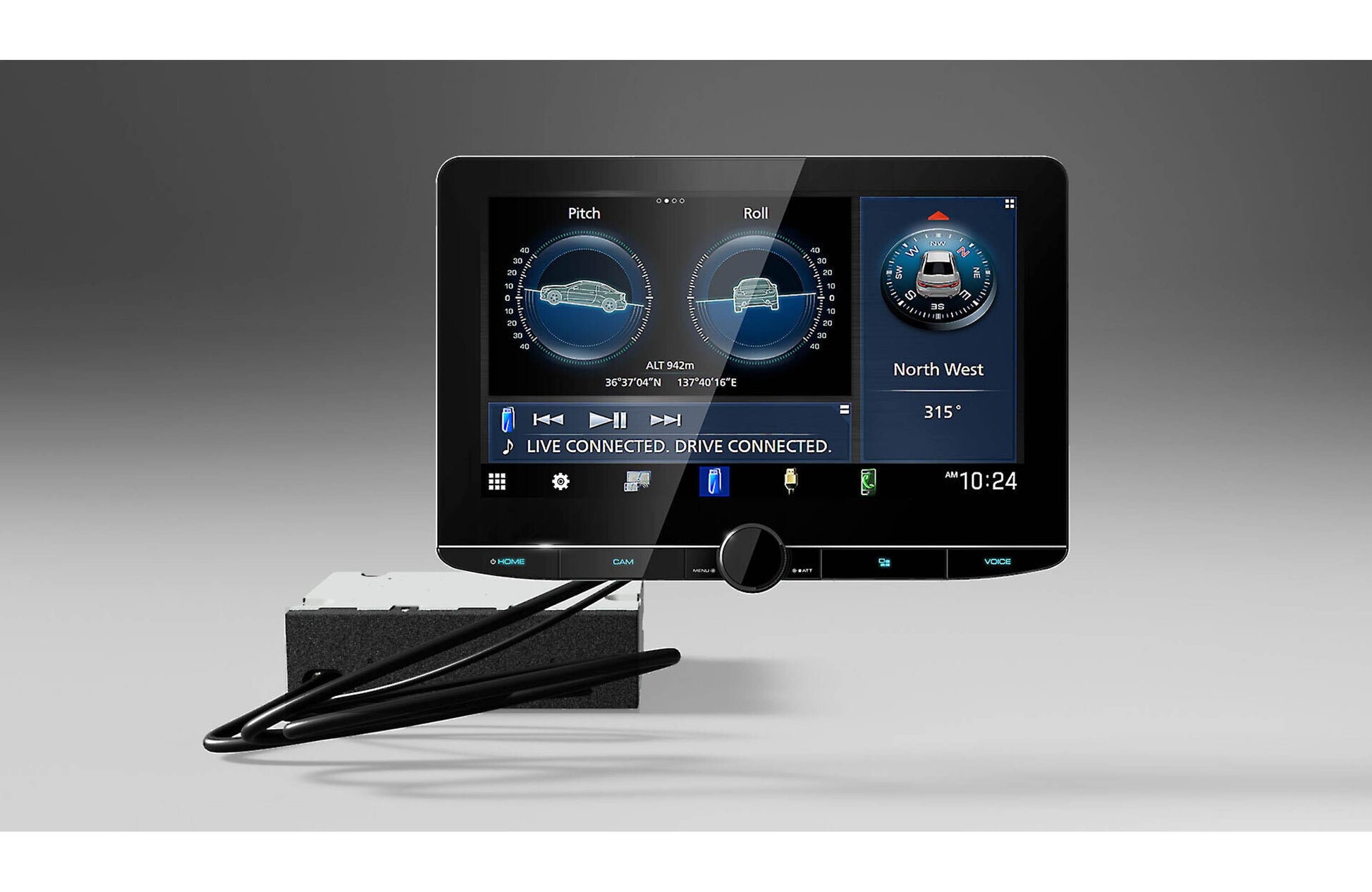

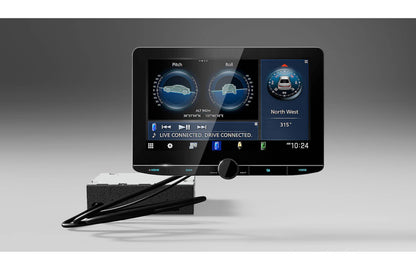

ADS' software know-how works with your vehicle to show a variety of diagnostics on the Kenwood display, including your vehicle's pitch and roll using the receiver's built-in gyroscope (shown installed with iDatalink Maestro APX kit).

A brilliant display with multi-camera capabilities

Onboard cameras are a must for safer driving, and this Kenwood gives you four video inputs for front-, side-, rear-, and backup cameras. The crisp resolution on Kenwood's CMOS-740HDLP HD backup camera complements this receiver's 720p HD display perfectly.

HD Radio, a USB-C input, and more

Kenwood includes a built-in HD Radio tuner so you can enjoy the very best audio quality in radio, plus extra programming choices on second and third channels when available. Since your phone can be linked wirelessly, a rear USB-C input opens up your source options too. There's great news for audiophiles — this receiver supports high-res file playback of music stored on a USB drive. And if you're looking for radio stations that won't fade away as you head out of town, add a SiriusXM tuner (not included) to this Kenwood to enjoy satellite radio's extensive programming wherever you may roam. This receiver is also compatible with SiriusXM with 360L, which uses the receiver's built-in WiFi to provide you even more listening options within SiriusXM's satellite and streaming channels.

Tune and expand

If you care about sound quality, you'll dig Kenwood's suite of sound-crafting tools, including a 13-band equalizer, deep crossover settings, and built-in digital time alignment. Bring back the depth and detail for all your digital music sources with this receiver's processing power. If your car speakers are located down low in the doors, this receiver offers Stage EQ, which adjusts your music's frequencies to virtually "raise" your speakers for better, more natural imaging.

The DAX8000S also includes three pairs of 4-volt RCA preamp outputs that provide an ultra-clean signal when it's time to add amplifiers to your system. And if you're building a 2- or 3-way system, this receiver gives you that crossover flexibility.

Product highlights:

General features:

• Direct Replacement digital multimedia receiver
  • works with iDatalink Maestro APX kits in select vehicles
  • requires the iDatalink Maestro RR or RR2 interface module
  • requires direct plug-in wiring harness (receiver includes no wiring for power, ground, and signal)
• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
• 8" electrostatic capacitive touchscreen HD display
• HD Radio tuner built-in
• Waze-ready with Apple CarPlay or Android Auto
• modular chassis design

Smartphone features:

• wired and wireless Android Auto compatible
  • compatible with Google Assistant voice control when using Android Auto
• wired and wireless Apple CarPlay compatible
  • Siri voice control for select iPhones
• wireless mirroring for select Android devices
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• rapid Android charging via USB port

Audio features:

• 13-band graphic EQ
• time alignment
• 3-way crossover

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
  • works with SiriusXM with 360L for satellite and streaming content using receiver's WiFi (streaming not available if Apple CarPlay or Android Auto are in use)
• compatible with Kenwood CMOS-740HD HD backup camera

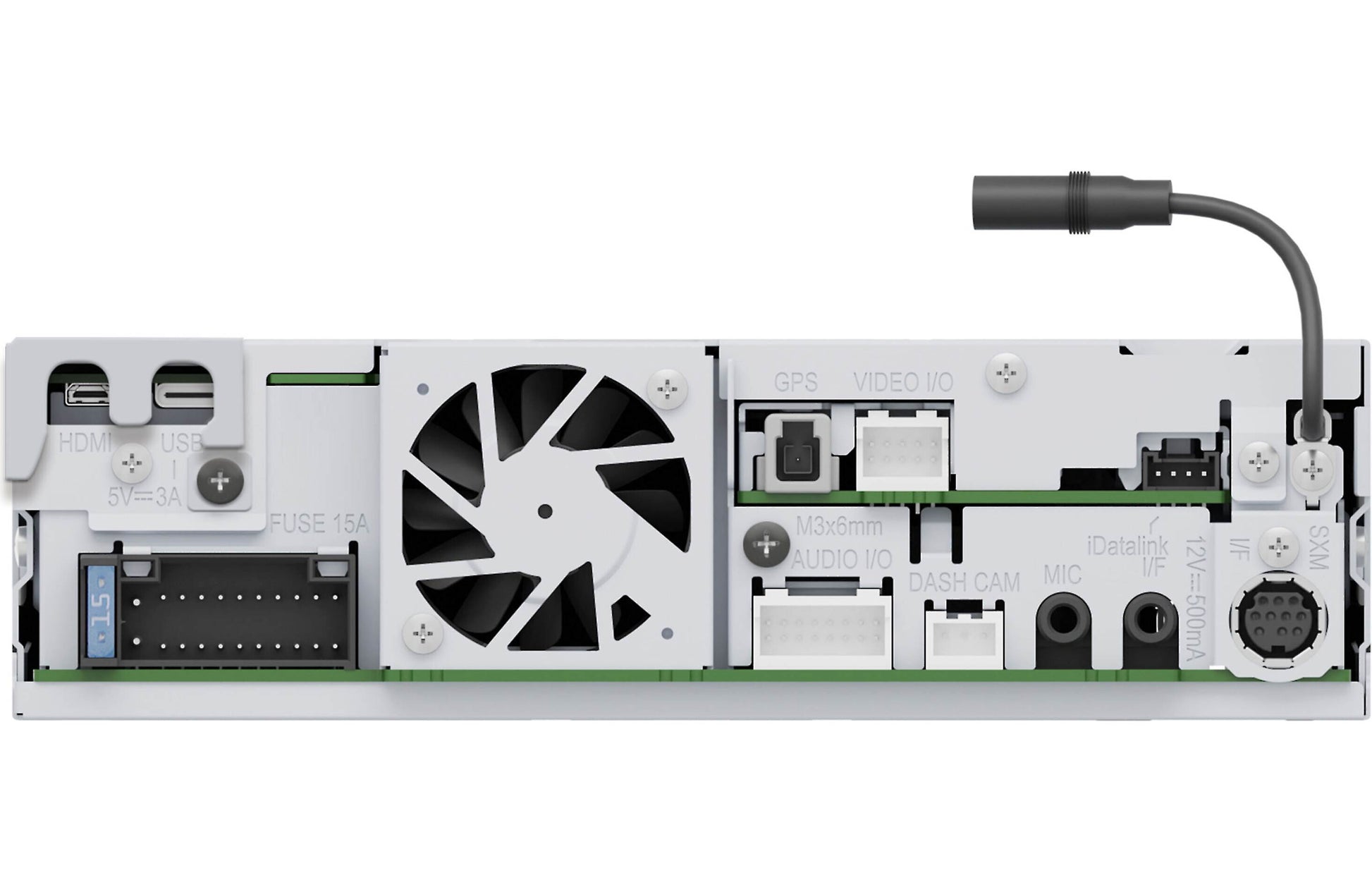

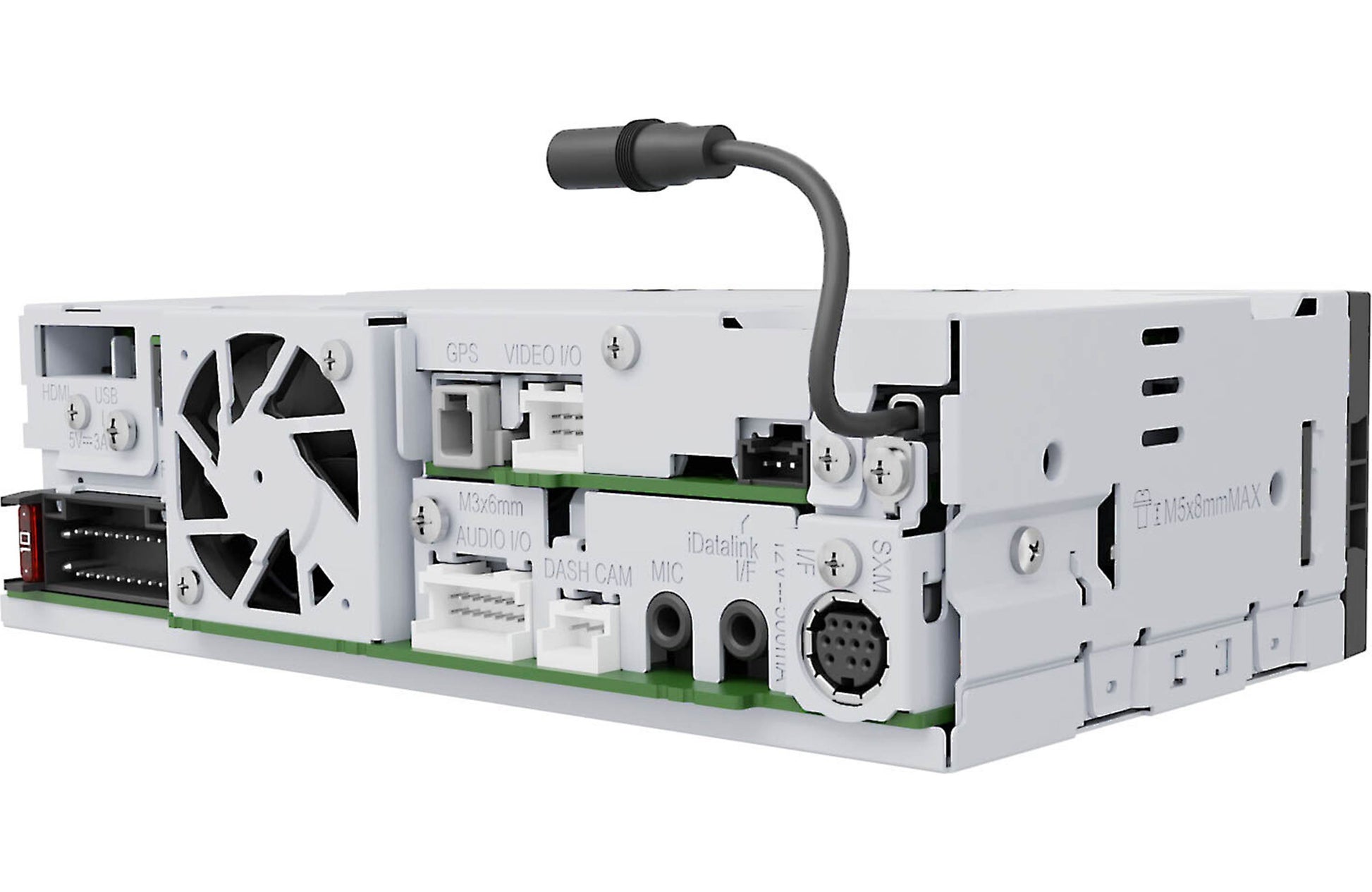

• inputs (chassis): USB-C input, four camera inputs (HD front or rear), HDMI Type-D input

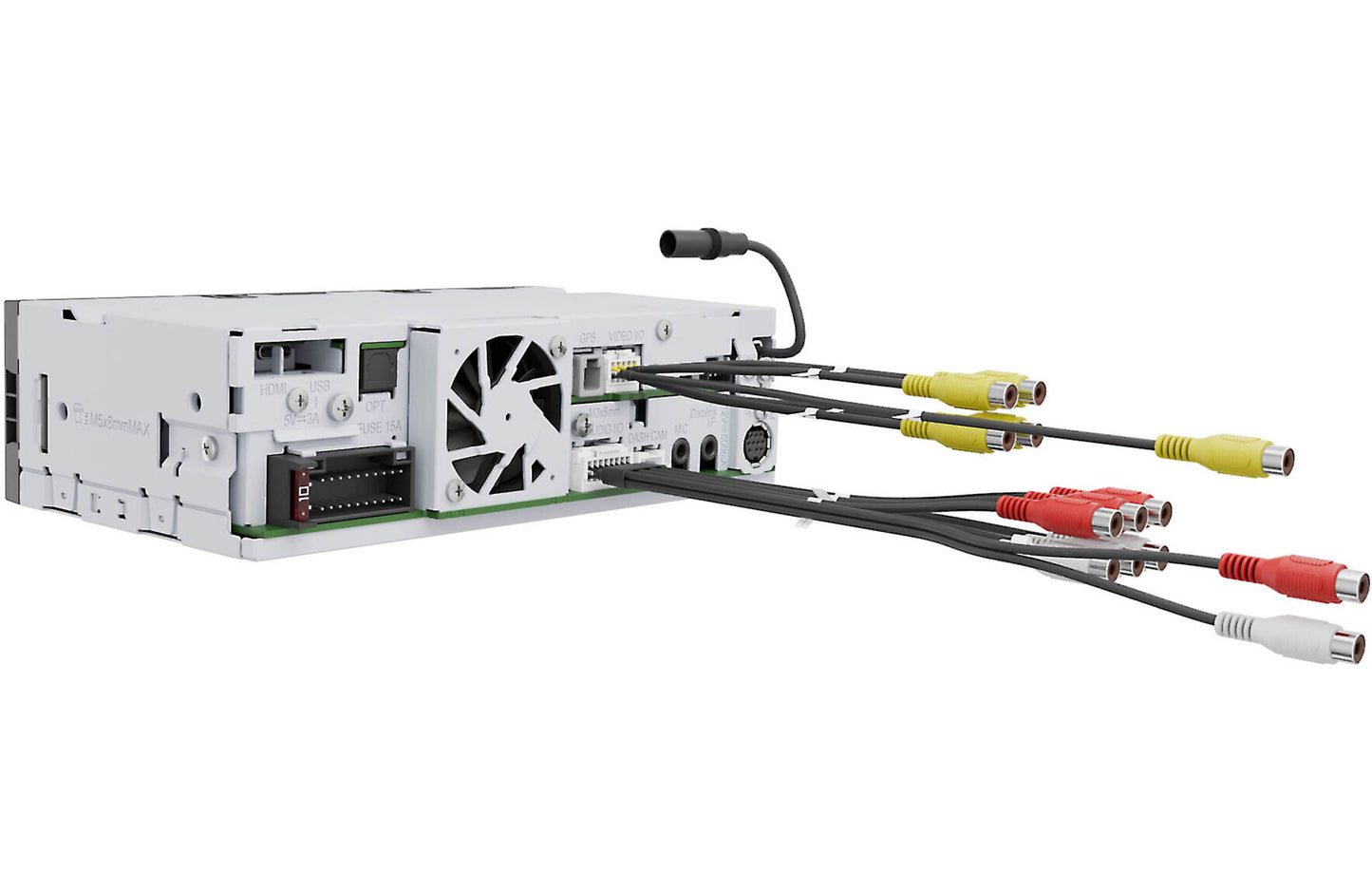

• outputs: 6-channel preamp outputs (4-volt front, rear, sub)

Other information:

• built-in amplifier (22 watts RMS/50 peak x 4 channels)
• works with iDatalink Maestro RR or RR2 modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance and pitch-and-roll data on display
