Kenwood Excelon DAX1050XR

Product highlights:

General features:

• Direct Replacement digital multimedia receiver
  • works with iDatalink Maestro APX kits for select vehicles

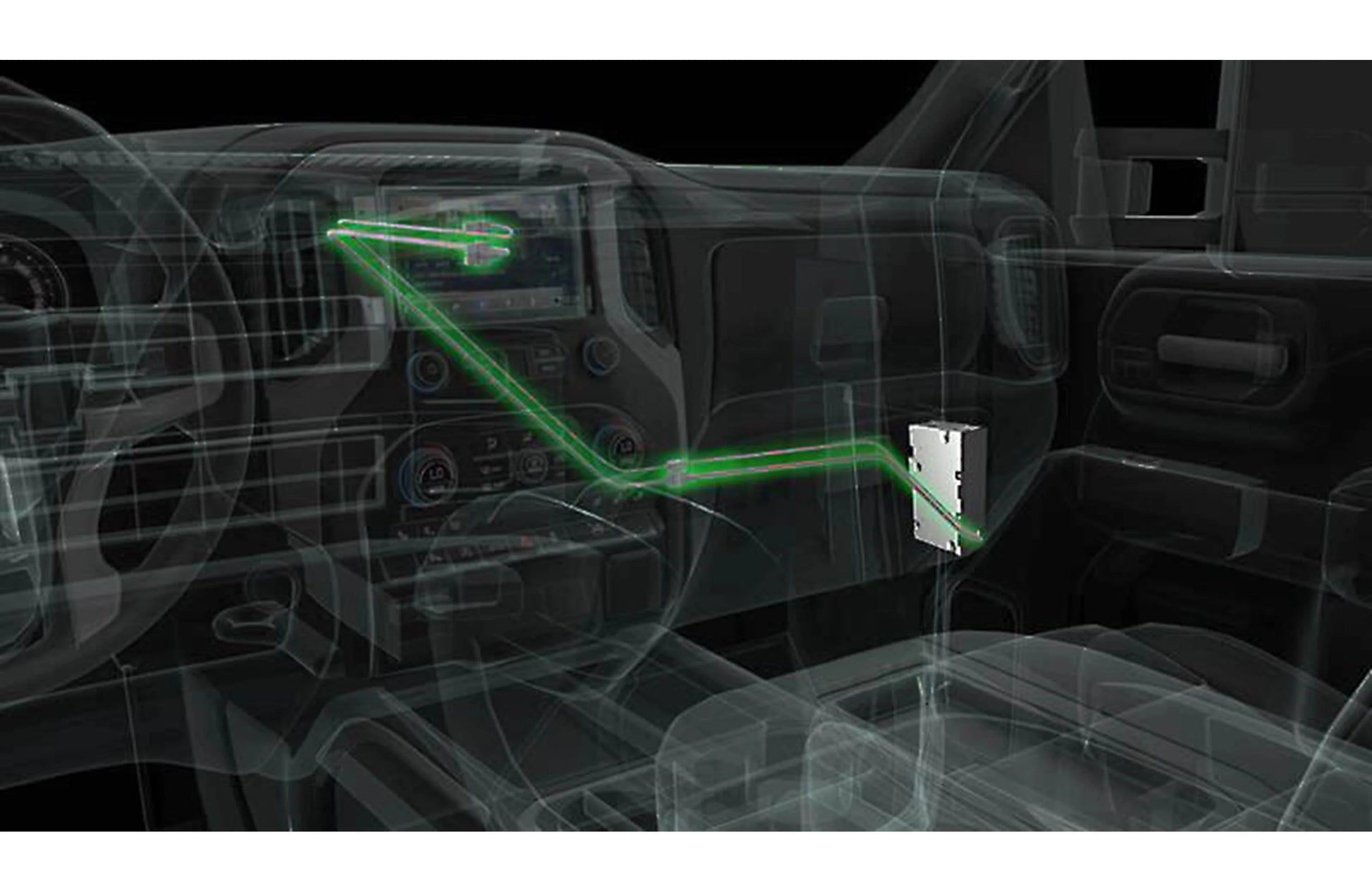

  • requires the iDatalink Maestro RR or RR2 interface module
  • requires direct plug-in wiring harness (receiver includes no wiring for power, ground, and signal)
• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

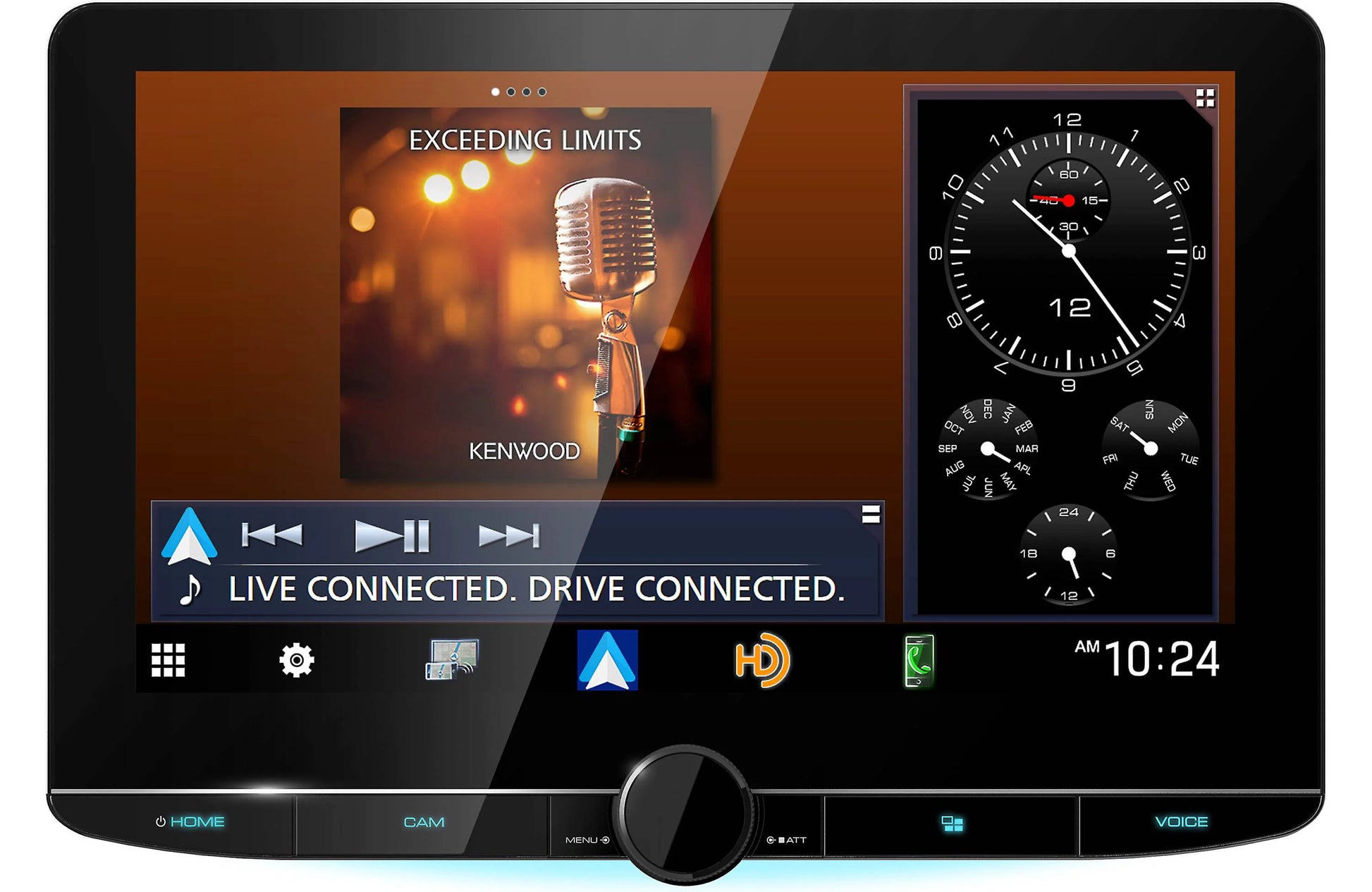

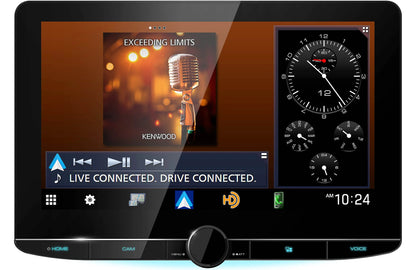

• 10.1" capacitive "floating" touchscreen HD display
• HD Radio tuner built-in
• Waze-ready with Apple CarPlay or Android Auto

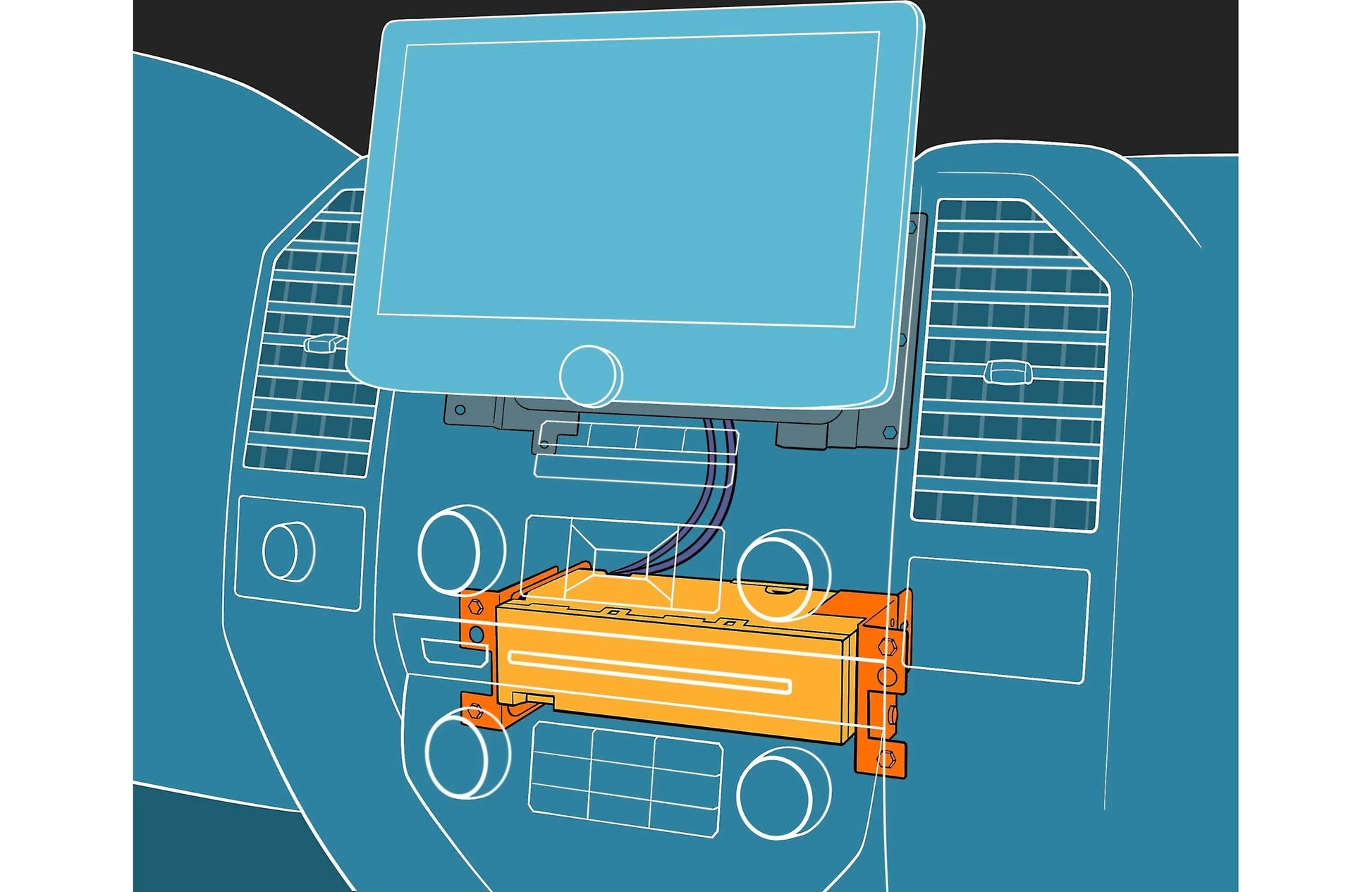

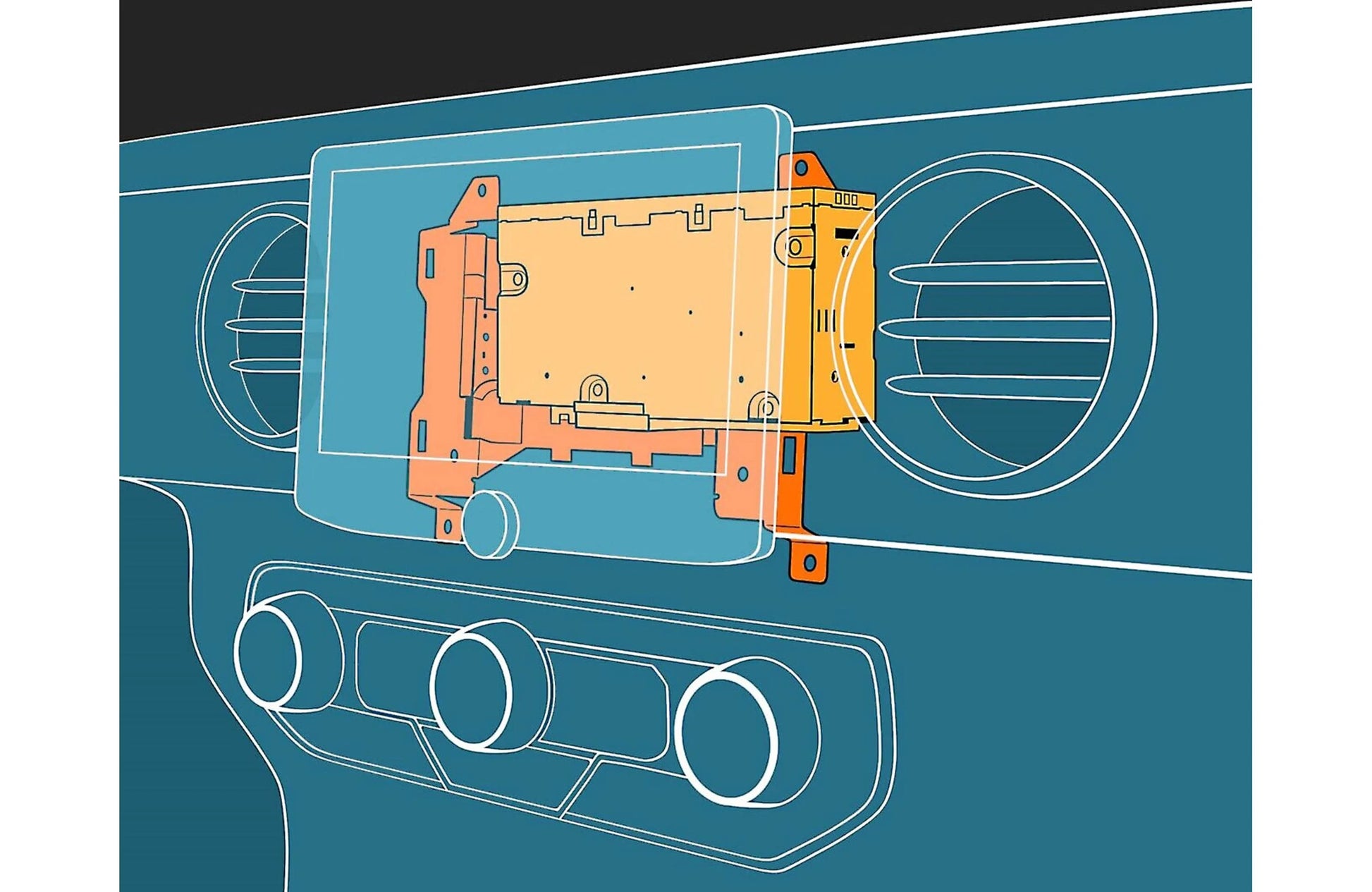

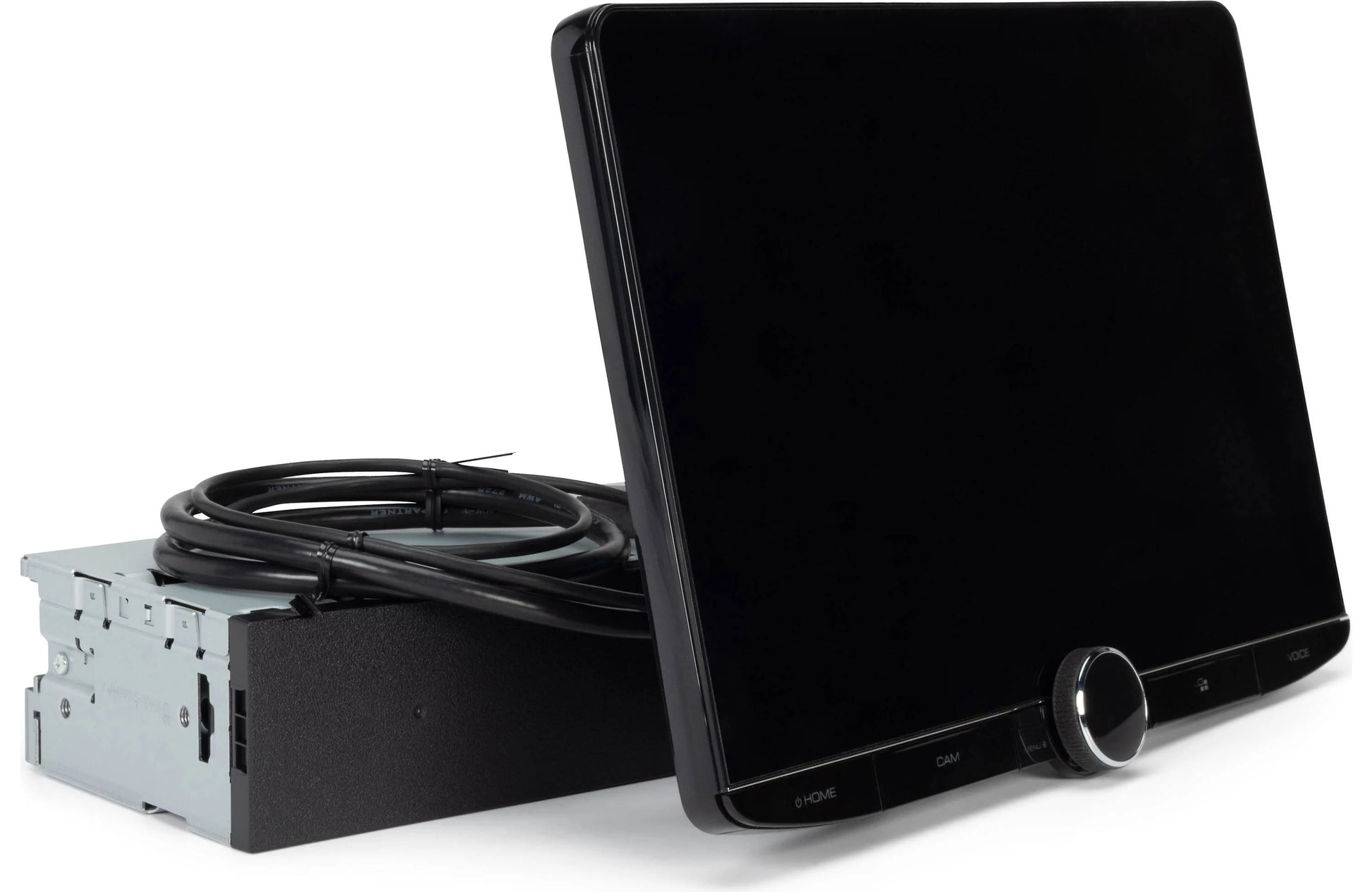

• modular chassis design

Smartphone features:

• wired and wireless Android Auto compatible
  • compatible with Google Assistant voice control when using Android Auto

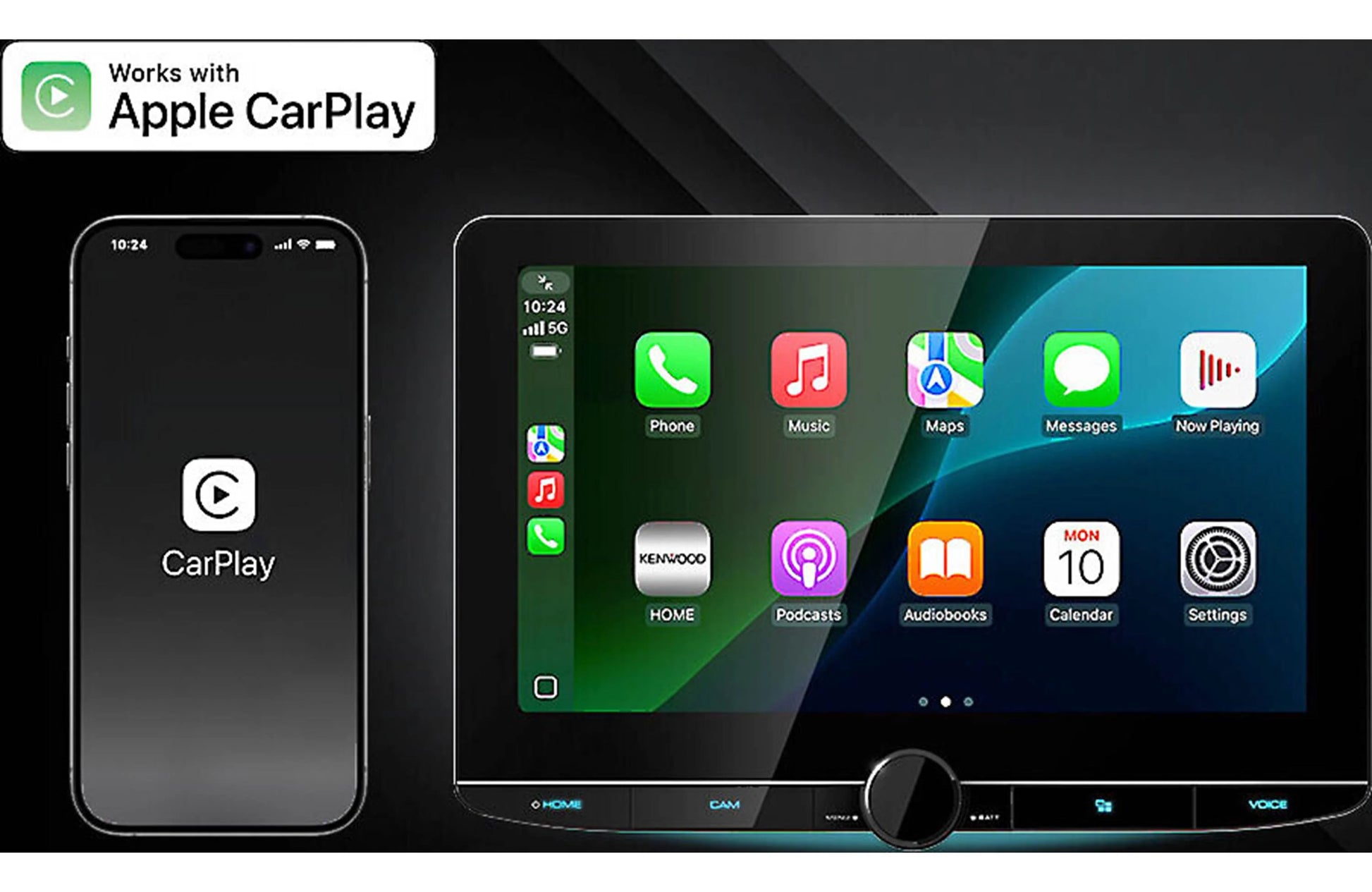

• wired and wireless Apple CarPlay compatible
  • Siri voice control for select iPhones
• wireless mirroring for select Android devices
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
  • supports smartphones with LDAC codec for wireless high-res audio streaming
• rapid Android charging via USB port

Audio features:

• 13-band graphic EQ
• time alignment
• Drive EQ and digital signal processing
• 2- or 3-way crossover network capability

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
  • works with SiriusXM with 360L for satellite and streaming content using receiver's WiFi (streaming not available if Apple CarPlay or Android Auto are in use)
• compatible with Kenwood CMOS-740HD HD backup camera

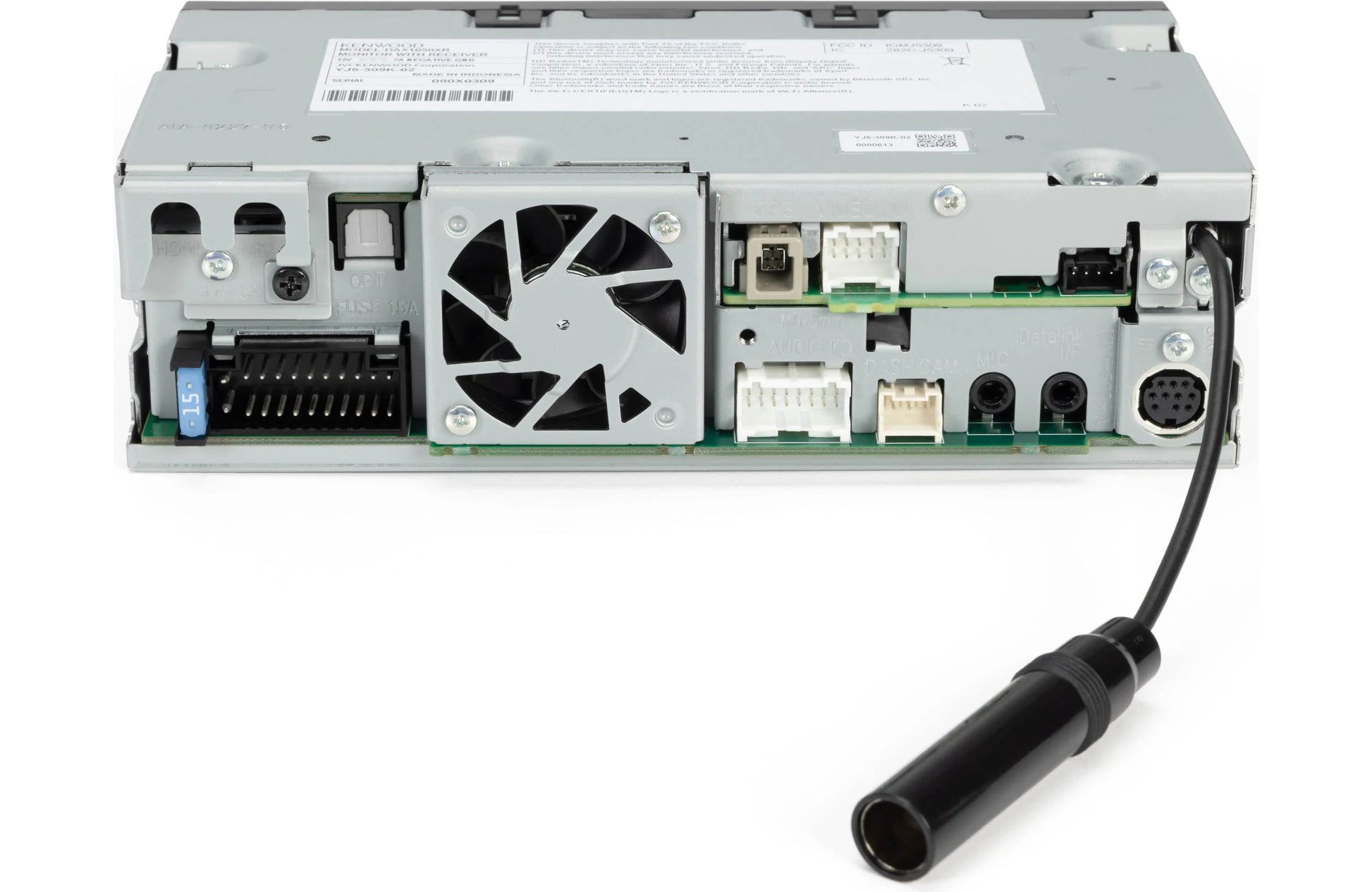

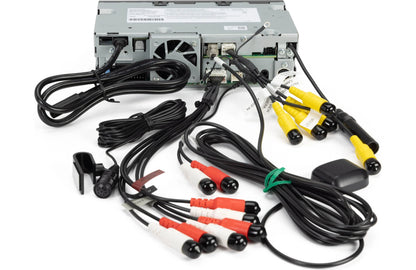

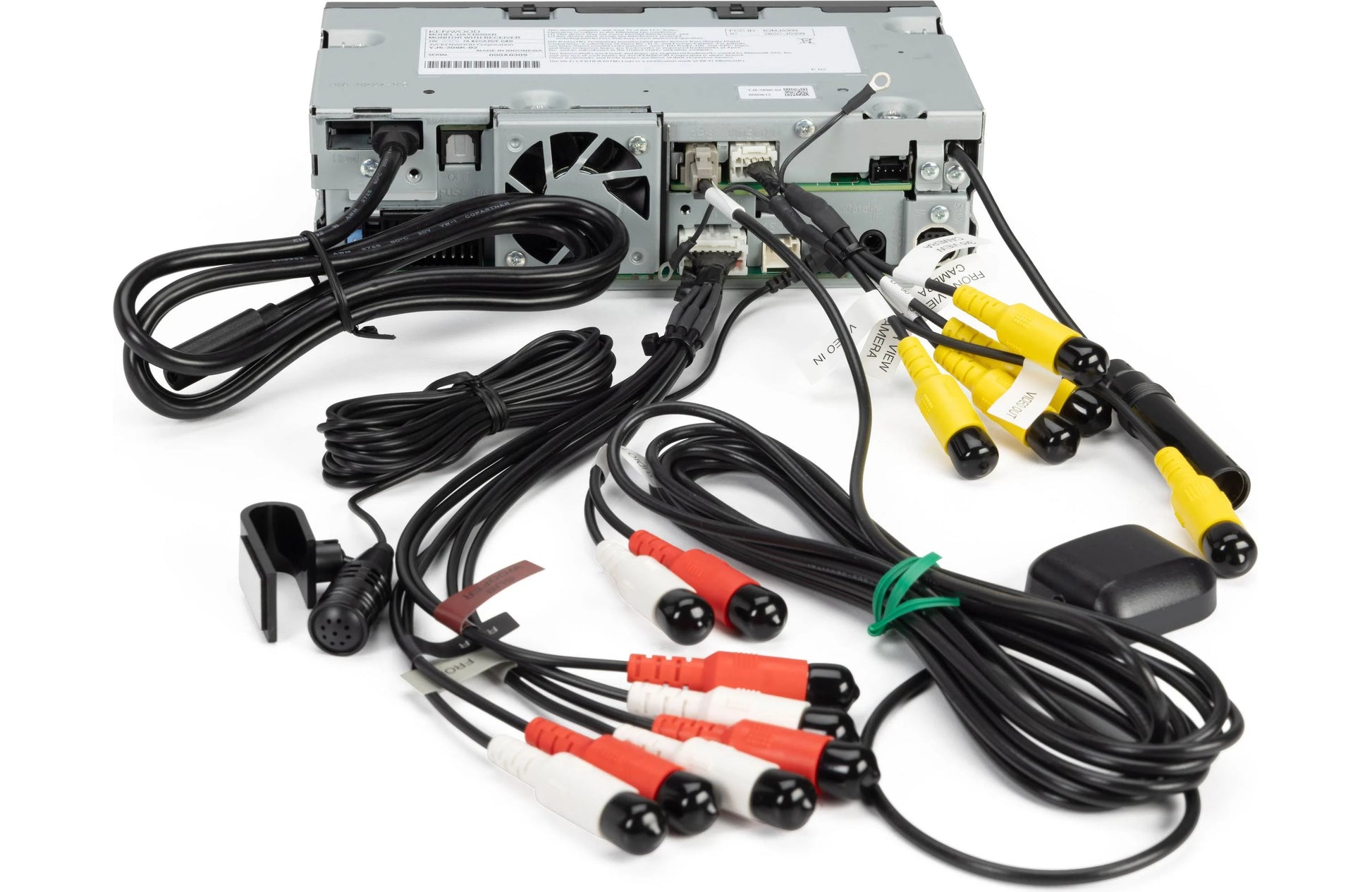

• inputs (chassis): USB-C input, three camera inputs, rear A/V input (RCA audio, minijack video) can be converted to 4th camera input, microHDMI input
• outputs: 6-channel preamp outputs (5-volt front, rear, sub), composite (RCA) video out, digital optical output to connect select digital signal processors

Other information:

• built-in amplifier (22 watts RMS/50 peak x 4 channels)
• works with iDatalink Maestro RR or RR2 modules
  • retains factory features in a wide selection of vehicles

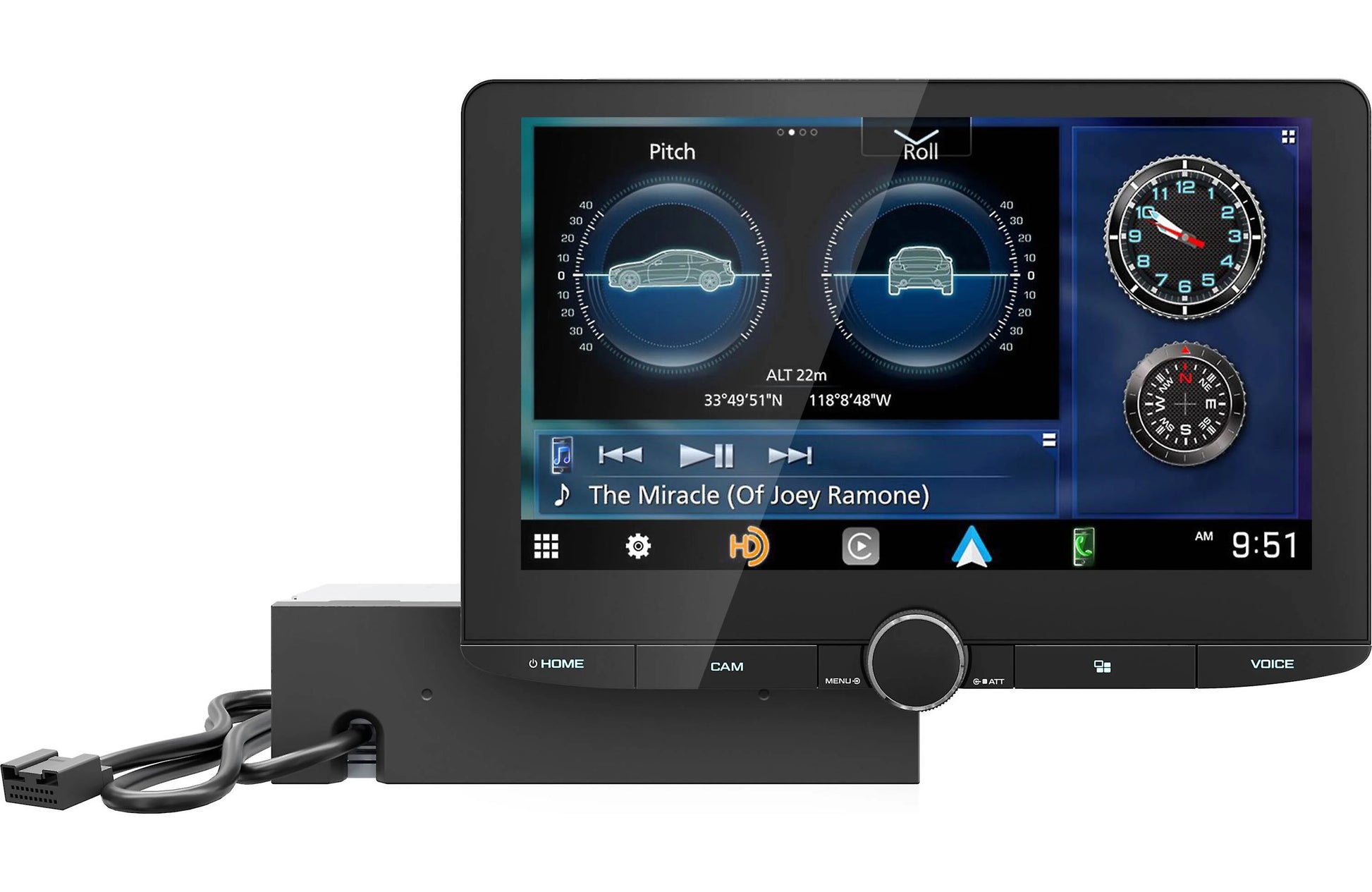

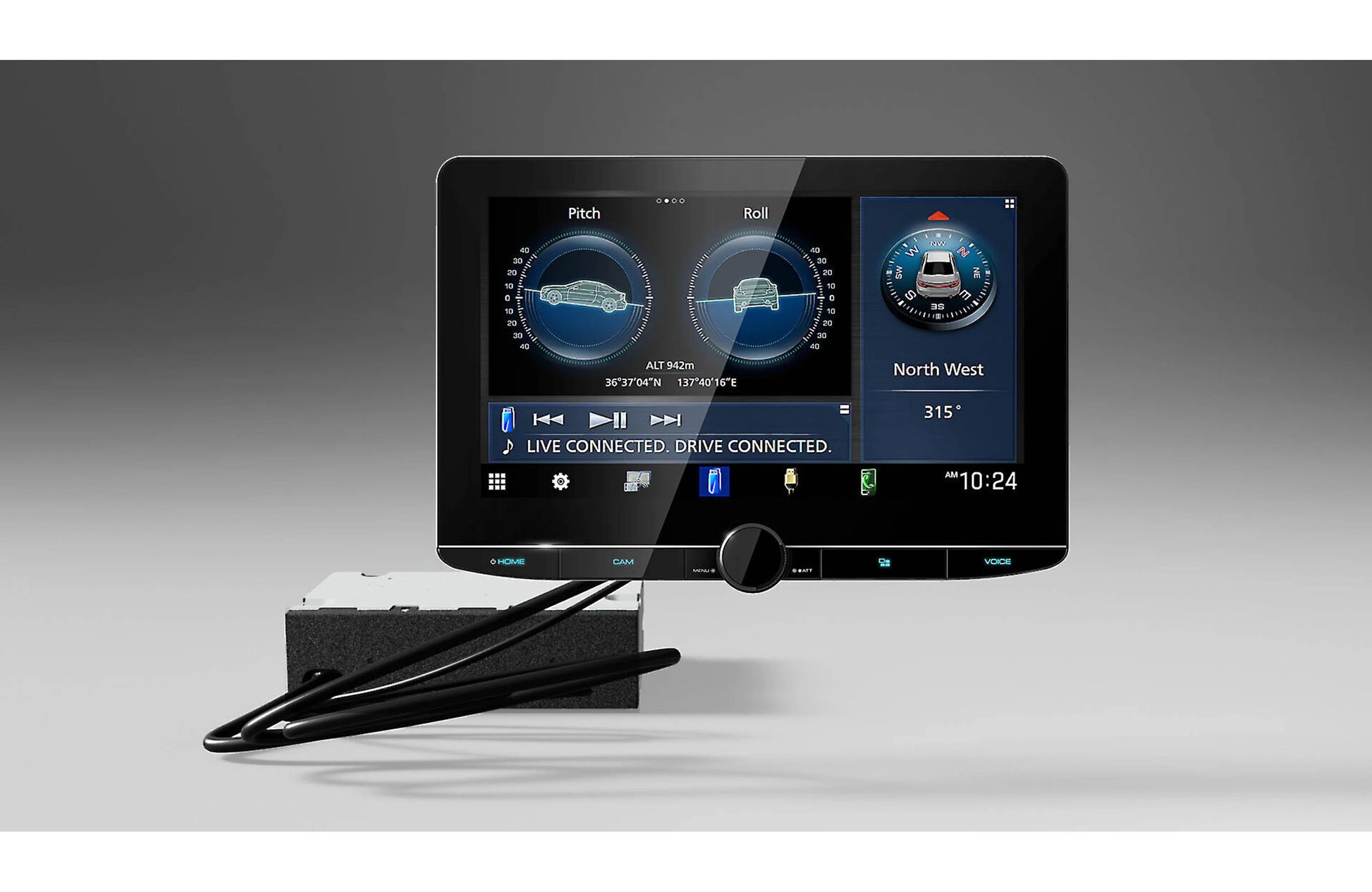

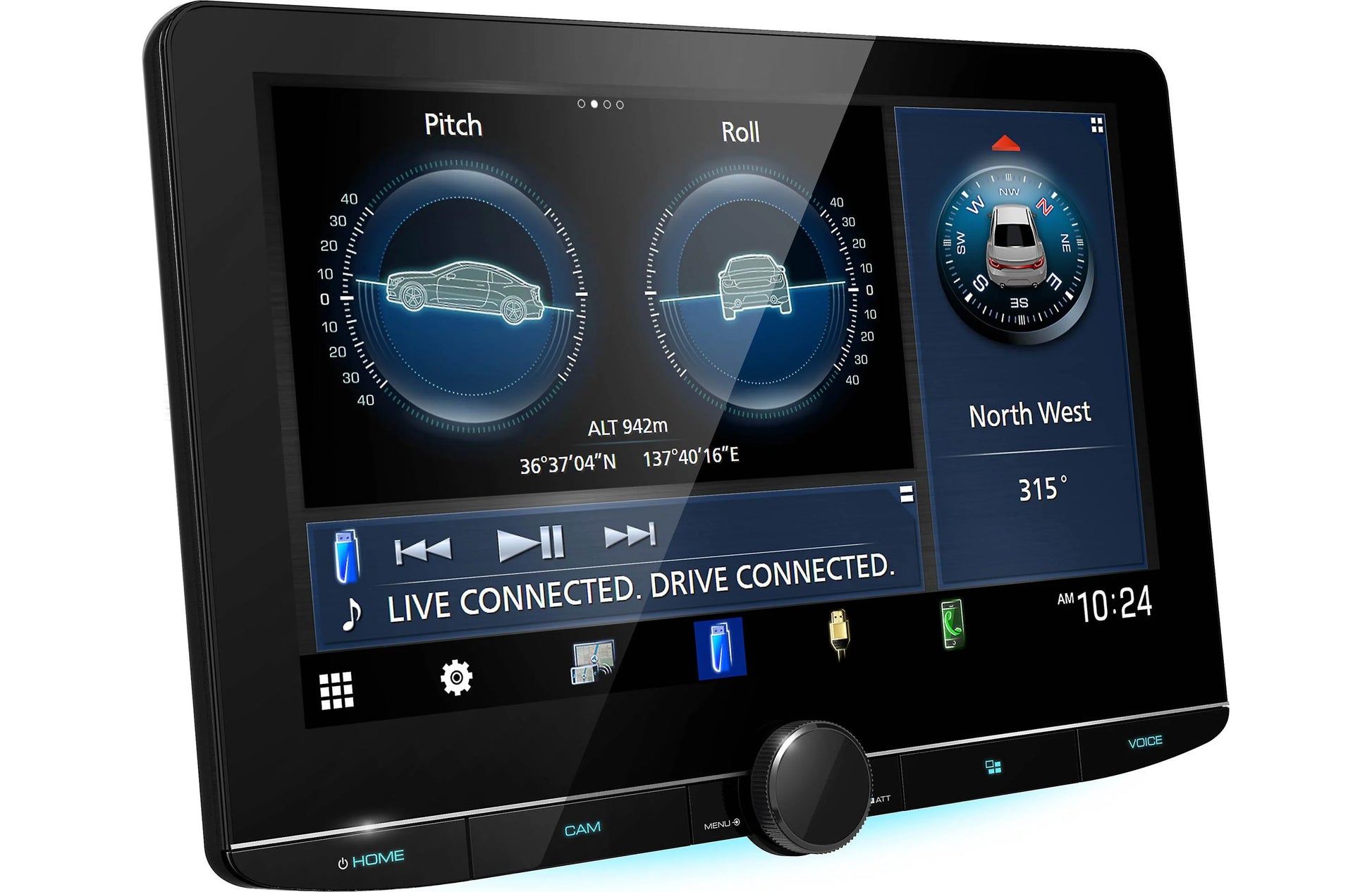

  • displays engine performance and pitch-and-roll data on display
• warranty: 2 years
