Kenwood Excelon DAX800XR

General features:

• Direct Replacement digital multimedia receiver
  • works with iDatalink Maestro APX kits for select vehicles

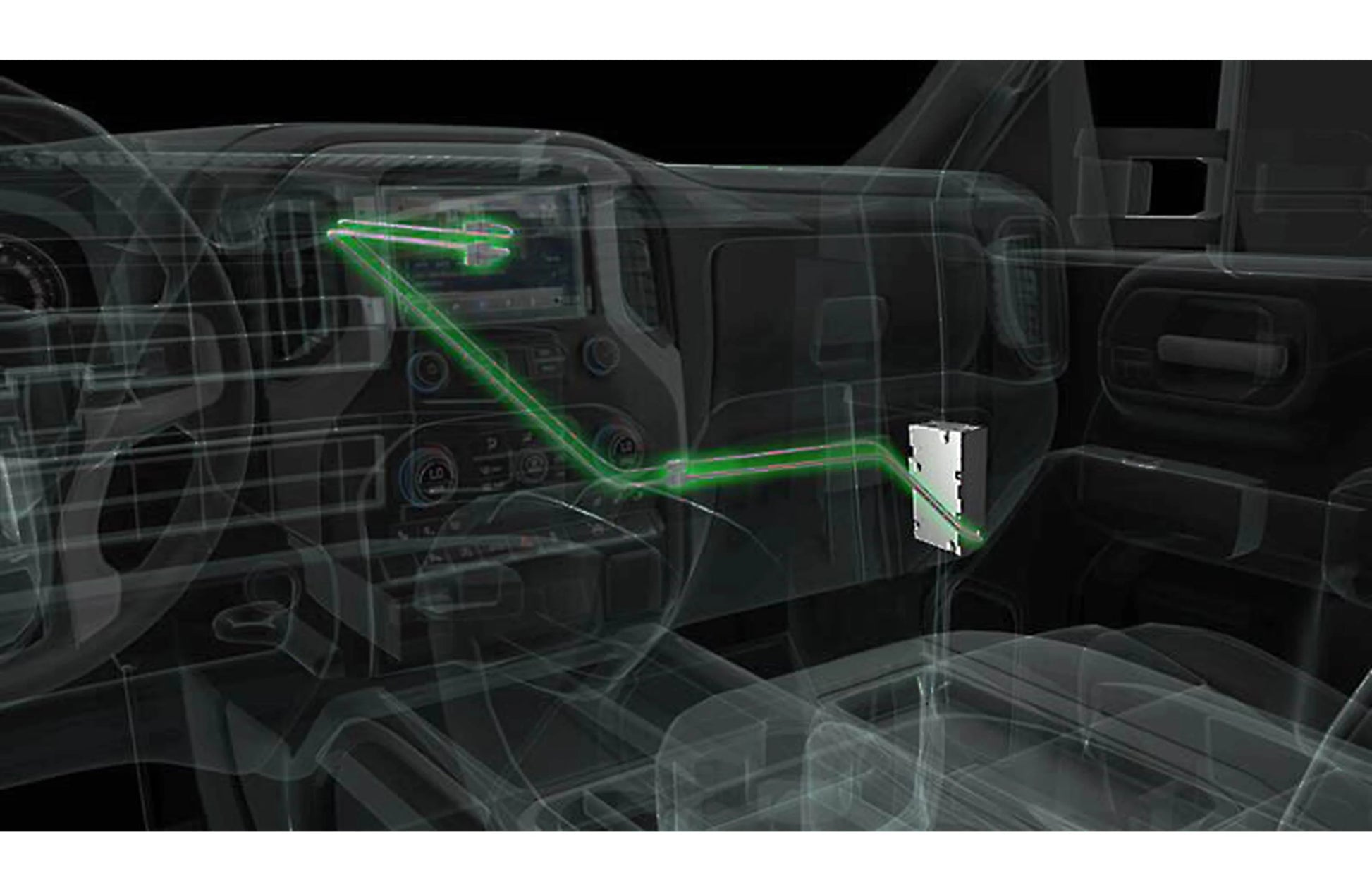

  • requires the iDatalink Maestro RR or RR2 interface module
  • requires direct plug-in wiring harness (receiver includes no wiring for power, ground, and signal)
• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

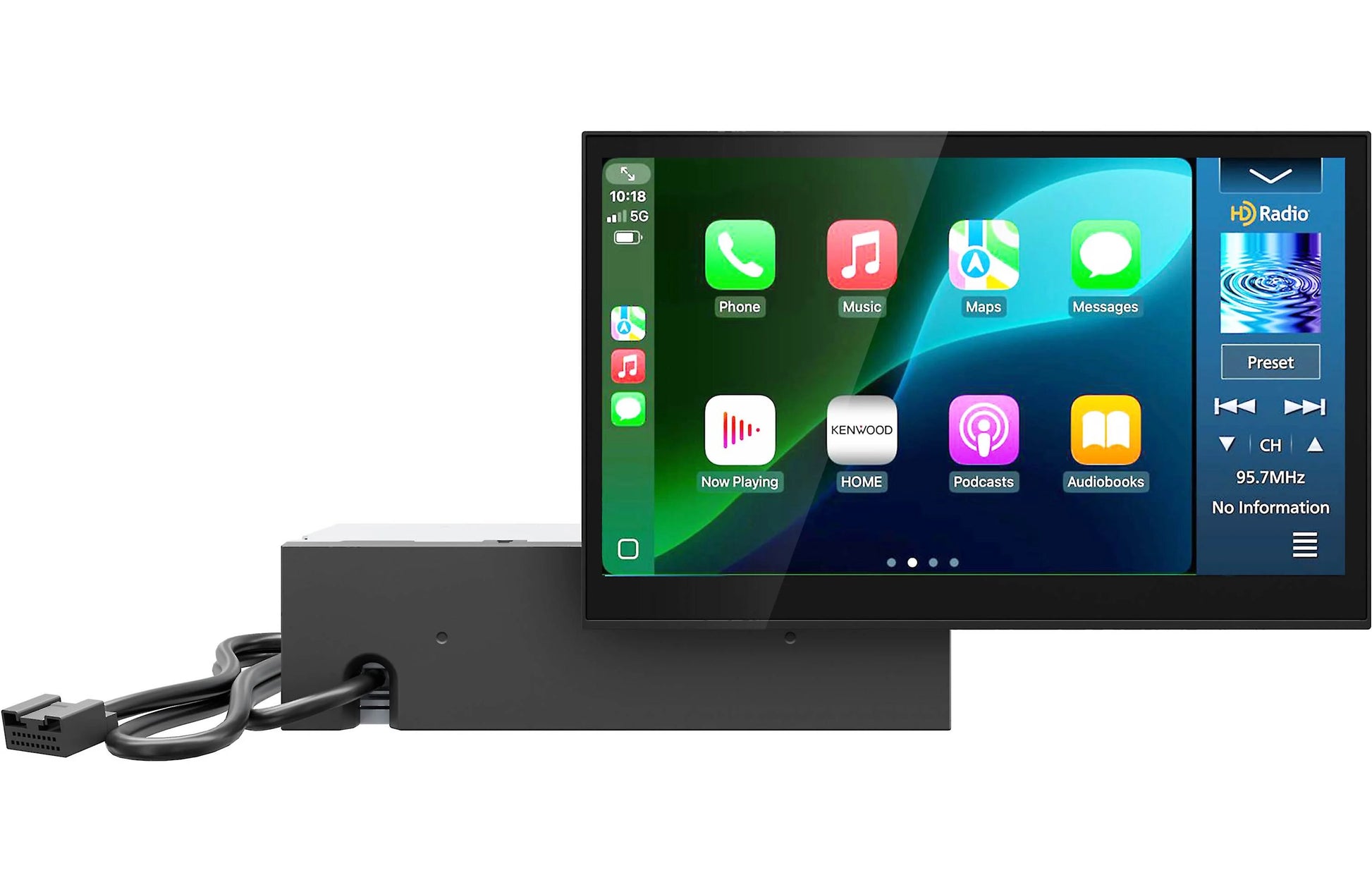

• 8" electrostatic capacitive touchscreen HD display
• HD Radio tuner built-in
• Waze-ready with Apple CarPlay or Android Auto

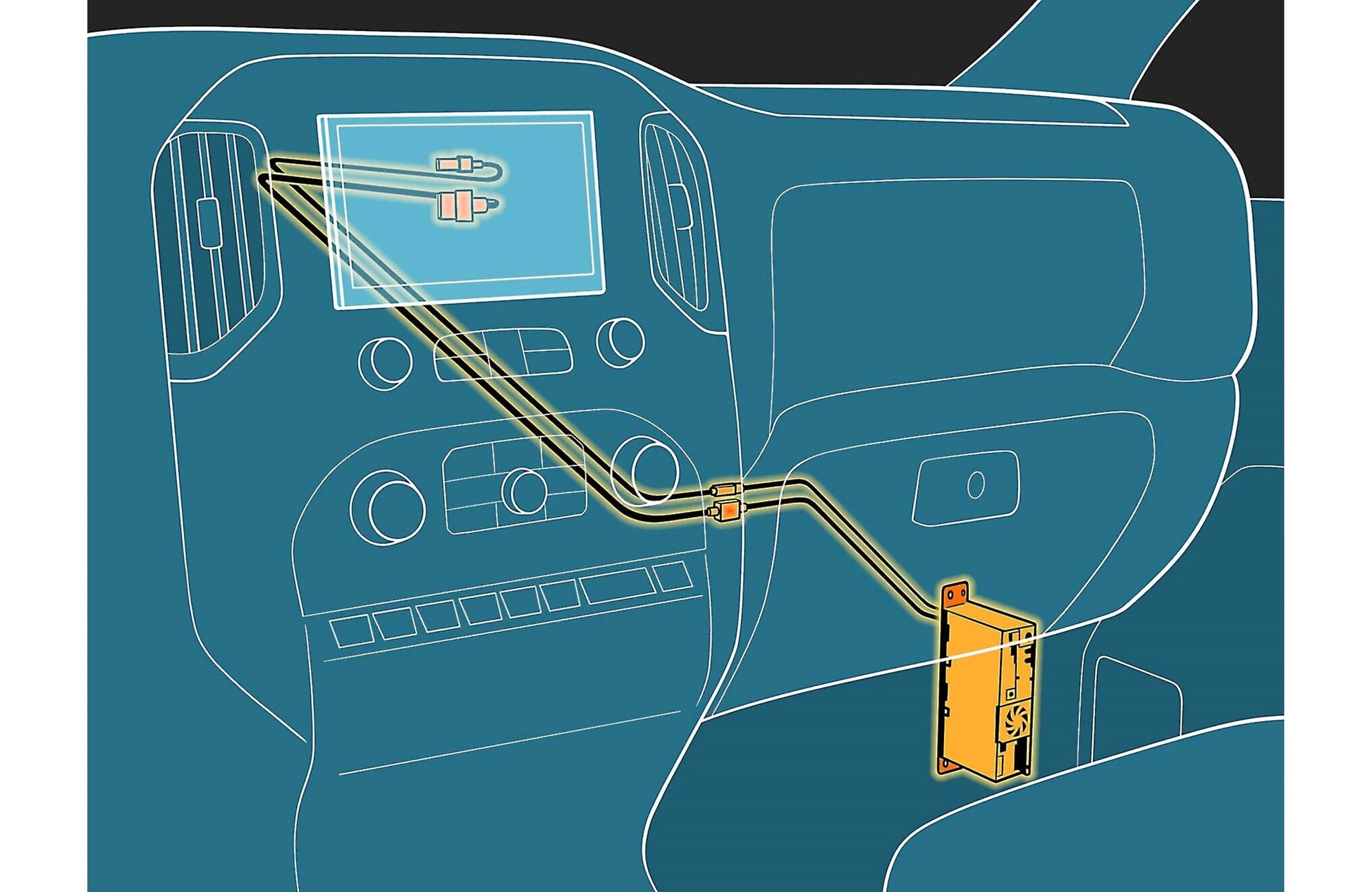

• modular chassis design

Smartphone features:

• wired and wireless Android Auto compatible
  • compatible with Google Assistant voice control when using Android Auto

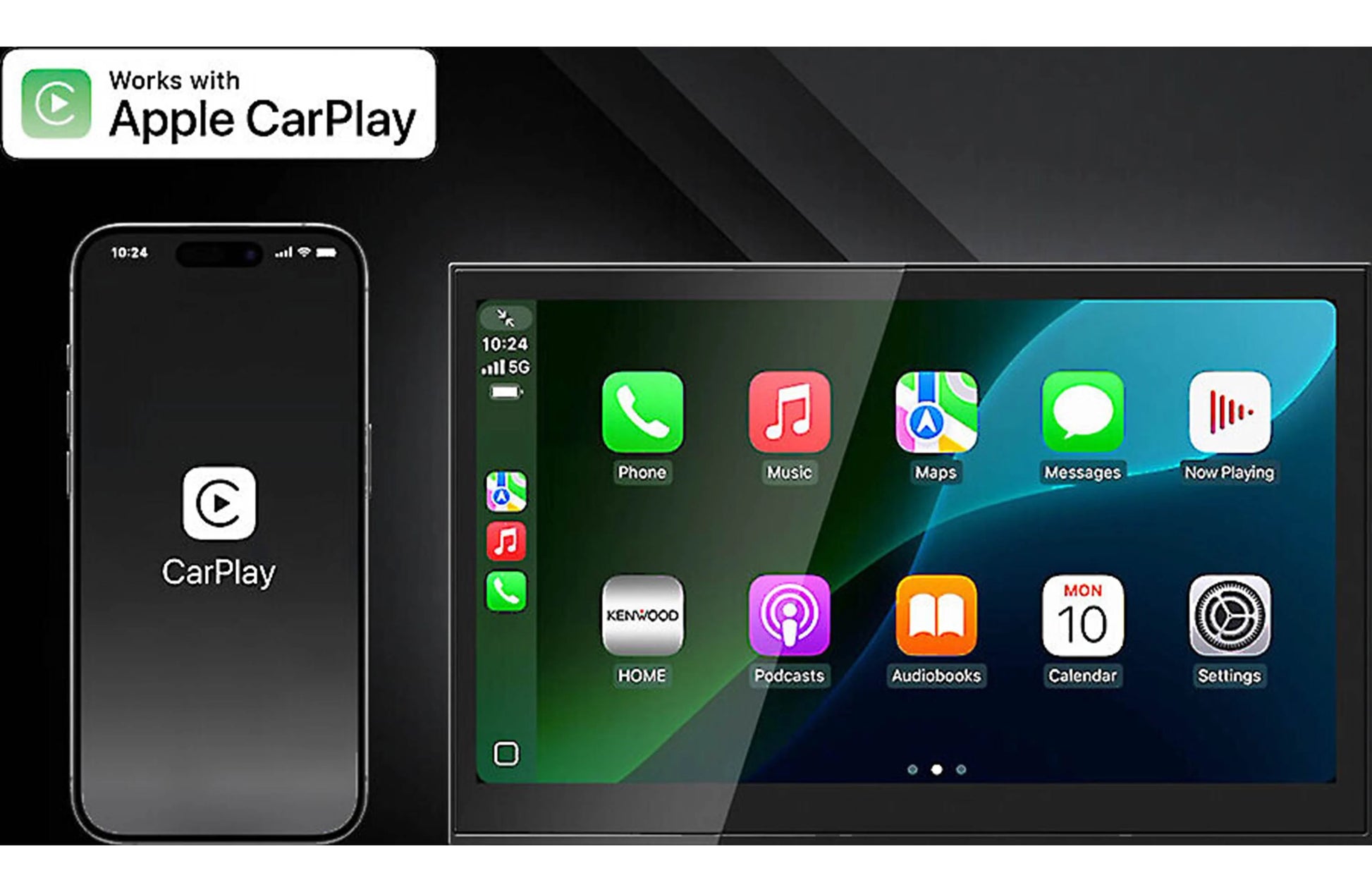

• wired and wireless Apple CarPlay compatible
  • Siri voice control for select iPhones
• wireless mirroring for select Android devices
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
  • supports smartphones with LDAC codec for wireless high-res audio streaming
• rapid Android charging via USB port

Audio features:

• 13-band graphic EQ, 14-point parametric EQ
• digital time alignment
• digital signal processing
  • Drive EQ boosts frequencies in your music to help overcome road noise
  • Stage EQ virtually raises the sound from speakers mounted in low door locations for better staging
  • Sound Restoration restores more natural sound from compressed music
• 2- or 3-way crossover

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
  • works with SiriusXM with 360L for satellite and streaming content using receiver's WiFi (streaming not available if Apple CarPlay or Android Auto are in use)
• compatible with Kenwood CMOS-740HD HD backup camera

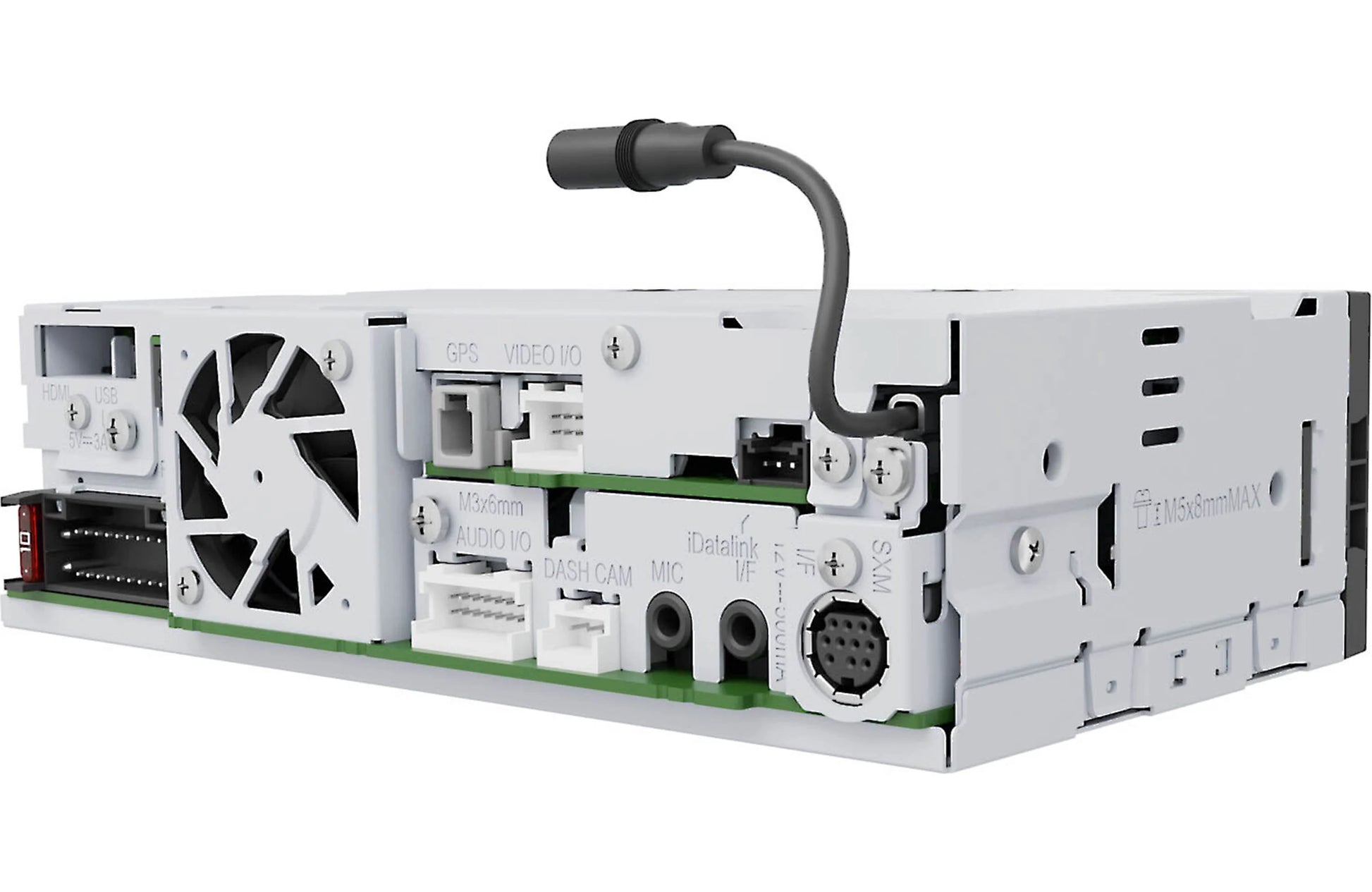

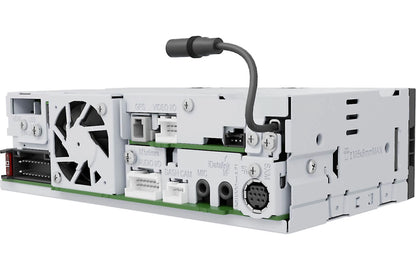

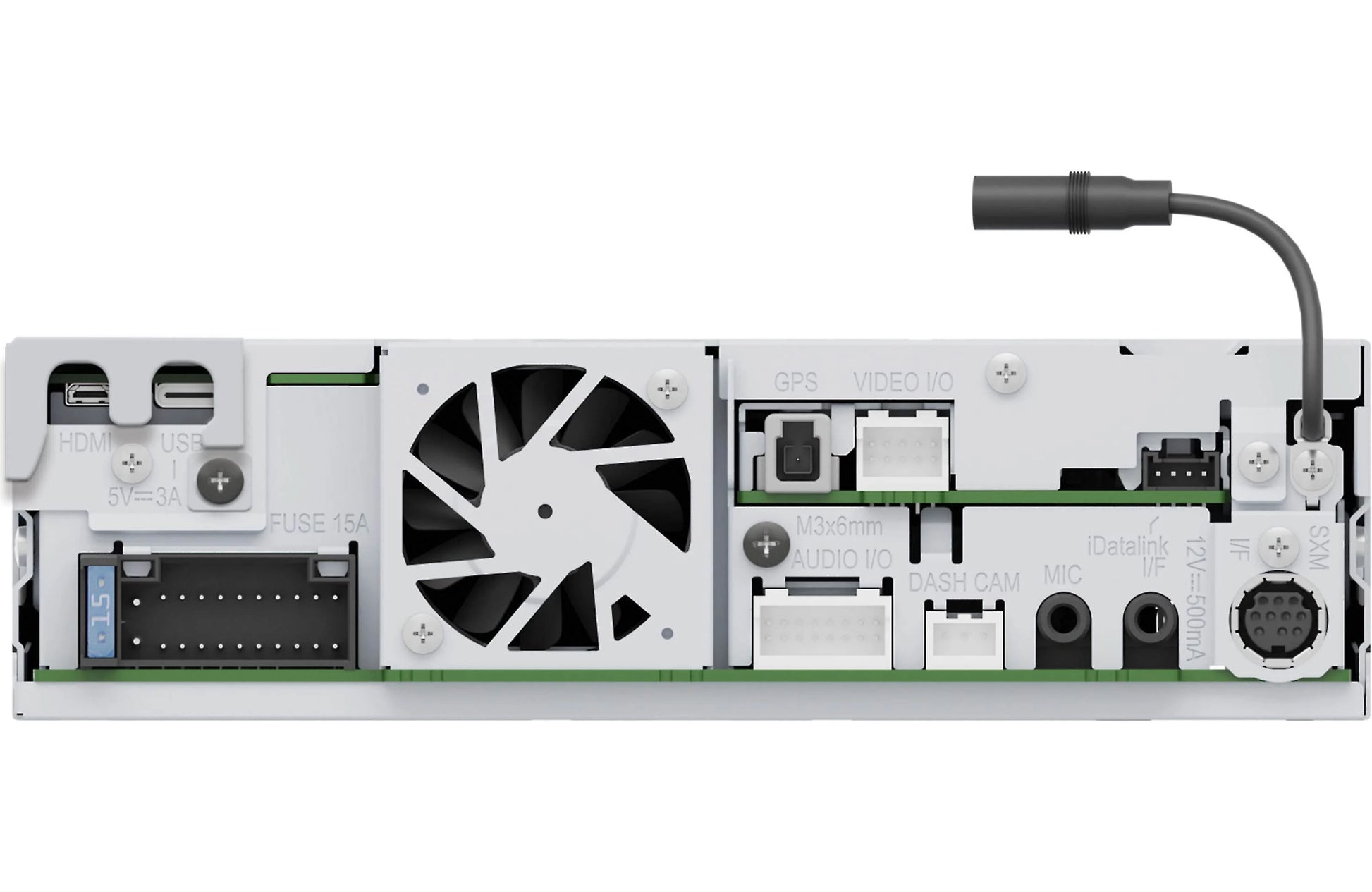

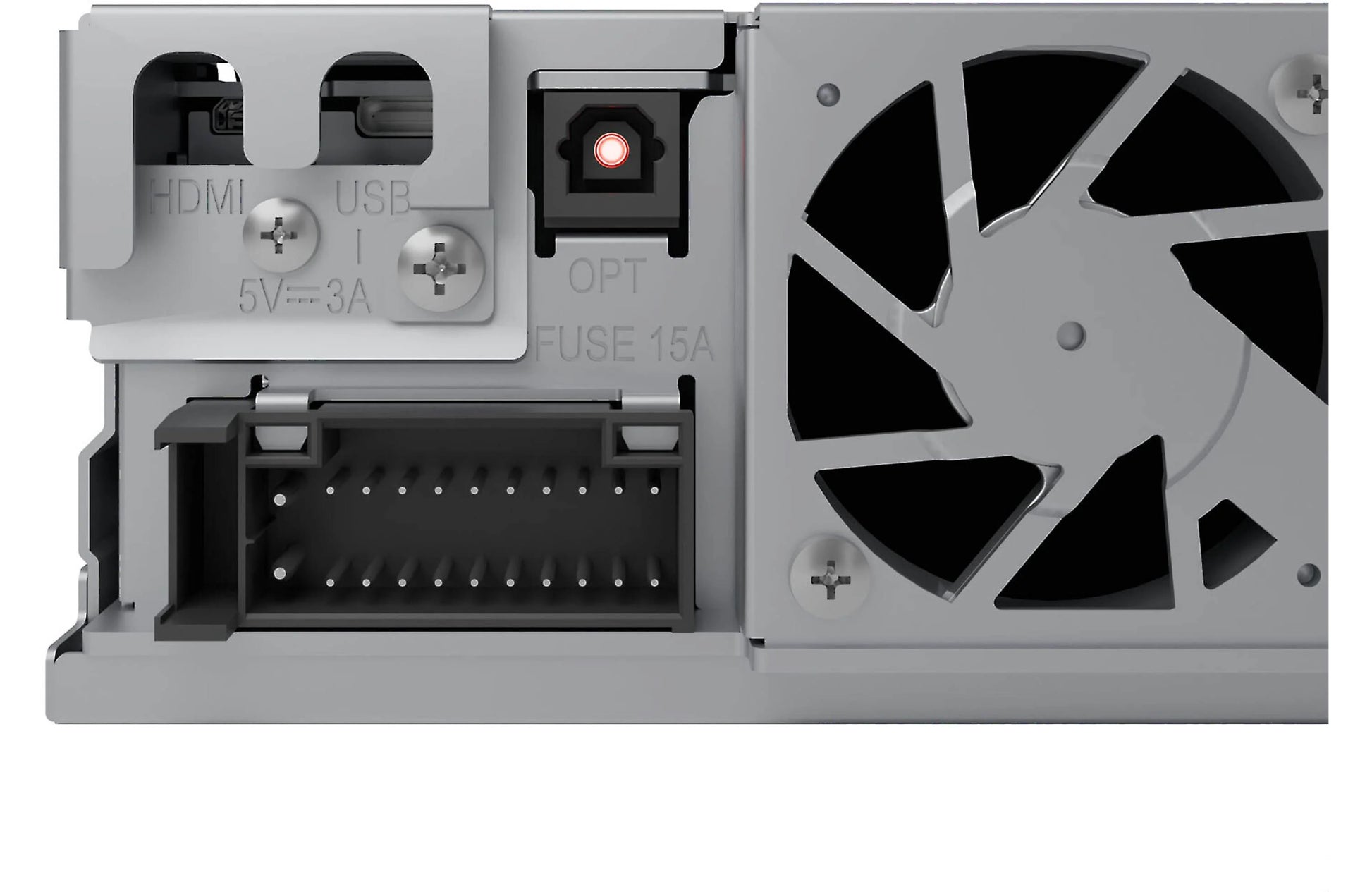

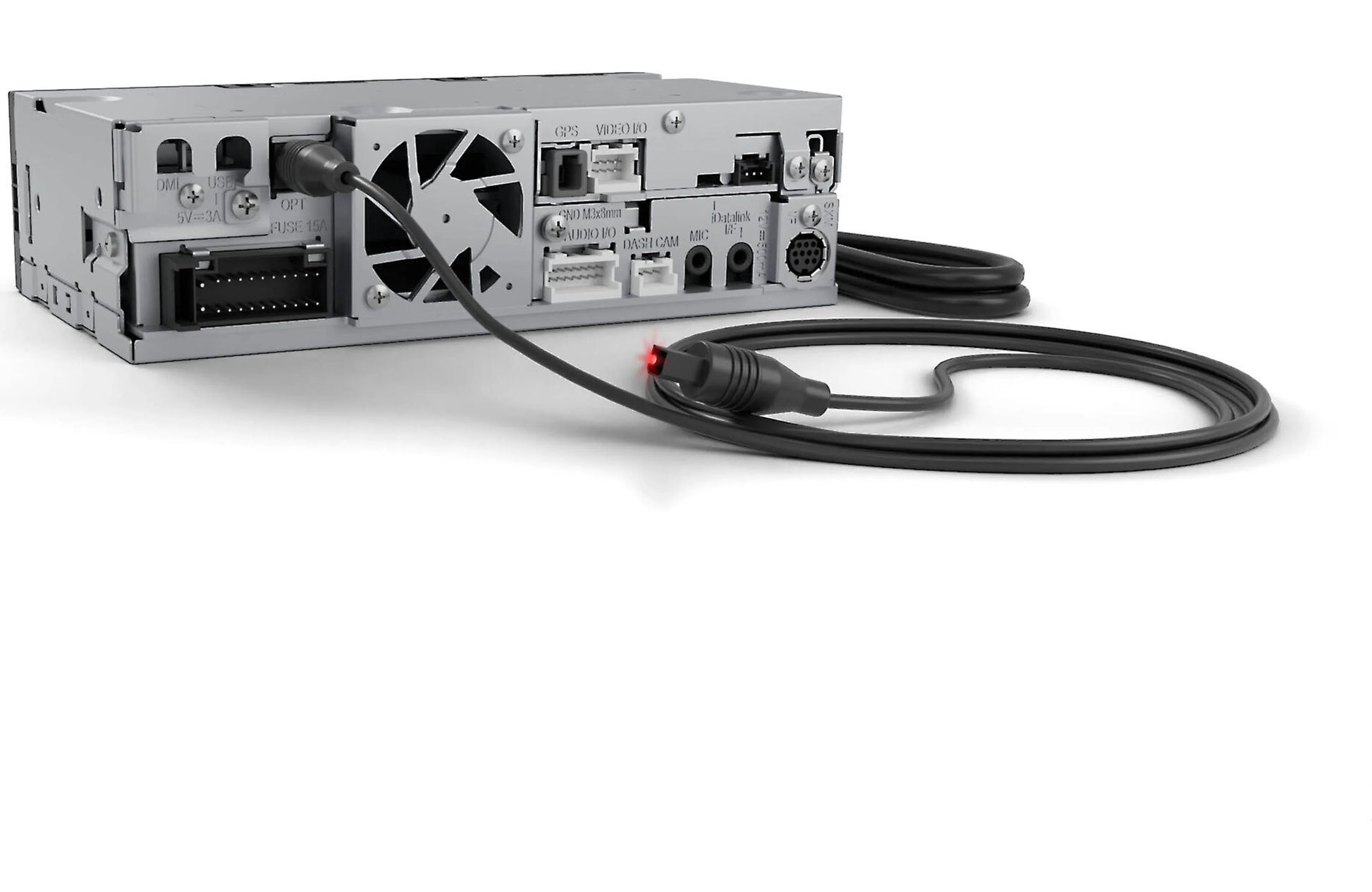

• inputs (chassis): USB-C input, four camera inputs (HD front or rear), HDMI Type-D input

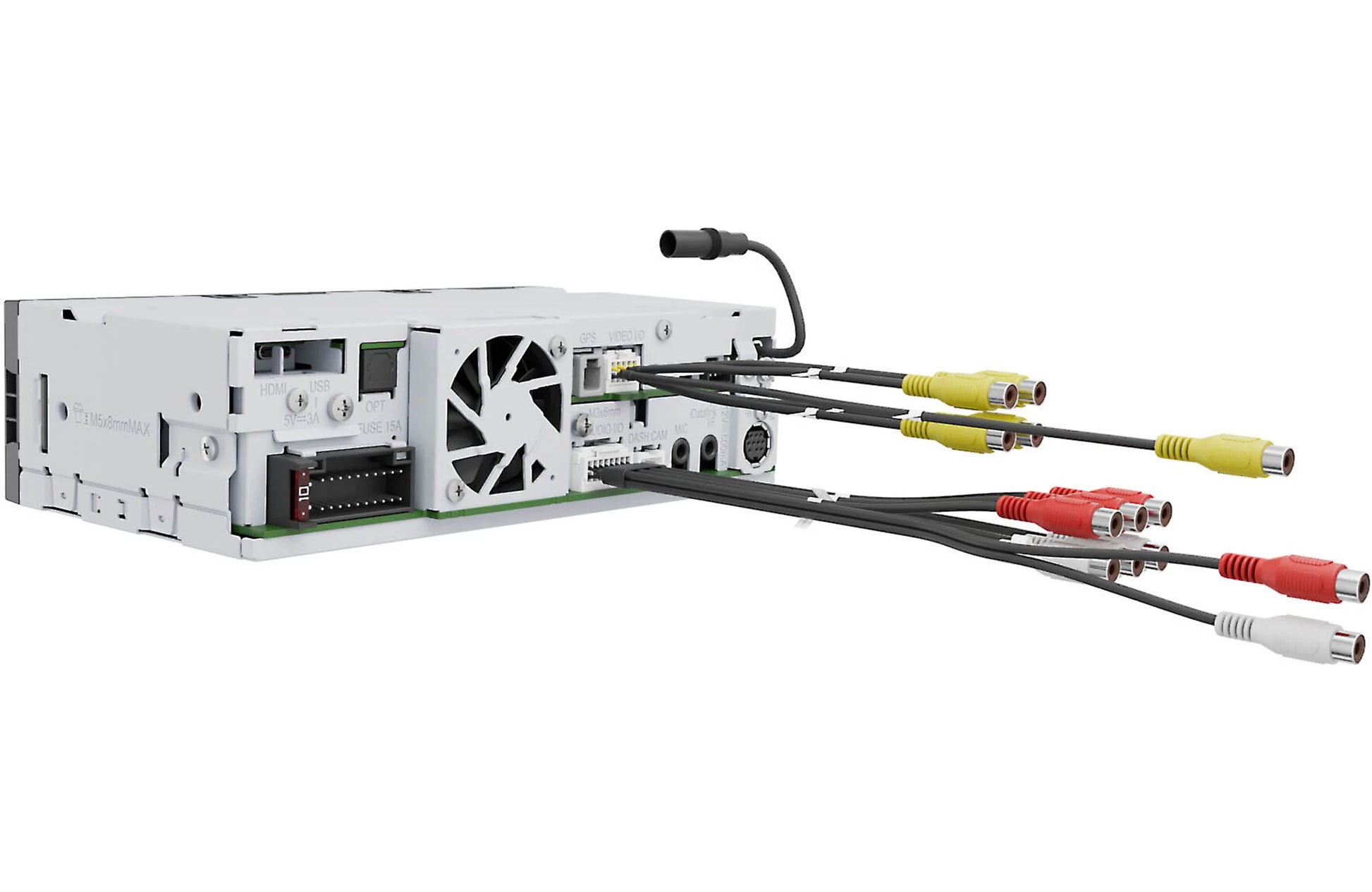

• outputs: 6-channel preamp outputs (5-volt front, rear, sub), digital optical output to connect select digital signal processors

Other information:

• built-in amplifier (22 watts RMS/50 peak x 4 channels)
• works with iDatalink Maestro RR or RR2 modules
  • works with iDatalink ADS-MIC1 interface to retain factory microphone

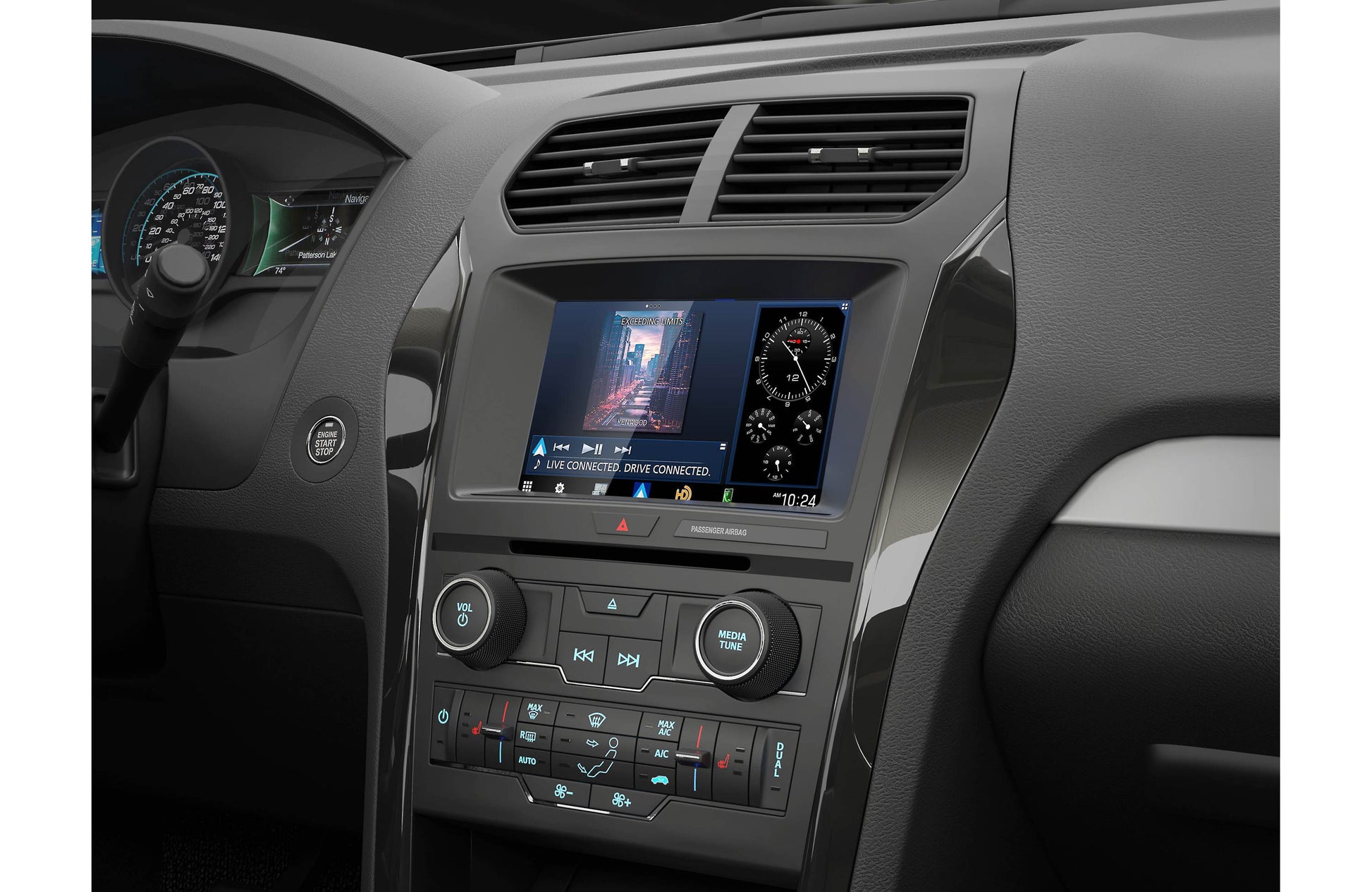

  • retains factory features in a wide selection of vehicles

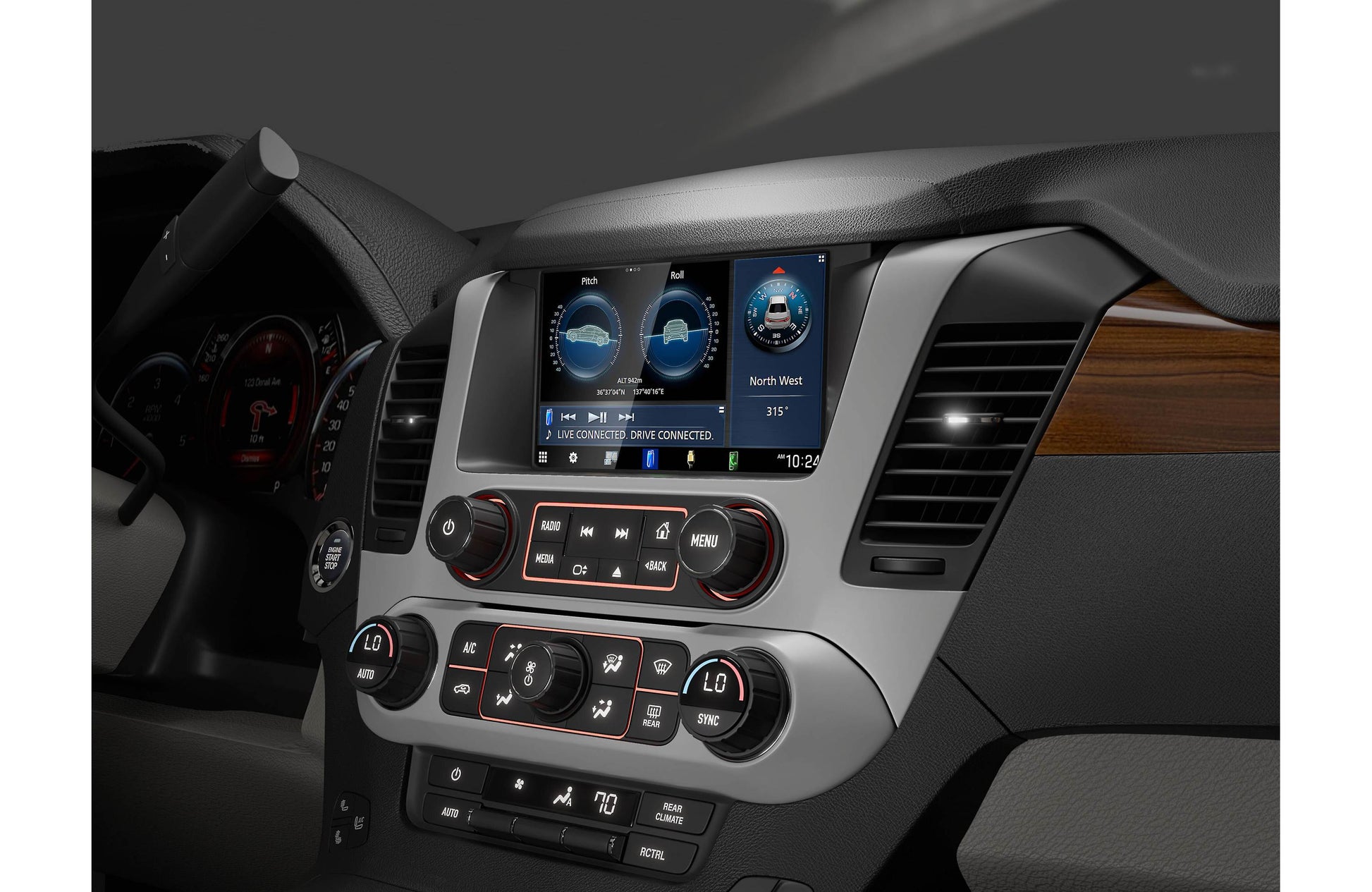

  • displays engine performance and pitch-and-roll data on display
• warranty: 2 years
