Kenwood Excelon Reference DNR1007XR

General features:

• digital multimedia receiver with navigation

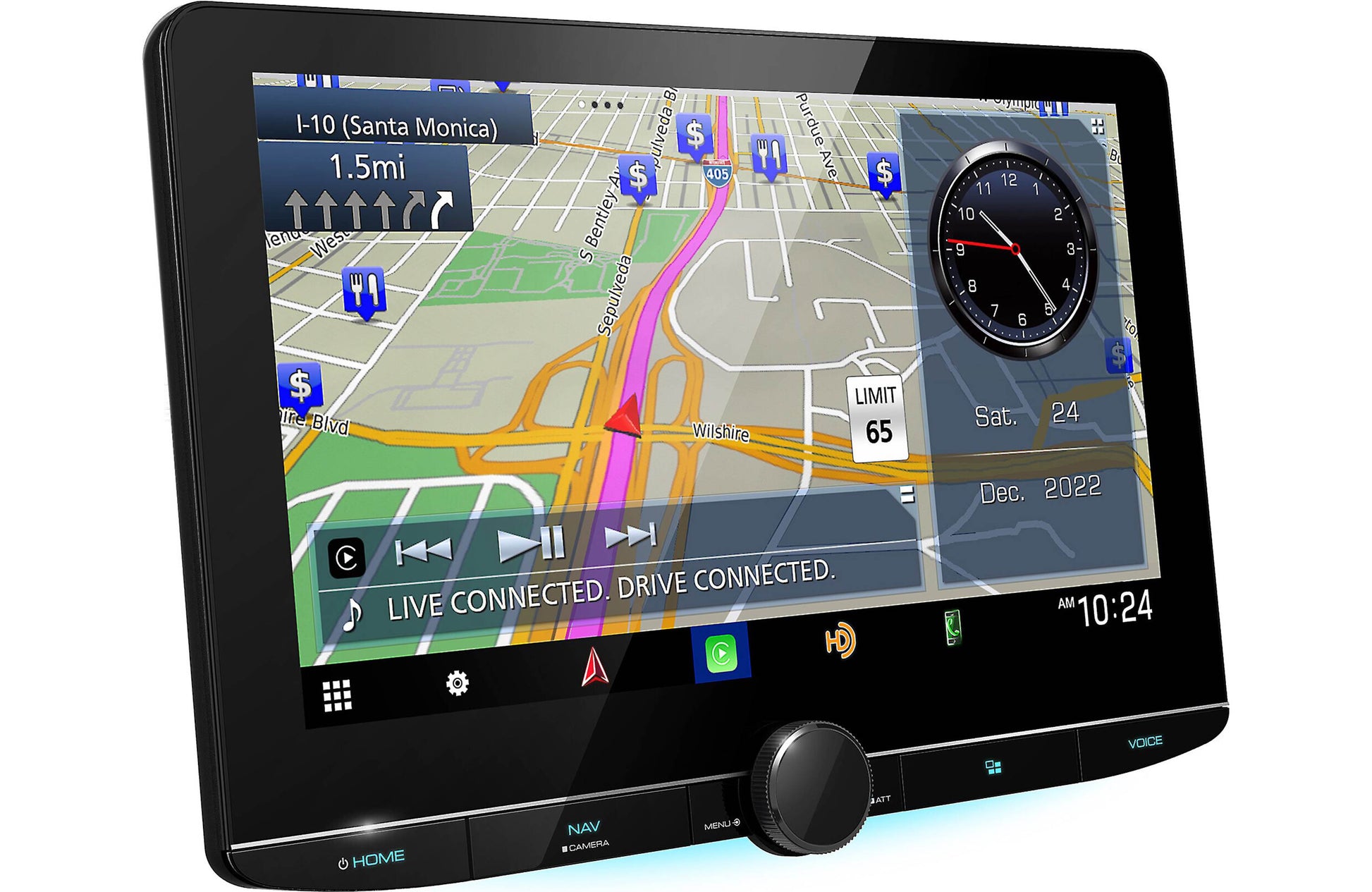

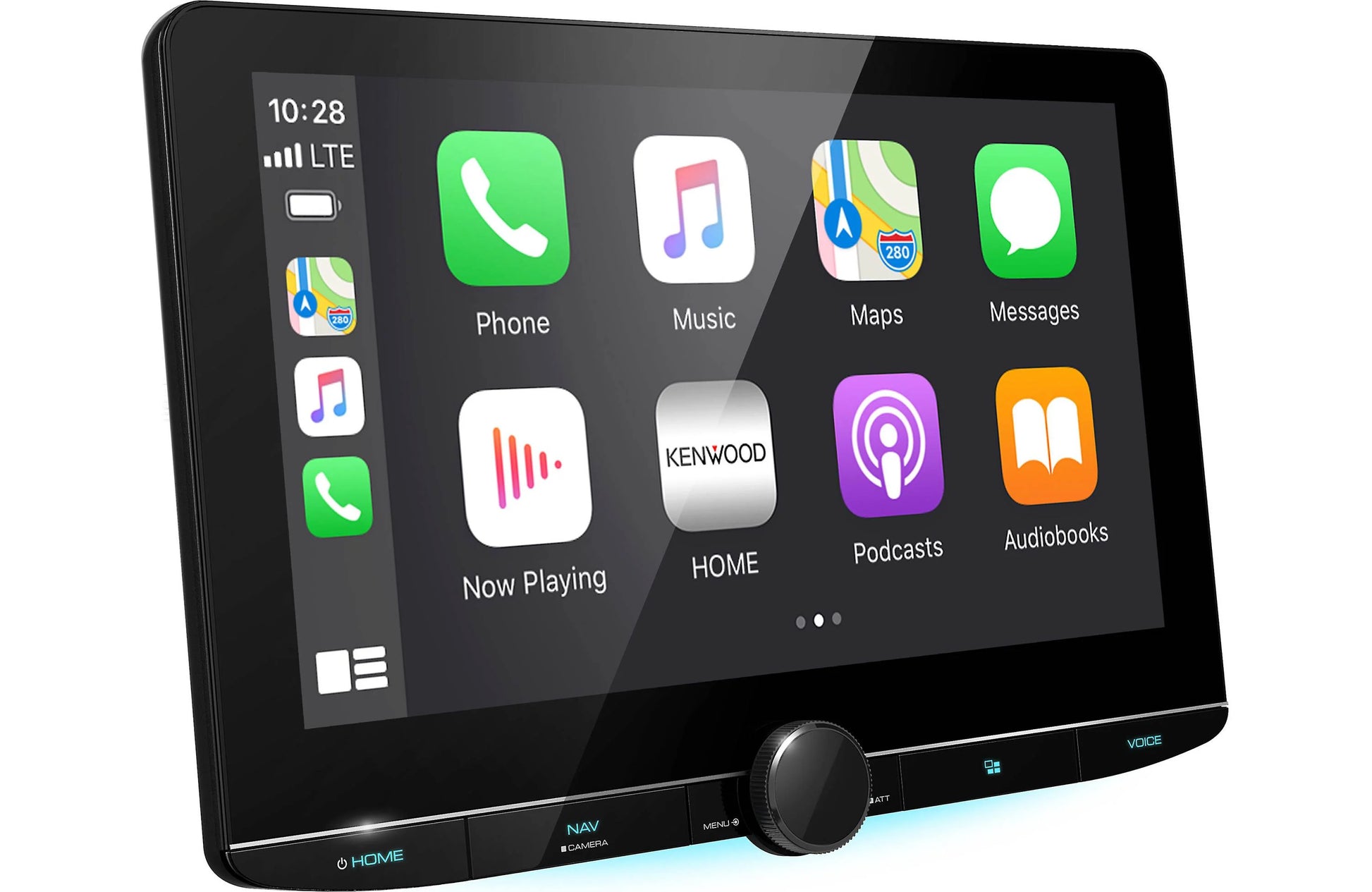

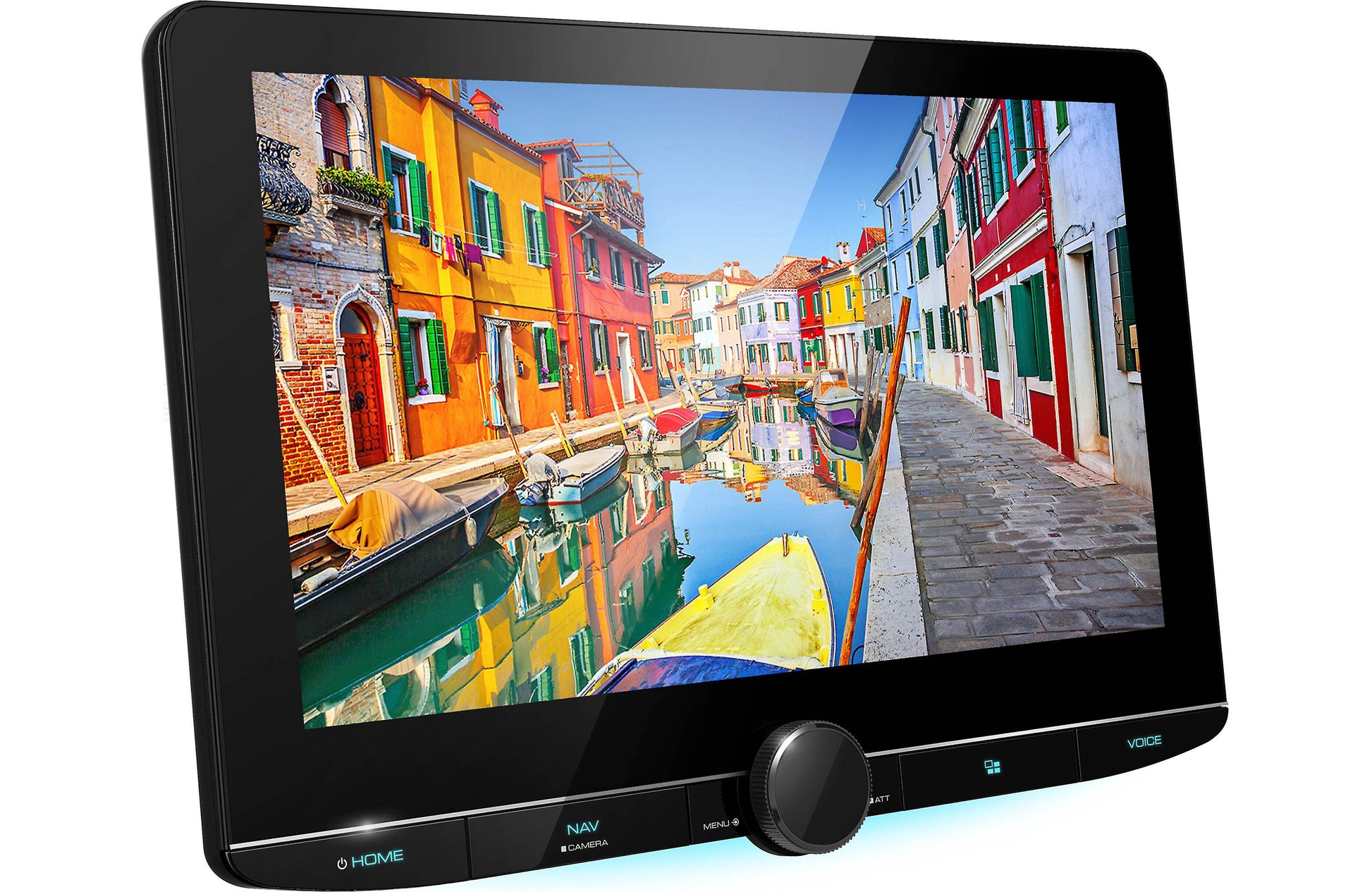

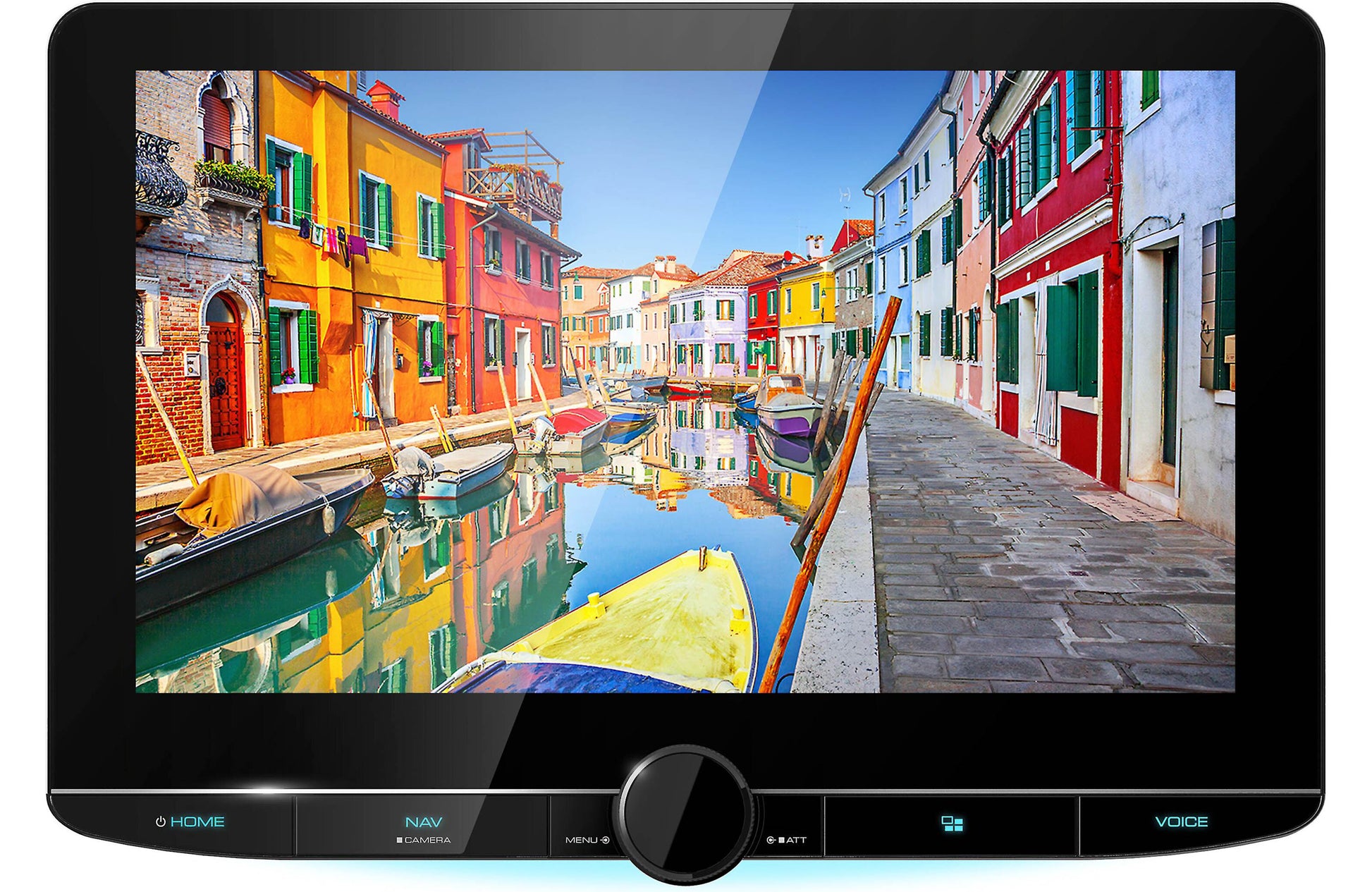

• 10.1" HD capacitive touchscreen display
  • AAS display technology for wider viewing angle
  • bonded optical display for less glare

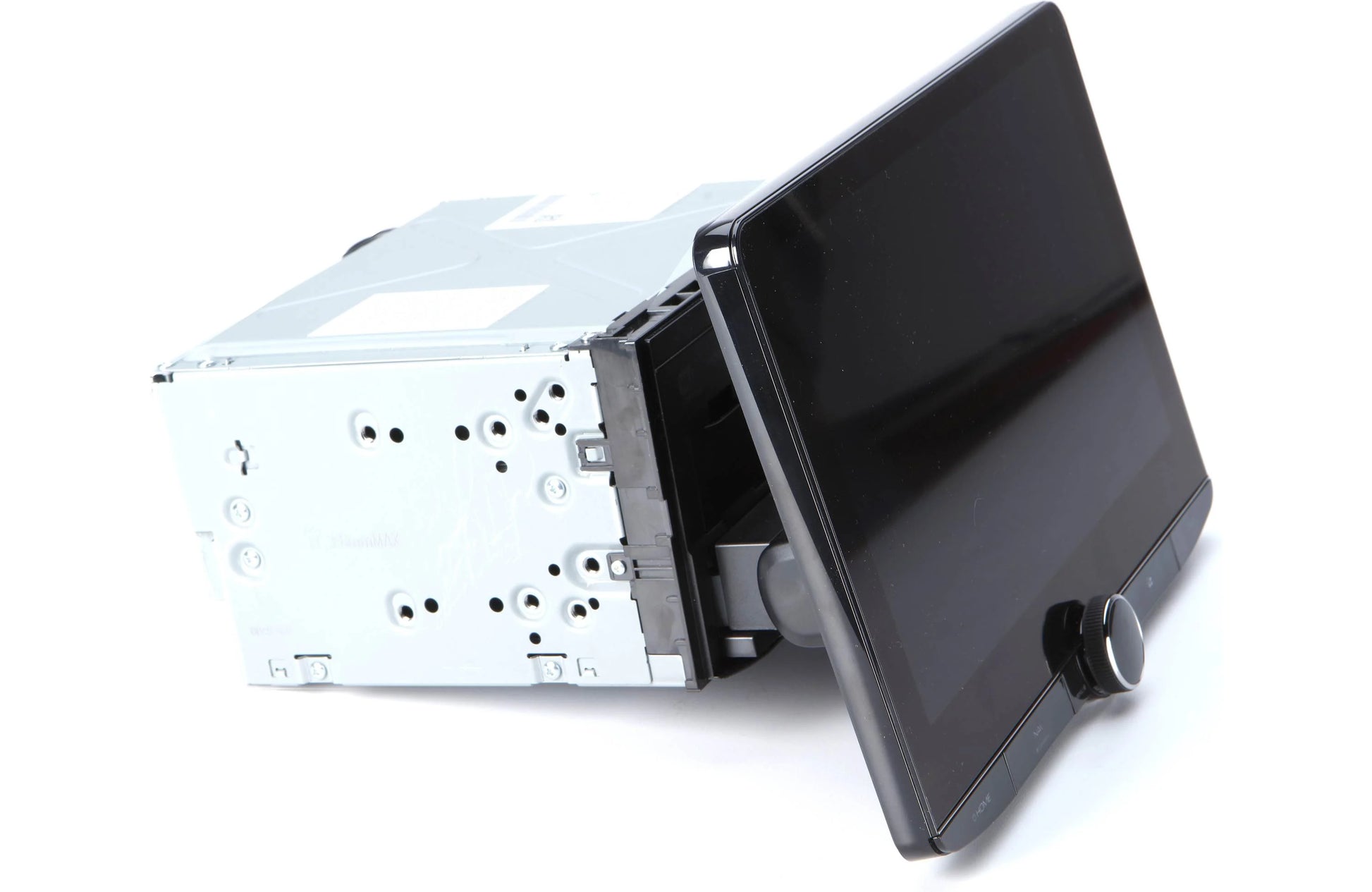

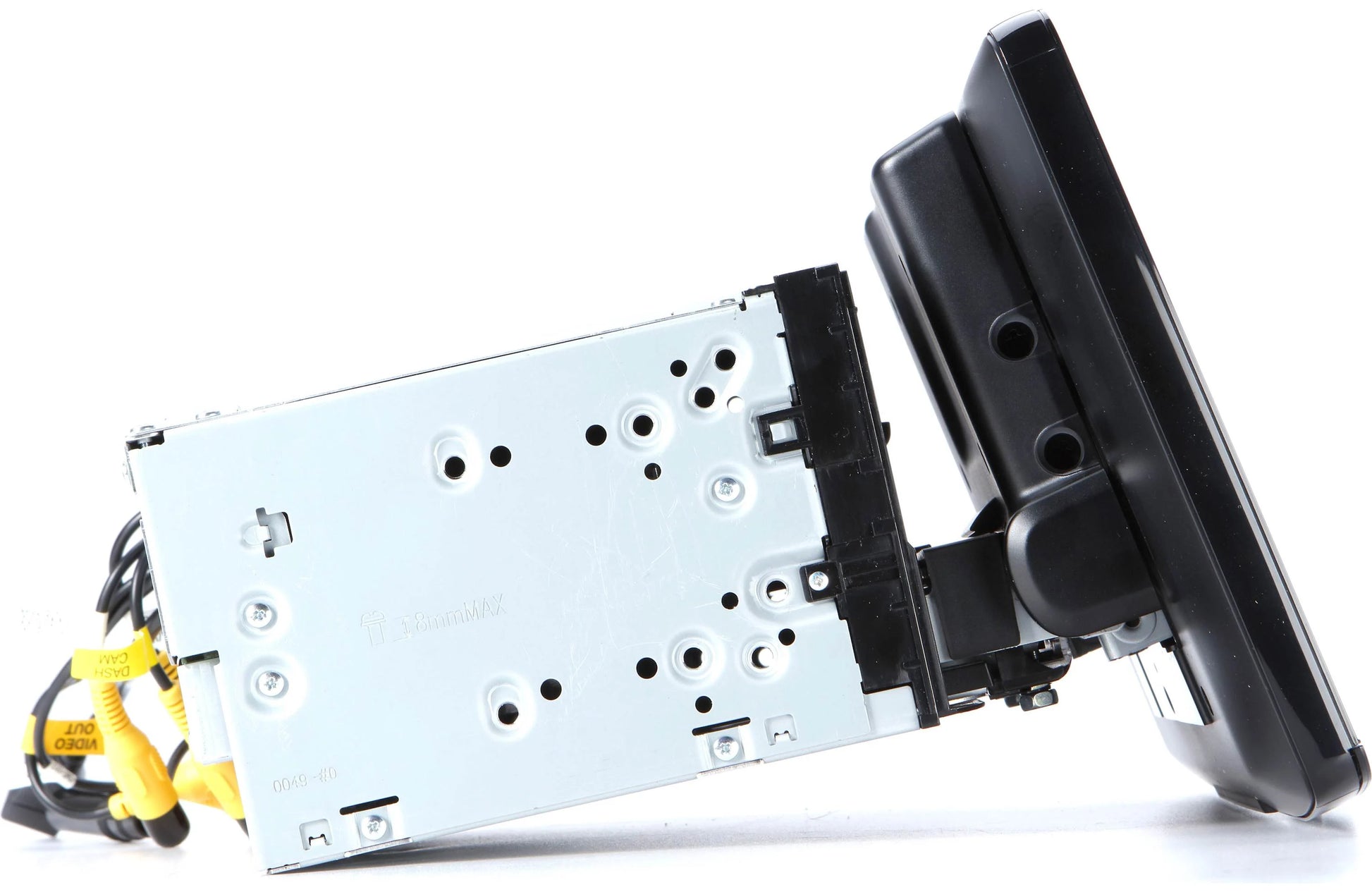

  • before final installation, depth and height of the display can be adjusted to provide dash vent and control access
• Wi-Fi certified
• Waze-ready with Apple CarPlay or Android Auto

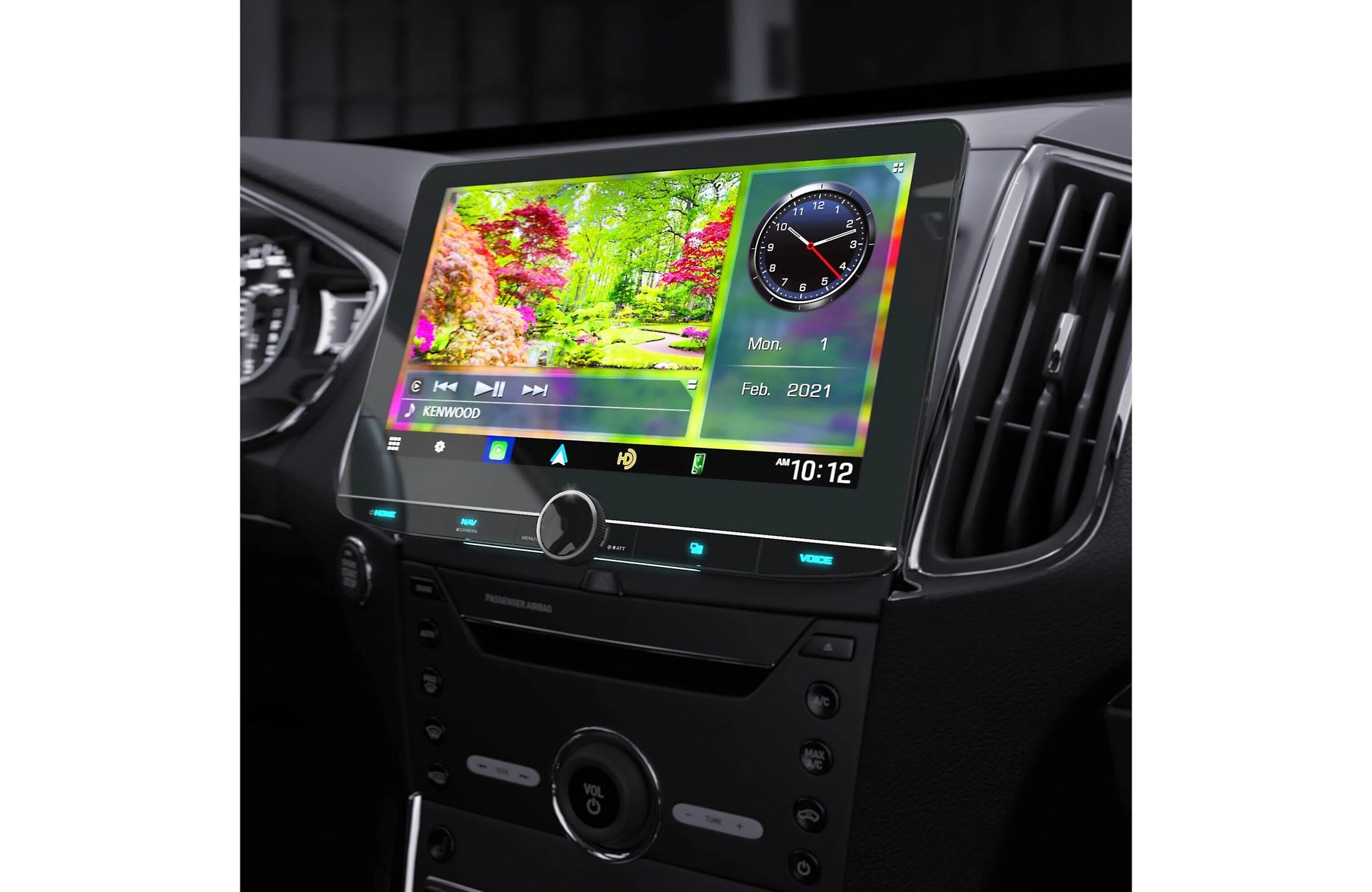

• customizable display background and widget controls
• ambient lighting and multi-function volume knob controls
• plays high-res FLAC, WAV, and DSD files on USB drives
• built-in HD Radio tuner
• fits double-DIN dash openings

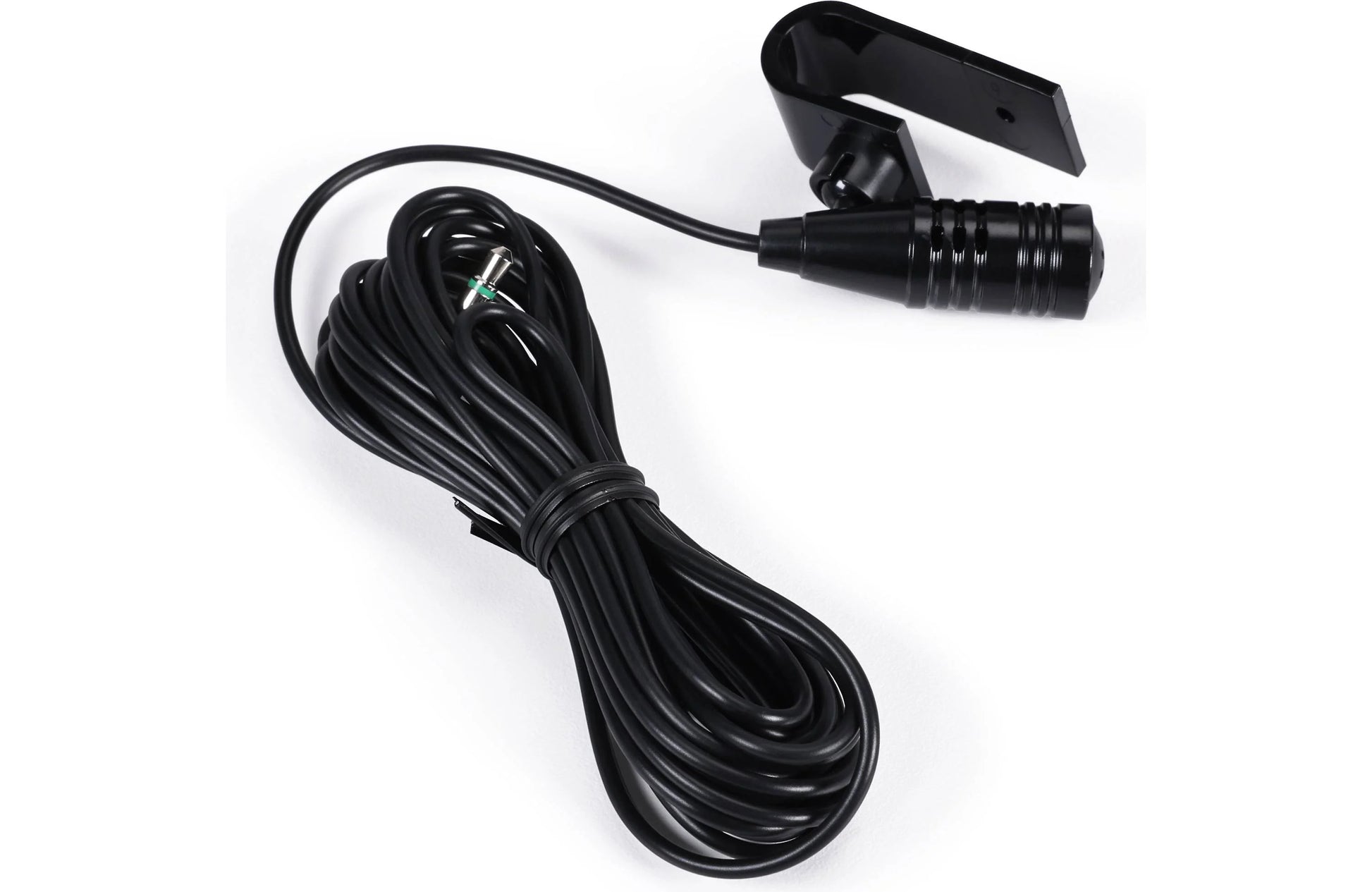

• Bluetooth built-in for hands-free calling and audio streaming
  • built-in LDAC for high-res wireless audio streaming with select Android phones

Navigation features:

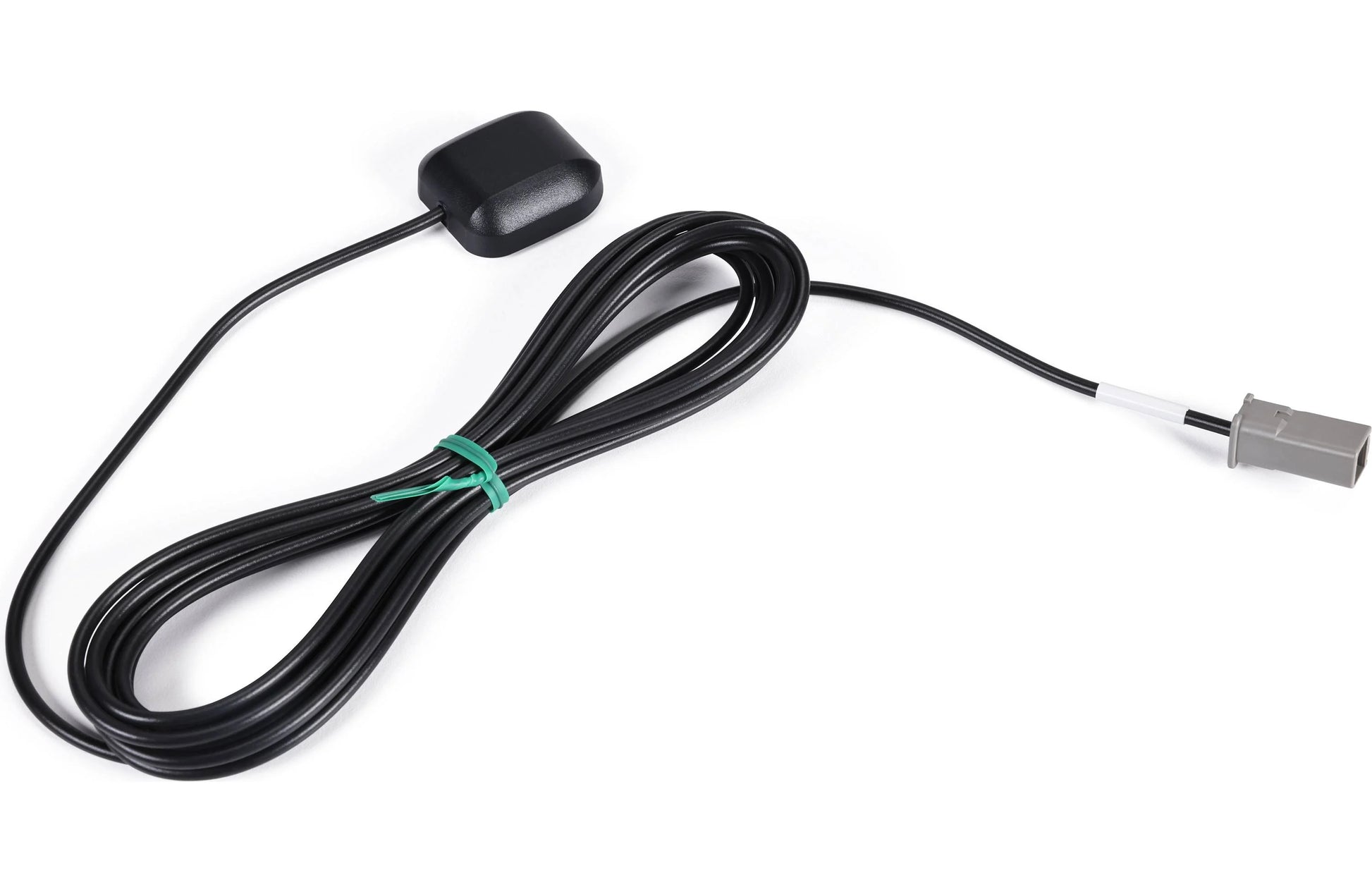

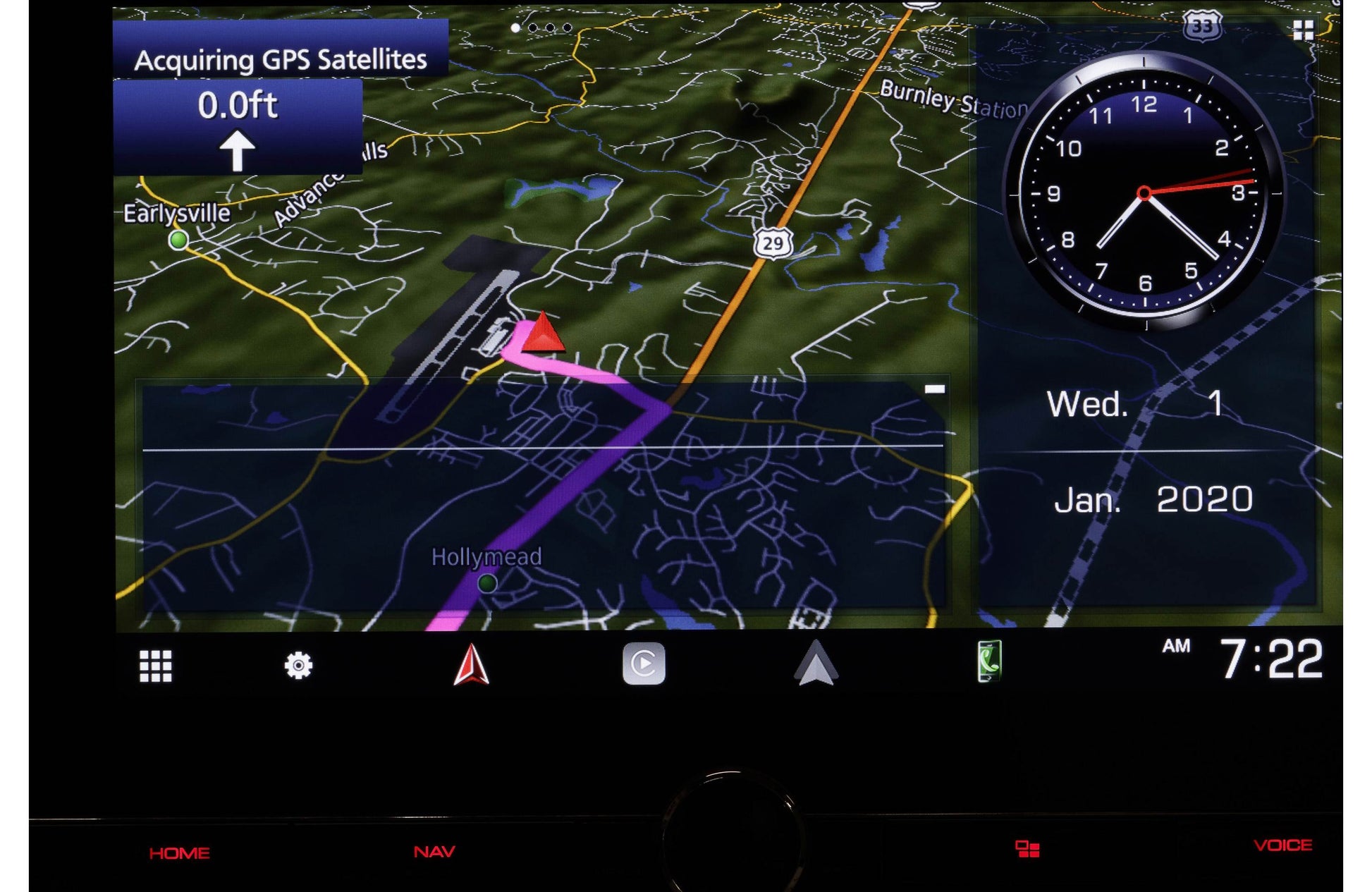

• built-in Garmin navigation system
• maps of the U.S., Canada, Mexico, Puerto Rico, and U.S. Virgin Islands
• 3 years of free map updates
• 3D terrain view and Photo-Real junction view

Smartphone features:

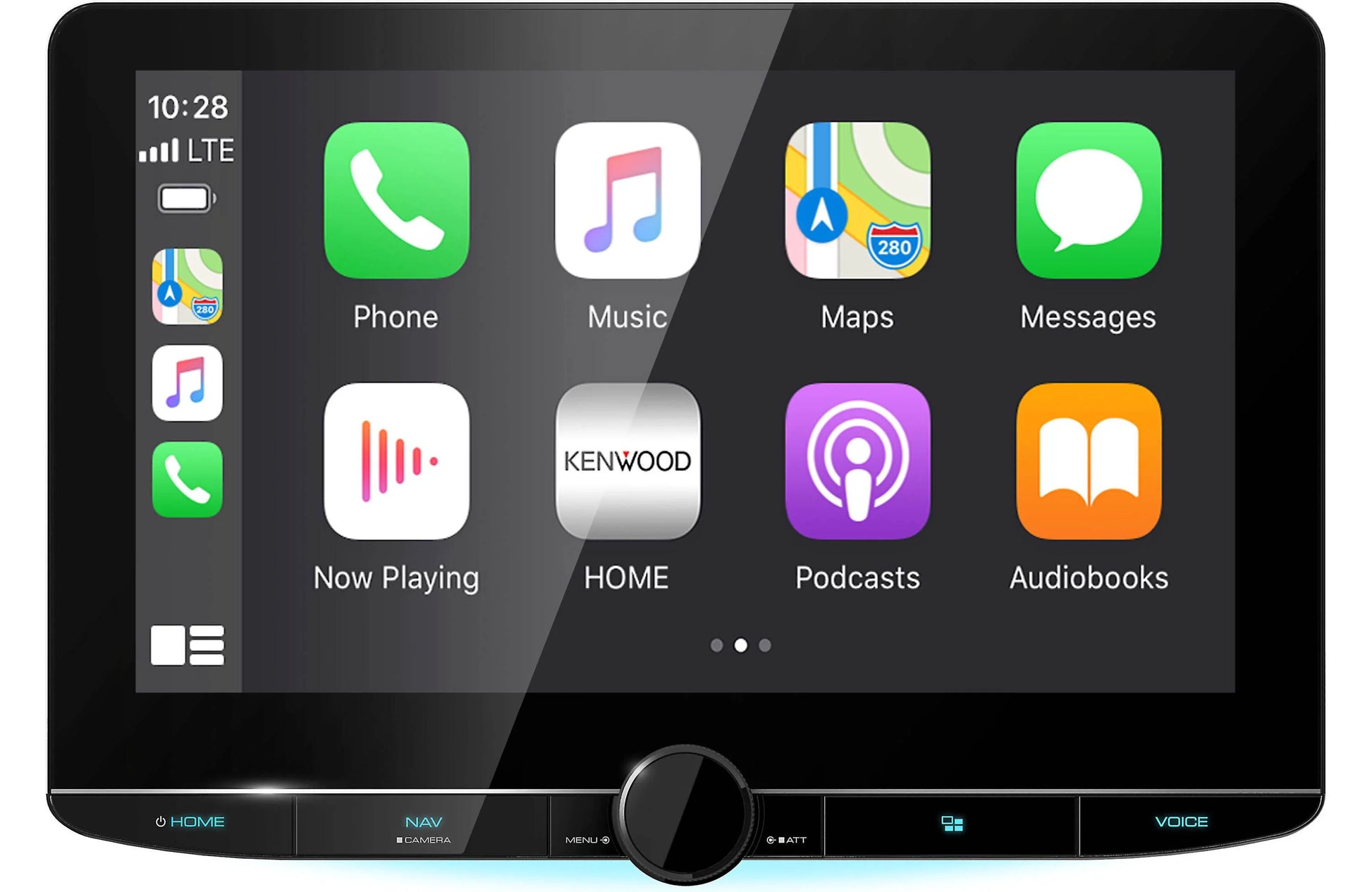

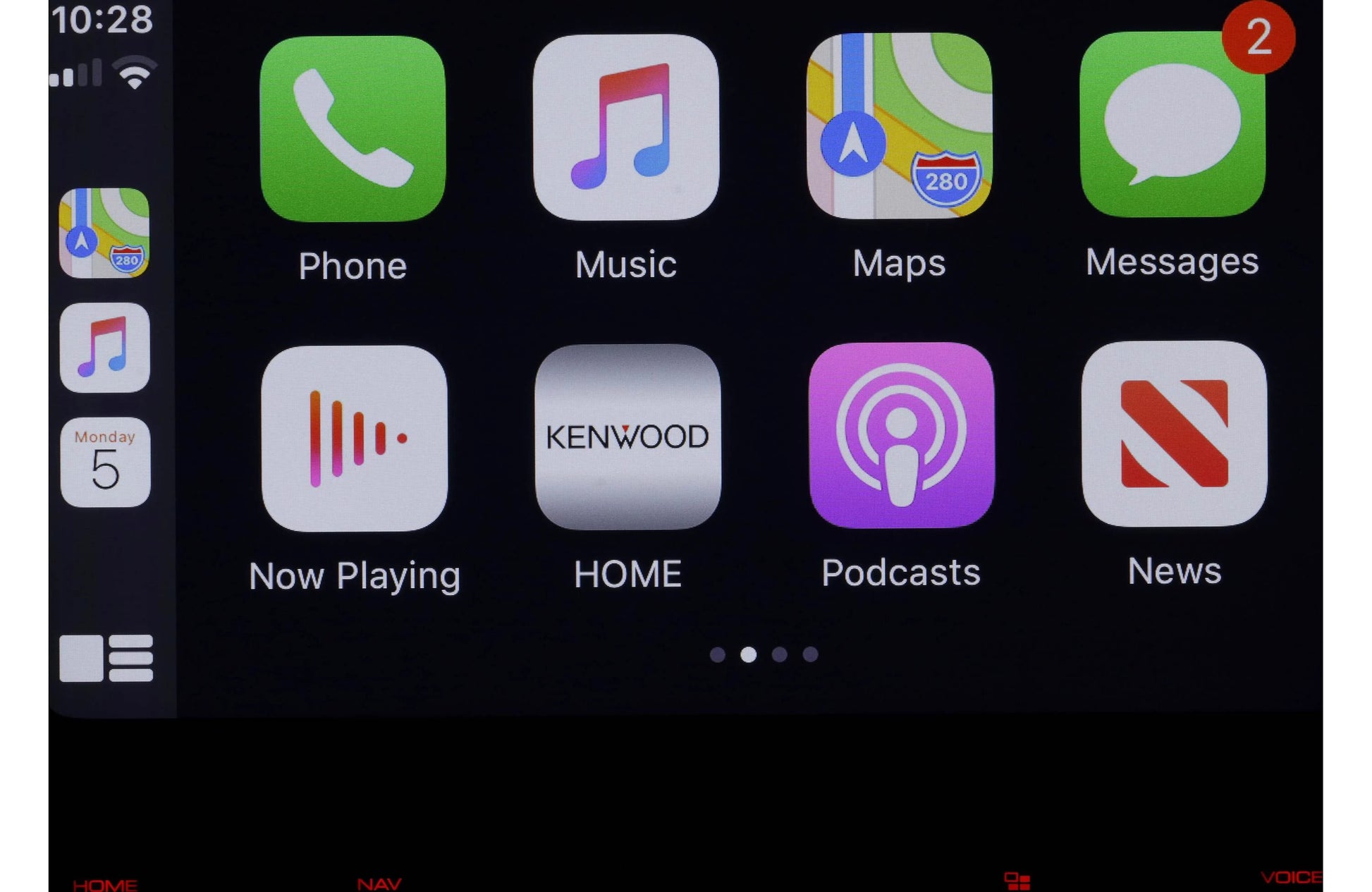

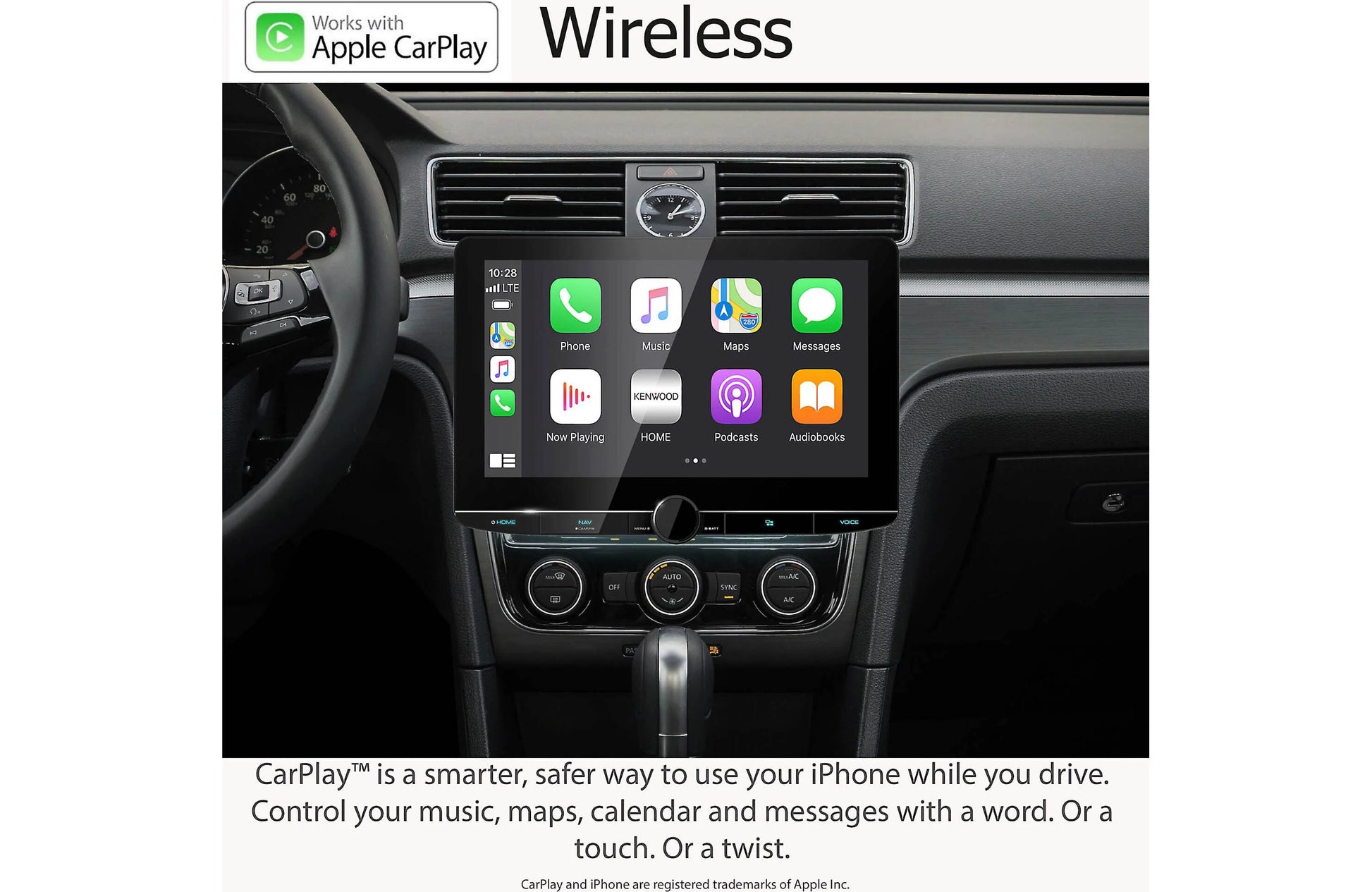

• compatible with wireless or wired Apple CarPlay or Android Auto
• wireless (Miracast) and wired (HDMI) mirroring for Android

Audio/video features:

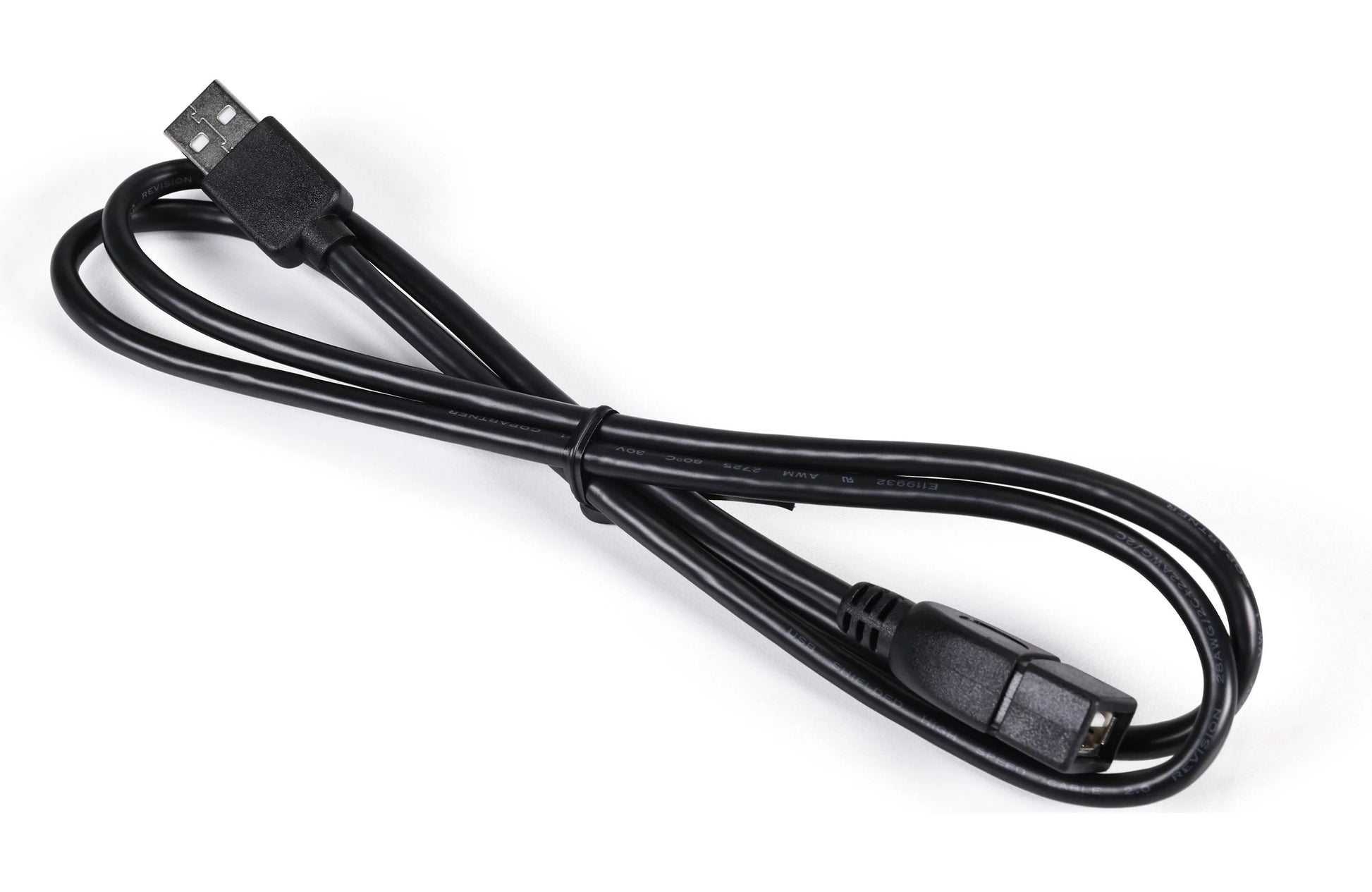

• plays USB memory devices
• 13-band parametric equalizer with digital time alignment
• Supreme setting improves the digital sound for all music sources
• Stage EQ compensates for low speaker positions
• DriveEQ boosts specific frequencies to compensate for road noise
• subwoofer level, phase, and 3-way crossover controls

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• direct connection and control with Kenwood's DRV-N520 Drive Recorder dash cam

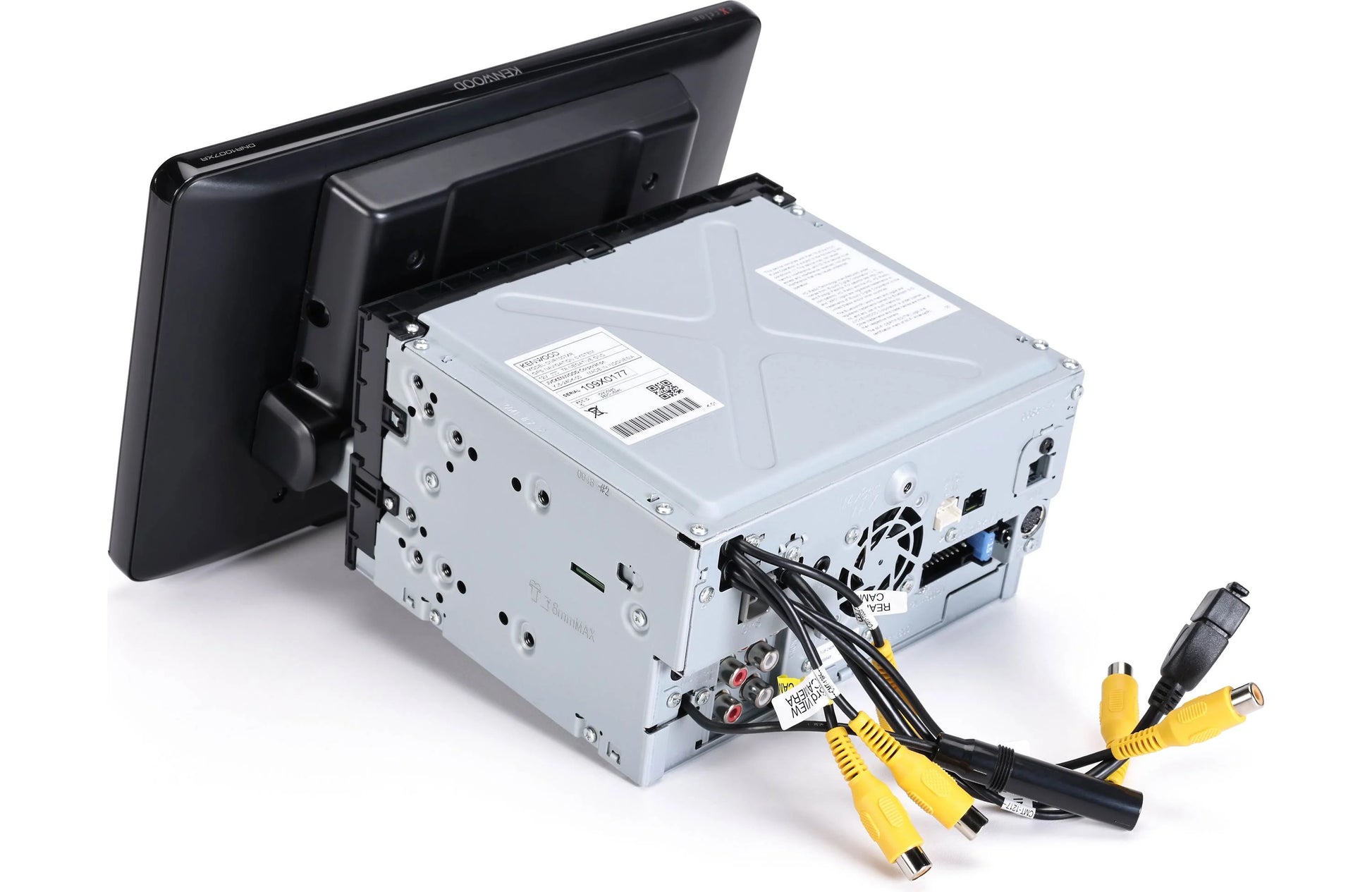

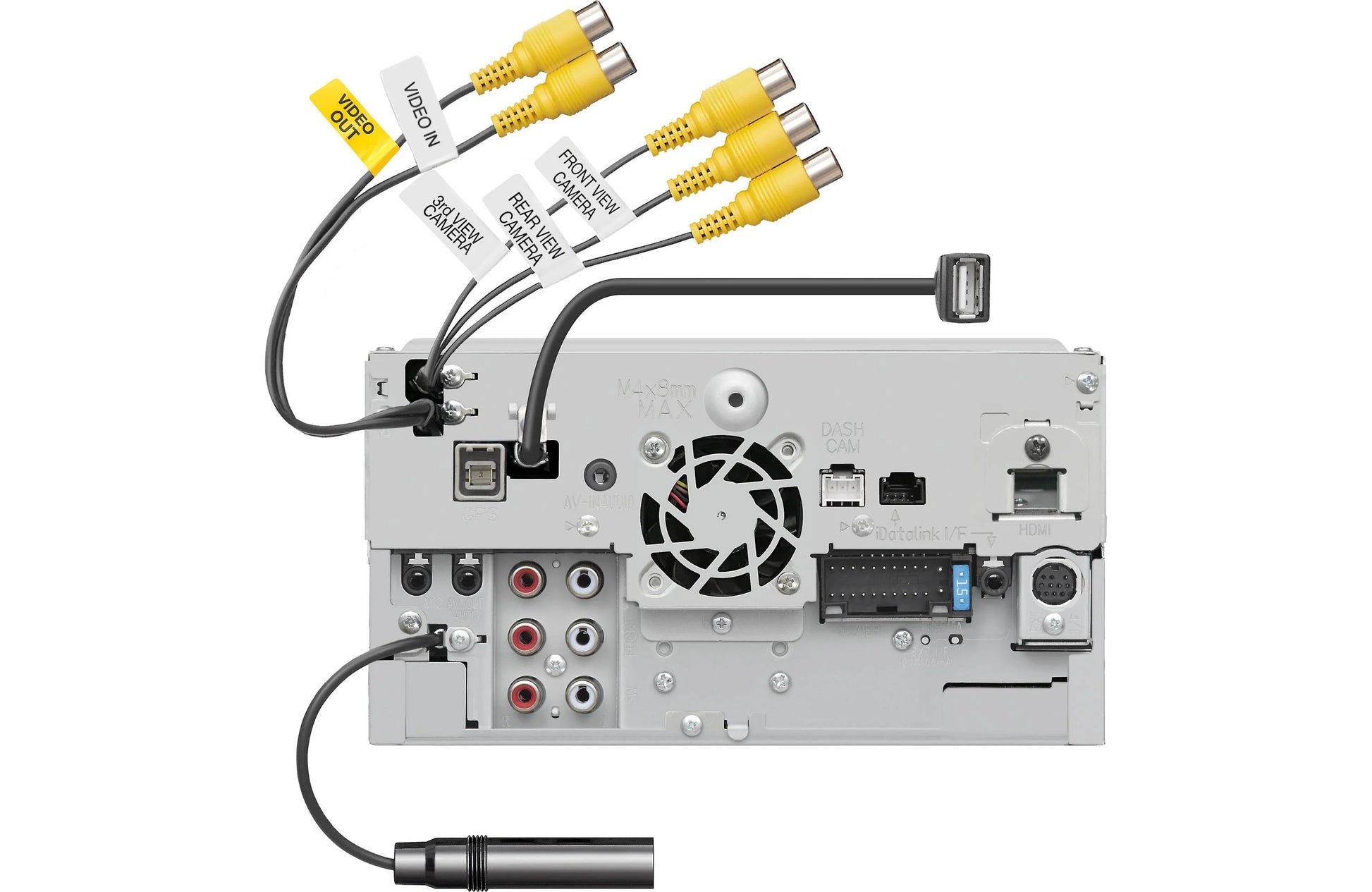

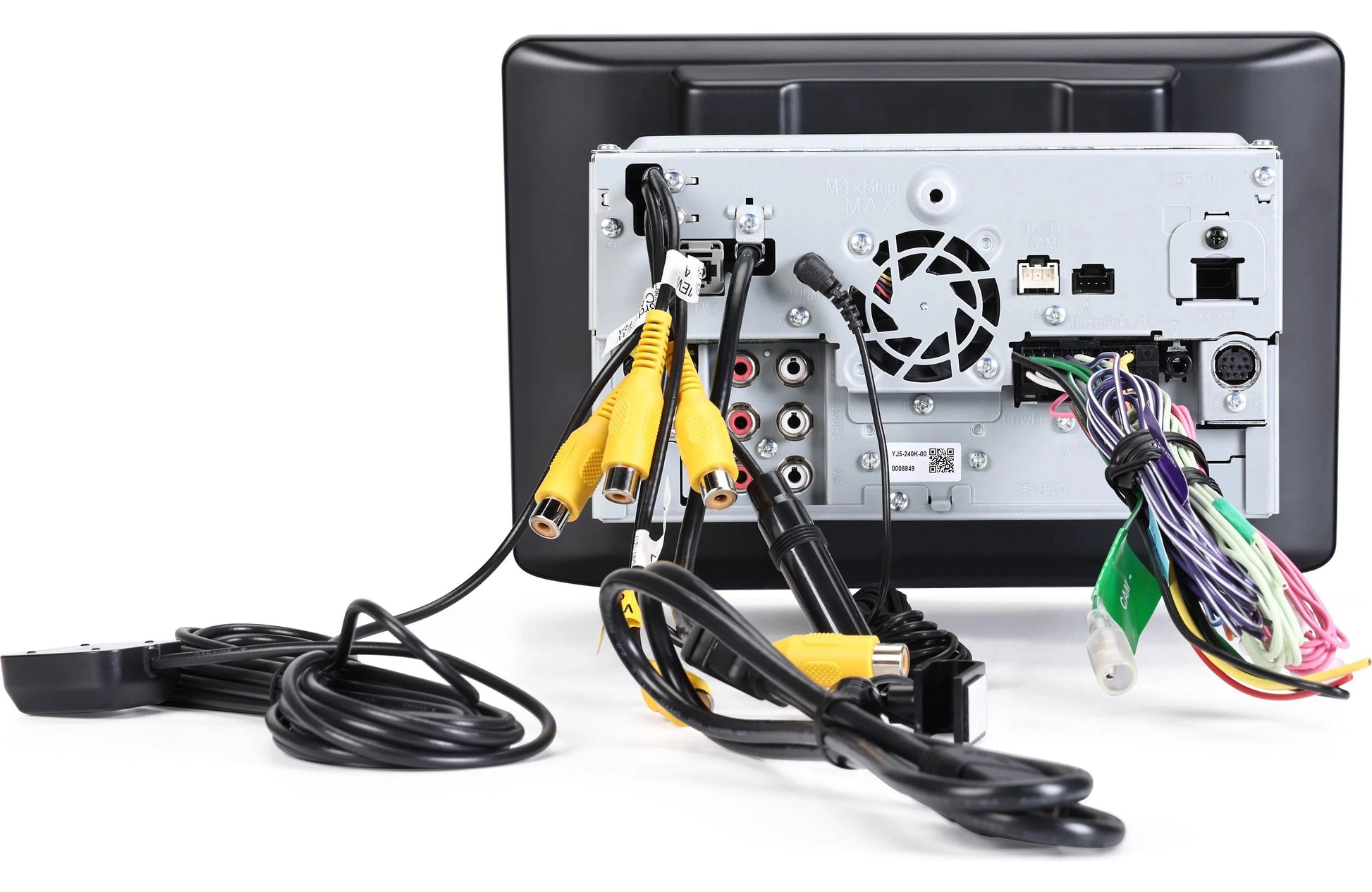

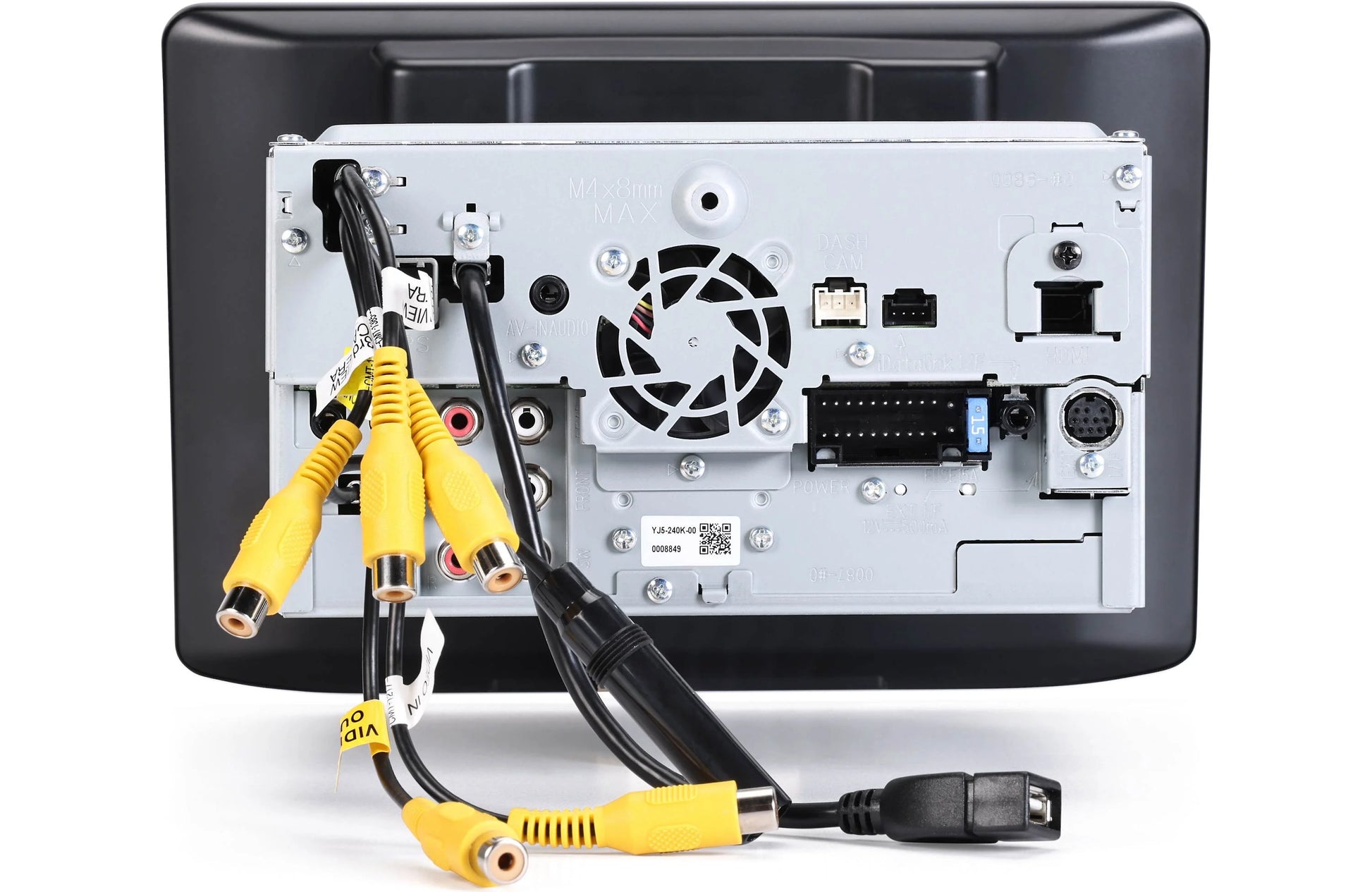

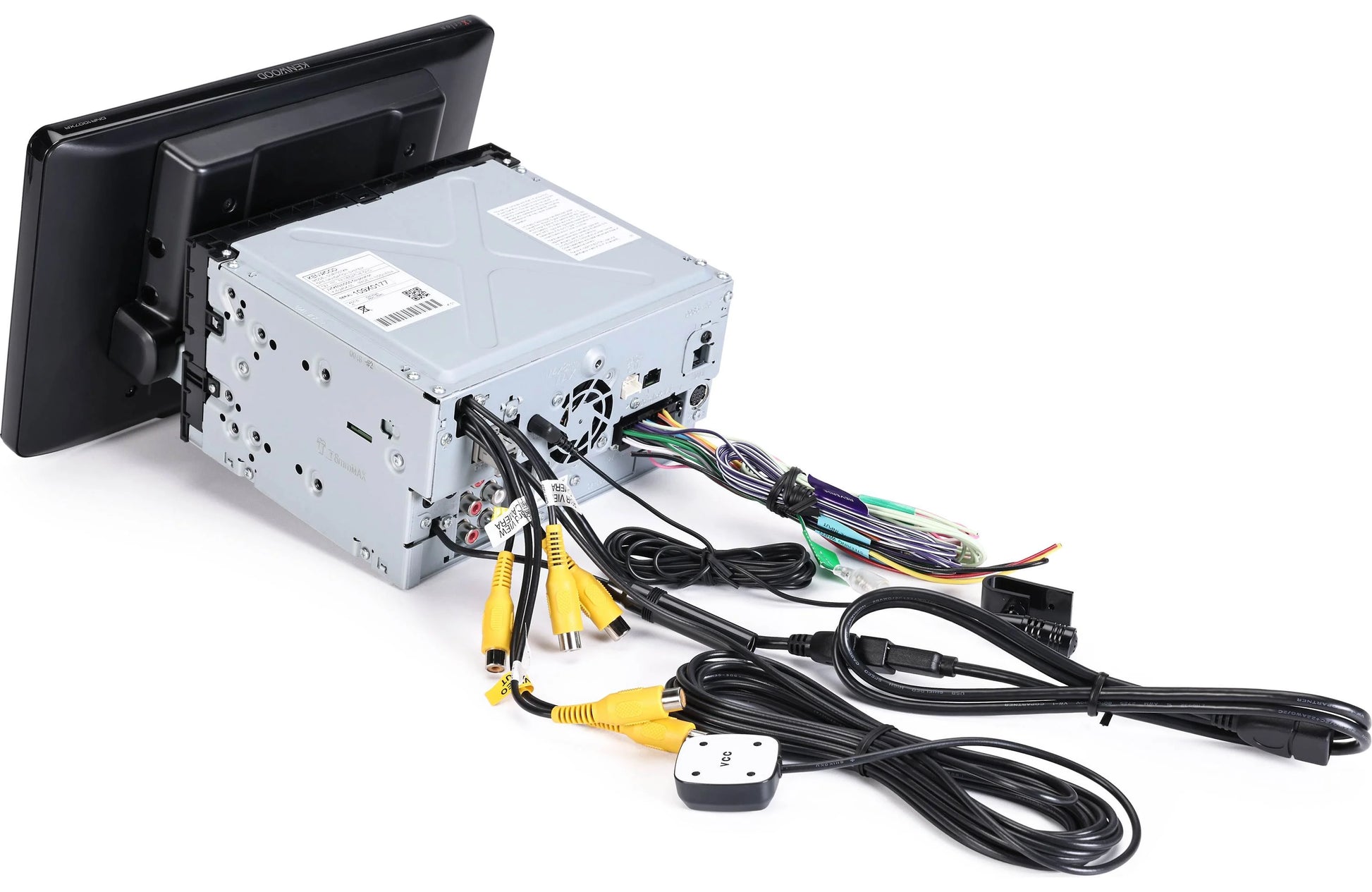

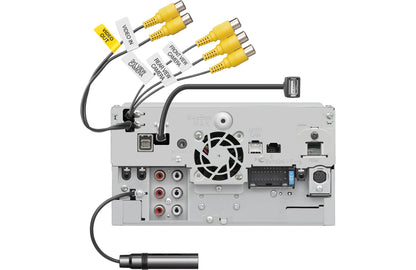

• inputs: rear USB input, HDMI input, rear A/V input (composite RCA video and 3.5mm audio), SD card input (for Garmin software), four camera inputs (including 2 high-def inputs and DRV-N520 input)
• outputs: rear A/V output, 6-channel preamp outputs (5-volt front, rear, subwoofer)

Other info:

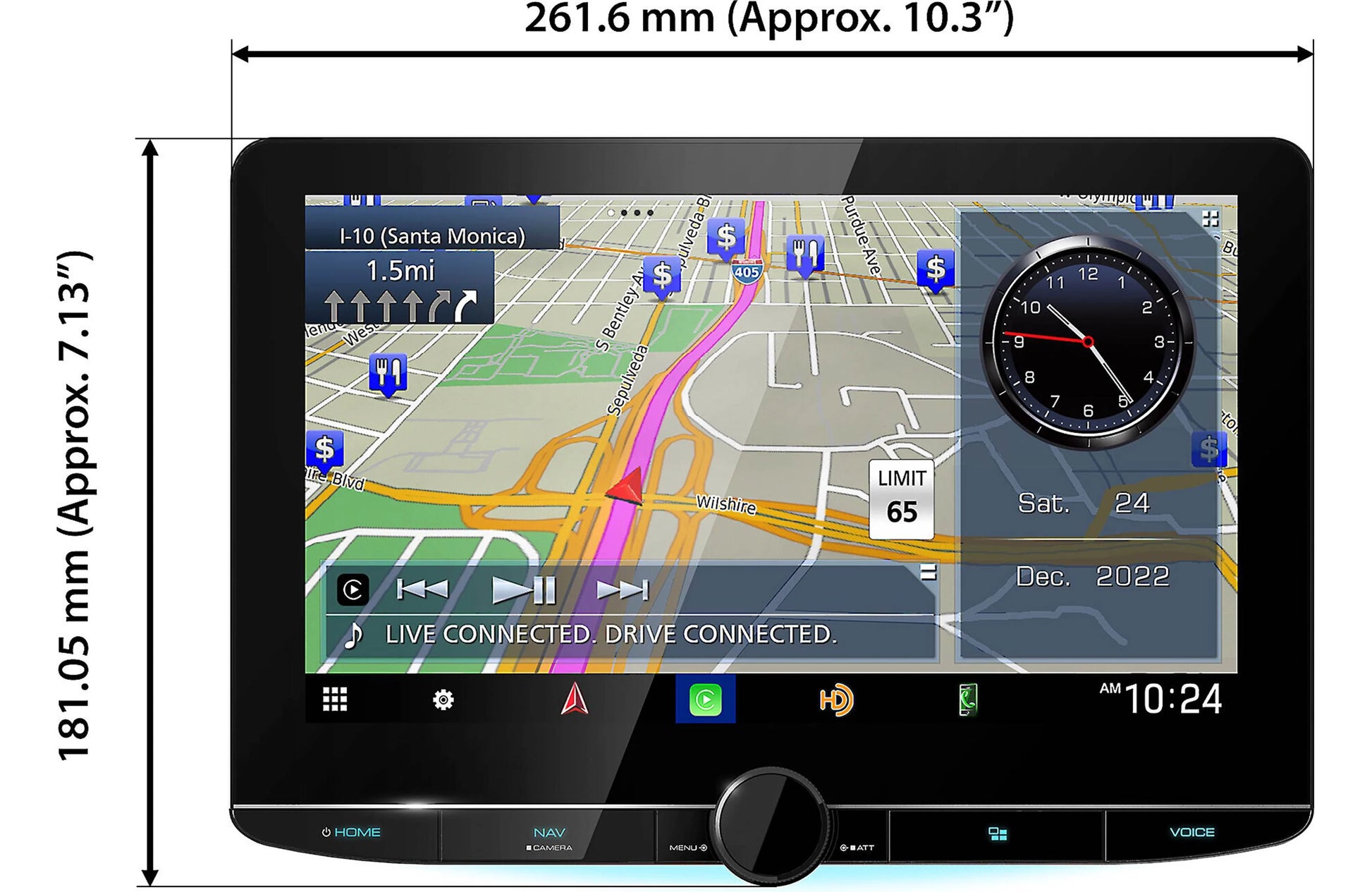

• Important note — Monitor dimensions are 10.313" x 7.125". Before ordering, check for possible interference with your dash.

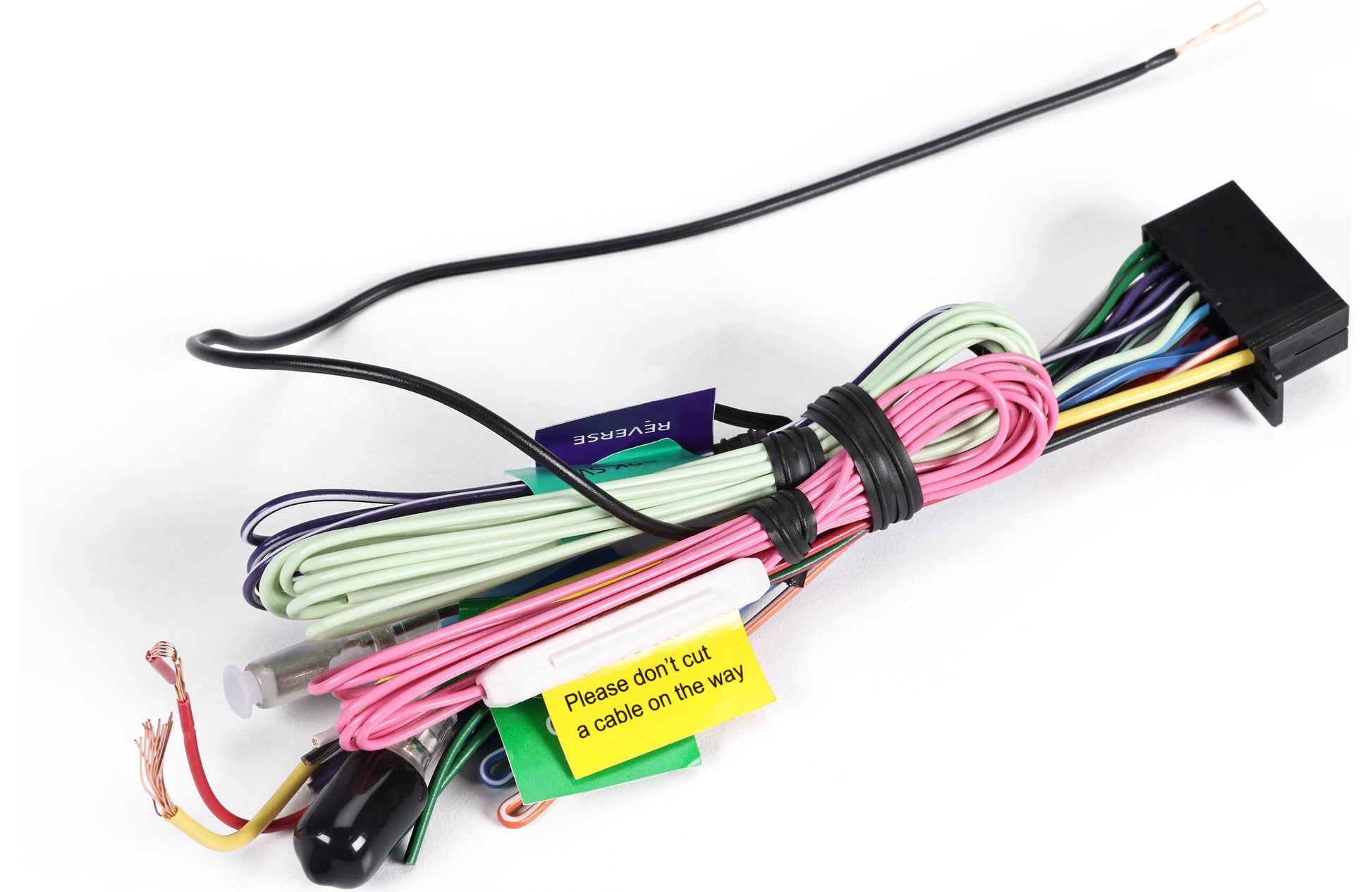

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in internal amp (22 watts RMS/50 peak x 4 channels)
• works with iDataLink Maestro modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance and other vehicle data on touchscreen
  • K40/Escort radar detector-ready
• compatible with most factory steering wheel audio controls (adapter required)
• warranty: 2 years
