The

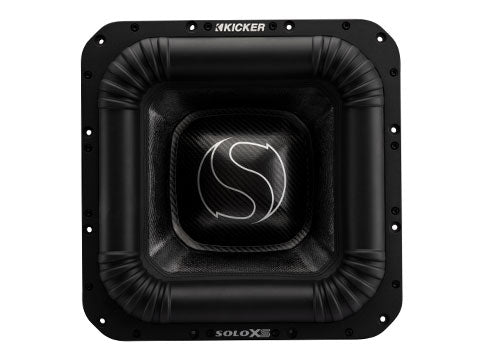

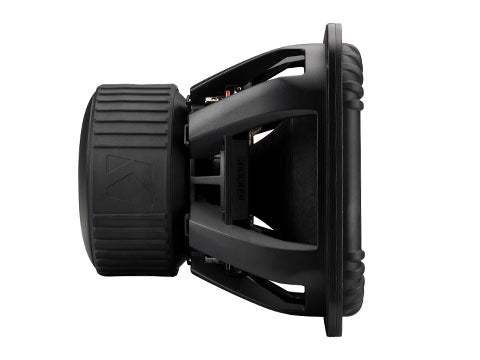

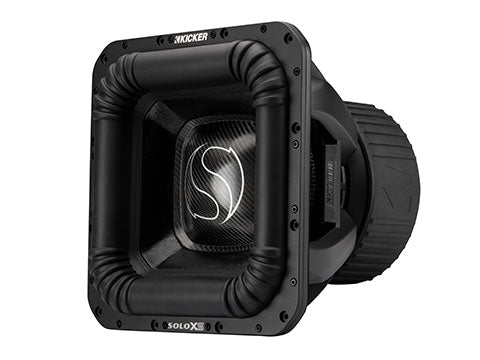

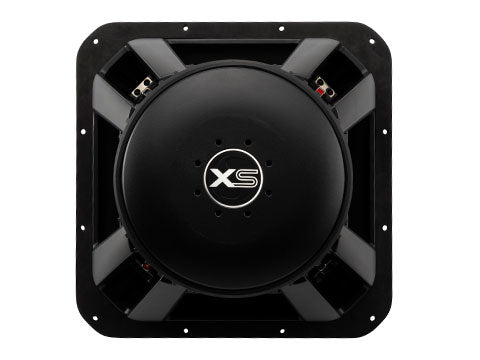

Kicker SoloXS L7XS 15-Inch Dual 1-Ohm Subwoofer (Model: 52L7XS151) is
a pro-competition square subwoofer engineered for brutal SPL (Sound Pressure Level) performance. It scales down the raw footprint of the massive 18-inch version into a slightly more manageable 15-inch layout while retaining a colossal
3,000 Watts RMS power capacity.
This square monster is built for car audio enthusiasts looking to dominate bass competitions with high power handling, unmatched structural excursion, and quick on-site serviceability.
🔊 Product Overview & Design
-
Square Cone Superiority: By utilizing a square shape instead of a standard circle, the speaker gains over 20% more total moving surface area. More surface area translates directly to moving more air and generating deeper, punchier bass.
-
Glue-Free Recone System: Just like its bigger brother, the 15-inch SoloXS features a completely field-replaceable recone assembly. If you push the speaker past its limits at a competition, you can swap out the pre-assembled cone, surround, and voice coil in roughly 10 minutes using alignment pins and a 4mm Allen wrench—no messy adhesives required.
-
Impedance Flexibility: The basket structure allows you to swap your voice coil setup seamlessly. If you upgrade your amplifiers and need a different load, you can drop a 2-ohm replacement kit into this exact same 1-ohm chassis block.
🛠️ Technical Specifications
The technical specifications showcase a heavy-duty frame anchored by an enormous magnetic motor:
| Feature
|
Specification
|
Technical Description
|
|
Power Handling (RMS)
|
3,000 Watts
|
The continuous electrical power the subwoofer handles safely.
|
|
Recommended Amp Power
|
1,500 to 3,000 Watts RMS
|
The optimal power range needed to fully exercise the suspension.
|
|
Voice Coil Layout
|
Dual 1-Ohm
|
Two internal coils for versatile wiring configurations (Parallel down to 0.5Ω or Series up to 2Ω).
|
|
Voice Coil Diameter
|
3 Inches
|
A large copper coil wound tightly onto an aluminum former to withstand intense heat.
|
|
Magnet Motor Mass
|
705 Ounces
|
A triple-stacked ferrite motor assembly spanning nearly 10 inches wide.
|
|
Xmax (Linear Excursion)
|
43.1 mm (1.71 inches)
|
Extreme physical travel distance to displace massive amounts of air.
|
|
Frequency Response
|
18 Hz - 100 Hz
|
Tuned to play low-frequency bass notes that roll straight through your body.
|
|
Mounting Depth
|
11-9/16 Inches
|
The minimum structural clearance depth needed inside the box.
|
|
Cutout Size
|
13-3/4 Inches
|
The exact dimensions of the square hole layout for mounting.
|
🧬 Materials & Structural Engineering
-
The Cone: Constructed using a heavy-duty, double-pressed pulp (paper) cone finished in black. Pressed pulp is highly favored by competitive audio builders due to its lightweight stiffness and natural acoustics under high pressure.
-
The Surround: Uses Kicker's proprietary, oversized Nitrile Butadiene Rubber (NBR) surround. This tall, thick border enables extreme peak-to-peak cone stretching without cracking or losing suspension control.
-
Suspension Layout: Anchored by an extra-large dual spider system made from heavy meta-aramid fiber to keep the 3-inch voice coil centered during violent strokes. Power delivery is handled via thick, multi-strand dual tinsel leads.
-
Forced Air Cooling™: Incorporates custom aerodynamic cooling vents through the cast aluminum basket and motor structure. As the cone moves up and down, it acts as a pump, forcing hot air out and drawing cool air in to keep the coil from melting.
-
Wiring Blocks: Features a single 8 AWG spring-loaded push terminal along with a dual 4 AWG terminal block to properly bite onto massive premium speaker wire links.
📦 Enclosure Recommendations
To match the high-displacement design of the SoloXS 15-inch driver, Kicker recommends a large, high-flowing enclosure:
-
Enclosure Type: Ported / Vented box only
-
Target Internal Volume: 5.0 cubic feet of net air space
-
Tuning Frequency: 30 Hz (optimized for competitive bass lanes and deep street tuning)
-
Port Dimensions: A slot opening of 4.25 x 16.5 inches with a total port length of 34.75 inches.
