Like the rest of the SoloXS ecosystem, this kit entirely eliminates messy glues, epoxy, and overnight drying times in favor of a fast mechanical bolt-in configuration.
📦 What's Included in the Box

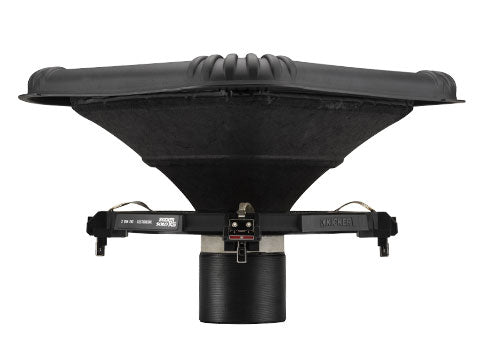

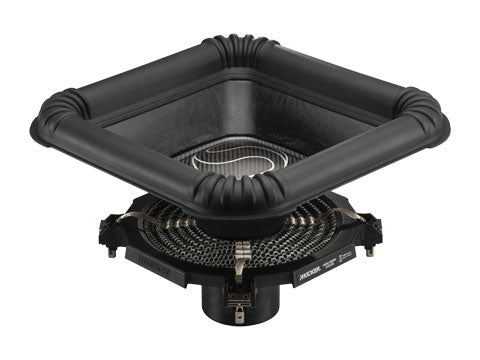

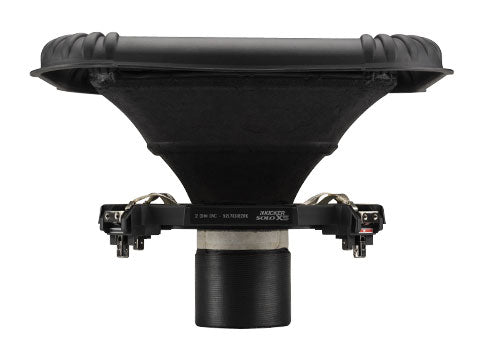

The kit comes fused together as one complete moving assembly cartridge to guarantee perfect factory suspension alignment:
-
Square Pulp Paper Cone: The signature 15-inch black, double-pressed pulp cone designed for intense structural stiffness under brutal air pressure.
-
Tall NBR Rubber Surround: An oversized Nitrile Butadiene Rubber border that allows for a massive 43.1 mm (1.71 inches) of linear Xmax excursion without tearing.
-
3-Inch Dual 1-Ohm Voice Coil: A high-temperature copper voice coil pre-wound on a rugged aluminum former, spec'd to handle the subwoofer's 3,000 Watts RMS threshold.
-
Dual-Spider Suspension: Dual lower textile springs made of heavy meta-aramid fibers to keep the voice coil perfectly straight during deep bass strokes.
-
XS Spacing Alignment Pins: Specialized metal guide needles used during mounting to center the voice coil inside the magnetic gap without rubbing.
-
Impedance Swapping Freedom: One of the greatest engineering perks of the SoloXS lineup is total motor cross-compatibility. If your original subwoofer was a Dual 2-Ohm unit (52L7XS152), but your new amplifier layout functions best at a lower load, you can safely drop this Dual 1-Ohm kit directly into your existing metal frame and magnet motor structure.
-
Severe Mechanical Cost Savings: Instead of scraping or replacing a fully intact, expensive 705-ounce triple-stacked magnet and aluminum basket assembly, you only swap the soft parts that melted or broke.
-
No Field Downtime: Designed with competitive SPL lanes and hard-hitting demo cars in mind, a complete rebuild requires nothing more than a few minutes and basic hand tools.
The swap is purely mechanical and requires a standard 4mm Allen wrench:
-
Unbolt Top Hardware: Back out the perimeter bolts around the outer cosmetic trim ring, and remove the screws pinning down the lower spider landing to the basket frame.
-
Slide the Blown Cone Out: Pull the old, destroyed cone cartridge straight up and away from the subwoofer.
-
Debris Cleanout: Inspect the deep, round magnet gap. Use compressed air or heavy tape to fish out any remaining burnt coil wrap wire, ash, or dust particles.
-
Insert Alignment Shims: Flip the subwoofer on its side or face and slide the included alignment pins up through the Forced Air Cooling vents located on the back of the magnet structure. This creates a centered inner barrier walls guide inside the gap.
-
Drop in the 52L7XS151RK: Slide the fresh voice coil of the new kit down over the guide needles until the frame fits flush against the basket spider landing.
- Cross-Bolt and Complete: Secure the spider landing bolts down using an alternating crisscross pattern to maintain even tension. Slide the alignment needles out from the bottom vents, put the top rim back on, and wire it up to play.
