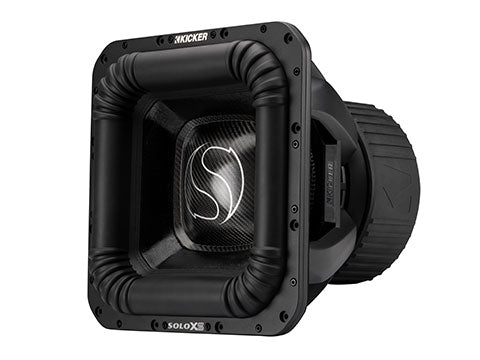

The
Kicker 52L7XS152 SoloXS L7XS 15-Inch 2-Ohm DVC Subwoofer is
a premium, competition-grade square subwoofer designed for extreme Sound Pressure Level (SPL) performance and ultra-deep bass. Engineered as an upscale evolutionary step beyond the standard SoloX lineup, the SoloXS platform introduces a significantly larger motor structure, an enormous magnet, and nearly double the cone excursion capability to move massive amounts of air while remaining musical and controlled.
The
Kicker SoloXS L7XS 15-Inch Subwoofer is built specifically for hardcore car audio enthusiasts, show cars, and competition lanes. Its iconic square shape provides a larger cone surface area than traditional round 15-inch subwoofers, pushing substantially more air to generate harder-hitting low frequencies.
Key design elements focus on heavy daily abuse, exceptional heat management, and hassle-free serviceability:
-
No-Glue Field-Replaceable Recone System: If a competitor blows a cone or voice coil, the entire assembly can be swapped out on-site in roughly 15 to 20 minutes. The user simply unbolts the structural components on the spider landing and top trim ring without dealing with messy adhesives.
-
Interchangeable Impedance: Unlike older competition platforms, the SoloXS design allows users to swap between 1-Ohm and 2-Ohm recone kits on the exact same motor basket assembly.
-
Extreme Requirements: Weighing nearly 100 pounds due to its massive build, this speaker requires substantial supporting vehicle modifications, such as an upgraded heavy-duty high-output alternator.
The technical architecture of the Kicker SoloXS L7XS is engineered to withstand extreme electronic and mechanical stress.
| Parameter
|
Specification
|
|
Model Number
|
52L7XS152
|
|
Speaker Size
|
15 inches (Square Platform)
|
|
Continuous Power Handling (RMS)
|
1,500 – 3,000 Watts
|
|
Peak Power Handling
|
6,000 Watts
|
|
Voice Coil Configuration
|
Dual 2-Ohm (DVC)
|
|
Voice Coil Diameter
|
3 inches (75 mm)
|
|
Voice Coil Winding Width
|
3.4 inches
|
|
Linear Excursion (Xmax)
|
43.1 mm (1.71 inches)
|
|
Total Magnet Weight
|
705 ounces
|
|
Magnet Diameter
|
9.85 inches (22 cm)
|
|
Frequency Response
|
18 Hz – 100 Hz
|
|
Total Subwoofer Weight
|
99.10 lbs
|
Component & Structural Material Details
-
Cone Material: Formed from heavy-duty, double-pressed glass-fiber paper pulp to prevent distortion under extreme pressure.
-
Surround: High-profile, extra-tall custom Nitrile Butadiene Rubber (NBR) surround designed to handle intense back-and-forth movement.
-
Suspension: Extra-large dual-spider arrangement constructed from stout, premium-tier materials coupled with thick, high-strand dual tinsel leads to securely supply power directly to the moving voice coils.
-
Motor Basket: Heavy die-cast aluminum frame optimized with extensive ventilation to maximize cooling performance.
-
Cooling Technology: Employs Forced Air Cooling™, incorporating dedicated base and bottom venting holes to circulate fresh air in and blast heated air out, protecting the long voice coil assembly under intense operations.
-
Wiring Terminals: Features a heavy-duty single 8 AWG push terminal block alongside a dual 4 AWG block for ultra-secure, thick gauge power cables. [1, 2, 3, 4, 5, 6, 7]
Enclosure & Installation Dimensions
-
Mounting Depth: 11 9/16 inches (29.4 cm)
-
Cutout Hole Dimension: 13 3/4 inches (34.9 cm)
-
Optimum Vented Box Volume: 5.0 cubic feet
-
Recommended Enclosure Tuning: Vented tuning at 30 Hz
-
Physical Port Dimensions: A port opening measuring 4.25 x 16.5 inches with a total slot port length of 34.75 inches. [1]
