CS Series CSS67

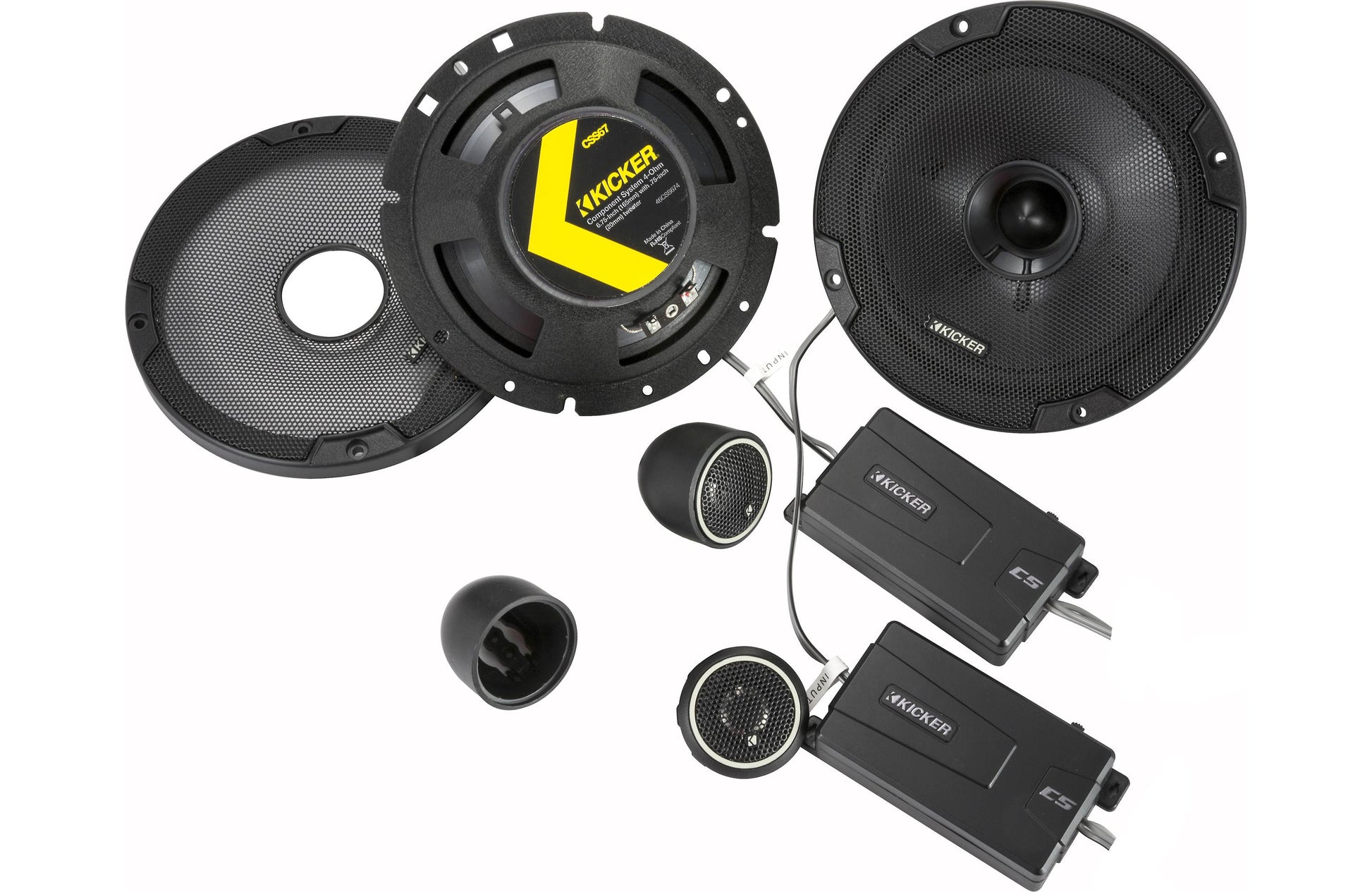

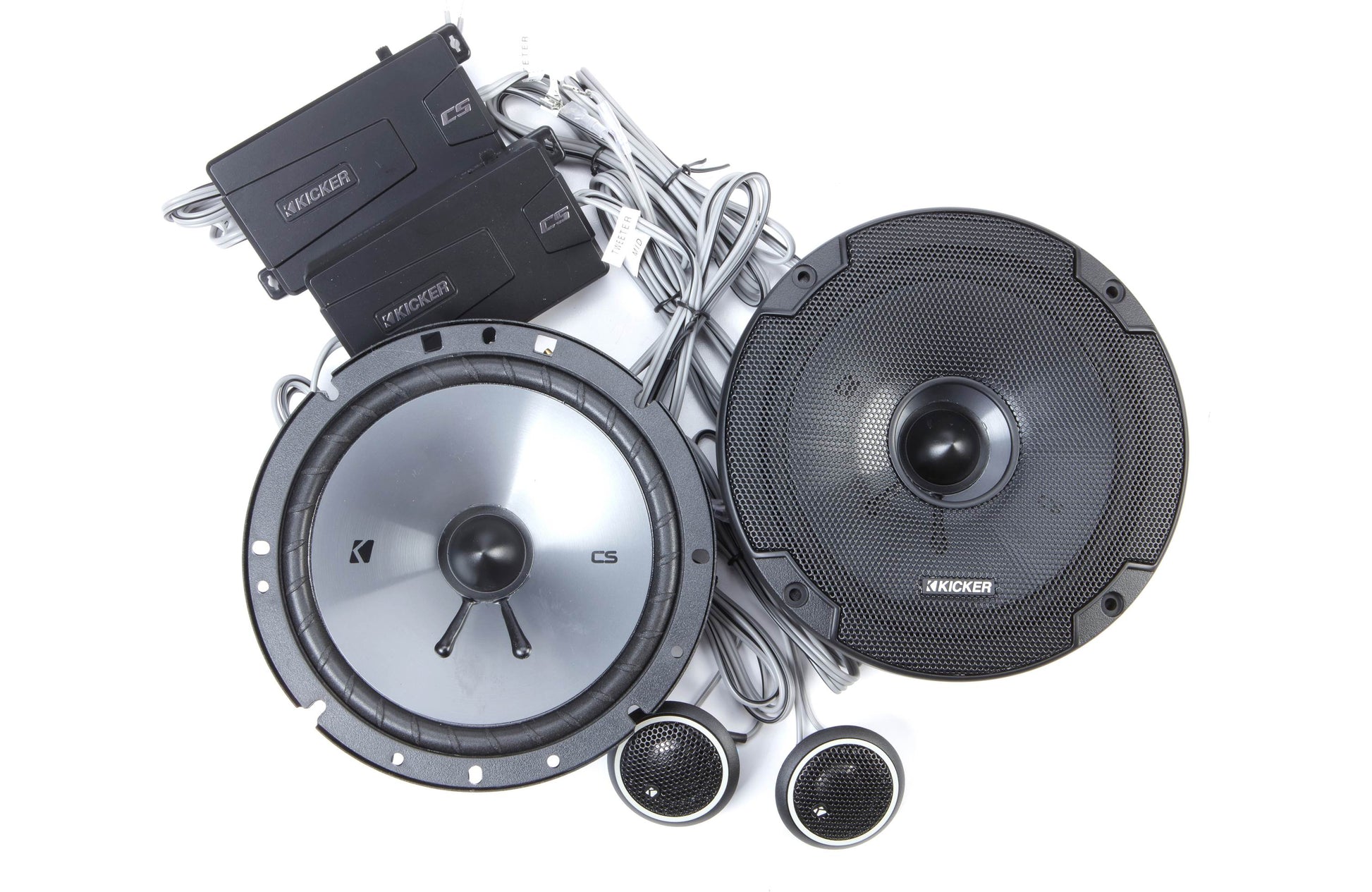

The CS-Series 6-3/4-inch Component Speakers are built for awesome sound that plays as long as the ride takes you.

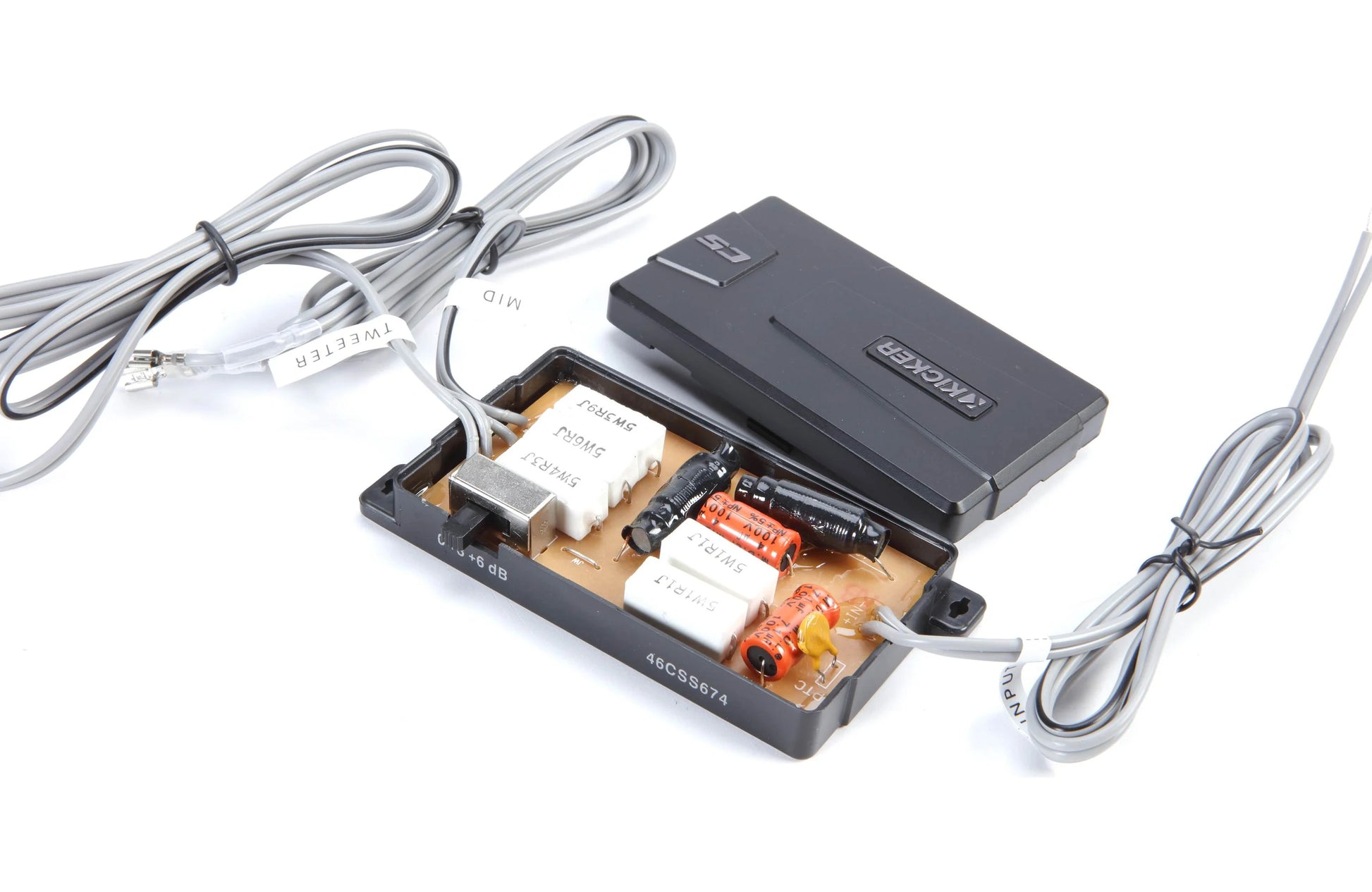

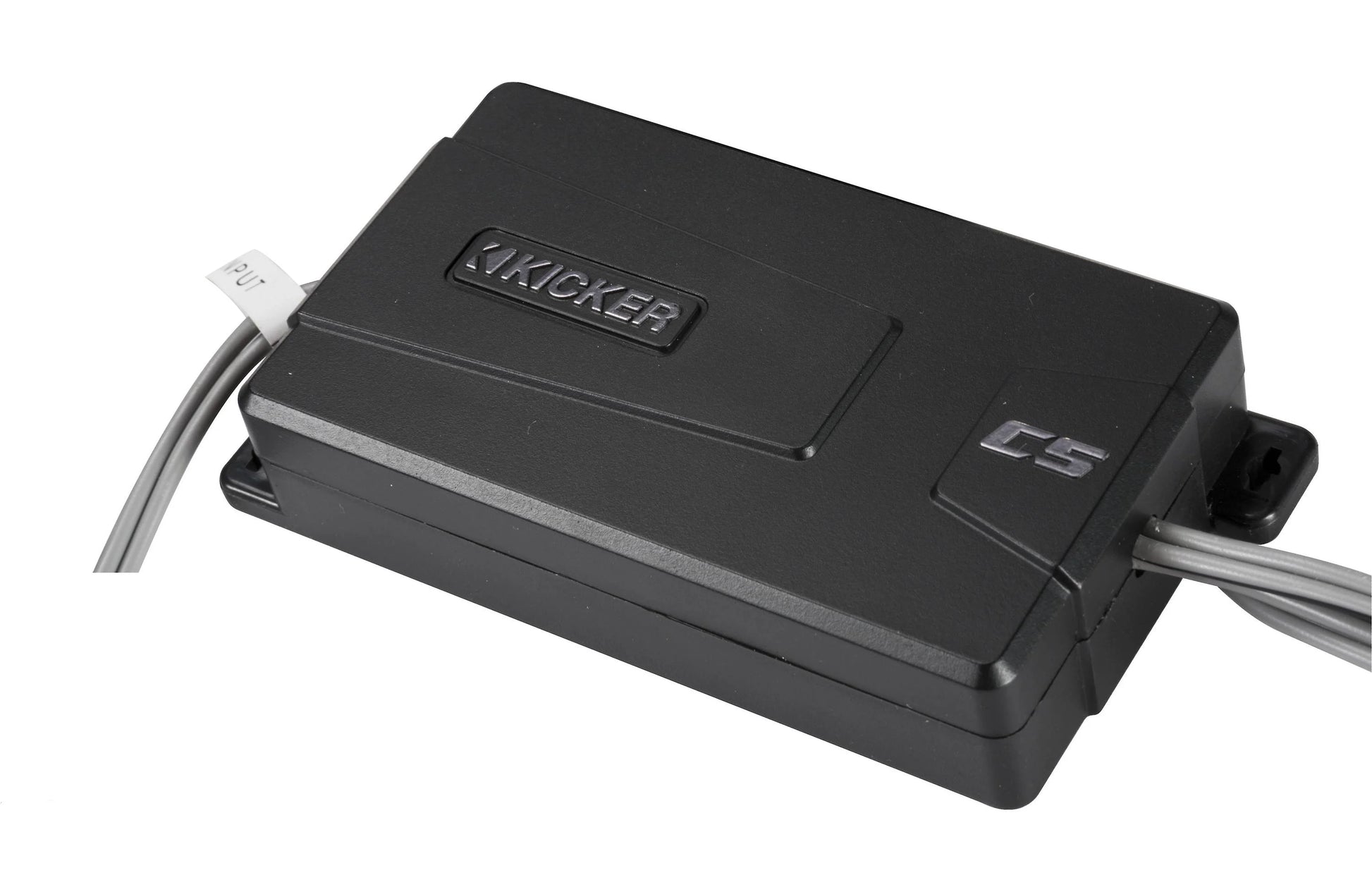

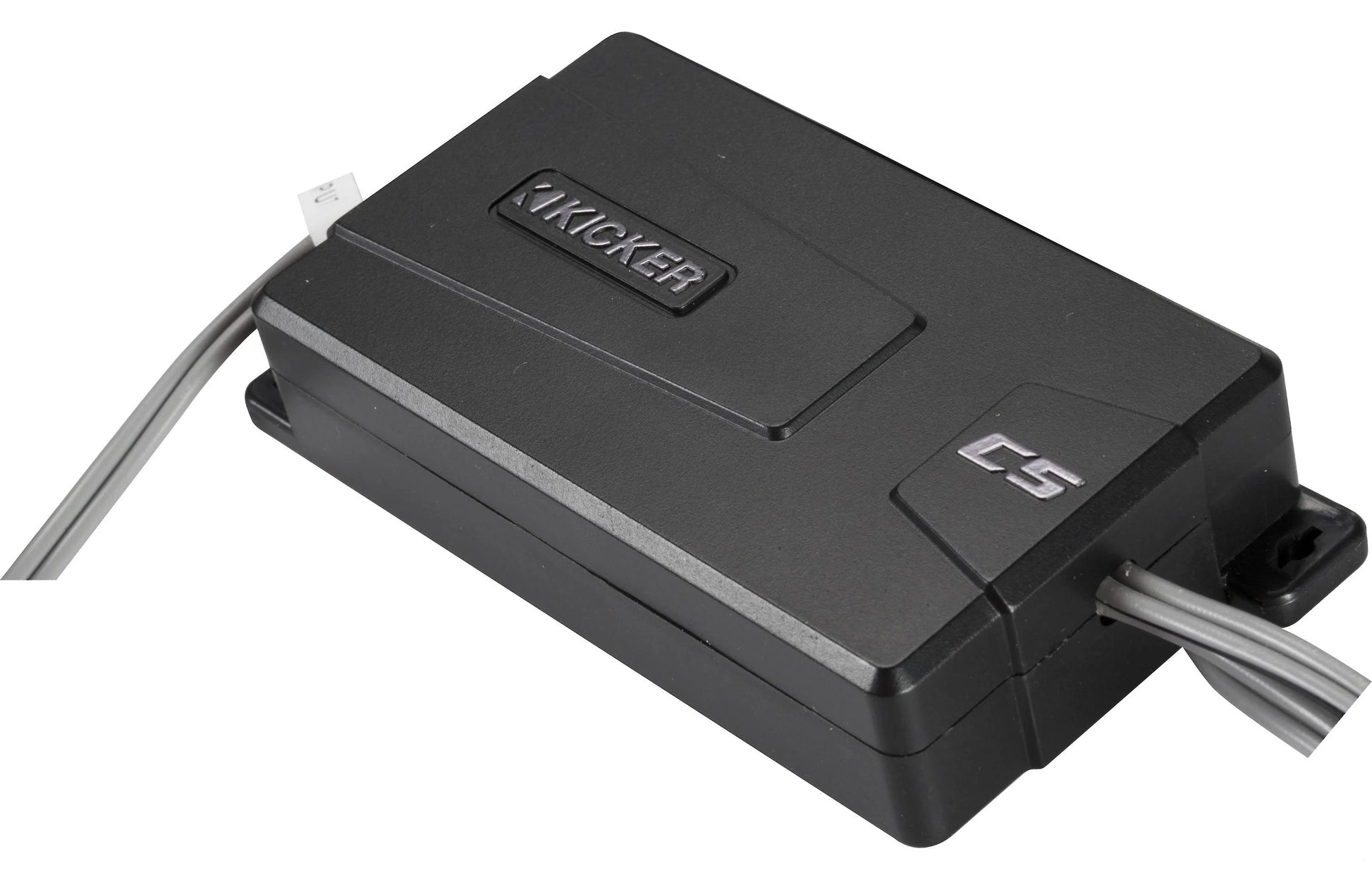

CS-Series components include titanium tweeters and two-way crossovers. Easily customize your sound with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB). The optimized footprint means great sound with hassle-free installation, no matter where you mount it!

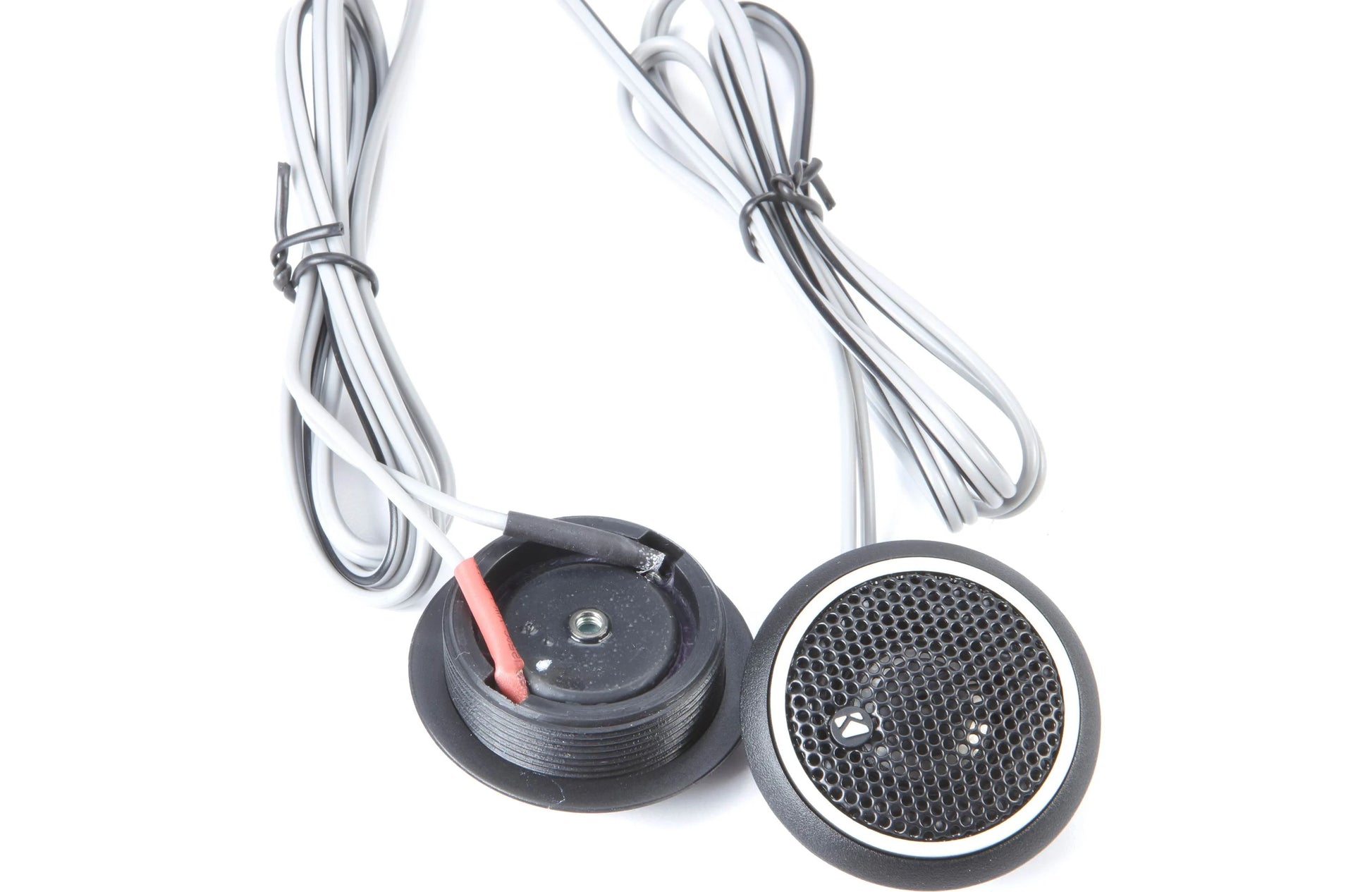

Mount the tweeter with the flush, angled or surface-mount tweeter pods, for outstanding imaging and a sophisticated look.
These CS-Series speakers work best with 100 watts of recommended power. See below for more details.
| Woofer Size | in [mm] |
| 6 3/4 [165] |
| Tweeter Size | in [mm] |
| 3/4 [20] |
| Dome Material |
| Titanium |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 300 |
| Recommended Amplifier Power (watts RMS) |
| 100 |
| Effective Frequency Range | Hz |
| 35-21k |
| Woofer Mounting Hole Diameter | in [mm] |
| 5 1/2 [140] |
| Woofer Bottom Mount Depth | in [mm] |
| 1 13/16 [47] |
| Flush Mounting Tweeter Hole Diameter | in [mm] |
| 1 9/16 [40] |
| Flush Mount Tweeter Depth | in [mm] |
| 9/16 [14.5] |
| High Pass | dB, at Frequency | Hz |
| 12, 4000 |
| Low Pass | dB, at Frequency | Hz |
| 12, 4000 |
| High Frequency Output Attenuation | dB |
| 0, 3, & 6 |
| Bolt-Thru Grilles |
| Yes |
