CS Series CSS69

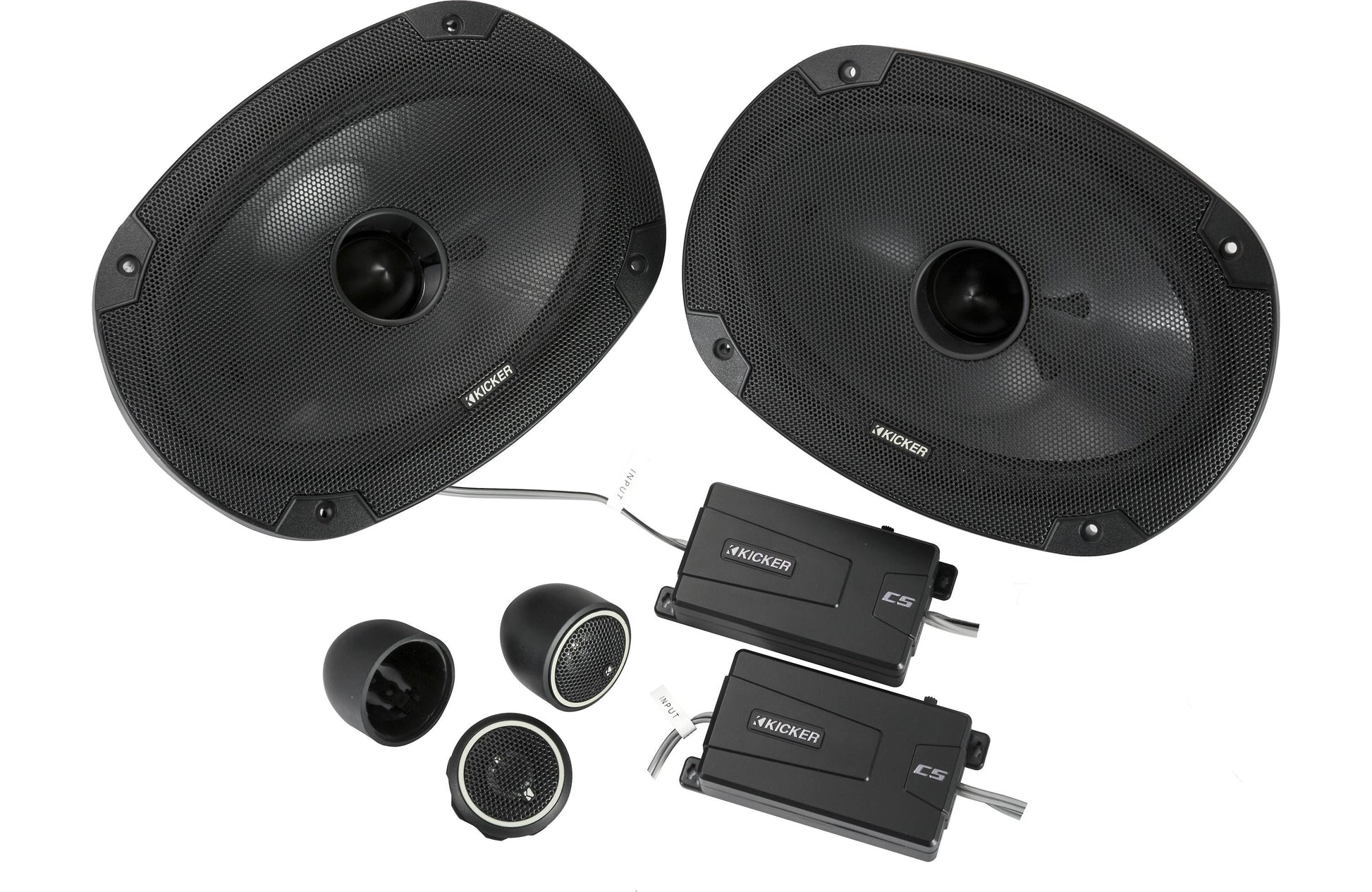

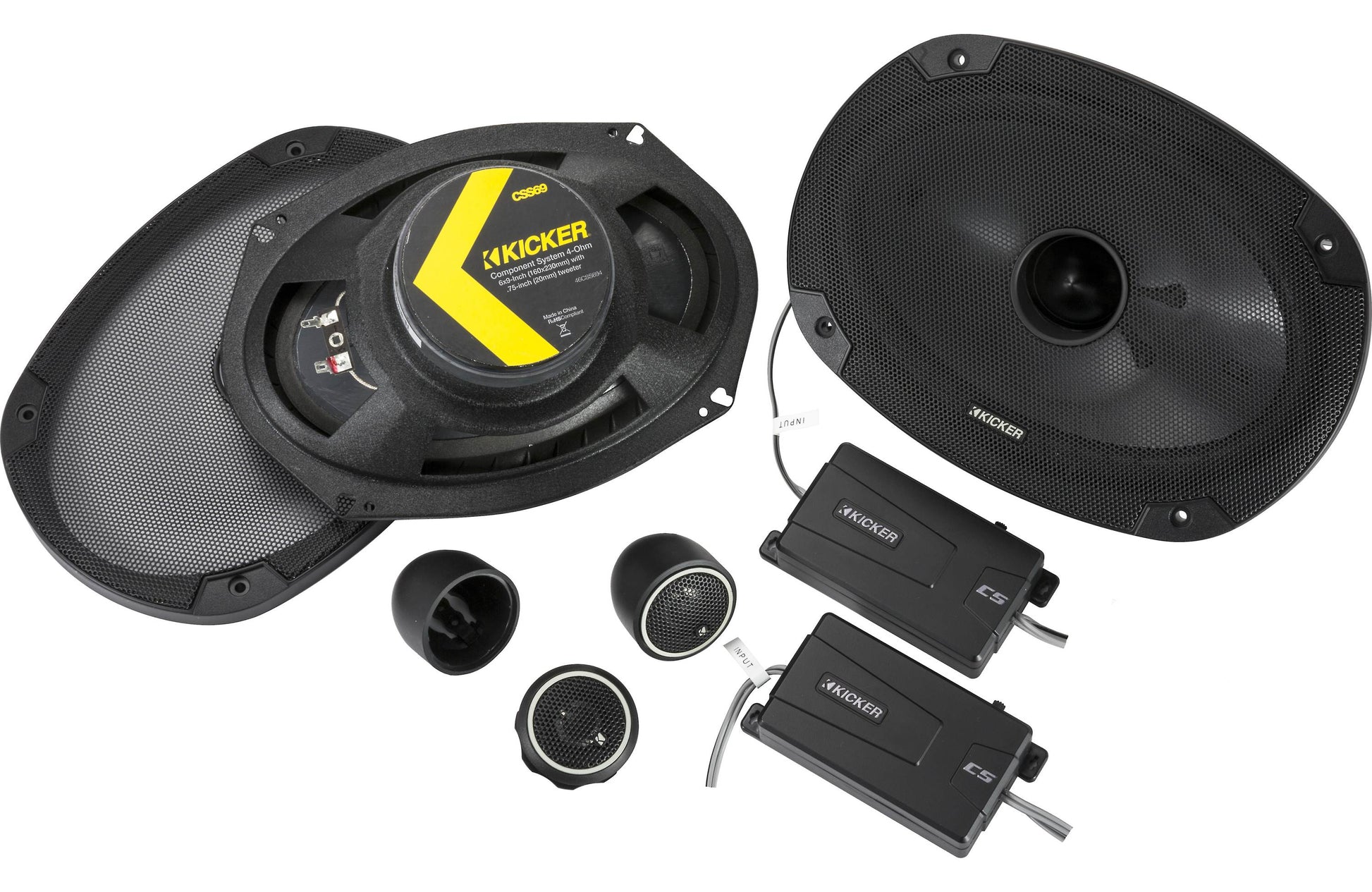

CS-Series 6x9-inch Component Speakers are built for awesome sound that plays as long as the ride takes you.

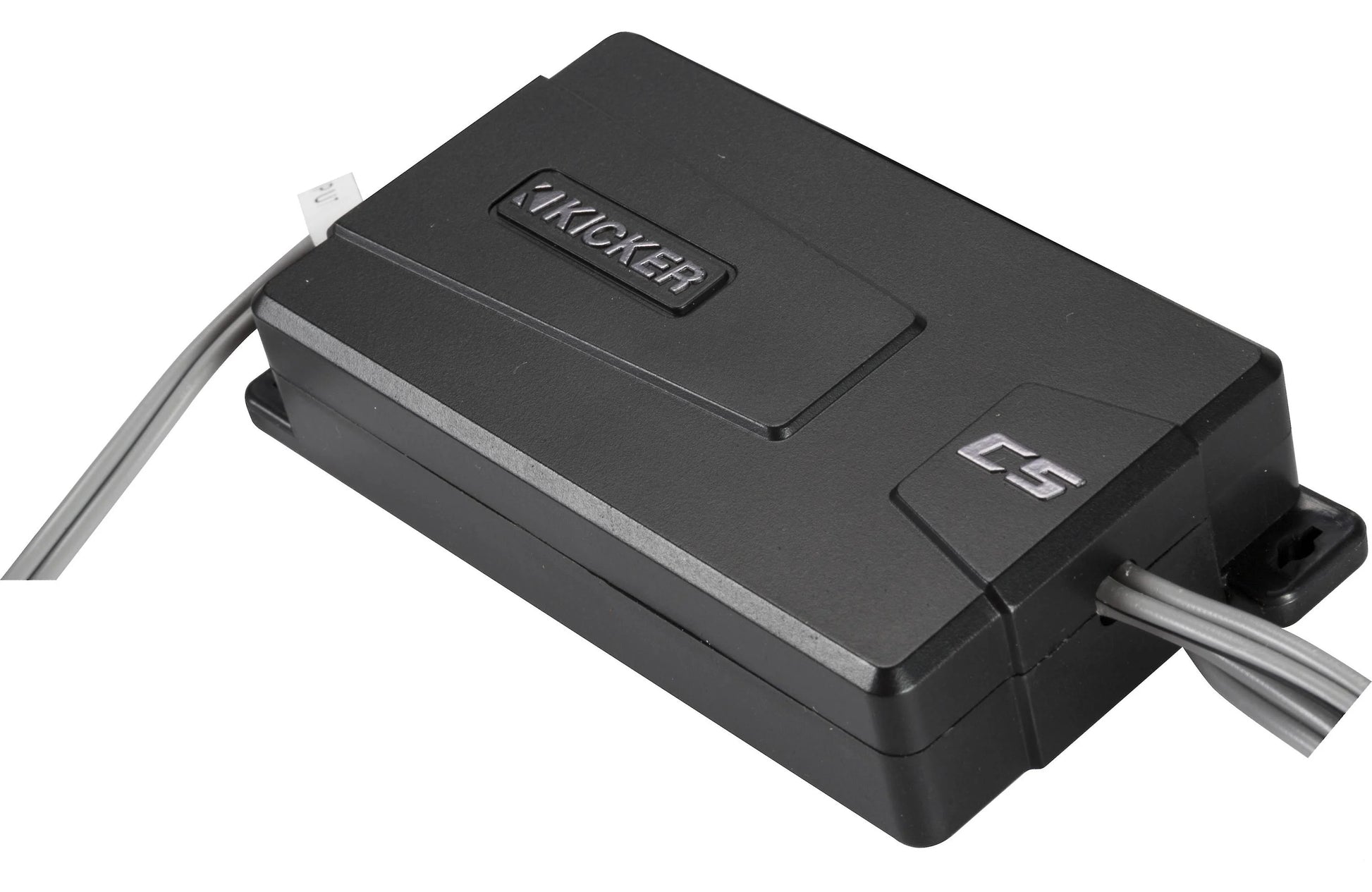

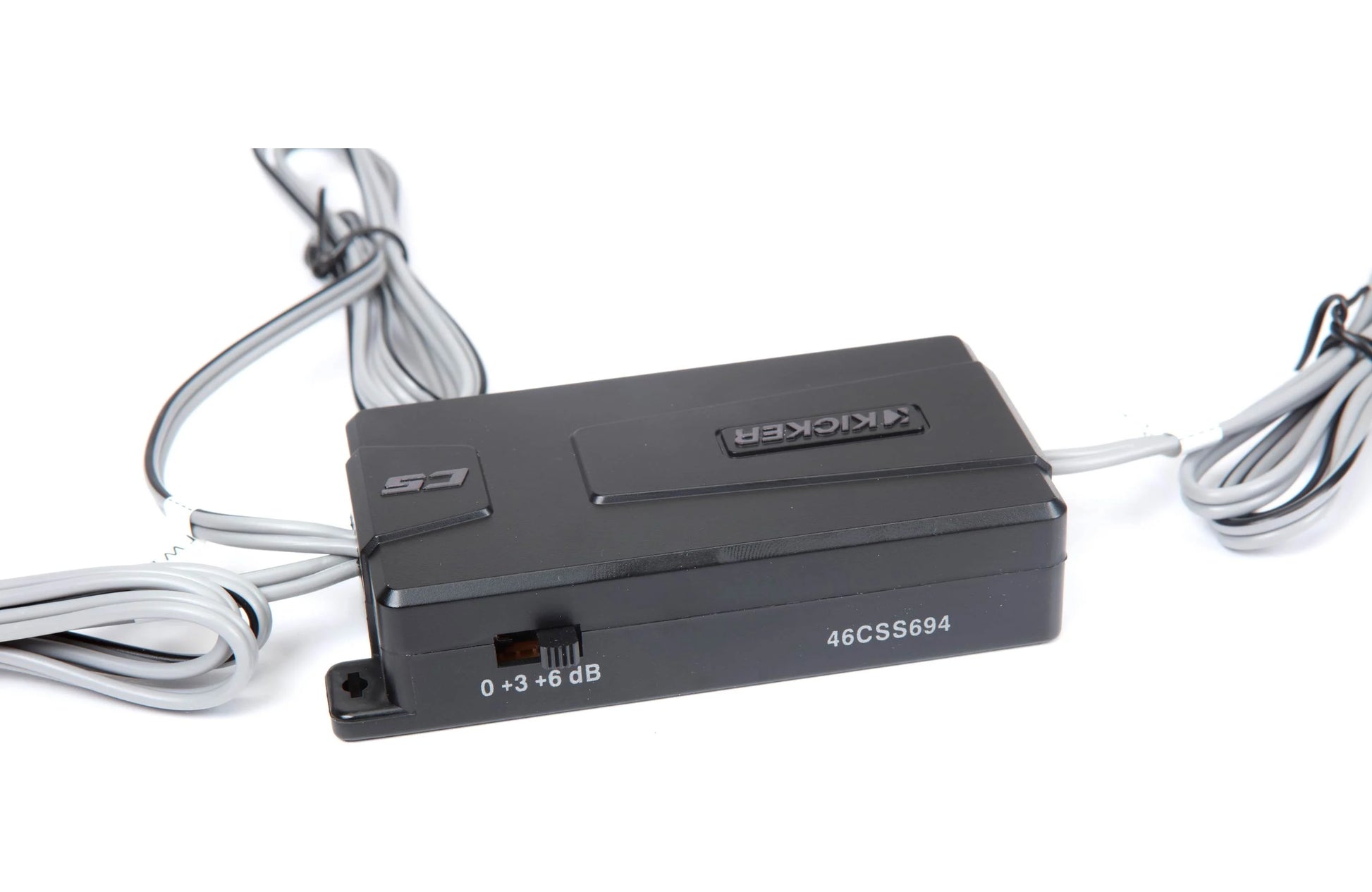

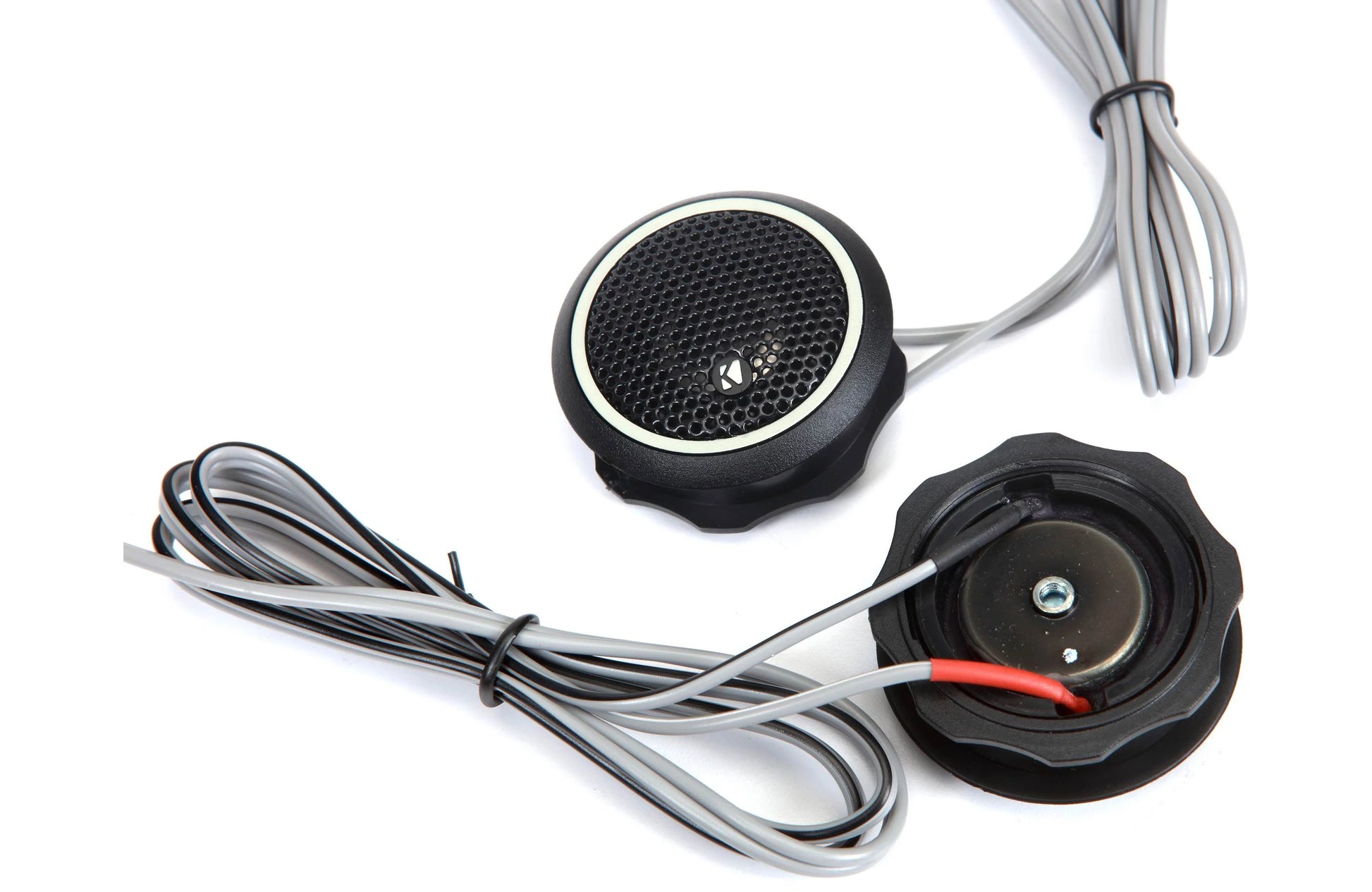

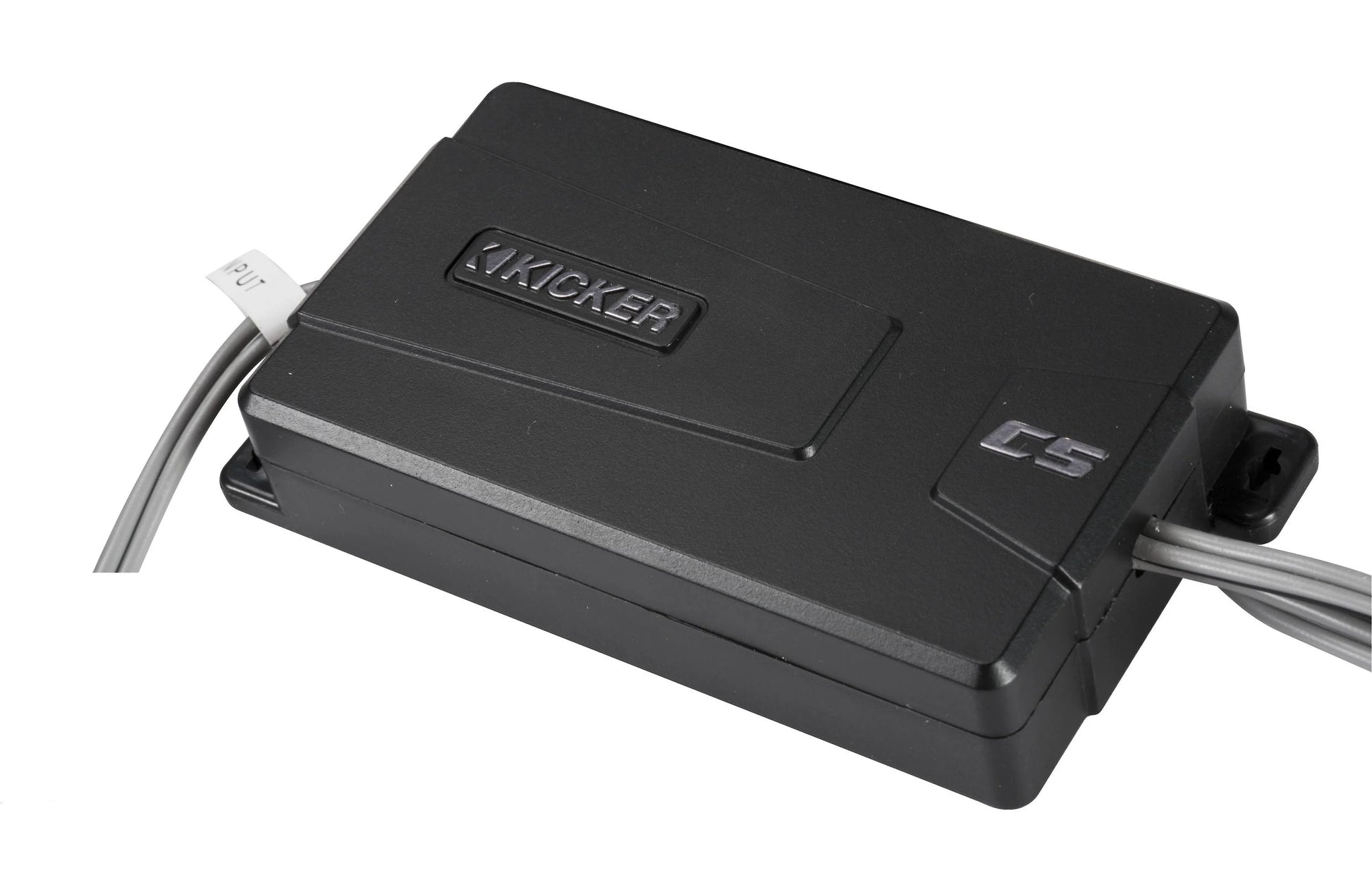

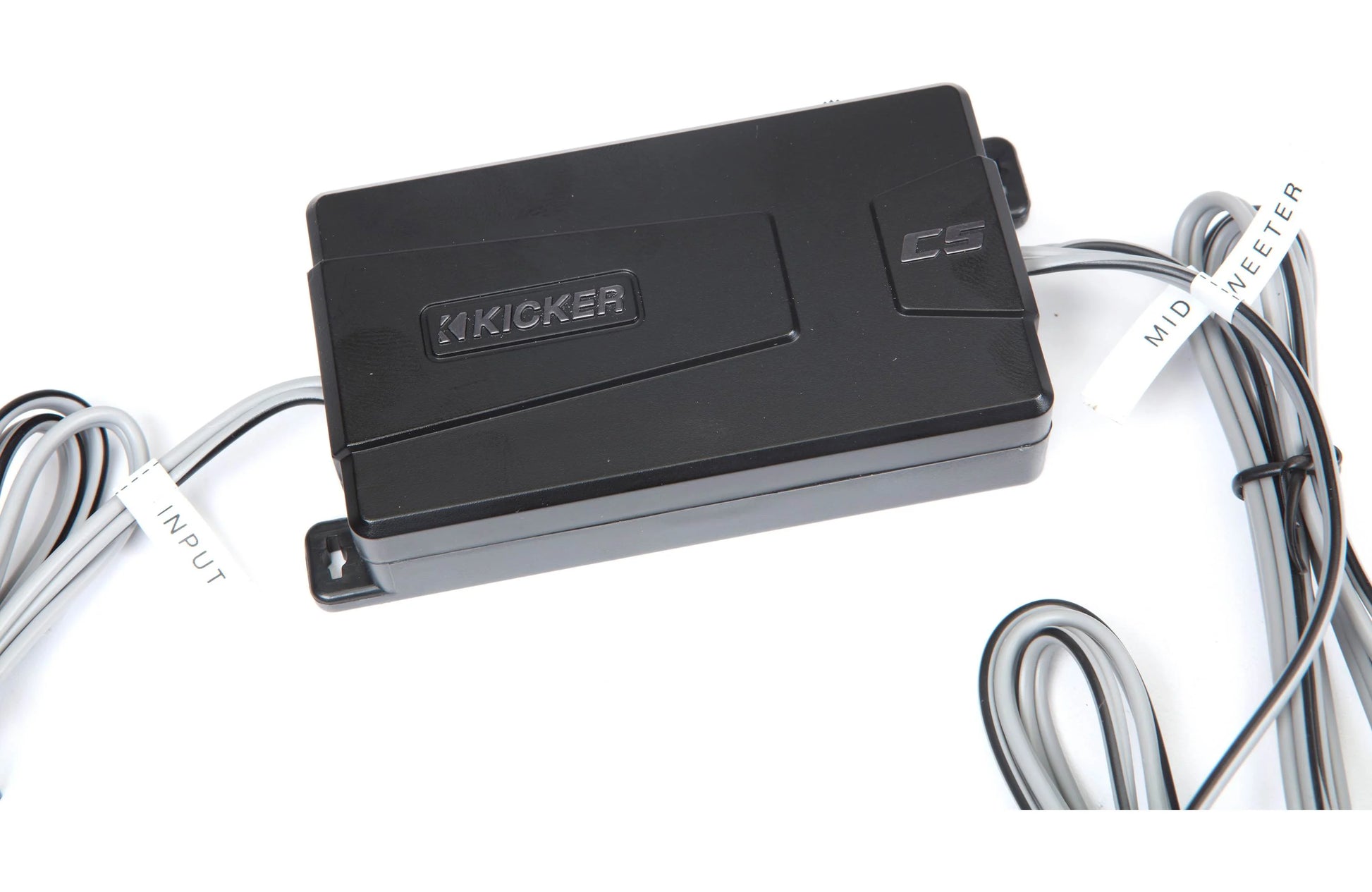

CS-Series components include titanium tweeters and two-way crossovers with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB), included in each external crossover. The optimized footprint means great sound with hassle-free installation, no matter where you mount it!
These CS speakers work best with 150 watts of recommended power. See below for more details.
| Woofer Size | in [mm] |
| 6x9 [160x230] |
| Tweeter Size | in [mm] |
| 3/4 [20] |
| Dome Material |
| Titanium |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 450 |
| Recommended Amplifier Power (watts RMS) |
| 150 |
| Effective Frequency Range | Hz |
| 30-21k |
| Woofer Mounting Hole Diameter | in [mm] |
| 5 5/8 x 8 7/16 [143x215] |
| Woofer Bottom Mount Depth | in [mm] |
| 3 3/16 [81] |
| Flush Mounting Tweeter Hole Diameter | in [mm] |
| 1 9/16 [40] |
| Flush Mount Tweeter Depth | in [mm] |
| 9/16 [14.5] |
| High Pass | dB, at Frequency | Hz |
| 12, 4000 |
| Low Pass | dB, at Frequency | Hz |
| 12, 4000 |
| High Frequency Output Attenuation | dB |
| 0, 3, & 6 |
| Bolt-Thru Grilles |
| Yes |
