CS Series CST20

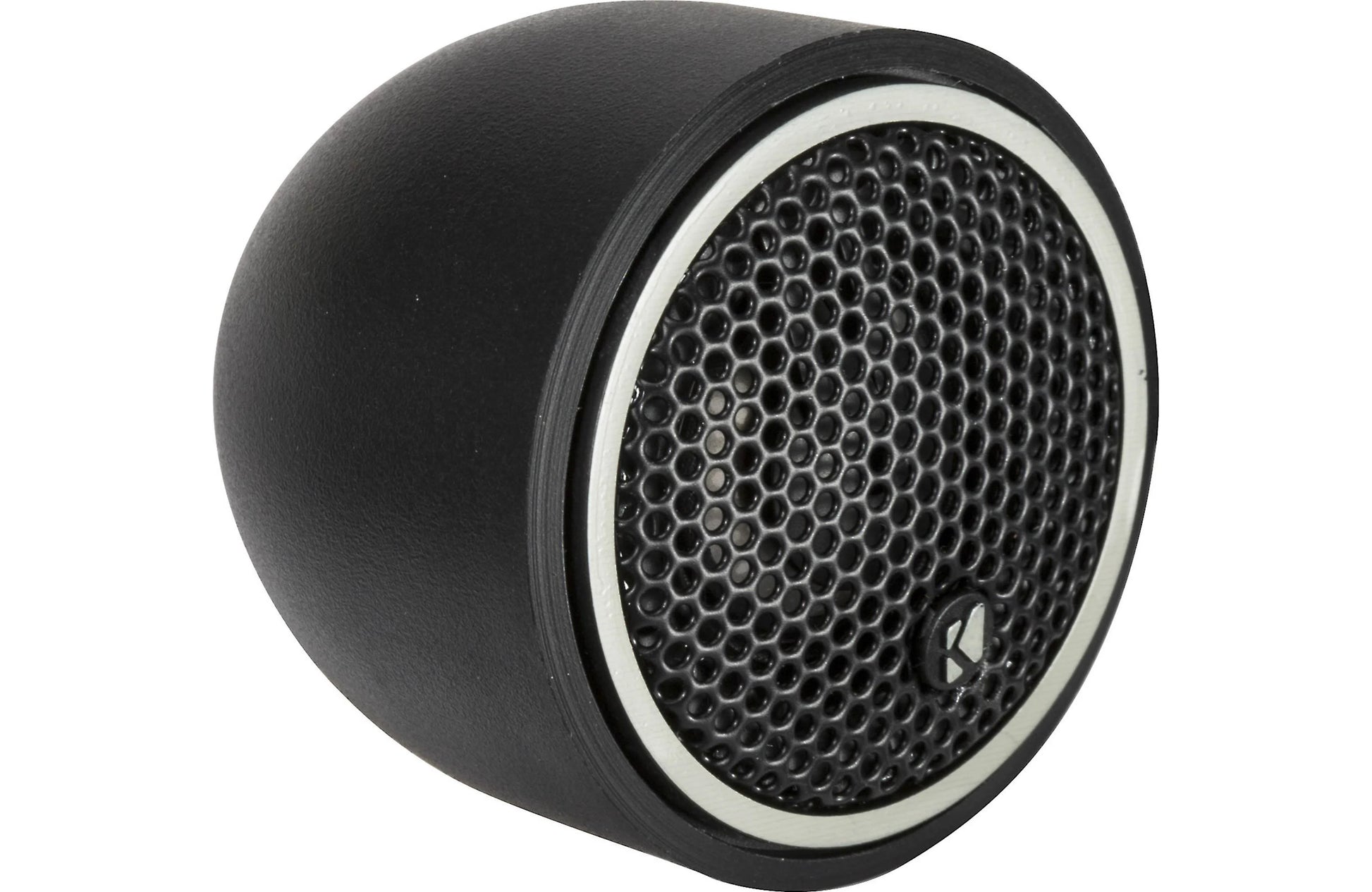

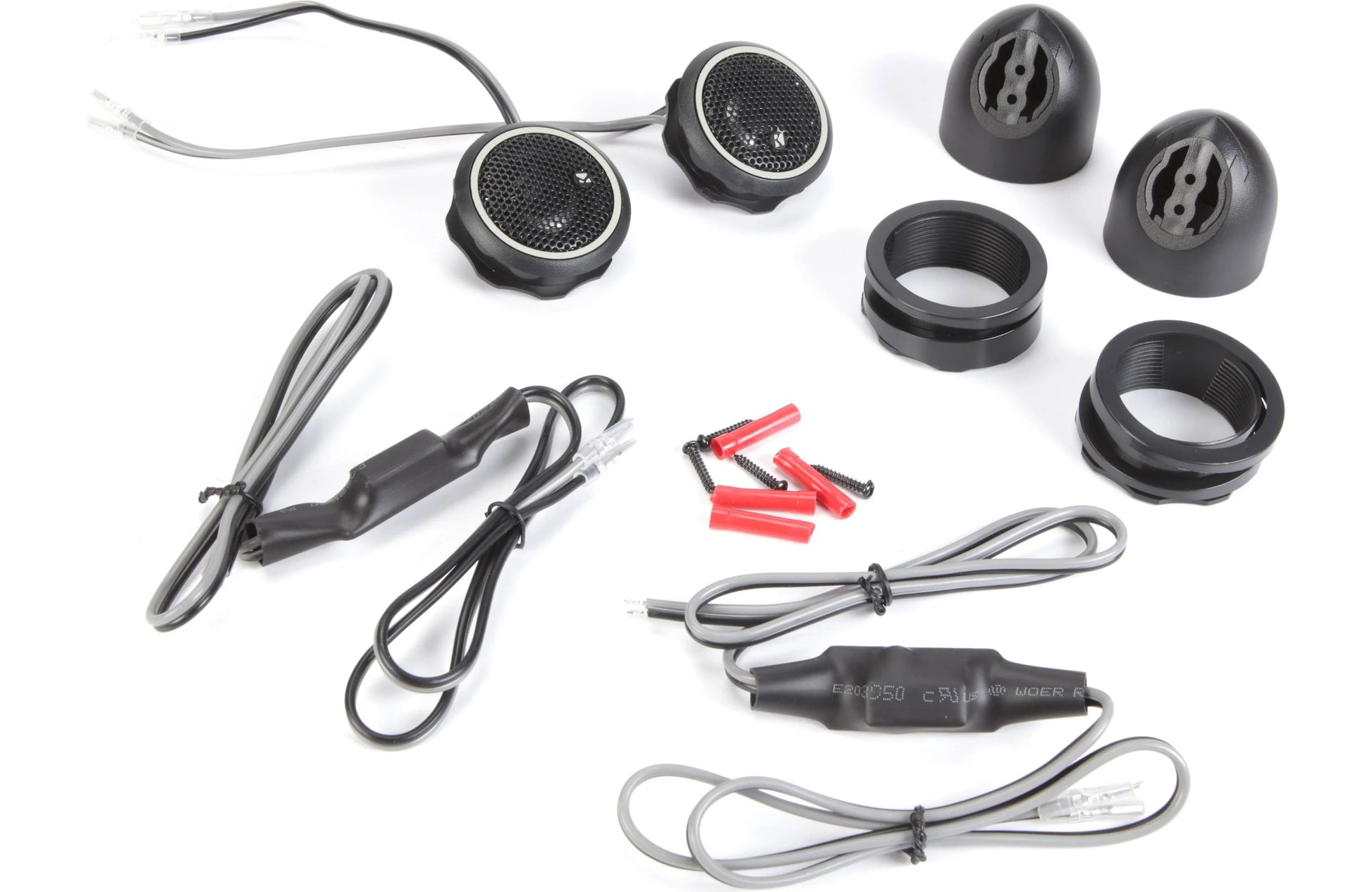

A complete acoustic upgrade in a single box, the ¾-inch titanium-dome tweeters are optimized to fit any vehicle with a flush, surface and angled mounting kit included. Getting a custom look to go with your custom sound has never been easier.
These tweeters work best with 50 watts of recommended power. See below for more details.
| Tweeter [in,mm] |
| 3/4, 20 |
| Dome Material |
| Titanium |
| Rated Impedance [Ω] |
| 4 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 100 |
| Recommended Amplifier Power (watts RMS) |
| 50 |
| Sensitivity [1W, 1m] |
| 92 |
| Frequency Response [Hz] |
| 4,500-21k |
| Flush Mount Tweeter Depth [in, mm] |
| 9/16, 14.5 |
| Flush Mount Tweeter Hole Diameter [in,mm] |
| 1-9/16, 40 |
| High Pass [dB], at Frequency [Hz] |
| 6, 4500 |
