Kicker

Kicker 49WXA36001 WXA3600.1 Mono Amplifier

Kicker 49WXA36001 WXA3600.1 Mono Amplifier

In stock

The Warhorse WXA3600.1 was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.
Model: 49WXA36001

  • price-tag logoNew Launch
$999.99
$999.99
Save: $-999.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Not your Average Amp

  • Features extreme reliability under intense bass power and overall use
  • Engineered completely in-house by KICKER R&D
  • Full-bridge Class-D design
  • Quad micro-controller-regulated cooling fans
  • Capable of daisy-chaining remote power across multiple amps
  • Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps

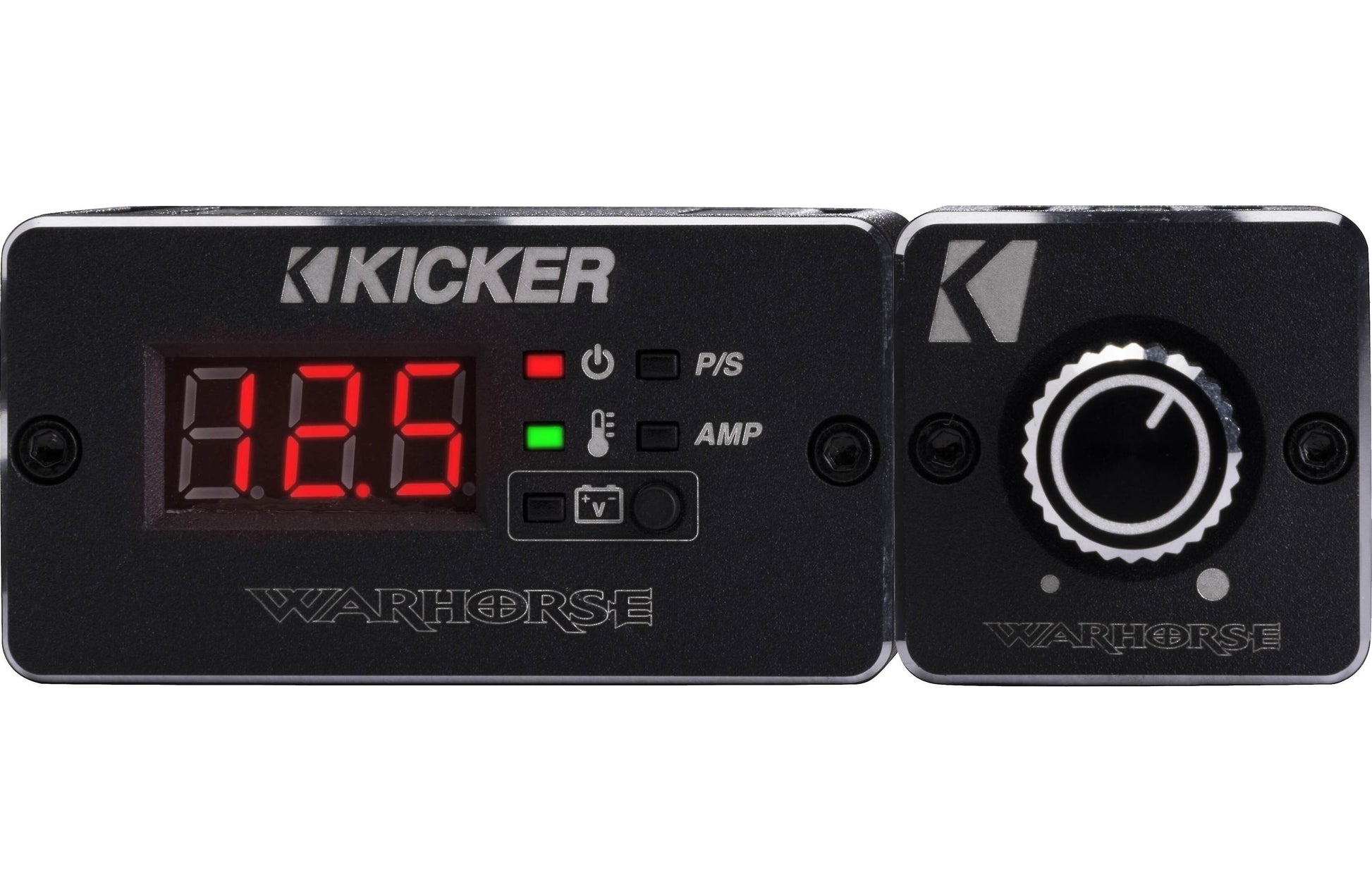

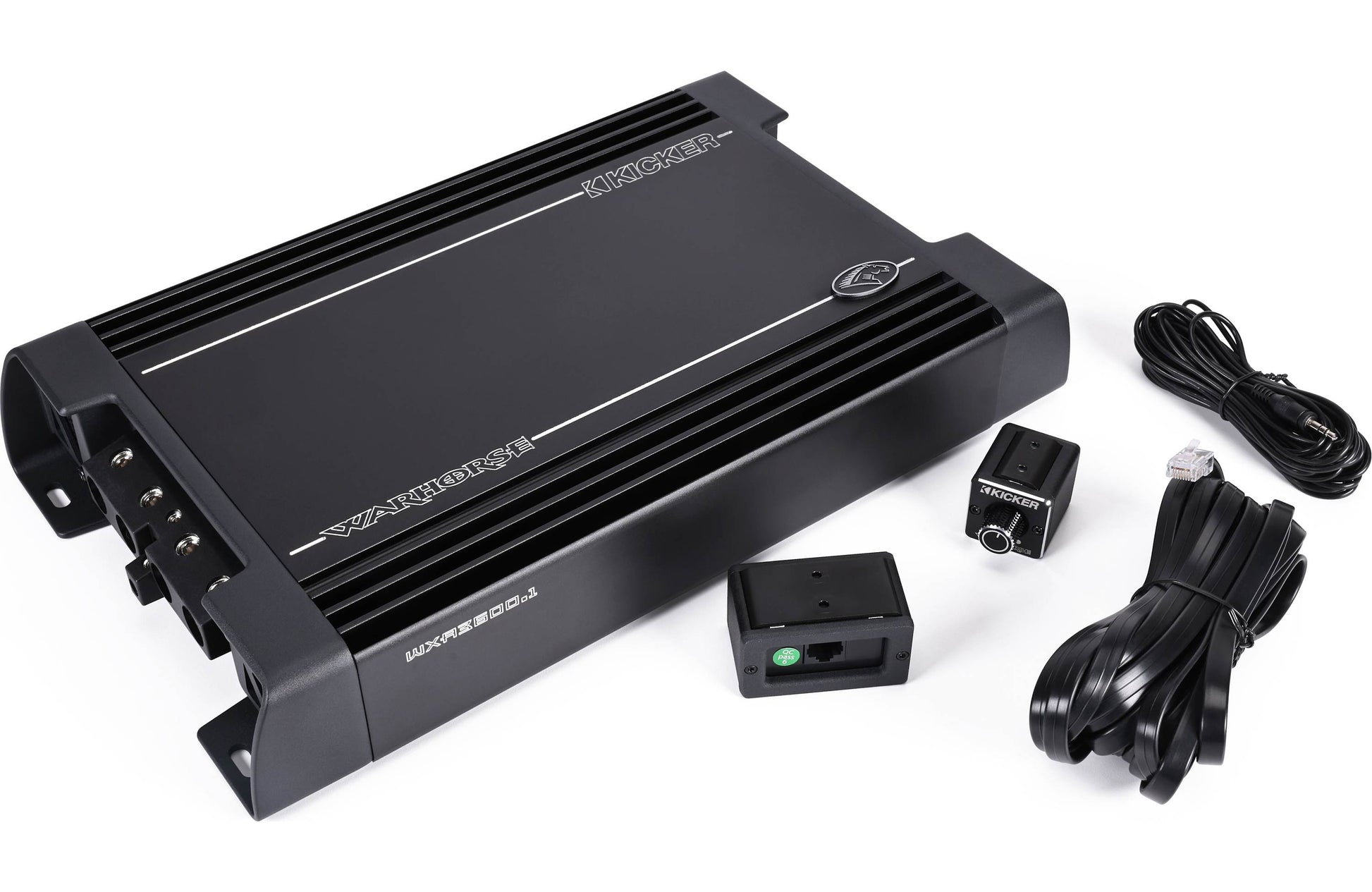

  • Includes premium remote bass-level control with a magnetic mount – 19.75 feet (6m) RJ45 cable
  • Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status – 19.75 feet (6m) RJ45 cable
  • Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)
  • WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
  • REMOTE/DIAGNOSTIC TOOL SURFACE MOUNT TEMPLATE
  • REMOTE/DIAGNOSTIC TOOL FLUSH MOUNT TEMPLATE

If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.

Specifications
MODEL WXA3600.1
RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD) 3600x1
RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD) 2500x1
RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, <1%THD) 1400x1
Dynamic Power (watts) 5000
Frequency Response (Hz) 10-200
Signal-to-Noise Ratio (dB; A-weighted, re: rated power) >90
Signal-to-Noise Ratio (dB; ref: 1W output) >70
Input Sensitivity low level 125mV-5V
high level 1V-40V
Selectable Electronic Crossover Variable Low-pass 50-200Hz, 24dB/octave
Subsonic Filter Defeatable @ 15Hz, 24dB/octave
Competition Mode warhorse-competition-mode.pdf
Dimensions (in, cm) H – 2-9/16, 6.5
W – 9-1/8, 23.2
L – 15-3/8, 39.1

Manuals

WXA3600.1 Amplifier | Download
