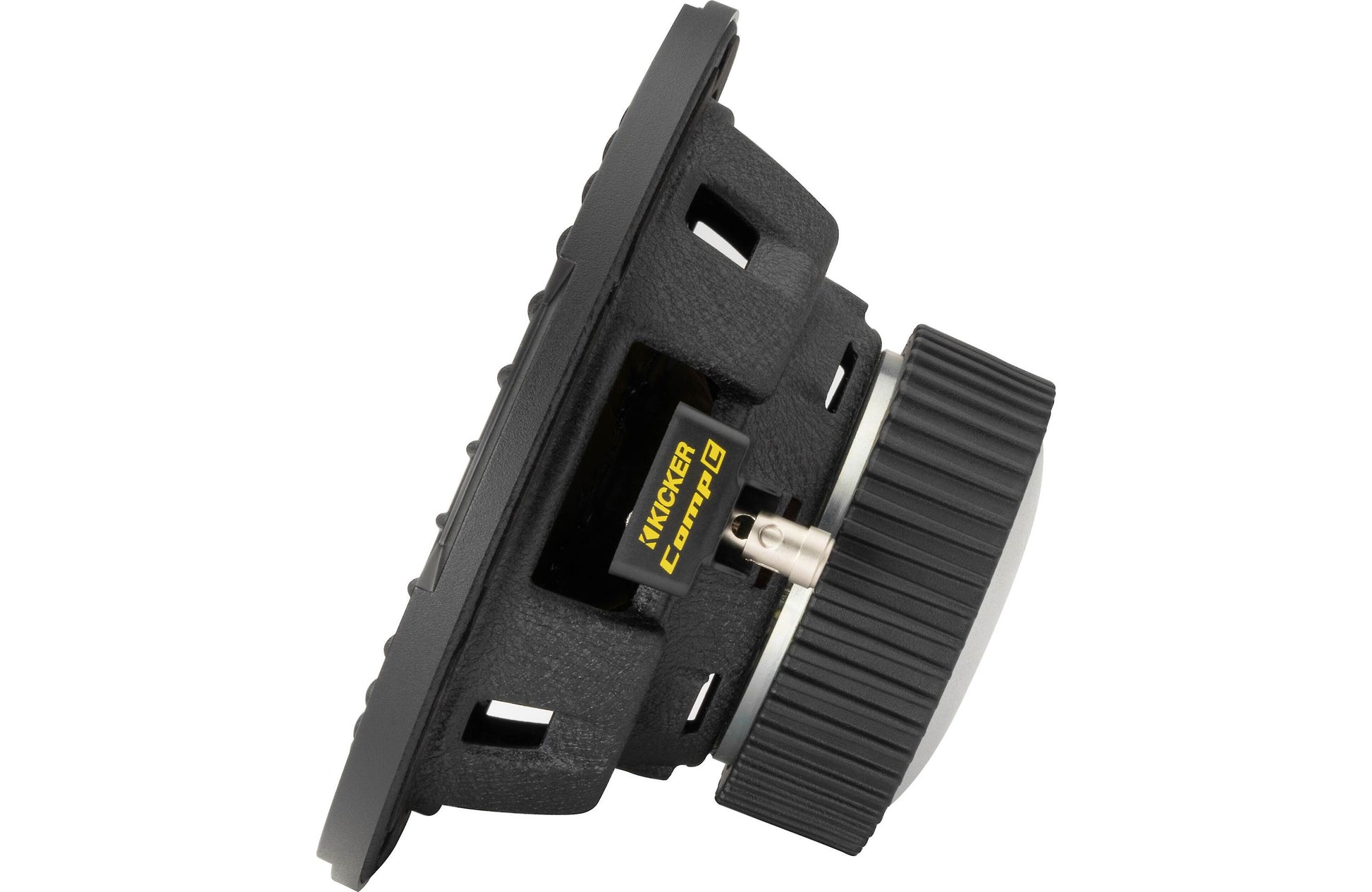

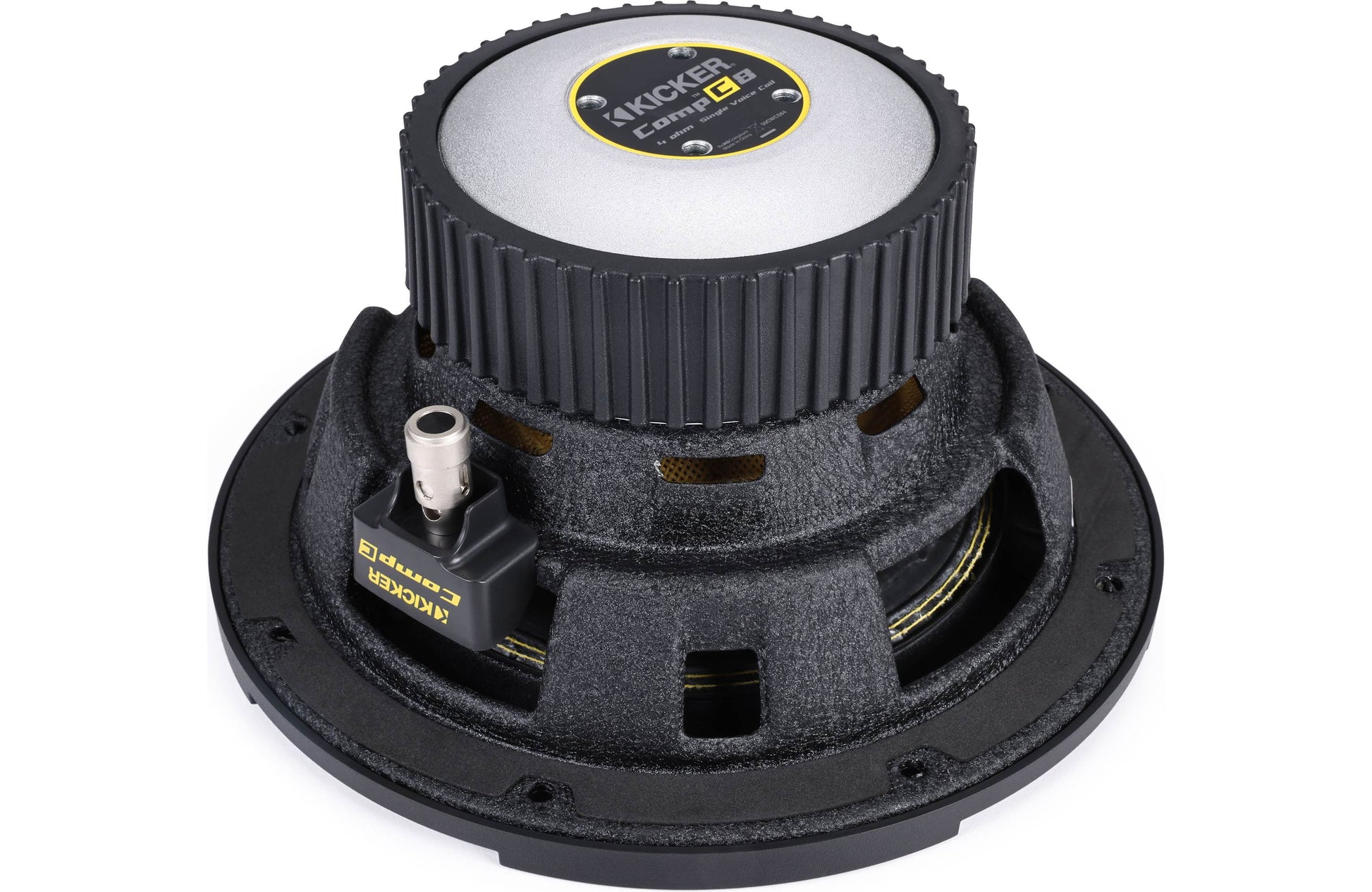

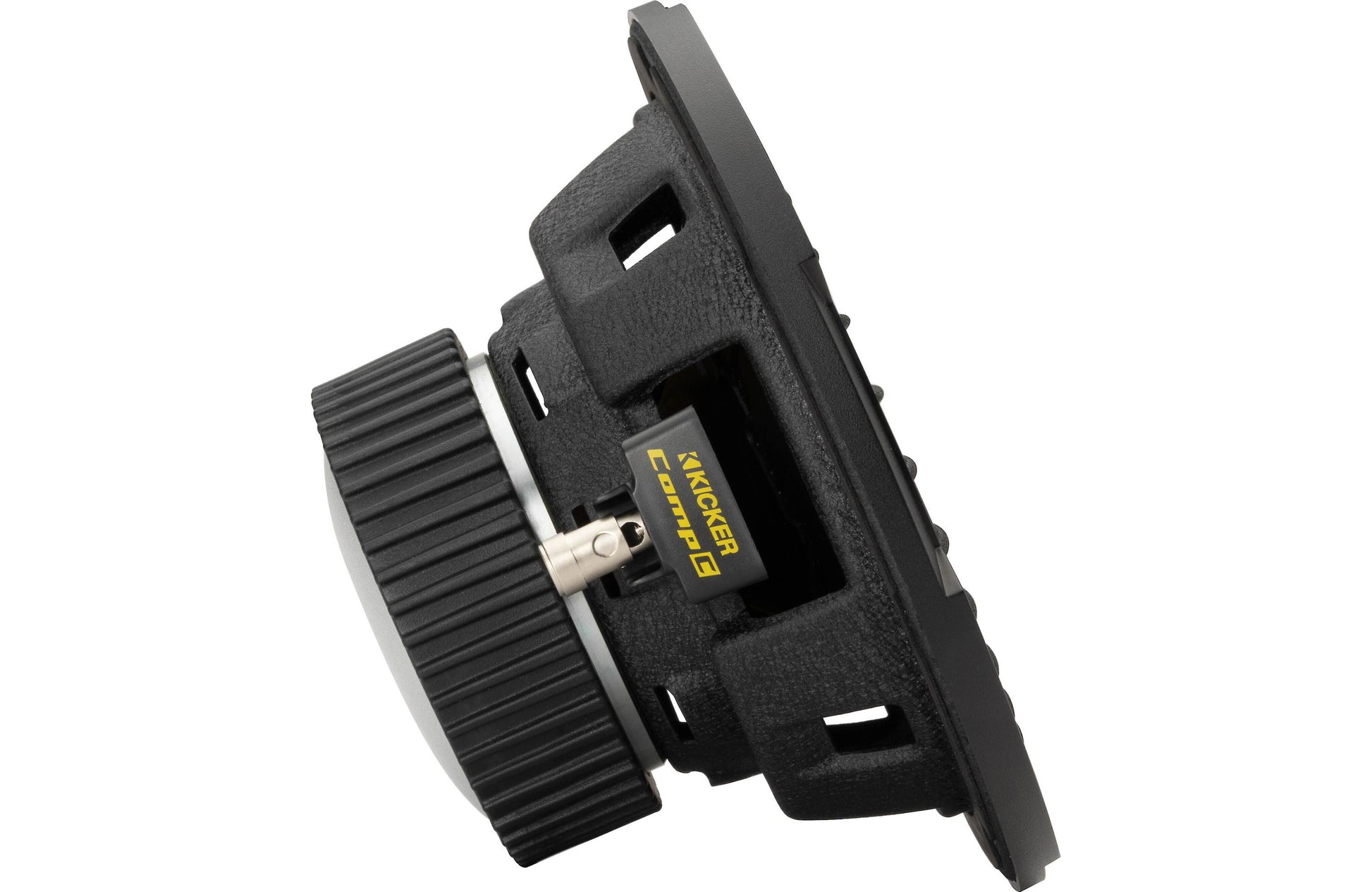

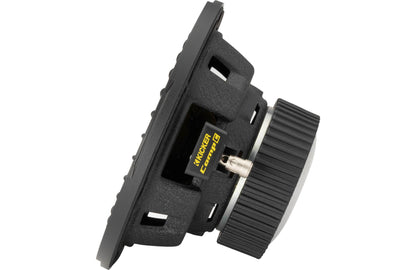

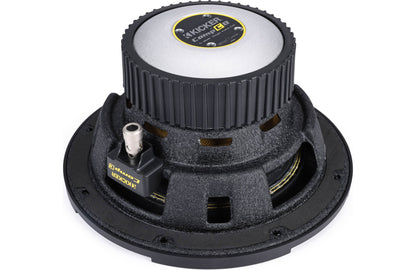

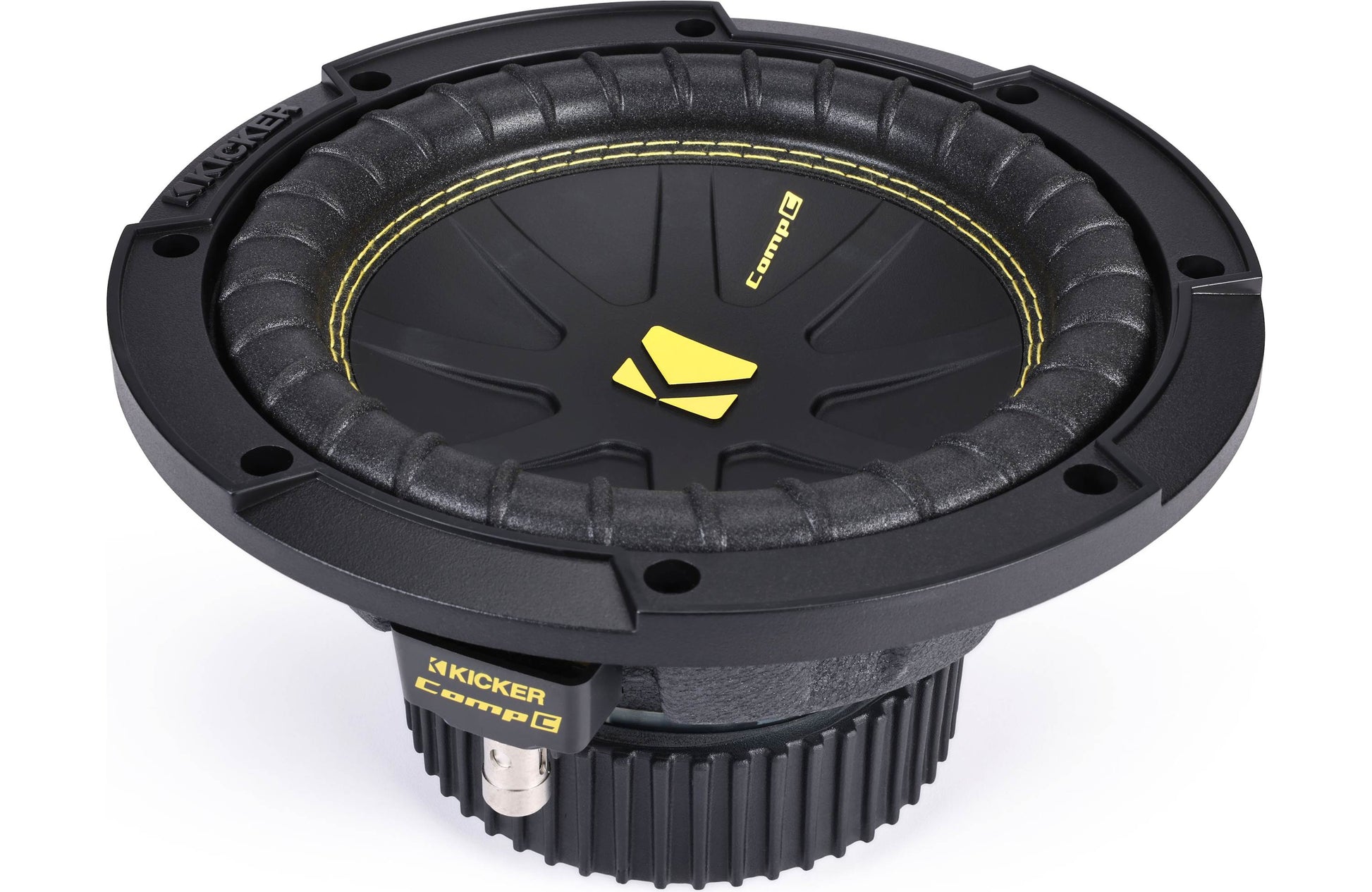

8" CompC 4 Ohm SVC
The single-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
Features:
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!
*The CompC 8-Inch Subwoofer works best with a sealed or ported enclosure and 200 watts of recommended power. See below for more details.
Size [in, cm] | 8, 20 |
Recommended Amplifier Power [watts RMS] | 100-200 |
Peak Power Handling [watts, per ANSI/CTA-2031-A] | 400 |
Sensitivity [dB 1w/1m] | 83.3 |
Rated Impedance [OHMS] | 4 SVC |
Frequency Response [Hz] | 30-500 |
Fs [Hz] | 42.2 |
Outer Frame Dimension [in, cm] | 8-9/16, 21.7 |
Mounting Depth [in, cm] | 4-3/16, 10.5 |
Mounting Cutout [in, cm] | 6-15/16, 17.7 |
Max Rec Sealed Box Vol [cu. ft, liters] | 1.2, 34 |
Min Rec Sealed Box Vol [cu. ft, liters] | 0.5, 14.2 |
Max Rec Vented Box Vol [cu. ft, liters) | 1.2, 34 |
Min Rec Vented Box Vol [cu. ft, liters] | 0.66, 18.7 |
2023 CompC-Series Subwoofer | English | Download
Do you have a different model? Click Here
