Thin Is In!
Features:

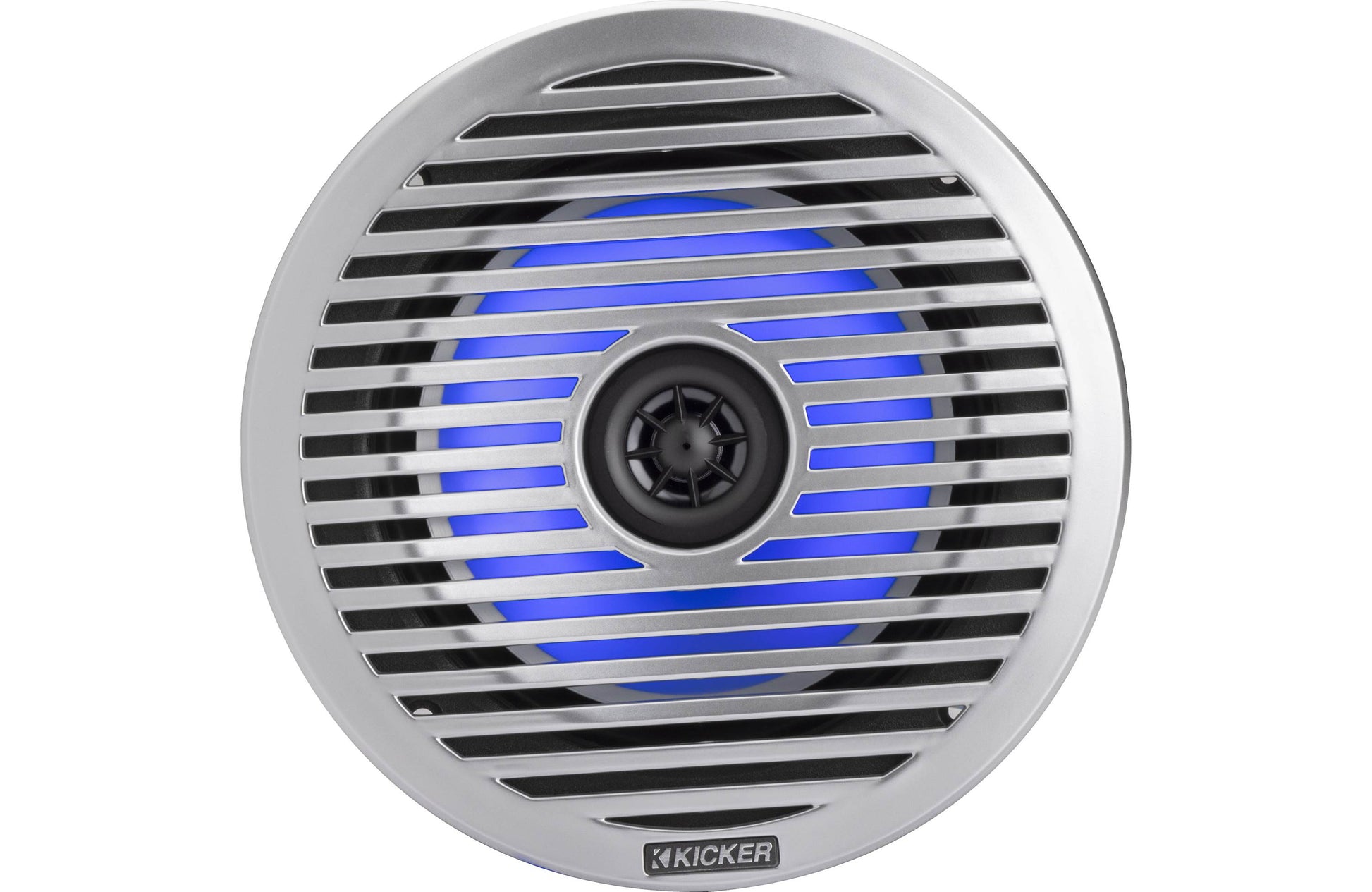

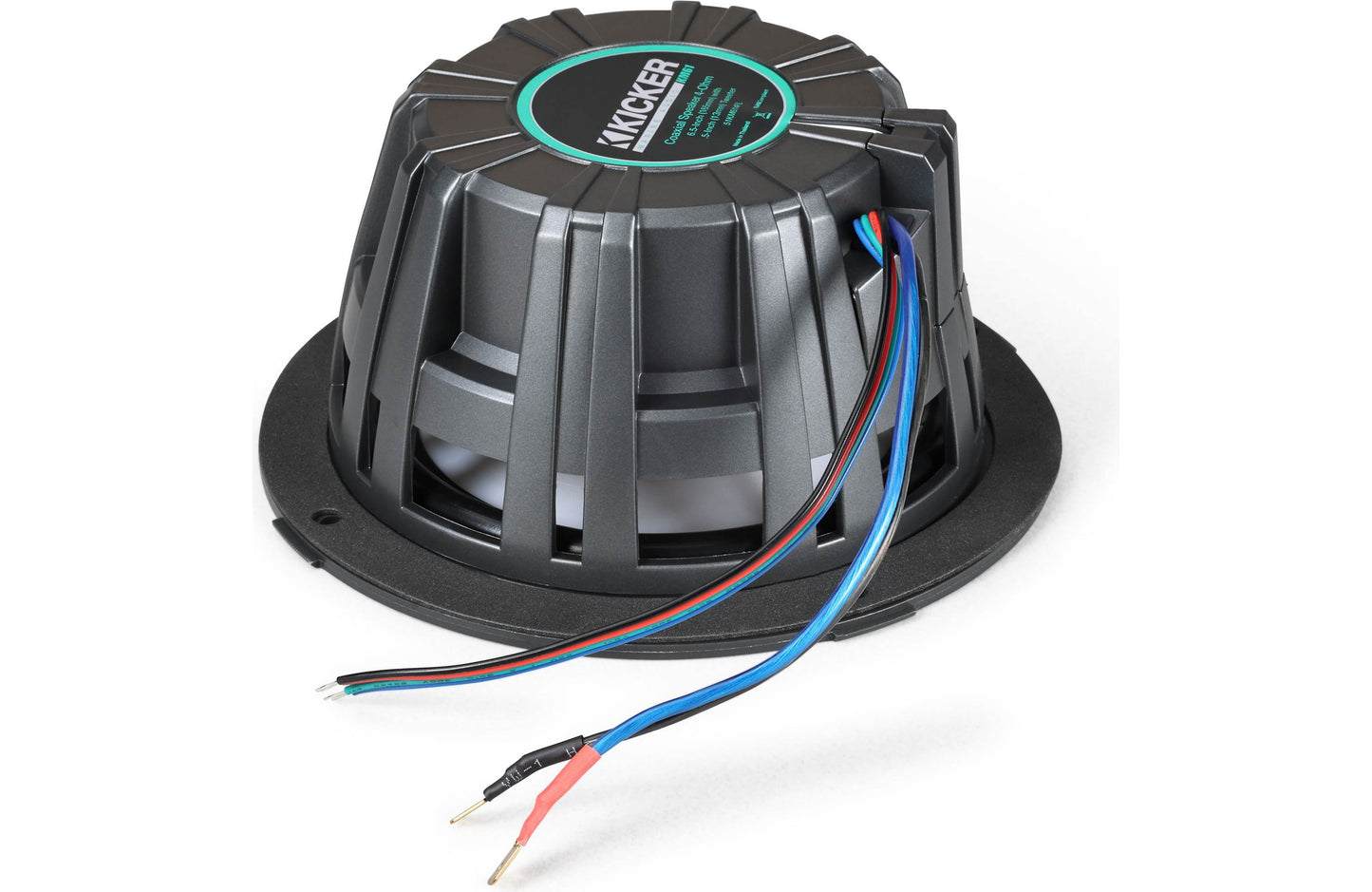

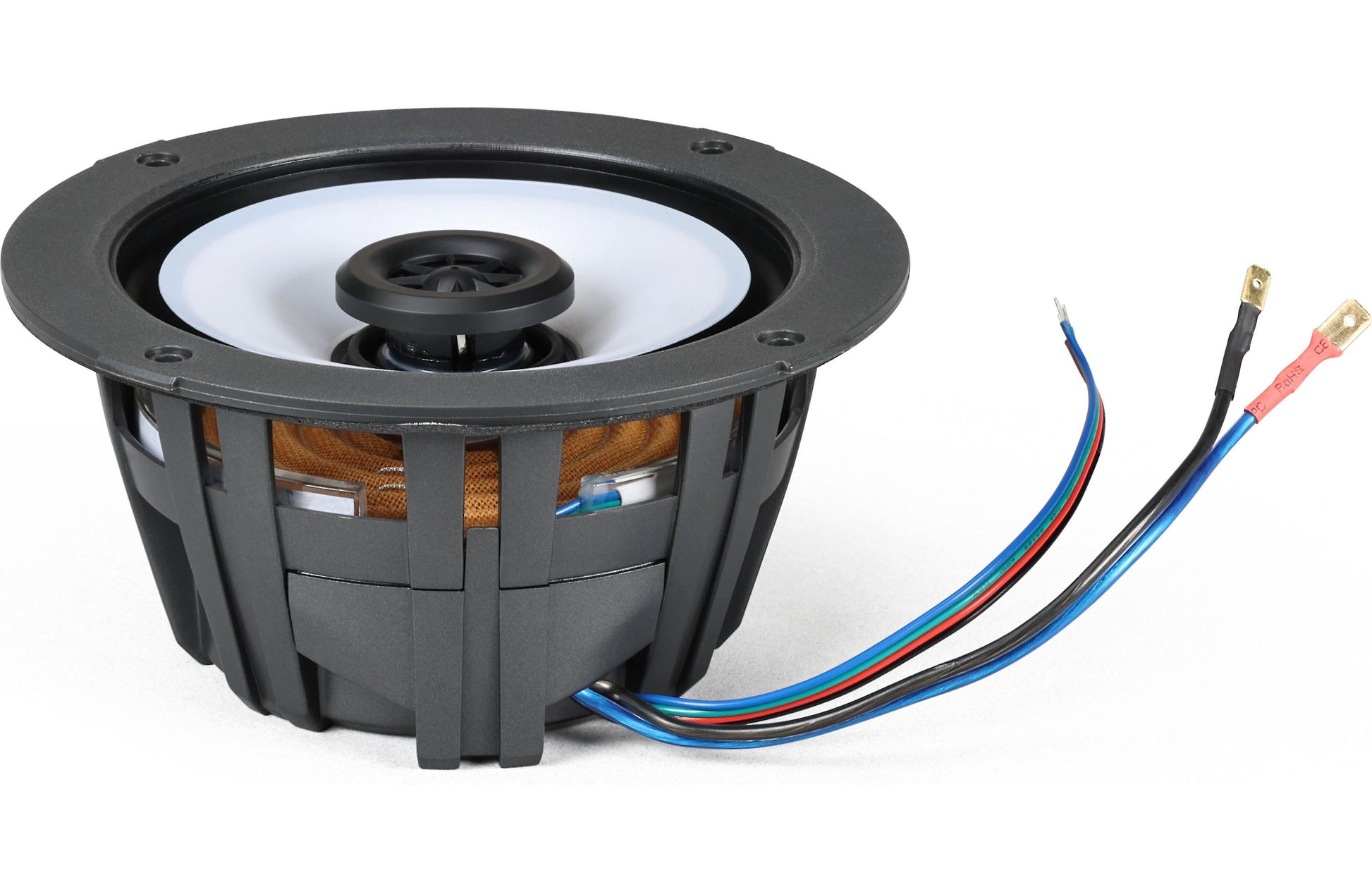

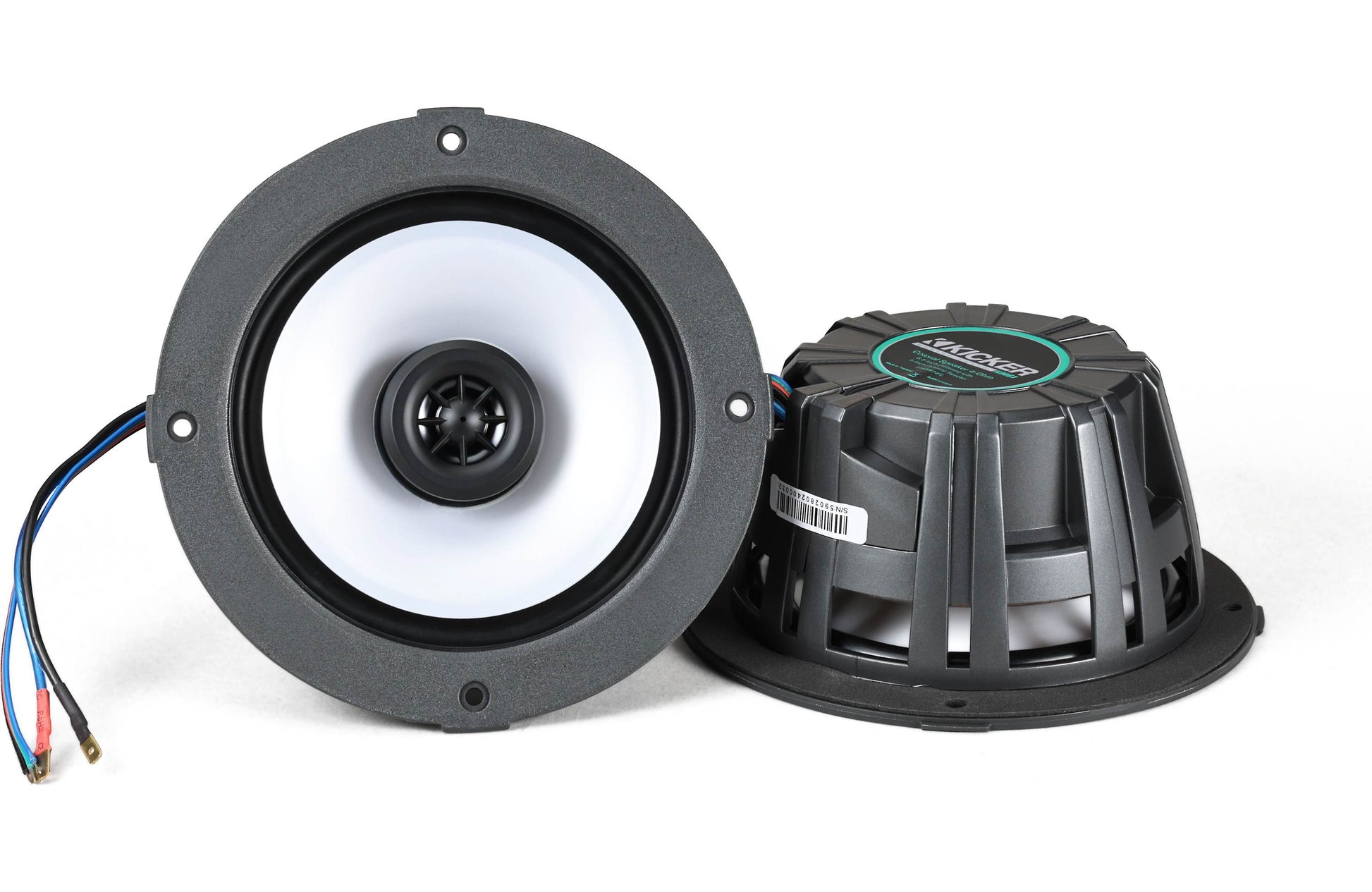

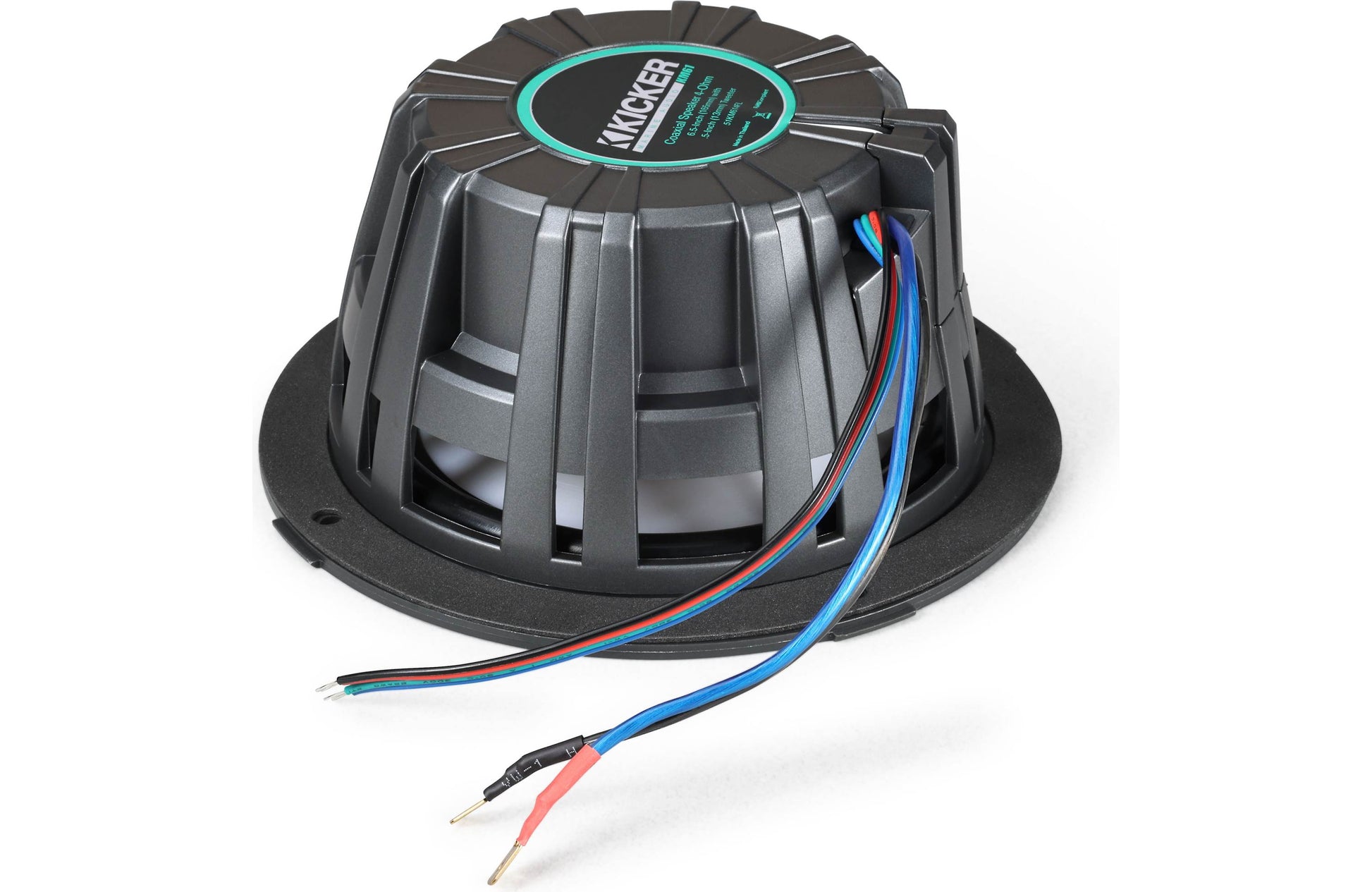

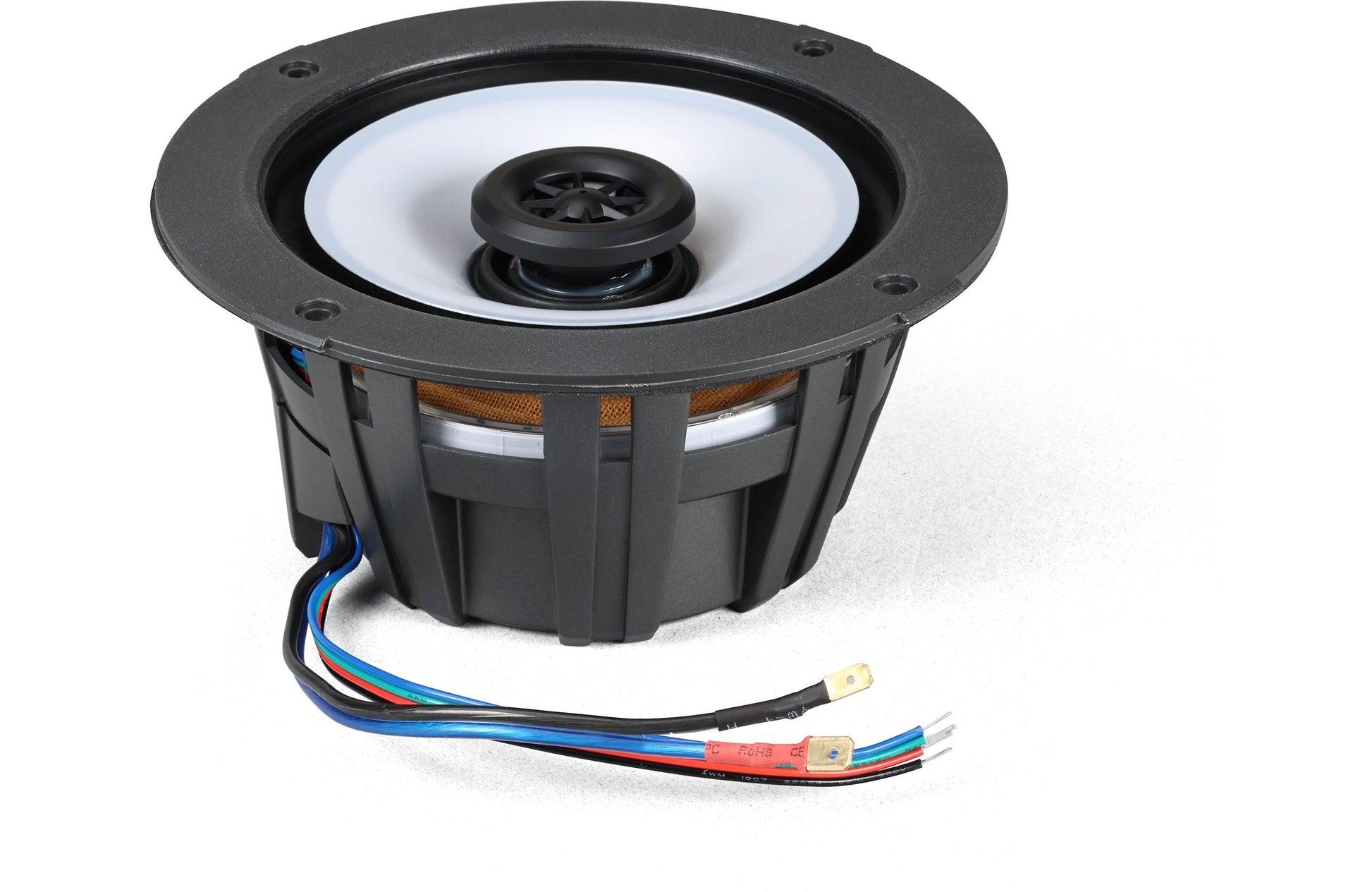

This KM 6.5-inch Speaker works best with 15-65 watts of recommended power. See below for more details.
Woofer (in,mm) | 6-1/2, 165 |
Tweeter (in,mm) | 1/2, 13 |
Tweeter Dome Material | PEI |
Rated Impedance (?) | 4 |
Peak Power (watts, per ANSI/CTA-2031-A) | 130 |
Recommended Amplifier Power (watts RMS) | 15-65 |
Sensitivity (1W,1m) | 90 |
Frequency Response (Hz) | 35-21k |
Mounting Hole Diameter (in,mm) | 5-1/4, 132 |
Mounting Template | *For template to be accurate, ensure the print properties are set at 100% not scale to page. |
Mounting Depth (in,mm) | 2-13/16, 64 |

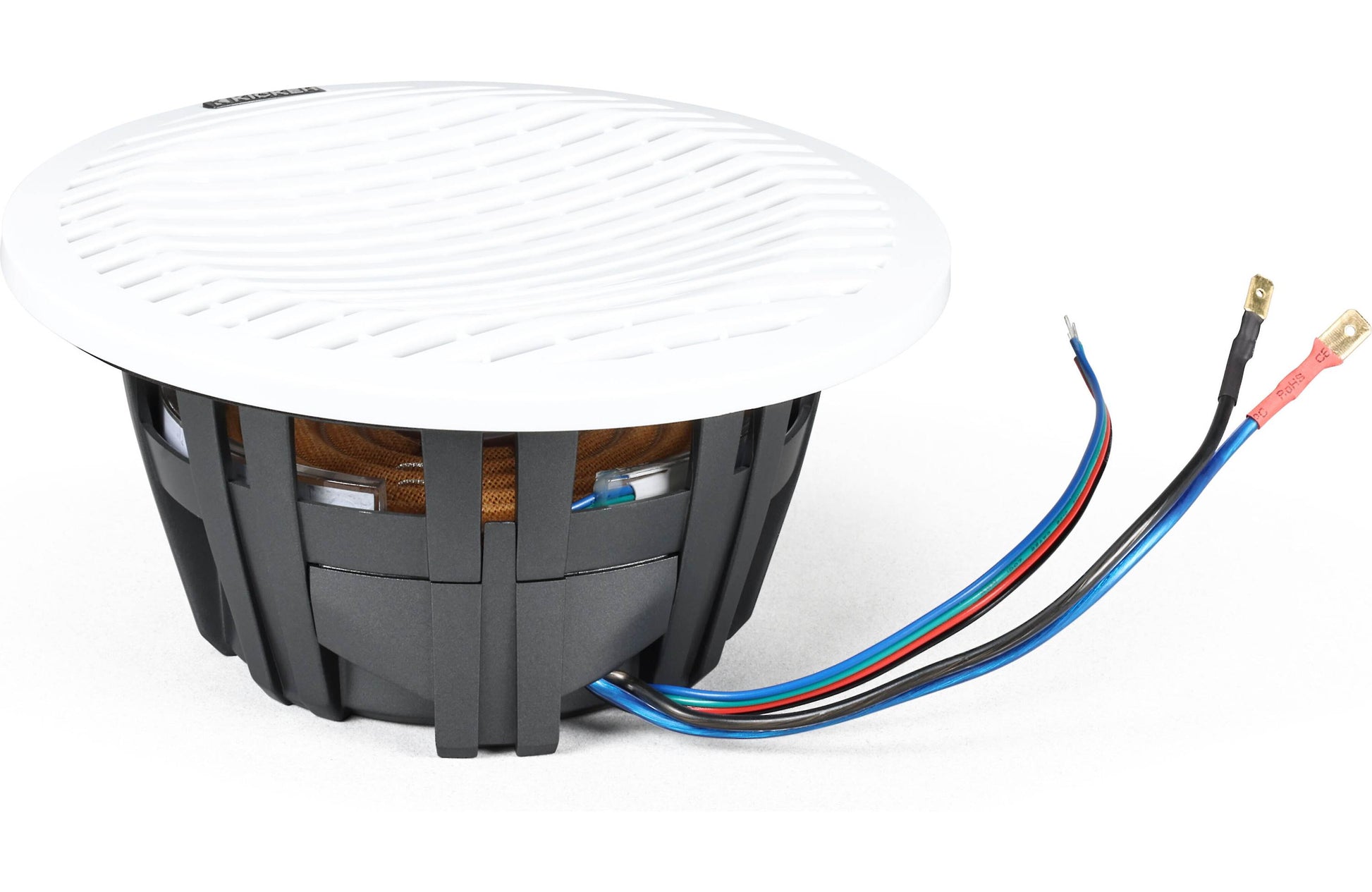

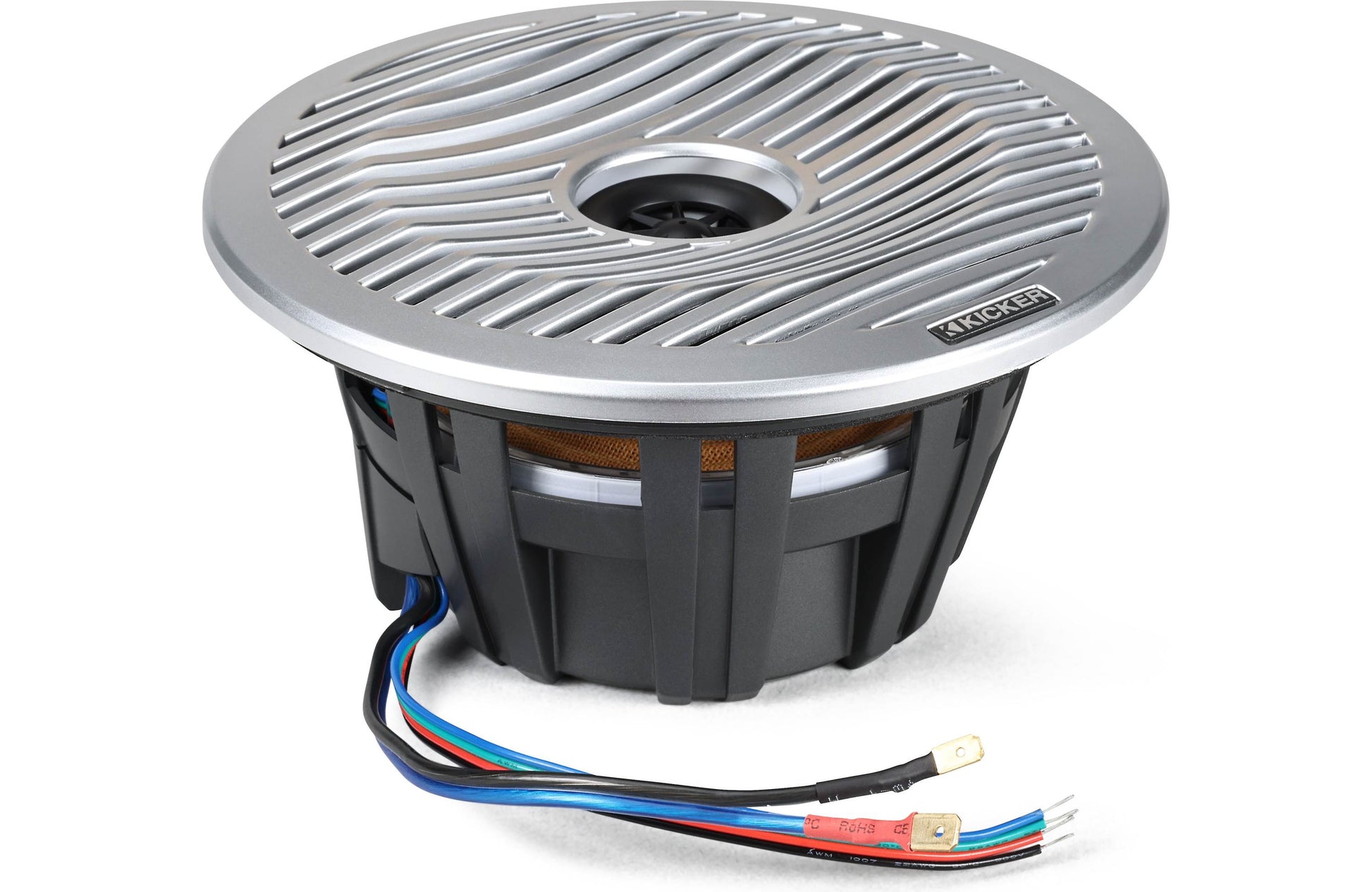

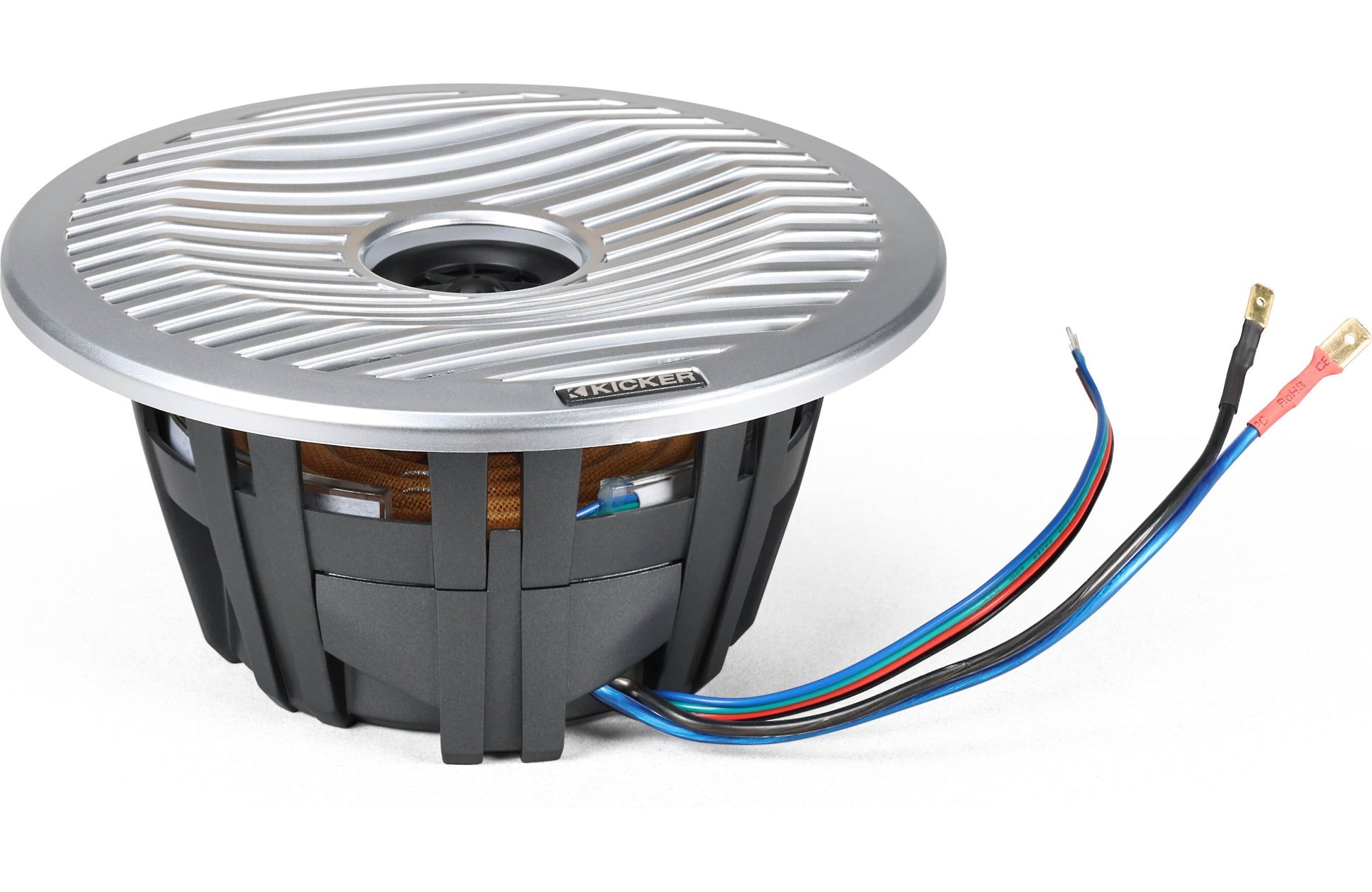

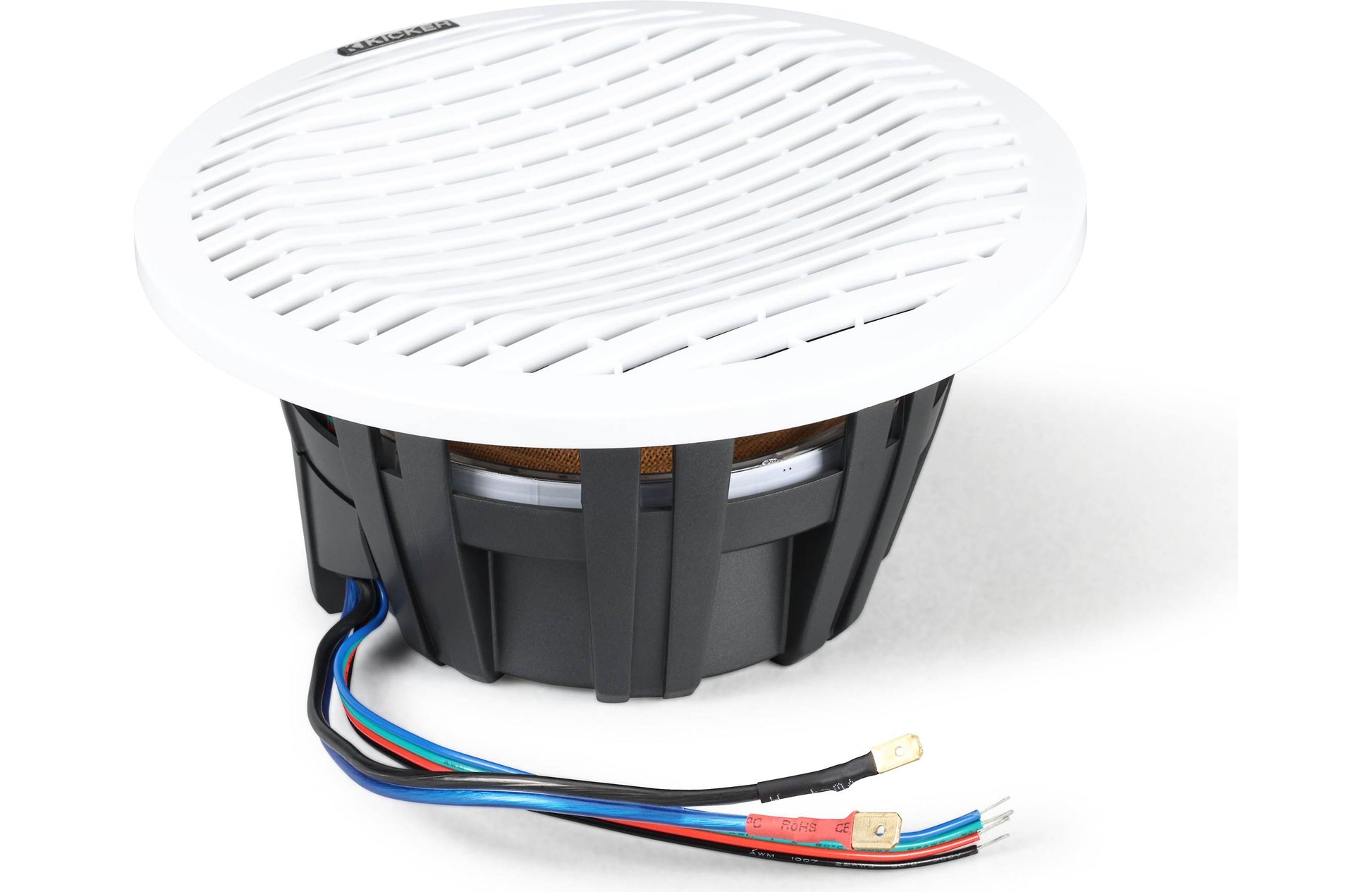

Grilles | 2 pair (OE-style white/silver with open tweeter) |

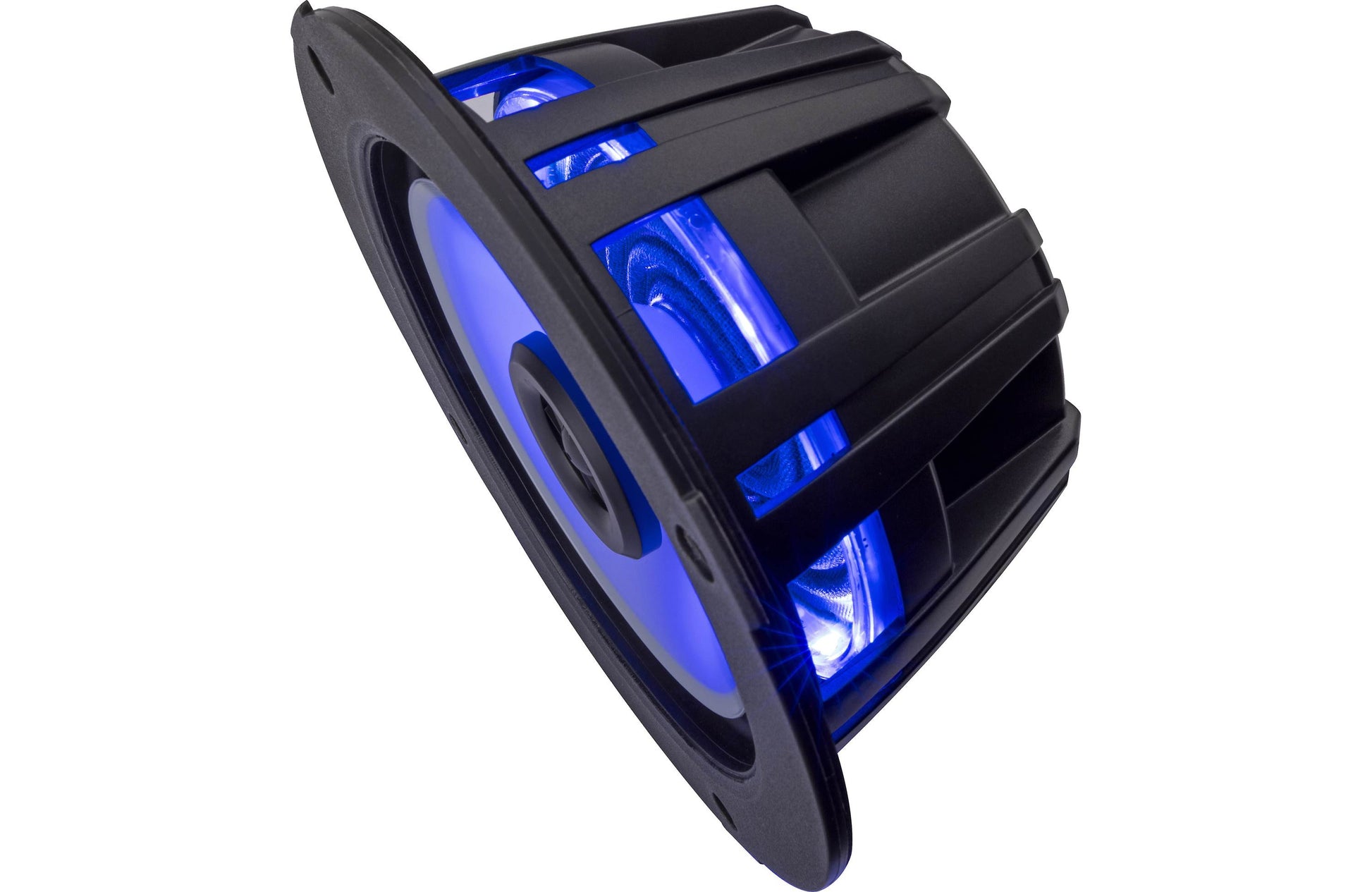

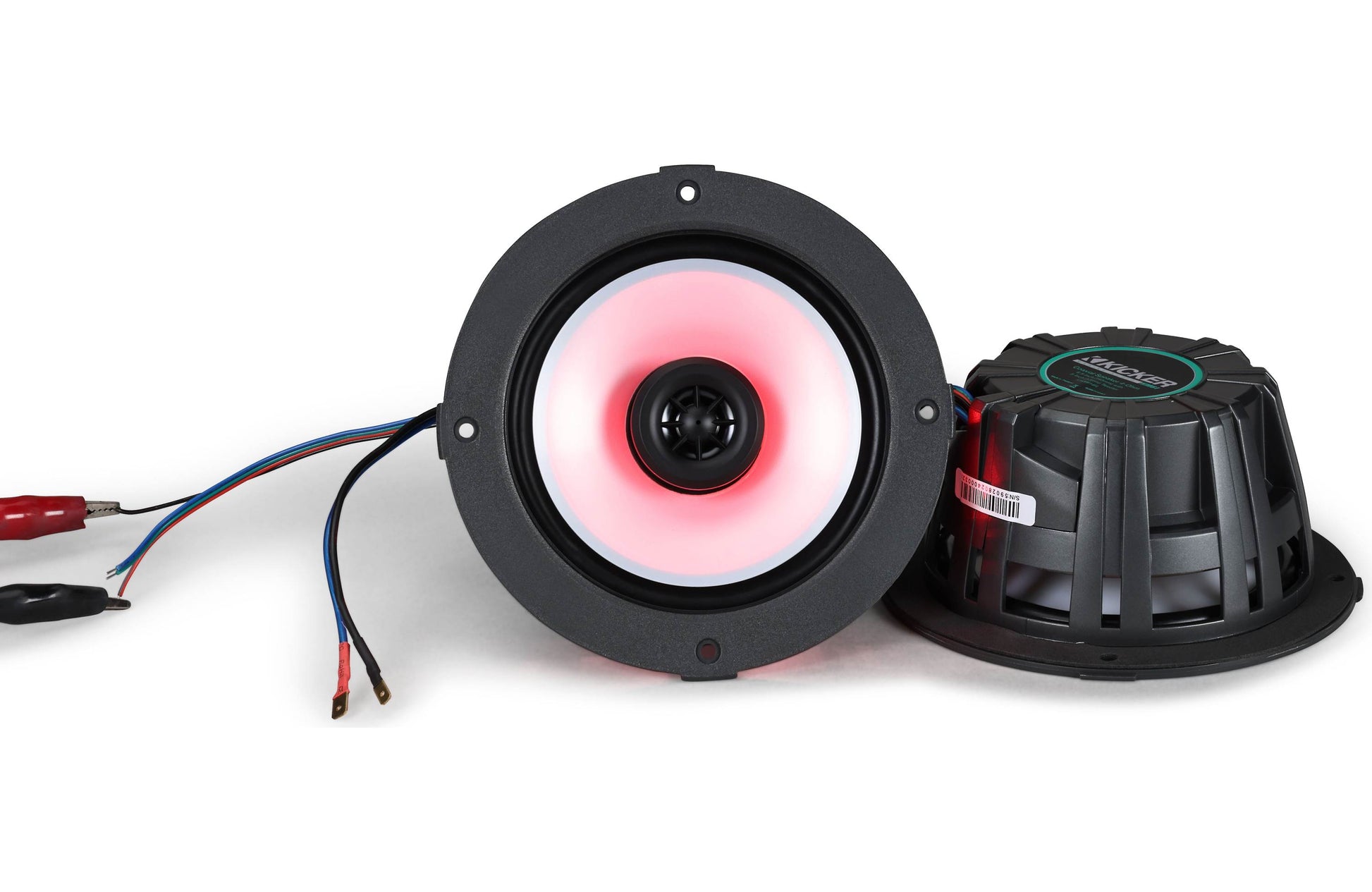

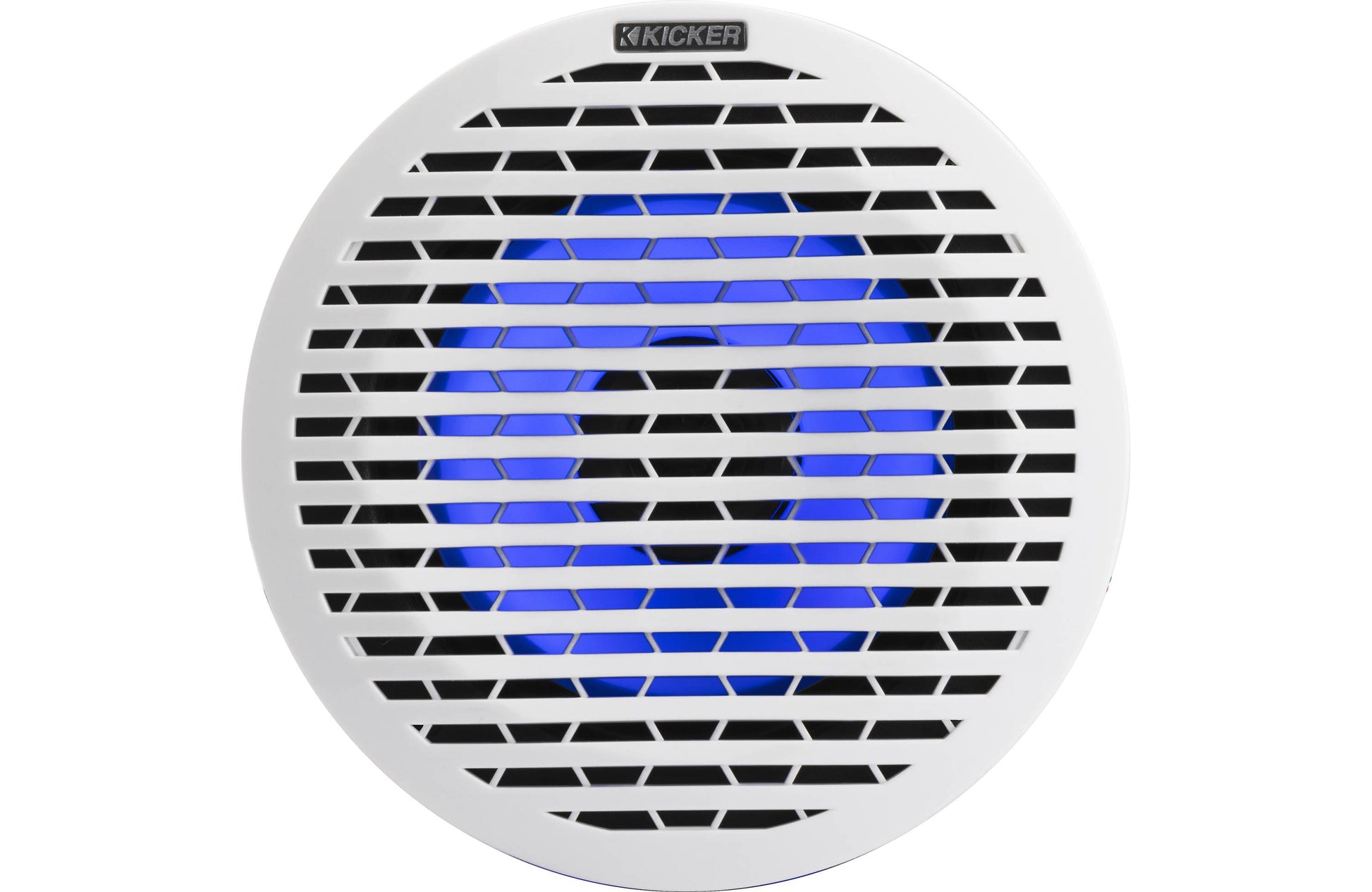

51KM614FL LED Coaxial Speakers | Multilingual | Download
