Kicker CS Series CSC693

Kicker CS Series CSC693

In stock

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

  • price-tag logoNew Launch
Regular price $139.99
Regular price Sale price $139.99
Save: $-139.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

CS Series CSC693

CS-Series 6x9-inch 3-Way Speakers are the perfect way to upgrade your factory system.

CS-Series 3-Ways deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

The rugged 6x9-inch, 3-way speaker is especially cool. With a massive 300-watt peak power rating, this triaxial driver gives you extraordinary volume, while the integrated 2-inch midrange driver and dedicated tweeter give you crisp, accurate details for the realism you crave.

These CS speakers work best with 150 watts of recommended power. See below for more details.

  • Fits nearly every car made
  • Zero-protrusion tweeters to fit nearly any factory depth
  • Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
  • UV-treated poly-foam surround resists heat or direct sunlight
  • Large woofer magnet in a heavy-duty motor for ultra-clean bass
  • Integrated 2-inch (50mm) midrange drivers gives detailed attention to mid frequencies
  • PEI-tweeter construction provides superb clarity
  • Neodymium tweeter magnets allow for increased volume in high frequencies

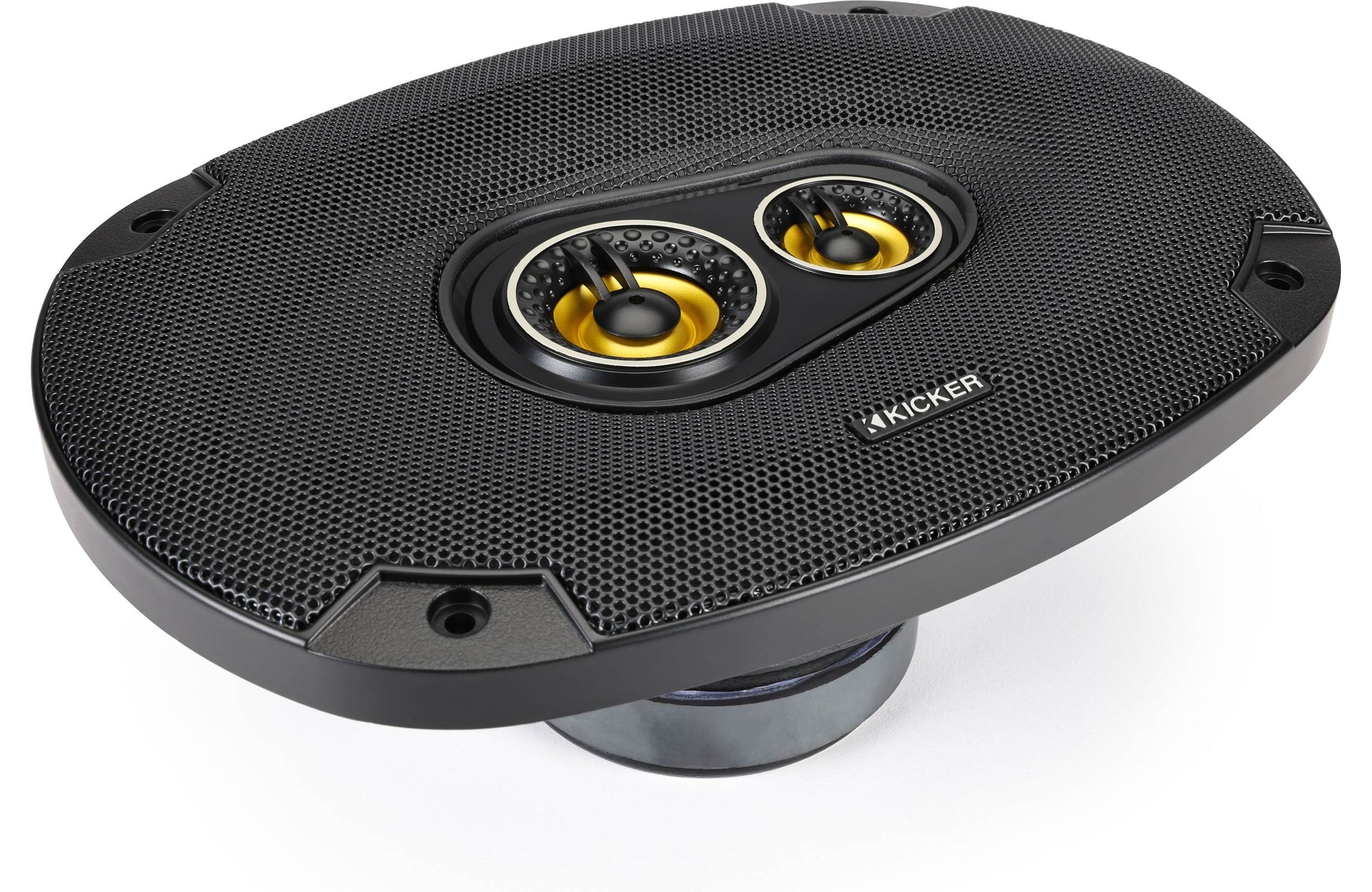

  • Steel mesh grilles included for speaker protection

Specifications

Speaker Design 3 - way
Woofer Size [ in, mm ] 6x9, 160x230
Mid Size | in [mm] 2, 50
Tweeter Size [ in, mm ] 1/2, 13
DC Resistance [ ohm ] 3.5
Peak Power [ watts, per ANSI/CTA-2031-A ] 450
Recommended Amplifier Power [ watts RMS ] 150
Sensitivity - SPLo [ dB @ 1W, 1m ] 92
Effective Frequency Range [ Hz ] 30-20k
Mounting Hole Diameter [ in, mm ] 5 5/8 x 8 7/16, 143x215
Top Mount Depth [ in, mm ] 3 3/16, 81
Bottom Mount Depth [ in, mm ] 3 11/16, 93
Tweeter Protrusion [ in, mm ] 1/16, 1
Grilles Yes
Tweeter Magnet Material Electric Crystal Motor
Tweeter Dome Materia PEI [polyether imide]
Tweeter Design Balanced dome
Woofer Cone Material Polypropylene
Woofer Surround Material Polyester foam

Manuals

2019 CS Coaxials | Multilingual | Download
