Kicker CS Series CSS69

Kicker CS Series CSS69

In stock

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

  • price-tag logoNew Launch
$199.99
$199.99
Save: $-199.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

CS Series CSS69

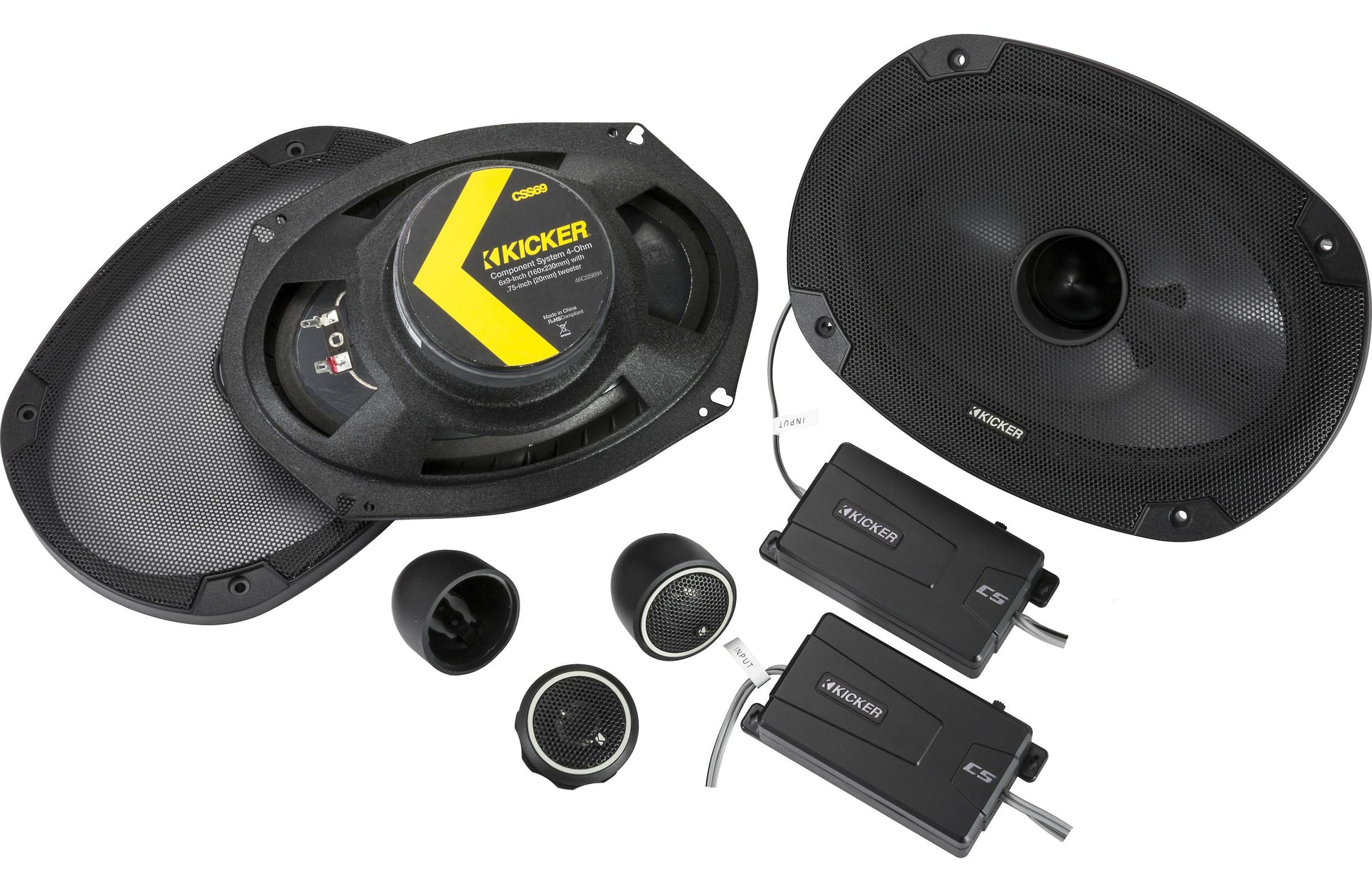

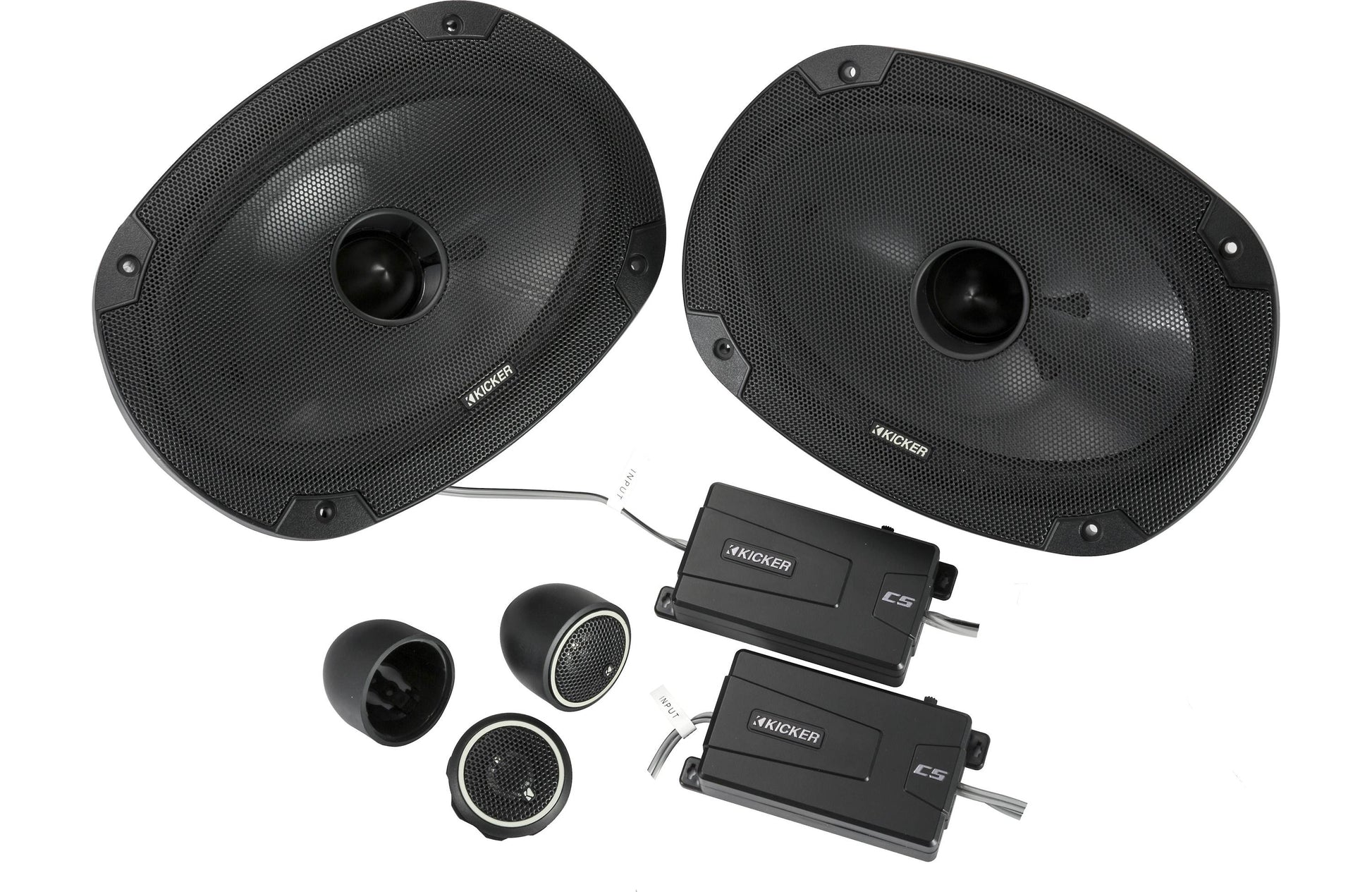

CS-Series 6x9-inch Component Speakers are built for awesome sound that plays as long as the ride takes you.

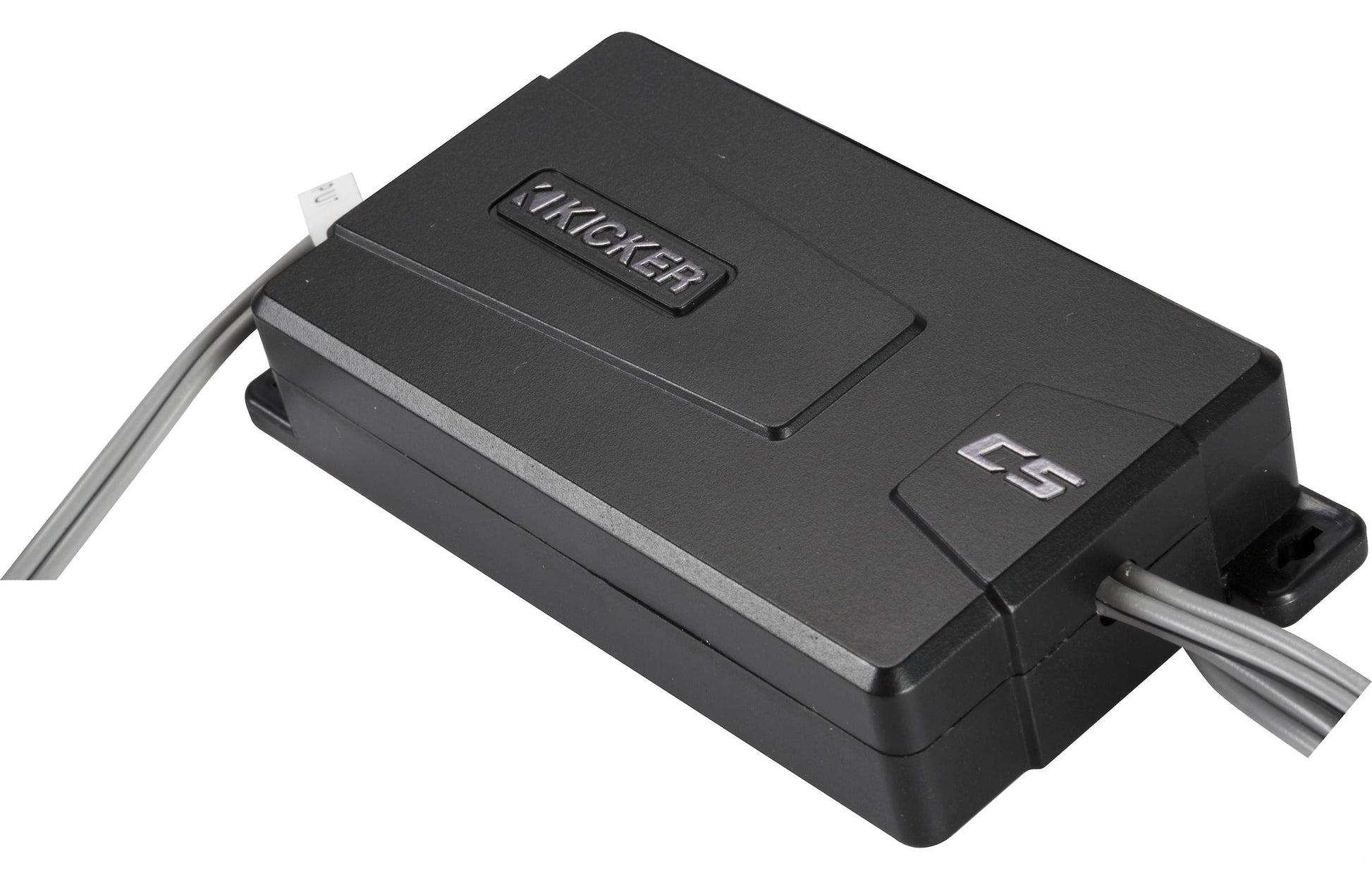

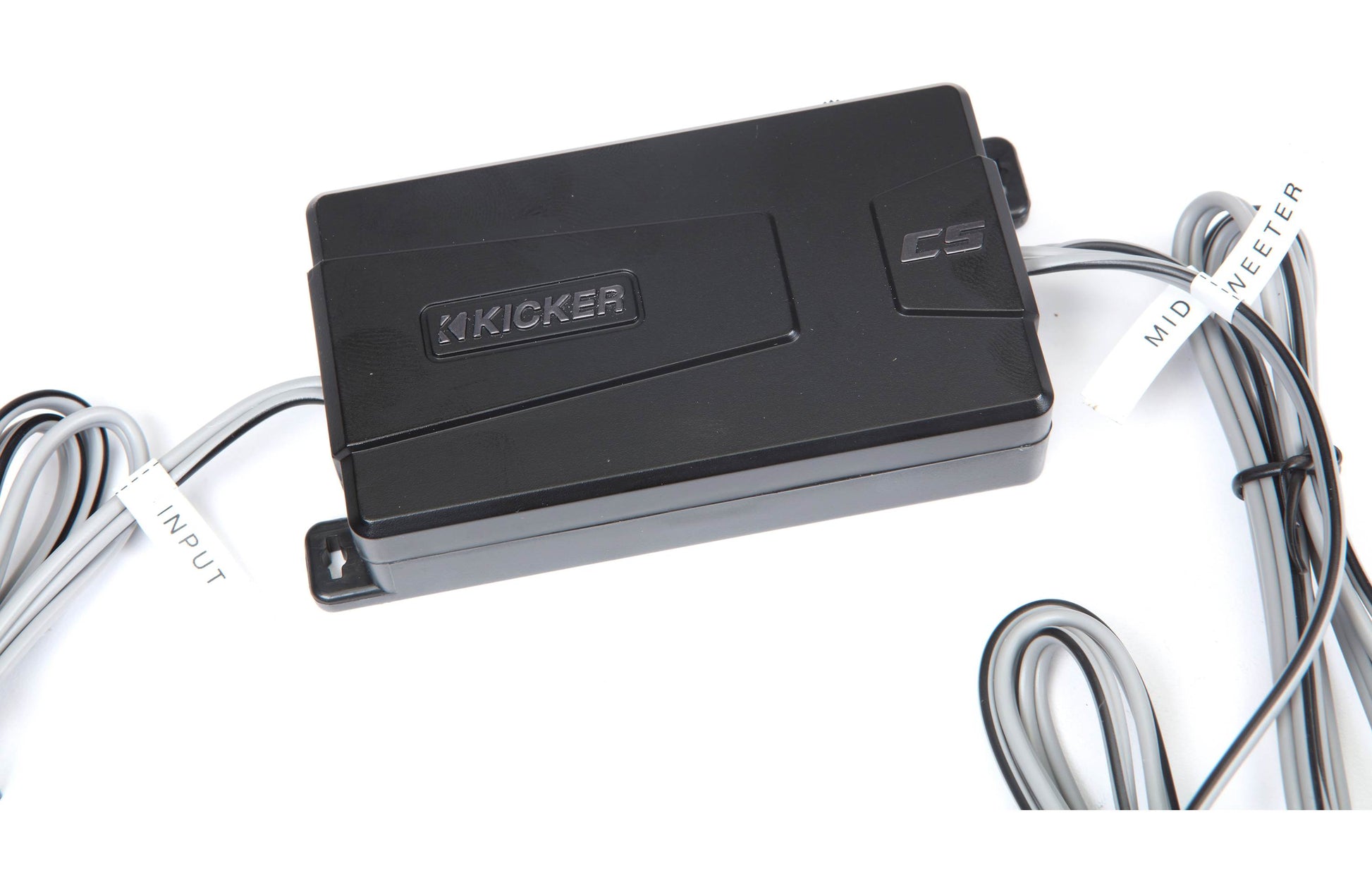

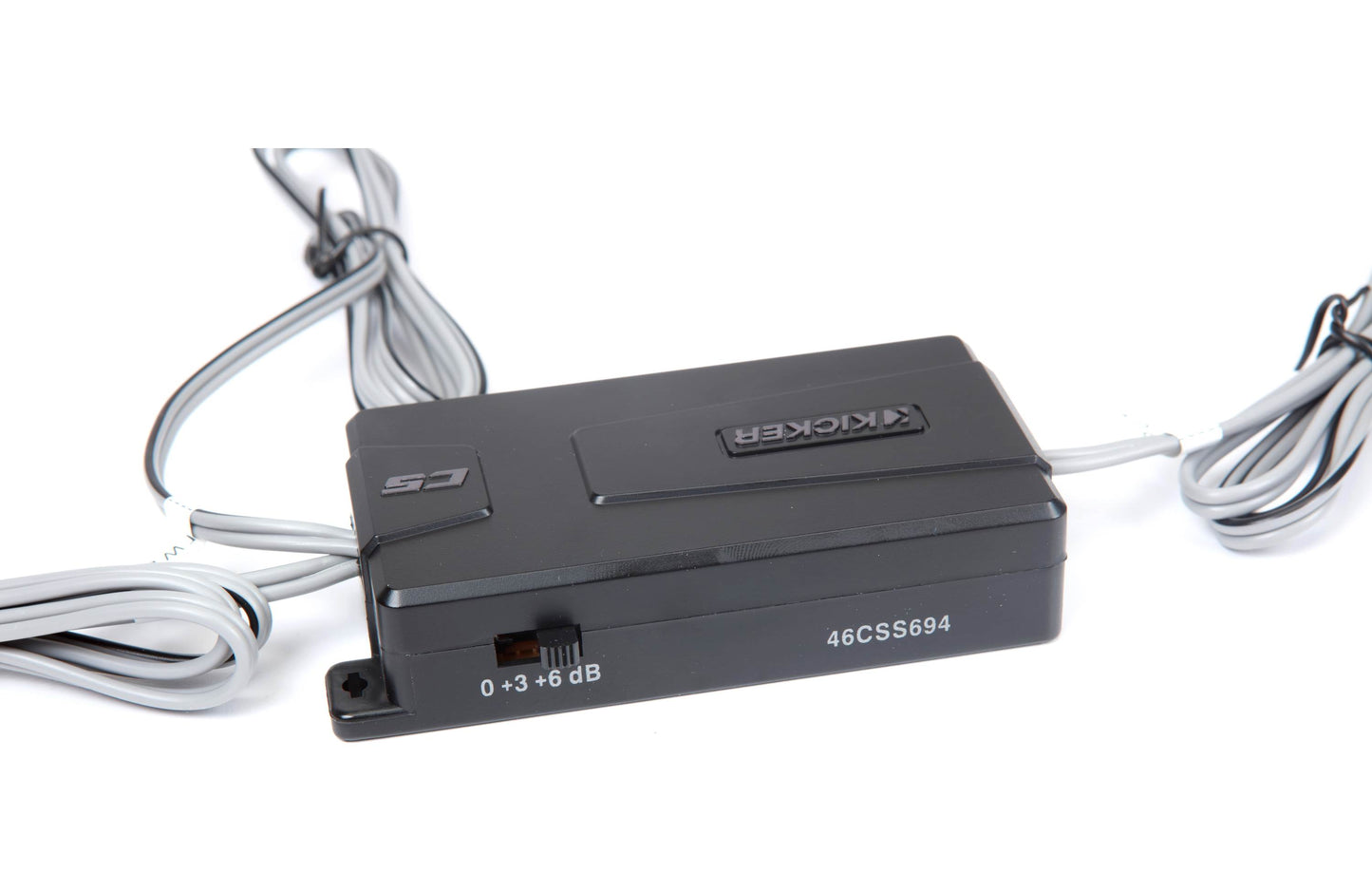

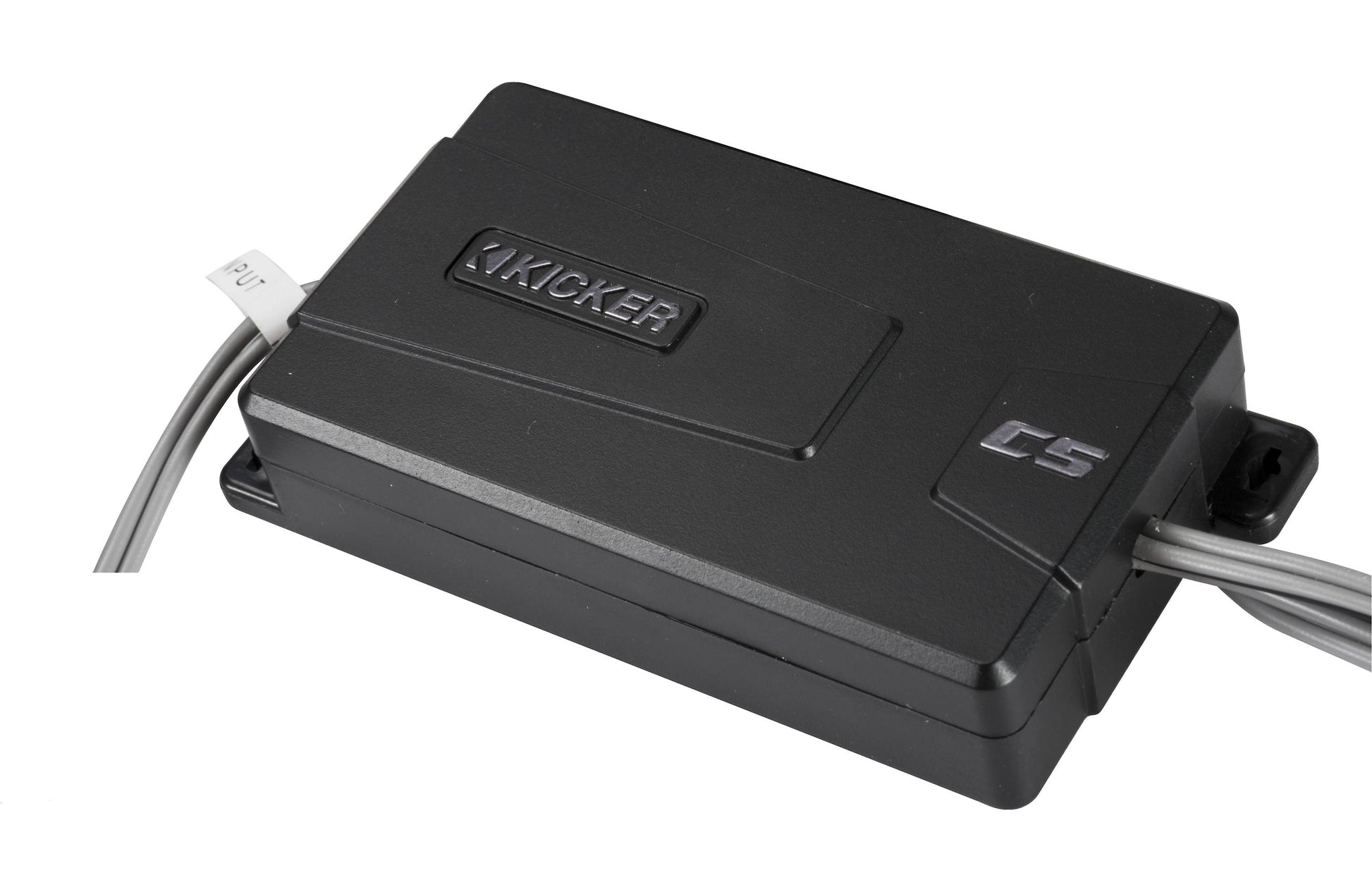

CS-Series components include titanium tweeters and two-way crossovers with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB), included in each external crossover. The optimized footprint means great sound with hassle-free installation, no matter where you mount it!

These CS speakers work best with 150 watts of recommended power. See below for more details.

  • Fits nearly every car made
  • 12dB crossovers with a smaller footprint for easier installation
  • Three-position tweeter switch for dialing in your highs
  • EVC™ (Extended Voice Coil) technology help deliver remarkable bass response

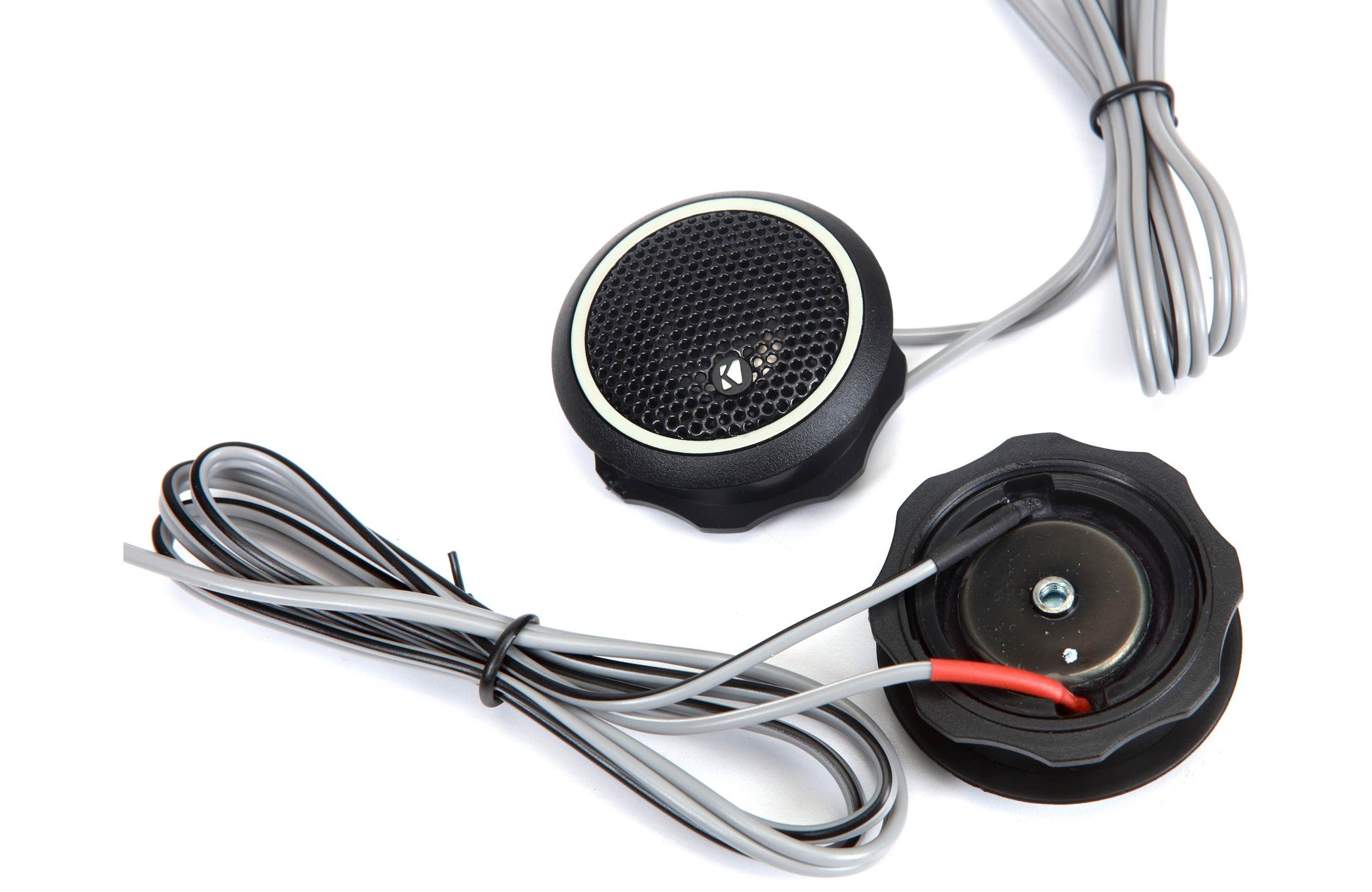

  • Titanium tweeter construction and neodymium magnets to reveal subtle details
  • UV-treated poly-foam surround assists with precise linear excursion
  • Phase plugs in the woofer cones eliminate any distortion
  • Steel mesh grilles protect your drivers
  • Three tweeter mounting options including flush, angled and surface pods

Specifications
Woofer Size | in [mm] 6x9 [160x230]
Tweeter Size | in [mm] 3/4 [20]
Dome Material Titanium
Peak Power (watts, per ANSI/CTA-2031-A) 450
Recommended Amplifier Power (watts RMS) 150
Effective Frequency Range | Hz 30-21k
Woofer Mounting Hole Diameter | in [mm] 5 5/8 x 8 7/16 [143x215]
Woofer Bottom Mount Depth | in [mm] 3 3/16 [81]
Flush Mounting Tweeter Hole Diameter | in [mm] 1 9/16 [40]
Flush Mount Tweeter Depth | in [mm] 9/16 [14.5]
High Pass | dB, at Frequency | Hz 12, 4000
Low Pass | dB, at Frequency | Hz 12, 4000
High Frequency Output Attenuation | dB 0, 3, & 6
Bolt-Thru Grilles Yes

Manuals

2019 CS Components | Multilingual | Download
