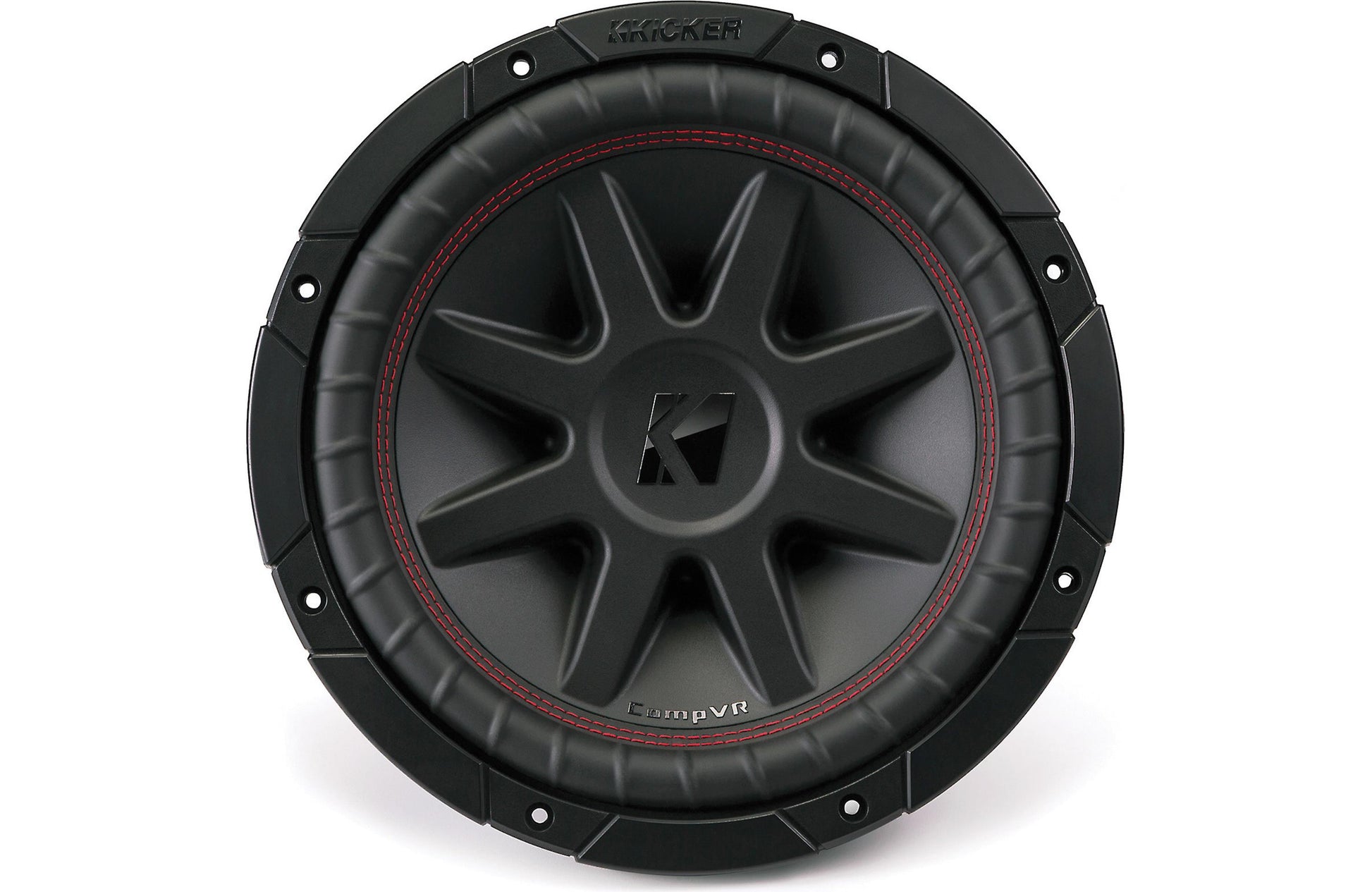

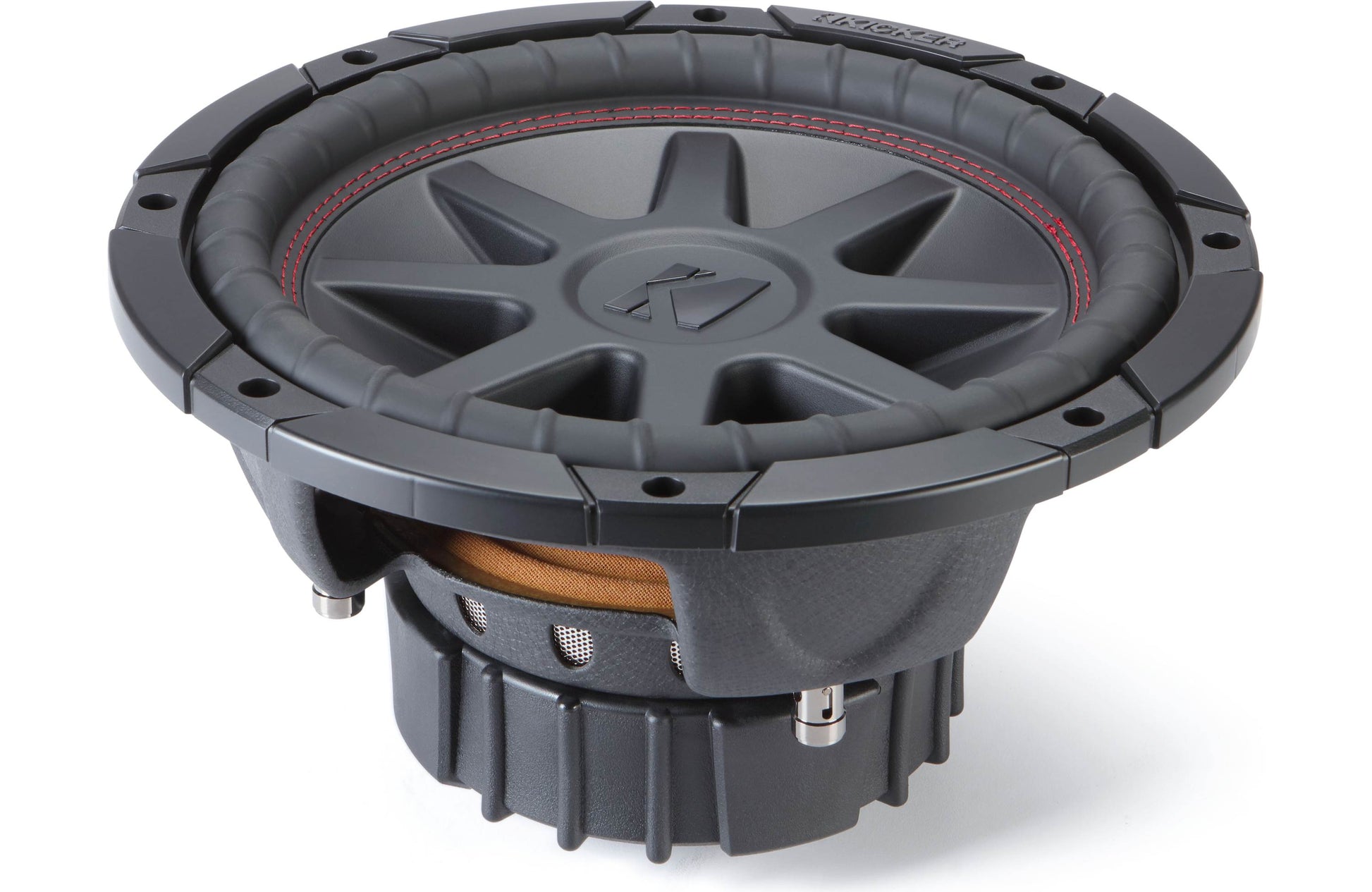

10" CompVR 2 Ohm
The CompVR 10-Inch Subwoofer is a 2Ohm dual voice coil design, built for easy wiring.

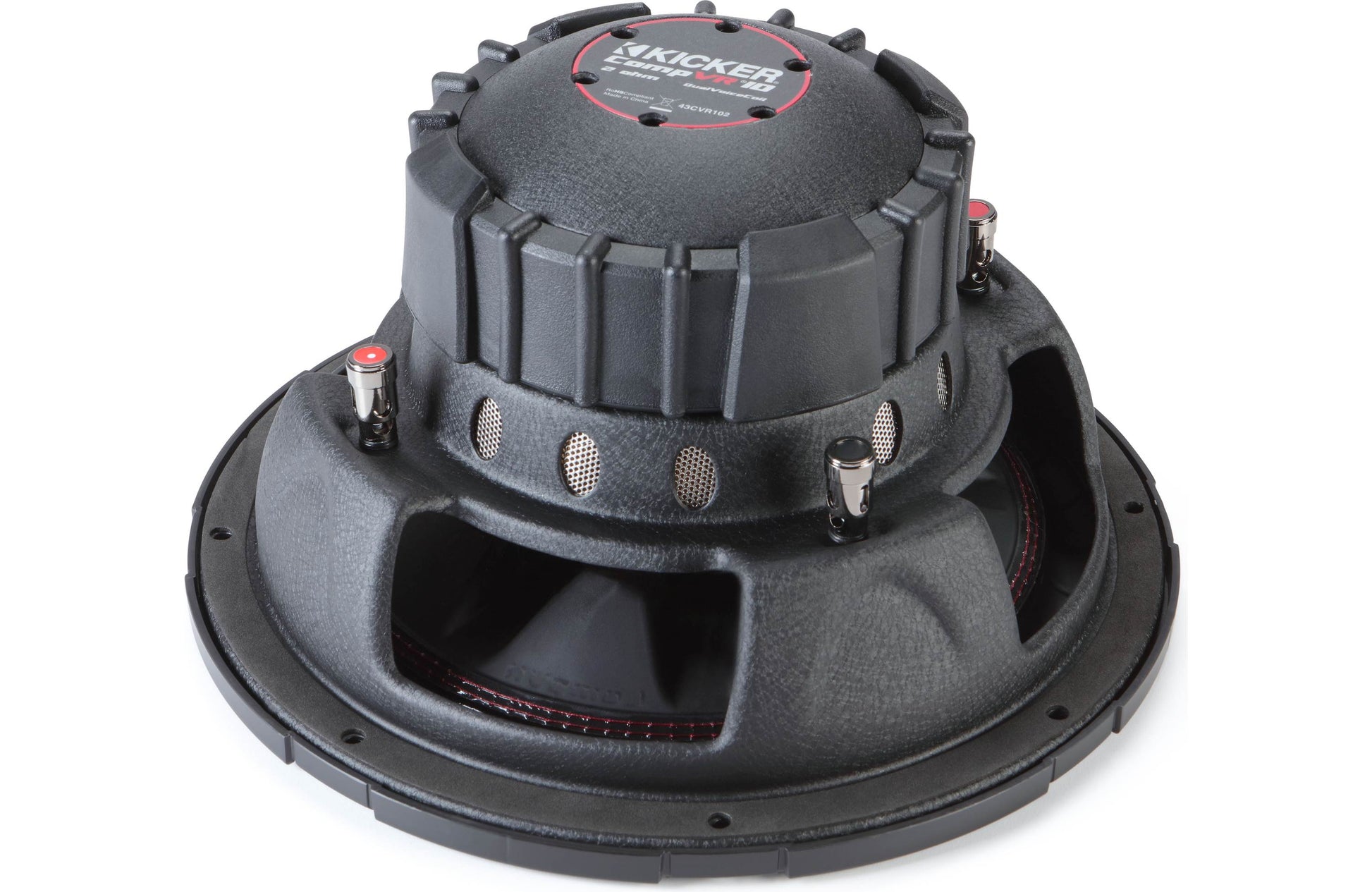

The CompVR gets earth-shattering bass to you by engineering a stable base and a cool, powerful motor. Powerful magnets and dual high-temp voice coils move a stiff polypropylene cone, while perimeter venting keeps the air moving around the motor. You get strong bass that keeps on bumping day in – day out.
The CompVR 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
SIZE [in, cm] | 10, 25 |
IMPEDANCE [Ohms] | 2 DVC |
Recommended Amplifier Power (watts RMS) | 350 |
Peak Power (watts, per ANSI/CTA-2031-A) | 700 |
SENSITIVITY [dB 1w/1m] | 83.6 |
MOUNTING DEPTH [in, cm] | 5-1/2, 14 |
MOUNTING DIAMETER [in, cm] | 9-3/16, 23.3 |
MIN SEALED BOX VOL [cu. ft, L] | 0.8, 22.7 |
MAX SEALED BOX VOL [cu. ft, L] | 3, 85 |
MIN VENTED BOX VOL [cu. ft, L] | 1.25, 35.4 |
MAX VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
2016 CompVR | Multilingual | Download
43CVR102 Dimensions | Download
