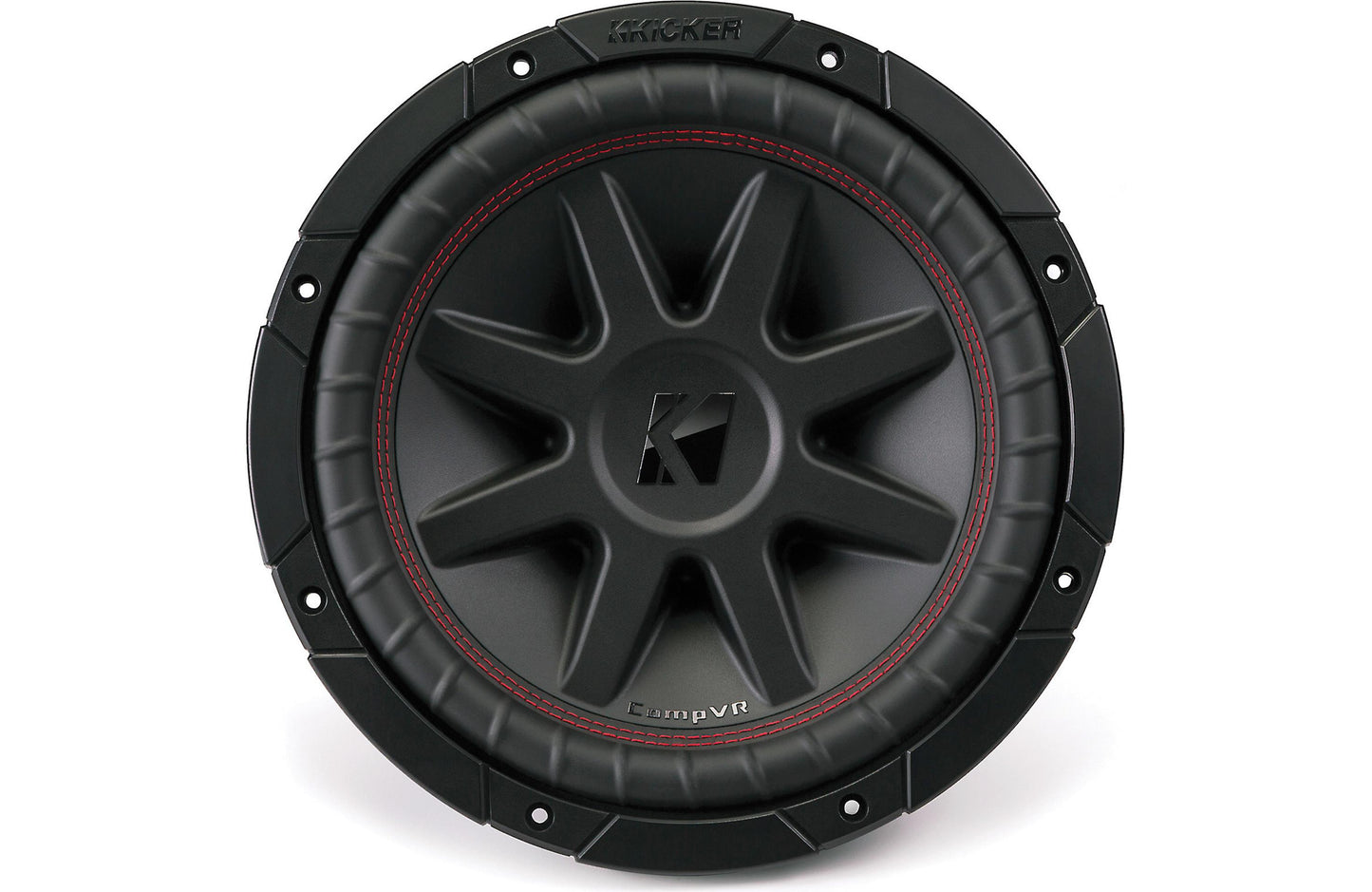

10" CompVR 4 Ohm
The CompVR 10-Inch Subwoofer is a 4Ohm dual voice coil design, built to get the most out of your amp.
The dual voice coil design adds a new level of wiring flexibility, to get the most out of CX Series amplifier, no matter how many subs you add to your ride.
The CompVR 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
| SIZE [in, cm] | 10, 25 |
| IMPEDANCE [Ohms] | 4 DVC |
| Recommended Amplifier Power (watts RMS) | 350 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 700 |
| SENSITIVITY [dB 1w/1m] | 83.6 |
| MOUNTING DEPTH [in, cm] | 5-1/2, 14 |
| MOUNTING DIAMETER [in, cm] | 9-3/16, 23.3 |
| MIN SEALED BOX VOL [cu. ft, L] | 0.8, 22.7 |
| MAX SEALED BOX VOL [cu. ft, L] | 3, 85 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.25, 35.4 |
| MAX VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
2016 CompVR | Multilingual | Download
43CVR104 Dimensions | Download
