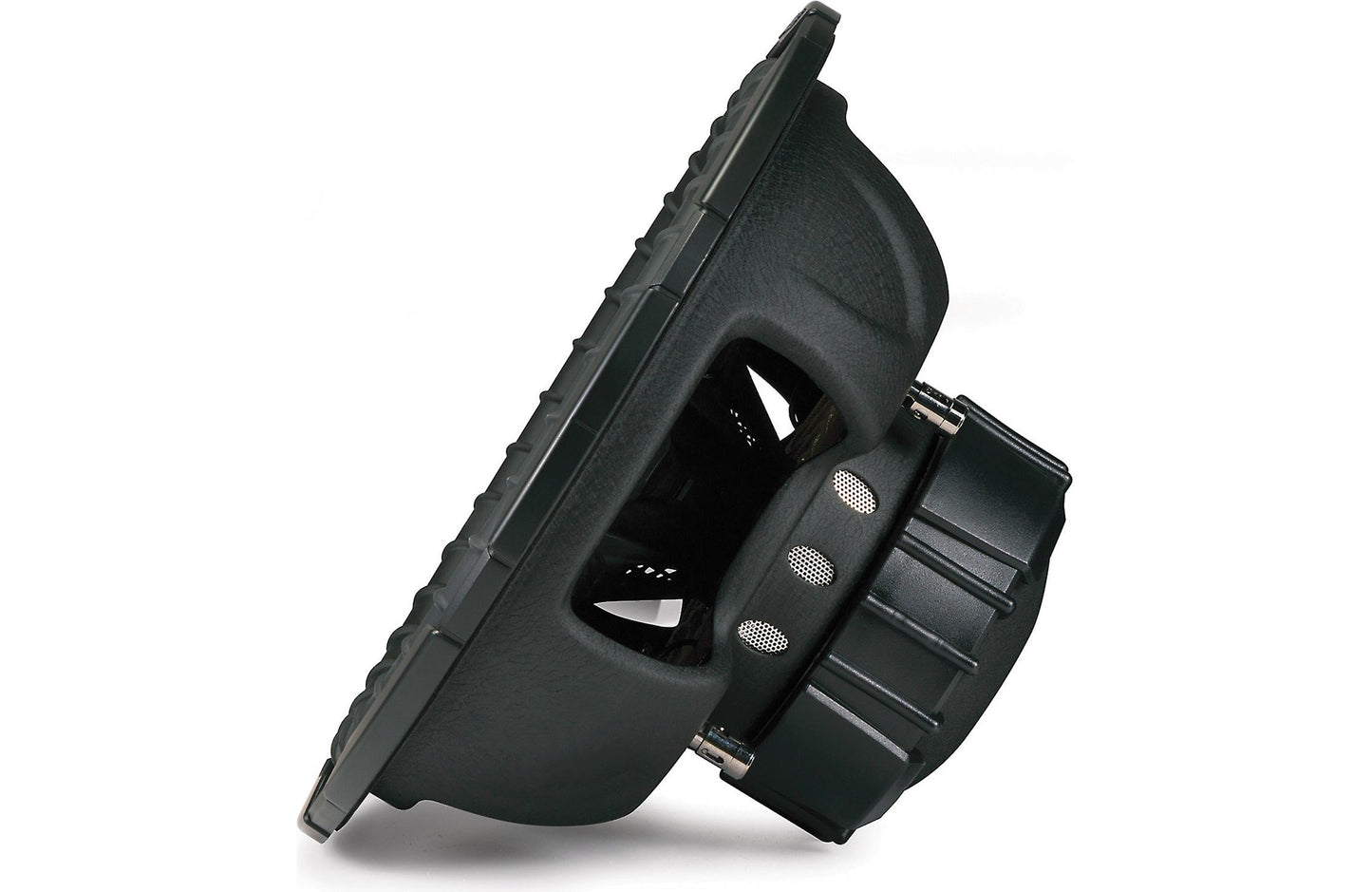

12" CompVR 2 Ohm
The CompVR 12-Inch Subwoofer is a 2Ohm dual voice coil design, built for easy wiring.
This subwoofer uses a large-diameter, progressive-roll spider and a Santoprene surround for truly linear cone movement. All this technology creates outstanding bass in a subwoofer built to make the mirrors shake.
The CompVR 12-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
| SIZE [in, cm] | 12, 30 |
| IMPEDANCE [Ohms] | 2 DVC |
| Recommended Amplifier Power (watts RMS) | 400 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 800 |
| SENSITIVITY [dB 1w/1m] | 86.9 |
| MOUNTING DEPTH [in, cm] | 6-1/4, 15.9 |
| MOUNTING DIAMETER [in, cm] | 11, 27.8 |
| MIN SEALED BOX VOL [cu. ft, L] | 1, 28.3 |
| MAX SEALED BOX VOL [cu. ft, L] | 4.6, 130 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
| MAX VENTED BOX VOL [cu. ft, L] | 2.25, 63.7 |
2016 CompVR | Multilingual | Download
43CVR122 Dimensions | Download
