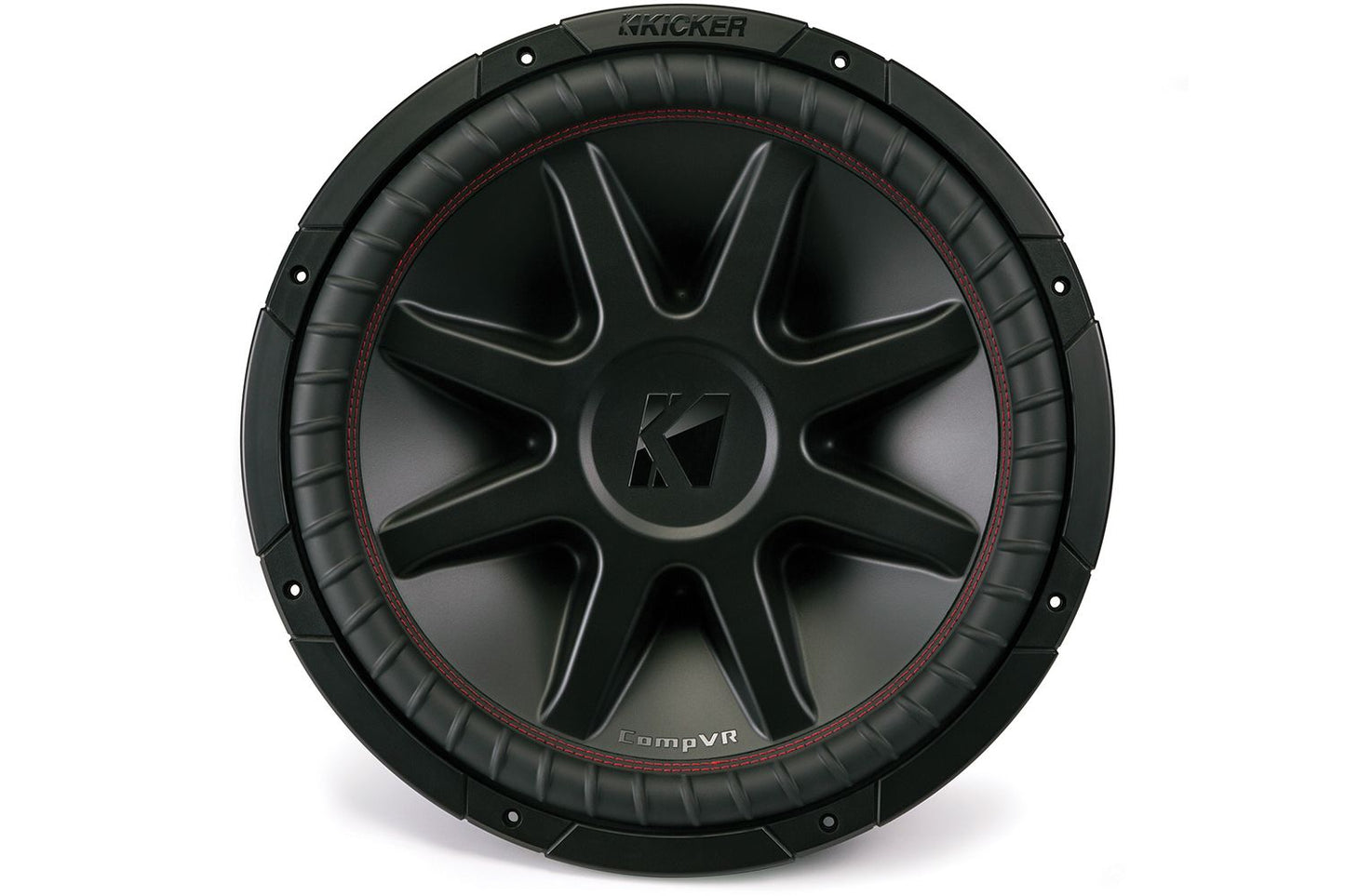

15" CompVR 4 Ohm
The CompVR 15-Inch Subwoofer is a 4Ohm dual voice coil design, built for easy wiring.
A solid pole piece and perimeter venting allows superb heat dissipation without breakdown and improved bass response. The Santoprene surround and progressive-roll spider keep the cone response smooth, linear and accurate at any volume level.
The CompVR 15-Inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
| SIZE [in, cm] | 15, 38 |
| IMPEDANCE [Ohms] | 4 DVC |
| Recommended Amplifier Power (watts RMS) | 500 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1000 |
| SENSITIVITY [dB 1w/1m] | 89.2 |
| MOUNTING DEPTH [in, cm] | 8-3/16, 20.7 |
| MOUNTING DIAMETER [in, cm] | 13-11/16, 34.7 |
| MIN SEALED BOX VOL [cu. ft, L] | 1.8, 51 |
| MAX SEALED BOX VOL [cu. ft, L] | 5.2, 147 |
| MIN VENTED BOX VOL [cu. ft, L] | 3, 85 |
| MAX VENTED BOX VOL [cu. ft, L] | 5, 142 |
2016 CompVR | Multilingual | Download
43CVR154 Dimensions | Download
