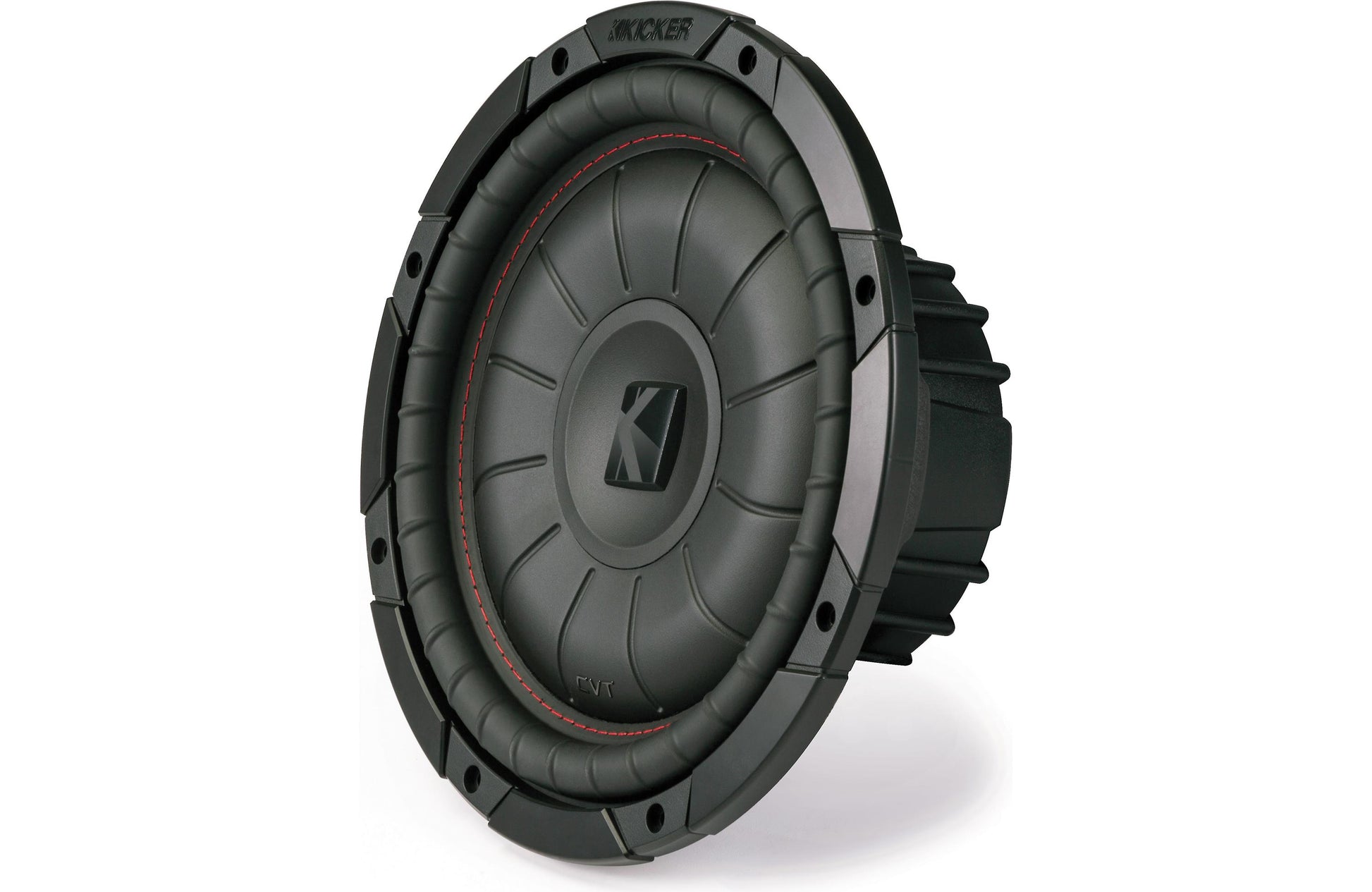

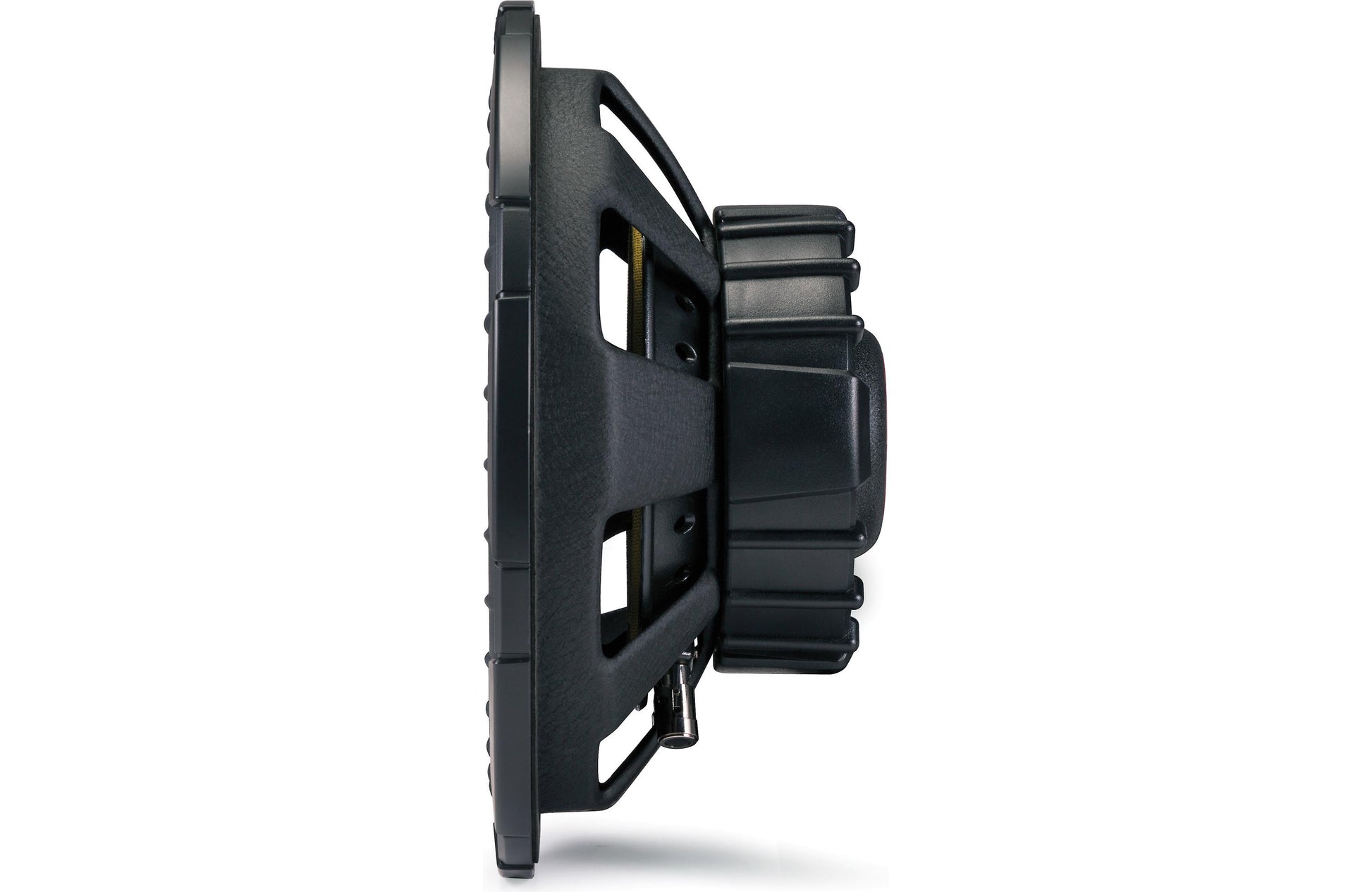

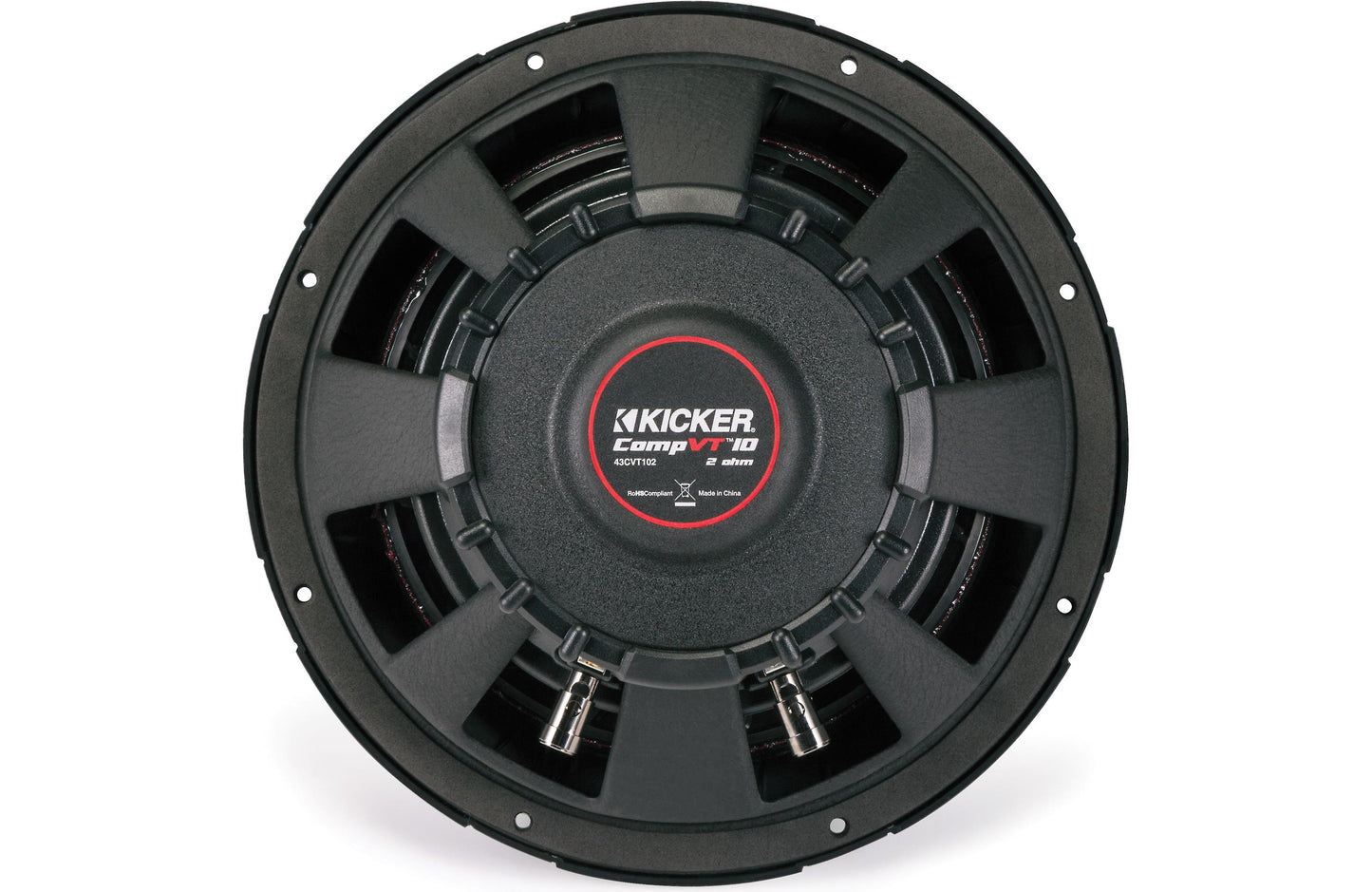

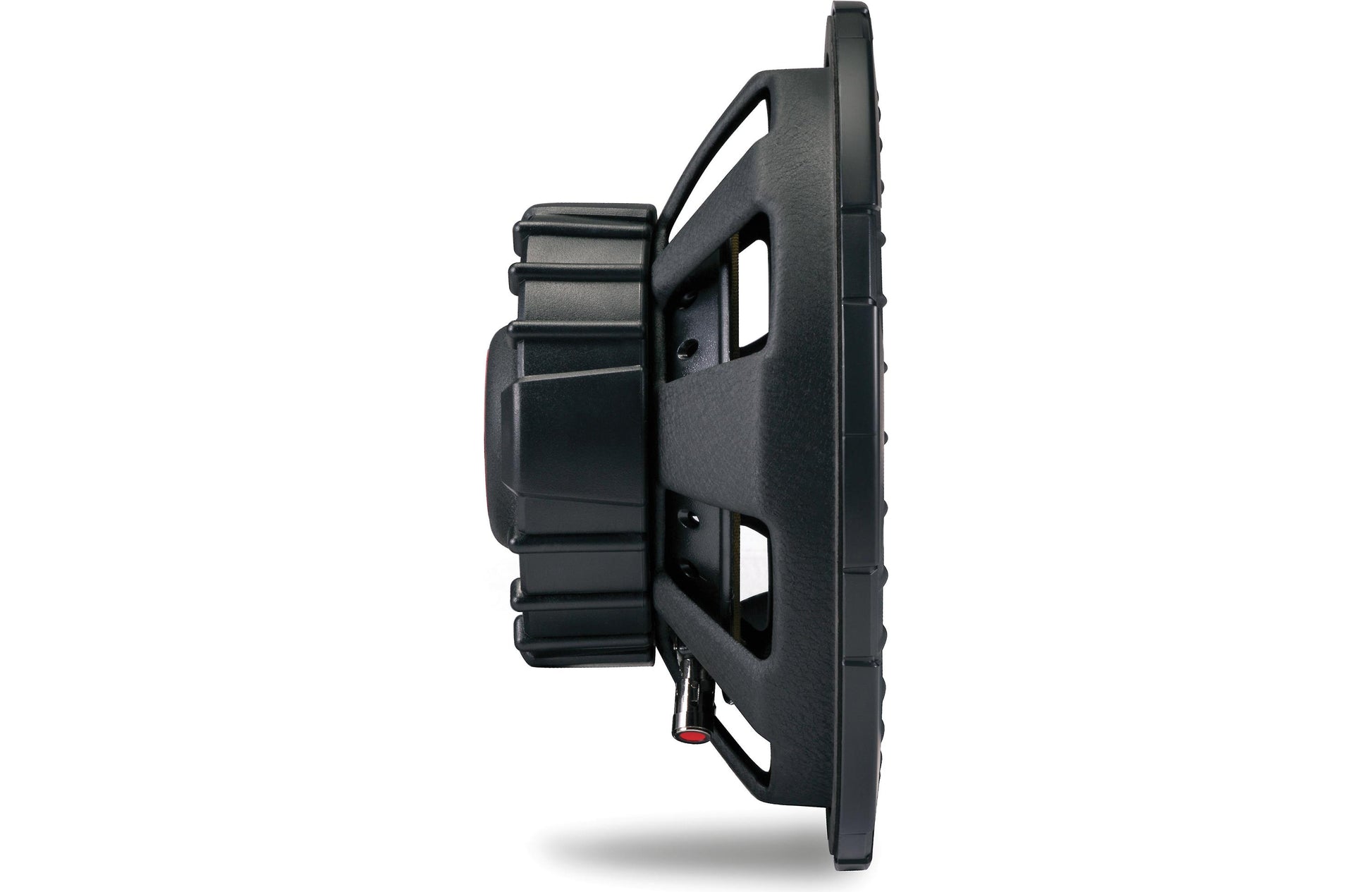

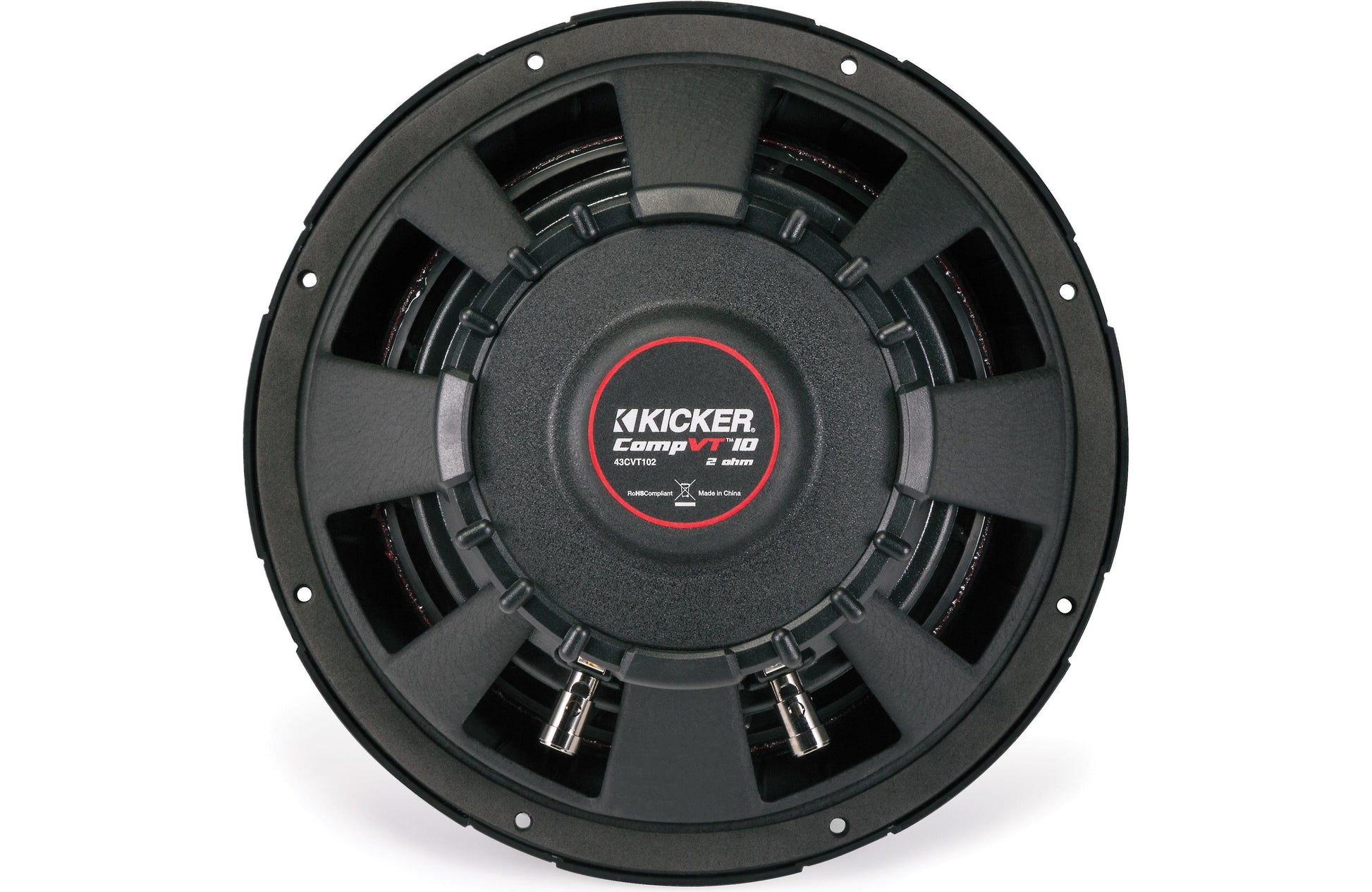

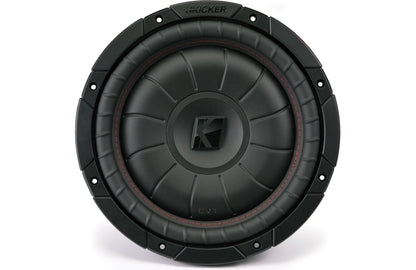

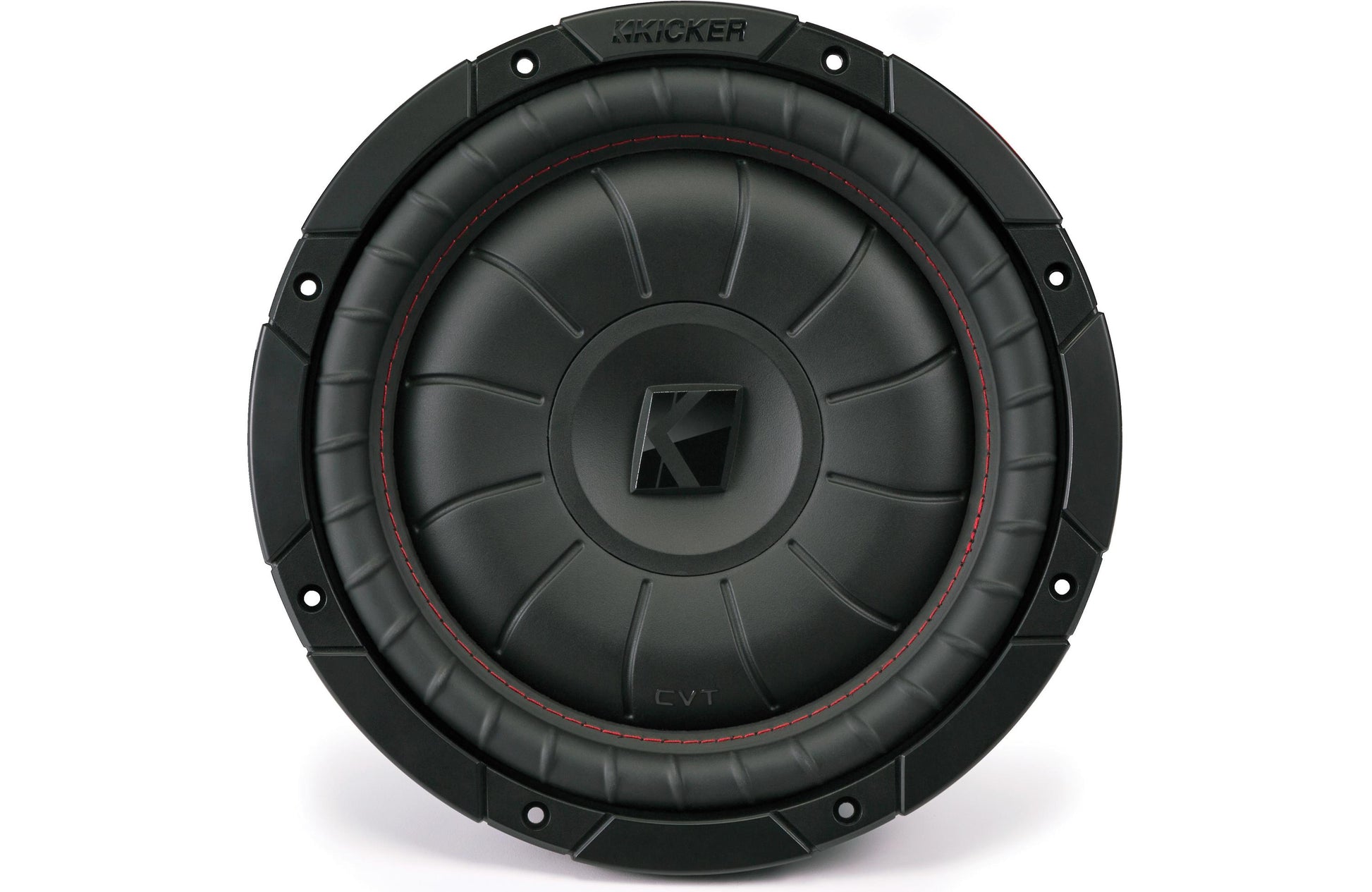

10" CompVT 2 Ohm
The CompVT 10-Inch Subwoofer is a 2Ohm slimline driver.
Precise KICKER engineering allows the CompVT to pound with limited space. A special four-layer voice coil provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.
The CompVT 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
SIZE [in, cm] | 10, 25 |
IMPEDANCE [Ohms] | 2 SVC |
Recommended Amplifier Power (watts RMS) | 350 |
Peak Power (watts, per ANSI/CTA-2031-A) | 700 |
SENSITIVITY [dB 1w/1m] | 87.2 |
MOUNTING DEPTH [in, cm] | 4-1/4, 10.8 |
MOUNTING DIAMETER [in, cm] | 9-3/16, 23.3 |
MIN SEALED BOX VOL [cu. ft, L] | 0.8, 22.7 |
MAX SEALED BOX VOL [cu. ft, L] | 3, 85 |
MIN VENTED BOX VOL [cu. ft, L] | 1.25, 35.4 |
MAX VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
2016 CompVT | English | Download
43CVT102 Dimensions | Download
