TUBE POWER

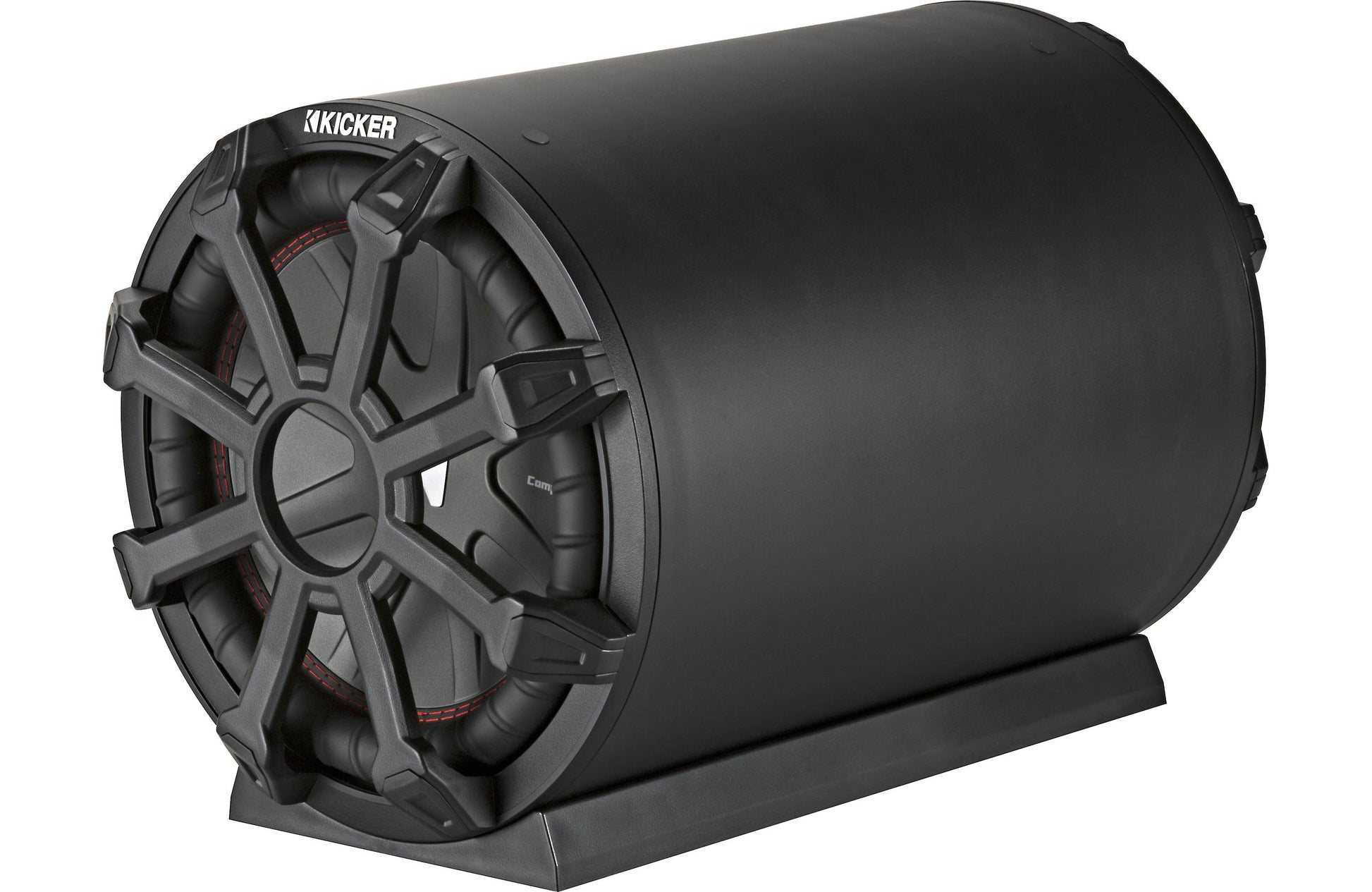

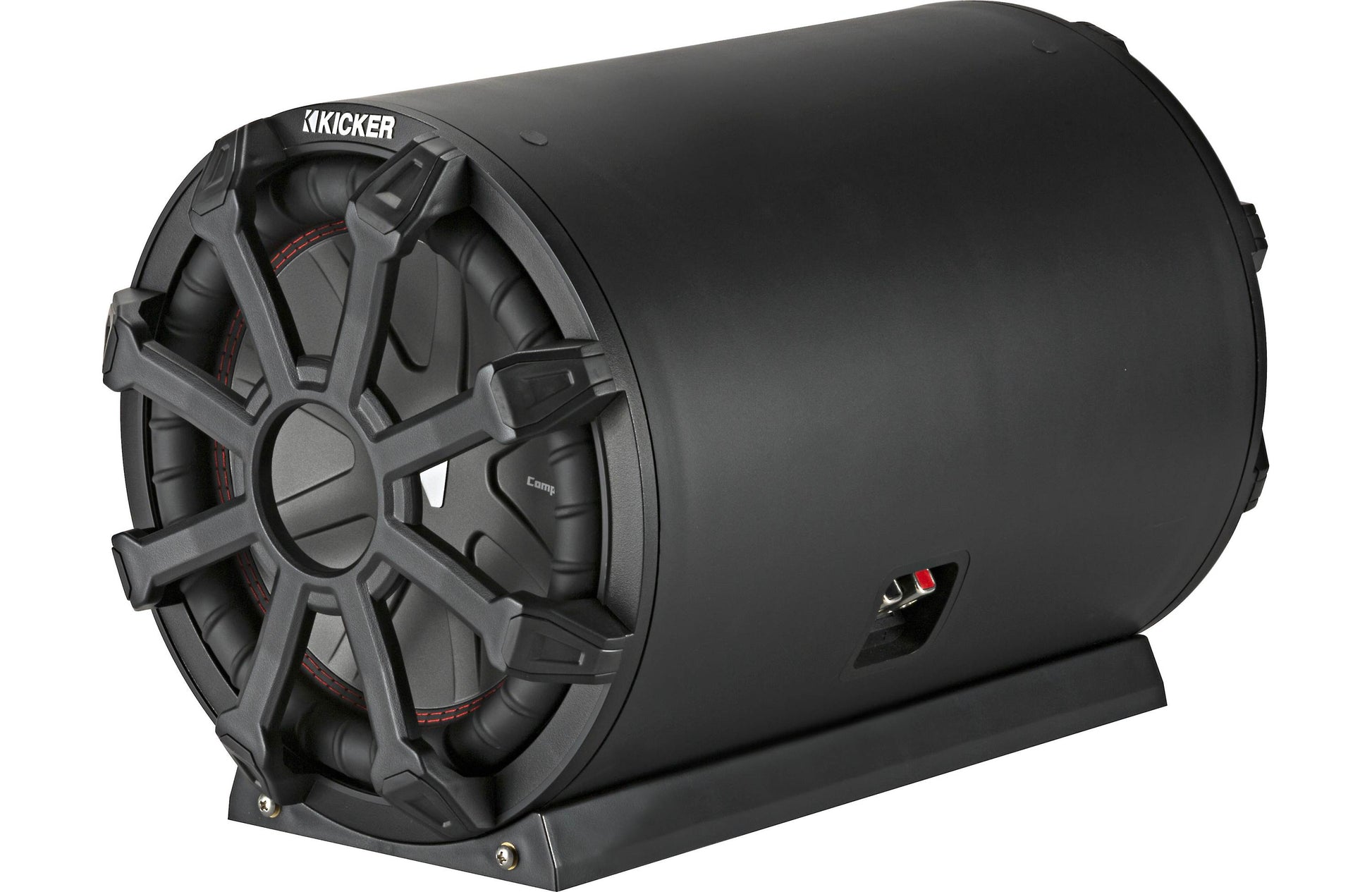

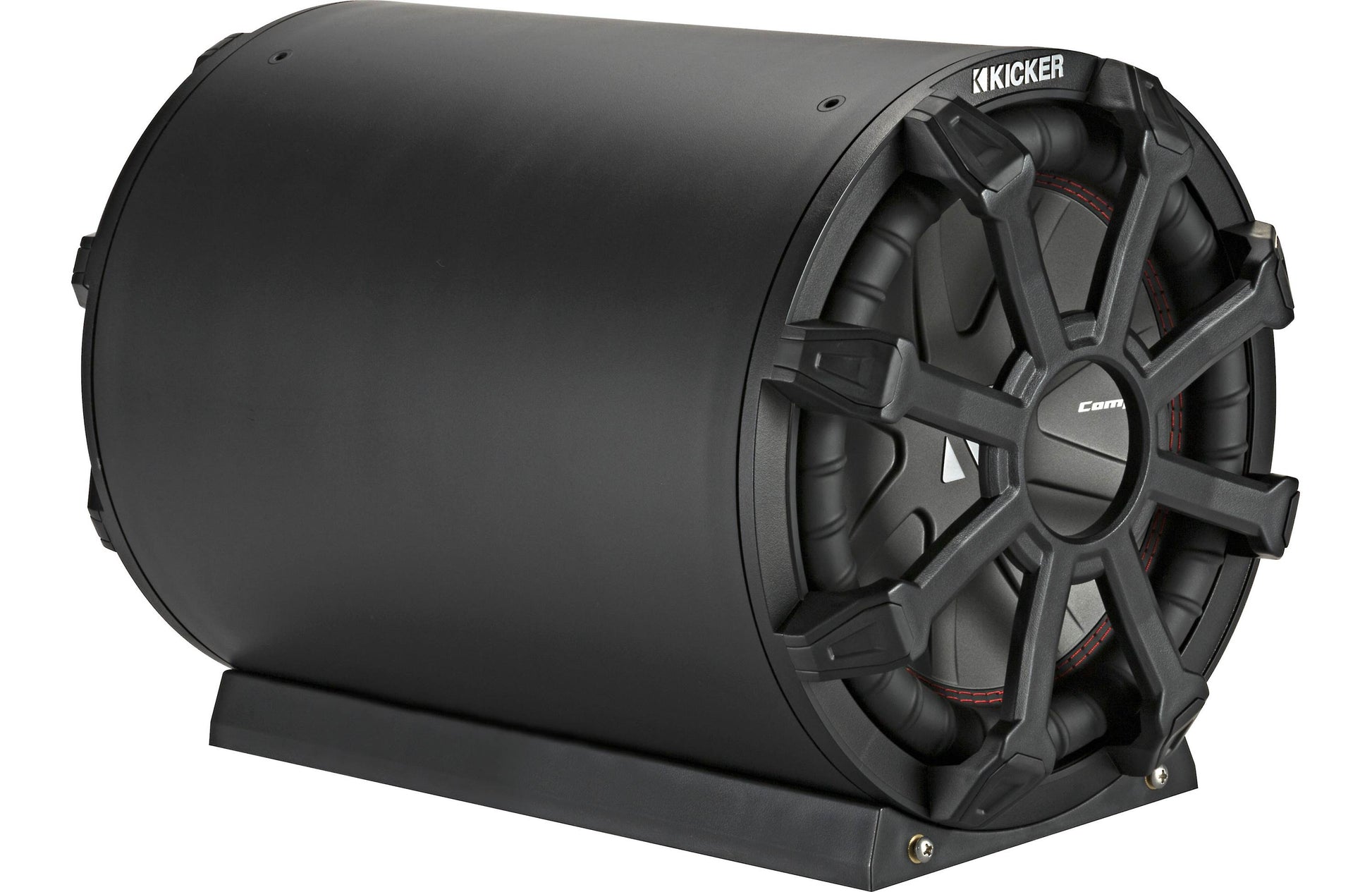

Ultra-deep and surprisingly loud, the TB subs mount in your trunk or your truck with equal ease. You get the bump you want without losing the space you need.
Features:
This TB 10-Inch Tube Speaker works best with 400 watts of recommended power.
Type | Reflex |
Size (in., cm) | 10, 25 |
Impedance (ohms) | 2 |
Recommended Amplifier Power (watts RMS) | 400 |
Peak Power (watts, per ANSI/CTA-2031-A) | 800 |
Sensitivity (dB 1w/1m) | 85.7 |
Tuning Frequency [Hz] | 31 |
Box Top Depth (in, cm) | - |
Box Bottom Depth (in, cm) | 16-9/16, 42.1 |
Box Height (in, cm) | Vert. Mount: 17-1/16, 43.4; Horiz. Mount: 10-3/4, 27.3 |
Box Width (in, cm) | 10-5/8, 27 |

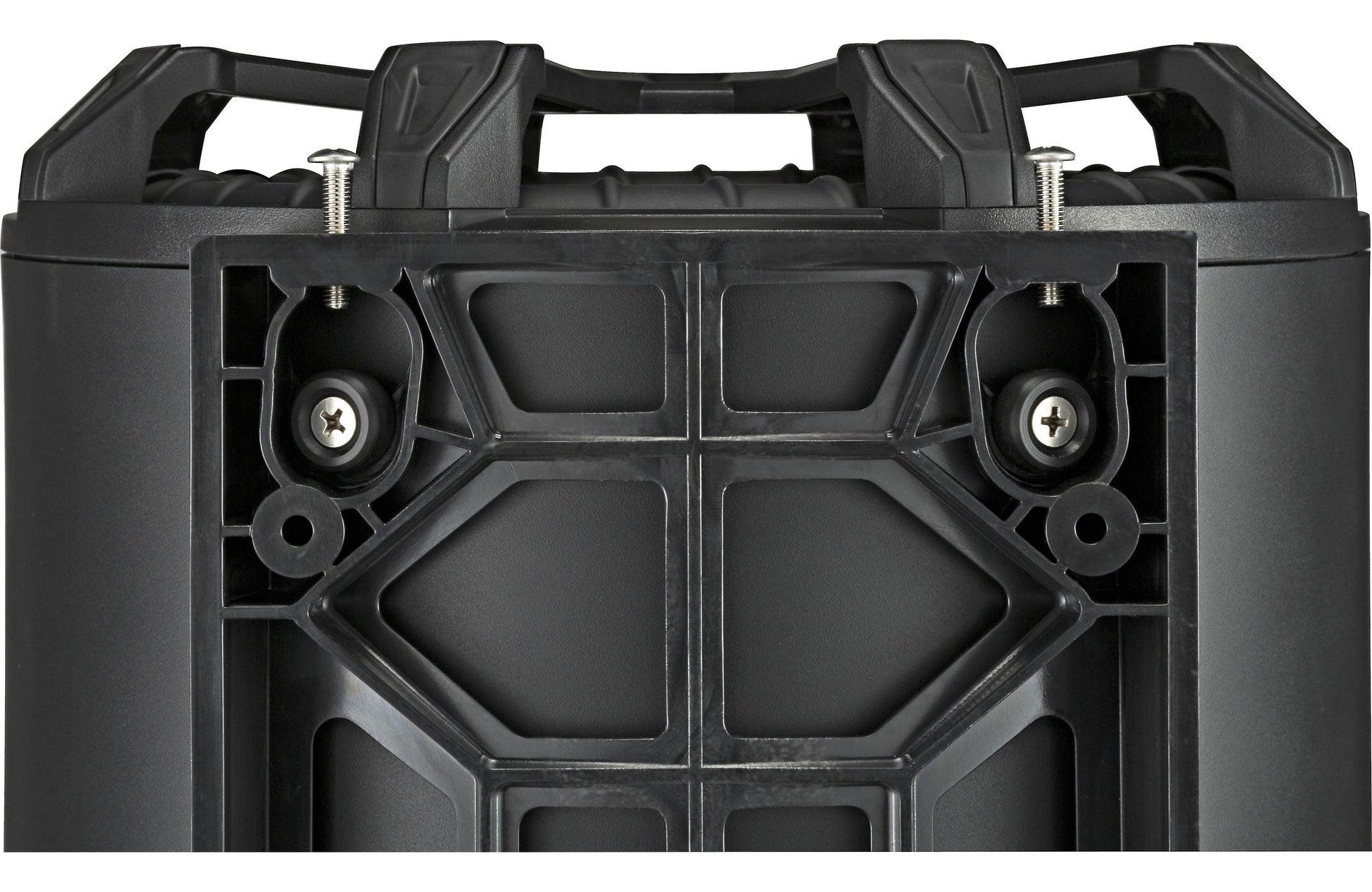

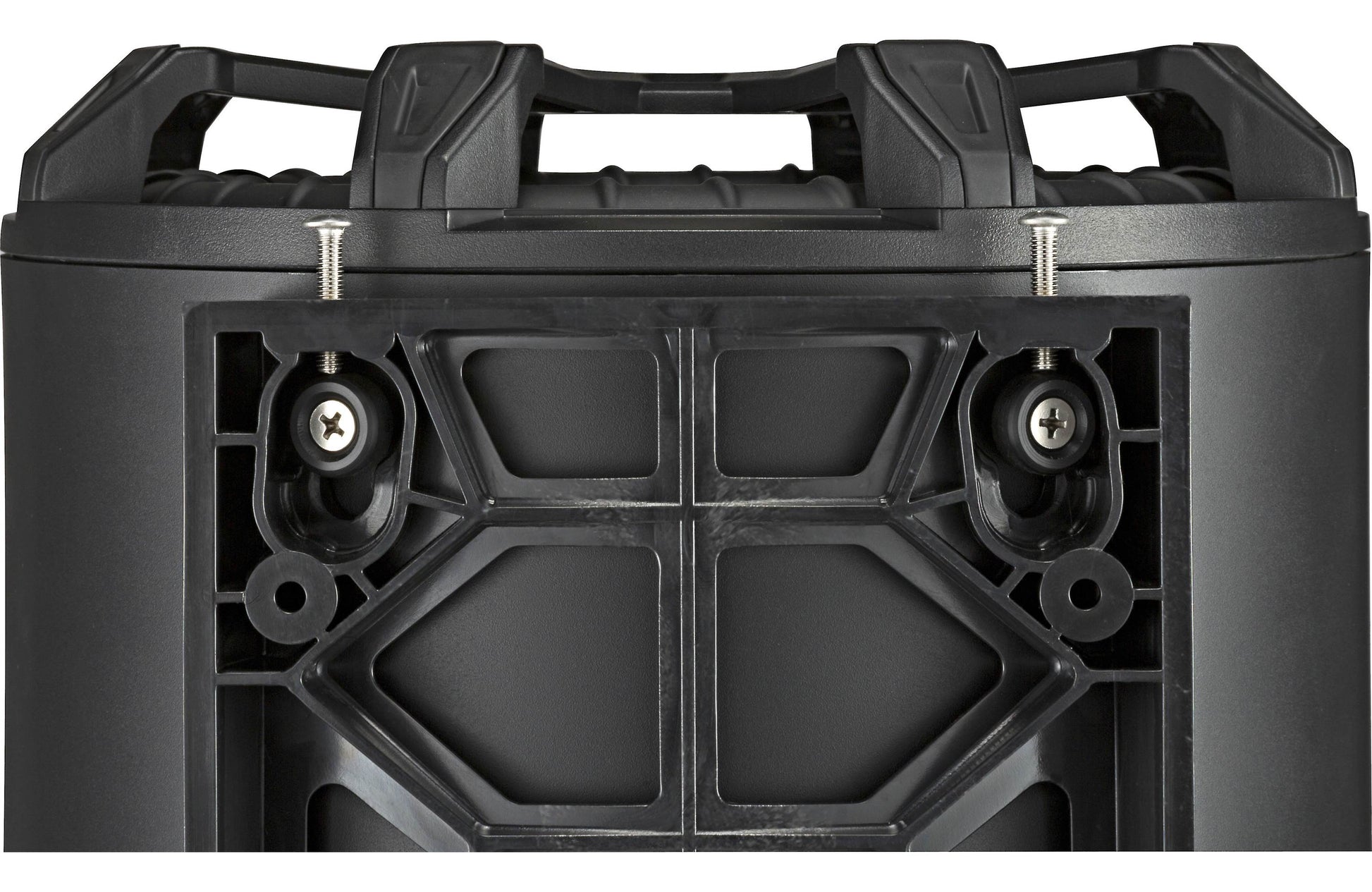

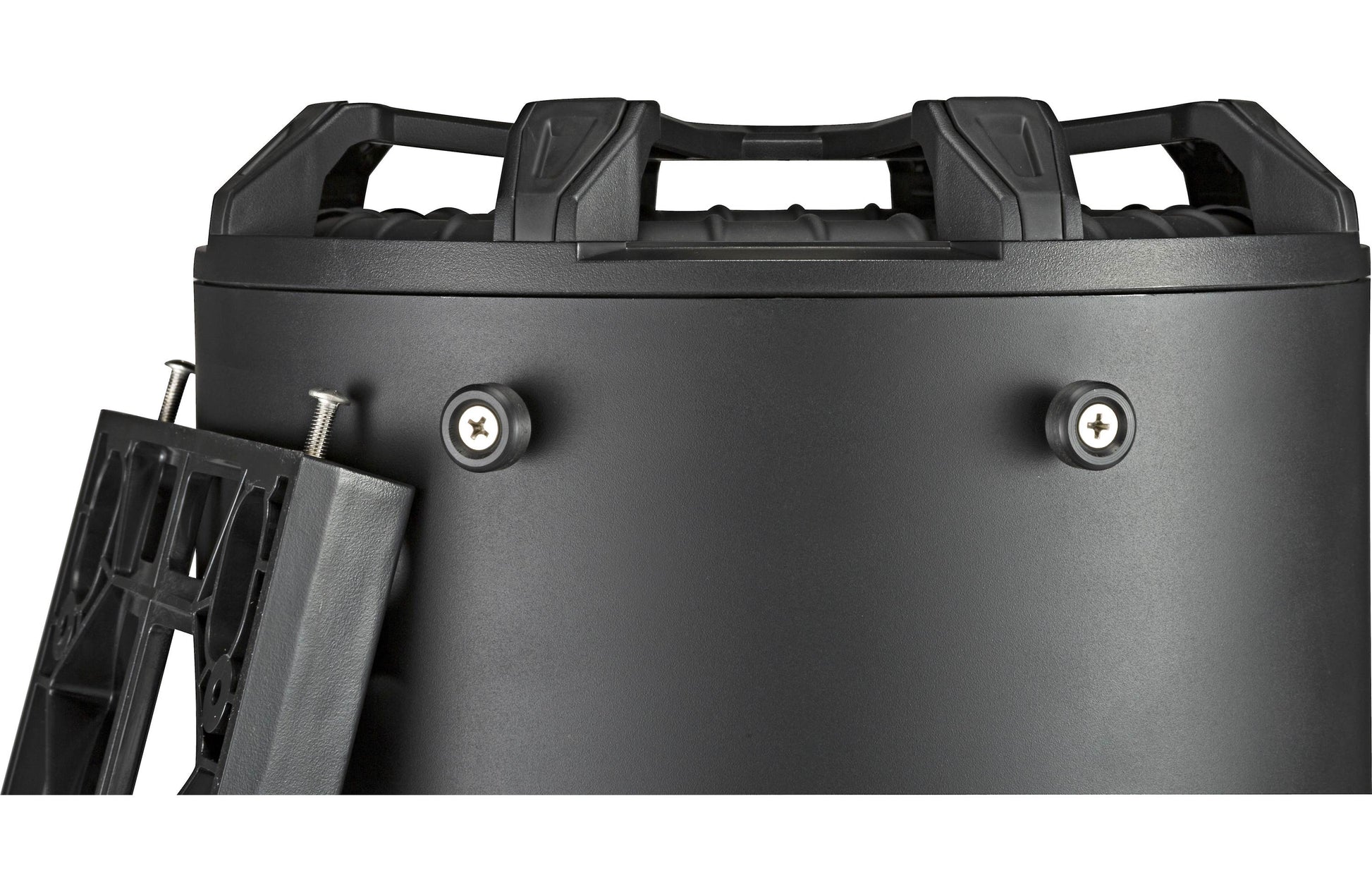

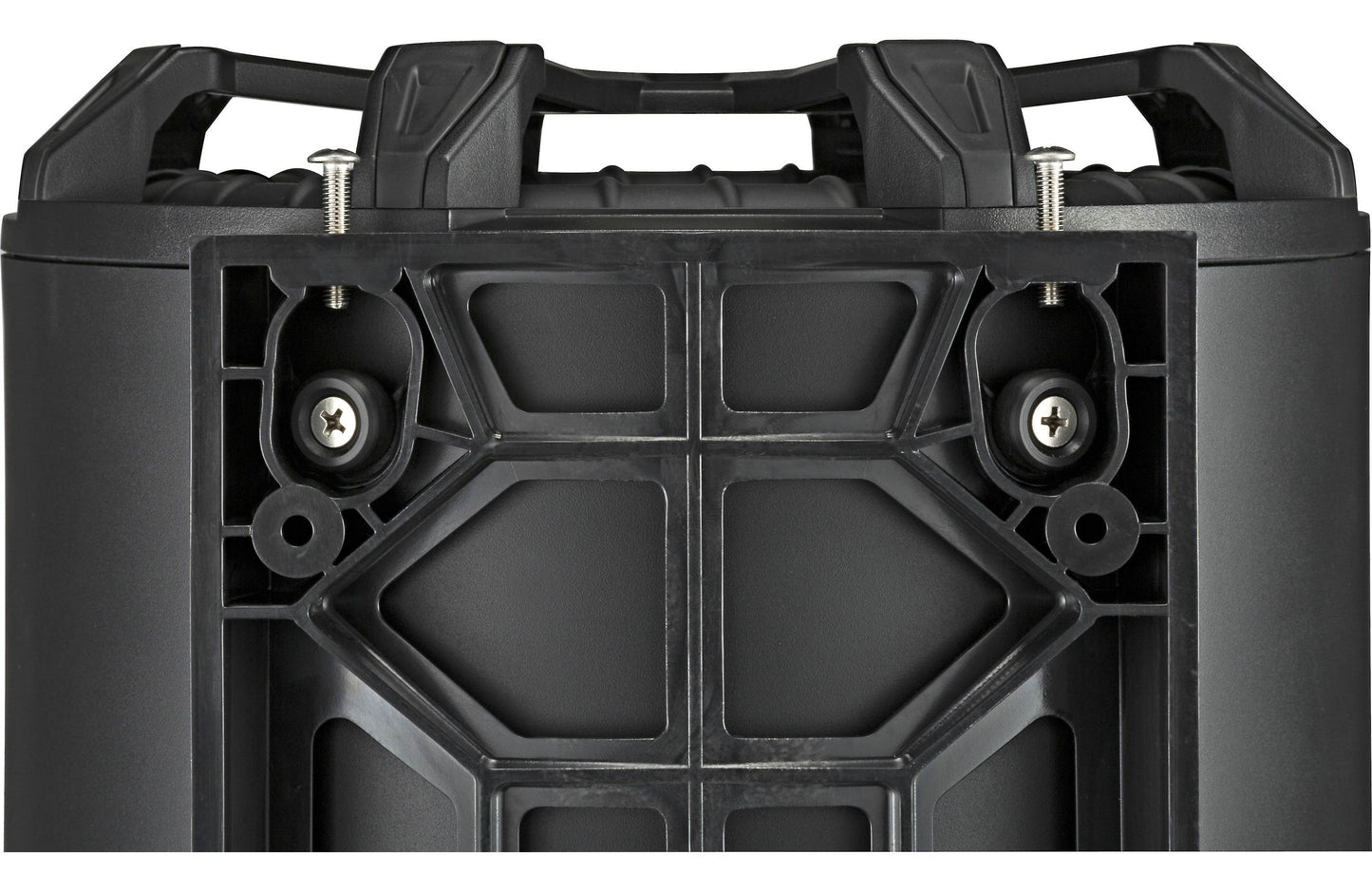

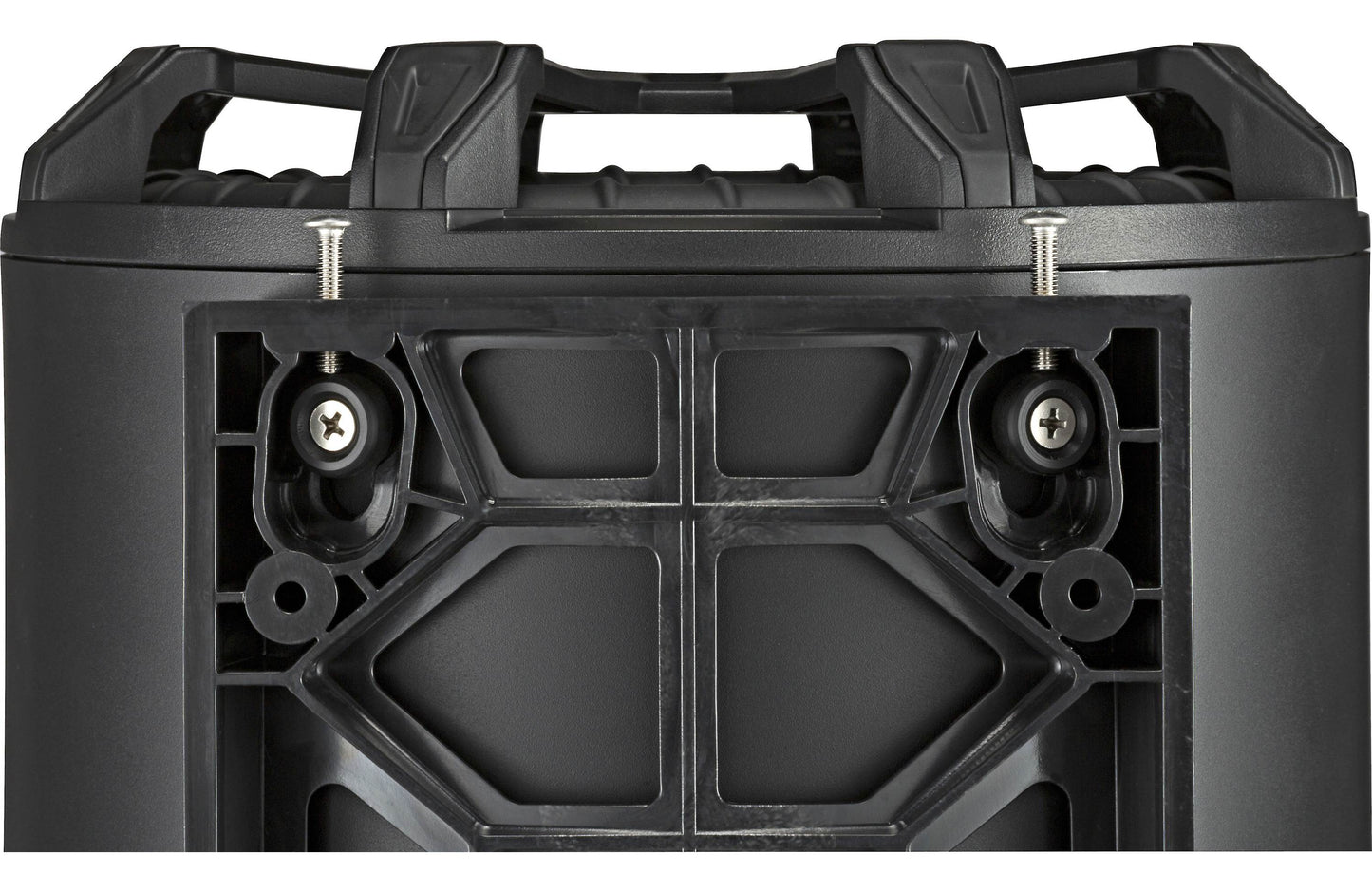

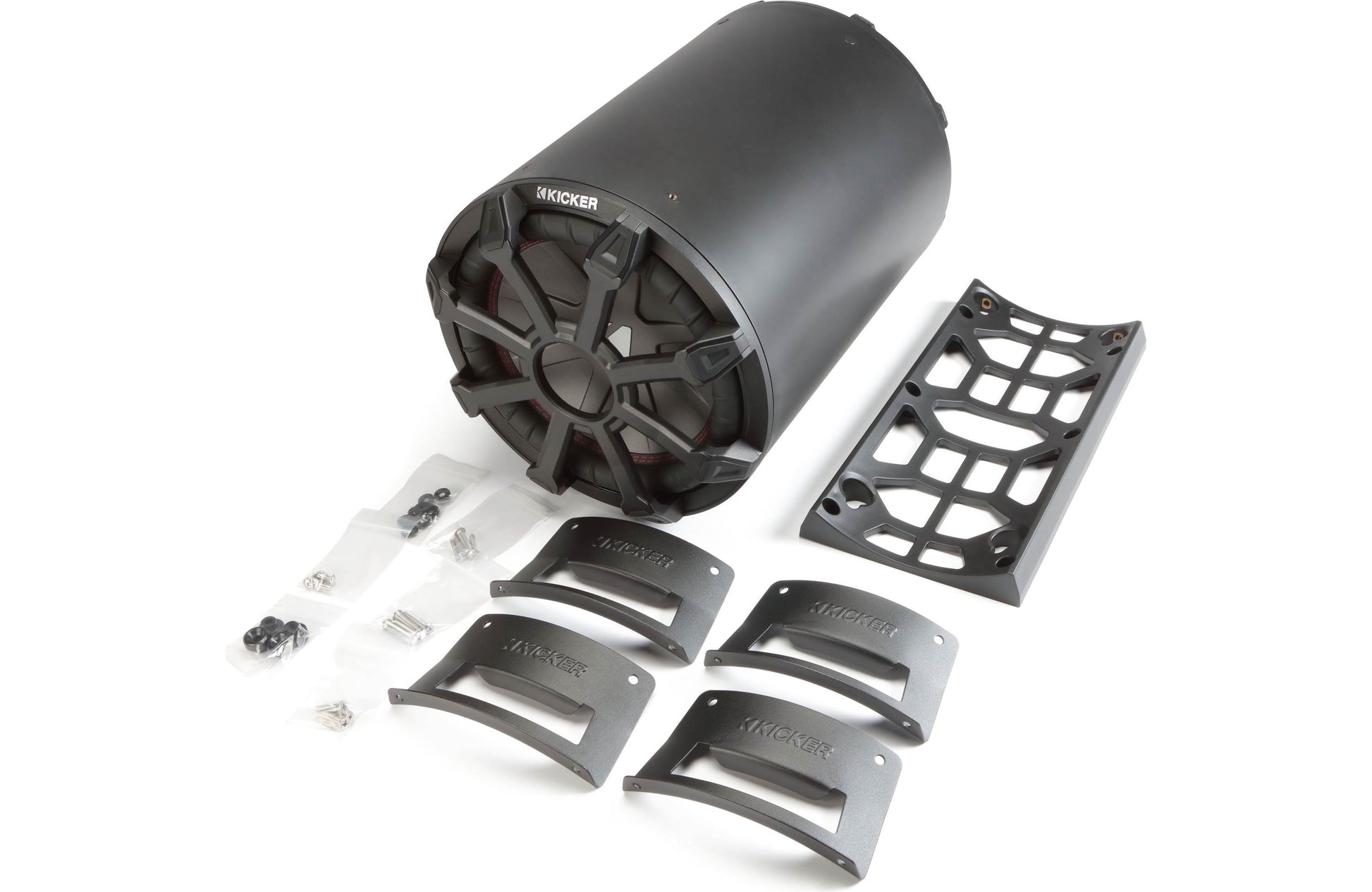

What's in the Box: | 1 - enclosure assembly 2 - vertical mounting brackets 1 - horizontal mount base 1 - Horizontal mount hook(retainer) 1 - Horizontal mount plate(retaining clamp) 7 - stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure 11 - nylon flat washers (to be used on all mounting fasteners) 4 - stainless steel pan head phillips M4 x 25mm (for mount base to vehicle) 1 - owner’s manual 2 - Kicker stickers |
TB Enclosure | Multilingual | Download
