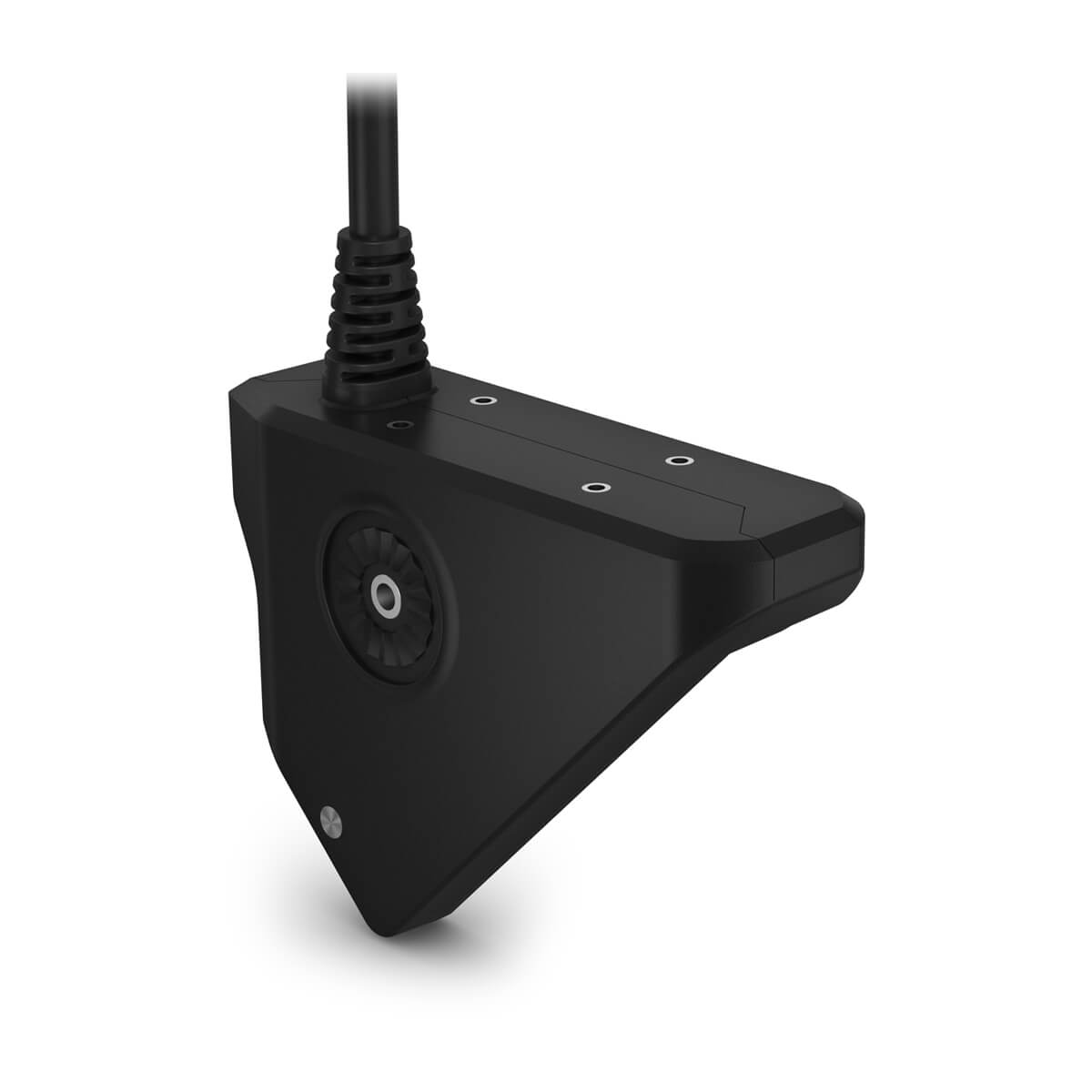

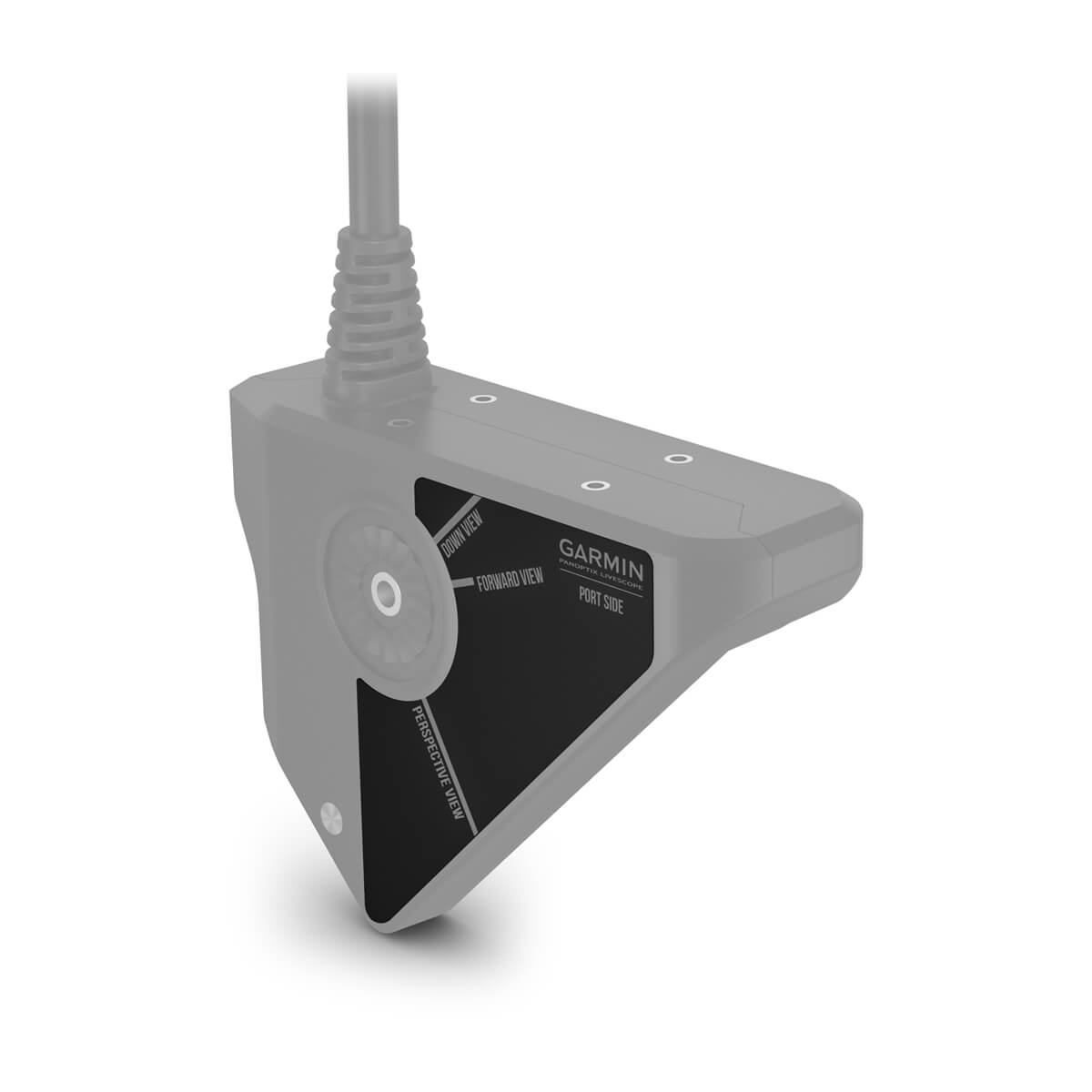

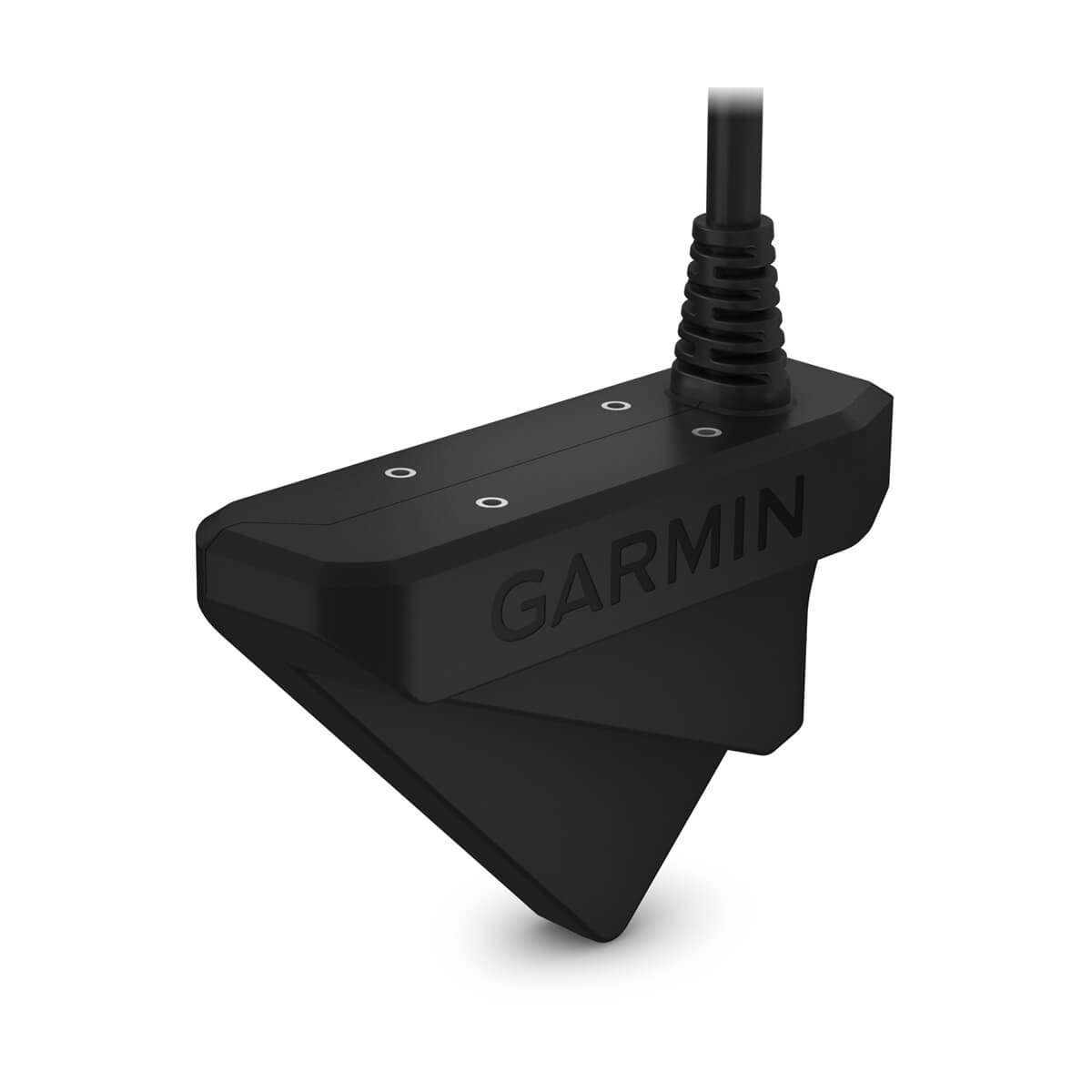

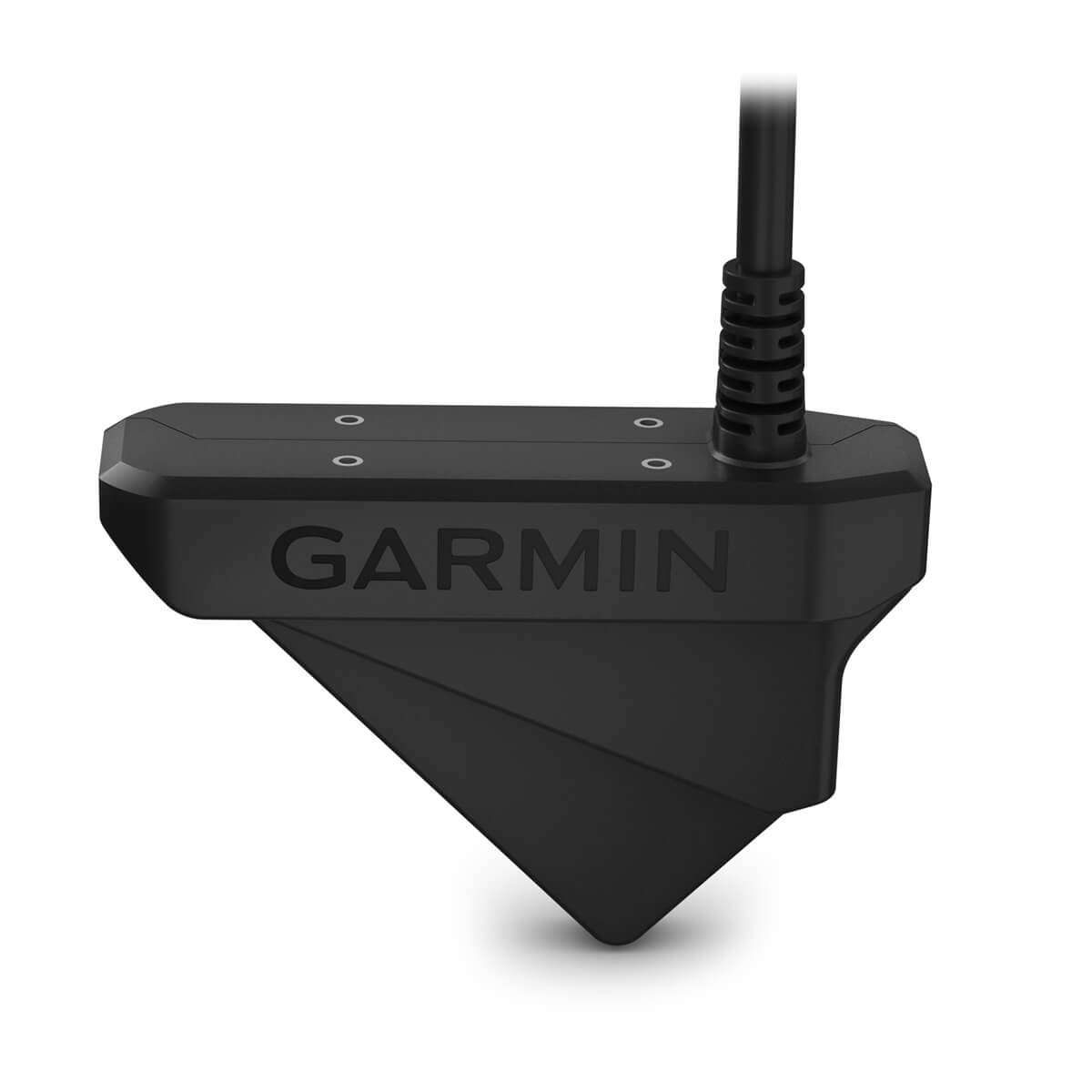

Drill fewer holes and catch more fish with the Panoptix LVS32-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLS™ 10 sonar black box to see live, easy-to-interpret scanning sonar images in incredible detail below the ice — including revolutionary LiveScope™ Forward and LiveScope™ Down modes. You’ll not only see crystal-clear imagery below your hole, but you can also see up to 200’ in both modes.
| General | |
| Transducer beamwidth | 20° x 135° |
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension | 5.4” x 3.8” x 1.8” (13.7 x 9.7 x 4.6 cm) |
| Weight | 1.9 lbs (0.9 kg) |
| Temperature range | Operating: 0° C to 40° C |
| Electrical Features | |
| Power input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Sonar Features | |
| Frequency | 530 - 1,100 kHz |
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @100' | 22" |
| Connections | |
| Garmin Marine Network Ports | 1 (small connector) |
| Sonar Modes | |
| LiveVü Down | ✓ |
| LiveVü Forward | ✓ |
| Perspective mode | ✓ |
| Traditional sonar source | ✓ |
