Garmin

LiveScope™ System Thru-hull Mount

LiveScope™ System Thru-hull Mount

  • price-tag logoNew Launch
$2,099.99
$2,099.99
Save: $-2,099.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

CLEARLY THE MOST AMAZING SONAR TECHNOLOGY EVER

You’ve never fished like this before, with a view below your boat so clear you even see your lure as you retrieve it.

Who wouldn’t want stunning, real-time imagery below and around their boat?

Up to 200’ down. Up to 200’ away. That’s an impressive view for real-time sonar.

Even if the waters are rough, this system stabilizes the view on your chartplotter screen.

No matter your setup, the simple plug-and-play connector makes install a breeze.

LIVESCOPE™ FORWARD SONAR

Scout and fish out ahead of your cast with live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat.


EXCELLENT RANGE

Not only can you see crystal-clear imagery around your boat, you can also see at a distance of up to 200’ in both modes — even while your boat is stationary.

IMAGE STABILIZATION

Attitude Heading Reference System stabilizes the sonar view on your chartplotter screen, even in rough conditions.

EASILY CONNECT TO YOUR SYSTEM

Seamlessly integrate this system with your compatible Garmin chartplotter using the simple plug-and-play Garmin Marine Network connector.


Specifications:

Feature Specification
General
Dimension GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm)
LVS32-TH transducer without fairing block: 9.6” x 1.8” x 5.4” (24.4 x 4.6 x 13.7 cm)
LVS32-TH transducer with fairing block: 9.6” x 3.4” x 8.1” (24.4 x 8.6 x 20.6 cm)
Weight GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LVS32-TH transducer without fairing block: 4.4 lbs (2.0 kg)
LVS32-TH transducer with fairing block: 5.0 lbs (2.3 kg)
Water rating IPX7
Temperature range GLS 10 Black Box: Operating: -15 C to 70 C
Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C
Electrical Features
Power input 10-32 V
Power usage 21 W typical, 58 W max
Fuse 7.5 A
Sonar Features
Frequency 530 - 1,100 kHz
Transmit power 500 W
Maximum depth Forward: 200’ (61.0 m)
Connections
Garmin Marine Network Ports 1 (small connector)


In the Box:

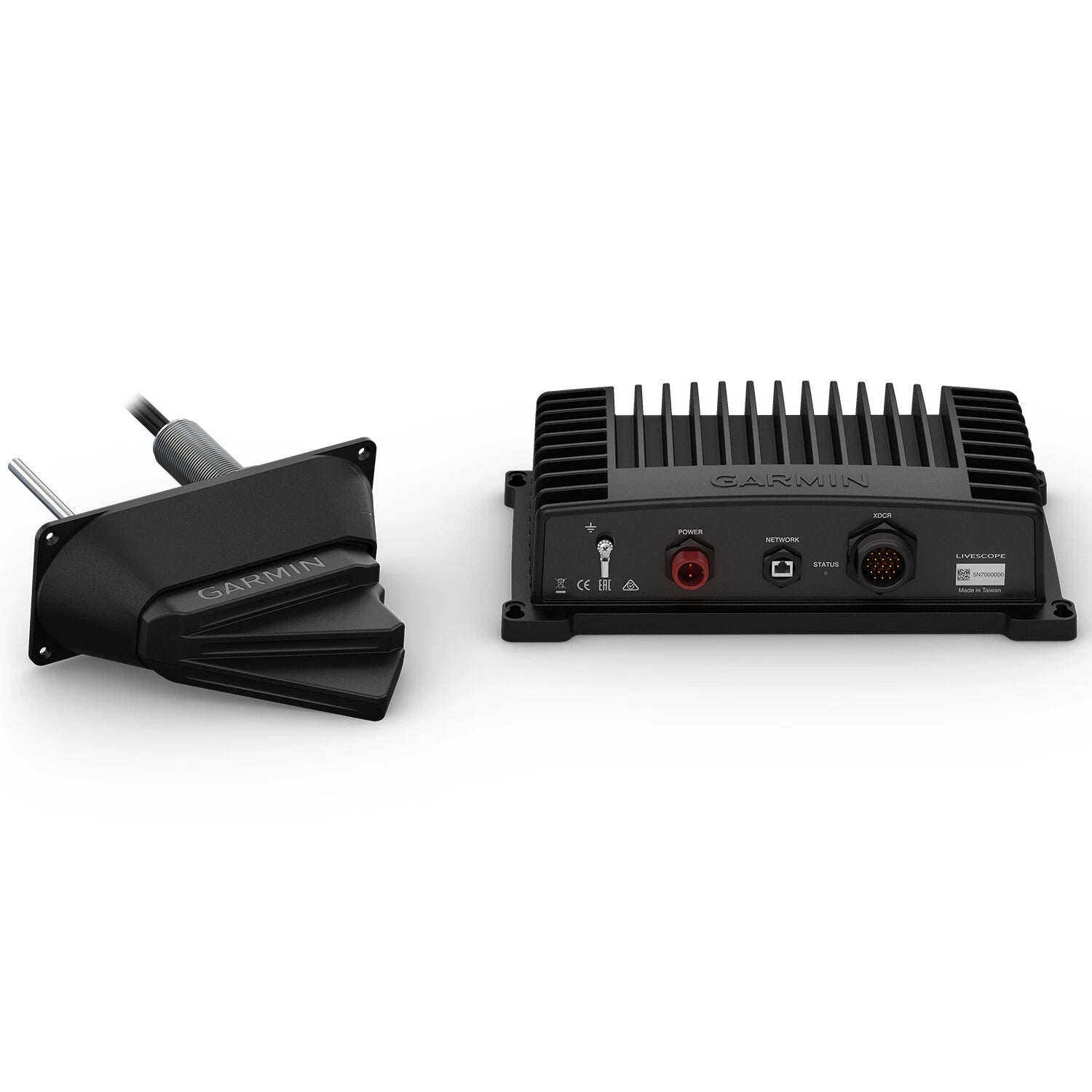

  • LiveScope GLS 10 sonar black box
  • Panoptix LVS32 transducer
  • Thru-hull mount hardware
  • Power cable
  • 2 meter Garmin marine network cable, small connector
  • Network adapter cable
  • Mounting hardware
  • Documentation
