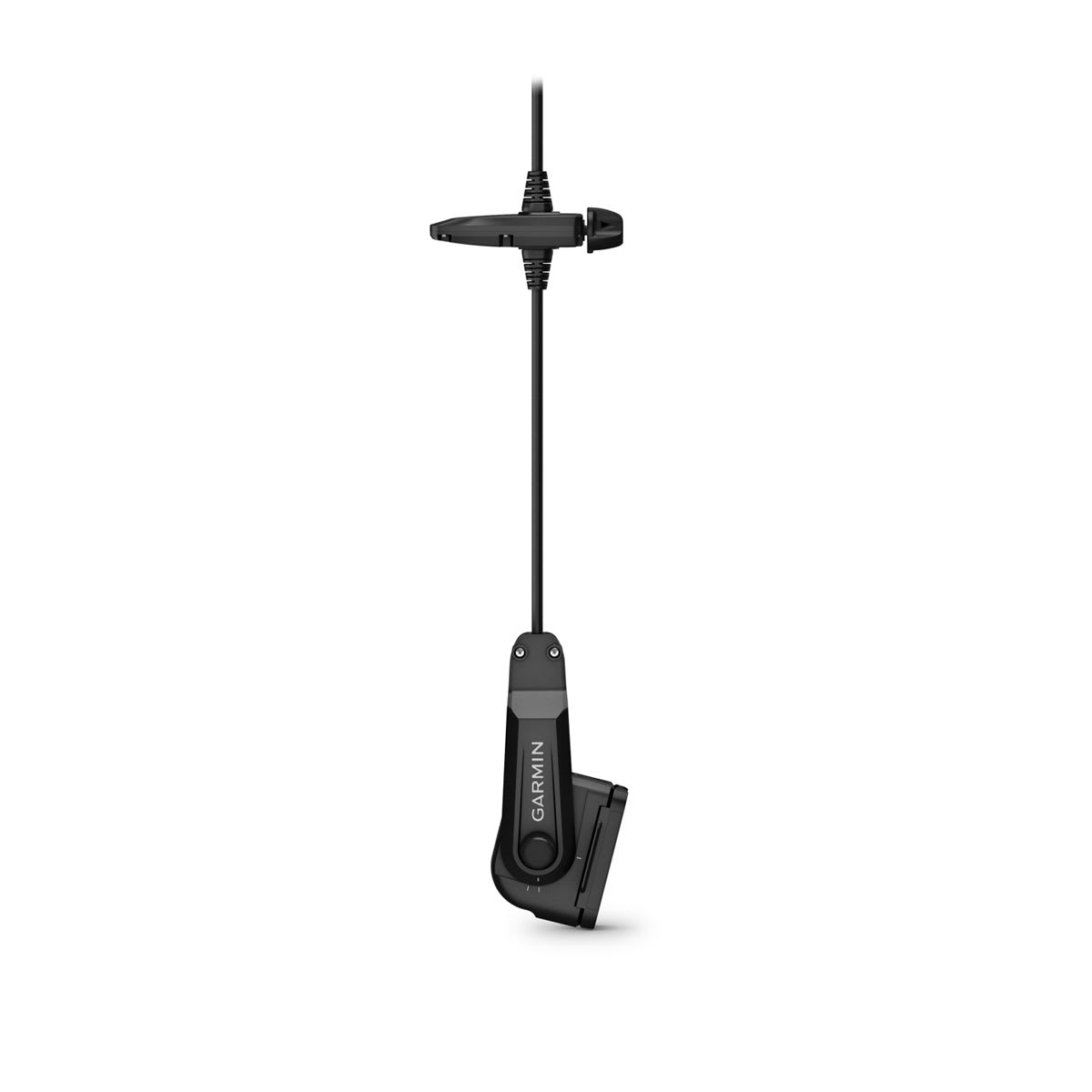

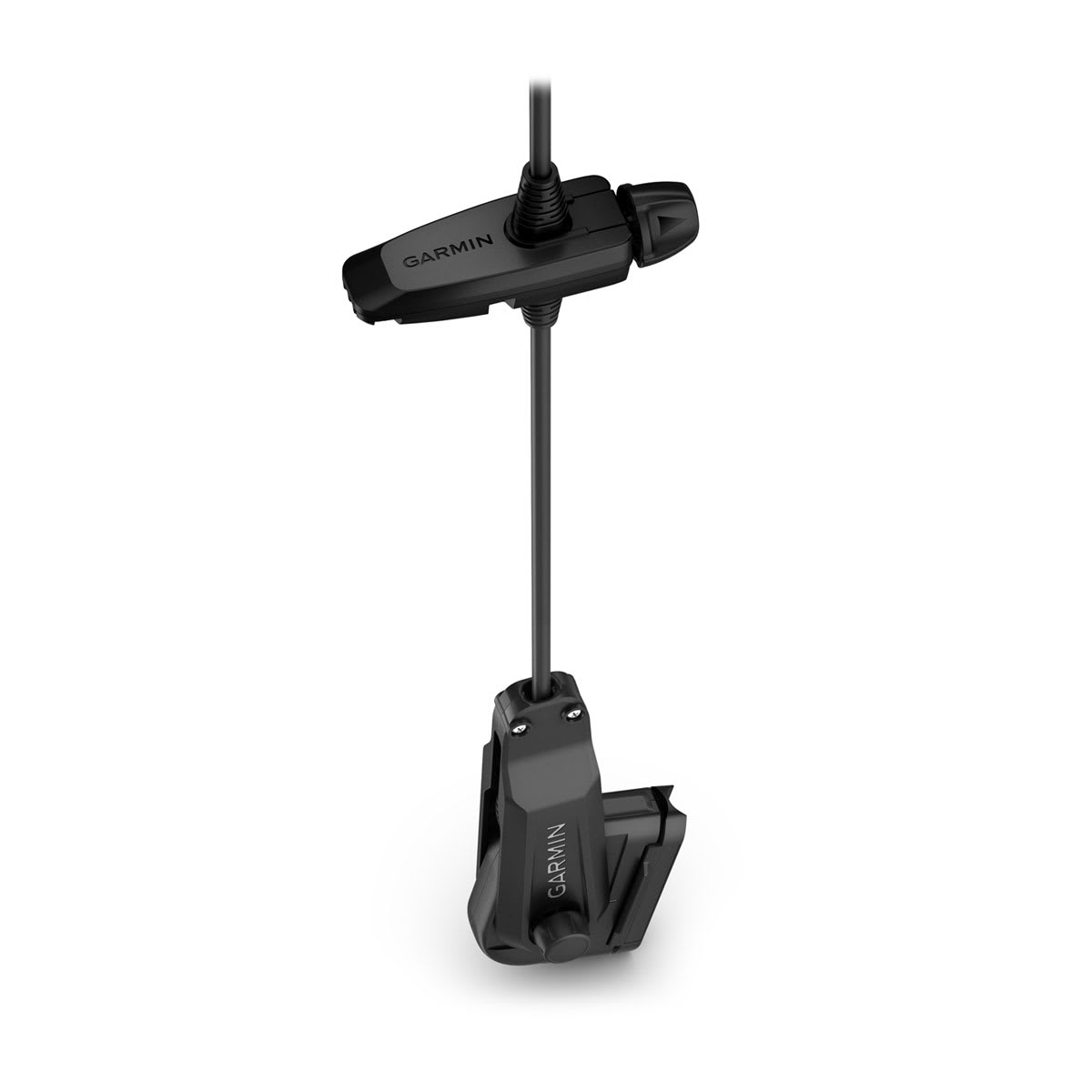

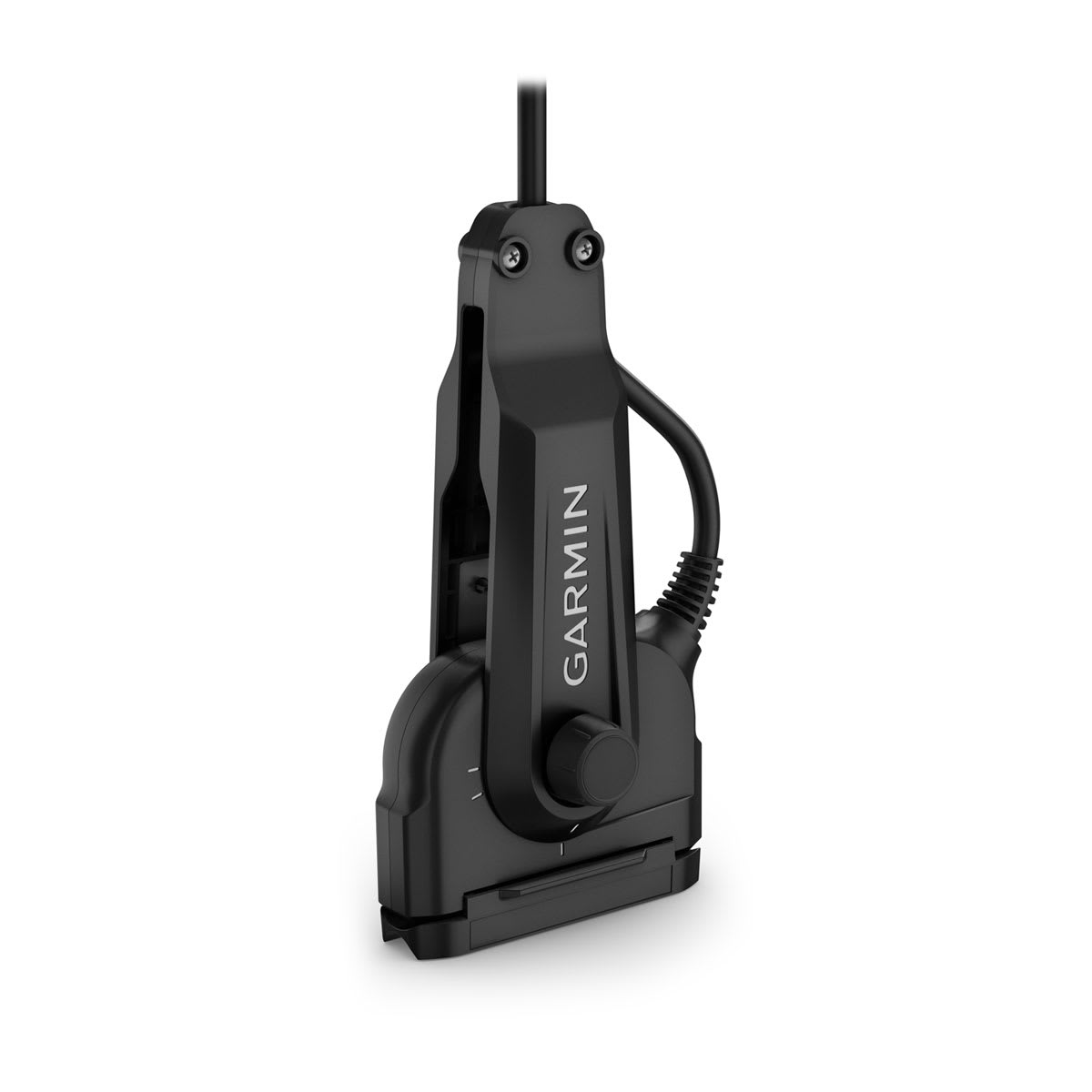

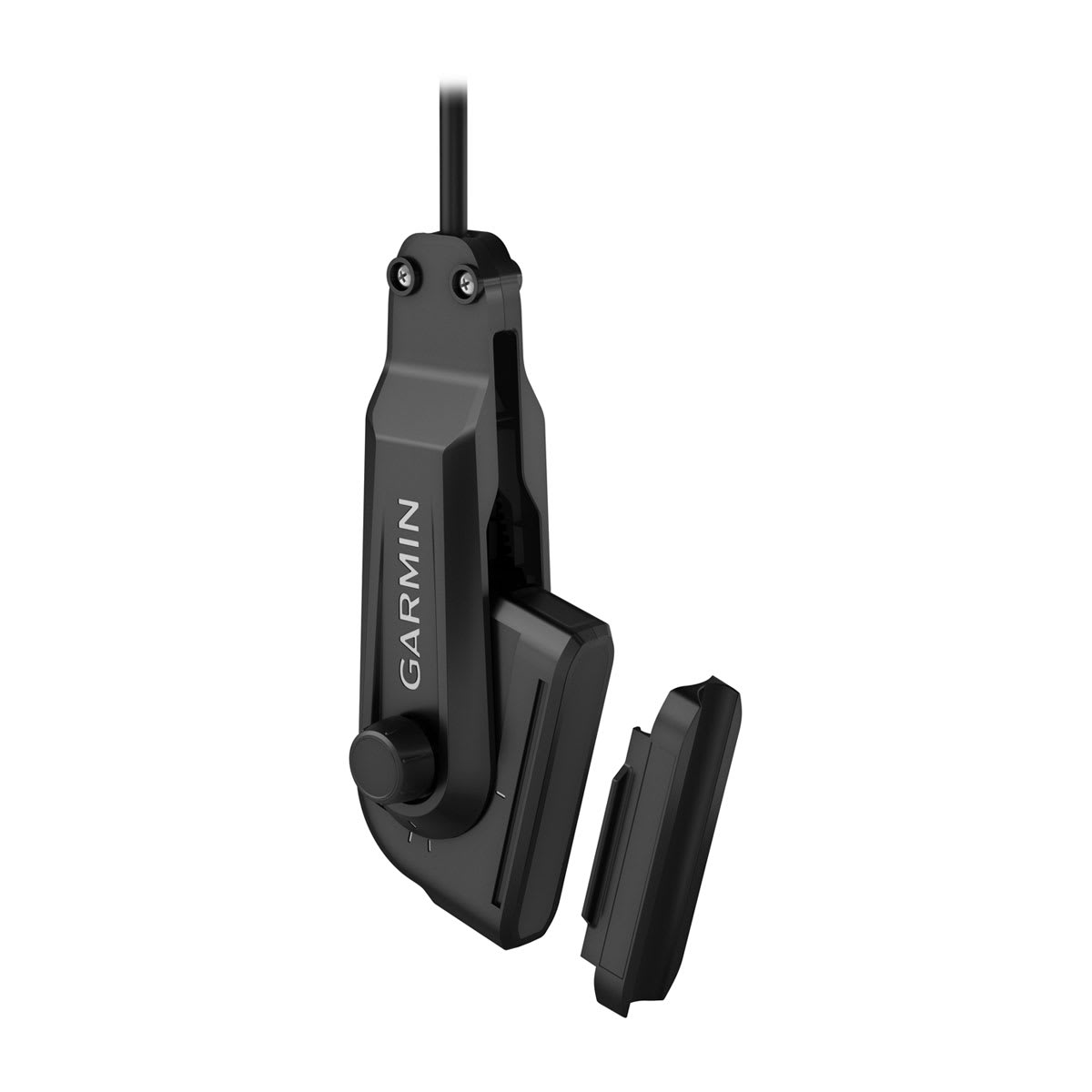

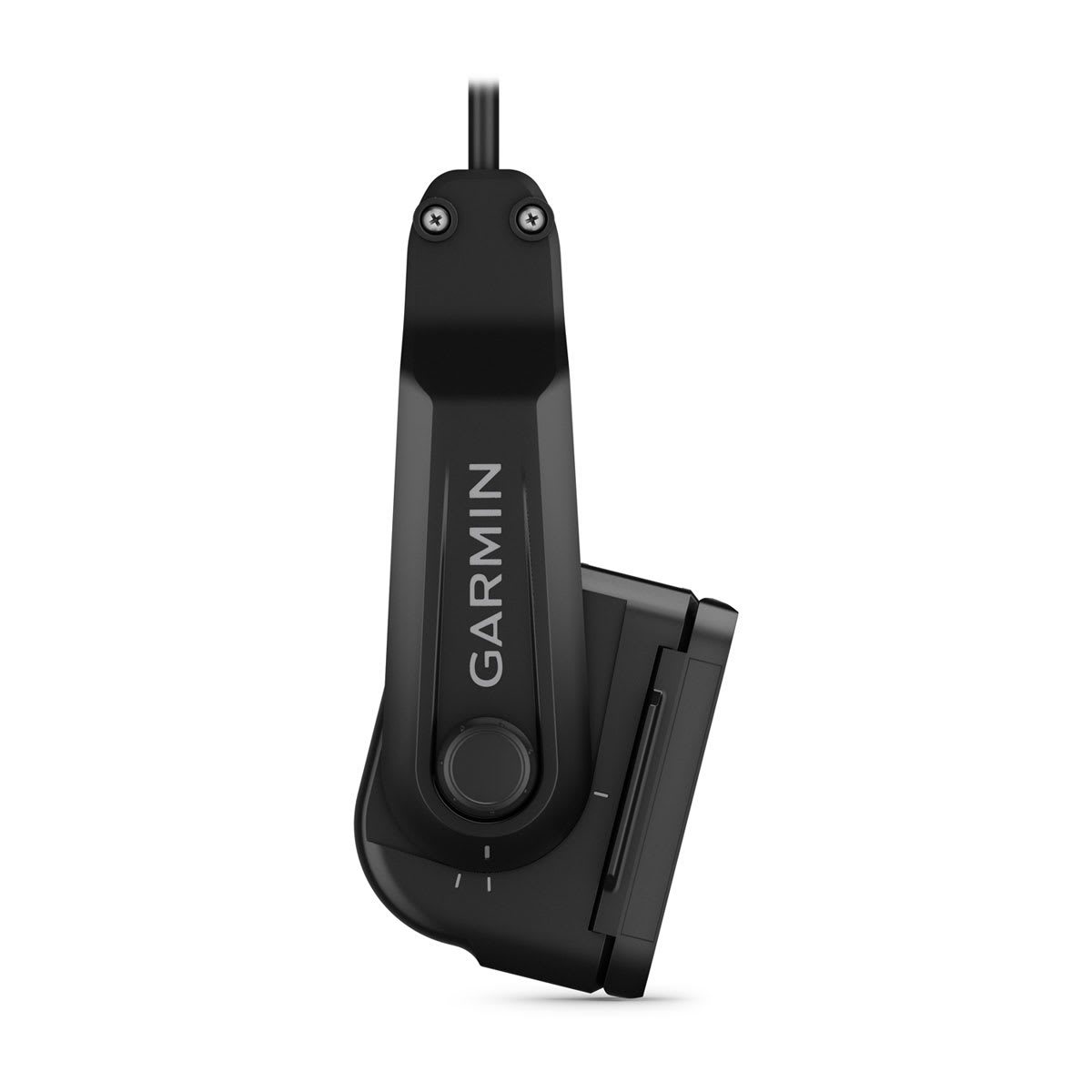

Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator — which eliminates the need for a bulky pole mount — as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVü™ Forward and LiveVü™ Down scan modes.
| General | |
| Transducer beamwidth | With lens: 12° x 120°<br>Without lens: 57° x 120° |
| Transducer cable length | 9.8' (3 m) |
| Dimension | 9.1” x 4.1” x 2.5” (23.1 x 10.4 x 6.4 cm) |
| Weight | 2.60 lbs (1.18 kg) |
| Temperature range | Operating: 0° C to 40° C |
| Electrical Features | |
| Power input | 10-32 V |
| Fuse | 4A |
| Sonar Features | |
| Frequency | 417 kHz |
| Transmit power | 48 W |
| Maximum depth | 300' |
| Connections | |
| Garmin Marine Network Ports | 1 (standard connector) |
| Sonar Modes | |
| LiveVü Down | ✓ |
| LiveVü Forward | ✓ |
| Traditional sonar source | ✓ |
