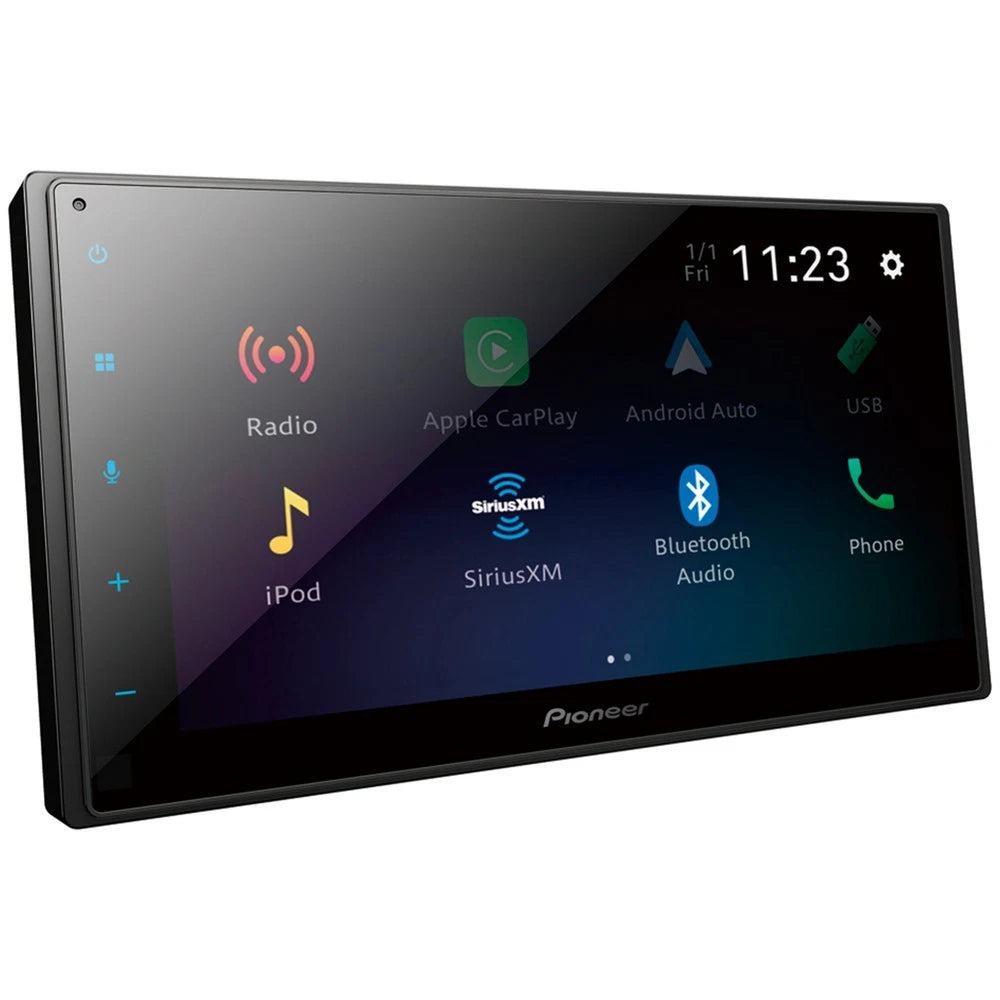

The Pioneer DMH-1800NEX is a versatile 6.8-inch double-DIN digital multimedia receiver engineered for a smartphone-driven lifestyle. As a "mechless" digital media receiver, it omits traditional CD/DVD drives to focus entirely on advanced smartphone integration, high-resolution audio playback, and a smooth, customizable user interface.
The Pioneer DMH-1800NEX functions as an in-dash hub that upgrades your vehicle's cockpit with modern tech. It is built around a vibrant, capacitive touchscreen that reacts effortlessly to touch inputs.
Its standout features are wired Apple CarPlay and wired Android Auto integration. These programs map your smartphone's navigation, messaging, calling, and music apps directly onto the dashboard screen. Voice recognition technologies like Siri Eyes Free and Google Voice Assistant let drivers operate the system hands-free to reduce distractions. Beyond smartphone pairing, the receiver boasts customizable multi-color lighting, a backup camera interface with guided parking lines, and satellite radio readiness.
Technical Description & Specifications
The technical framework of the DMH-1800NEX spans advanced display optics, a multi-channel amplifier, and robust peripheral connectivity:
Display & Visuals
-
Screen Size & Type: 6.8-inch WVGA Capacitive Touchscreen.
-
Illumination: LED backlight with customizable multi-color lighting options, brightness control, and an illumination timer/dimmer.
-

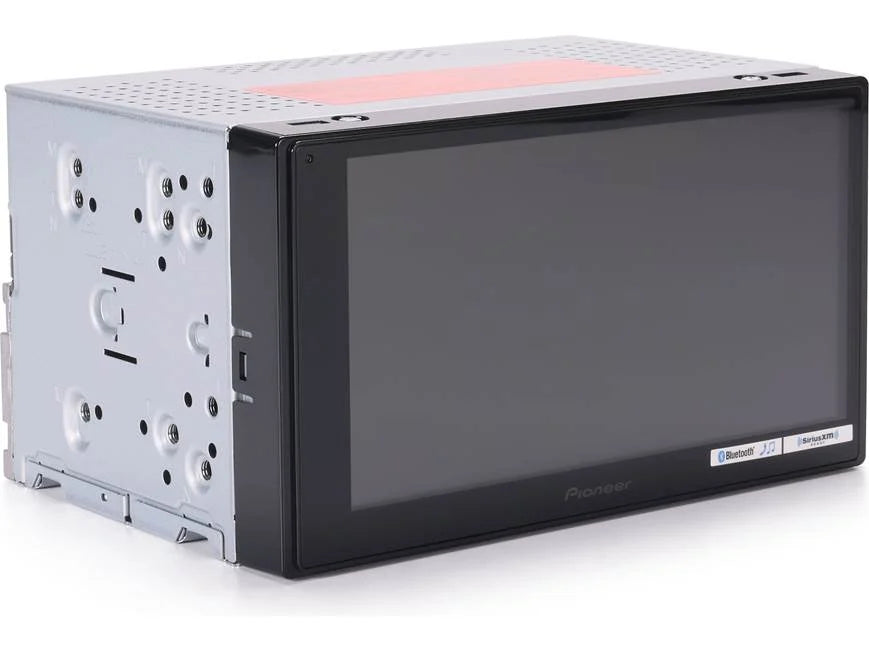

Chassis Size: Standard Double-DIN (2-DIN) configuration.
Smartphone Integration & Wireless
-

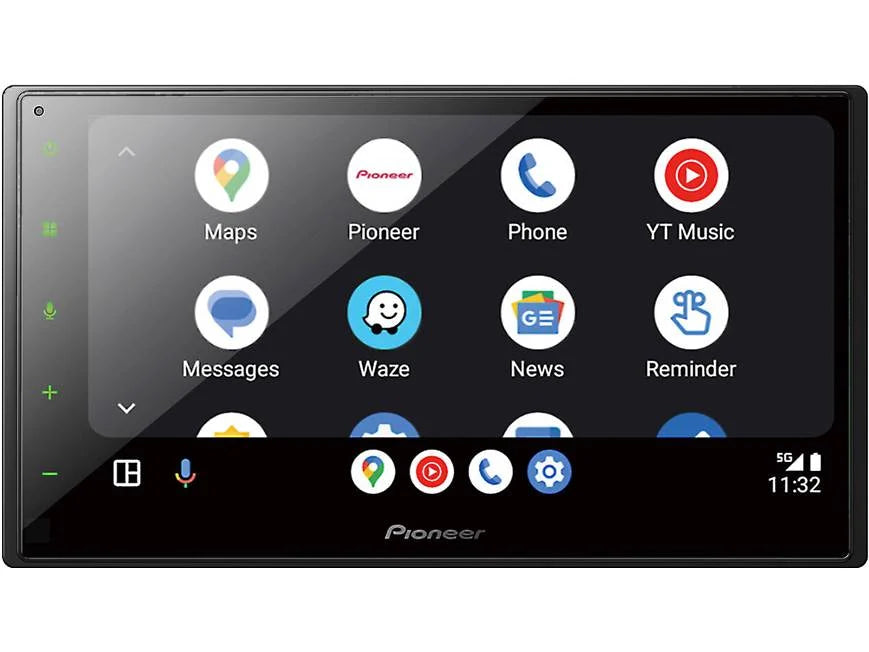

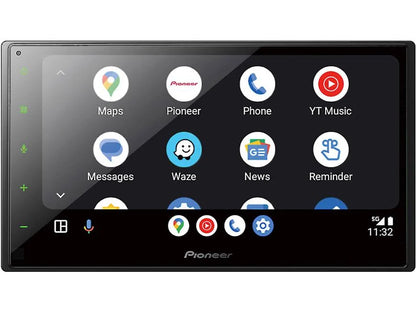

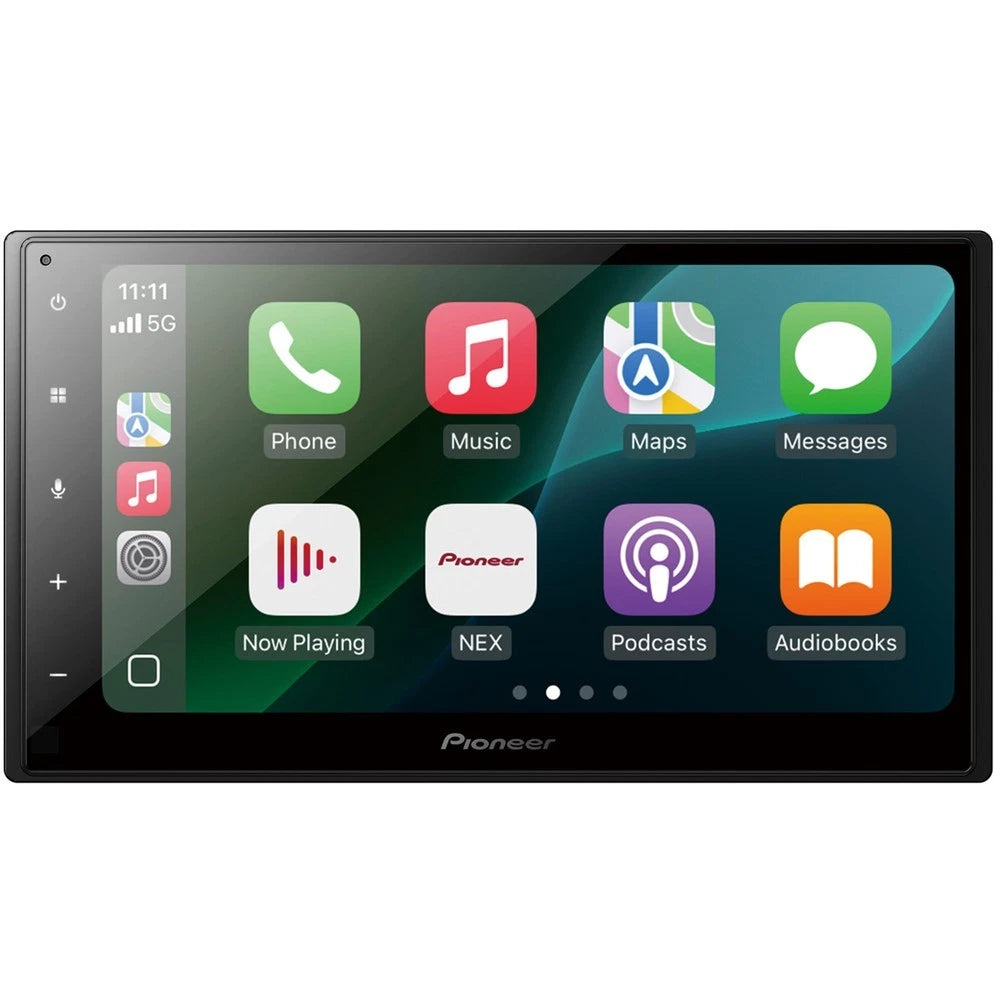

Smart Ecosystems: Apple CarPlay (Wired via rear USB) and Android Auto (Wired via rear USB).
-
USB Mirroring: Supports screen mirroring for select Android smartphones.
-

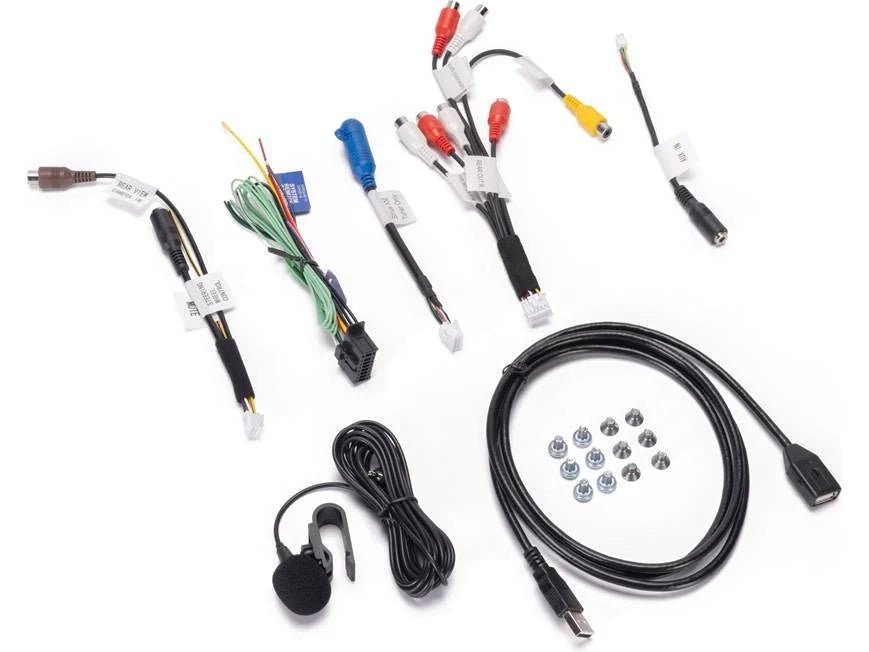

Bluetooth Audio & Communication: Built-in Bluetooth with an included external microphone.
-
Hands-Free Profile (HFP 1.6) and Phone Book Access Profile (PBAP 1.0).
-
Advanced Audio Distribution Profile (A2DP 1.3) and Audio/Video Remote Control Profile (AVRCP 1.6).
Audio Processing & Amplification
-
Power Output: Peak power output of 50 watts x 4 channels (at 4 ohms); continuous RMS power output of 22 watts x 4 channels.
-
Equalization: 13-band graphic equalizer featuring 7 factory-preset curves for tailored acoustics.
-
Preamp Outputs: 6-channel (3 sets) of 2-volt RCA preamp outputs (Front, Rear, and Subwoofer control).
-
Crossover Network: Integrated high-pass and low-pass crossover filters.
-
High-Res Support: Compatible with high-resolution FLAC audio files up to 192kHz/24-bit.

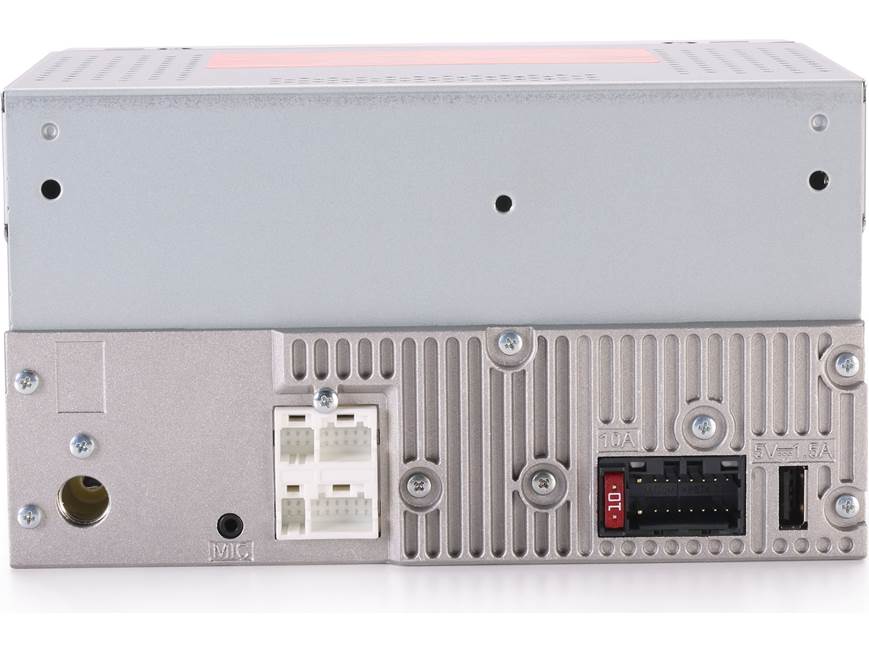

Physical Inputs & Outputs
-
USB Interface: Rear-facing USB port utilized for media playback, smartphone connectivity, and charging.
-
Audio/Video Inputs: Rear 3.5mm A/V mini-jack input.
-

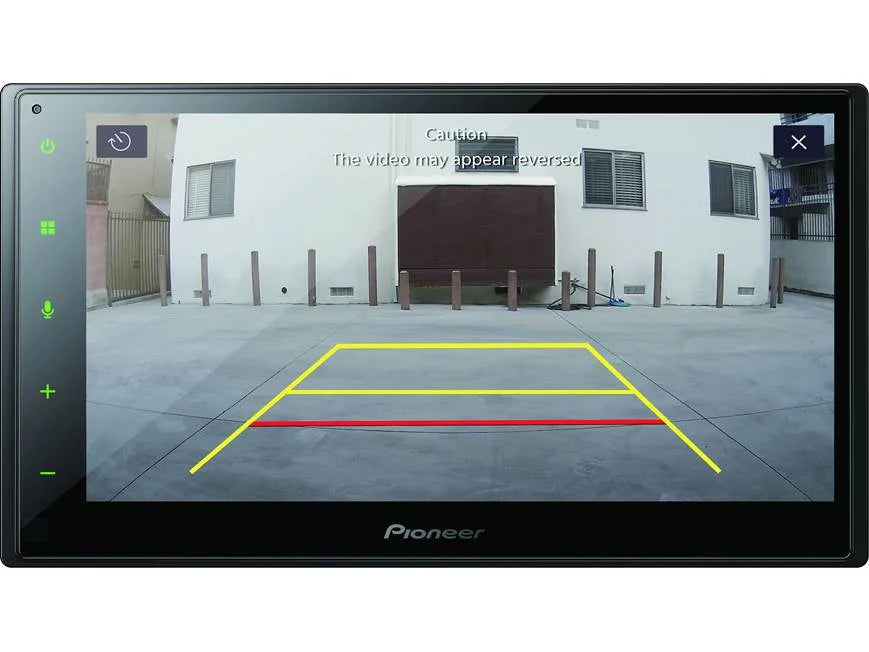

Camera Connectivity: Dedicated rear-view backup camera input supporting full-screen display and adjustable parking grids.
-
Video Output: RCA video output to route video feeds to external screens (such as rear headrest monitors).
-
Steering Wheel Control: Includes a dedicated wired remote input to retain factory steering wheel controls using an optional, third-party interface adapter.
Supported Media Formats
-
Audio Playback: MP3, WMA, AAC, WAV, and FLAC.
- Video Playback via USB: .avi, .mp4, .mkv, .mov, .flv, .wmv, and others.
