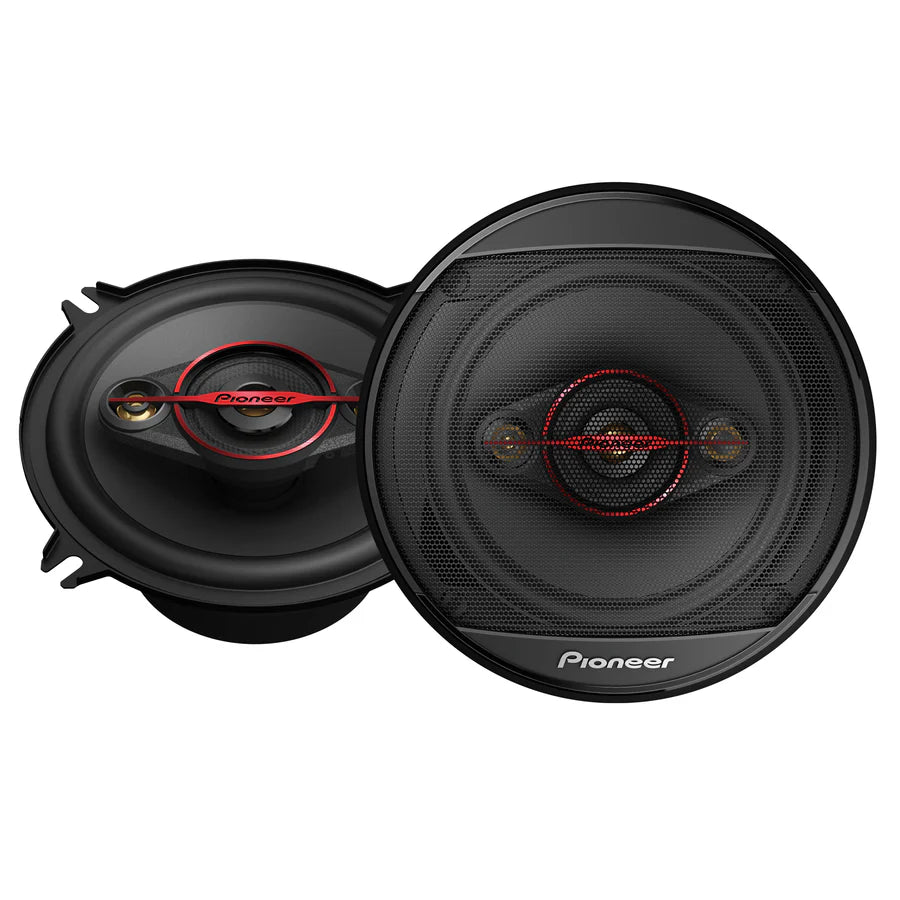

Pioneer TS-501M

Pioneer TS-501M

Out of stock

5-1/4" - 4-way 300 W Max Power, 11mm Tweeter and 11mm Super Tweeter and 1-5/8" Cone Midrange - Coaxial Speakers (pair)

  • price-tag logoNew Launch
$48.00
$48.00
Save: $-48.00 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories
The TS-501M speaker offers a powerful audio experience with a maximum output of 300W and 50W RMS per speaker. It features an 11mm tweeter and super tweeter for clear high frequencies, and a 1-5/8" cellulose fiber cone midrange for rich mid-tones. The 5-1/4" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone ensures durability and excellent sound quality. The included protective mesh grille adds a layer of protection and style, while the lightweight elastic polymer surround and heat-resistant voice coil enhance reliability. The box contains two speakers, providing a complete audio solution.

A SERIES

The highly efficient design of the Pioneer A Series speakers intentionally matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics, with dynamic, high-impact bass that lets you hear and feel the music. Pioneer's OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response optimized for automotive applications, where one or more speakers are often aimed away from the listeners' ears. The A Series lineup enhances audio details and improves acoustic performance.

OPEN & SMOOTH

Pioneer’s OPEN & SMOOTH sound concept ensures a seamless and smooth transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response. This design is optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

  • 300W max power / 50W RMS per speaker
  • 11mm Tweeter and 11mm Super Tweeter
  • 1-5/8" cellulose fiber cone midrange
  • 5-1/4" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
  • Protective mesh grille included
  • Light weight elastic polymer surround
  • Heat resistant voice coil
  • Box contains 2 speakers

Specification:

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts
50 Watts
Frequency Response
44 Hz to 52 kHz
Maximum Peak Power Handling - Watts
300 Watts
Nominal Impedance - Ohm
4-Ohm
Sensitivity (1W/1m)
89dB (+- 1.5dB)
System-Type
4-way coaxial,Twin Polyethylene terephthalate (PET) dome - Tweeter
FEATURES
Midrange
1-5/8" cellulose fiber cone midrange
Tweeter
11 mm (Super) and 11 mm
MATERIALS
Basket Material
Iron Plate Press
Cone Material
IMPP - Composite
Cone Material-Midrange
Cellulose fiber
Magnet Material
Ferrite
Magnet Weight
7.41 oz
Surround Material
Elastic Polymer
Voice Coil Bobbin
Glass imide
Voice Coil wire
Copper
